Description
MATREXX 55 MESH ADD-RGB 4F
Matrexx 55 Mesh ADD-RGB 4F is a high airflow case that comes with an included A-RGB lighting system and full size tempered glass.
4MM THICK TEMPERED GLASS

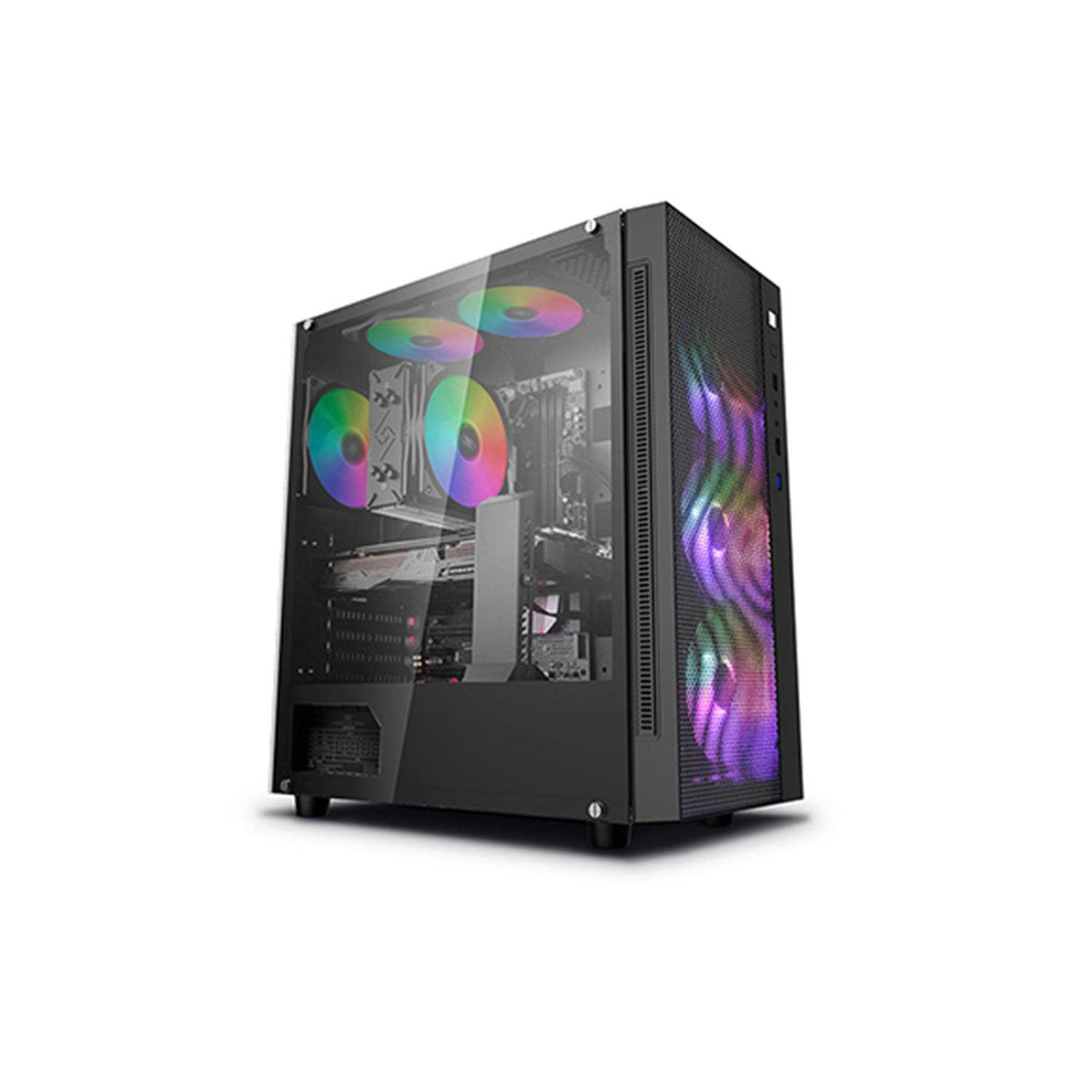

Full sized 4mm thick, tempered glass side panel gives the case a unique look to perfectly show off your inner structure
MASSIVE COOLING COMPATIBILITY
Optimized airflow is guaranteed with large air intakes on both sides of the front panel and an air exhaust in the back and on the top, to keep your components cool
ADD-RGB LIGHTING SYSTEM INCLUDED
4 ADD-RGB fans are included in the system, as well as 2 control approaches.
CASE BUTTON CONTROL：
Connect fans to case control module, and power up with PSU SATA cable, then control with RGB button.
MOTHERBOARD CONTROL：
Connect fans to motherboard header and use software to control.( Please note: When using motherboard control, disconnect PSU SATA cable. )
COOLING COMPATIBILITY:
Supports the installation of liquid cooler:
1. 120/240mm radiator liquid cooling system on the top
2. 120mm radiator liquid cooling system at the rear
3. 120/140/240/280/360mm radiator liquid cooling system at the front
Supports the installation of cooling fans:
1. 2×120/ 2×140mm fan on the top
2. 1×120mm fan at the rear
3. 3×120mm/2×140mm fan at the front
Specifications :
| Motherboard | Mini-ITX/Micro-ATX/ATX/E-ATX |
| Case Type | Middle Tower |
| Materials | ABS+SPCC+Tempered Glass |
| Product Dimensions | 435×210×478mm(L×W×H) |
| Carton Dimensions | 523X277X514mm |
| Net Weight | 7.08Kg |
| Gross Weight | 7.6Kg |
| 5.25' Drive Bays | 0 |
| 3.5' Drive Bays | 2 |
| External 3.5'' Drive Bays | 0 |
| 2.5' Drive Bays | 4 |
| I/O Ports | USB2.0×2、USB3.0×1、Audio×1、Mic×1 |
| Expansion Slots | 7 Slots |
| Power Supply Type | ATX PS2 （Length less than 170mm） |
| Cable Management | 23mm clearance |
| CPU Cooler Height Limit | 165 mm |
| VGA Length Limit | 370mm |
| Cooling Fans Support | Optional: Front:140mm×2/120mm×3; Top:140mm×2/120mm×2 Rear: 1×120mm Pre-installed:Front:3×120mm A-RGB fan; Rear:120mm x1 A-RGB fan |
| Liquid Cooler Support | Front:120/140/240/280/360mm;Top:120/240mm; Rear:120mm |
