Description
MATREXX 55 MESH
As a mid-tower case, the Matrexx 55 Mesh offers abundant space that supports up to an E-ATX motherboard and has optimized airflow keeps your components cool.

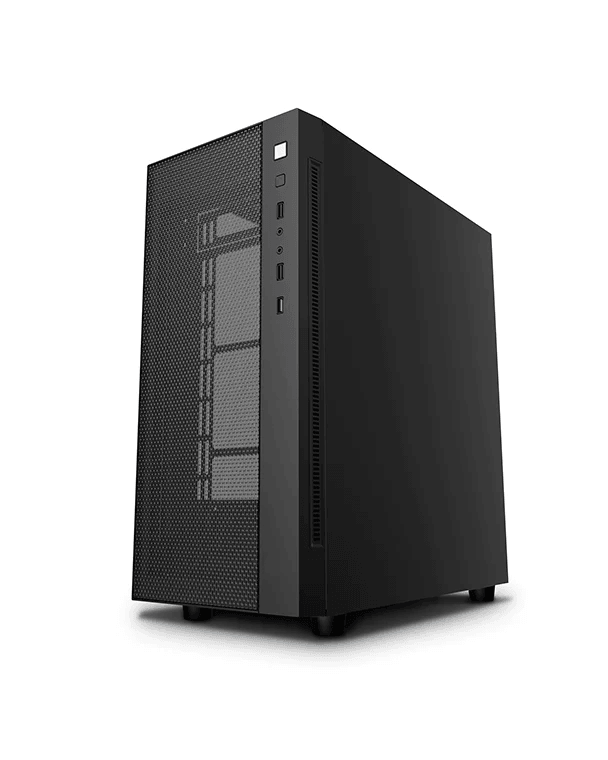

HIGH AIRFLOW DESIGN
In terms of design, MATREXX 55 Mesh features a meshed front panel and features a dust filter.With a meshed front panel, the intake channel provides abundant airflow for your system and maintains your entire build at a steady, sustainable temperature. Matrexx 55 Mesh solves all your thermal issues

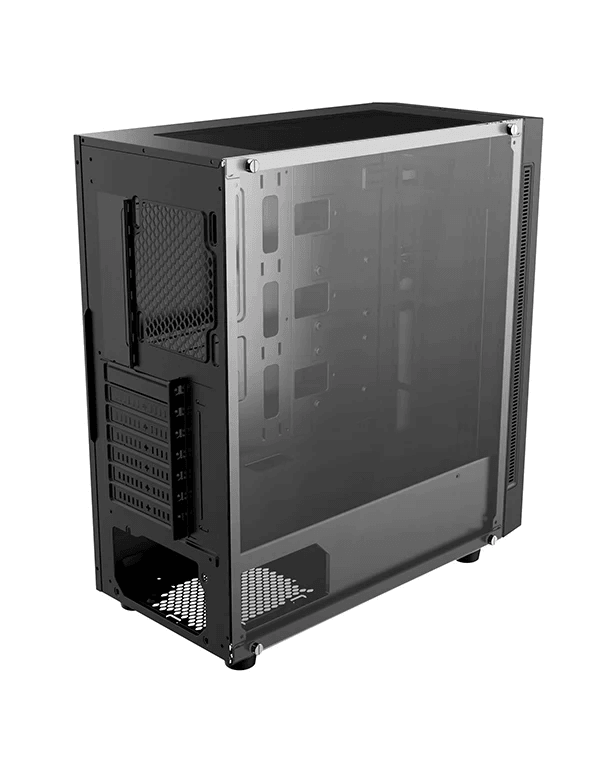

4mm Tempered Glass
Full sized 4mm thickness, tempered glass side panel gives the case a unique look to perfectly show off your inner structure
Massive Cooling Compatibility
Optimized airflow is guaranteed with large air intakes both sides of the front panel and an air exhaust in the back and on top, to keep your components cool
PSU Shroud Added
The Matrexx 55 Mesh version is equipped with a PSU Shroud to hide the cables and to keep the system neat and tidy
Technical Spec
| Motherboard | Mini-ITX/Micro-ATX/ATX/E-ATX |
| Case Type | Middle Tower |
| Materials | ABS+SPCC+Tempered Glass |
| Product Dimensions | 435×210×478mm(L×W×H) |
| Carton Dimensions | 523X277X514mm |
| Net Weight | 6.59Kg |
| Gross Weight | 7.6Kg |
| 5.25" Drive Bays | 0 |
| 3.5" Drive Bays | 2 |
| External 3.5'' Drive Bays | 0 |
| 2.5" Drive Bays | 4 |
| I/O Ports | USB2.0×2、USB3.0×1、Audio×1、Mic×1 |
| Expansion Slots | 7 Slots |
| Power Supply Type | ATX PS2 （Length less than 170mm） |
| Cable Management | 23mm clearance |
| CPU Cooler Height Limit | 165 mm |
| VGA Length Limit | 370mm |
| Cooling Fans Support | Optional: Front:140mm×2/120mm×3; Top:140mm×2/120mm×2; Rear:1×120mm; Pre-installed:none |
| Liquid Cooler Support | Front:120/140/240/280/360mm;Top:120/240mm; Rear:120mm |
| EAN | 6933412714057 |
| P/N | DP-ATX-MATREXX55-MESH |
