Description
COMPACT 650W POWER FOR SFF BUILDS

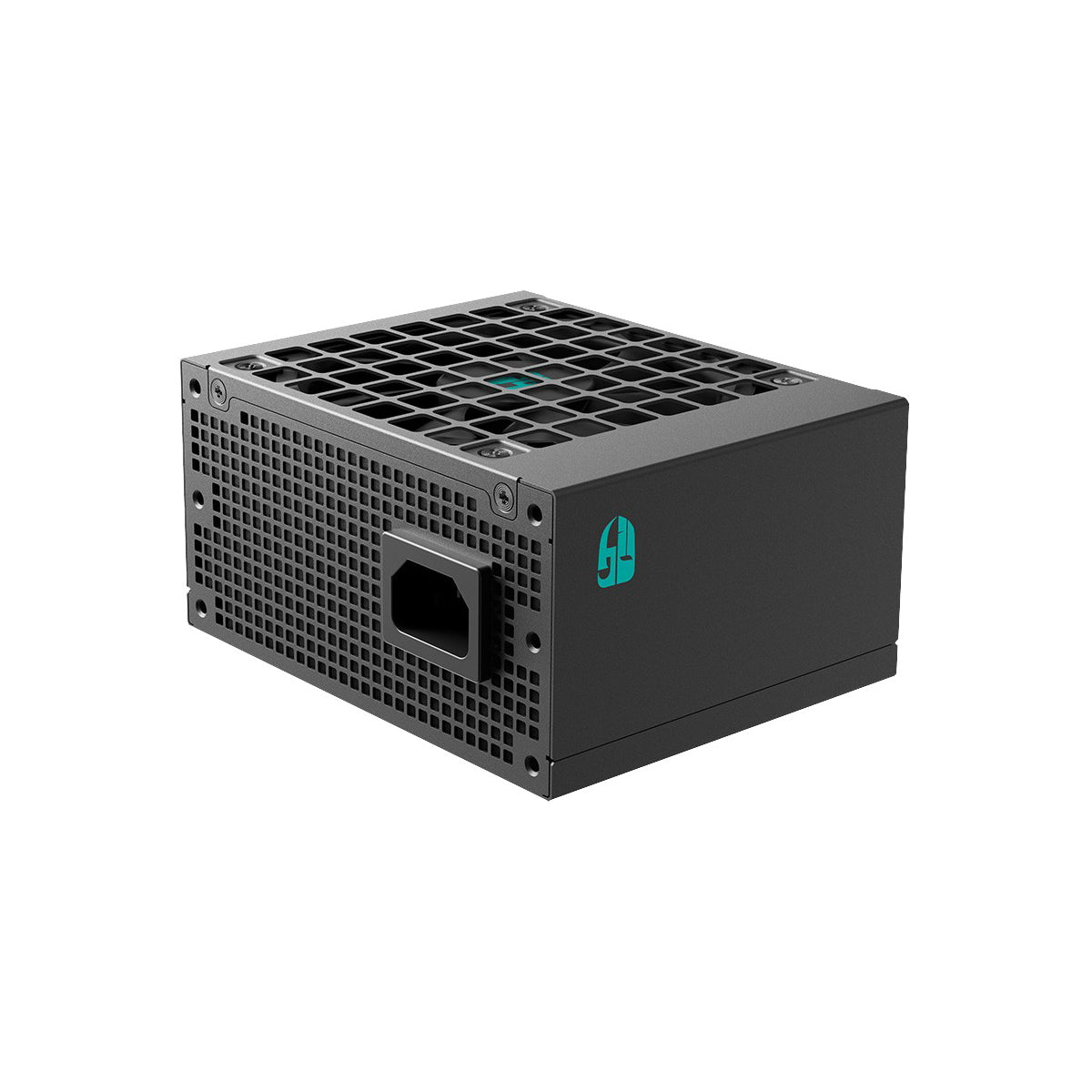

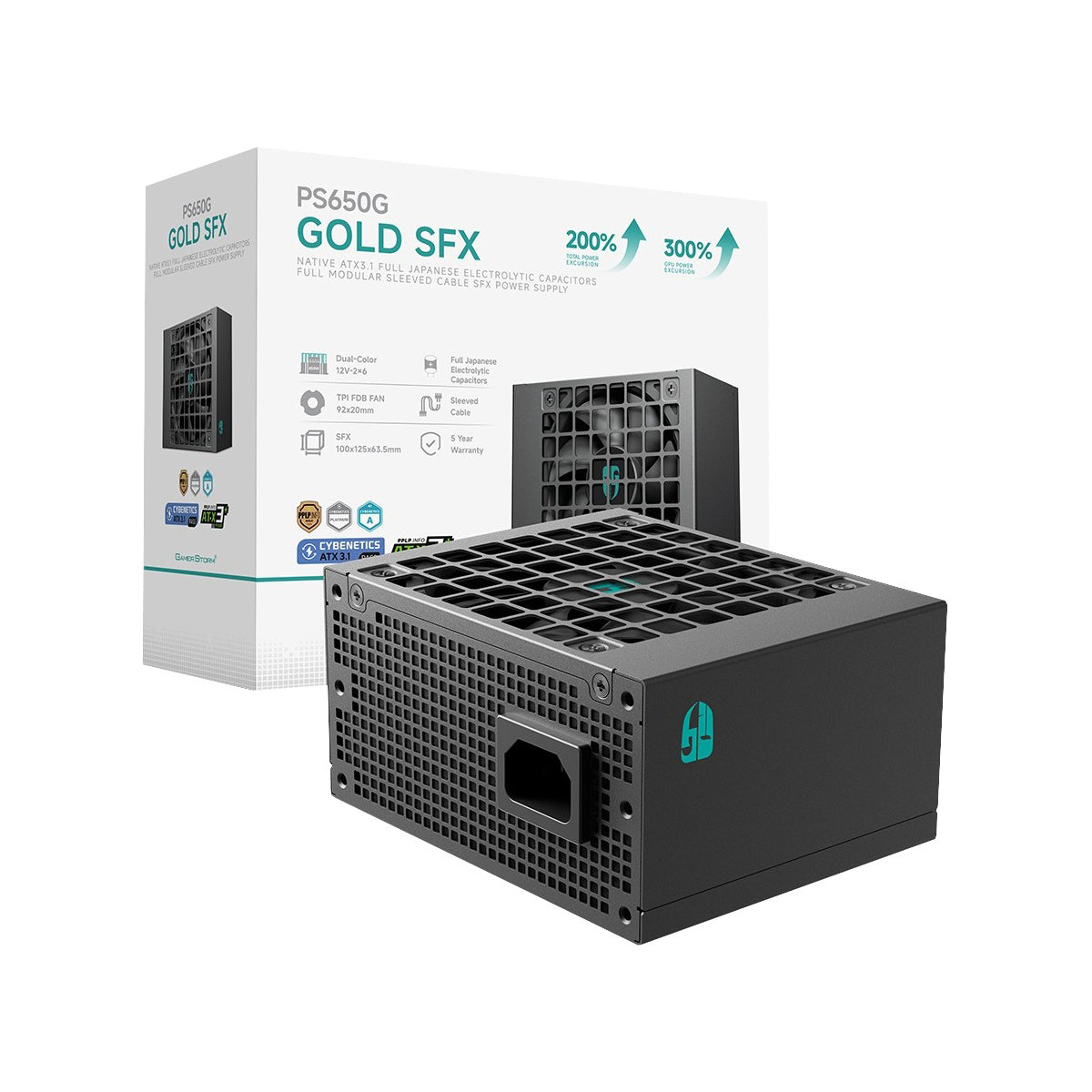

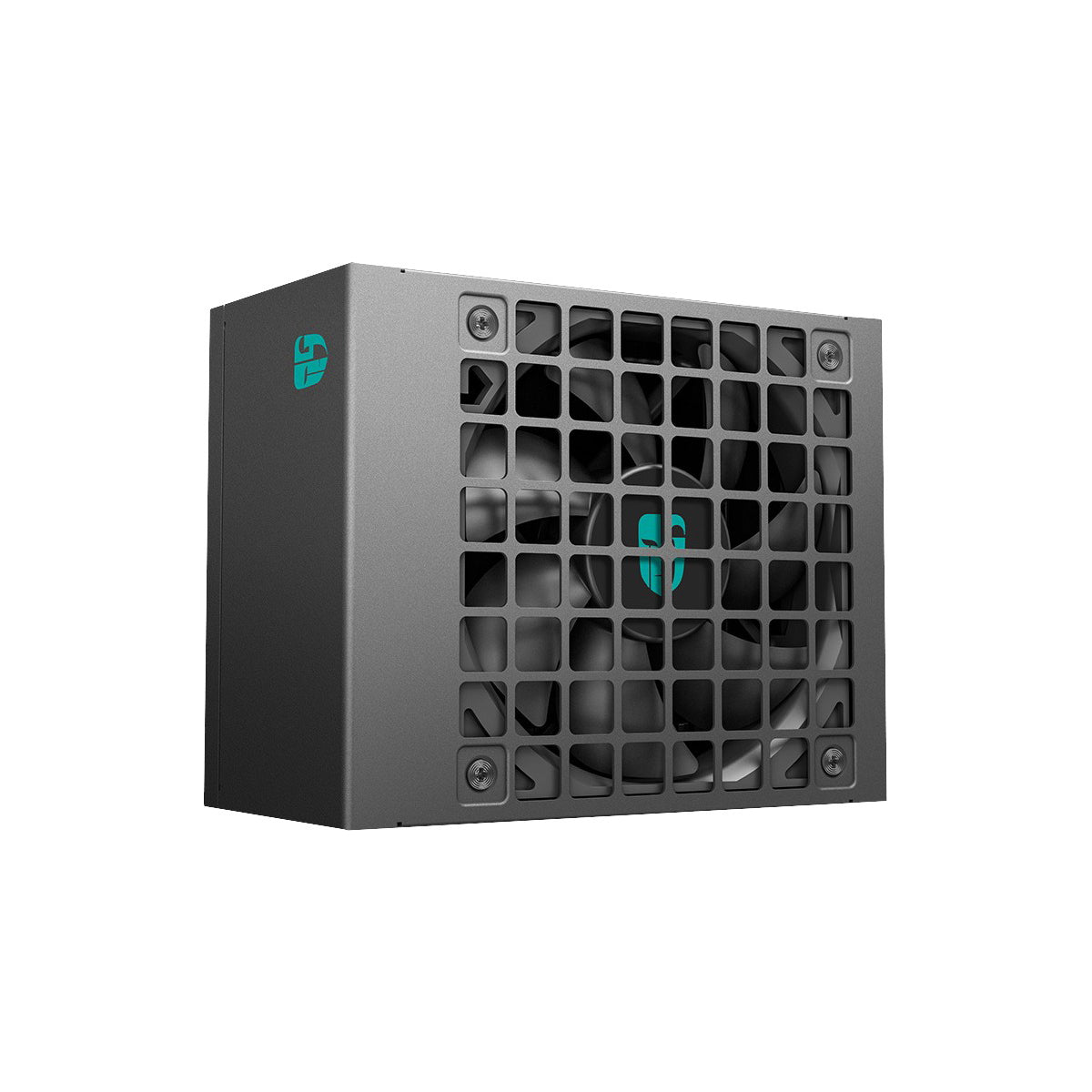

Power your compact PC with the DeepCool PS650G 650W Gold Fully Modular SFX Power Supply, designed to deliver reliable and efficient power in a space-saving SFX form factor. Supporting SFX12V V4.1 and ATX12V V3.1, it combines a compact 125mm chassis with a fully modular design, making it well suited for modern small form factor builds.
EFFICIENT & RELIABLE POWER DELIVERY
The PS650G is Cybenetics Platinum certified for efficiency and uses an Active PFC + Half Bridge SRC LLC + DC to DC topology for stable power conversion. Full Japanese electrolytic capacitors provide a dependable foundation for long-term operation.
COMPACT SFX DESIGN

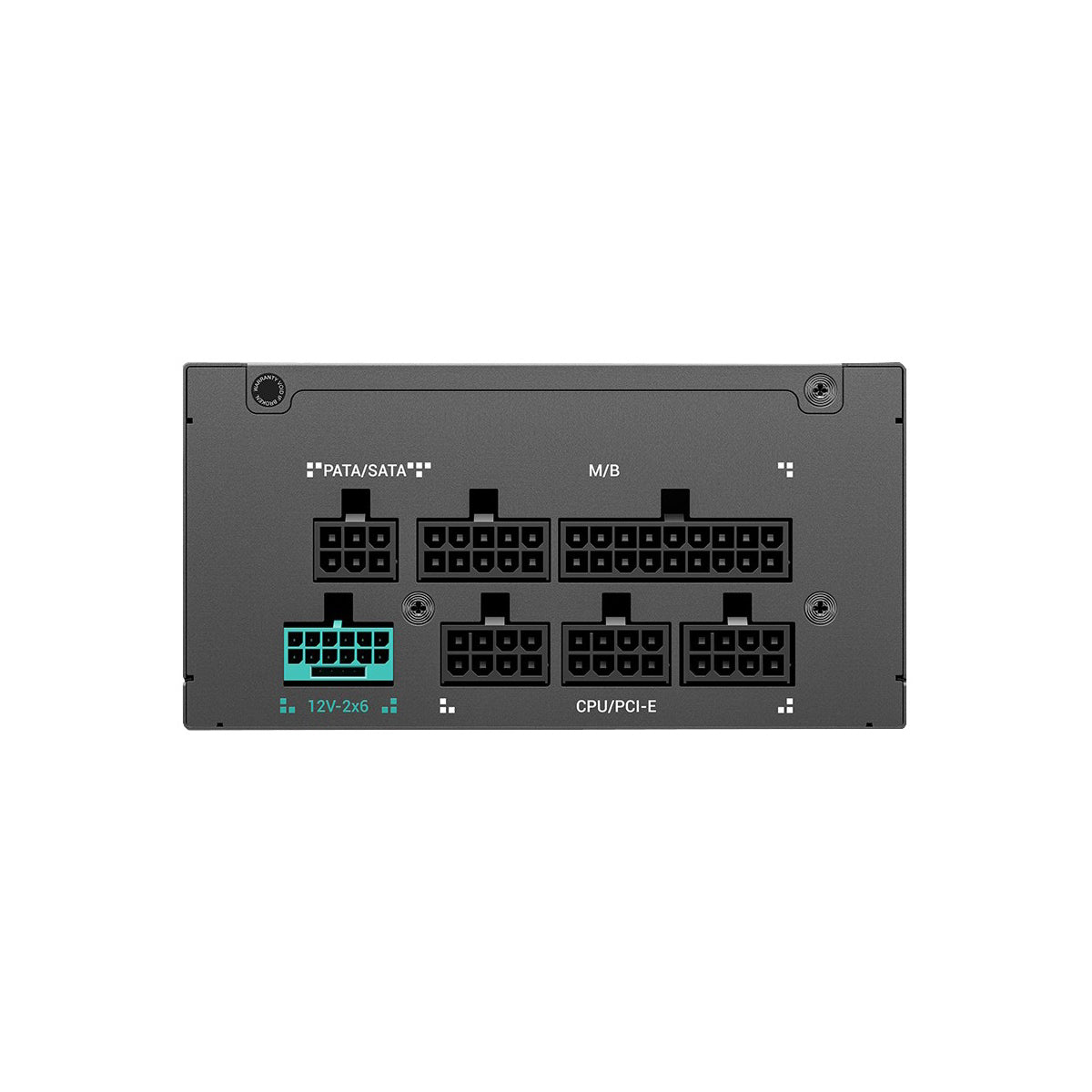

Measuring just 125 × 100 × 63.5mm, the compact SFX form factor makes the PS650G suitable for space-conscious PC configurations. Its fully modular design also allows you to connect only the cables required for your build, helping reduce unnecessary cable clutter.
FDB FAN FOR CONTROLLED COOLING

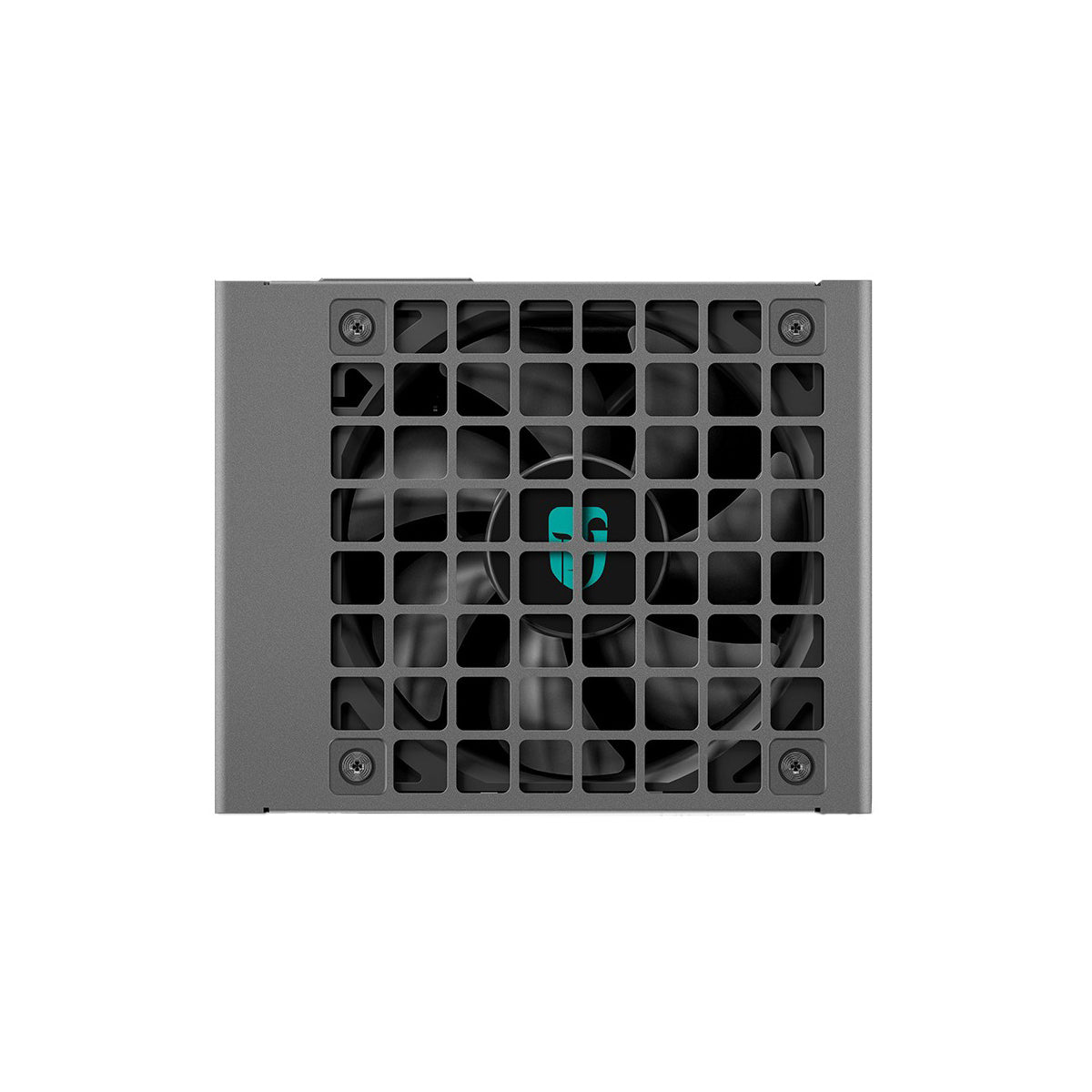

A 92mm Fluid Dynamic Bearing (FDB) fan provides cooling for the power supply while supporting smooth and reliable operation.
COMPREHENSIVE PROTECTION
The PS650G incorporates multiple protection mechanisms to help safeguard your system, including Over Power Protection (OPP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), Over Current Protection (OCP), Under Voltage Protection (UVP), Surge and Inrush Protection (SIP), and No Load Operation (NLO).
BUILT FOR LONG-TERM USE
With a 100,000-hour MTBF, a minimum 16ms hold-up time at 80% load, and a 5-year warranty, the PS650G is designed to provide
Specifications:
| Model | PS650G |
| Model No | PS650G-FE |
| Total Output | 650W |
| Type | SFX12V V4.1 & ATX12V V3.1 |
| Product Dimensions | 125×100×63.5mm(WxLxH) |
| Efficiency certification | Cybenetics Platinum /PPLP Gold |
| Fan Size | 92x92x20mm(WxLxH) |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
| Capacitors | Full Japanese Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0~40C |
| Regulatory | CE/CCC/TUV-RH/KC/RCM/CAN ICES(B)/NMB(B)/EAC |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/ RoHS/Triman/EAC RoHS |
| MTBF | 100,000 Hours |
| Warranty | 5Years |
