Description
AMD® B450 Chipset
• Socket AM4 Processor
• Dual DDR4, 2*DIMM
• M.2 Slot
• Onboard Gigabit Ethernet Lan
• Onboard 5.1 Channel HD Audio
| Chipset | AMD® B450 Chipset |
| Processor Socket | Socket AM4 Processor |
| Memory | Dual DDR4, 2 DIMM slots |
| M.2 Slot | Available |
| Ethernet | Onboard Gigabit Ethernet LAN |
| Audio | Onboard 5.1 Channel HD Audio |
| Expansion Slots | 1 x PCIEX16 3.0, 1 x PCIEX1 3.0 |
| Internal Connectors | Power: 1 x 24-Pin, 1 x 4-Pin |
| Storage: 4 x SATA III (6Gb/s) | |
| Cooling: 1 x CPU Fan, 1 x System Fan | |
| I/O: 1 x Front Panel, 1 x Front Audio | |
| 1 x Clear CMOS jumper | |
| 1 x USB 3.0 (Front), 1 x USB 2.0 (Front) | |
| Form Factor | Micro ATX |
| Dimension | 220mm x 175mm |
| Rear Panel Connectors | 1 x PS/2 Keyboard/Mouse |
| 2 x USB 3.2 Ports | |
| 2 x USB 2.0 Ports | |
| 1 x HDMI Port | |
| 1 x VGA Port | |
| 1 x LAN Port | |
| 3 x Audio Jacks | |

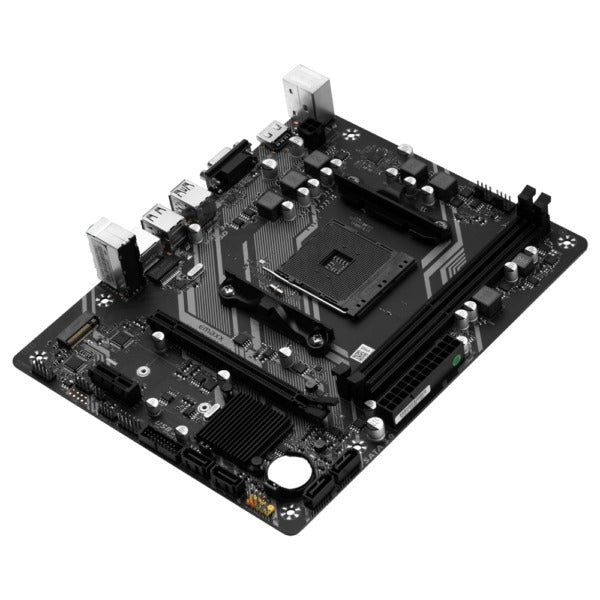

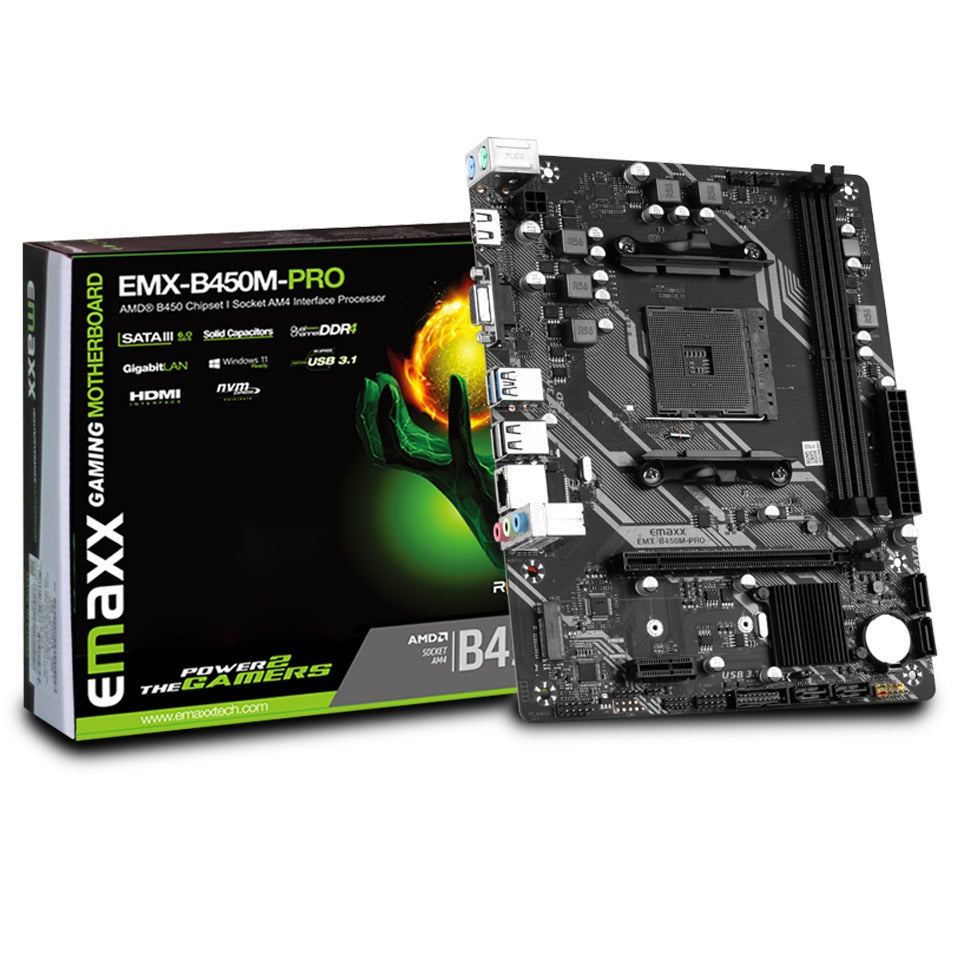

| Included in the Box | 1 EMX-B450M-PRO Motherboard |
| 1 User Manual | |
| 1 SATA cable | |
| 1 I/O Shield |
