Description

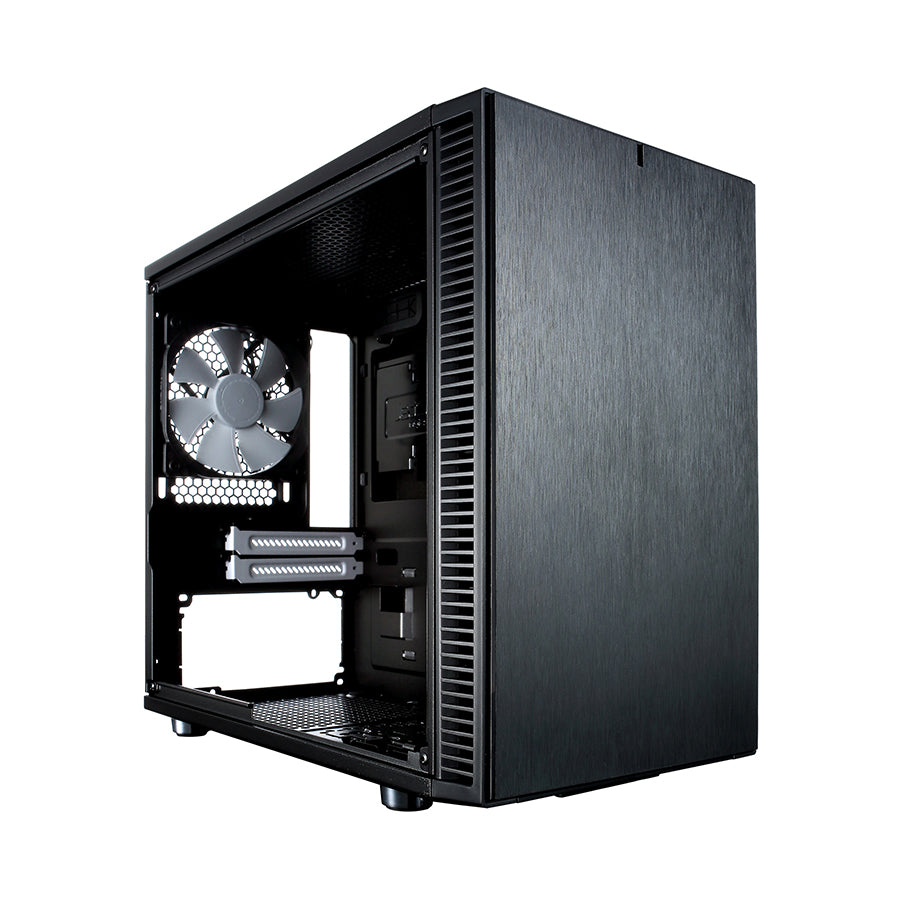

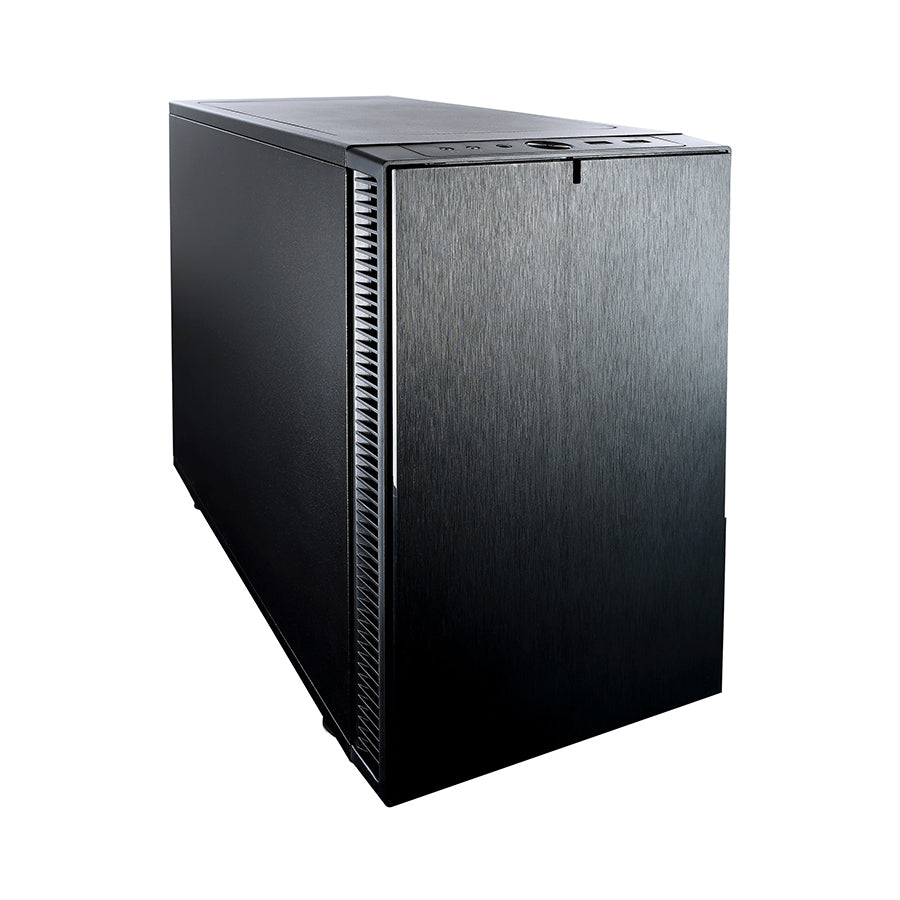

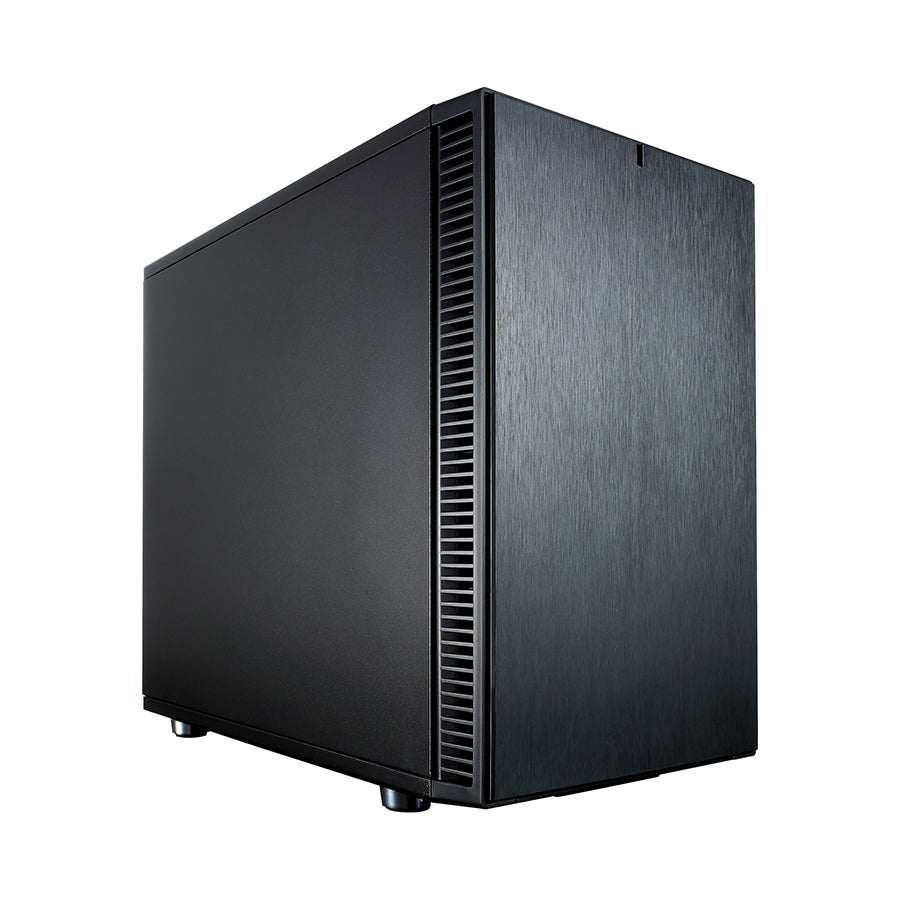

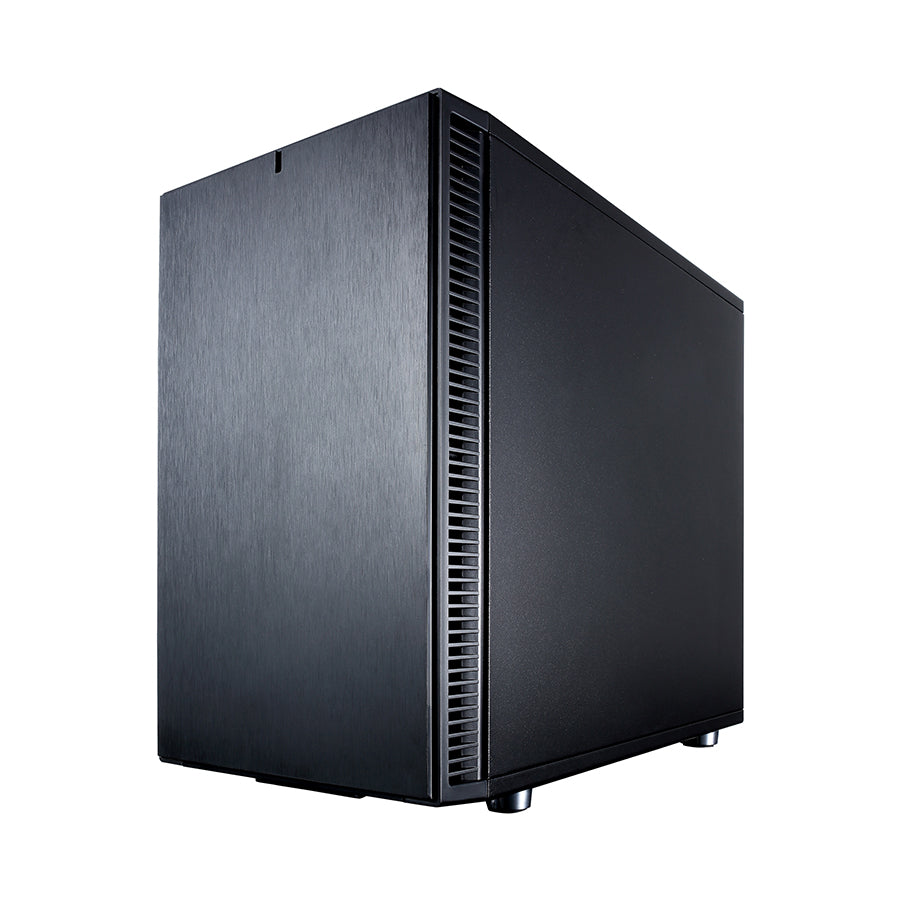

Build a powerful, compact PC without compromising on features with the Fractal Design Define Nano S Mini-ITX Computer Case. Designed for enthusiasts who want the flexibility of a larger ATX or micro-ATX-style layout in a smaller footprint, the Define Nano S combines a spacious interior, sound-dampening materials, and versatile cooling support in a distinctive tower-style design.
Inspired by the internal layout of the Define S, the Define Nano S accommodates full-size components within its Mini-ITX form factor. Its open interior promotes unobstructed airflow from the front intake toward the rear exhaust, while support for multiple air and liquid cooling configurations gives builders the flexibility to create a performance-focused system.
With Fractal Design's signature sound-dampening materials and ModuVent™ technology, the Define Nano S is built for users who value quiet operation alongside enthusiast-level hardware and cooling options.
Key Features
-
Compact Mini-ITX Form Factor – Provides a space-efficient foundation for enthusiast PC builds.
-

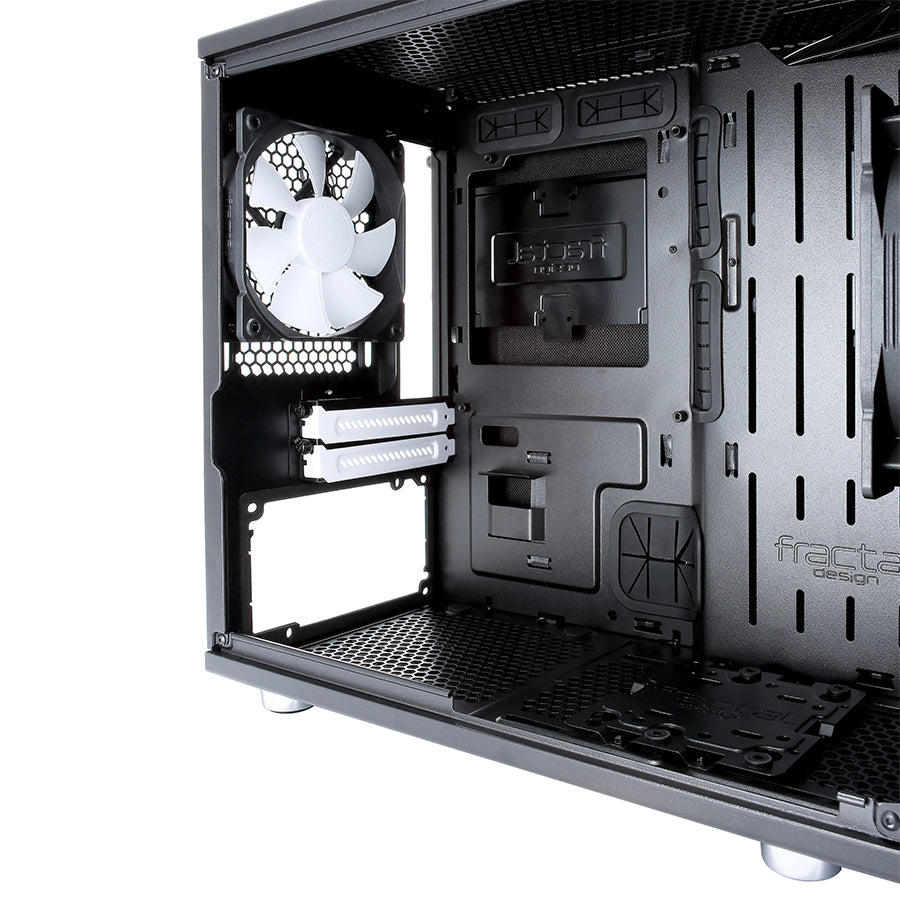

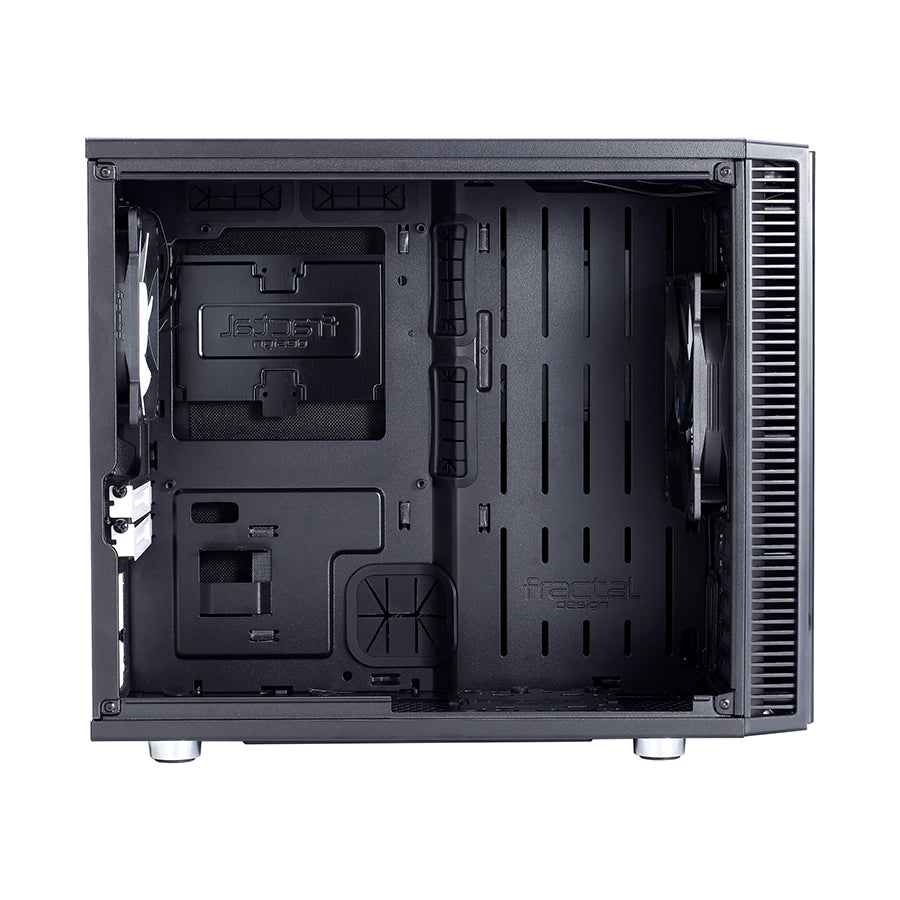

Spacious Internal Layout – Designed to accommodate full-size components despite its compact exterior.
-
Sound-Dampening Materials – Helps reduce noise from internal components for a quieter computing experience.
-

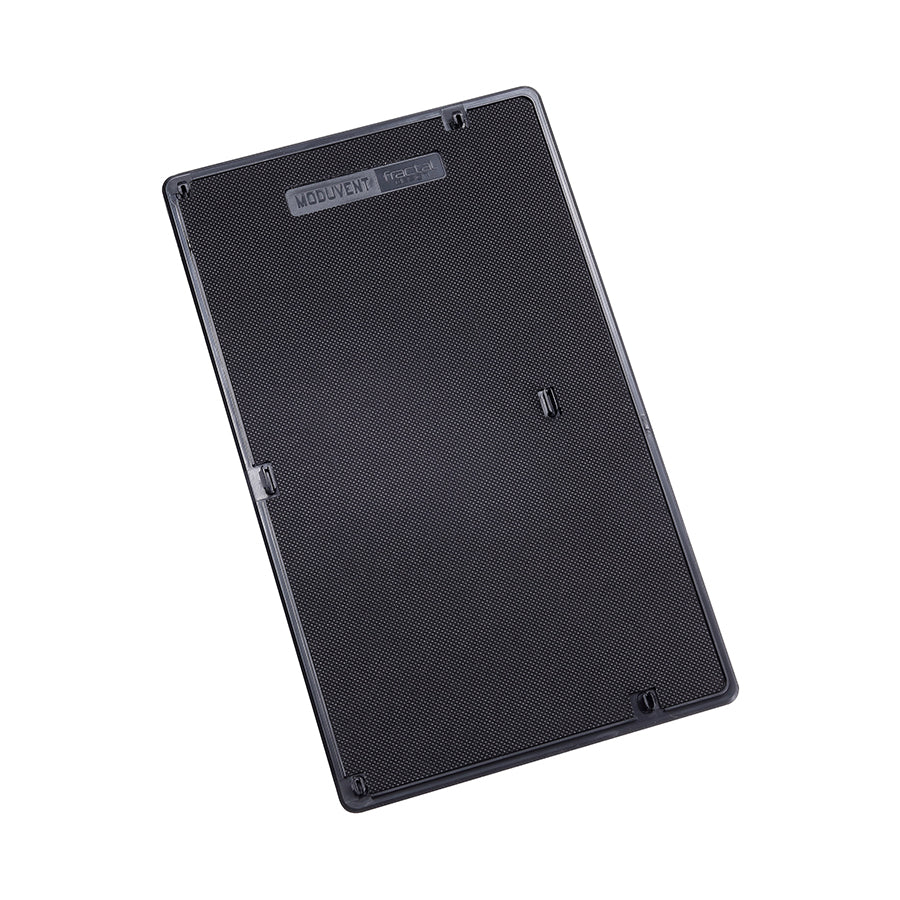

ModuVent™ Technology – Supports noise-conscious airflow management through Fractal Design's ventilation system.
-
Up to Four Drive Positions – Offers storage flexibility for a compact chassis.
-
Versatile Cooling Support – Accommodates tower-style air coolers and various air or liquid cooling configurations.
-
Pump and Reservoir Mounting – Includes mounting brackets for supported custom liquid-cooling components.
-

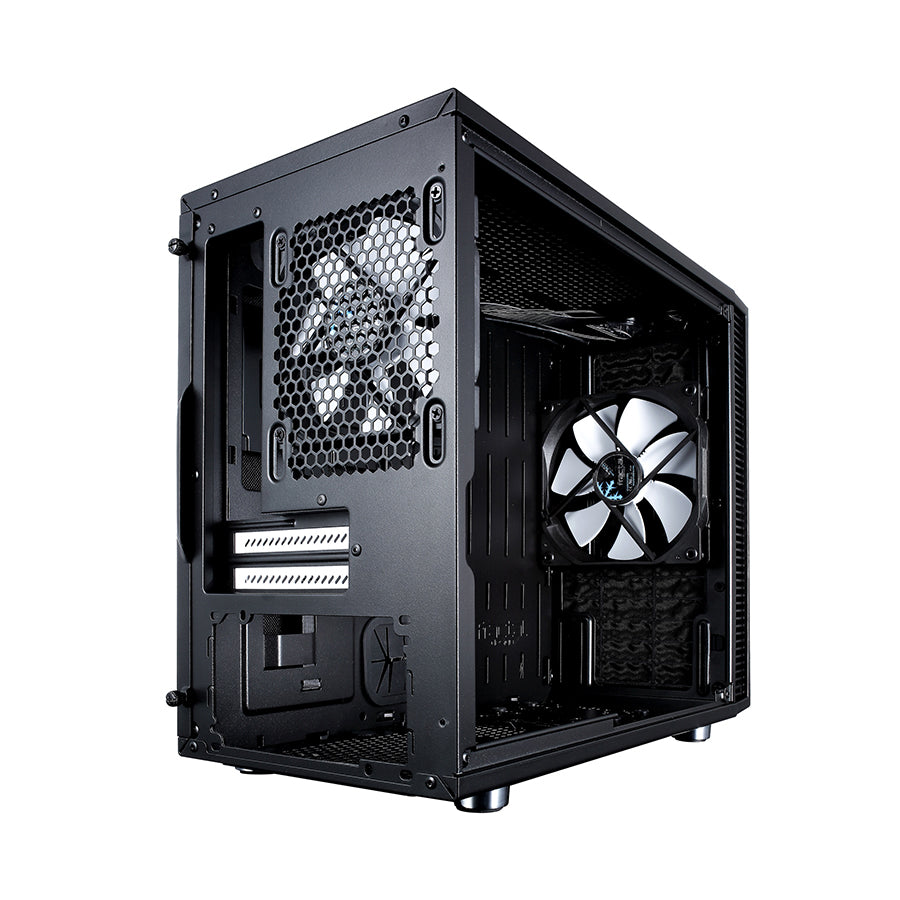

Airflow-Focused Interior – Provides a clear airflow path from the front intake to the rear exhaust.
-

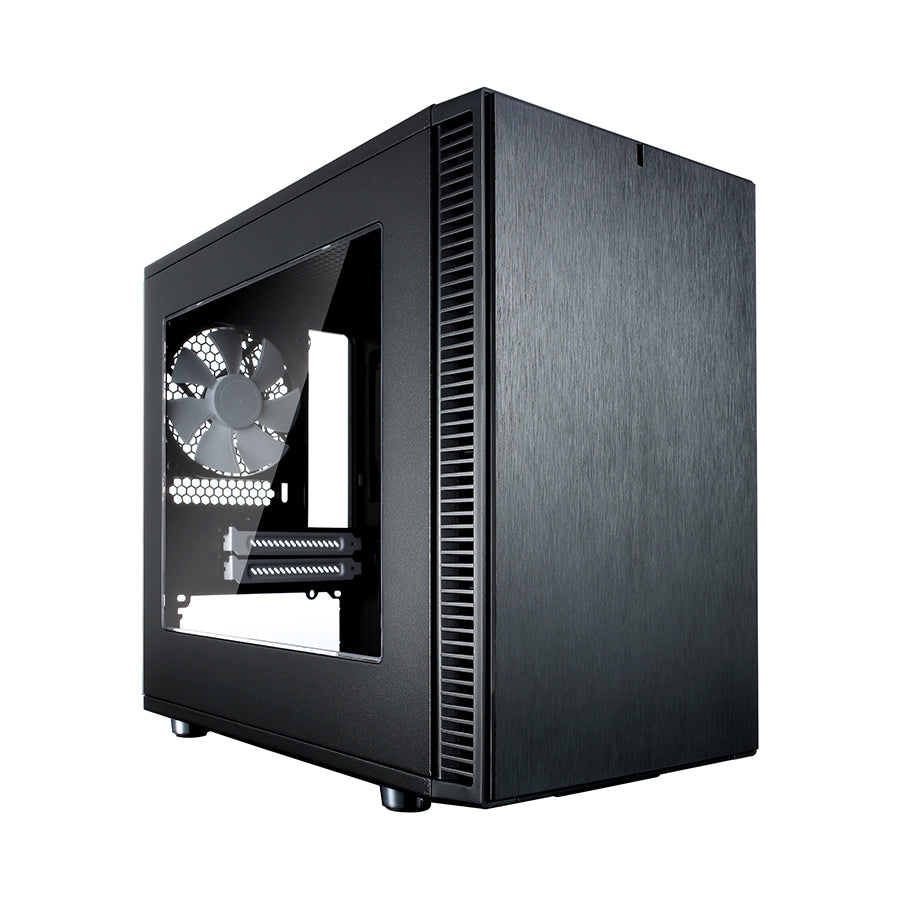

Transparent Side Panel Version Available – Selected versions feature a windowed side panel to showcase internal components.
Specifications:
| Drive Bay Capacity | 1x 3.5” or 2.5” on rear; 1x 3.5” or 2.5” on multi-bracket (if not used for water pump); 2x dedicated 2.5” SSD unit positions (maximum thickness 13mm) |
|---|---|
| Expansion Slots | 2 |
| Motherboard Compatibility | ITX |

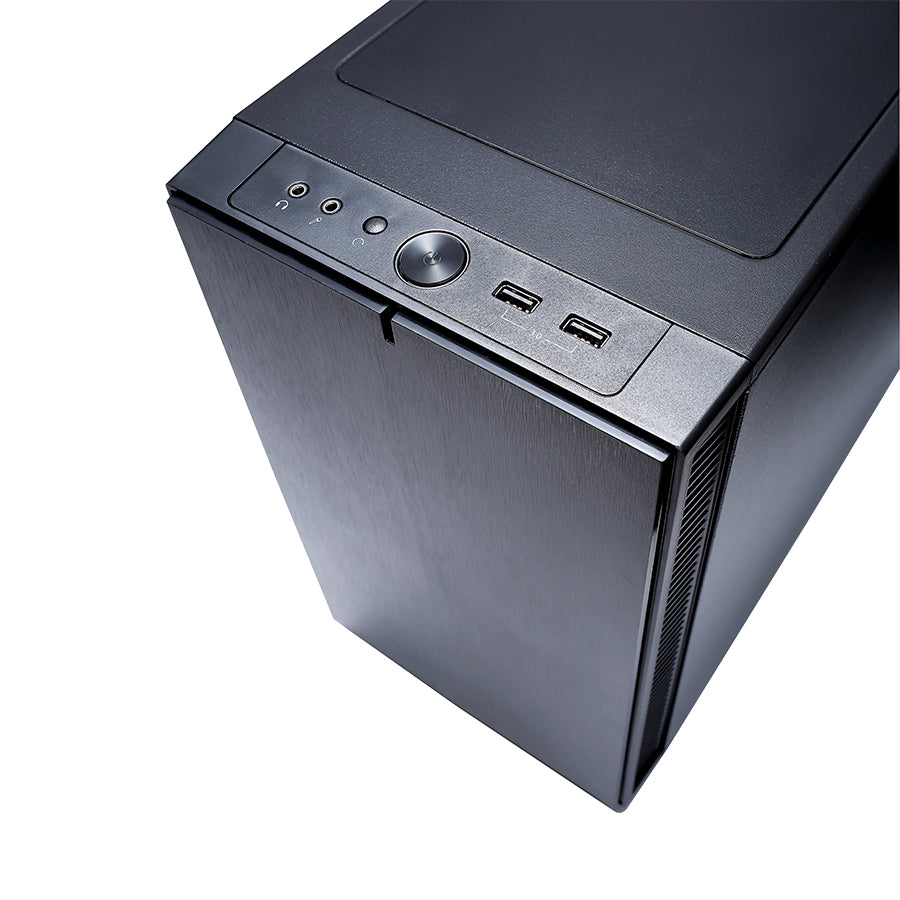

| Front Interface | 2 USB 3.0; Audio in/out; Power button with LED (Blue); HDD activity LED (Blue); Reset button |
| Power Supply Compatibility | ATX with a maximum depth of 160 mm (shorter PSUs recommended for easier cable management) |
| CPU Cooler Compatibility | CPU coolers up to 162mm in height |
| Graphics Card Compatibility | Windowed version: up to 160 mm; Up to 315 mm with front fan mounted (cards wider than the dual-slot bracket are not recommended) |
| Sound Dampening | Professional-grade material on front and side panels (front and right side for window version) |
| Case Volume | 26.80 litres |
| Case Dimensions - W x H x D (mm) | 203 x 330 x 400 |
| Case Dimensions - With Feet/Protrusions/Screws | 203 x 344 x 412 |
| Net Weight (kg) | Non-window: 5 kg; Windowed: 4.6 kg |
| Package Dimensions - W x H x D (mm) | 275 x 485 x 420 |
| Package Weight (kg) | Non-window: 6.2 kg; Windowed: 5.8 kg |

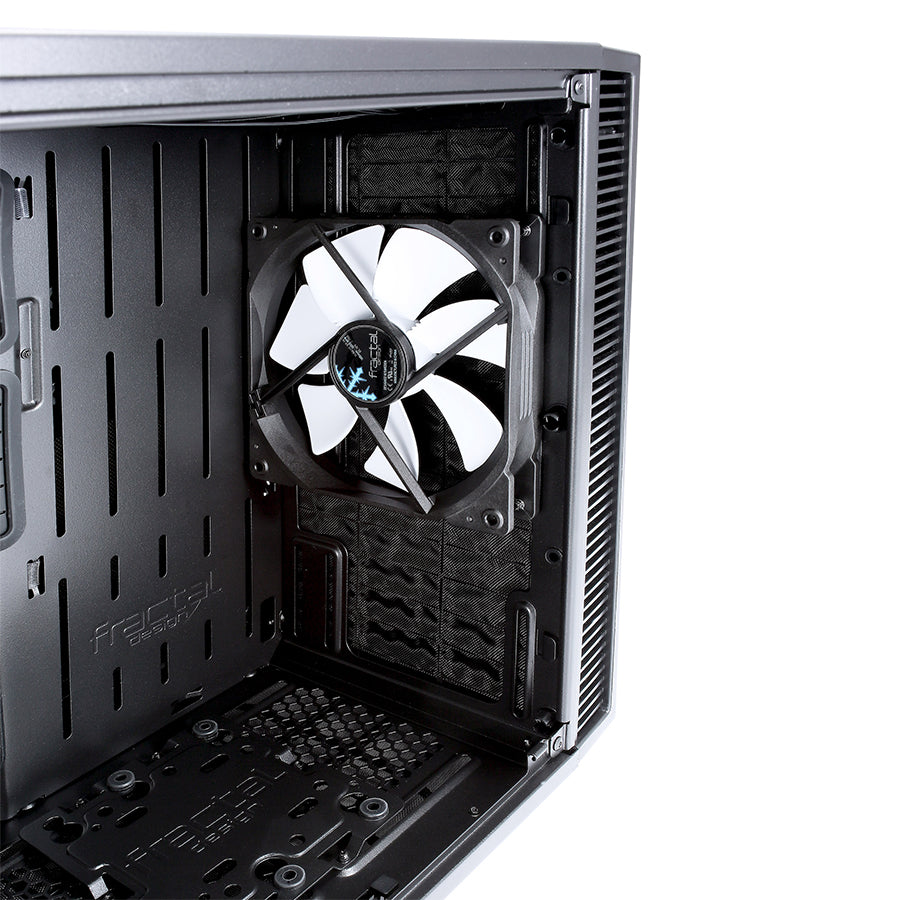

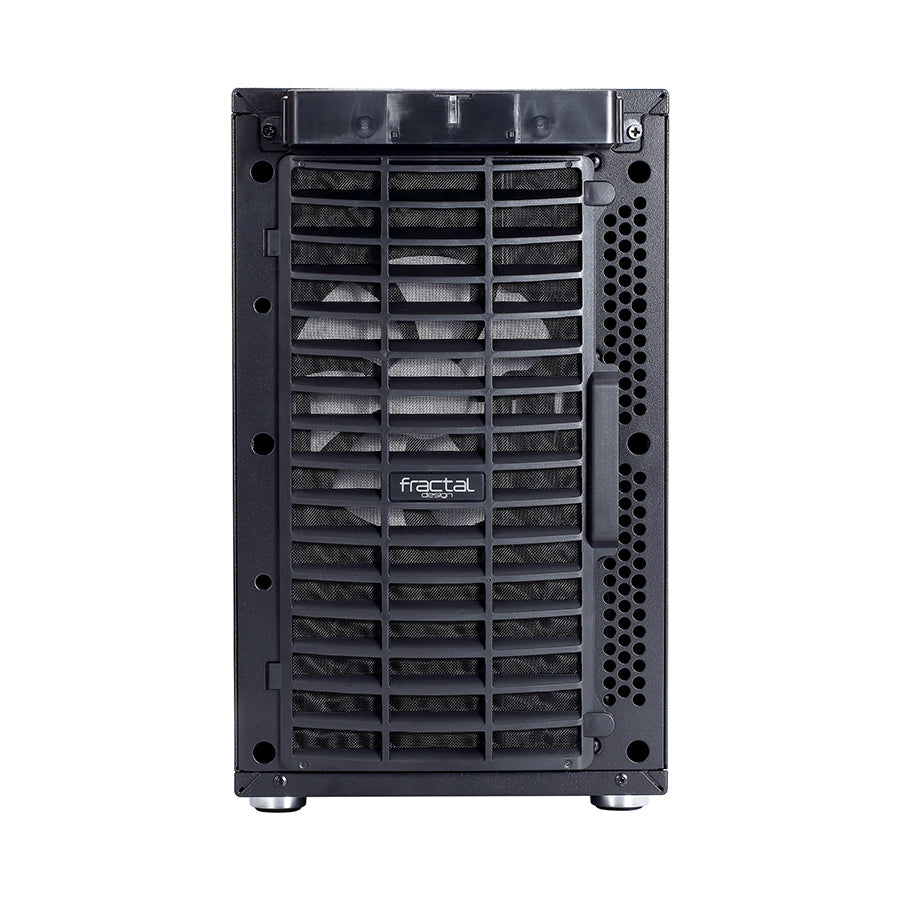

| Front Cooling | 2 x 120/140 mm fans (1 retail Fractal Dynamic Series GP-14 fan included) |

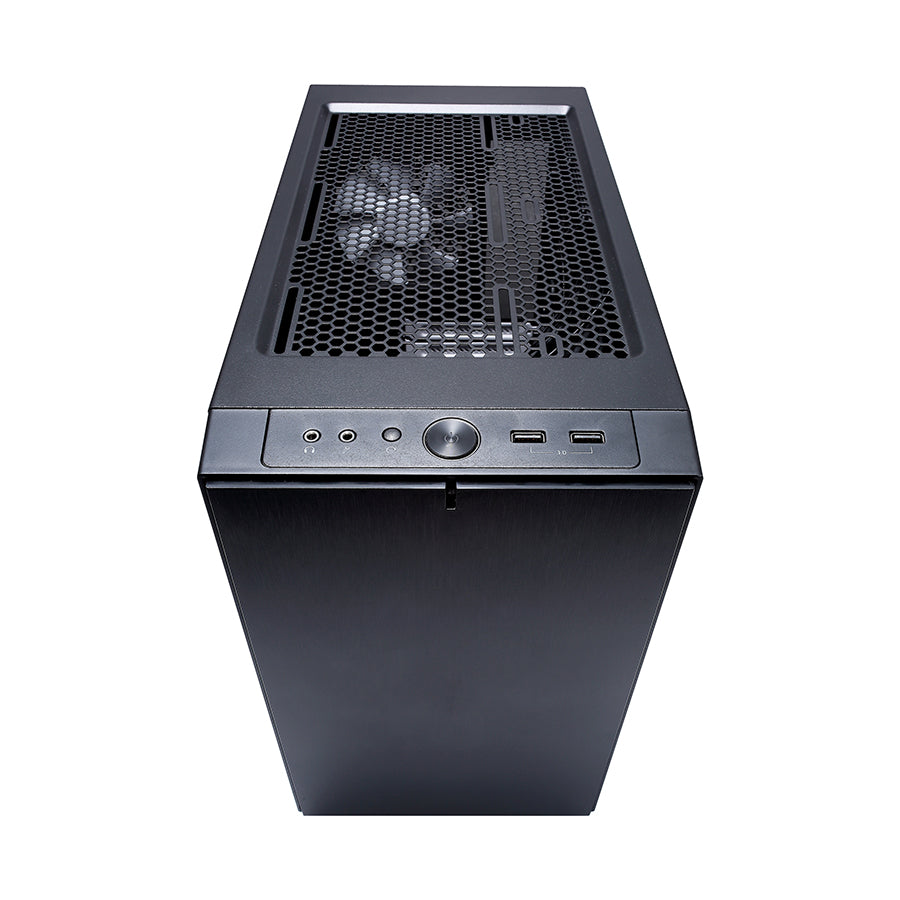

| Top Cooling | 2 x 120/140 mm fans (not included) |

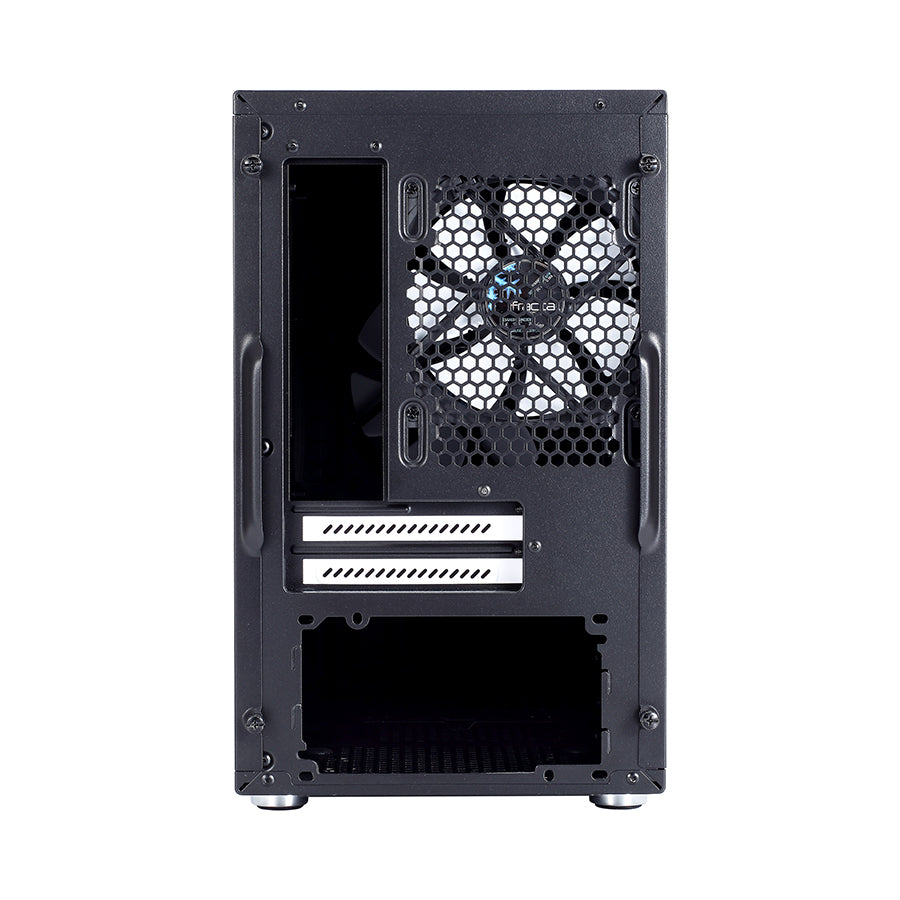

| Rear Cooling | 1 x 120 mm fan (retail Fractal Dynamic Series GP-12 fan included) |
| Bottom Cooling | 1 x 120 mm fan (not included) |
| Front Water Cooling Compatibility | 120/240 mm; 140/280 mm (maximum width and length: 147 mm x 312 mm) |
| Top Water Cooling Compatibility | 120/240 mm (maximum component height on motherboard: 35 mm) |
| Rear Water Cooling Compatibility | 120 mm (maximum width of 125 mm). The windowed version does not support a rear radiator due to extra thickness on the panel. |
| Bottom Water Cooling Compatibility | 120 mm (maximum thickness and length: 85 mm x 160 mm) |
| Pump Compatibility | Pre-drilled holes on multi-bracket; supports many DDC and D5 variants (see manual for detailed measurements) |
| Reservoir Compatibility | Adjustable mounting brackets allow for nearly any rectangular mounting screw pattern (maximum distance between bracket screw positions: 270 mm in height and 80 mm in width) |

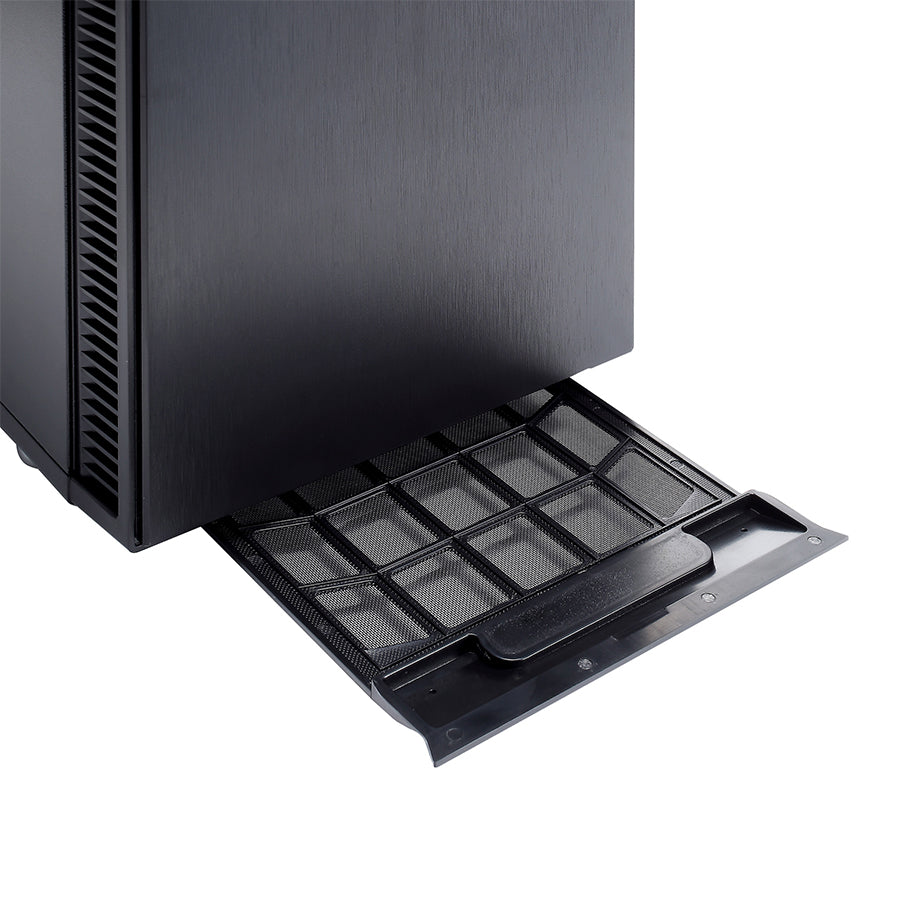

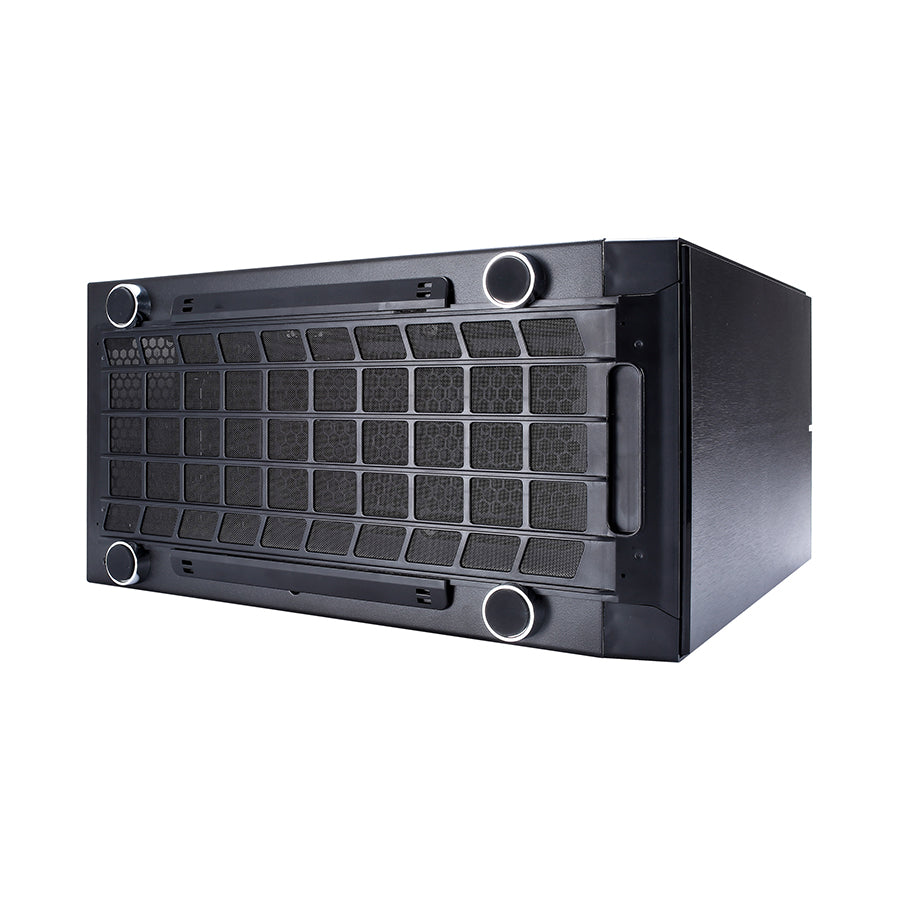

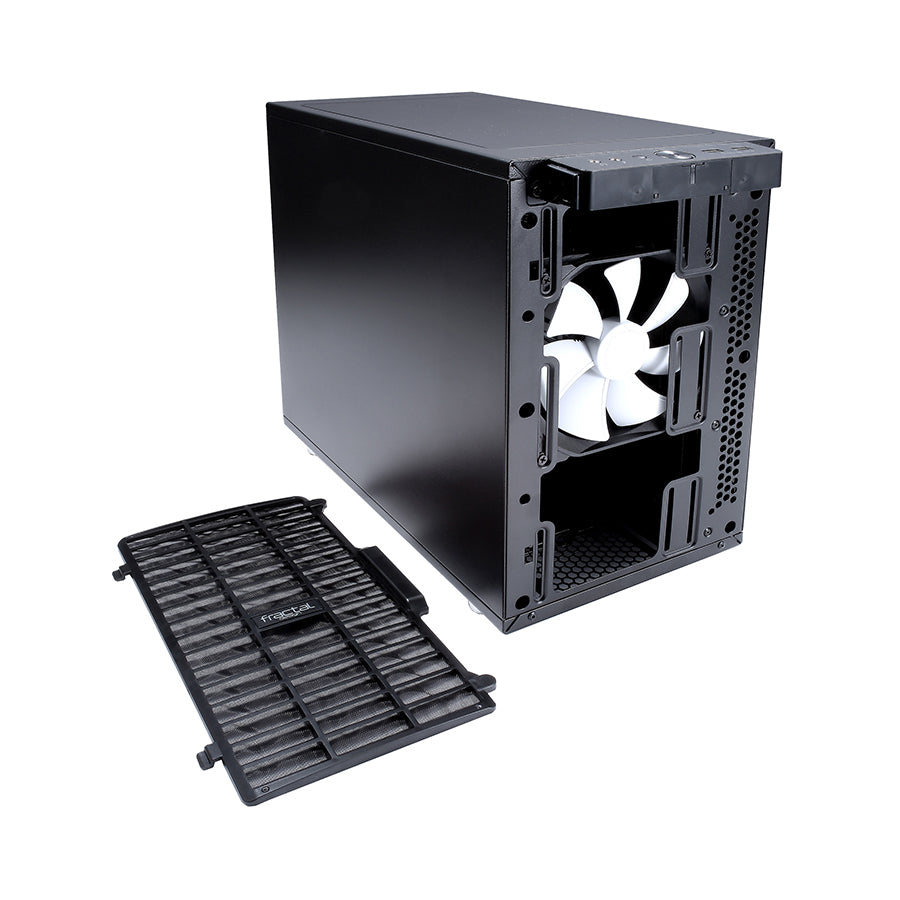

| Dust Filters | Front fans (accessible only when front panel is removed); PSU filter and bottom fan filter (ejects from front) |
| Water Cooling Notes | Width and length restrictions apply due to some radiators extending beyond the screw-hole positions. Top radiator installation may conflict with RAM heatsinks taller than 35 mm. |
