Description

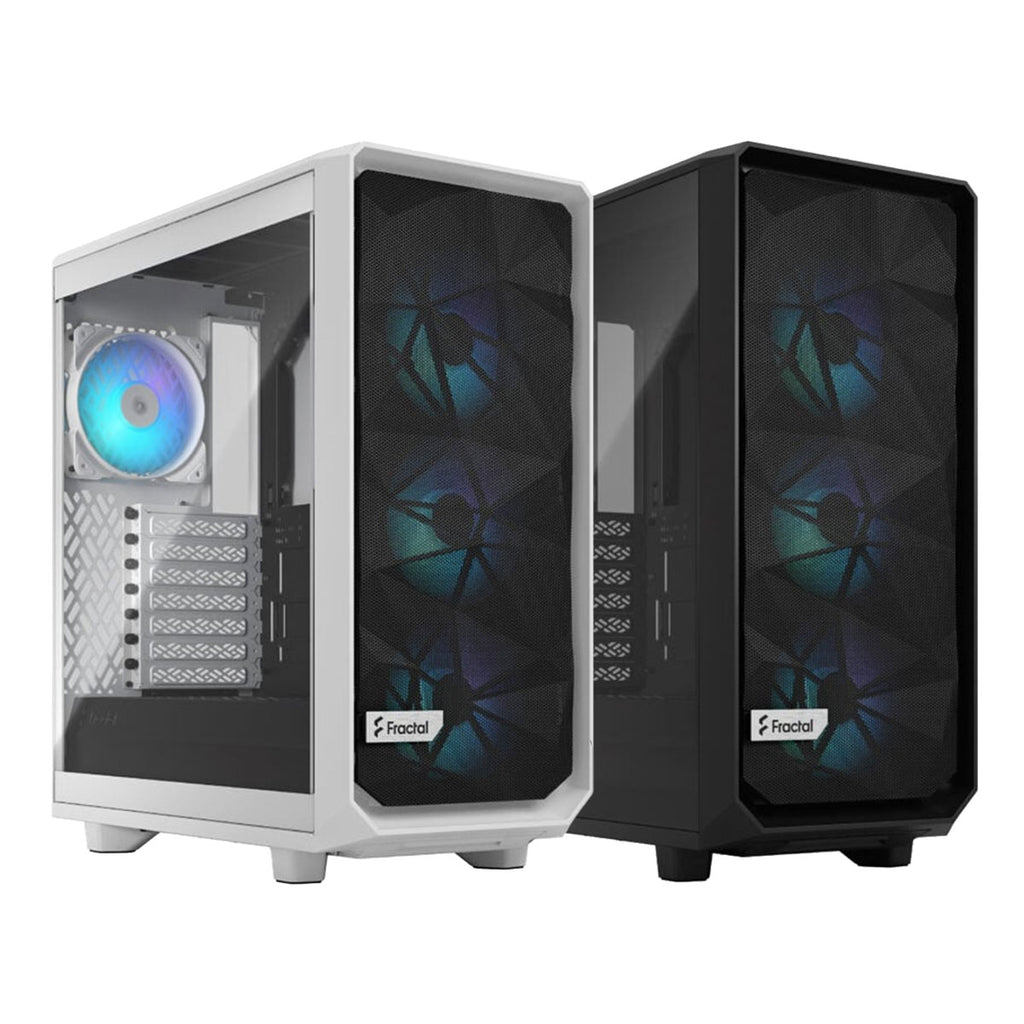

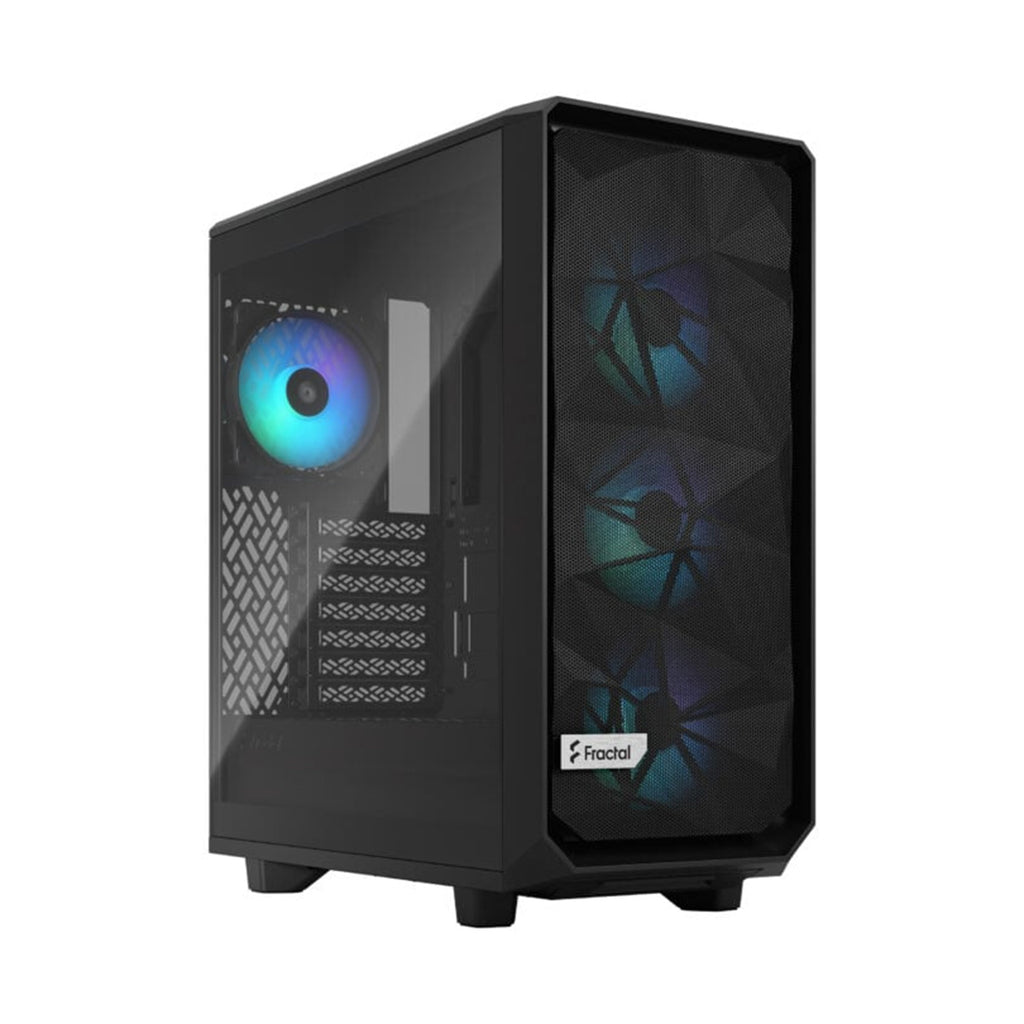

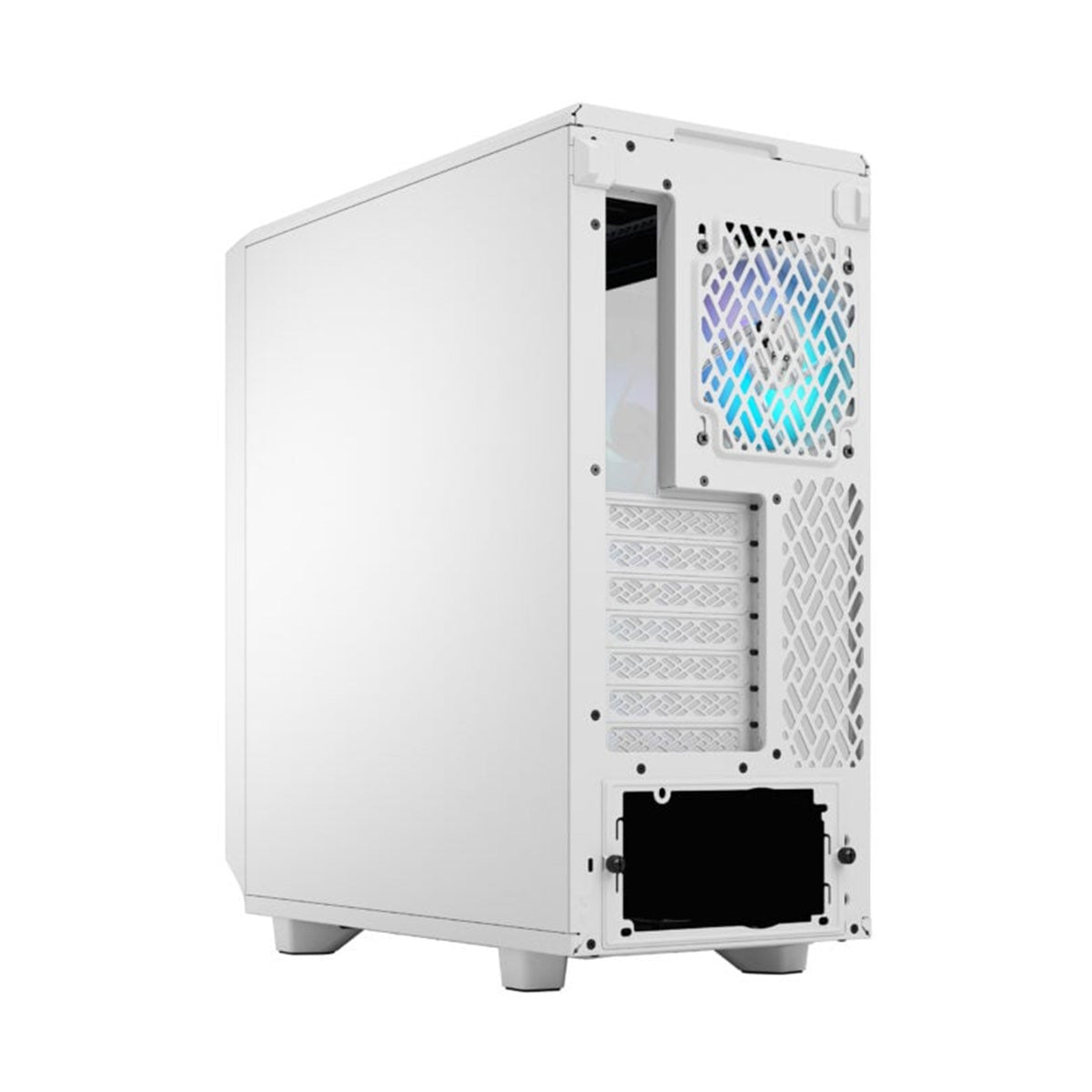

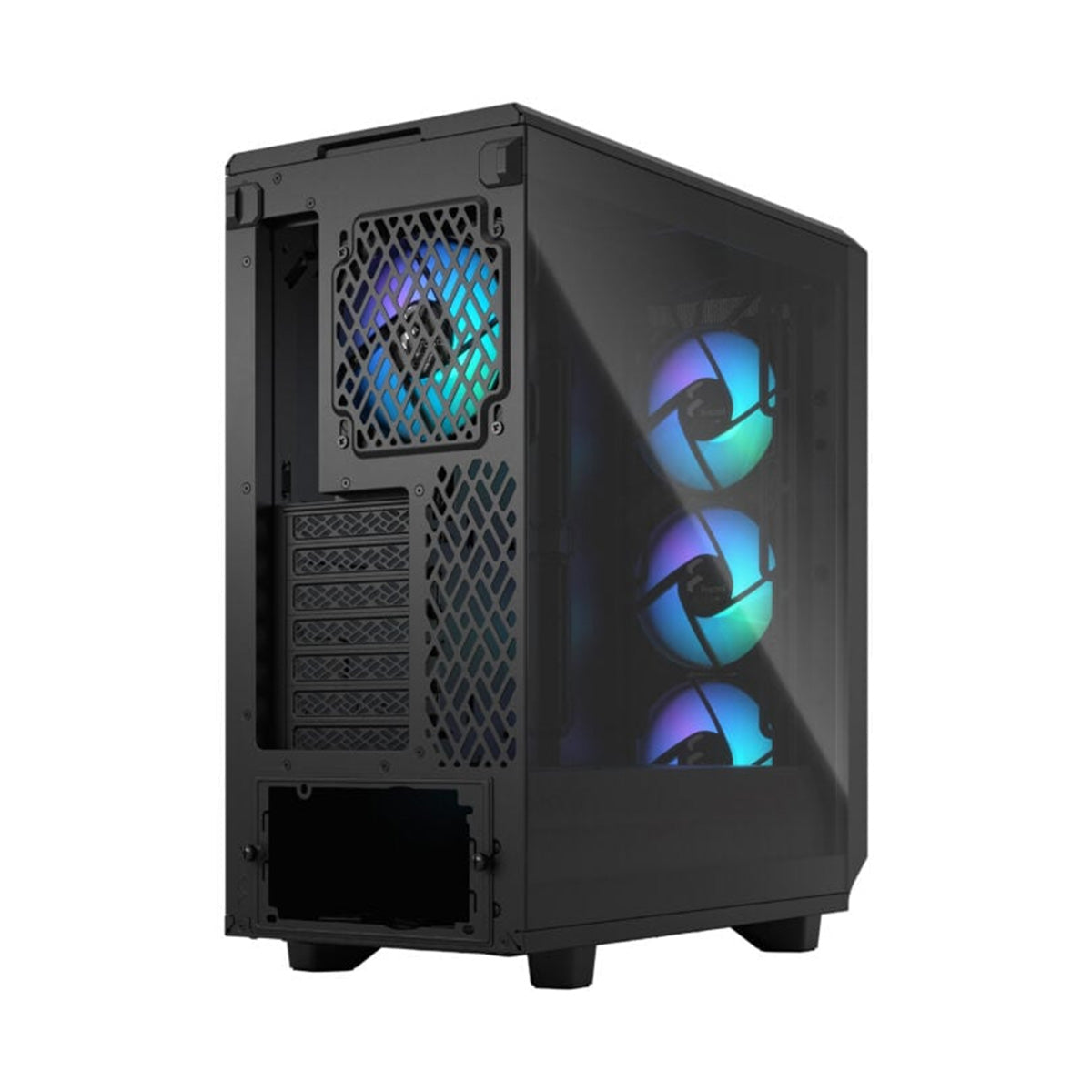

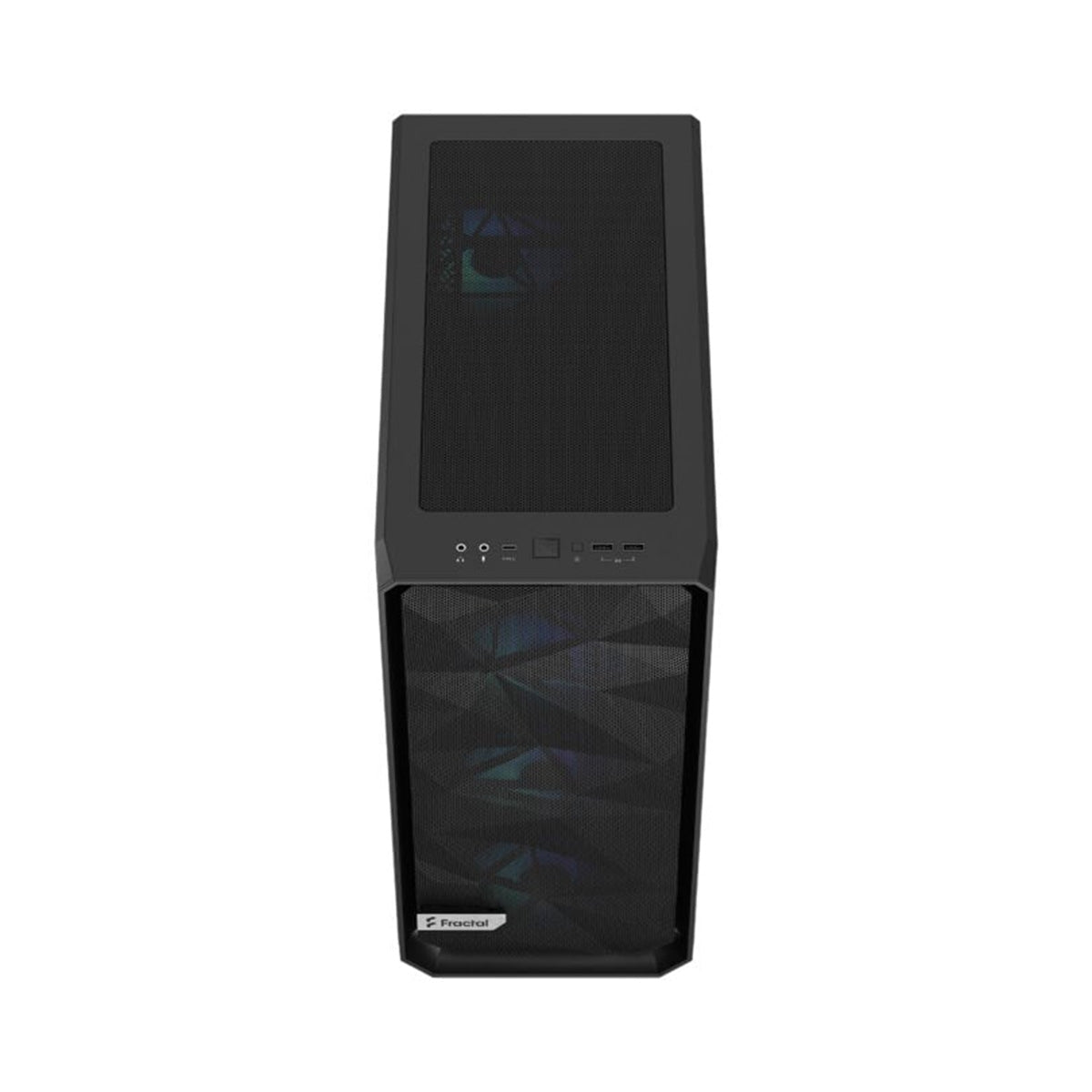

Meshify 2 Compact RGB

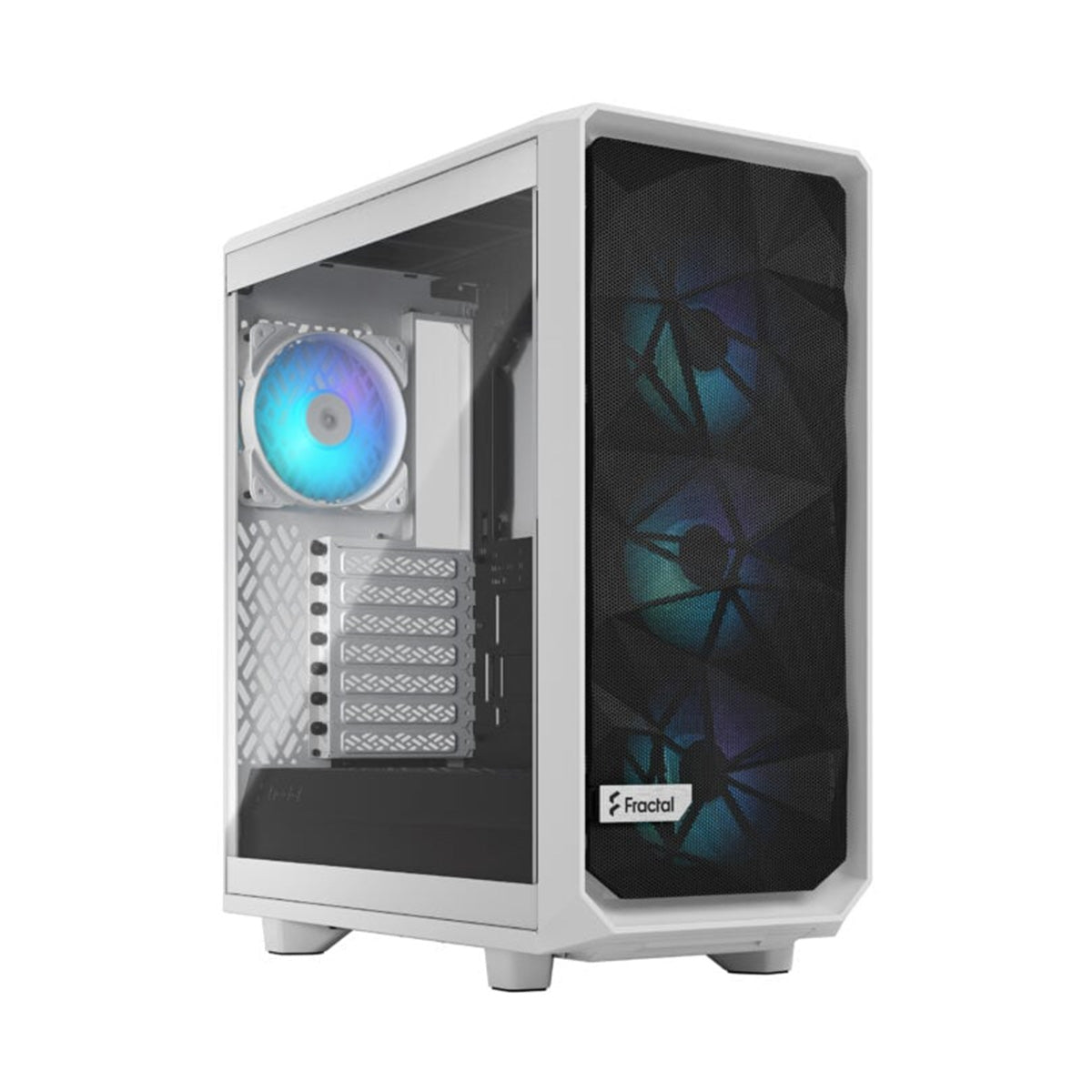

The Meshify 2 Compact RGB is a high-performing case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top panel granting excellent interior access, and a front USB 3.2 Type-C port. The front nylon filter can be removed for extra airflow, letting the mesh front deal with filtering. Intelligent space utilization enables the Meshify 2 Compact to boast the performance and capacity of larger cases despite its remarkably compact mid-tower size, and the filtered airflow design makes cooling a breeze.

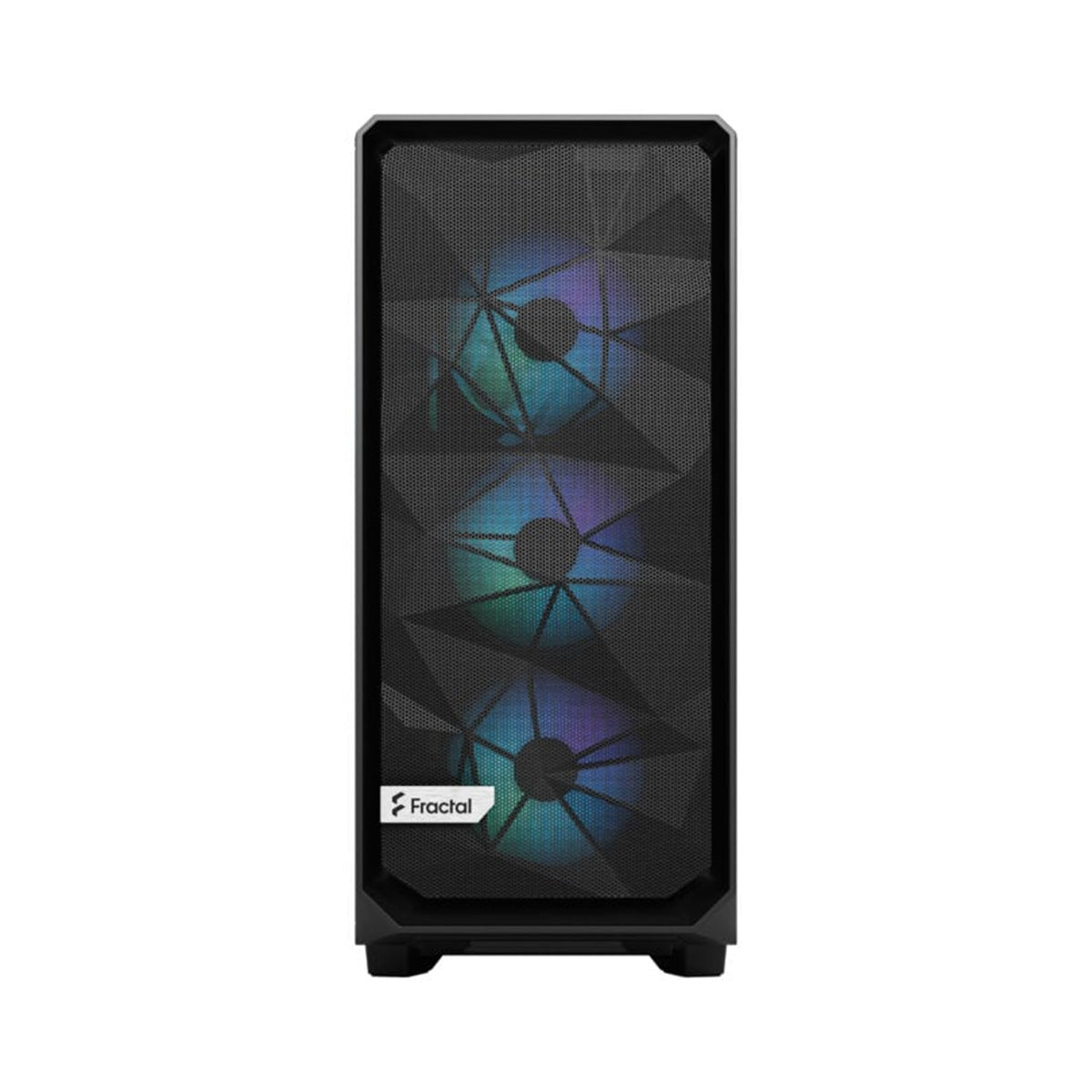

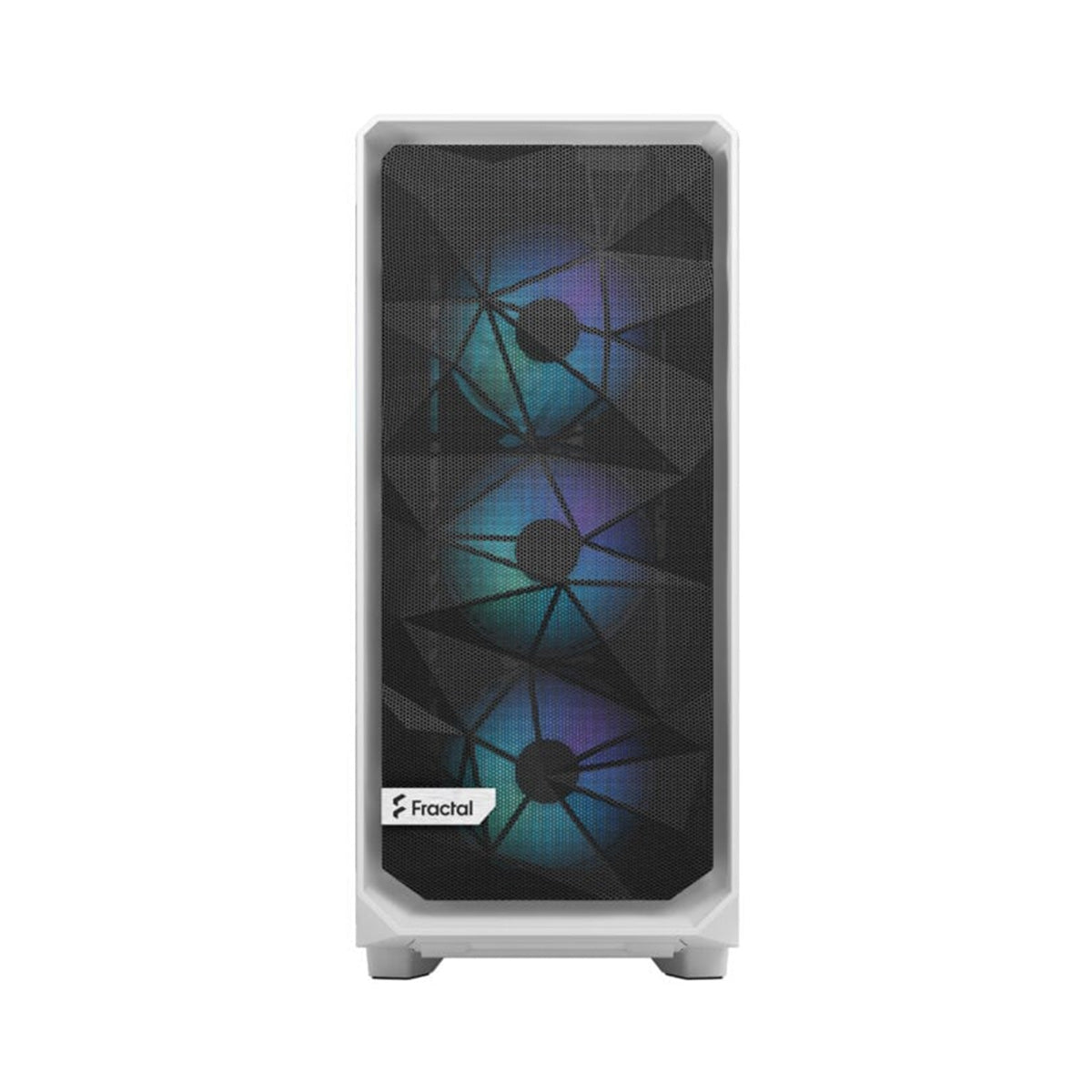

- Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
- Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases
- Built in RGB controller on the front/top I/O with iconic Fractal Northern Lights effect
SPECIFICATION
| 3.5"/2.5" Universal drive mounts | 2 (included) |
| Dedicated 2.5" drive mounts | 4 (2 included) |
| Expansion slots | 7 |

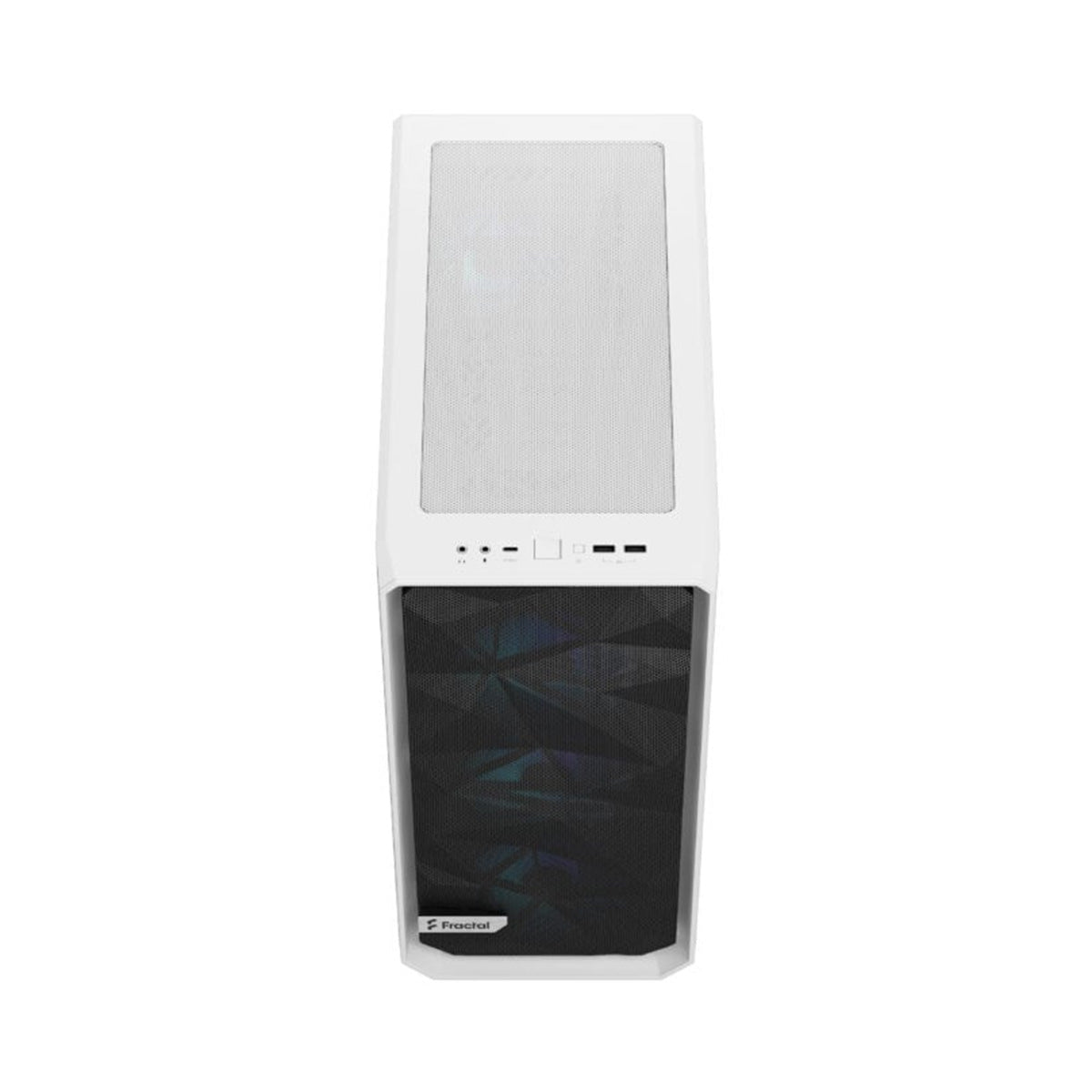

| Front interface | 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x USB 3.0, Audio I/O, Power button, RGB control button (RGB Version only) |
| Total fan mounts | 7x 120 or 4x 140 mm and 2x 120 mm |
| Front fan | 3x 120 or 2x 140 mm, (3x Aspect 12 RGB PWM included) |
| Top fan | 2x 120/140 mm |
| Rear fan | 1x 120 mm, (1x Aspect 12 RGB PWM included) |
| Bottom fan | 1x 120 mm (requires removal of HDD cage) |
| Dust filters | Top, front and bottom |
| Fixed cable straps | Yes |
| Cable routing grommets | Yes |
| Captive thumbscrews | HDD, SSD and PSU brackets |

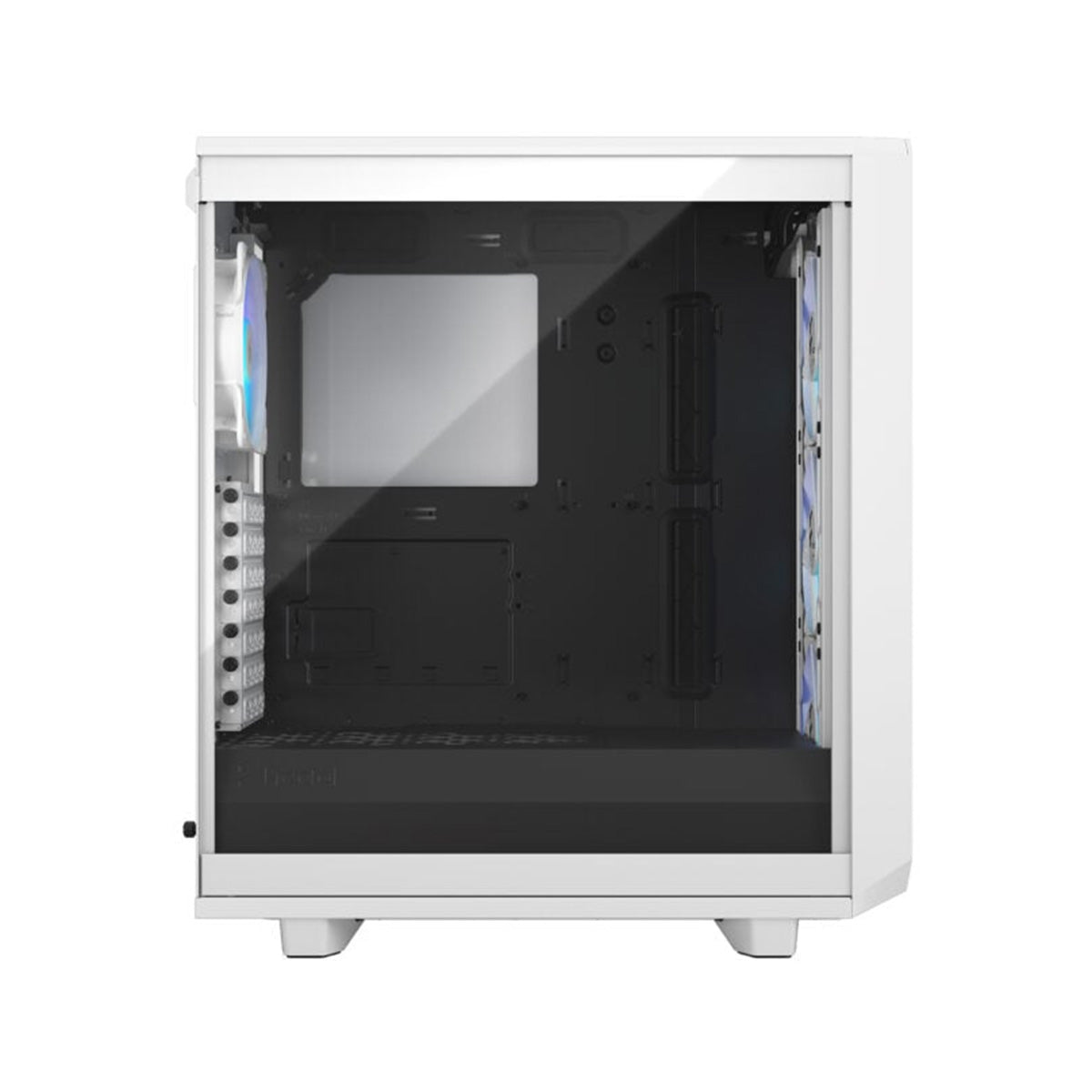

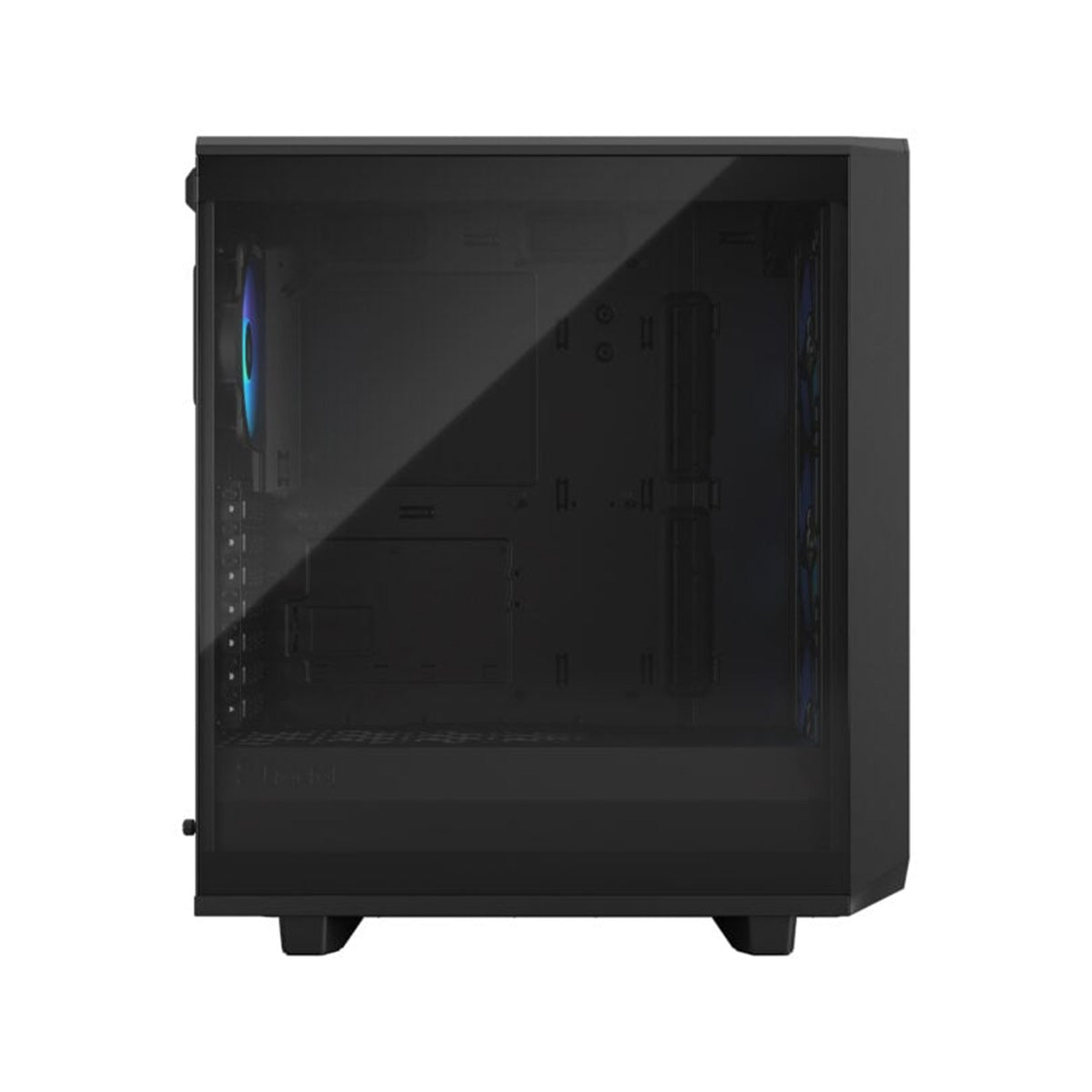

| Left side panel | Tempered glass |
| Right side panel | Steel |
| Motherboard compatibility | ATX / mATX / Mini-ITX |
| Power supply type | ATX |
| PSU max length | 165 mm (with HDD cage and front fan) |
| GPU max length | 345 mm |
| CPU cooler max height | 169 mm |
| Front radiator | Up to 360/280 mm |
| Top radiator | Up to 240 mm |
| Rear radiator | 120 mm |
| Bottom radiator | 120 mm (requires removal of HDD cage) |
| Cable routing space | 17-28 mm |
| Case dimensions (LxWxH) | 424 x 210 x 475 mm |
| Case dimensions w/o feet/protrusions/screws | 412 x 210 x 455 mm |
| Package dimensions (LxWxH) | 542 x 320 x 554 mm |
