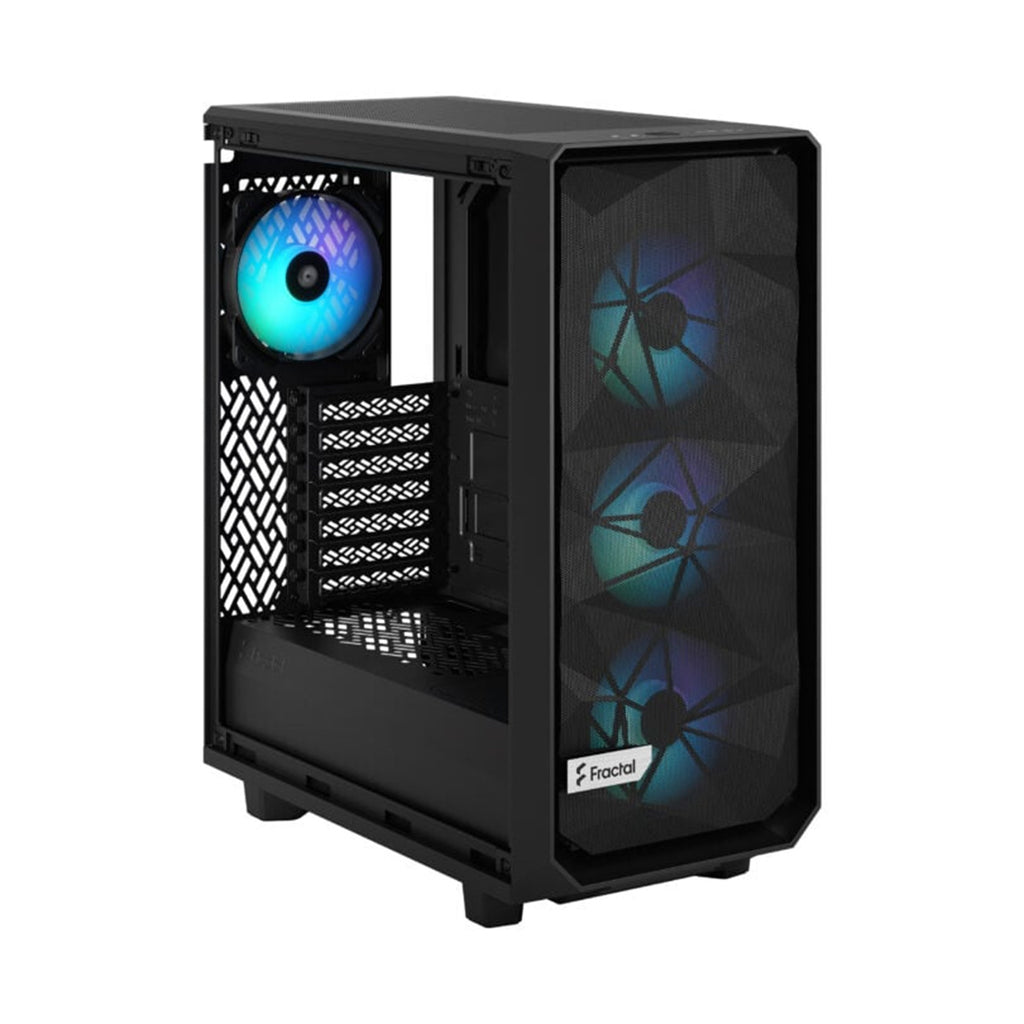

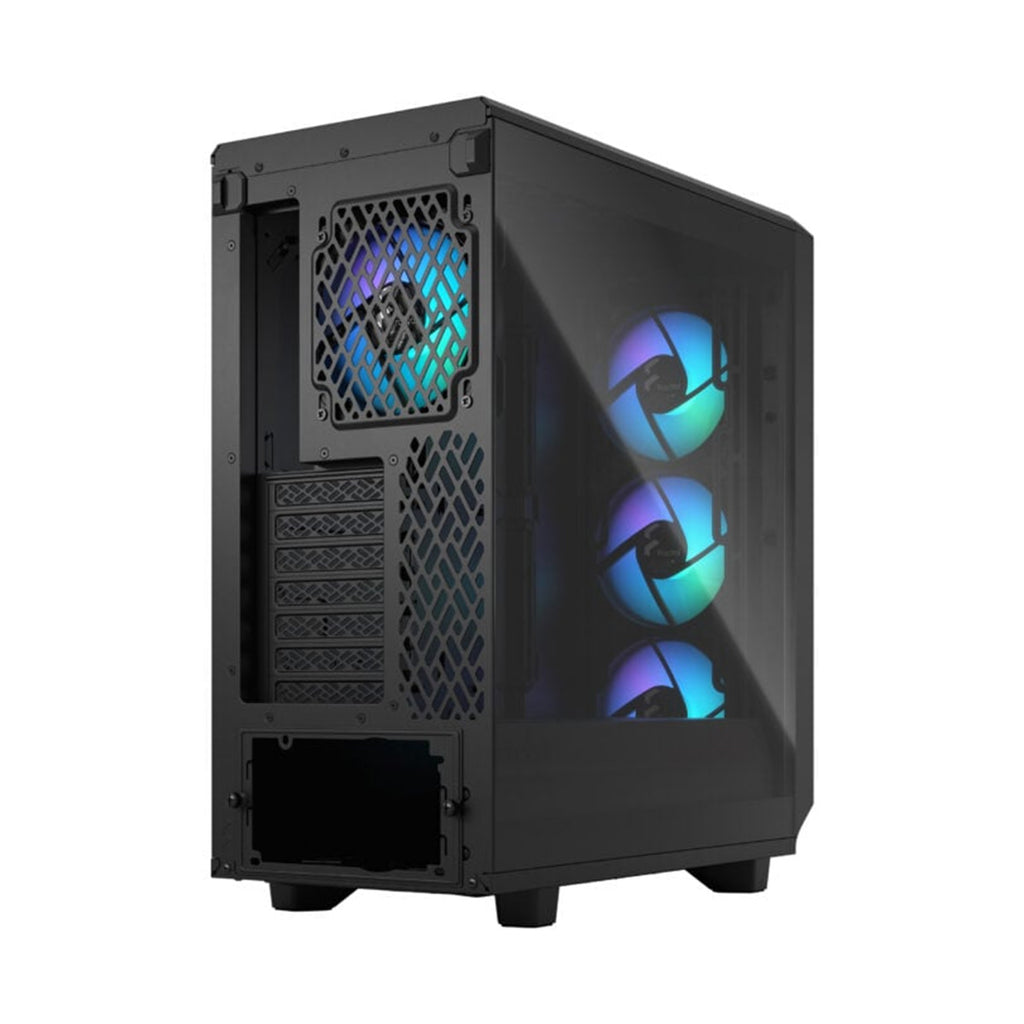

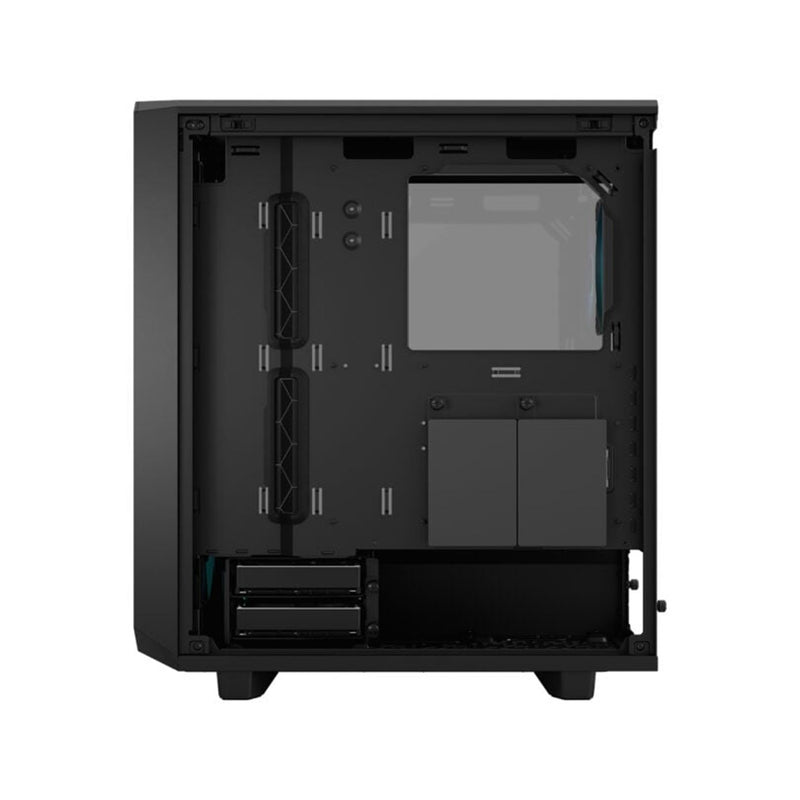

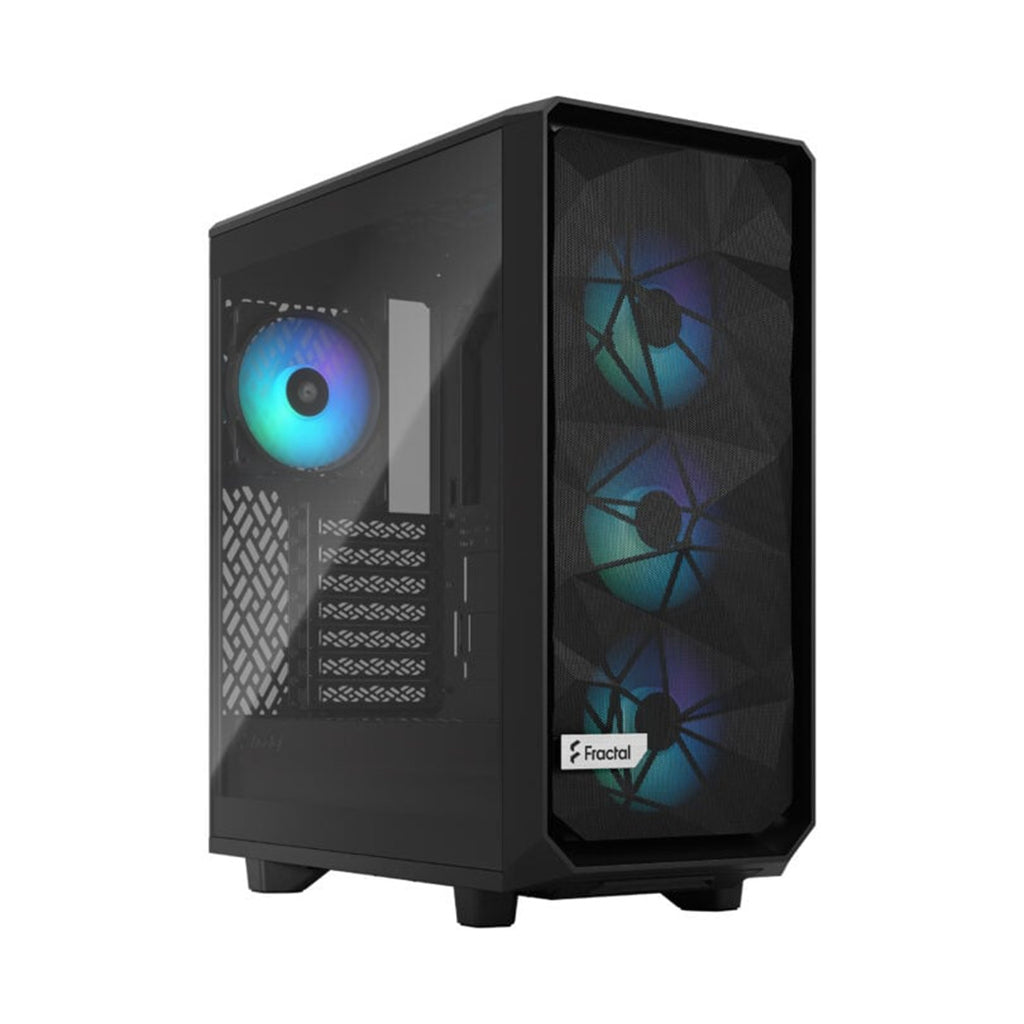

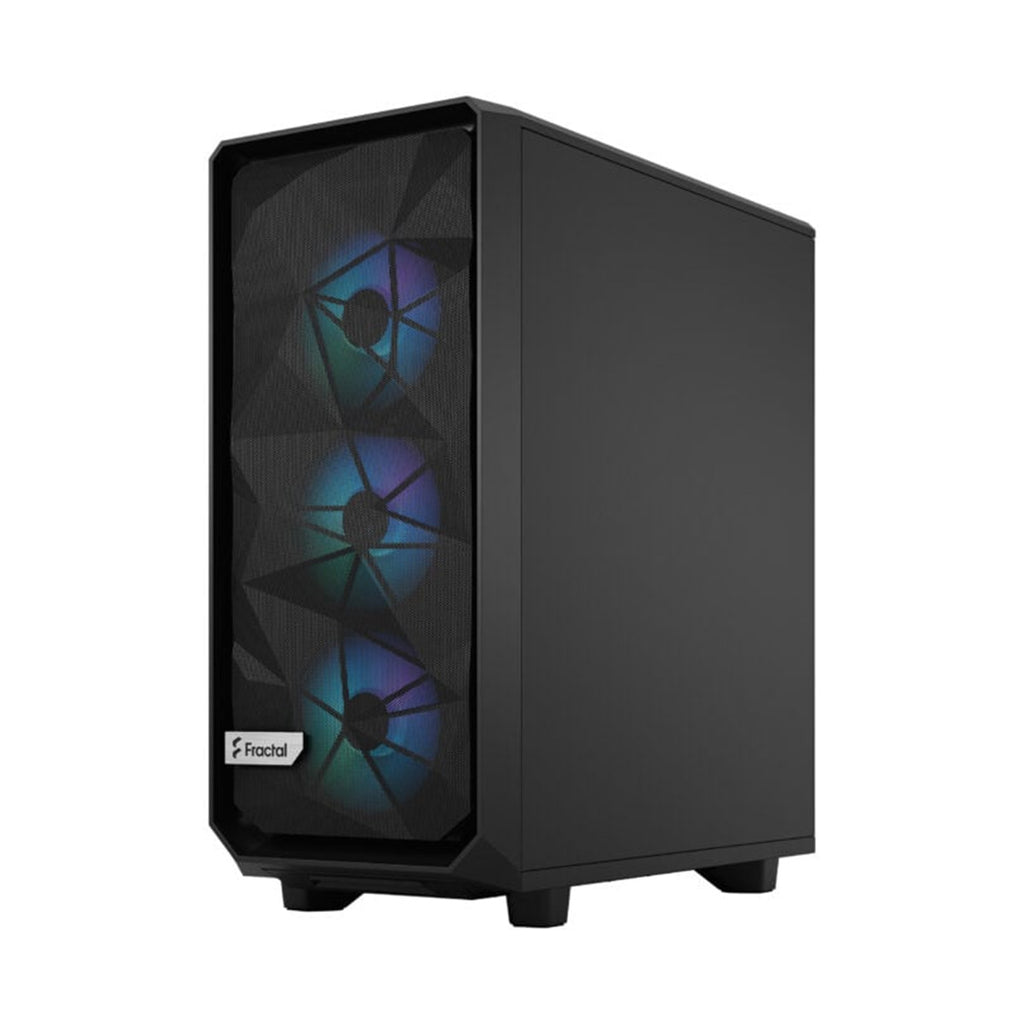

Meshify 2 Compact Lite
Meshify 2 Compact Lite is a high-performing case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass and the iconic angular mesh of its larger siblings. Intelligent space utilization enables the Meshify 2 Compact Lite to boast the performance and capacity of larger cases despite its remarkably compact mid-tower size.
- Iconic angular mesh design offers airflow with a bold, stealth-inspired aesthetic
- Room for GPUs up to 345 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 315 mm
- Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases
SPECIFICATION
| 3.5"/2.5" Universal drive mounts | 2 included |
| Dedicated 2.5" drive mounts | 2 included, 4 positions total |
| Expansion slots | 7 |

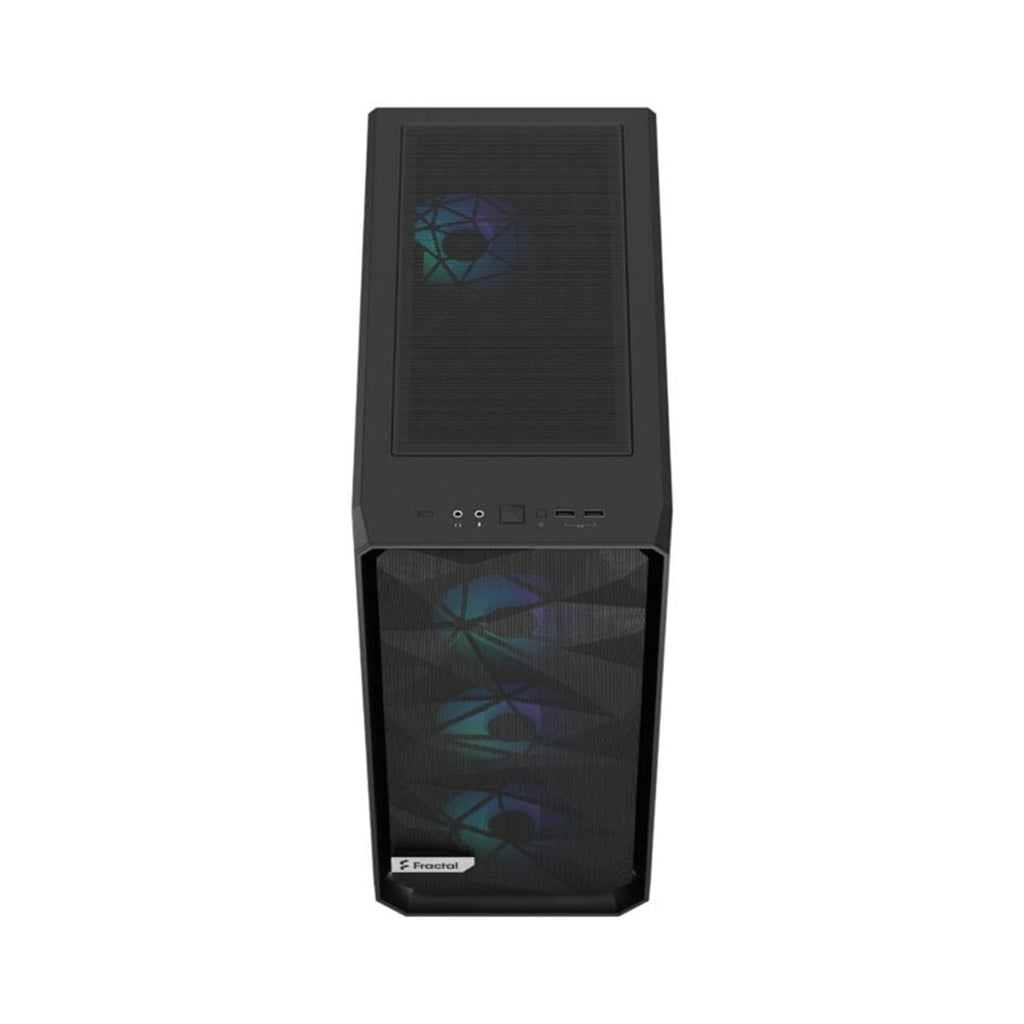

| Front interface | 2x USB 3.0, Audio I/O, Power button, Reset button (RGB control button on RGB version), USB type-C ready |
| Total fan mounts | 7x 120 or 4x 140 mm and 2x 120 mm |

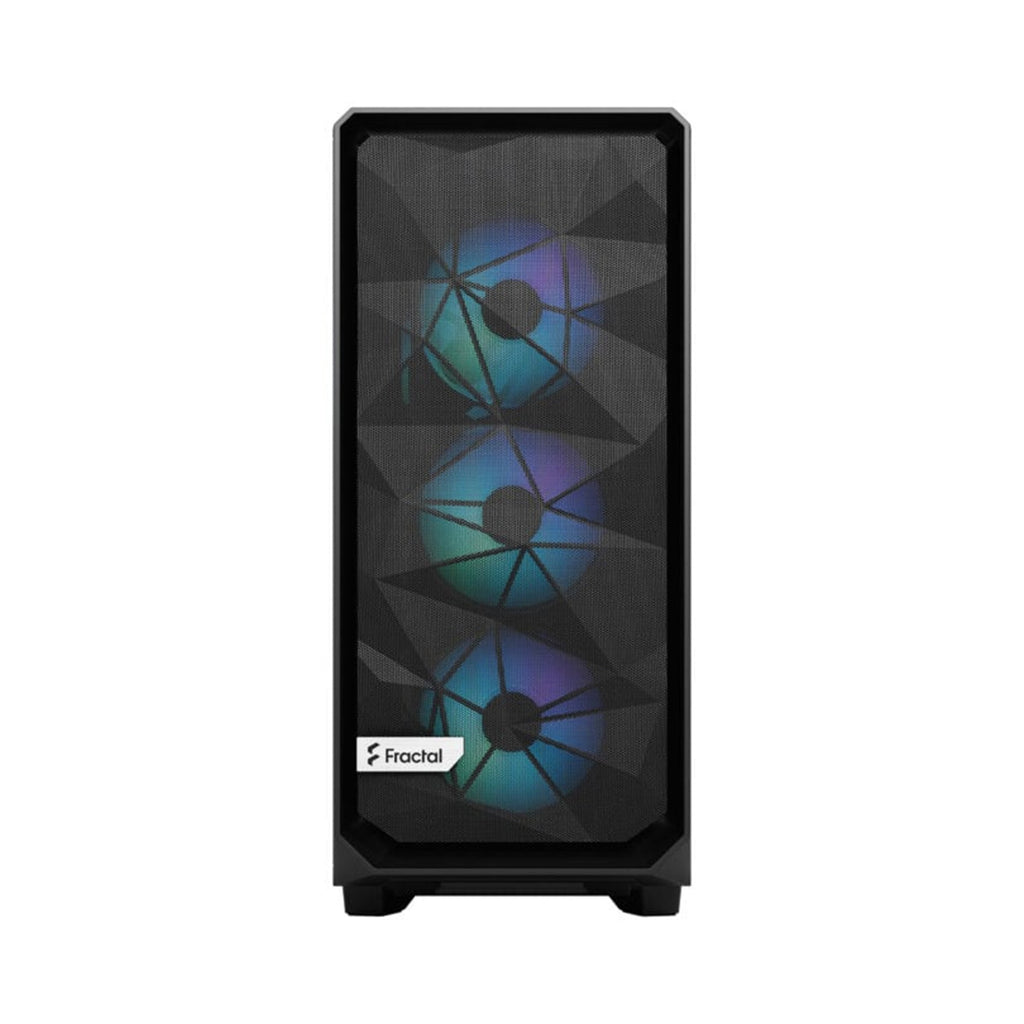

| Front fan (RGB version) | 3x 120 or 2x 140 mm, 3x Aspect 12 RGB included |
| Front fan (Standard version) | 3x 120 or 2x 140 mm, 2x Aspect 14 included |
| Top fan | 2x 120/140 mm |

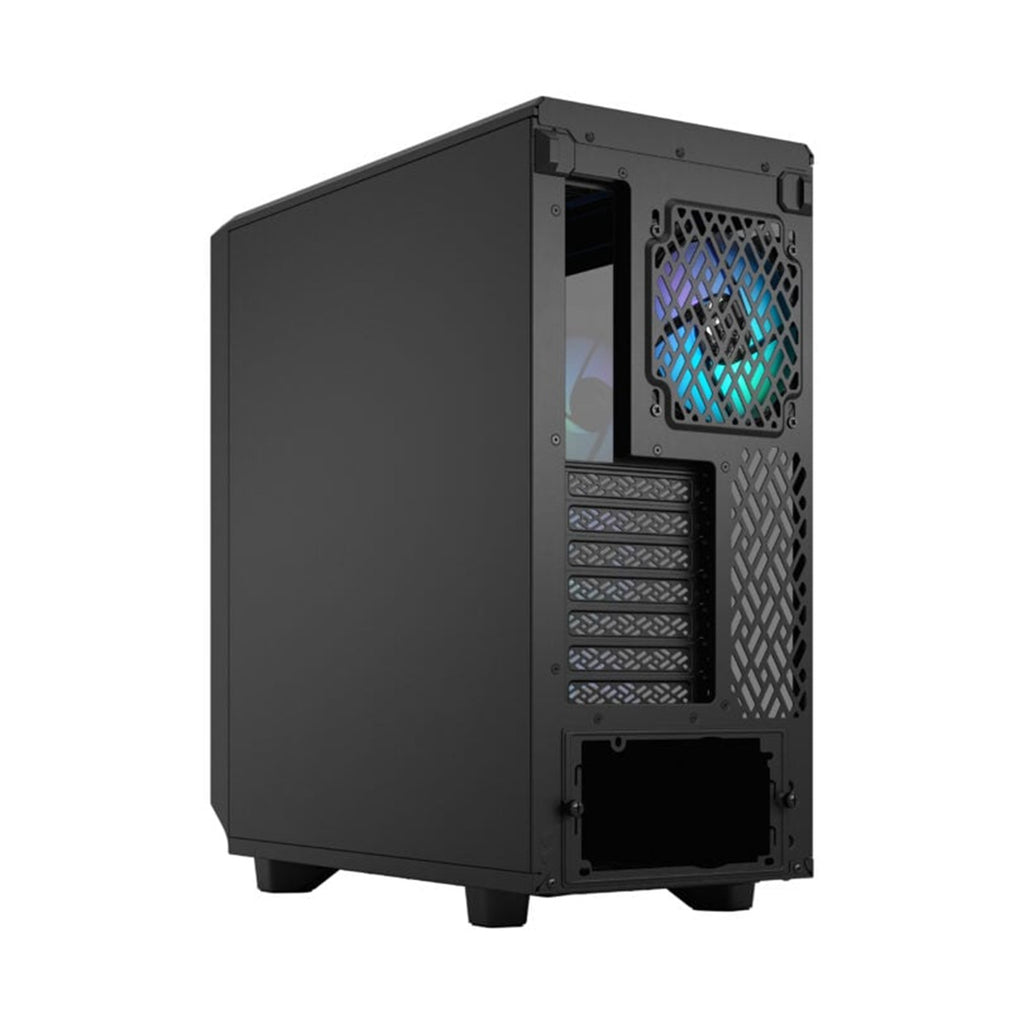

| Rear fan (RGB version) | 1x 120 (1x Aspect 12 RGB included) |
| Rear fan (Standard version) | 1x 120 (1x Aspect 12 included) |
| Bottom fan | 1x 120 mm (requires removal of HDD cage) |
| Dust filters | Top and bottom (mesh front) |
| Fixed cable straps | Yes |
| Cable routing grommets | Yes (2) |
| Captive thumbscrews | HDD, SSD and PSU brackets |

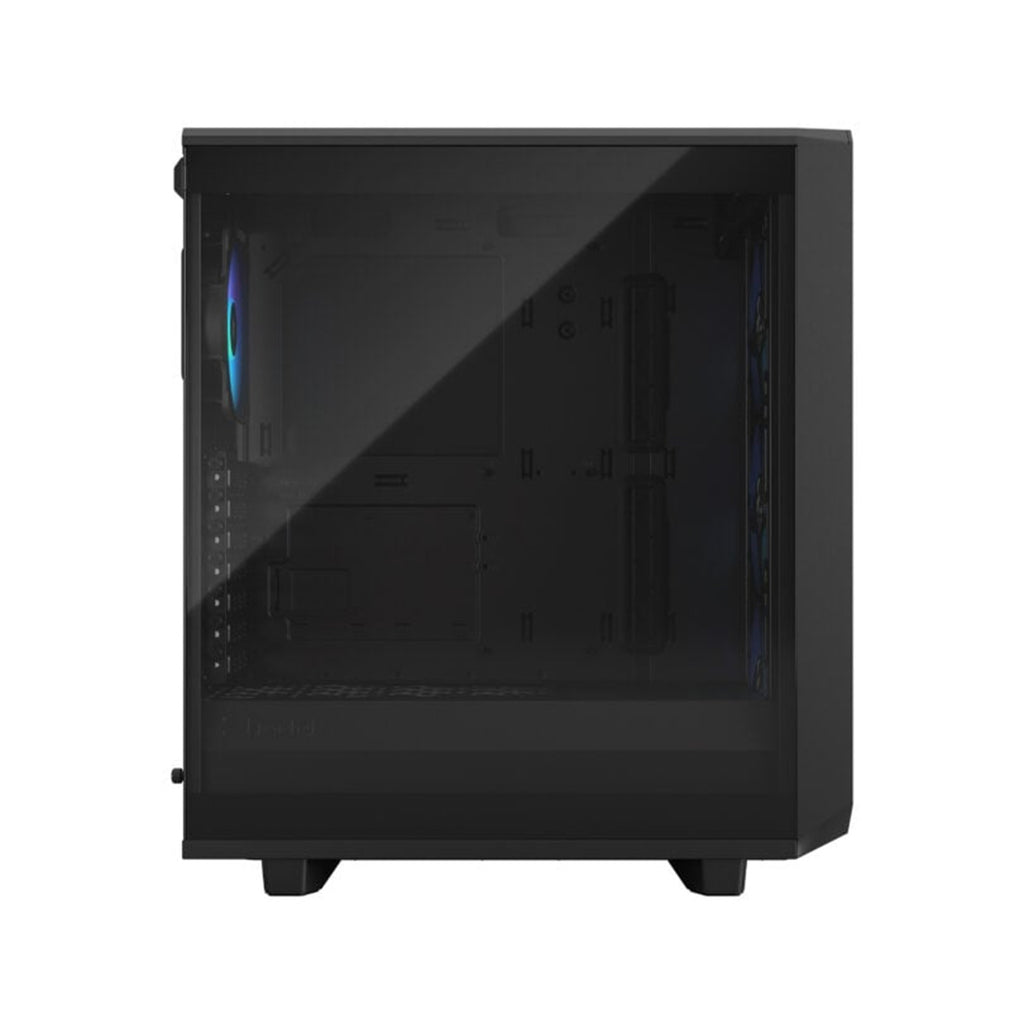

| Left side panel | Tempered glass |

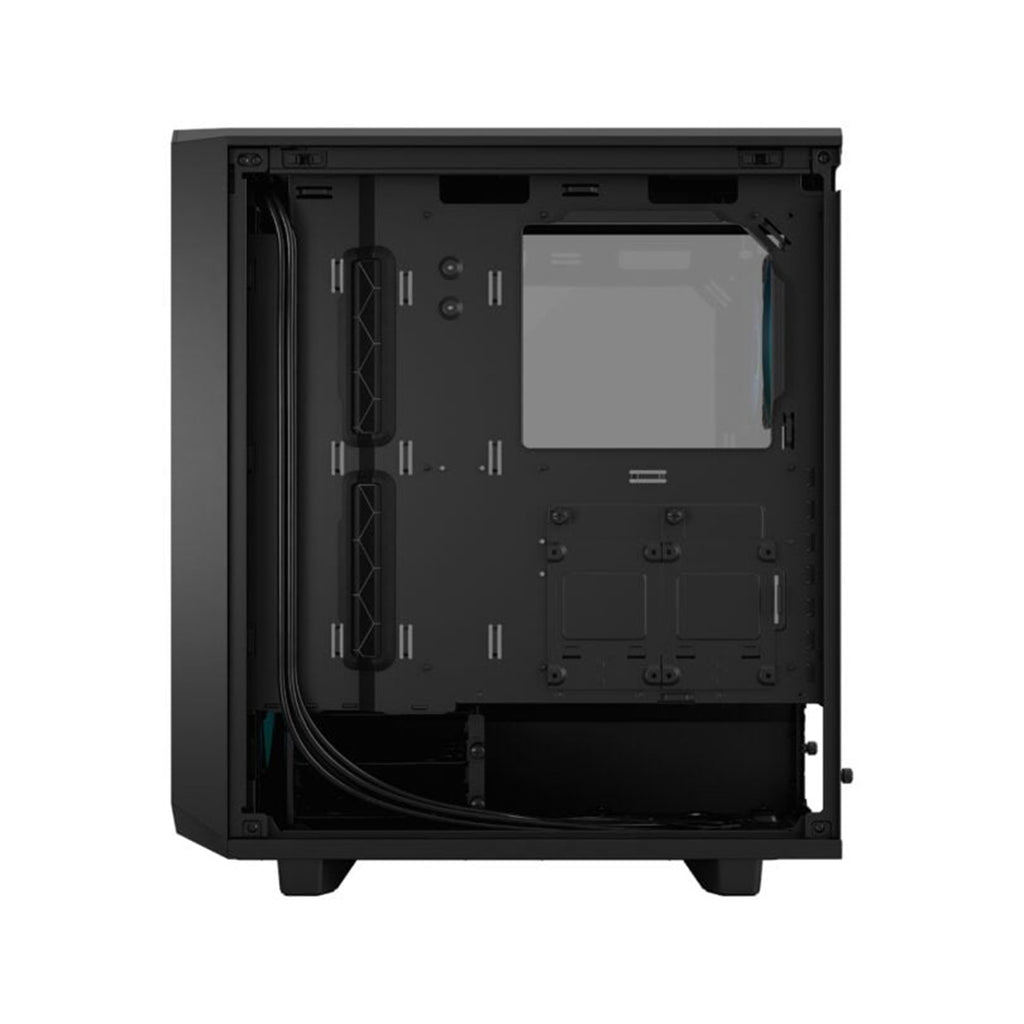

| Right side panel | Steel |
| Motherboard compatibility | ATX / mATX / Mini-ITX |
| Power supply type | ATX |
| PSU max length | 180 mm (with HDD cage and front fan) |
| GPU max length | 345 mm |
| CPU cooler max height | 169 mm |
| Front radiator | Up to 360/280 mm |
| Top radiator | Up to 240 mm (RAM at or below 40 mm recommended) |
| Rear radiator | 120 mm |
| Bottom radiator | 120 mm (requires removal of HDD cage) |
| Cable routing space | 17-28 mm |
| Case dimensions (LxWxH) | 424 x 210 x 475 mm |
| Case dimensions w/o feet/protrusions/screws | 412 x 210 x 455 mm |
| Package dimensions (LxWxH) | 542 x 320 x 554 mm |
