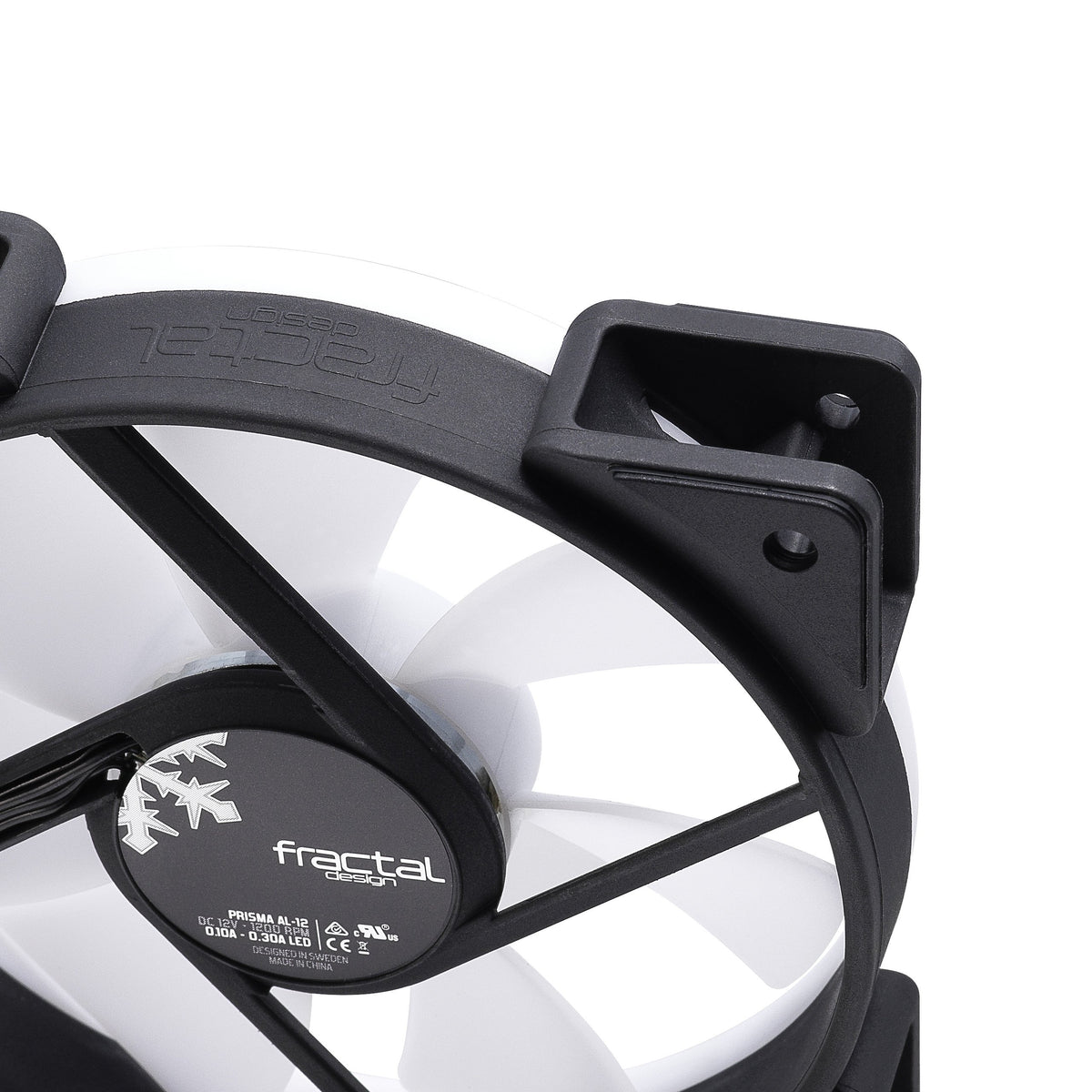

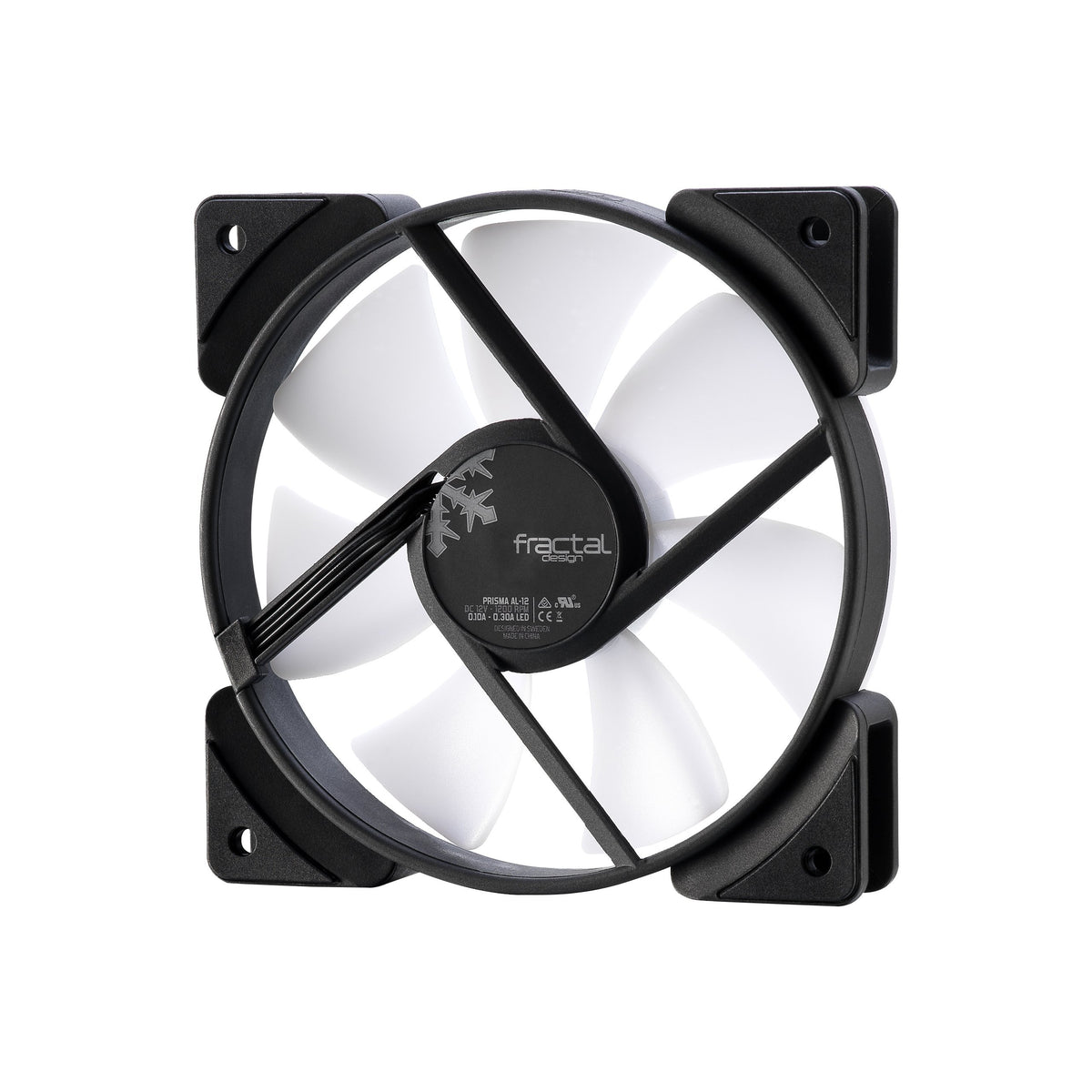

Prisma AL-12

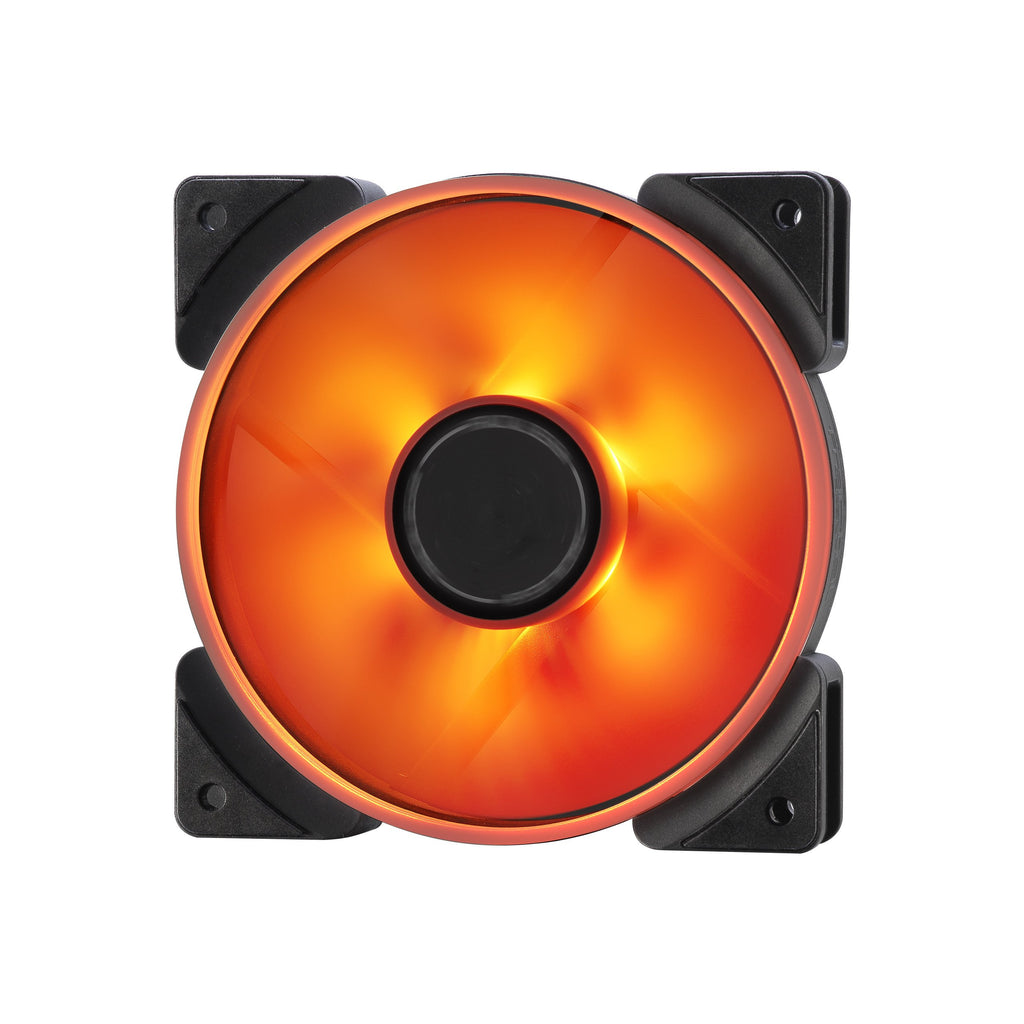

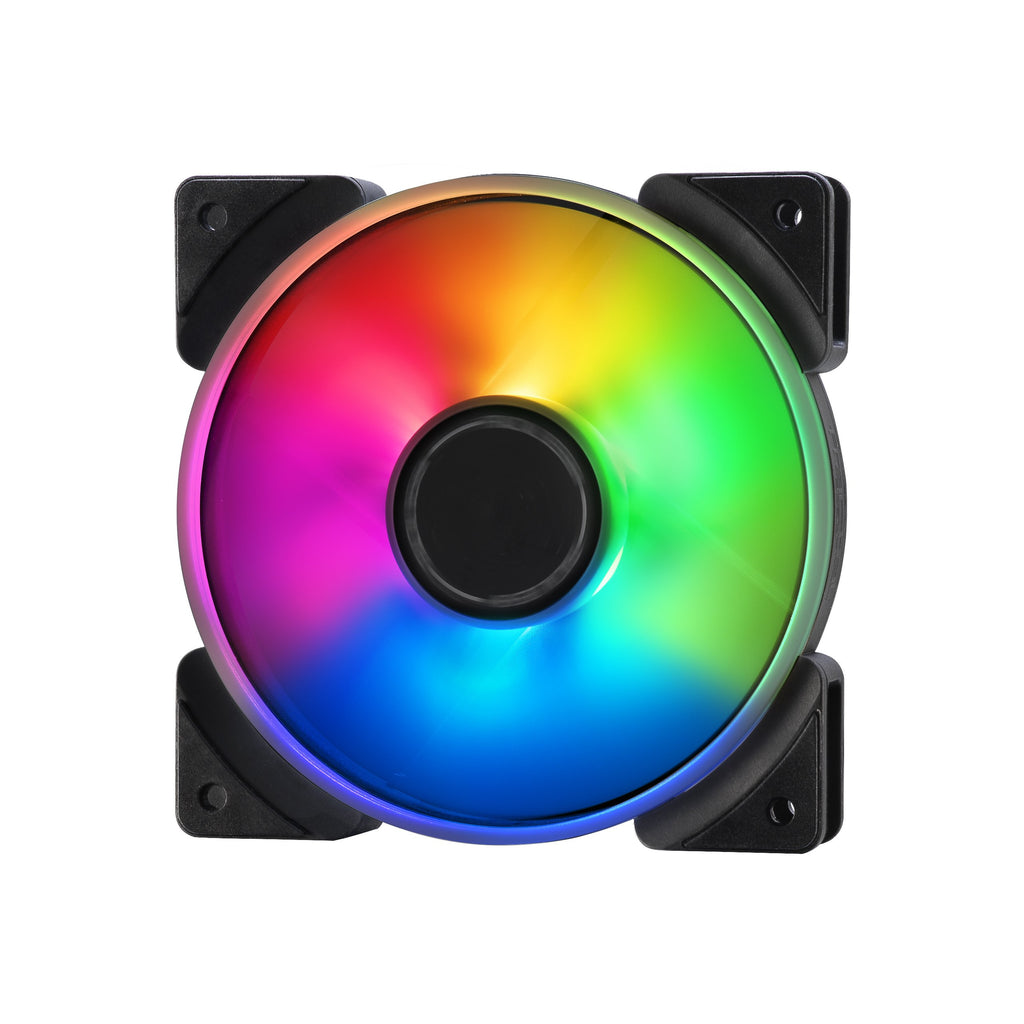

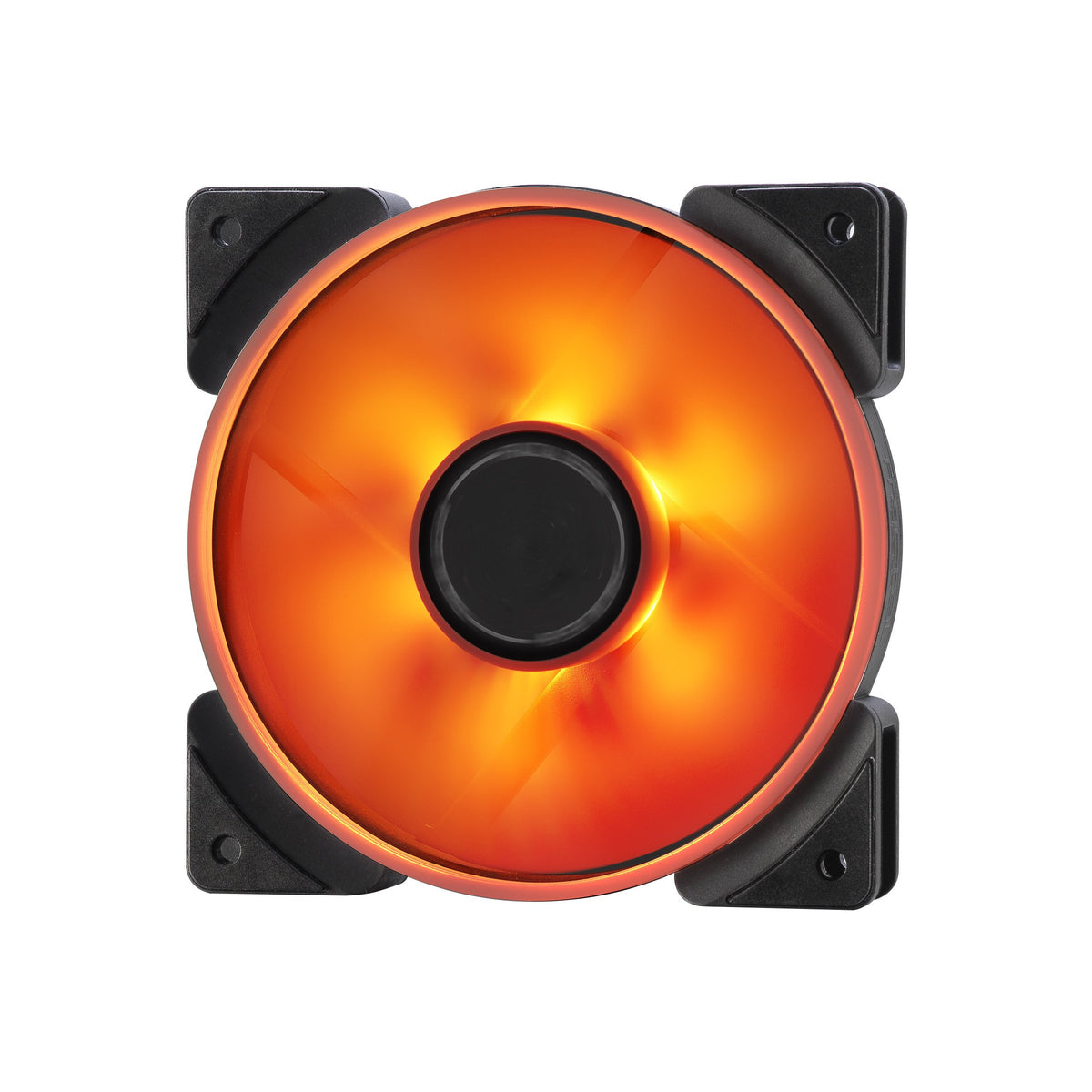

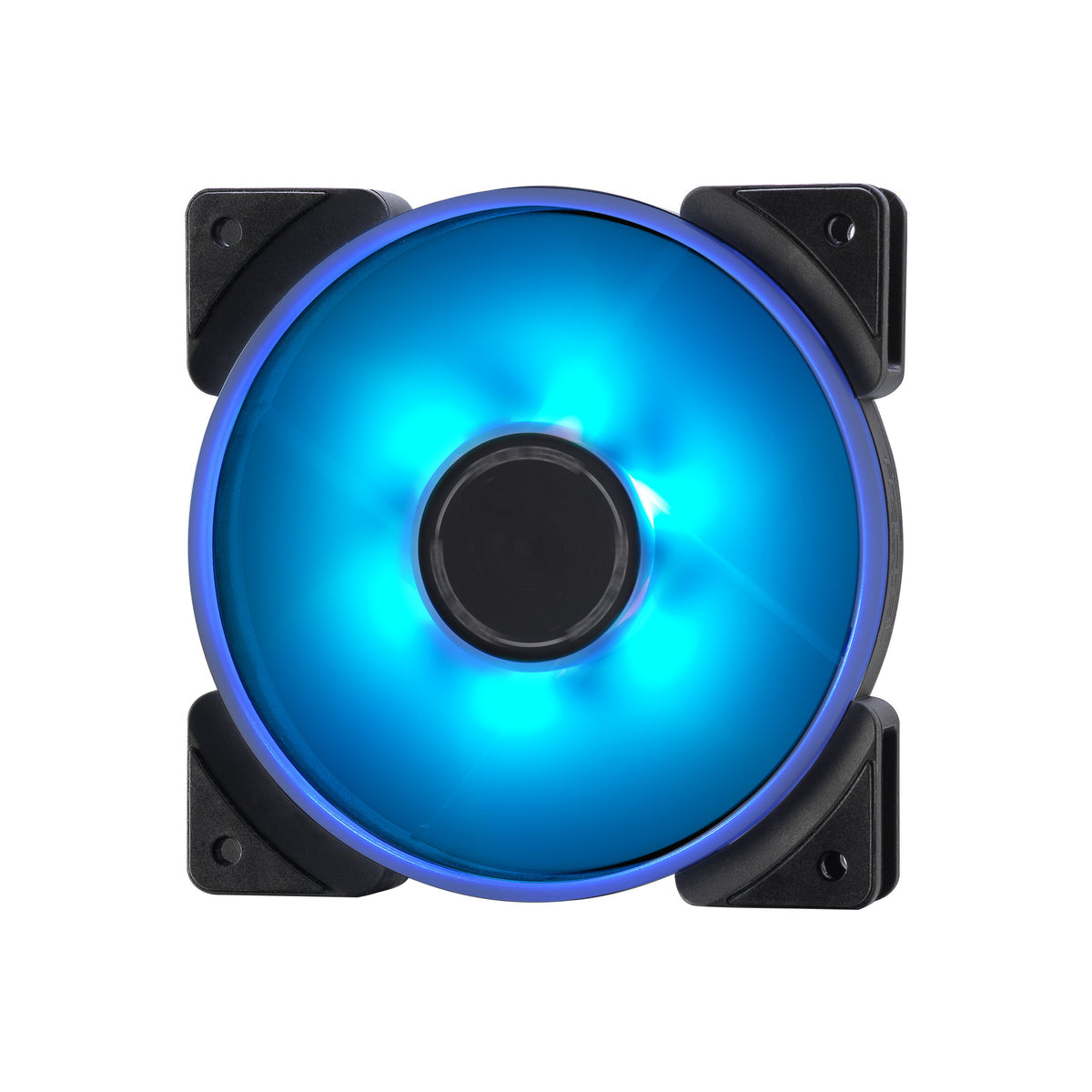

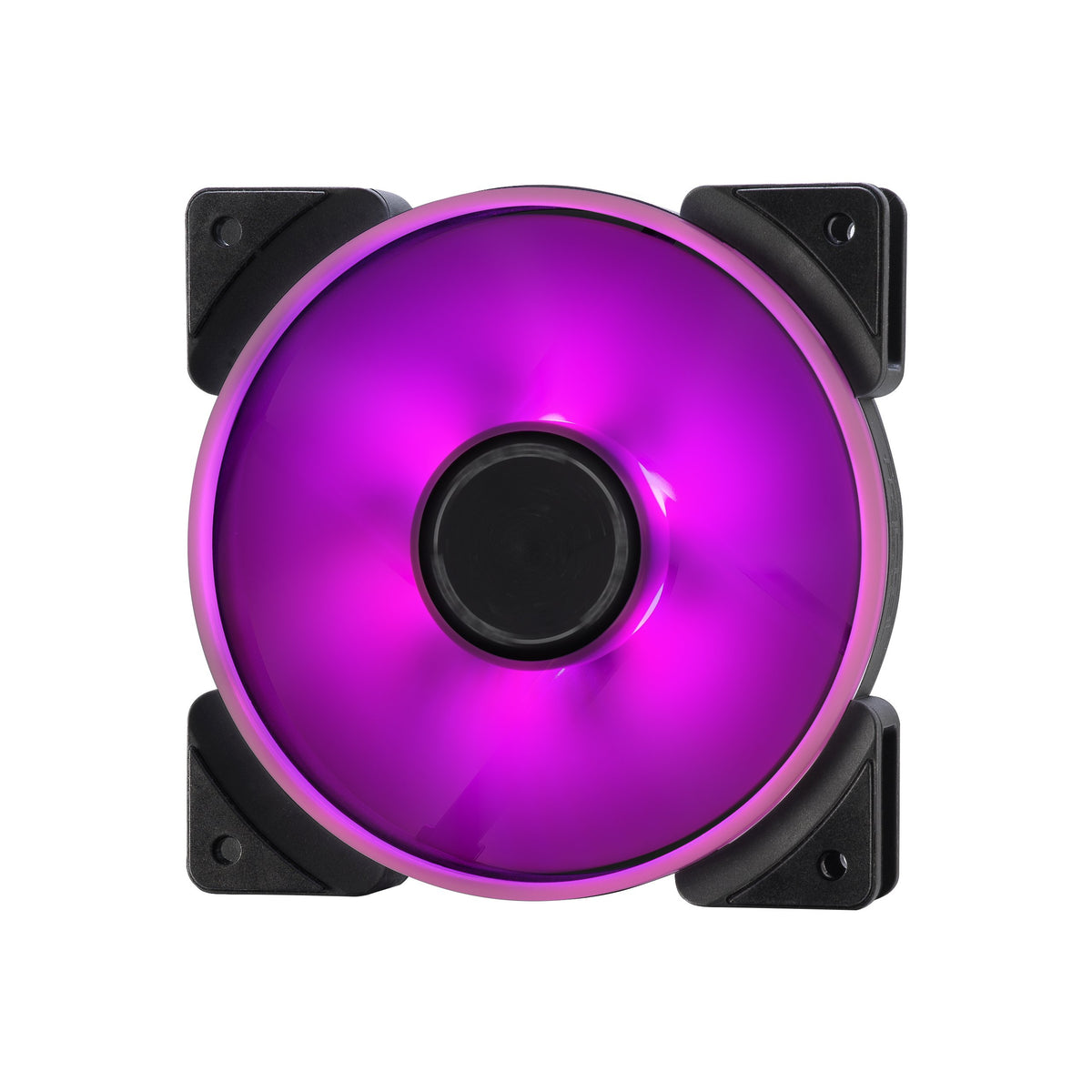

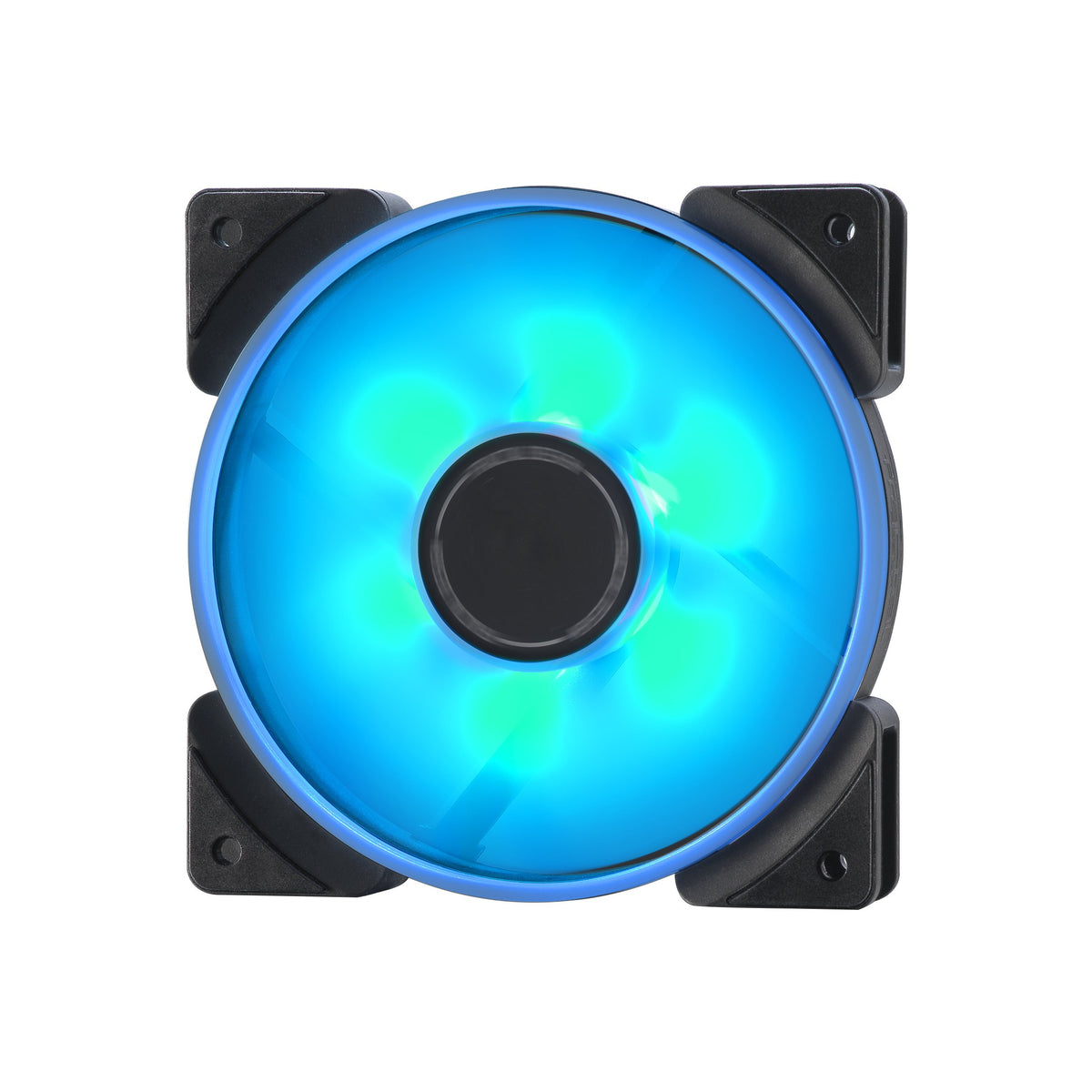

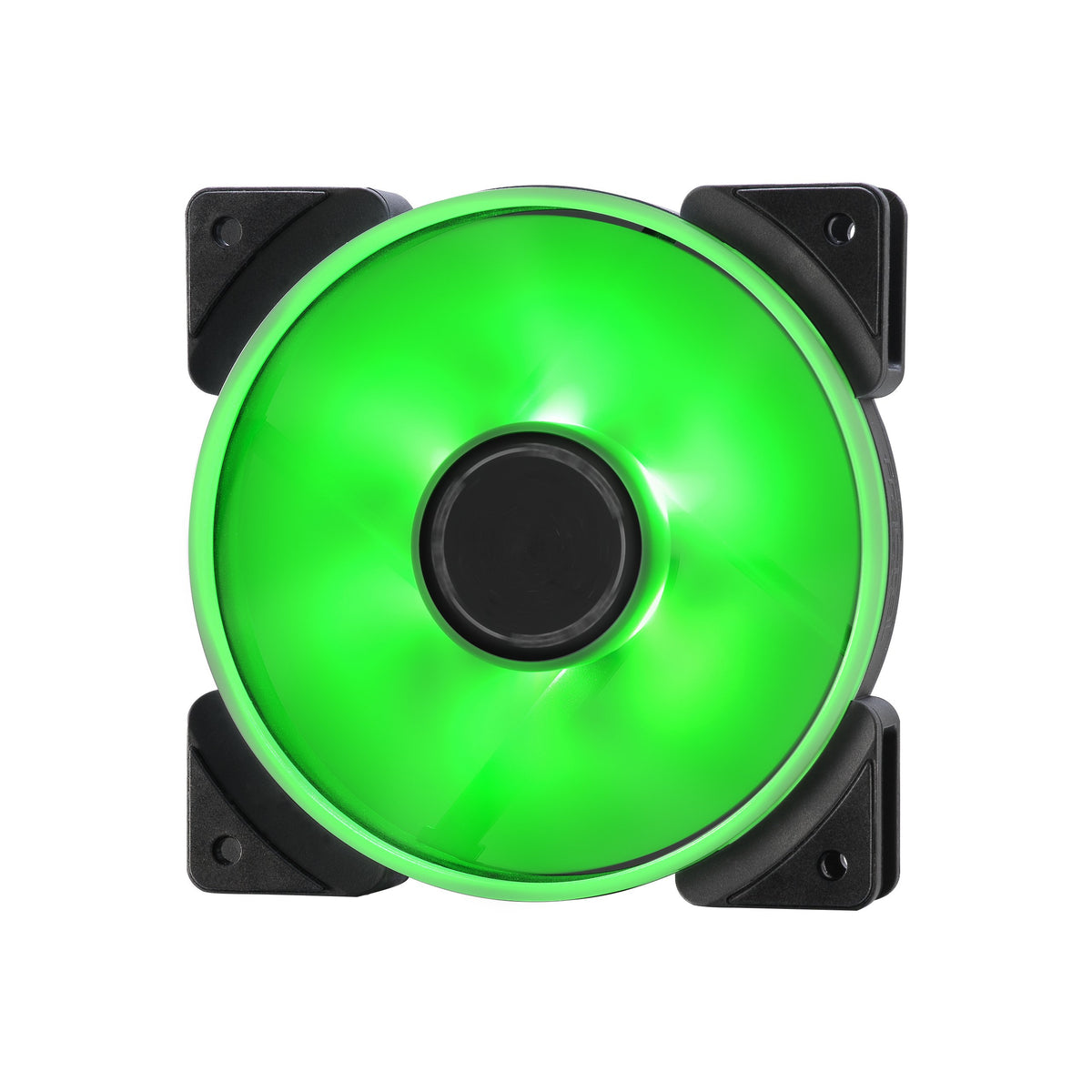

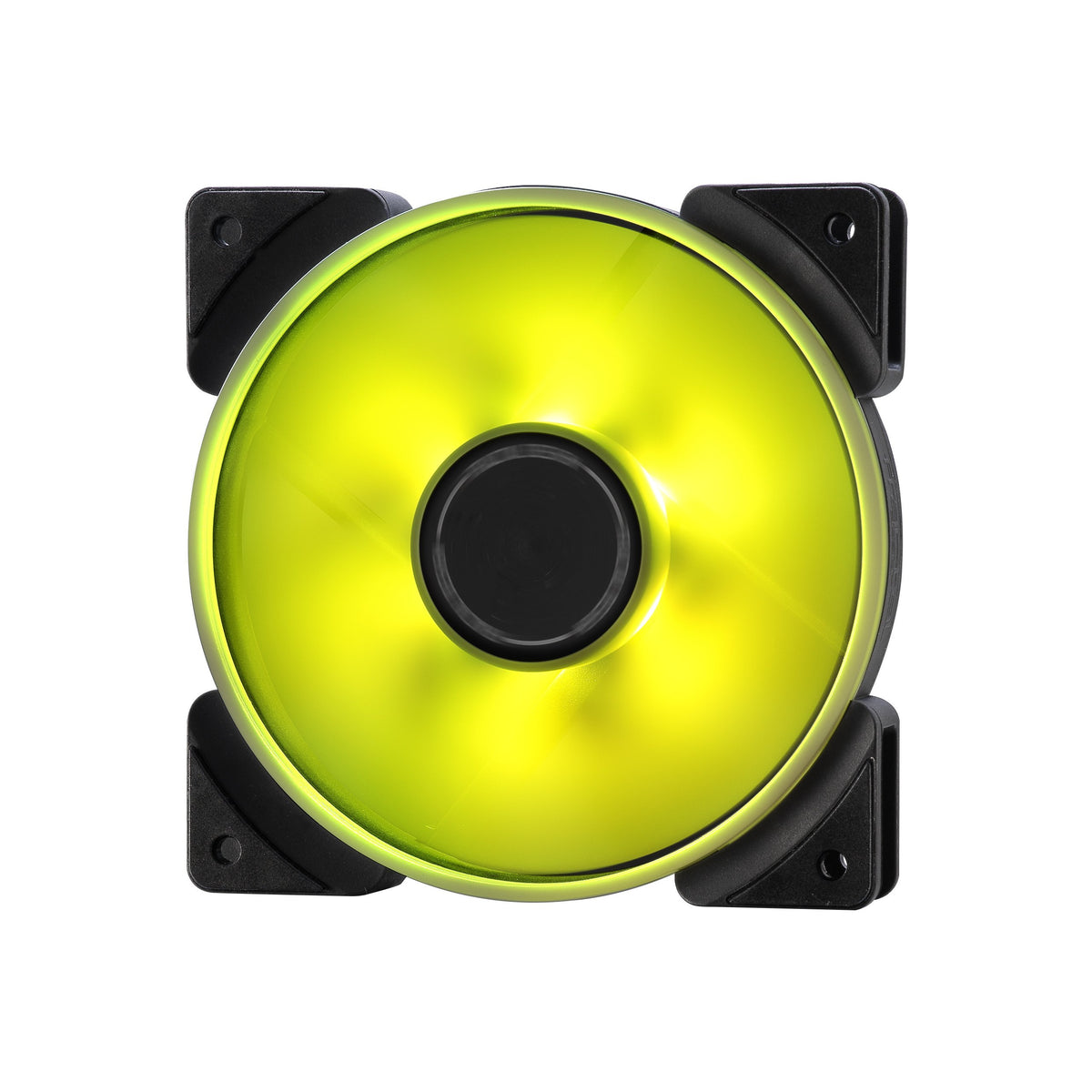

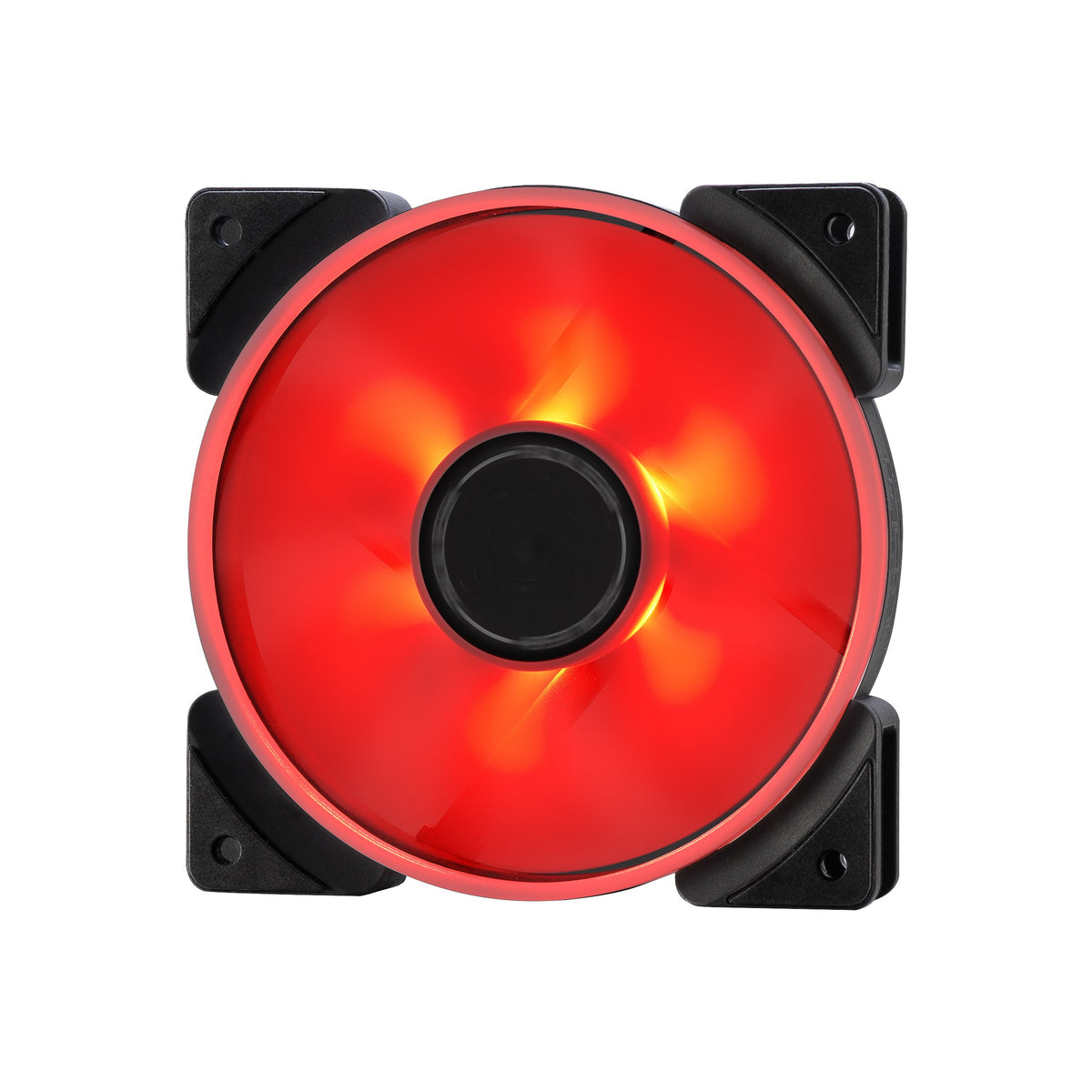

Our Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.

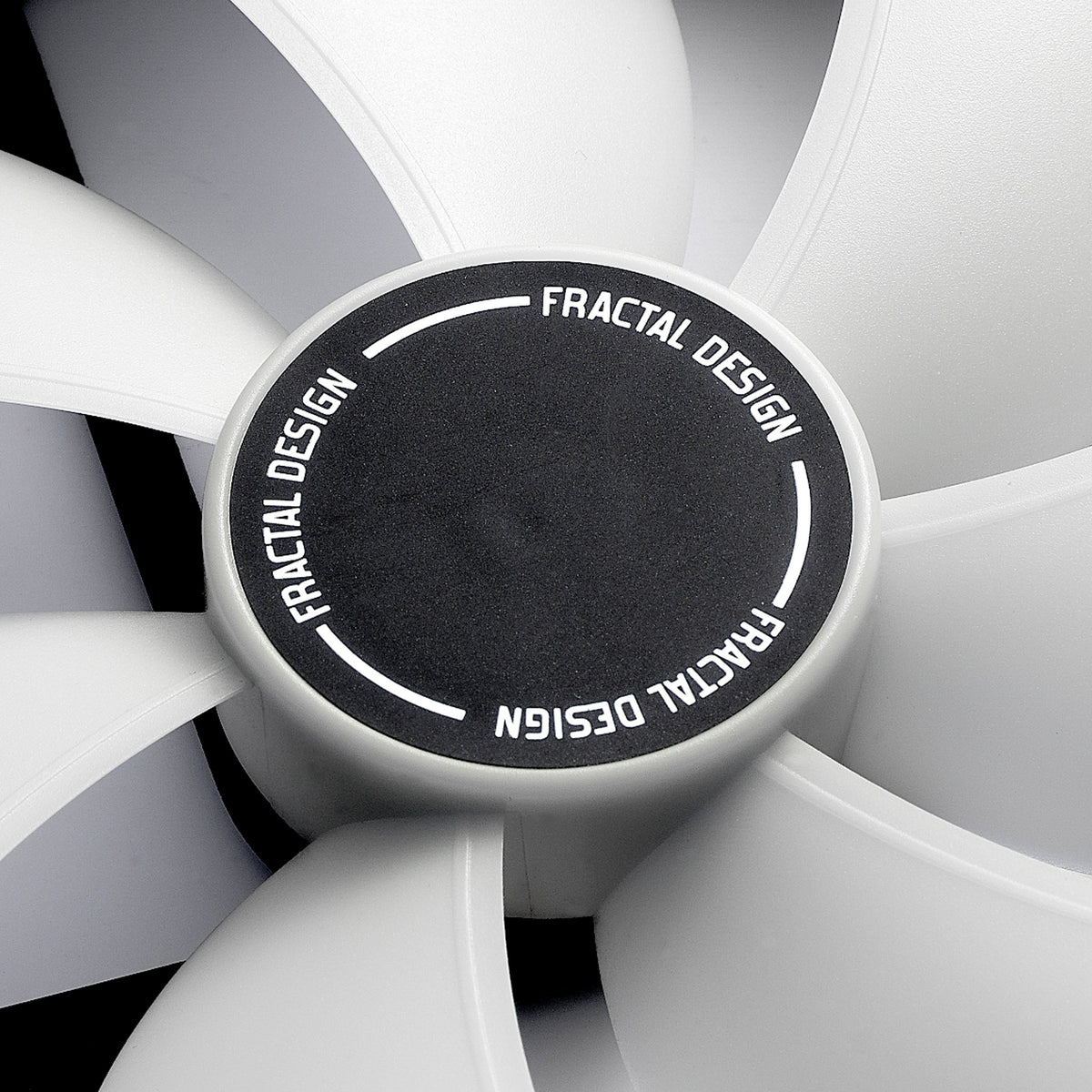

- Six individually addressable hub-mounted RGB LEDs

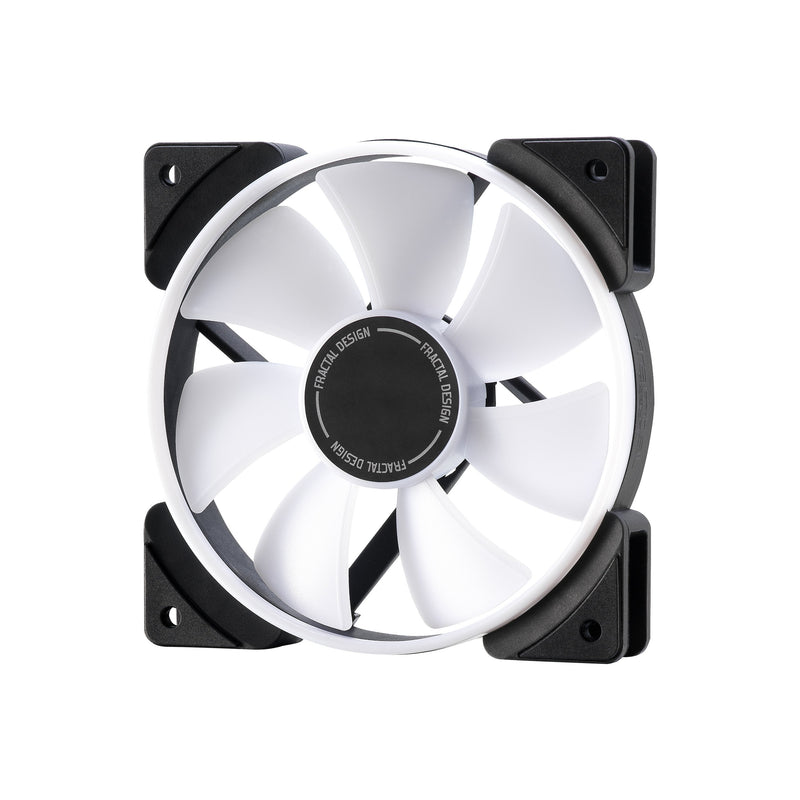

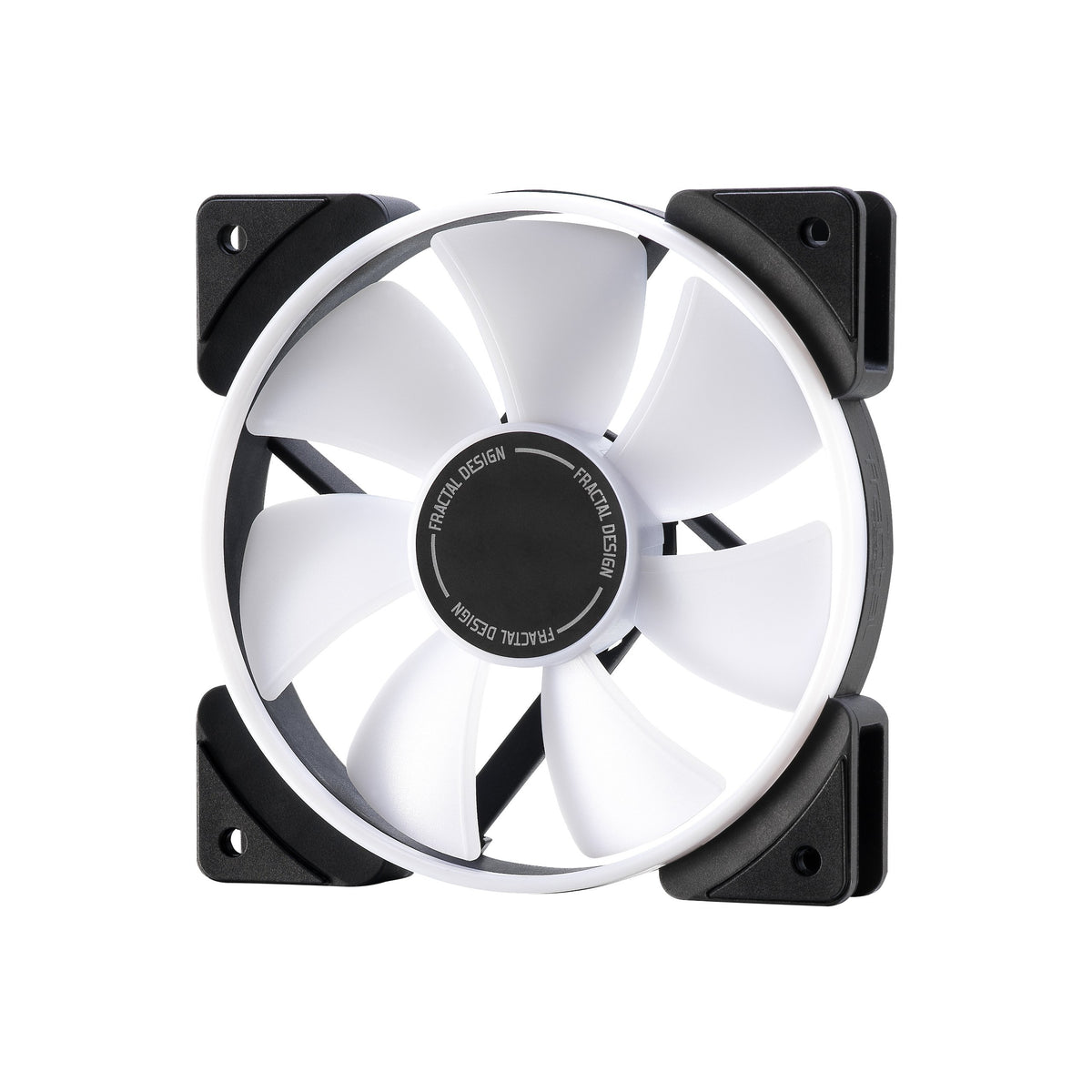

- Specially designed fan blades and outer ring
- Long Life Sleeve-bearings provide silent operation with a long lifespan
Specification:
|
General Specifications
|
-

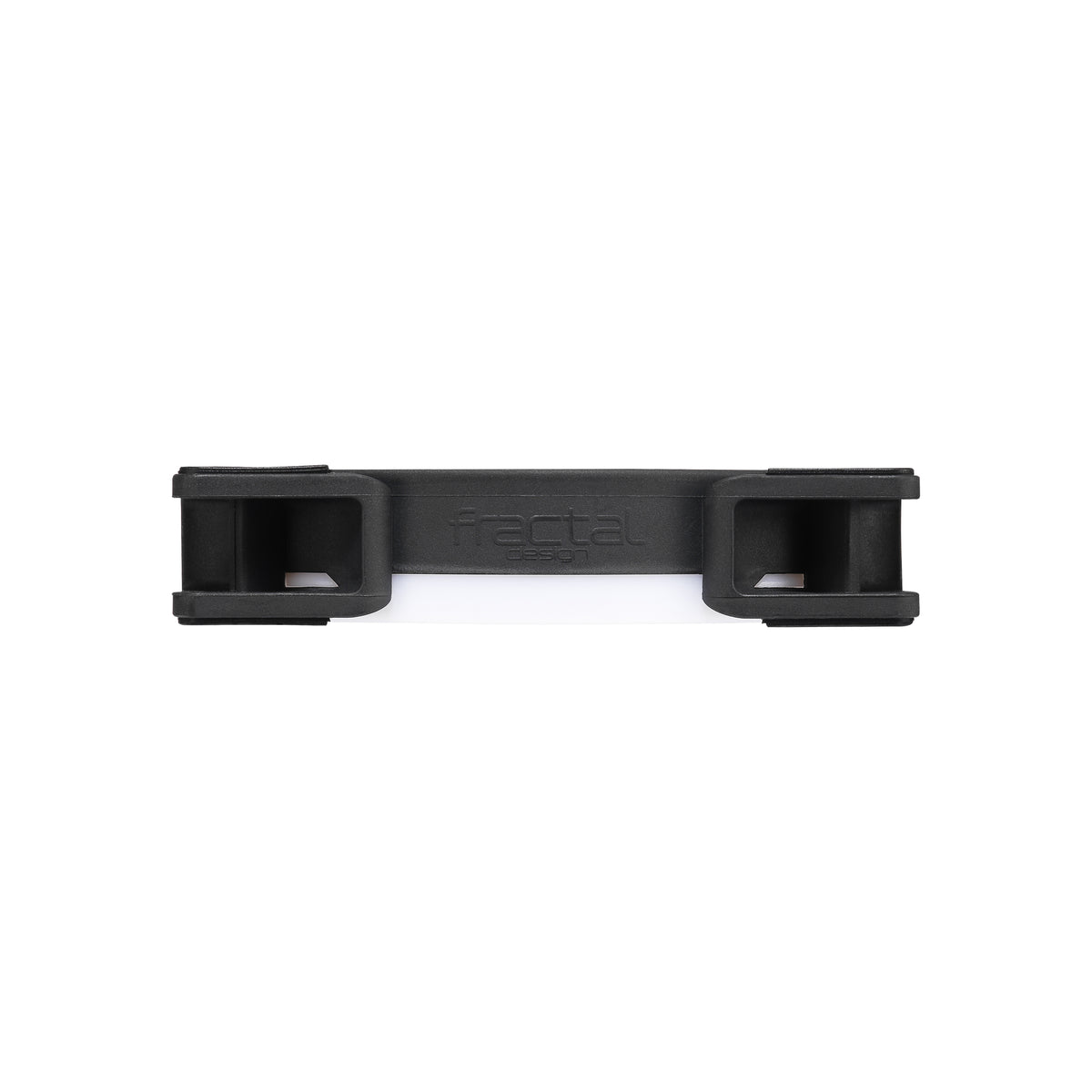

Size
120 x 120 x 25 mm
-
Screw hole pattern
105 x 105 mm
-
Fan connector
3-pin
-
RGB connector
3-pin 5V addressable RGB
-
Bearing
LLS
-
Number of blades
7
-
Rotational speed
1200 RPM
-
Noise level
19.5 dB(A)
-
Airflow (CFM)
50.63 CFM
-
Airflow (m3/h)
86.02 m3/h
-
Static pressure
1.27 mmH2O
-
Fan input power
1.2 W
-
Fan max input current
0.10 A
-
Fan input voltage
12 V
-
Fan starting voltage
7 V
-
LED input power
1.50 W
-
LED max input current
0.30 A
-
LED input voltage
5V
-
MTBF
100,000 hours
-
Fan weight
167 g
-

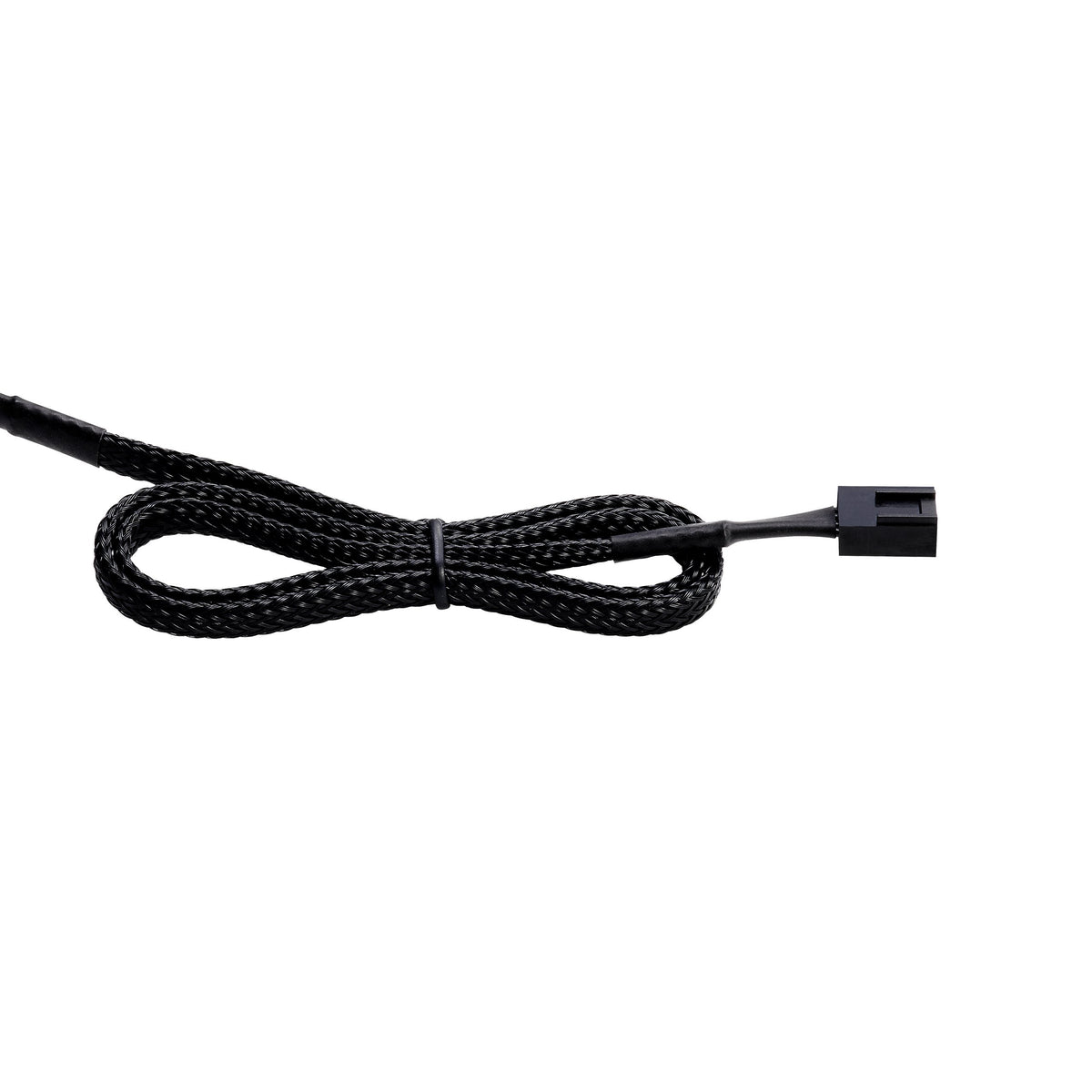

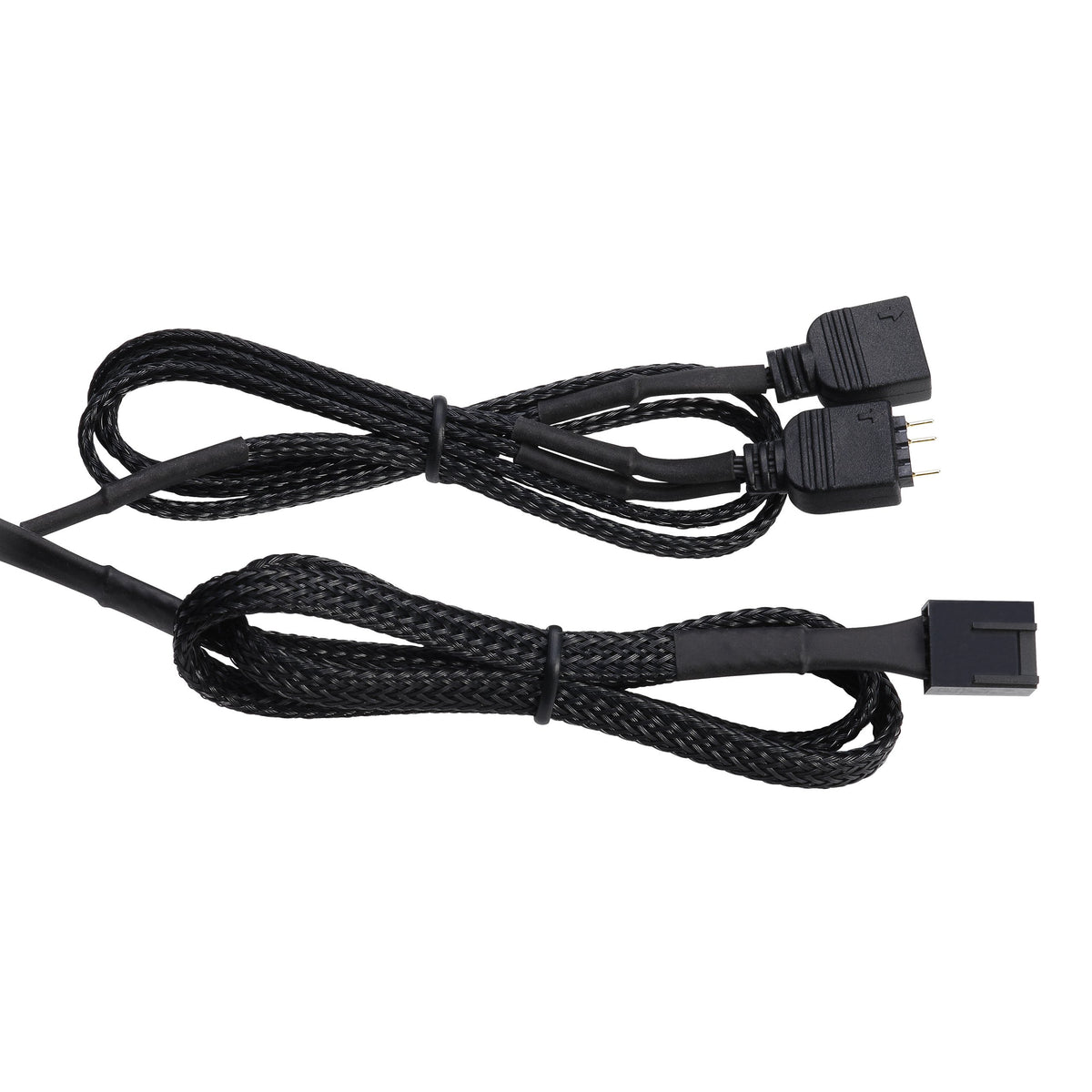

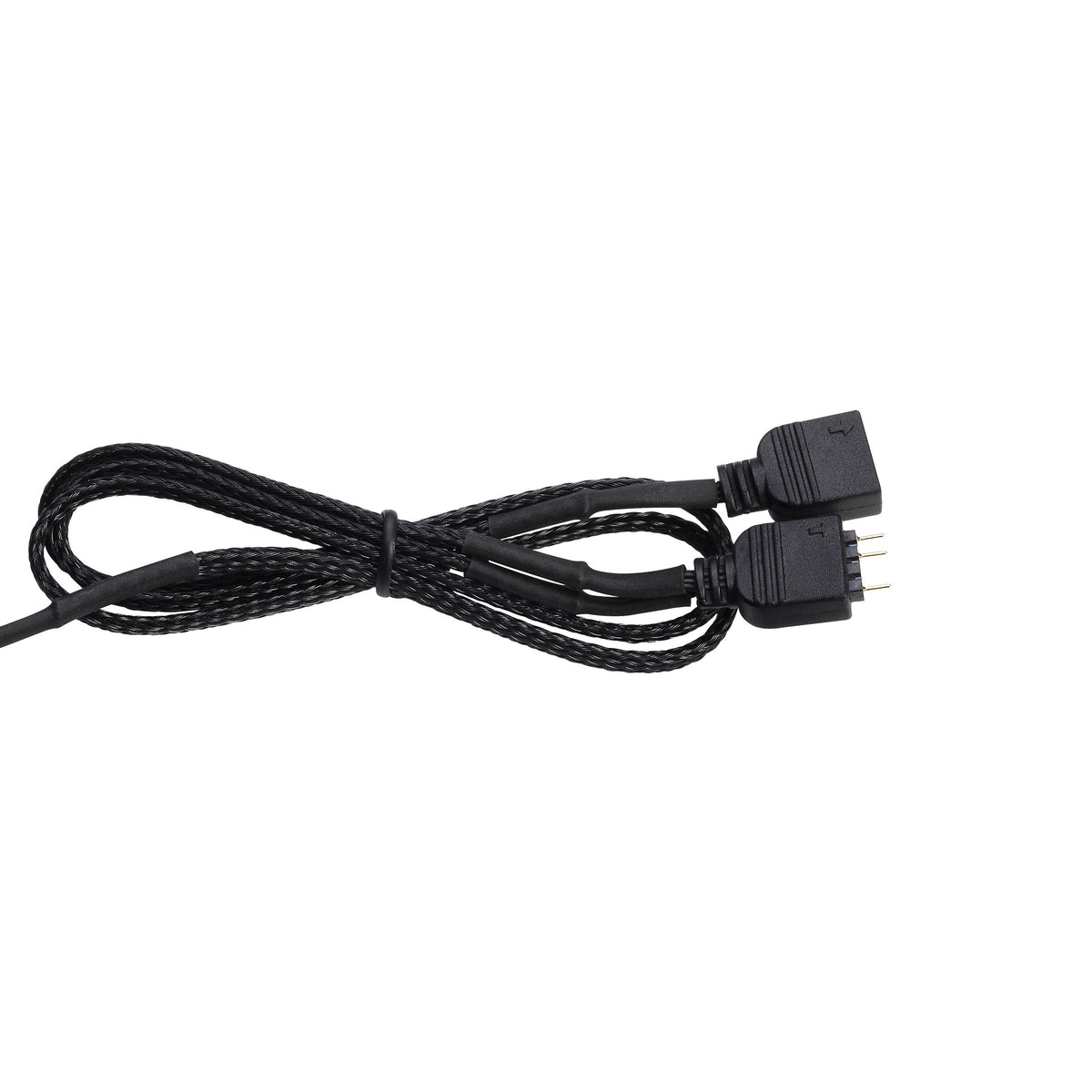

Cable length
500 mm
-
Cable type
Black sleeved
|
|
Other
|
-
Package contents

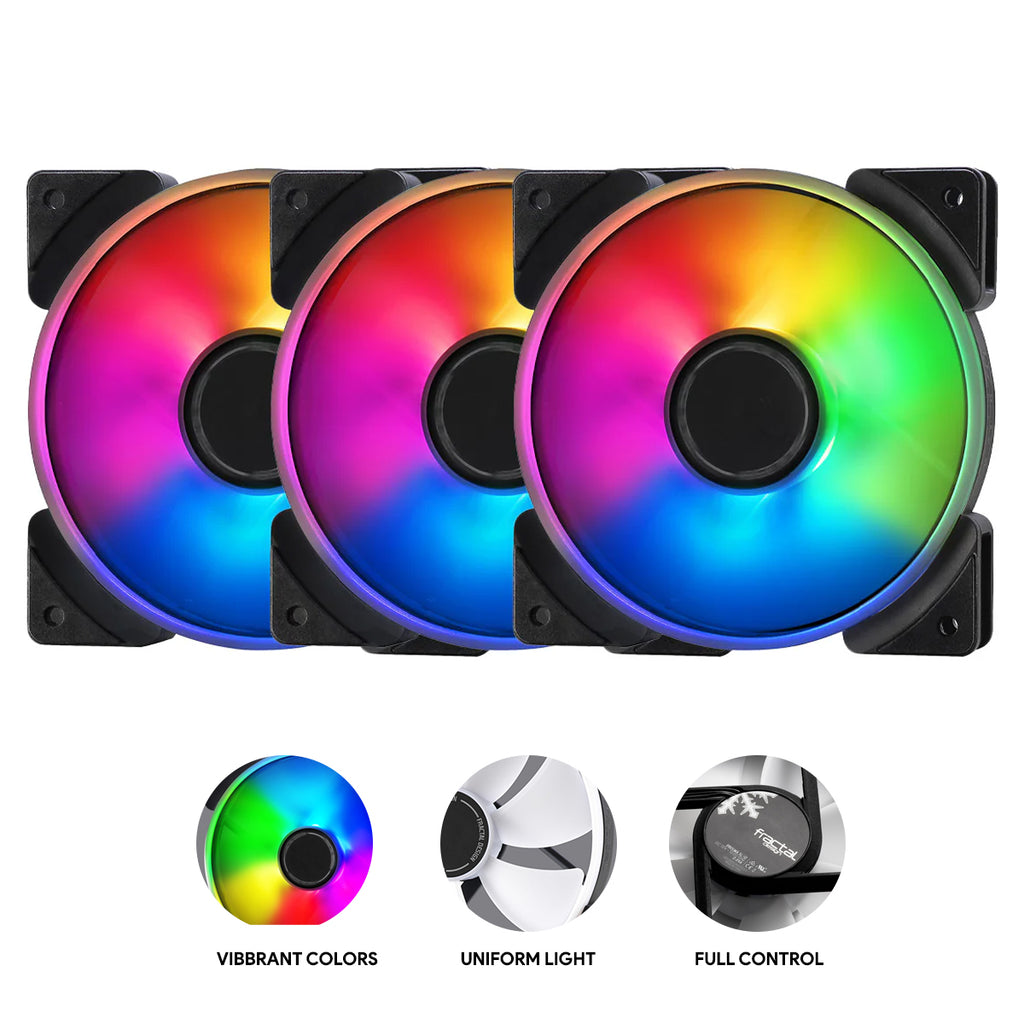

Prisma AL-12 120 mm fan, 4x fan screws / 3x Prisma AL-12 120 mm fan, 12x fan screws (3-pack)
-
Package weight
210 g / 590 g (3-pack)
-
Package dimensions (Including hanging tab)
182 x 122 x 30 mm / 202 x 122 x 80 mm (3-pack)
-
Package dimensions (Excluding hanging tab)
147 x 122 x 30 mm / 157 x 122 x 80 mm (3-pack)
|
