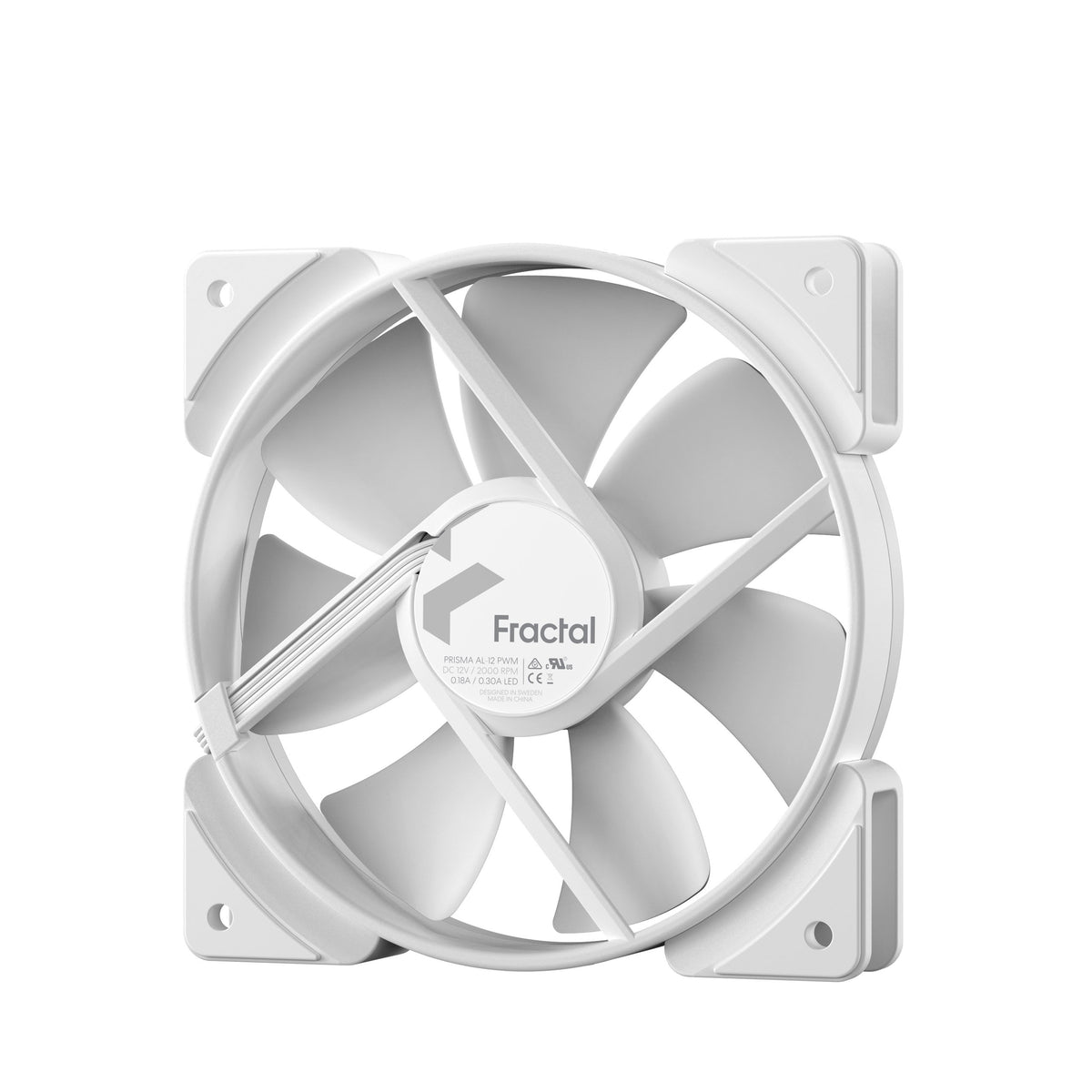

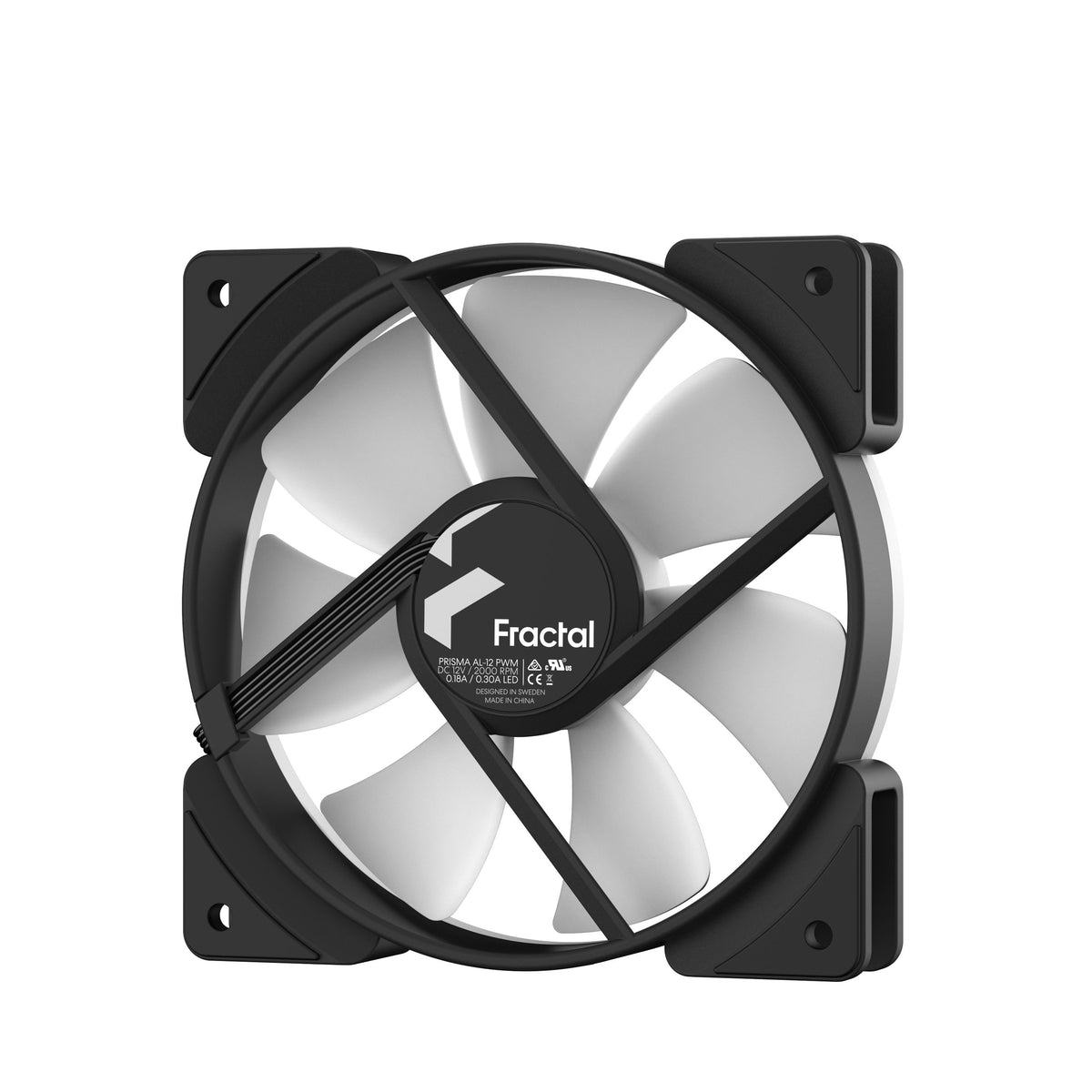

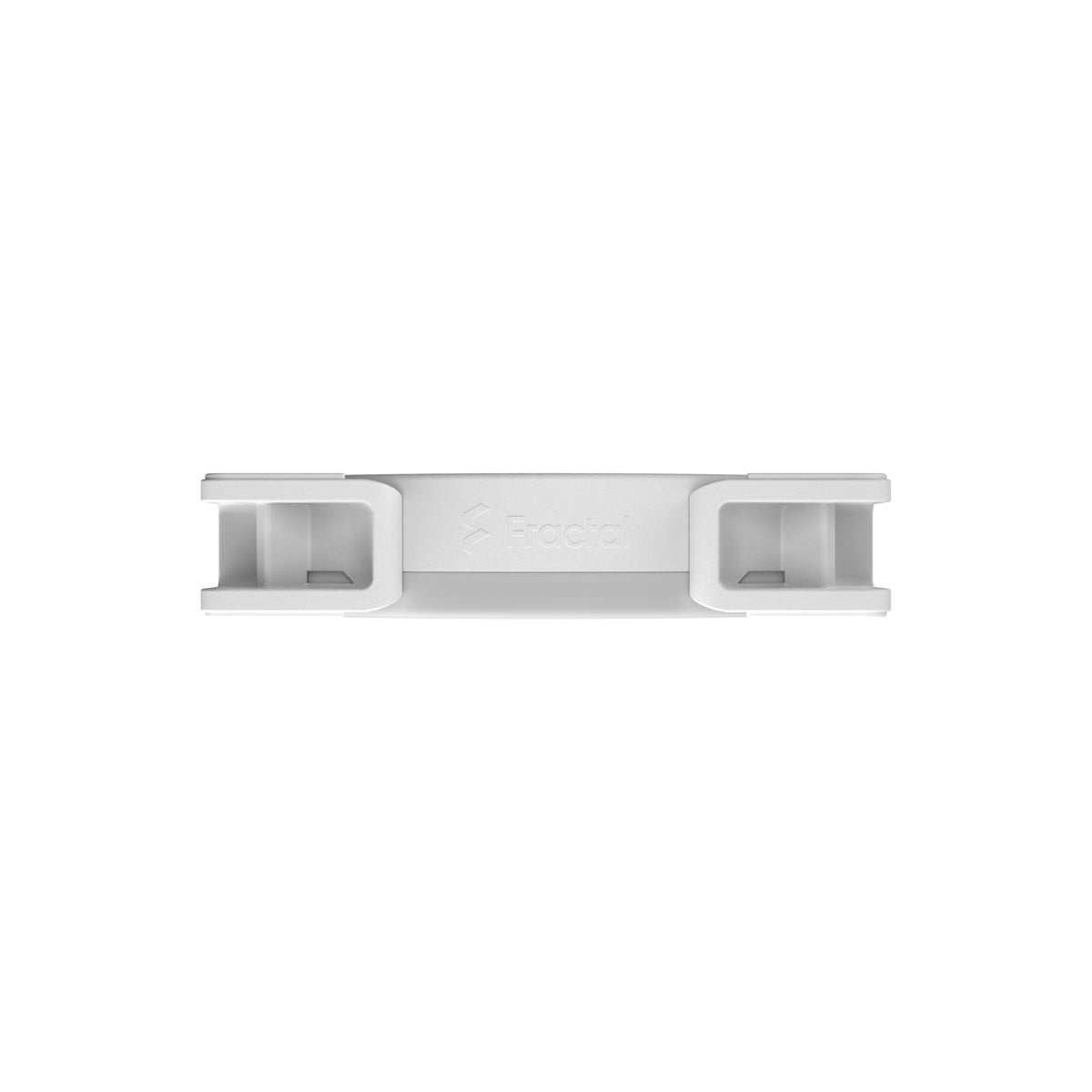

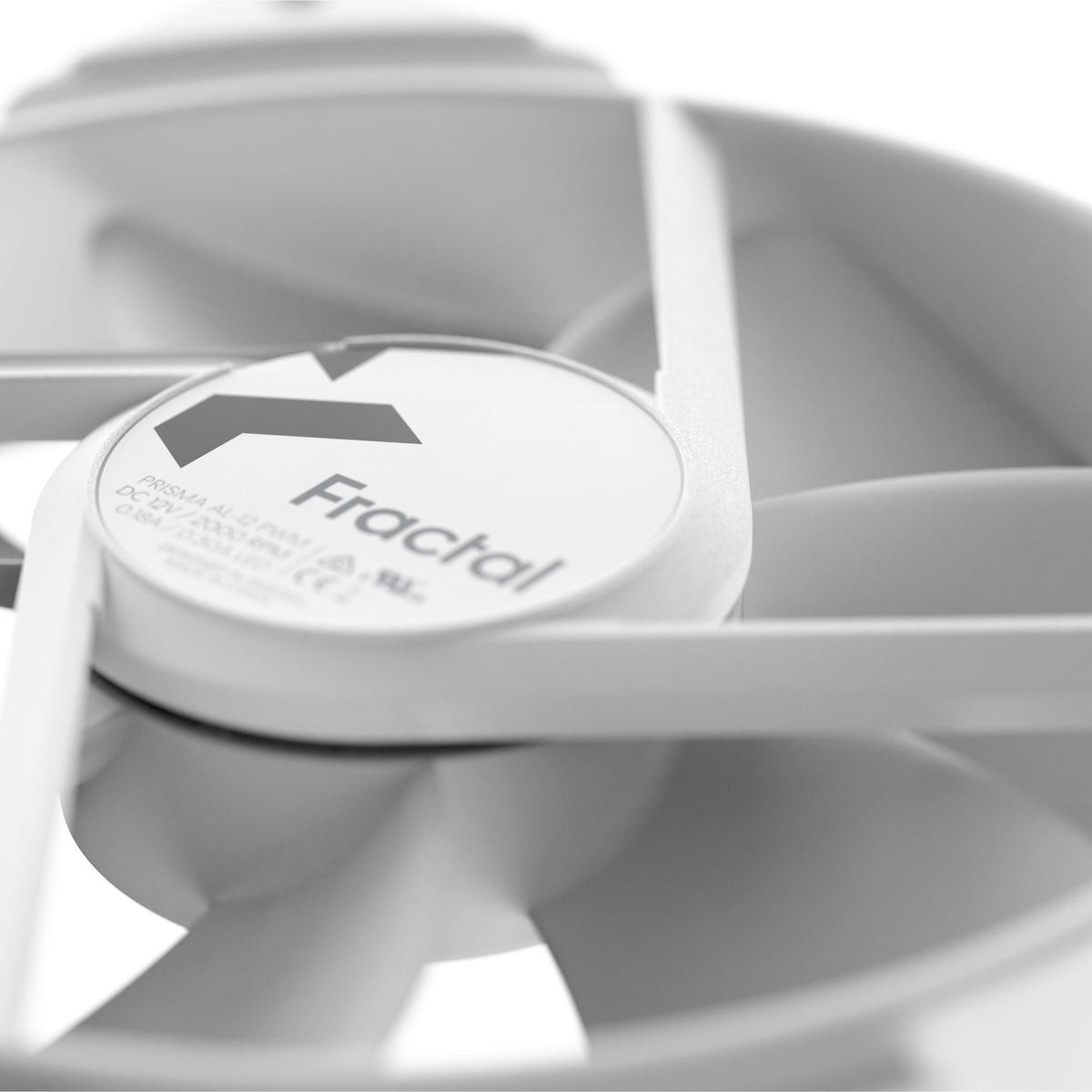

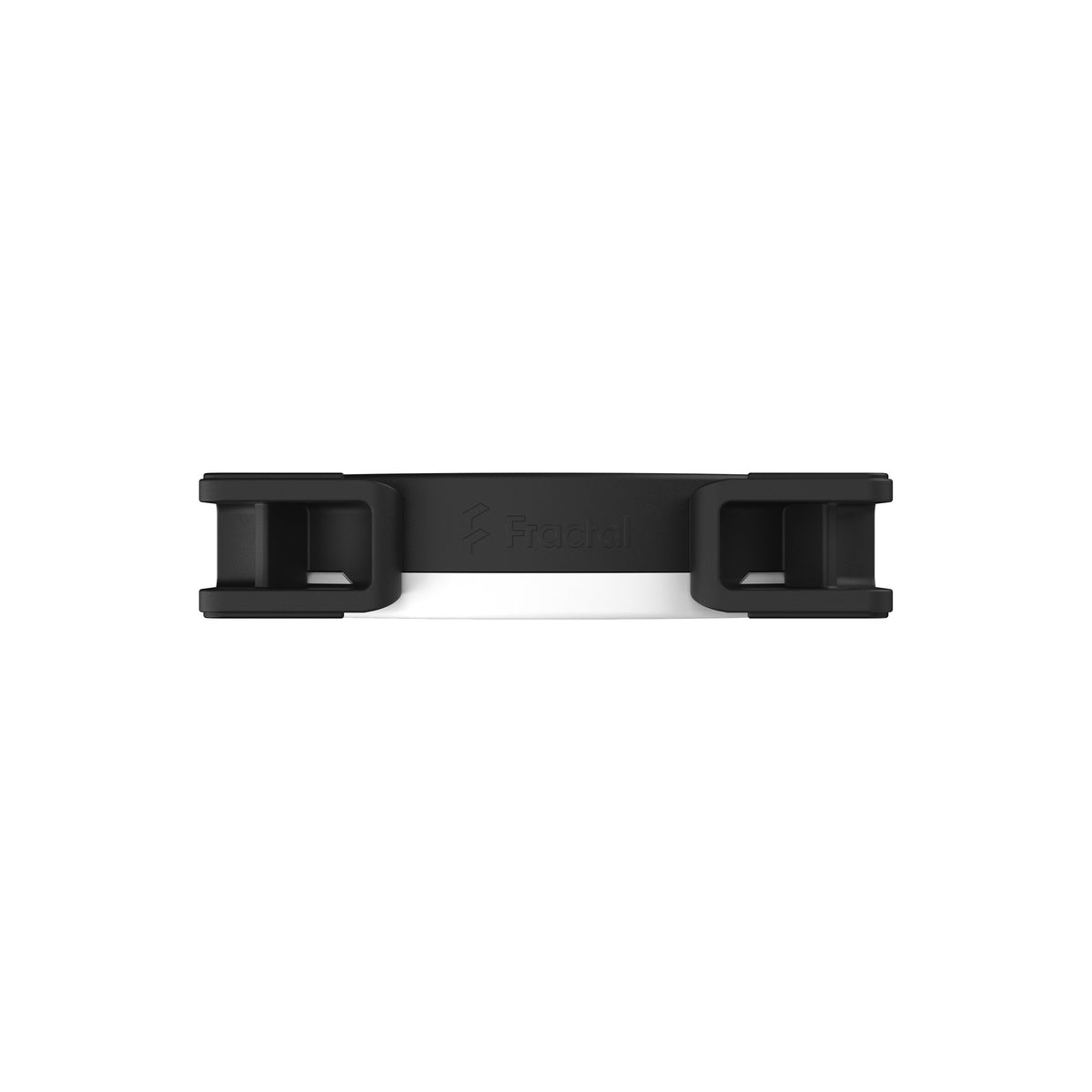

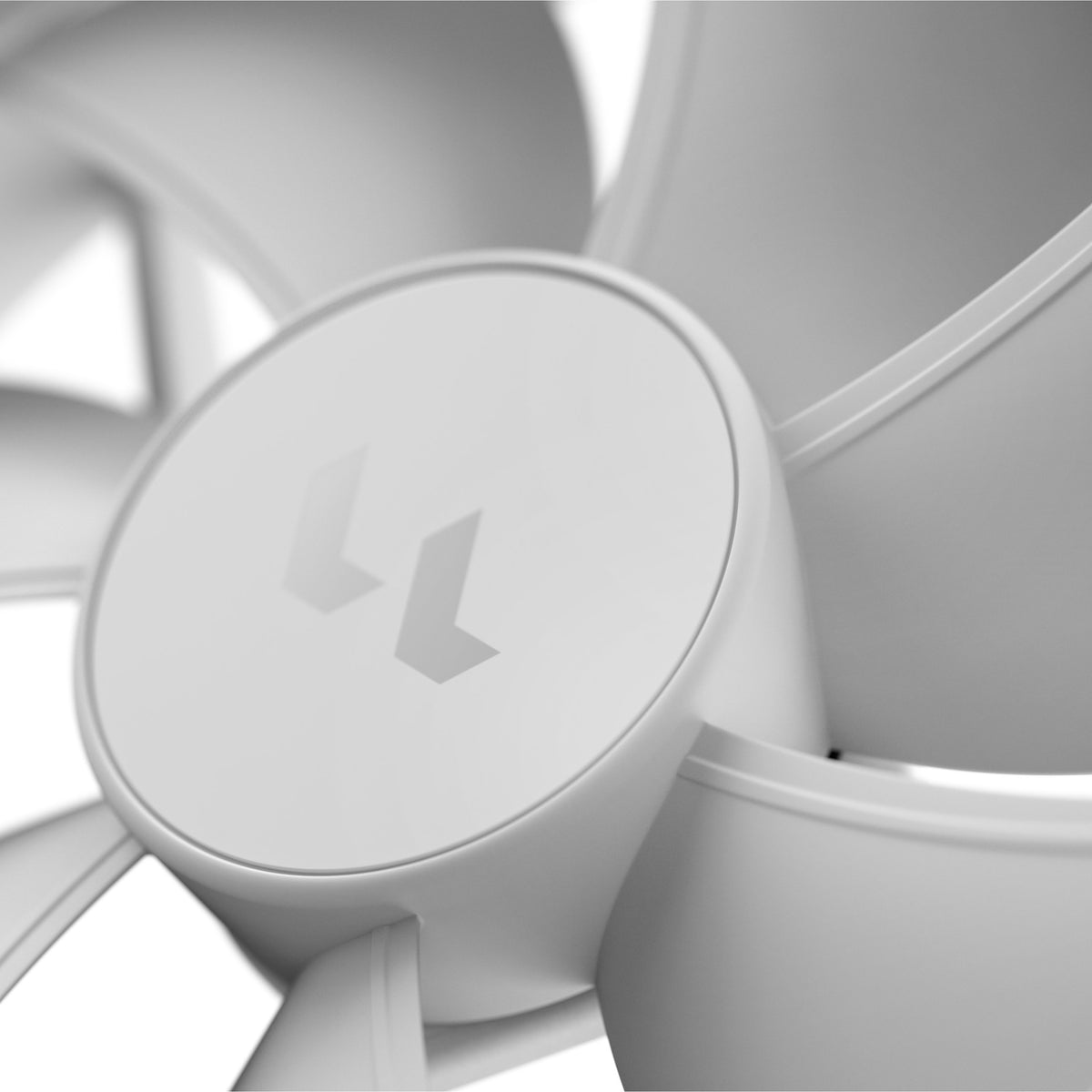

Prisma AL-12 PWM

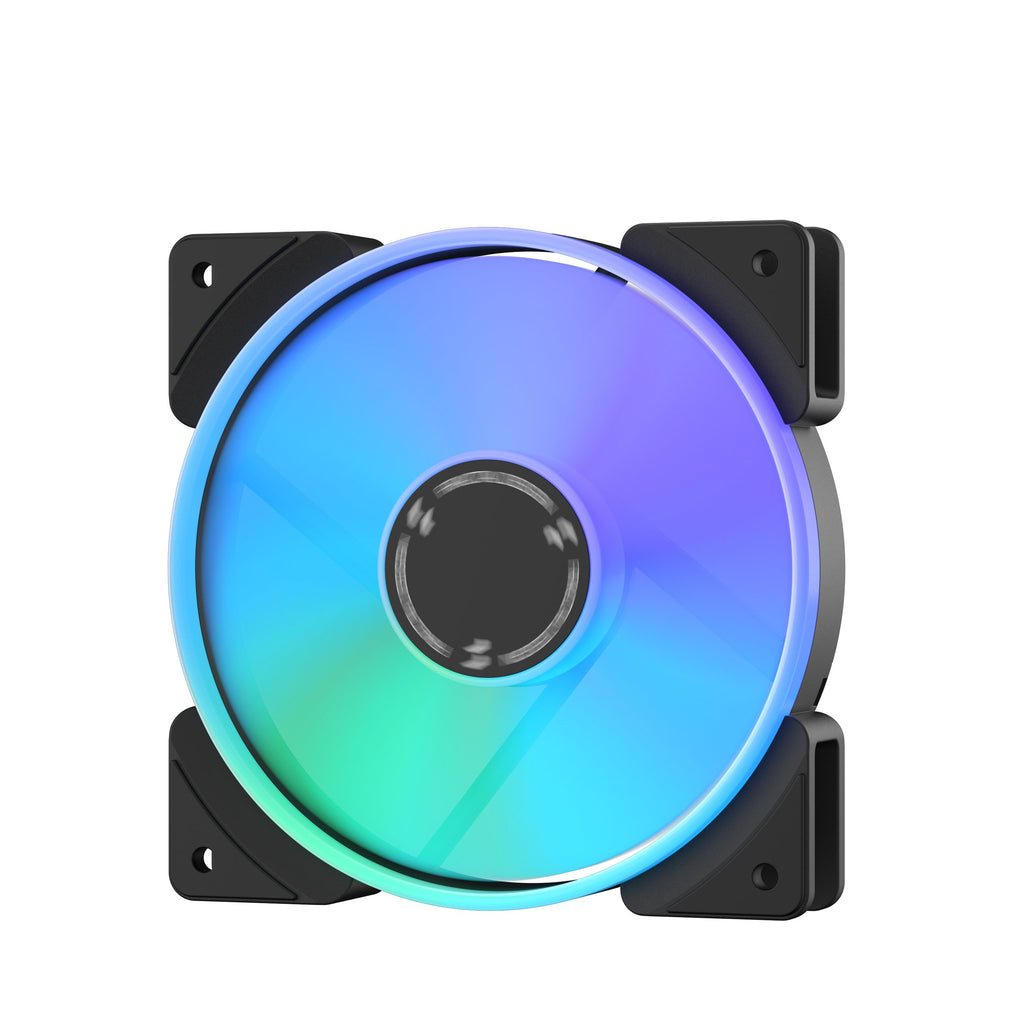

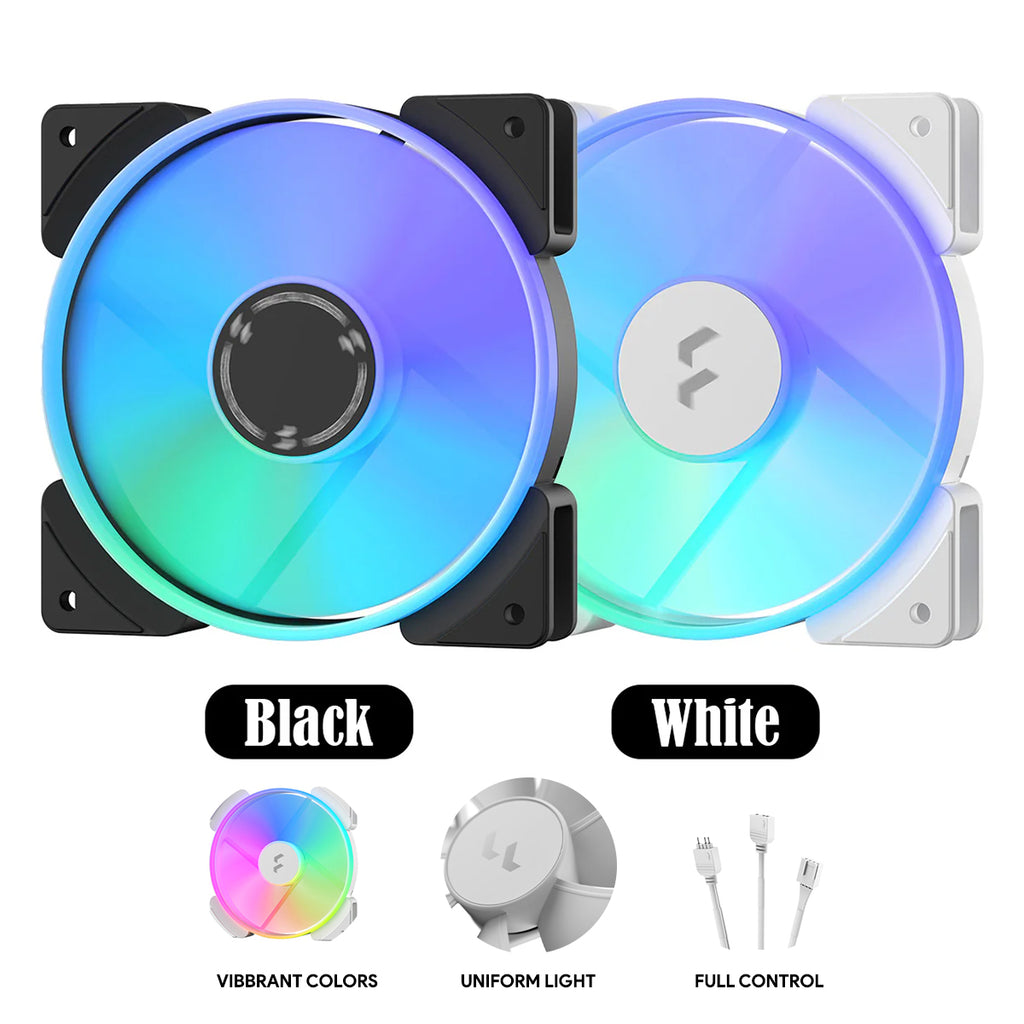

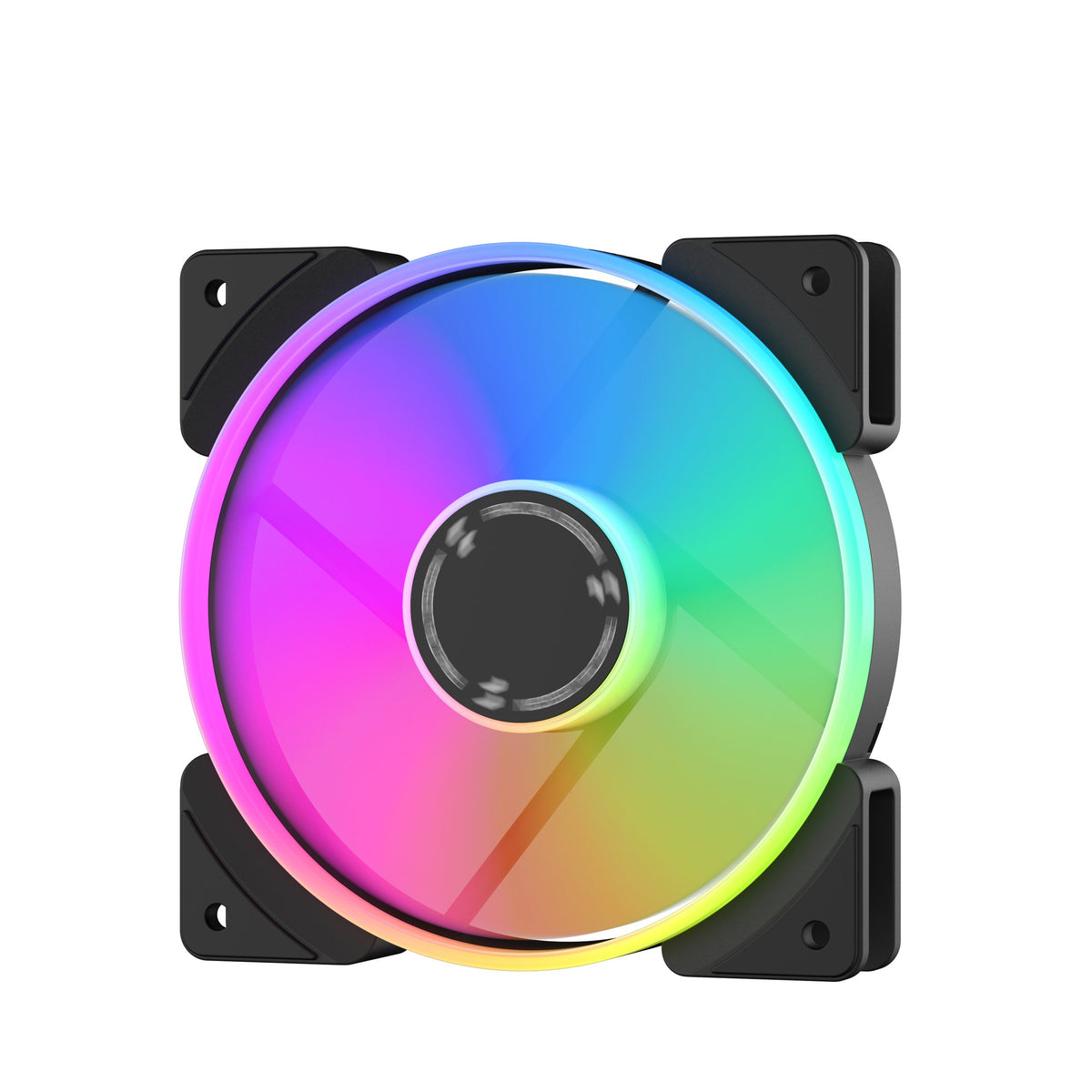

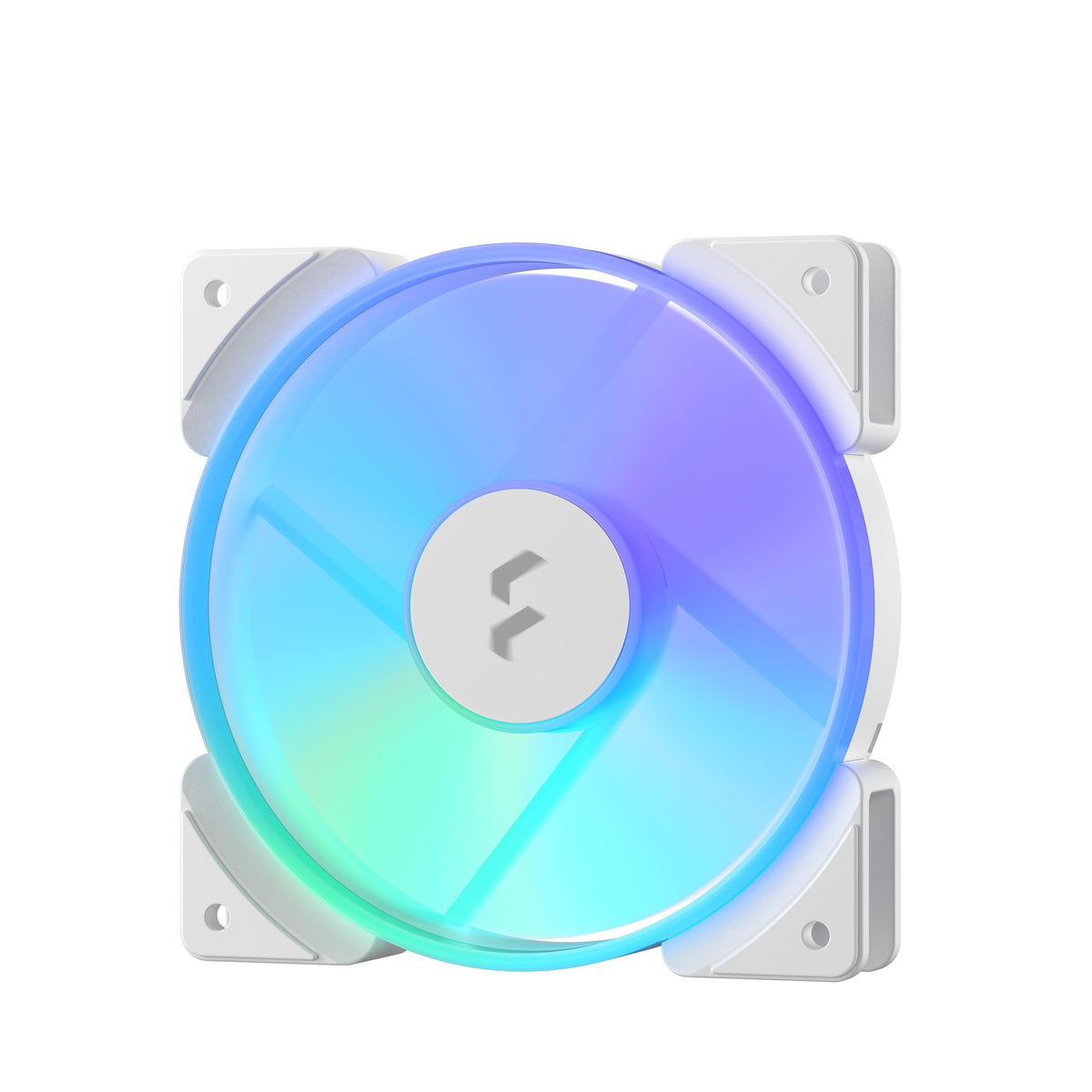

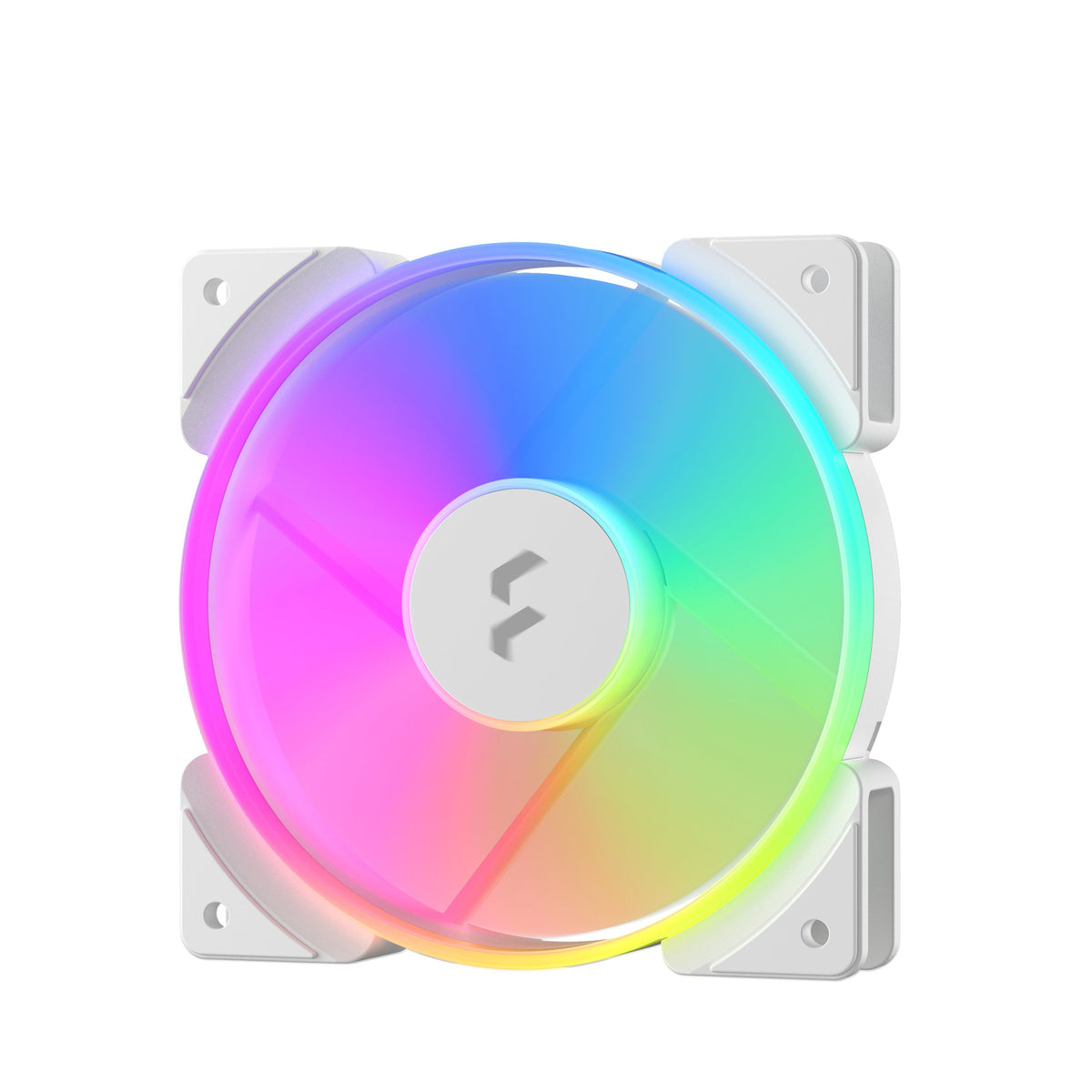

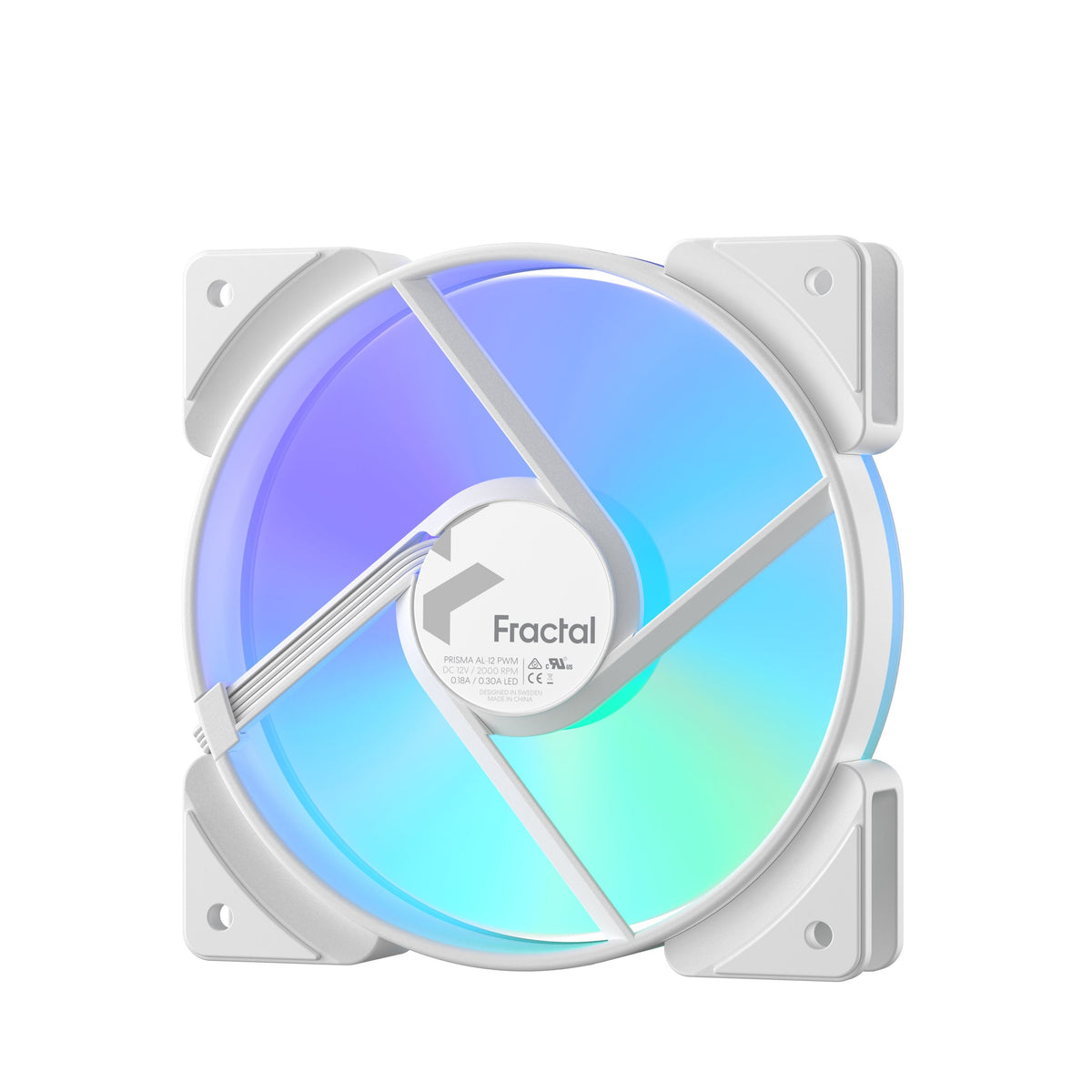

Our Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.
- Six individually addressable hub-mounted RGB LEDs

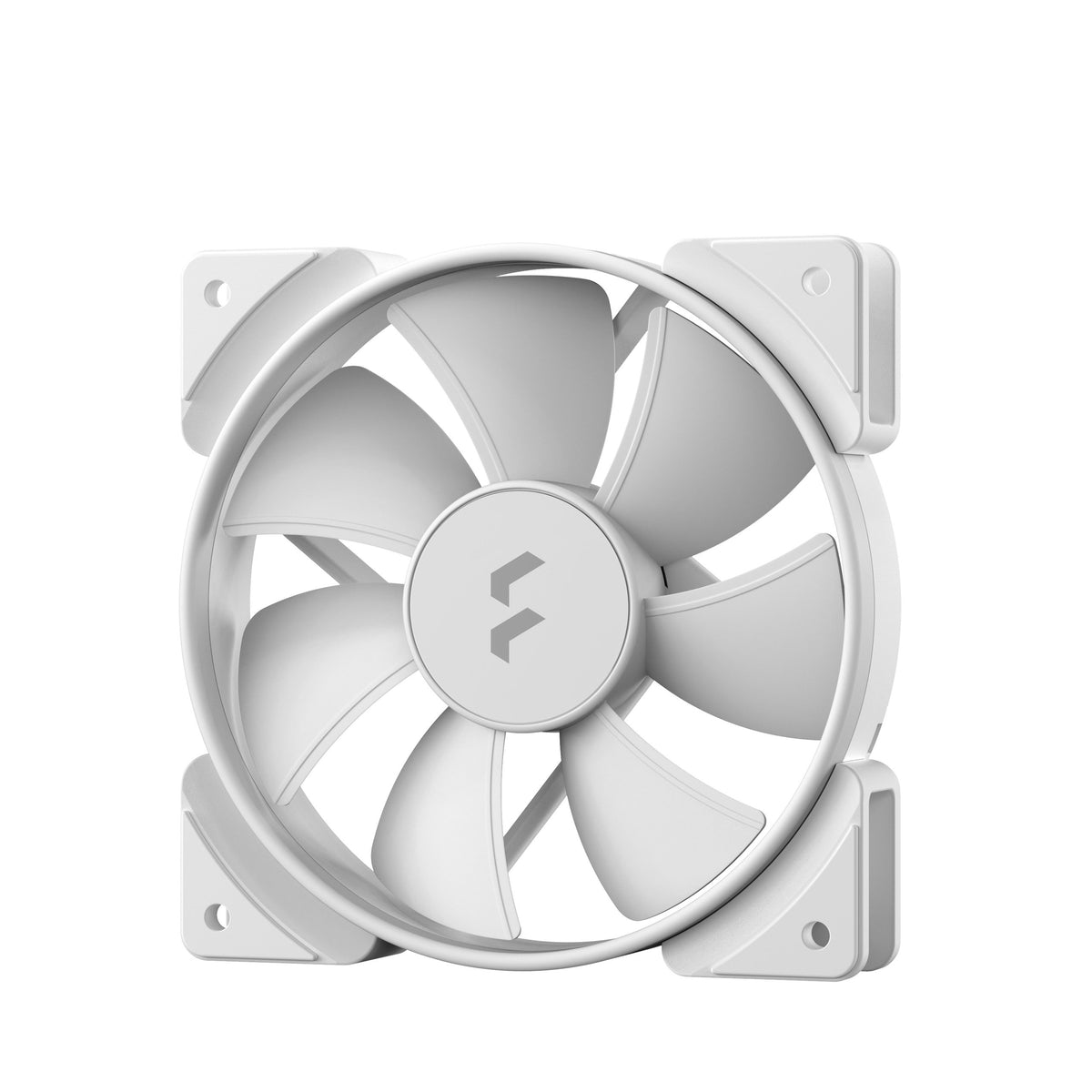

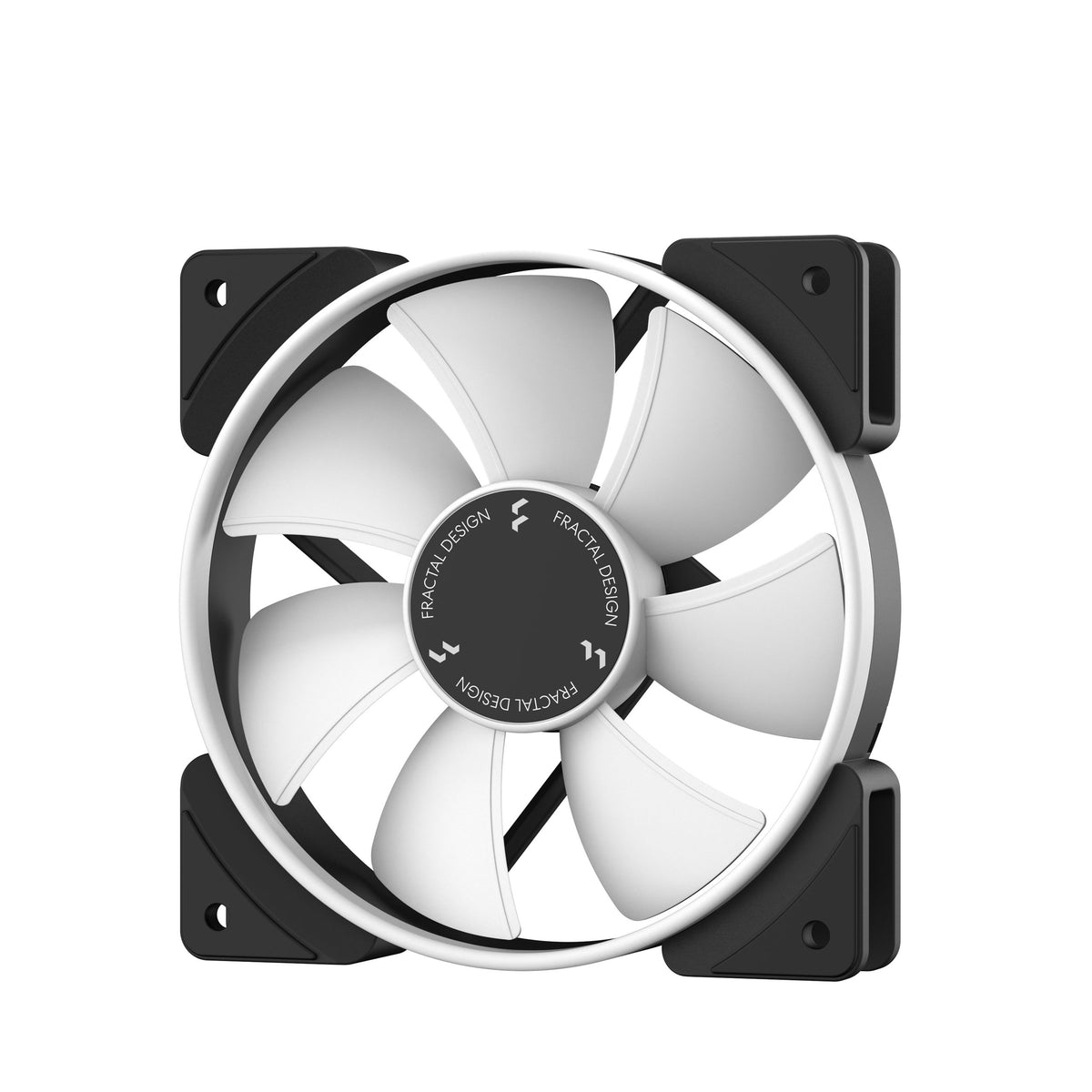

- Specially designed fan blades and outer ring
- Long Life Sleeve-bearings provide silent operation with a long lifespan
Specification:
|
General Specifications
|
-
Size
120 x 120 x 25 mm
-
Screw hole pattern
105 x 105 mm
-

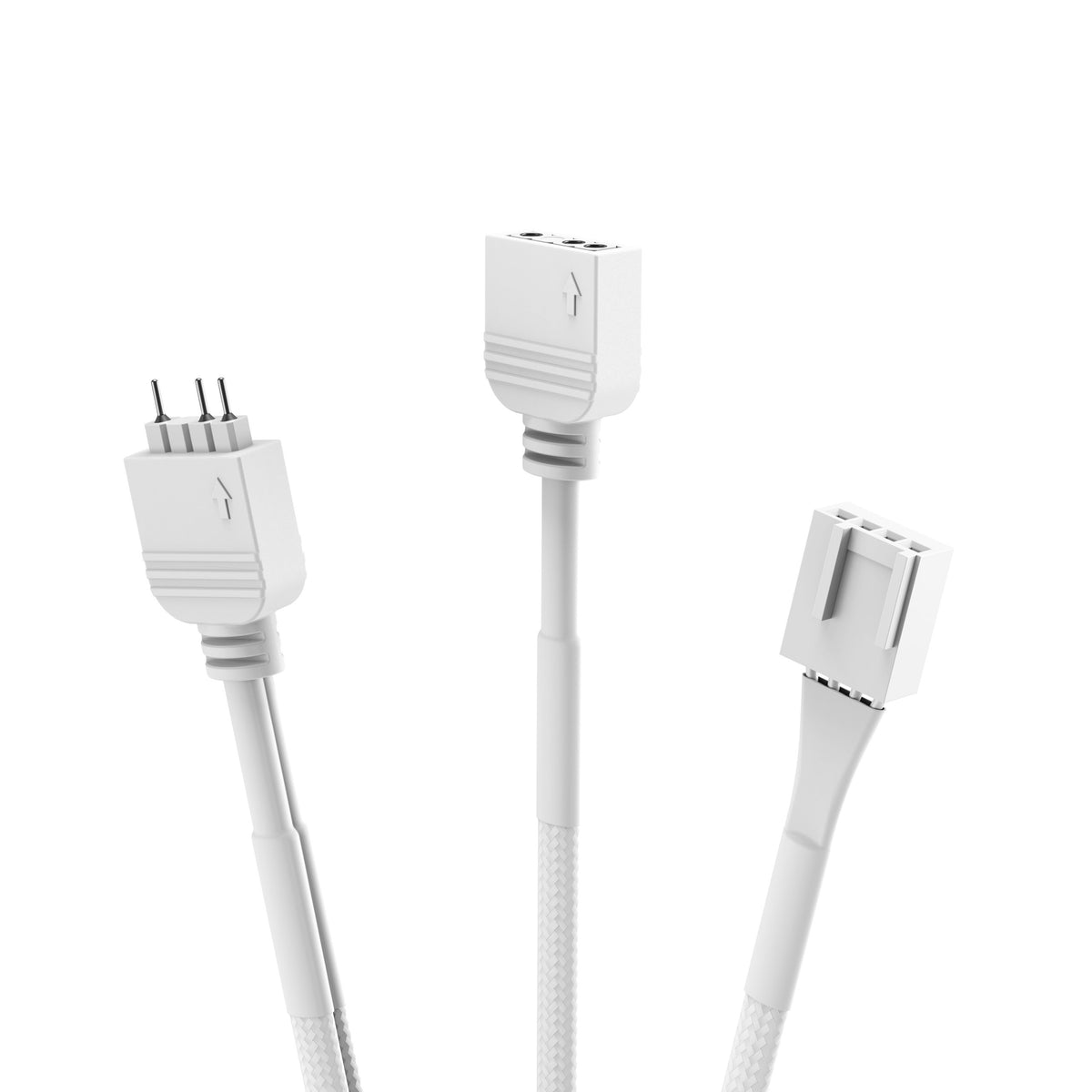

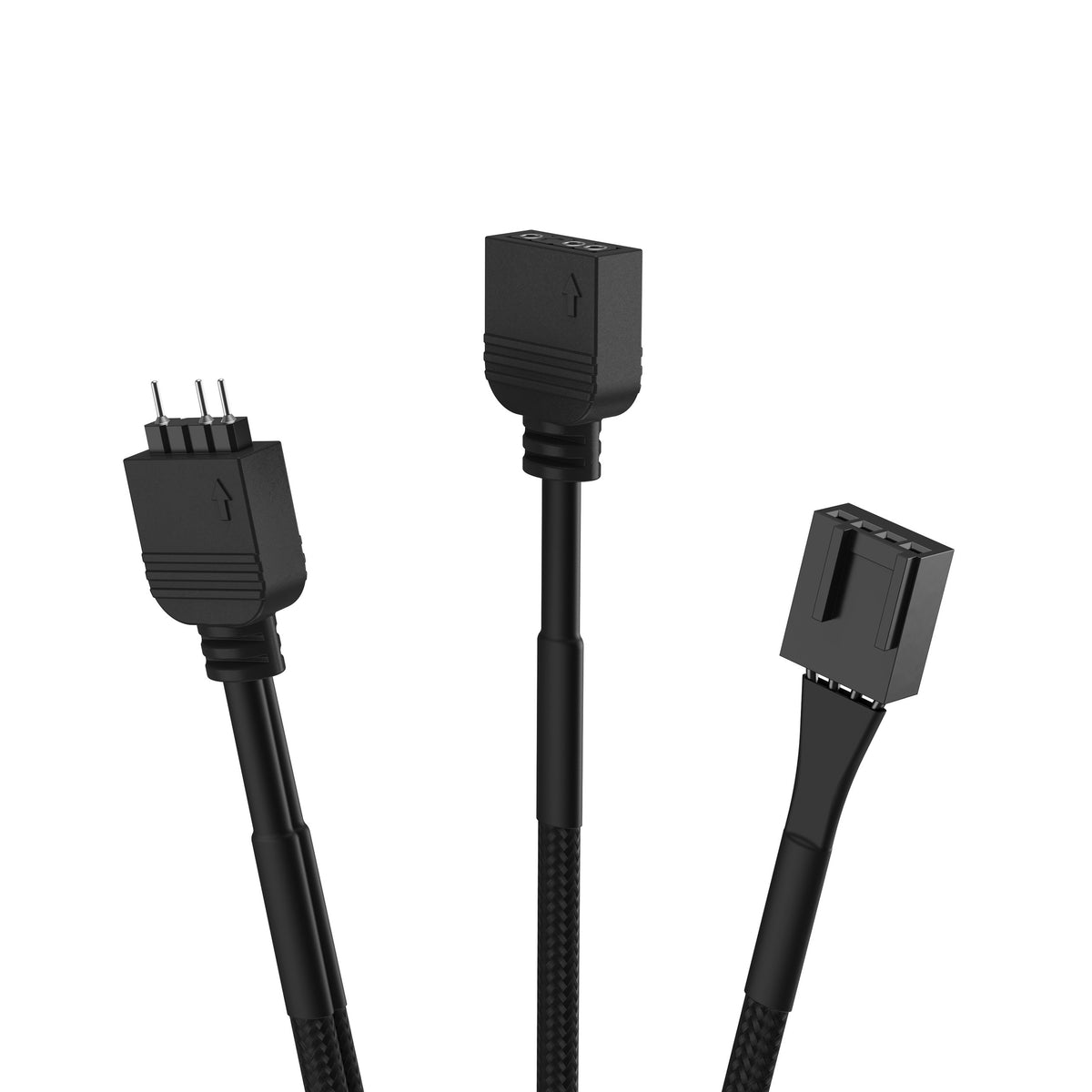

Fan connector
4-pin PWM
-
RGB connector
3-pin 5V addressable RGB
-
Bearing
LLS
-
Number of blades
7
-
Rotational speed
500 – 2000 RPM
-
Noise level
32.7 dB(A)
-
Airflow (CFM)
85.71 CFM
-
Airflow (m3/h)
145.62 m3/h
-
Static pressure
2.78 mmH2O
-
Fan input power
2.16 W
-
Fan max input current
0.18 A
-
Fan input voltage
12 V
-
Fan starting voltage
7 V
-
LED input power
1.50 W
-
LED max input current
0.30 A
-
LED input voltage
5 V
-
Low (0-20%) PWM speed
500 RPM
-
Low PWM noise level
14.8 dB(A)
-
Low PWM airflow
20.68 CFM
-
Low PWM static pressure
0.36 mmH2O
-
MTBF
100,000 hours
-
Fan weight
169 g
-
Cable length
500 mm
-
Cable type
Black sleeved
|
|
Other
|
-
Package contents
Prisma AL-12 PWM 140 mm fan, 4 x fan screws
-
Package weight
212 g
-
Package dimensions (Including hanging tab)
182 x 122 x 30 mm
-
Package dimensions (Excluding hanging tab)
147 x 122 x 30 mm
|
