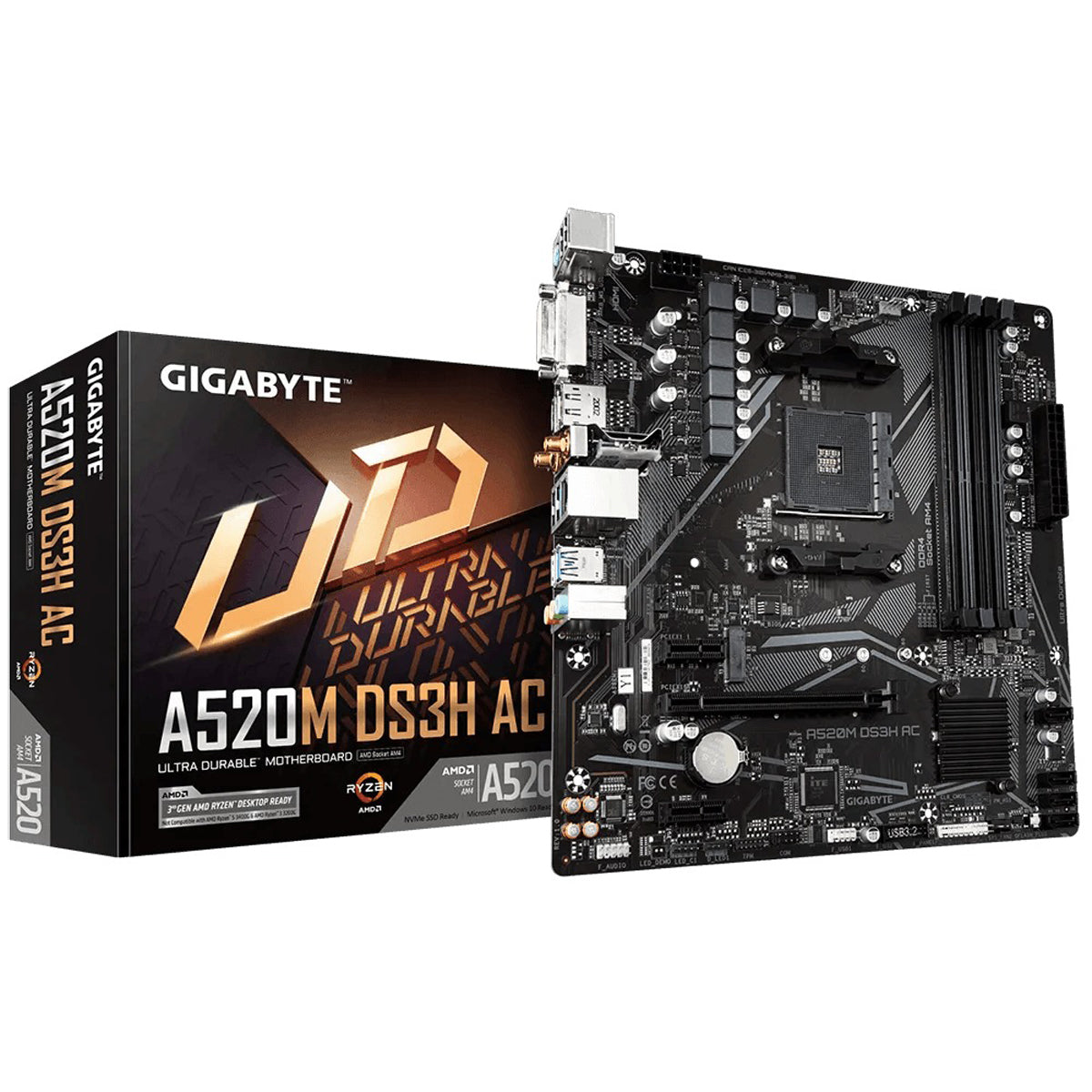

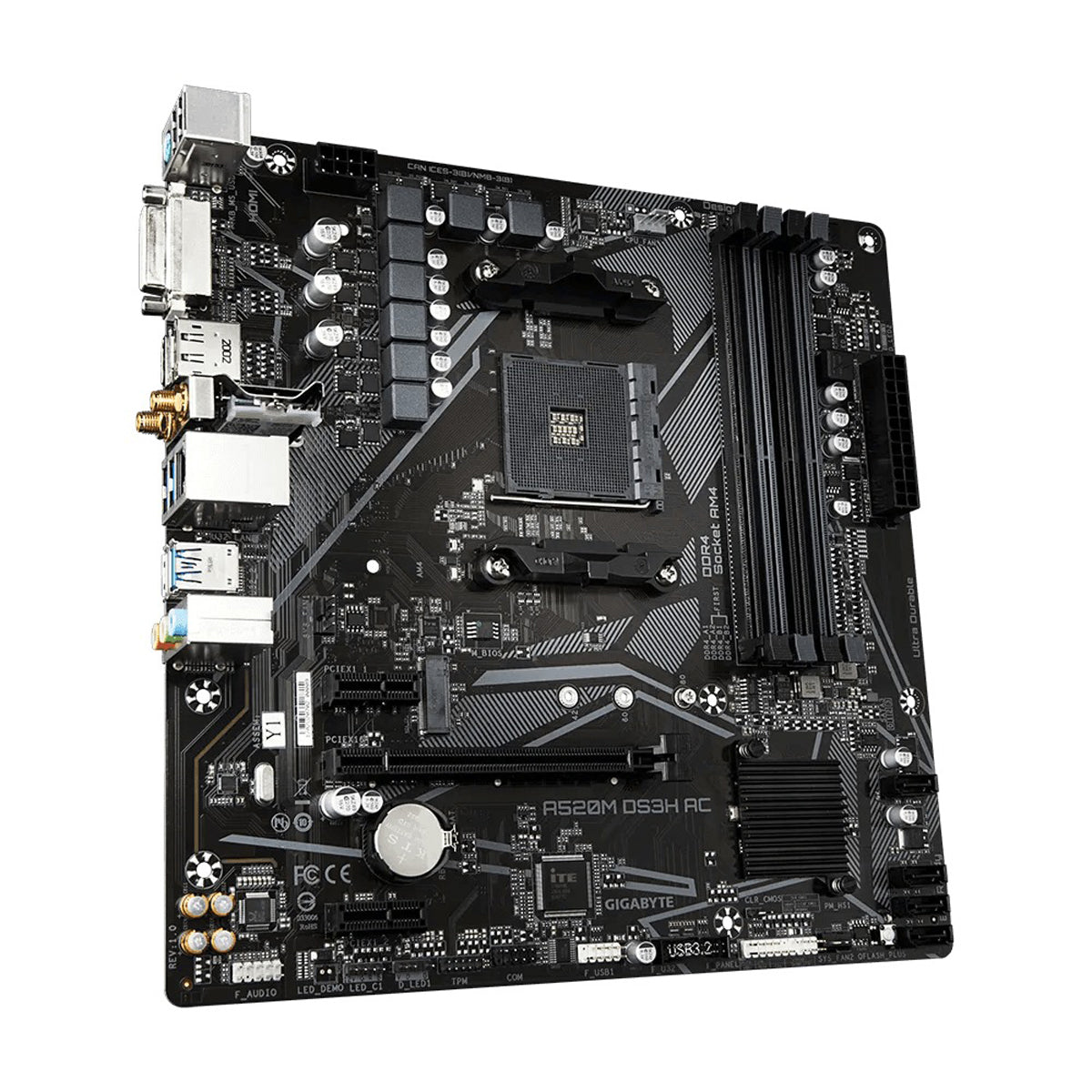

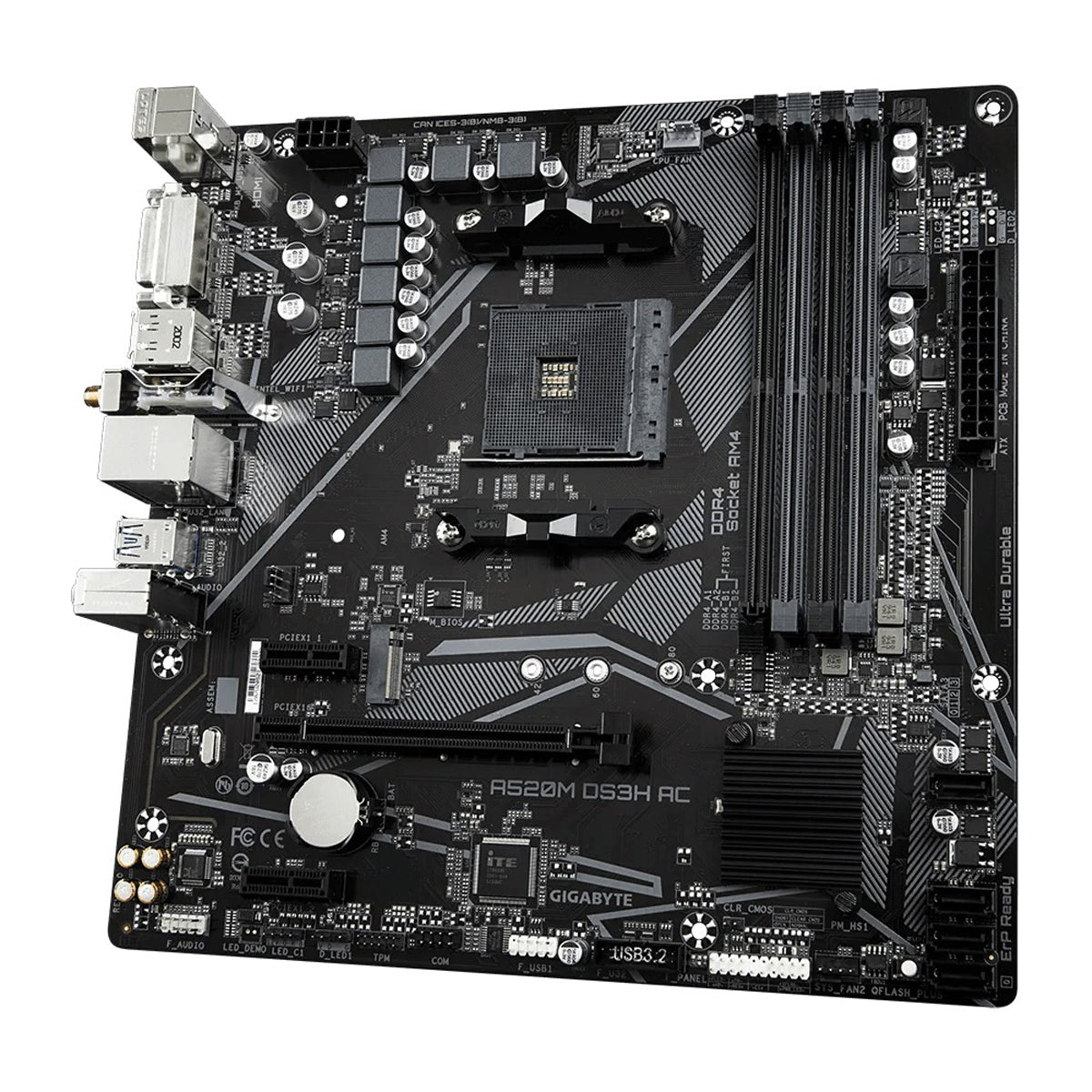

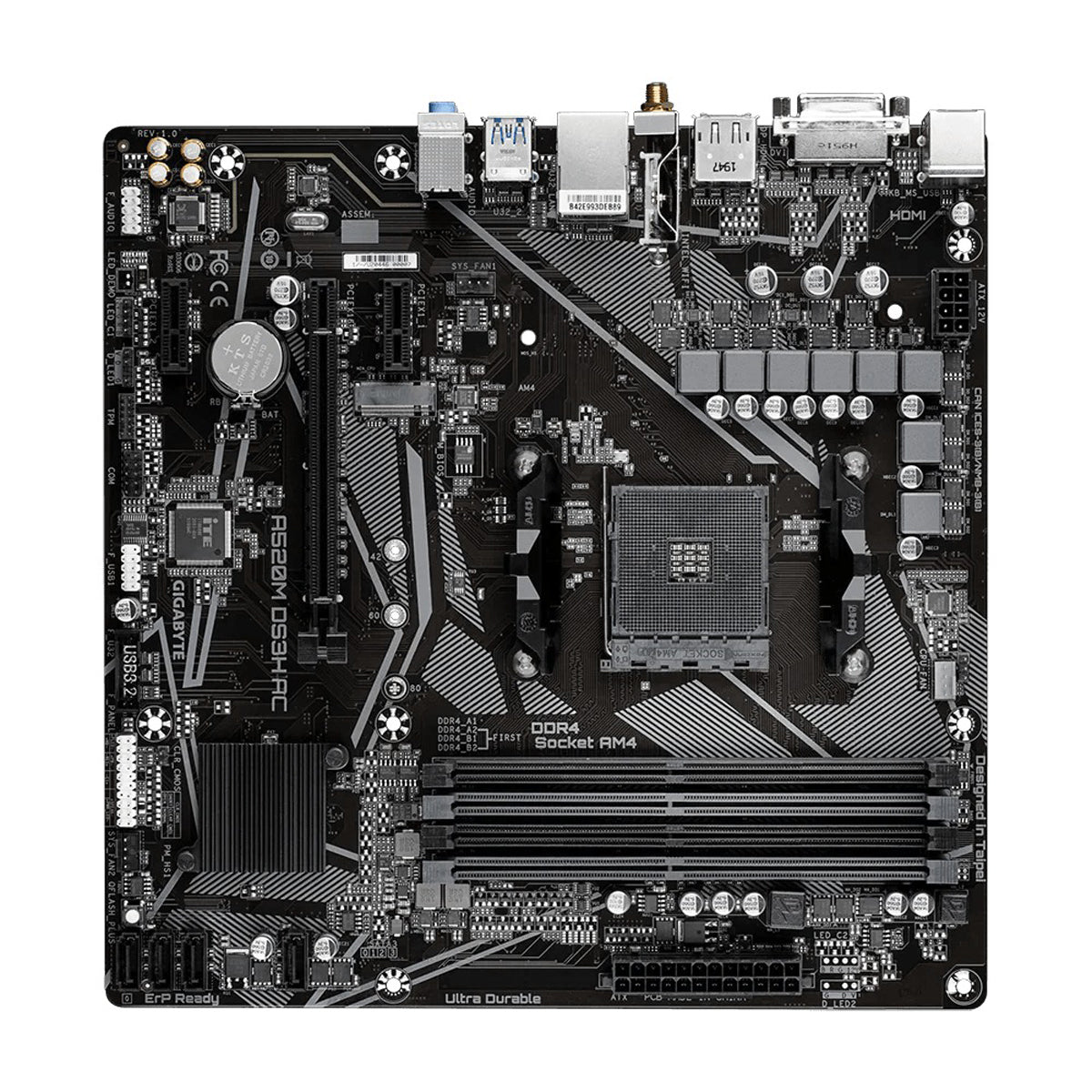

GIGABYTE A520M DS3H AC Ultra Durable Motherboard

GigabyteSKU: 0889523023891
AMD A520 Motherboard with Pure Digital VRM Solution, High Quality Audio, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Intel Dual Band 802.11ac WIFI, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen...
See full description
banner
Price:
₱4,450.00
Stock:
In stock

Description

AMD A520 Motherboard with Pure Digital VRM Solution, High Quality Audio, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Intel Dual Band 802.11ac WIFI, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus

  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
  • Onboard Intel® Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • HDMI, DVI-D, Display Ports for Multiple Display
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card





SPECIFICATIONS

  • CPU
    1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD A520
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. AMD Ryzen™ 5000 G-series / Ryzen™ 5000 Series/ 3rd Generation AMD Ryzen™ processors:
      Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
      Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
    1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    2. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
      * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Support for up to 3 displays at the same time
    Maximum shared memory of 16 GB
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  • LAN
    1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
  • Wireless Communication module
    1. WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 4.2
    3. Support for 11ac wireless standard and up to 433 Mbps data rate
      * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots
    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
    Chipset:
    1. 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)
  • Storage Interface
    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
    Chipset:
    1. 4 x SATA 6Gb/s connectors
    2. Support for RAID 0, RAID 1, and RAID 10
  • USB
    CPU:
    1. 4 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 2 x system fan headers
    5. 1 x addressable LED strip header
    6. 1 x RGB LED strip header
    7. 1 x M.2 Socket 3 connector
    8. 4 x SATA 6Gb/s connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x USB 3.2 Gen 1 header
    12. 1 x USB 2.0/1.1 header
    13. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    14. 1 x serial port header
    15. 1 x Clear CMOS jumper
    16. 1 x Q-Flash Plus button
    ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

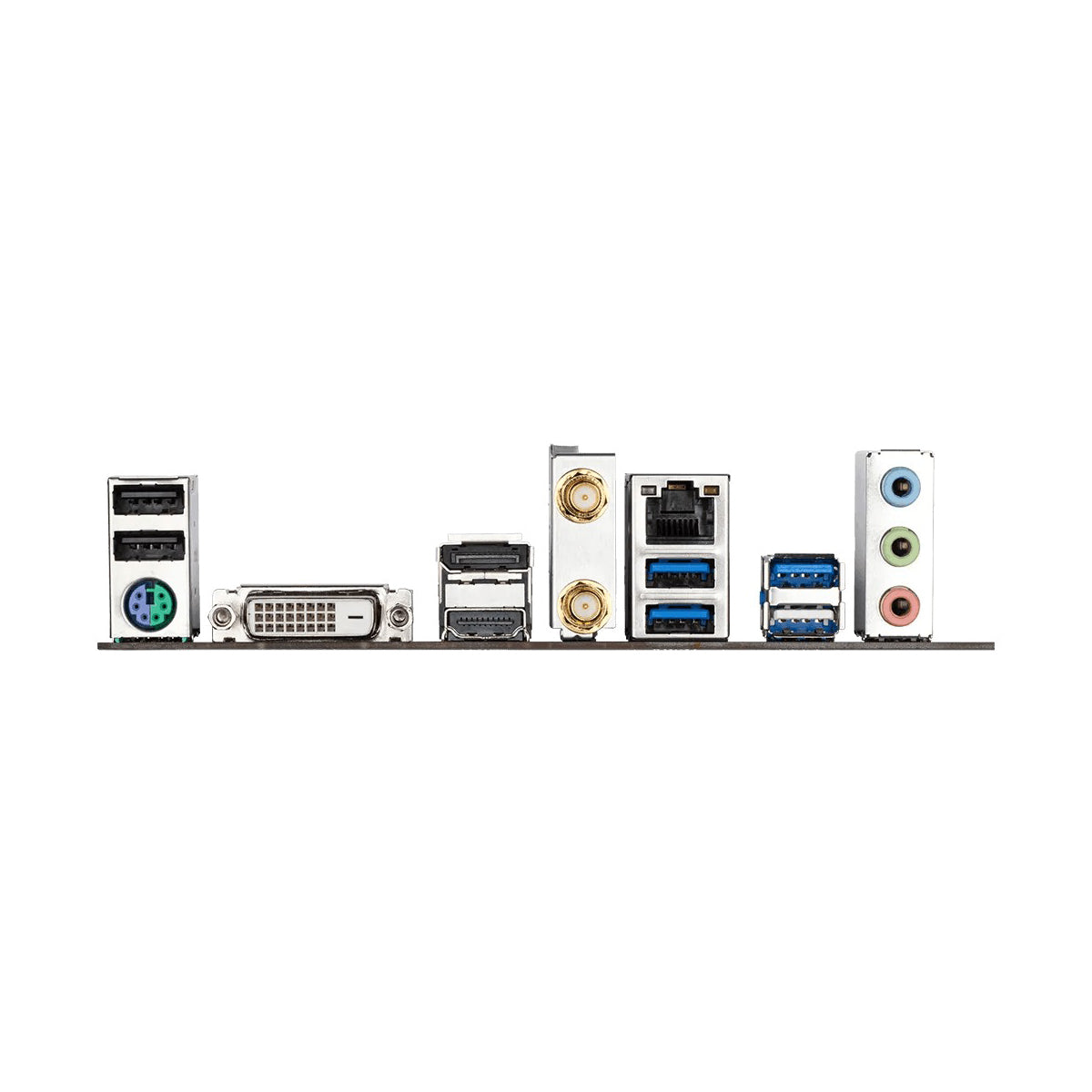

  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x DVI-D port
    3. 1 x DisplayPort
    4. 1 x HDMI port
    5. 2 x SMA antenna connectors (1T1R)
    6. 4 x USB 3.2 Gen 1 ports
    7. 2 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. Realtek® 8118 Gaming LAN Bandwidth Control Utility
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 24.4cm
