Description
Extremely fast PCIe 4.0 throughput

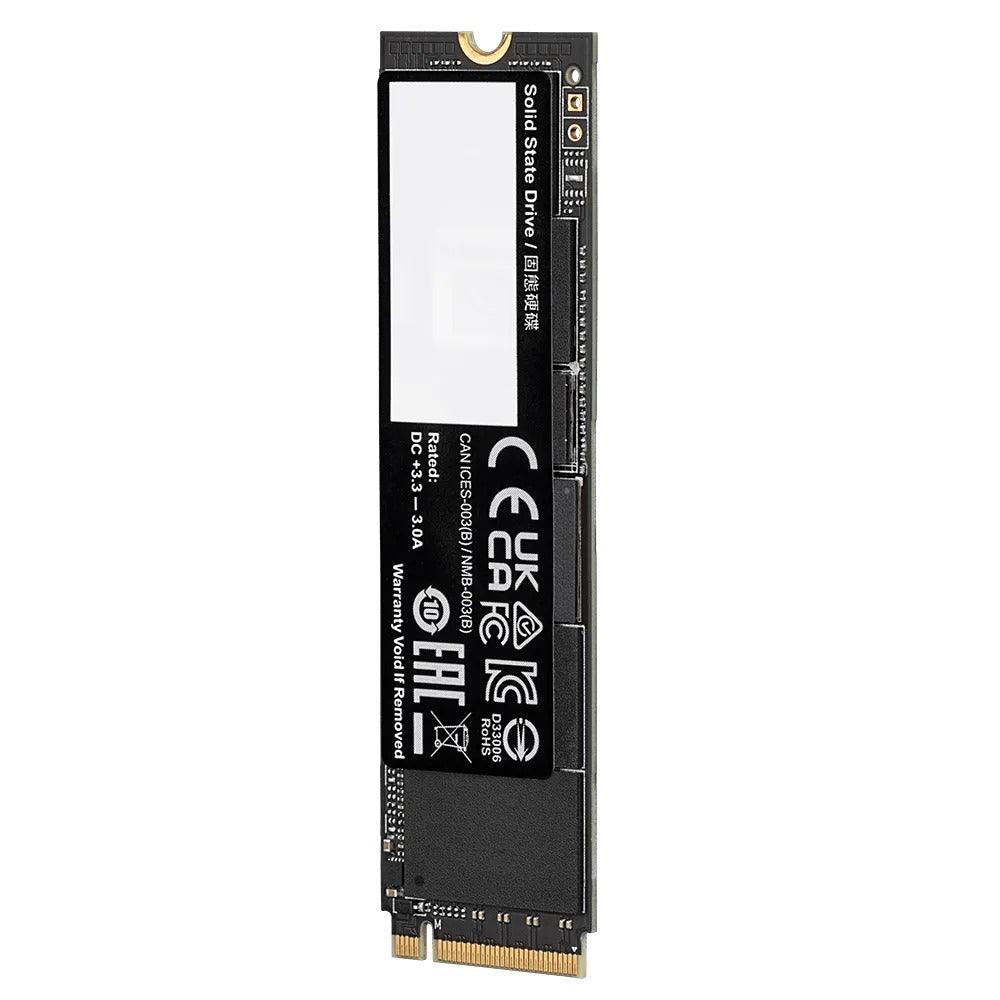

AORUS Gen4 7300 SSD delivers sequential read up to 7.3GB/s with 8 Channel controller- Phison E18- and 3D TLC NAND. The E18 controller is built with the advanced 12nm process ensuring sufficient computing power. Also it supports up to 8 NAND Flash channel with 32CE, DDR4 SLC caching and meets NVMe 1.4.
NAND Flash Selected for High Quality and Performance
Xtreme Storage Performance
By adopting Phison E18 controller and 3D TLC NAND, AORUS Gen4 7300 SSD delivers blazing speeds: up to 7,300 MB/s for sequential read, and up to 6,000MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is 2 times faster than the PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering.

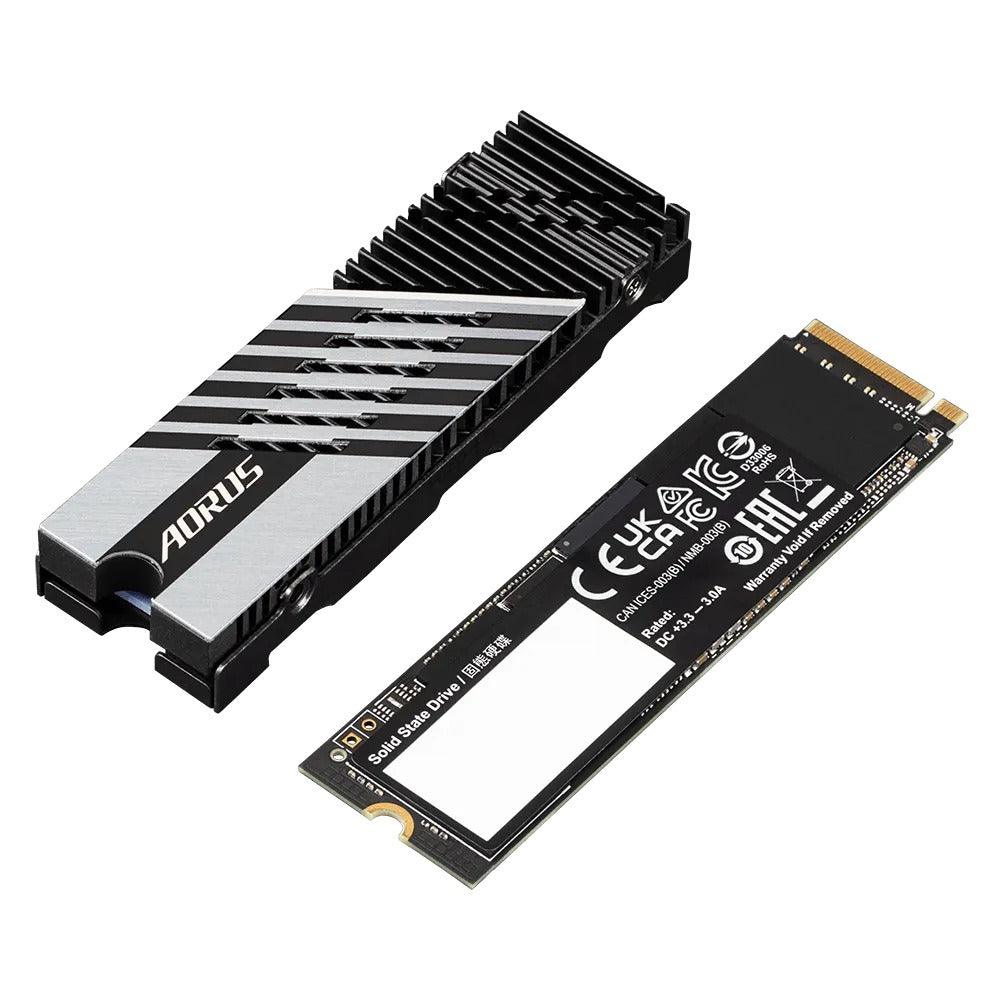

Optimized Aluminum Heat Spreaders with Nanocarbon Coating for 20% Cooler
Challenged passive cooling to maximize surface area for heat dissipation with advanced thermal technology Nanocarbon coating. Applied with dual side high conductivity thermal pad ensures the heat transferring to the heatsink. The 7mm height heatsink is compatible with all the M.2 slots including the one under graphic card.
Efficient Heat Spreader Design
Why is keeping an SSDs at lower temperatures so important?
Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher. With Heat Spreaders, the AORUS Gen4 7300 SSD can operate at lower working temperatures to improve data storage reliability. Furthermore, SSDs can running at extreme performance longer.
AORUS Gen4 7300 SSD meets SSD expansion requirements of PS5
AORUS Gen4 7300 SSD with Aluminum Heat Spreaders meets the required performance and dimensions of PS5 M.2 SSD.
Adopting by Aluminum Heat Spreaders with Nanocarbon Coating, AORUS Gen4 7300 SSD improves thermal dissipation and helps to prevent throttling. AORUS Gen4 7300 SSD is fully reach ps5 requirement and give the best gaming experience.
Looking for the best partner for your PS5? Enjoy the thrilling gaming experience by applied AORUS Gen4 7300 SSD to your PS5 to expand more capacities.
* Read speed test result by PS5 M.2 evaluating process.
GIGABYTE CONTROL CENTER (GCC)
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products
Specifications :
| Interface | PCI-Express 4.0 x4, NVMe 1.4 |
| Form Factor | M.2 2280 |
| Total Capacity | 1000GB |
| NAND | 3D TLC NAND Flash |
| External DDR Cache | DDR4L 1GB |
| Sequential Read speed | Up to 7300 MB/s |
| Sequential Write speed | Up to 6000 MB/s |
| Dimension | 80 x 22 x 2.3 mm (with heatsink: 80.5 x 11.25 x 23.5 mm) |
| Mean time between failure (MTBF) | 1.6 million hours |
| Power Consumption (Active) | Average: R : 6.6W, W : 6.7W |
| Power Consumption(Idle)(ASPT on) | <30mW |
| Temperature (Operating) | 0°C to 70°C |
| Temperature (Storage) | -40°C to 85°C |
