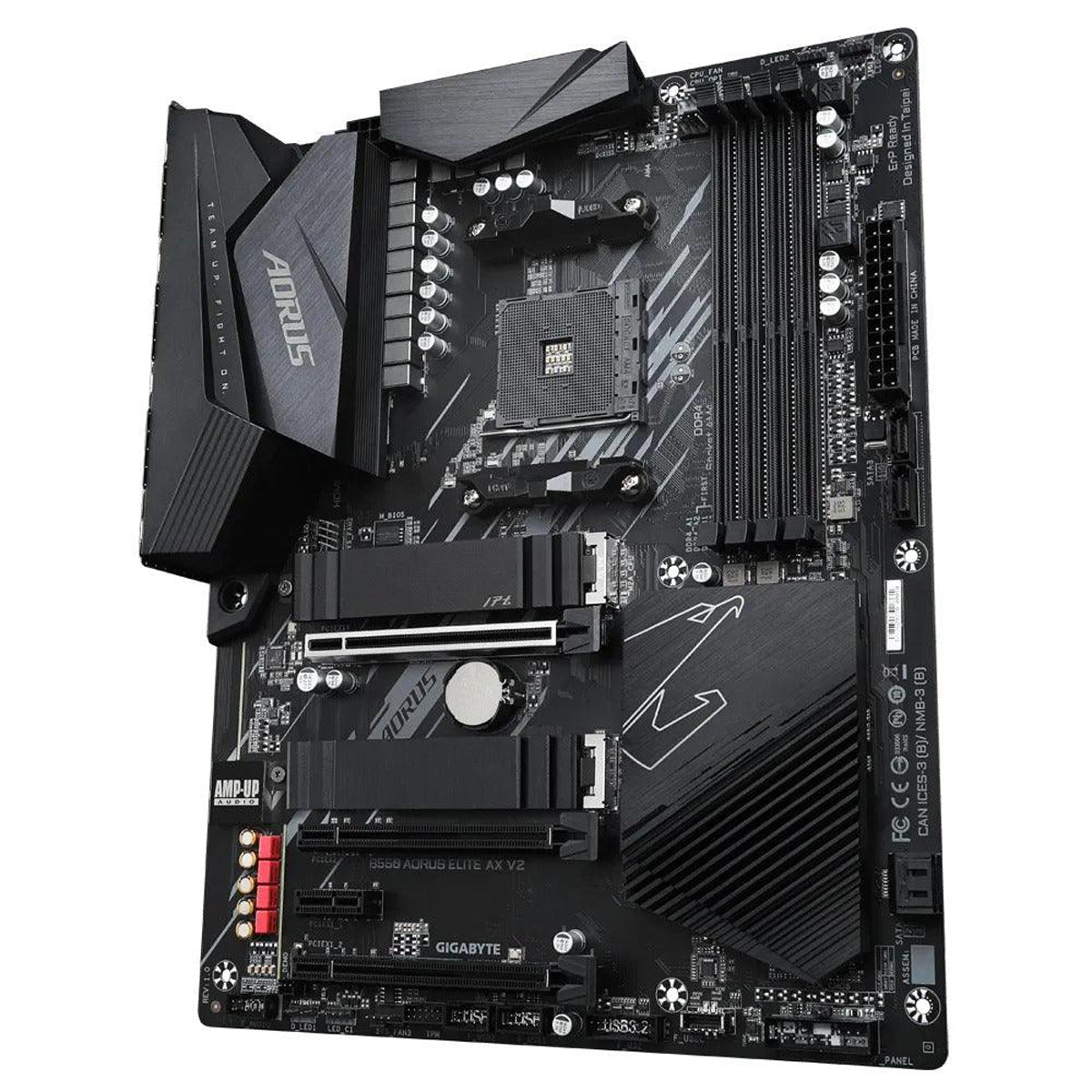

GIGABYTE B550 AORUS Elite AX V2 DDR4 ATX Gaming Motherboard

GigabyteSKU: 0889523023969

banner
Price:
₱10,995.00
Stock:
In stock

Description

DOMINANT IN DARKNESS

In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.

AMD StoreMI Technology

GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:

• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users' computing behaviors

ULTIMATE POWER DESIGN

To fully support the latest 3rd Gen AMD Ryzen™ processors, B550 AORUS motherboards equip with the ultimate power solution which is power balanced, digital and multiple phases. After countless experiments and testing, GIGABYTE presents the unbeatable B550 AORUS motherboards for enthusiast. No Compromise and never stop to achieve higher.

UNPARALLELED PERFORMANCE

GIGABYTE realize that customer won't stop chasing a better computing performance. We take care of it and implement on products. Protective and optimized memory trace enhance the performance. Faster read and write are needed to save time and improve efficiency. We offer plenty of M.2 storage with thermal guards to ensure unthrottled read and write. In advance, adopting PCIe 4.0 ready components get the B550 motherboards easier to upgrade.

ADVANCED THERMAL SOLUTION

Unthrottled performance is guaranteed by the advanced thermal solution which including Enlarged Heatsinks, High Quality Thermal Conductivity Pads and Thermal Guards. B550 motherboards are cool on MOSFETs and M.2 SSDs even on full loading. It provides lower temperatures for enthusiasts, overclockers and professional gamers.

NEXT GENERATION CONNECTIVITY

A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. B550 AORUS motherboards provide all next generation network, storage, and WIFI connectivity to keep you up to speed.

HI-FI AUDIO SYSTEM

For enthusiasts, sound quality is just as essential to the gaming experience. B550 motherboards are equipped with high quality audio components such as Hi-Fi grade WIMA FKP2 capacitors and Nichicon Fine Gold capacitors to provide a superb audio experience. The exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

DEFINITIVE AESTHETICS

B550 motherboards feature RGB FUSION 2.0 and offer the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make your PC unique and stylish.

ULTRA DURABLE

GIGABYTE is reputable for its product durability and high standard of manufactured process. Needless to say, we use the best, high quality components on B550 motherboards and reinforce each part of components to be solid and durable.

GIGABYTE BIOS & APP CENTER

Good software goes hand in hand with perfect hardware. B550 motherboards bundled several useful and intuitive software to help users to control every aspect of motherboard.

Specifications :



CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
Chipset AMD B550
Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor:
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio Realtek® ALC1200 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module Intel® Wi-Fi 6 AX200
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
Supporting PCIe 3.0 x2 mode
1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
- AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
- Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
- Support for RAID 0, RAID 1, and RAID 10
USB
CPU:
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 1 port on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

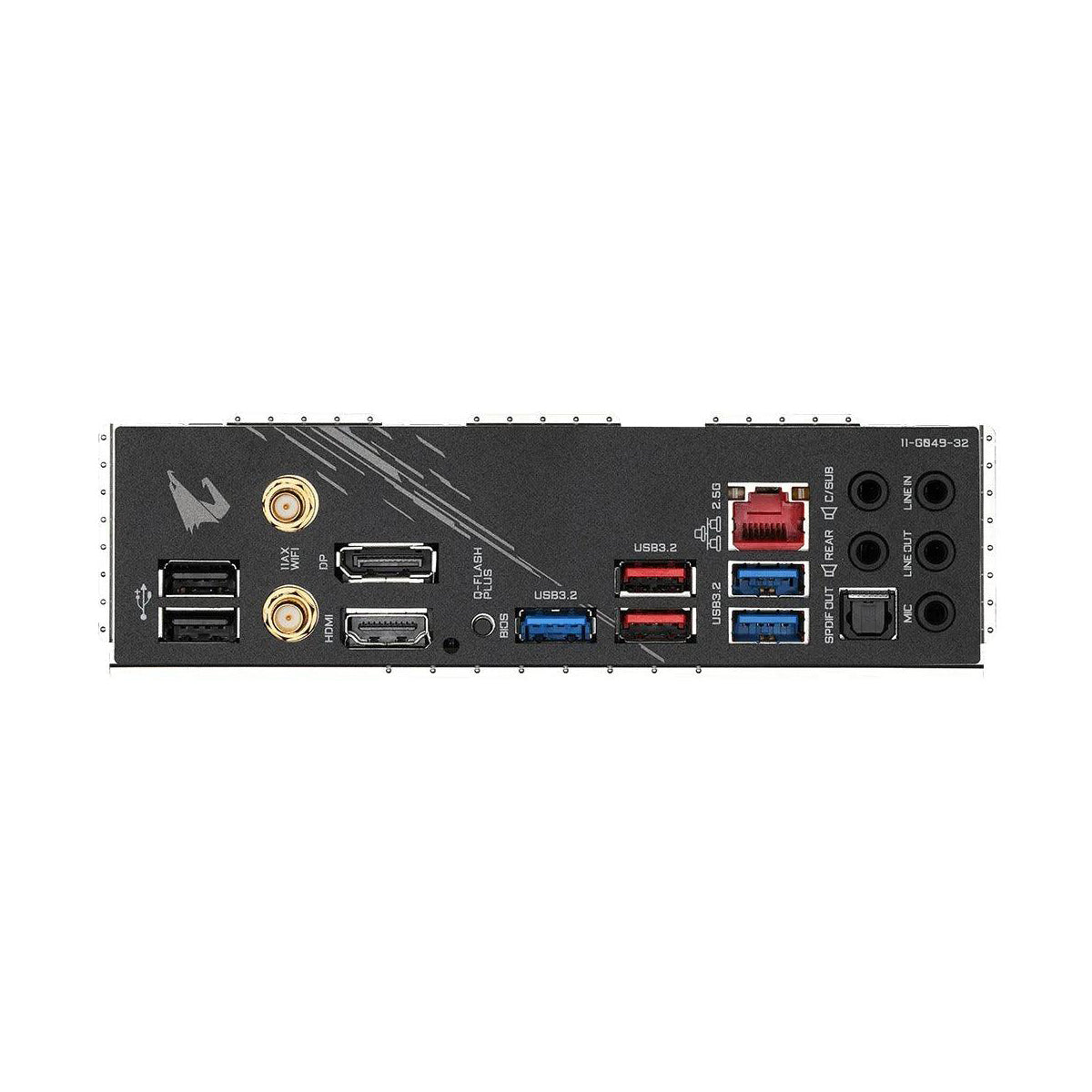

Back Panel Connectors 1 x DisplayPort
1 x HDMI port
2 x SMA antenna connectors (2T2R)
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Operating System Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
