Description
AMD StoreMI Technology
GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.
The benefits of AMD StoreMI:
- Making the PC experience fast, smooth and easy
- Optimizing computer responsiveness from system boot to application launch
- Offering SSD performance with HDD capacity at an affordable cost
- Quickly accessing key files by automatically learning users' computing behaviors
5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
GIGABYTE AORUS series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
Dual NVMe PCIe 4.0*/3.0 M.2 Connectors
With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x2 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.
Realtek GbE LAN with Bandwidth Management
Realtek Gigabit LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
RGB FUSION 2.0
With B550 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.
With B550 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Specifications
| CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors |
| Chipset | AMD B550 |
| Memory | 4 x DDR4 DIMM sockets, up to 128 GB, DDR4 4733(O.C.)~2133 MHz, Dual channel, ECC/Non-ECC support, XMP support |
| Onboard Graphics | 1 x DVI-D (1920x1200@60Hz), 1 x HDMI 2.1 (4096x2160@60Hz), Max 16 GB shared memory |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1 x PCIe 4.0/3.0 x16, 1 x PCIe 3.0 x4, 1 x PCIe 3.0 x1 |
| Storage Interface | 2 x M.2 (PCIe 4.0/3.0, SATA), 4 x SATA 6Gb/s, RAID 0/1/10 support |
| USB | 4 x USB 3.2 Gen1 (rear), 2 x USB 3.2 Gen1 (internal), 6 x USB 2.0/1.1 |
| Internal I/O | 24-pin ATX, 8-pin CPU, 2 x system fan headers, 2 x addressable LED headers, 2 x RGB LED headers, TPM, Serial, Clear CMOS, Q-Flash Plus |

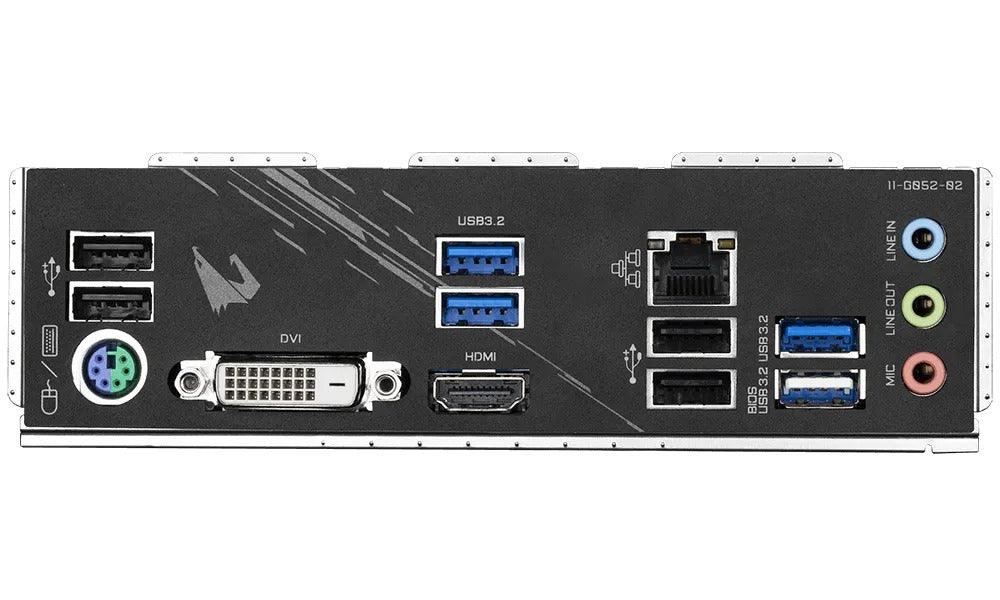

| Back Panel | 1 x PS/2, 1 x DVI-D, 1 x HDMI, 4 x USB 3.2 Gen1, 4 x USB 2.0, 1 x RJ-45, 3 x audio jacks |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS |
| Unique Features | APP Center, @BIOS, EasyTune, Fast Boot, ON/OFF Charge, RGB Fusion, Smart Backup, System Info Viewer, Q-Flash Plus |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX, 24.4cm x 24.4cm |
