Description

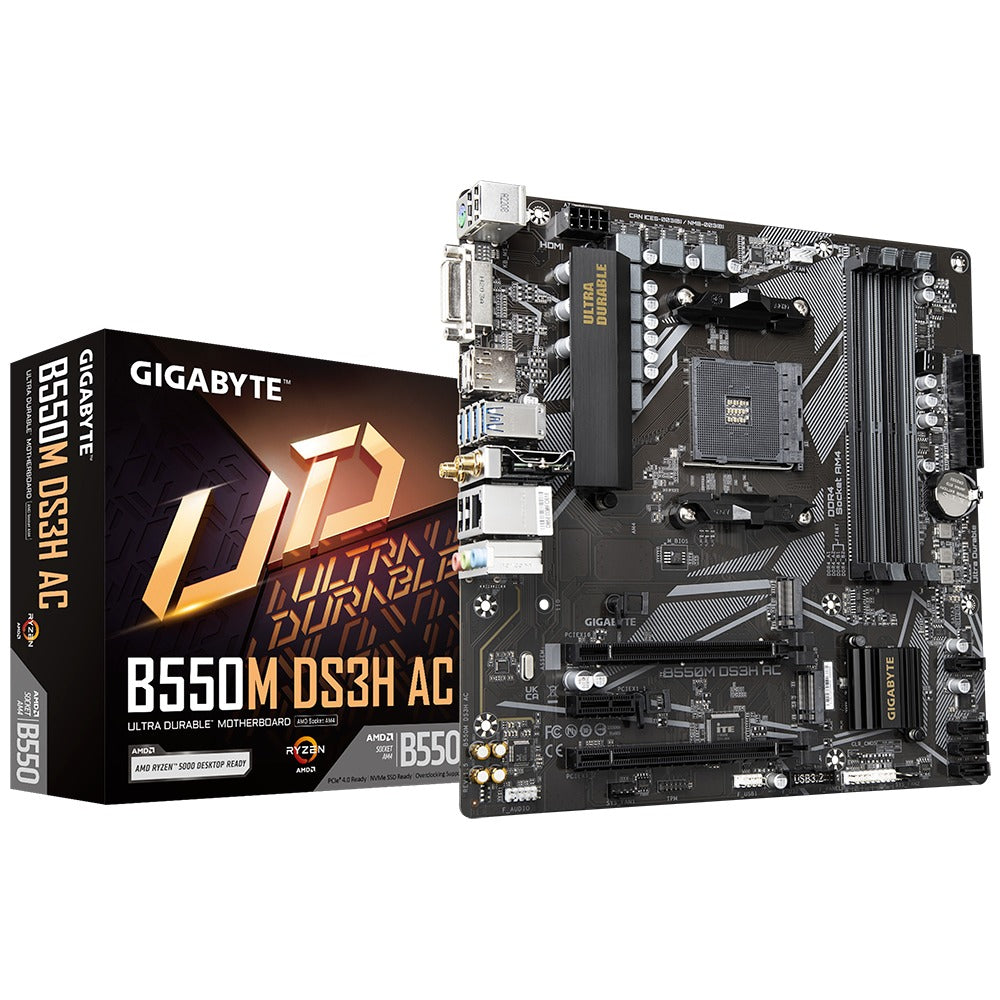

AMD B550 Ultra Durable Motherboard
Features
-
Supports AMD Ryzen™ 5000 Series / Ryzen™ 5000 G-Series / Ryzen™ 4000 G-Series / Ryzen™ 3000 Series Processors
-
Dual Channel ECC / Non-ECC Unbuffered DDR4, 4 DIMMs
-
5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
-
Ultra Durable™ PCIe 4.0 Ready x16 Slot
-
Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
-
Onboard Dual Band 802.11ac Wireless & Bluetooth Support with Wi-Fi Antenna
-
High Quality Audio Capacitors and Audio Noise Guard
-
Realtek GbE LAN with Bandwidth Management
-
Rear DisplayPort, HDMI & DVI for Multi-Display Support
-
Smart Fan 5 with Multiple Temperature Sensors, Hybrid Fan Headers, and FAN STOP
-
Anti-Sulfur Resistor Design
Specifications
CPU
-
AMD Socket AM4
-
Supports Ryzen™ 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series Processors
(Refer to "CPU Support List" for more details)
Chipset
-
AMD B550
Memory
-
4 × DDR4 DIMM sockets, up to 128 GB (32 GB per DIMM)
-
DDR4 support: 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s
-
Dual channel architecture
-
ECC Un-buffered DIMM 1Rx8/2Rx8 support
-
Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 support
-
Supports Extreme Memory Profile (XMP)
(Refer to "Memory Support List" for more details)
Onboard Graphics
-
Integrated Graphics Processor
-
1 × DVI-D port, max resolution 1920×1200@60 Hz
Does not support D-Sub via adapter -
1 × DisplayPort 1.4, max resolution 5120×2880@60 Hz, supports HDCP 2.3 & HDR
-
1 × HDMI 2.1 port, max resolution 4096×2160@60 Hz, supports HDCP 2.3 & HDR
-
Supports up to 3 simultaneous displays
-
Maximum shared memory: 16 GB
Audio
-
Realtek® Audio CODEC
-
High Definition Audio
-
2/4/5.1/7.1-channel
-
Configurable via audio software
LAN
-
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Wireless Communication
-
AzureWave Wi-Fi module (varies by PCB revision):
-
Rev. 1.5: Realtek® RTL8821CE (Wi-Fi 802.11a/b/g/n/ac, 2.4/5 GHz Dual-Band, Bluetooth 4.2, up to 433 Mbps)
-
Rev. 1.6: Realtek® RTL8822CE (Wi-Fi 802.11a/b/g/n/ac, 2.4/5 GHz Dual-Band, Bluetooth 4.2, up to 433 Mbps)
(Actual data rate may vary depending on environment and equipment)
-
Expansion Slots
-
1 × PCIe x16 slot (CPU)
-
Ryzen™ 5000/3000 Series: PCIe 4.0 x16
-
Ryzen™ 5000 G/4000 G Series: PCIe 3.0 x16
-
-
1 × PCIe x1 slot (Chipset, PCIe 3.0 x1)
-
1 × PCIe x16 slot (Chipset, PCIe 3.0 x1)
Storage
-
1 × M.2 (M2A_CPU, CPU)
-
Ryzen™ 5000/3000 Series: PCIe 4.0 x4/x2 & SATA SSDs
-
Ryzen™ 5000 G/4000 G Series: PCIe 3.0 x4/x2 & SATA SSDs
-
-
1 × M.2 (M2B_SB, Chipset, PCIe 3.0 x2 & SATA SSDs)
-
4 × SATA 6Gb/s connectors
-
Supports RAID 0/1/10
USB
-
CPU: 4 × USB 3.2 Gen 1 (rear panel)
-
Chipset:
-
2 × USB 3.2 Gen 1 (internal header)
-
6 × USB 2.0/1.1 (4 rear panel, 2 internal header)
-
Internal I/O
-
1 × 24-pin ATX main power connector
-
1 × 8-pin ATX 12V power connector
-
1 × CPU fan header
-
2 × System fan headers
-
2 × M.2 connectors
-
4 × SATA 6Gb/s connectors
-
1 × Front panel header
-
1 × Front panel audio header
-
1 × USB 3.2 Gen 1 header
-
1 × USB 2.0/1.1 header
-
1 × TPM header (2×6 pin, GC-TPM2.0_S only)
-
1 × Clear CMOS jumper

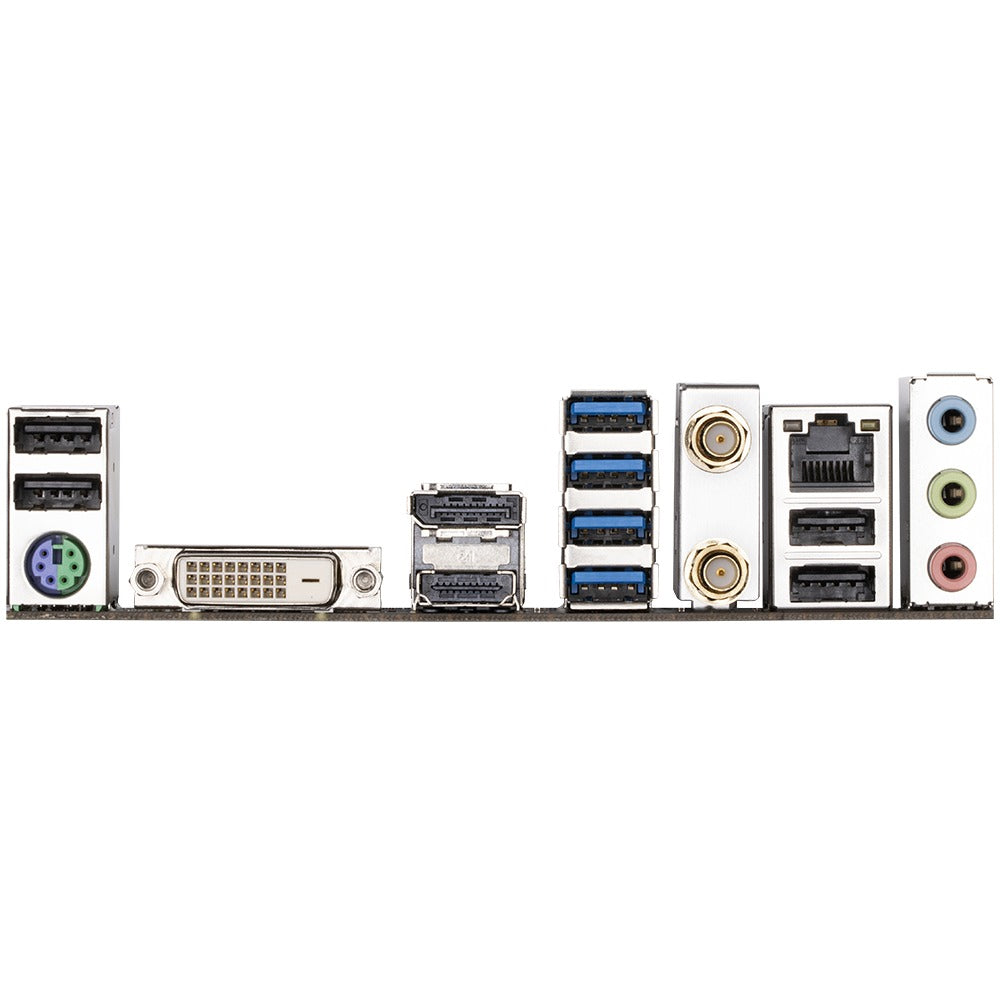

Back Panel I/O
-
1 × PS/2 keyboard/mouse port
-
1 × DVI-D port
-
1 × DisplayPort
-
1 × HDMI port
-
2 × SMA antenna connectors
-
4 × USB 3.2 Gen 1 ports
-
4 × USB 2.0/1.1 ports
-
1 × RJ-45 LAN port
-
3 × Audio jacks
I/O Controller
-
iTE® I/O Controller Chip
H/W Monitoring
-
Voltage, temperature, fan speed detection
-
Fan fail warning
-
Fan speed control (depends on cooler installed)
BIOS
-
AMI UEFI BIOS, 128 Mbit flash
-
PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
-
Supports: Q-Flash, APP Center (varies by model), @BIOS, EasyTune, Smart Backup, System Information Viewer, Xpress Install
Bundled Software
-
Norton® Internet Security (OEM version)
-
LAN bandwidth management software
Operating System
-
Windows 11 64-bit
-
Windows 10 64-bit
Form Factor
-
Micro ATX, 24.4 cm × 24.4 cm
