GigabyteSKU: 0889523036969
banner
Price:
₱7,450.00
Stock:
In stock

Description



  • AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
  • Unparalleled Performance：8+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • SuperSpeed Storage：2*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
  • PCIe x16 EZ-Latch with Quick Release & Screwless Design
  • Fast Networks：2.5GbE LAN
  • Extended Connectivity：DP, HDMI, USB-C® 10Gb/s
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

TECHNICAL SPECIFICATION

  • CPU
    1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD B650
  • Memory
    1. Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules
    2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor:
    1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
      * Support for DisplayPort 1.4 version.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support native HDMI 2.1 TMDS compatible ports.
    (Graphics specifications may vary depending on CPU support.)
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN
    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Expansion Slots
    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    Chipset:
    1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
  • Storage Interface
    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
    2. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)
    Chipset:
    1. 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB
    CPU:
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    3. 2 x USB 2.0/1.1 ports on the back panel
    Chipset:
    1. 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
    2. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    3. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 2 x system fan headers
    5. 1 x addressable LED strip header
    6. 1 x RGB LED strip header
    7. 2 x M.2 Socket 3 connectors
    8. 4 x SATA 6Gb/s connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x USB Type-C® header, with USB 3.2 Gen 1 support
    12. 1 x USB 3.2 Gen 1 header
    13. 1 x USB 2.0/1.1 header
    14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    15. 1 x reset jumper
    16. 1 x Clear CMOS jumper

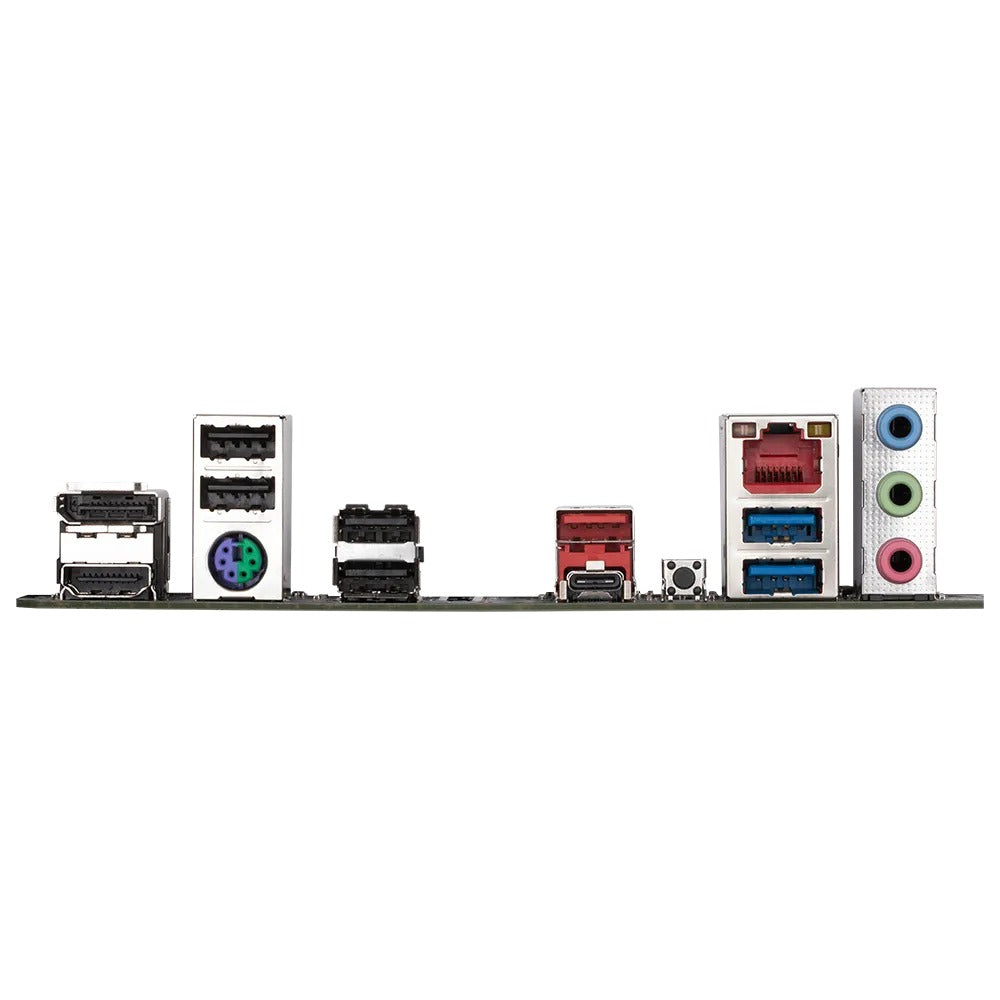

  • Back Panel Connectors
    1. 1 x DisplayPort
    2. 1 x HDMI port
    3. 4 x USB 2.0/1.1 ports
    4. 1 x PS/2 keyboard/mouse port
    5. 1 x USB 3.2 Gen 2 Type-A port (red)
    6. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
    7. 1 x Q-Flash Plus button
    8. 1 x RJ-45 port
    9. 2 x USB 3.2 Gen 1 ports
    10. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for GIGABYTE Control Center (GCC)
      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Support for Q-Flash
    3. Support for Q-Flash Plus
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 24.4cm
