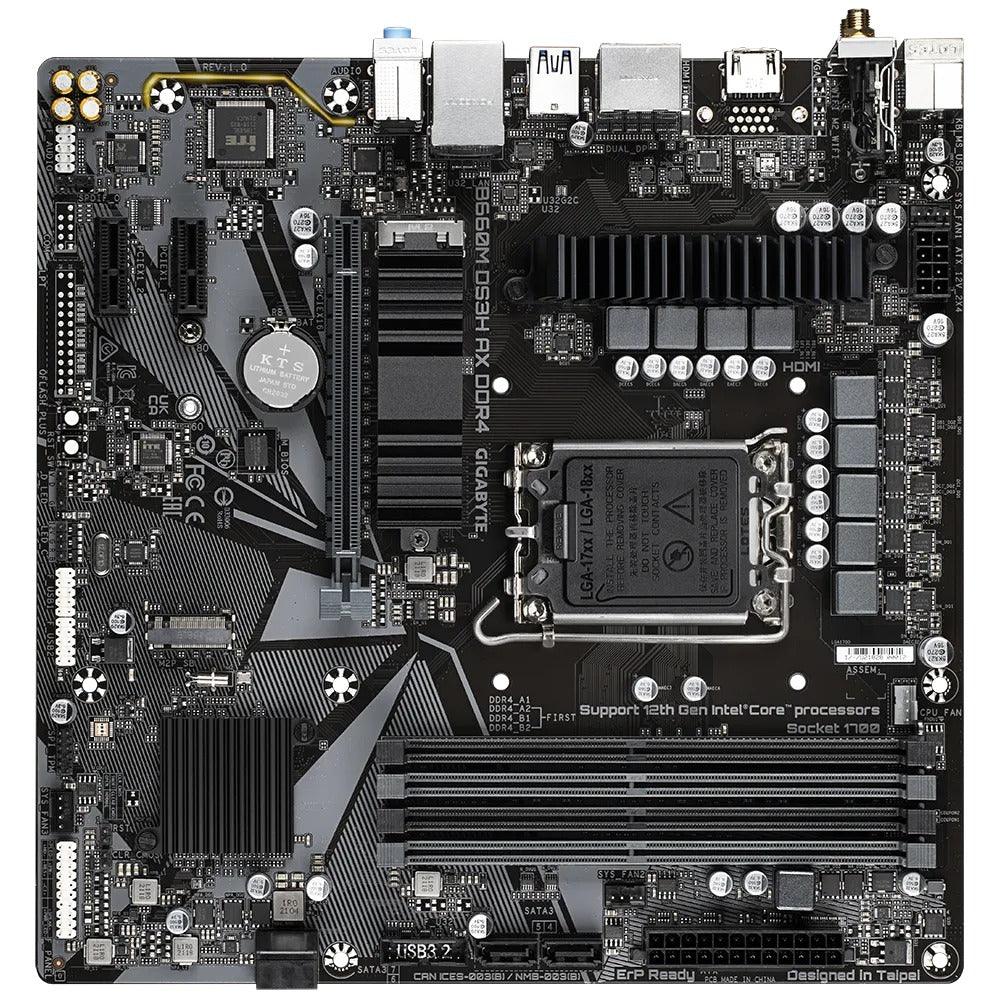

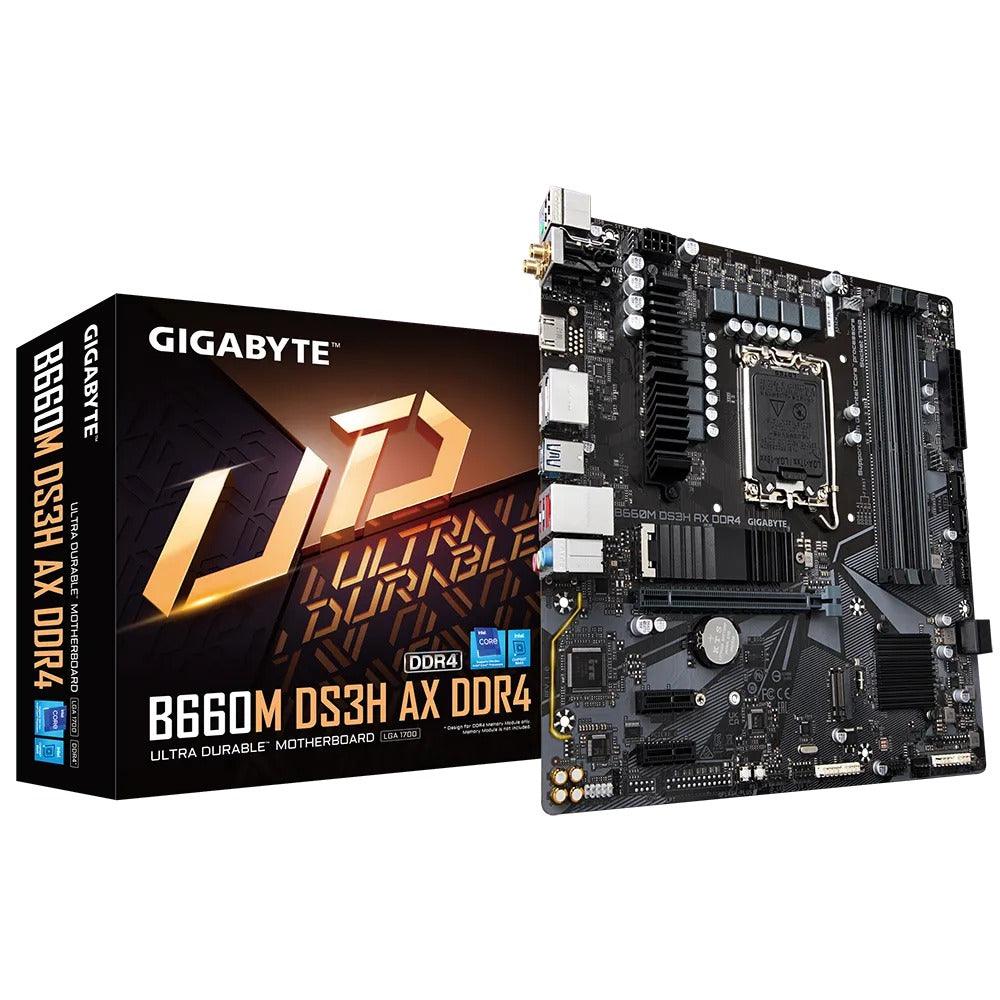

B660M DS3H AX DDR4
- Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink
- WIFI 6 802.11ax 2T2R & BT5 with AERO Antenna
- Fast 2.5 GbE LAN with Bandwidth Management
- Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard
- Rear SuperSpeed USB 3.2 Gen 2 TYPE-C® for Fast and Versatile Connections
- High Quality Audio Capacitors and Audio Noise Guard
- RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Specification
CPU | LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* |
L3 cache varies with CPU | |
Chipset | Intel® B660 Express Chipset |
Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules |
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
Dual channel memory architecture | |
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
Support for Extreme Memory Profile (XMP) memory modules | |
Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: |
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
* Support for HDMI 2.1 version and HDCP 2.3. | |
** Support native HDMI 2.1 TMDS compatible ports. | |
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz | |
* Support for DisplayPort 1.2 version and HDCP 2.3 | |
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz | |
* Support for DisplayPort 1.2 version. | |
Audio | Realtek® Audio CODEC |
High Definition Audio | |
2/4/5.1/7.1-channel | |
LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |

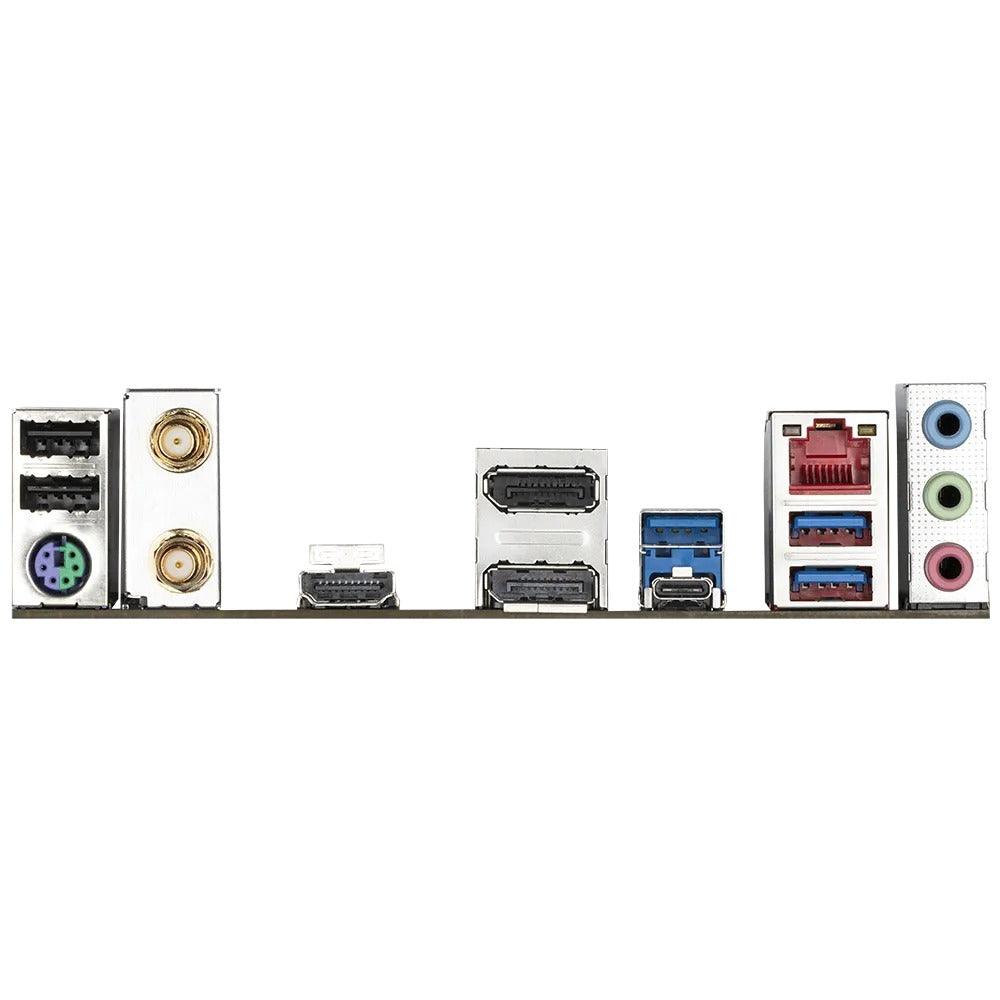

Back Panel Connectors | 2 x USB 2.0/1.1 ports |
1 x PS/2 keyboard/mouse port | |
2 x SMA antenna connectors (2T2R) | |
1 x HDMI port | |
2 x DisplayPorts | |
3 x USB 3.2 Gen 1 ports | |
1 x USB Type-C® port, with USB 3.2 Gen 2 support | |
1 x RJ-45 port | |
3 x audio jacks | |
Unique Features | Support for APP Center |
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
@BIOS | |
EasyTune | |
Fast Boot | |
Game Boost | |
ON/OFF Charge | |
RGB Fusion | |
Smart Backup | |
System Information Viewer | |
Support for Q-Flash Plus | |
Support for Q-Flash | |
Support for Xpress Install | |
Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
