Description

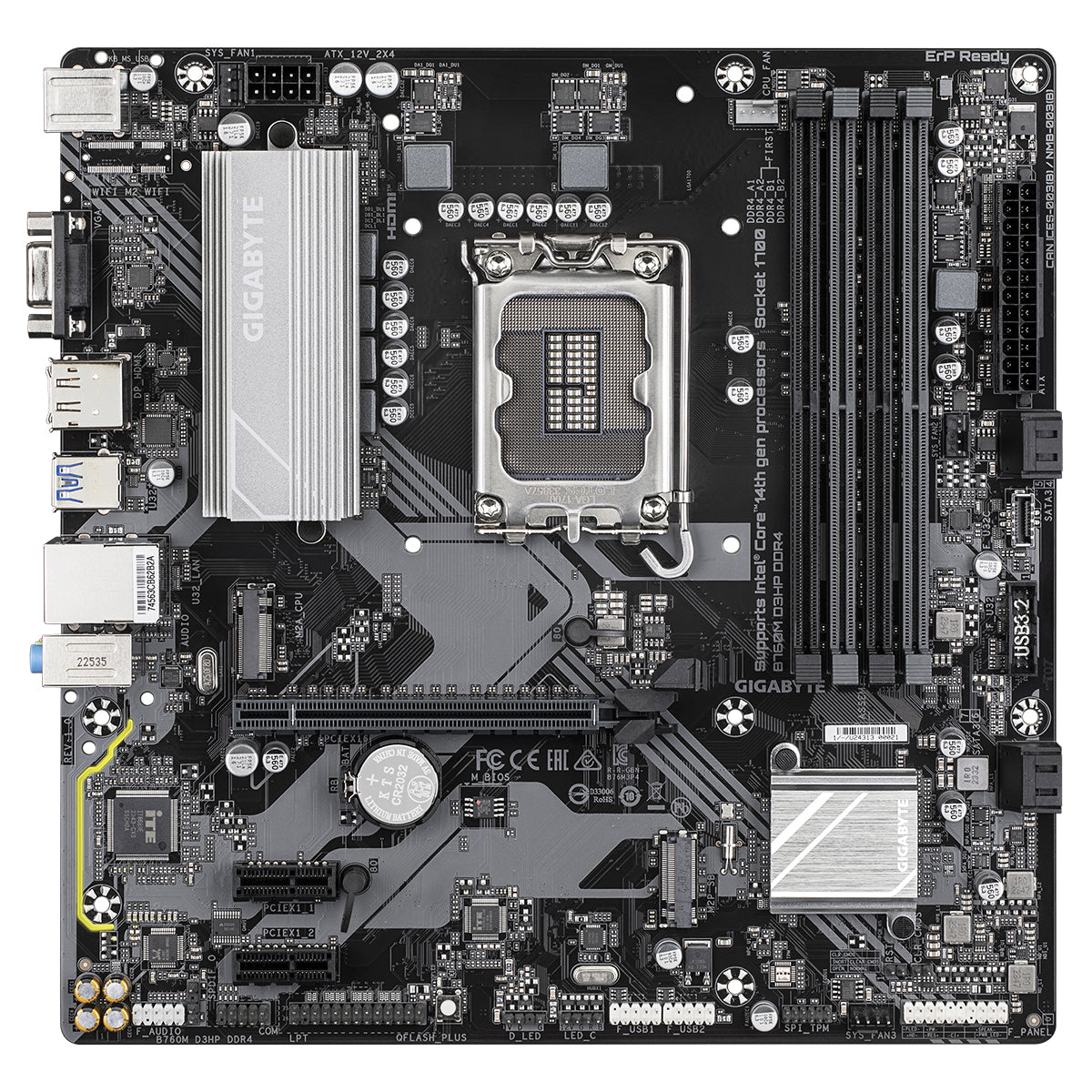

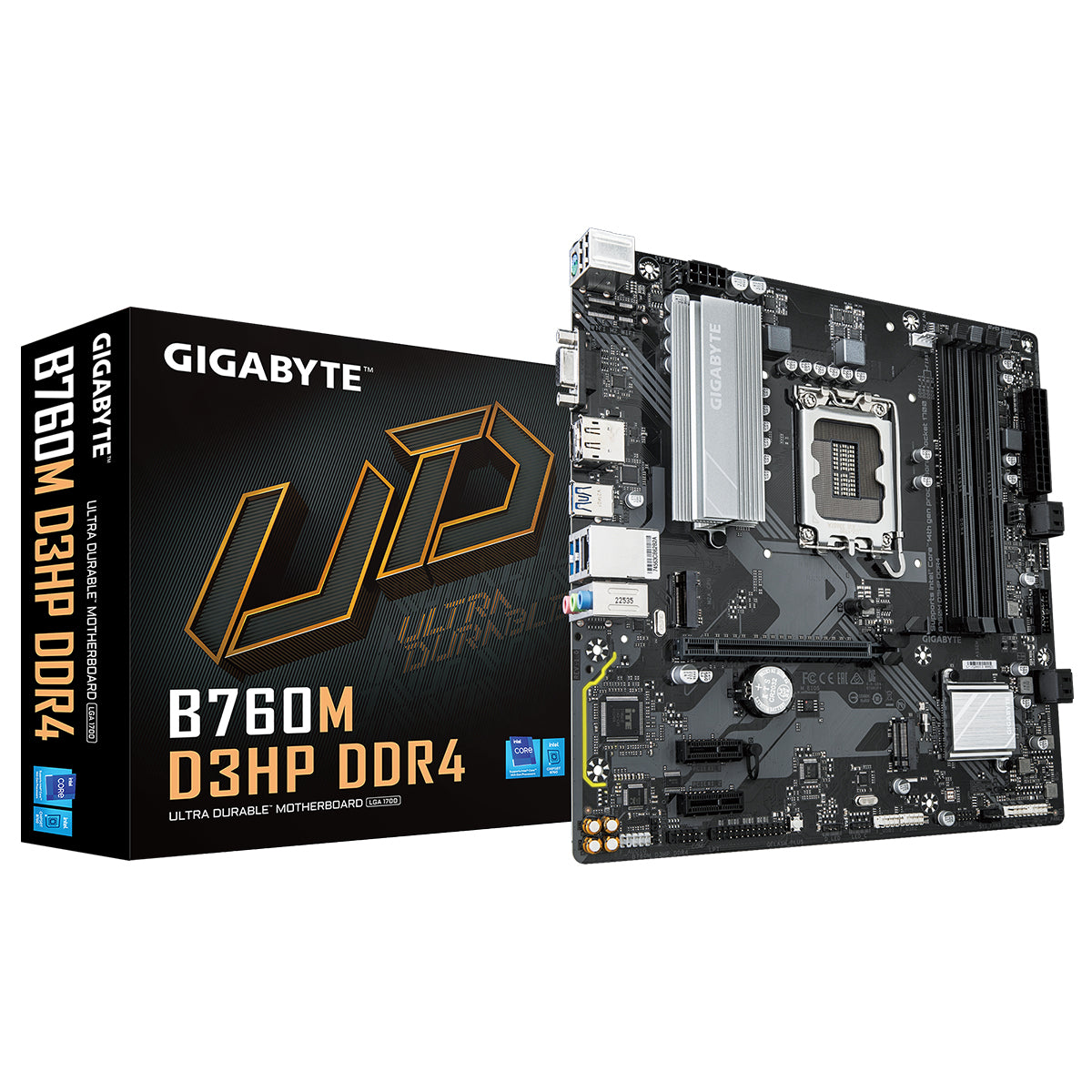

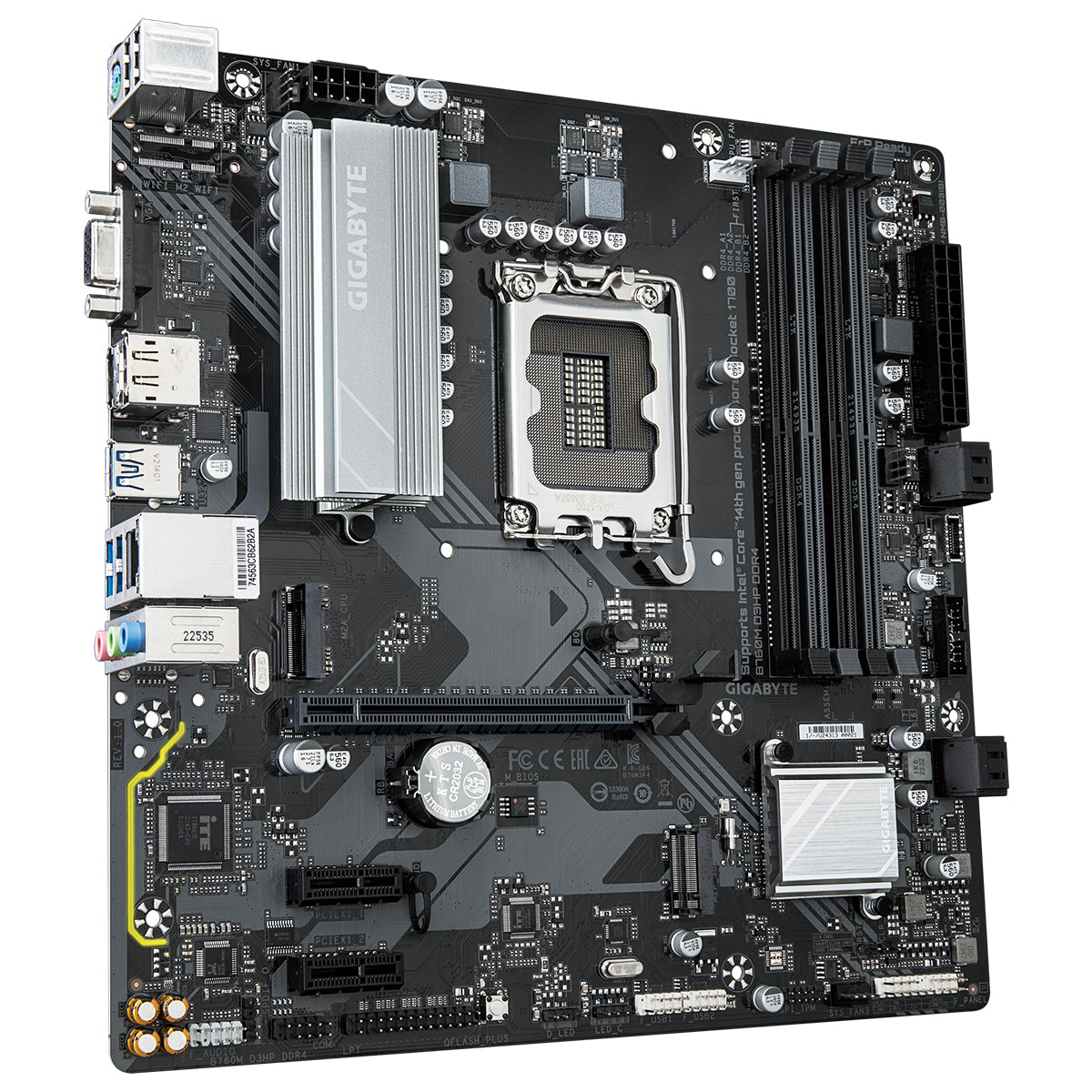

B760M D3HP DDR4
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 4+1+1 Phases Digital VRM Solution
- Dual Channel DDR4：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- Fast Networks：GbE LAN
- Extended Connectivity：Front USB-C® 5Gb/s, DP, HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications:
| CPU | LGA1700 Socket Supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors L3 Cache varies by CPU |
| Chipset | Intel® B760 Express Chipset |
| Memory | 4 × DDR4 DIMM Slots Maximum Capacity: 128GB (32GB per DIMM) Dual-Channel Memory Architecture Supports DDR4 2133–5333 MT/s (OC) Supports ECC Unbuffered DIMMs (Non-ECC Mode) Supports Non-ECC Unbuffered DIMMs Supports Intel® XMP Memory Profiles |
| Onboard Graphics | Intel® Integrated Graphics Support* 1 × D-Sub (Up to 1920 × 1200 @ 60Hz) 1 × HDMI 2.1 (Up to 4096 × 2160 @ 60Hz, HDCP 2.3) 1 × DisplayPort 1.2 (Up to 4096 × 2304 @ 60Hz, HDCP 2.3) Supports Triple Display *Graphics support depends on installed CPU. |
| Audio | Realtek® High Definition Audio Codec Supports 2 / 4 / 5.1 / 7.1-Channel Audio Supports S/PDIF Out |
| LAN | Realtek® Gigabit Ethernet (10/100/1000 Mbps) |
| Expansion Slots |
CPU: 1 × PCIe 4.0 x16 Slot (Graphics Card or NVMe SSD) Chipset: 2 × PCIe 3.0 x1 Slots |
| Storage | 2 × M.2 PCIe 4.0 x4/x2 (2280) 4 × SATA 6Gb/s Ports Supports RAID 0, RAID 1, RAID 5, RAID 10 |
| USB |
Rear I/O: 3 × USB 3.2 Gen 1 2 × USB 2.0 Internal: 1 × USB Type-C® (USB 3.2 Gen 1) 2 × USB 3.2 Gen 1 Ports 4 × USB 2.0 Ports |
| Internal I/O Connectors | 1 × 24-pin ATX Power 1 × 8-pin CPU Power 1 × CPU Fan Header 3 × System Fan Headers 1 × Addressable RGB Header 1 × RGB LED Header 2 × M.2 Connectors 4 × SATA 6Gb/s Ports 1 × Front Panel Header 1 × Front Audio Header 1 × USB Type-C® Header 1 × USB 3.2 Gen 1 Header 2 × USB 2.0 Headers 1 × TPM Header 1 × Serial Port Header 1 × Parallel Port Header 1 × S/PDIF Out Header 1 × Q-Flash Plus Button 1 × Reset Jumper 1 × Clear CMOS Jumper |

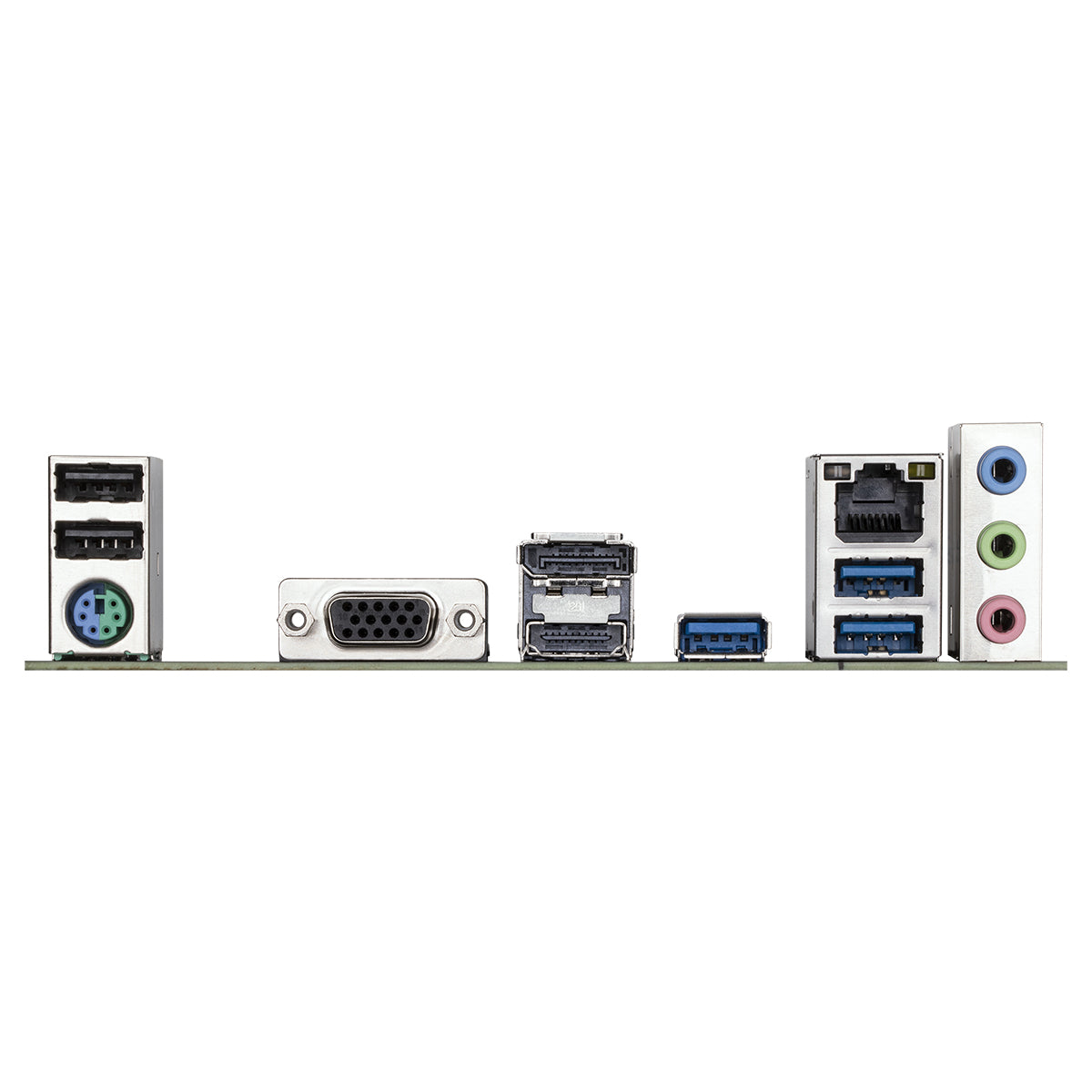

| Back Panel Connectors | 2 × USB 2.0 Ports 1 × PS/2 Keyboard/Mouse Port 1 × D-Sub 1 × DisplayPort 1 × HDMI 3 × USB 3.2 Gen 1 Ports 1 × RJ-45 LAN Port 3 × Audio Jacks |
| I/O Controller | iTE® I/O Controller Chip |
| Hardware Monitoring | Voltage Detection Temperature Detection Fan Speed Detection Water Cooling Flow Rate Detection Fan Failure Warning Fan Speed Control |
| BIOS | 1 × 128 Mbit Flash AMI UEFI BIOS Supports PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC) Q-Flash Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM) LAN Bandwidth Management Software |
| Operating System | Windows® 11 64-bit Windows® 10 64-bit |
| Form Factor | Micro ATX (24.4 × 24.4 cm) |
