Description

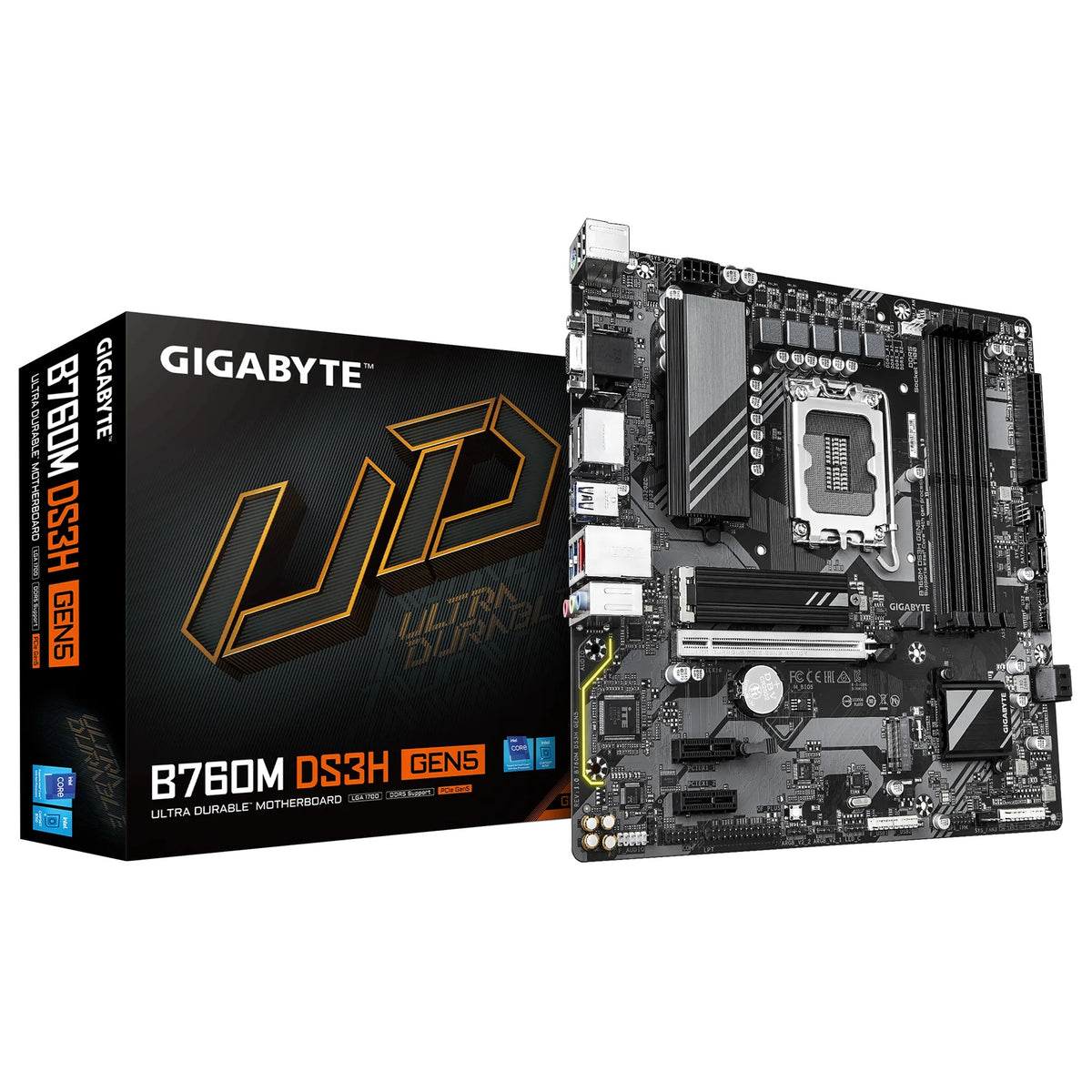

Gigabyte B760M DS3H Gen5 DDR5 UD Motherboard
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th /12th processors
- EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
- PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
- Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support
- Fast Networks : 2.5 GbE LAN
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Extended Connectivity : Rear USB-C® 10Gb/s, DP, HDMI, D-Sub
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
Specification:
| CPU | LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors (see CPU support list on GIGABYTE's website). L3 cache varies with CPU. |
| Chipset | Intel® B760 Express Chipset |
| Memory |
14th & 13th Gen Intel® Core™ i9/i7: DDR5 5600 / 5200 / 4800 / 4400 MT/s 13th Gen i5/i3 & 12th Gen Core™, Pentium® Gold, Celeron®: DDR5 4800 / 4400 MT/s 4× DDR5 DIMM sockets, up to 256GB (64GB per DIMM), dual channel, ECC Un-buffered DIMM (non-ECC mode) & non-ECC Un-buffered DIMM support. Supports Extreme Memory Profile (XMP) |
| Onboard Graphics | Integrated Intel® HD Graphics (CPU dependent) 1× D-Sub (1920×1200@60Hz) 1× HDMI 2.1 (4096×2160@60Hz, HDCP 2.3) 2× DisplayPort 1.2 (4096×2304@60Hz, HDCP 2.3) Supports up to 4 displays |
| Audio | Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5G/1G/100M) |
| Expansion Slots | CPU: 1× PCIe x16 (PCIe 5.0, x16, graphics card/NVMe SSD only) Chipset: 2× PCIe x1 (PCIe 3.0) |
| Storage | CPU: 1× M.2 (PCIe 4.0 x4/x2, 2280) Chipset: 1× M.2 (PCIe 4.0 x4/x2, 2280), 4× SATA 6Gb/s RAID 0/1/5/10 (SATA only) |
| USB | Rear: 1× USB-C 3.2 Gen2, 3× USB 3.2 Gen1, 2× USB 2.0 Internal: 2× USB 3.2 Gen1 (via header), 4× USB 2.0 (via headers) |
| Internal I/O | 24-pin ATX, 8-pin ATX 12V 1× CPU fan, 3× system fan 2× ARGB Gen2 headers, 1× RGB header 2× M.2 slots, 4× SATA ports Front panel, front audio, USB 3.2 Gen1 header, 2× USB 2.0 headers TPM header, serial port, parallel port, S/PDIF Out header Q-Flash Plus button, reset jumper, Clear CMOS jumper |

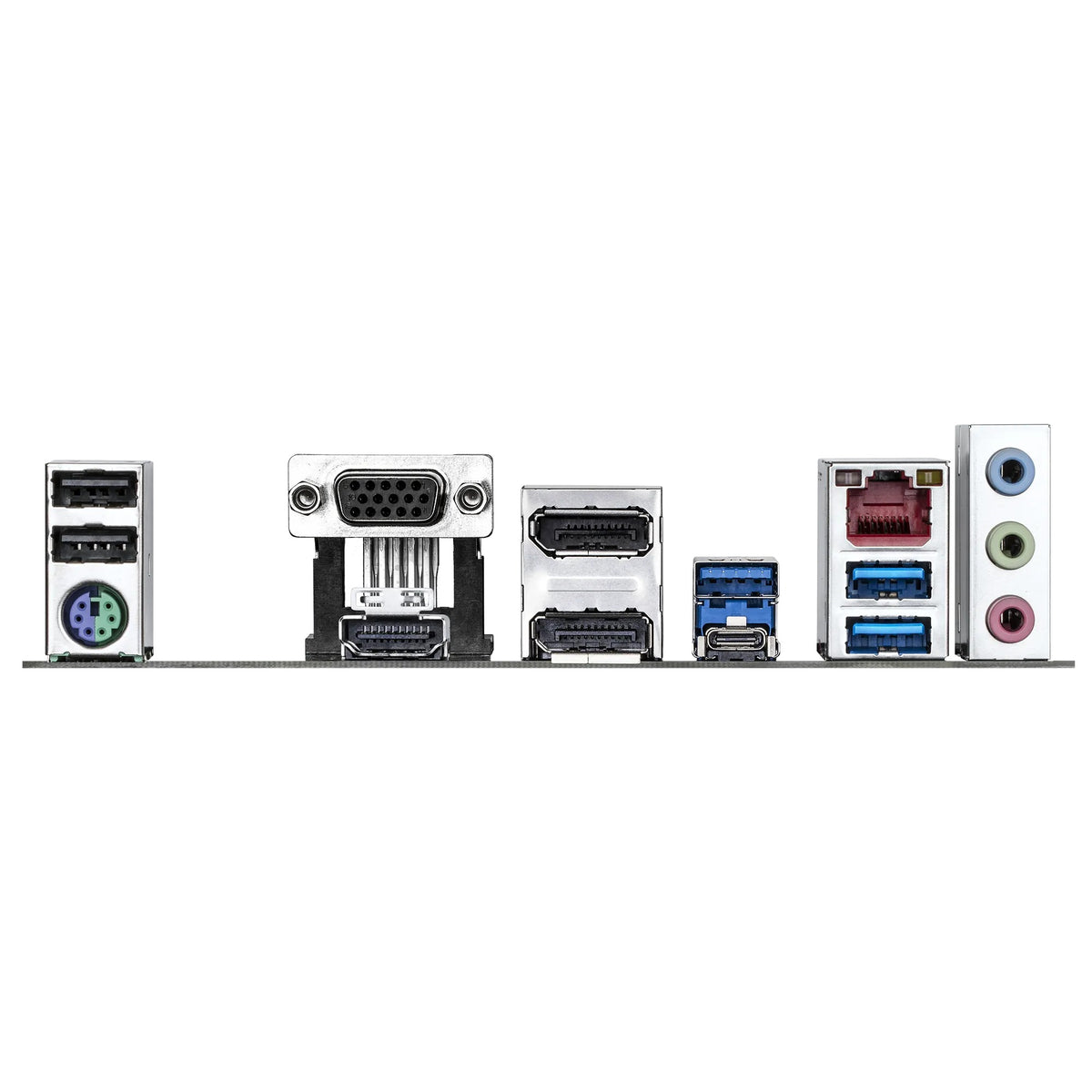

| Back Panel | 2× USB 2.0, 1× PS/2 combo, 1× D-Sub, 1× HDMI, 2× DisplayPort, 3× USB 3.2 Gen1, 1× USB-C 3.2 Gen2, 1× RJ-45, 3× audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed detection, water flow detection, fan fail warning, fan speed control |
| BIOS | 128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM) |
| OS Support | Windows 11/10 64-bit |
| Form Factor | Micro ATX, 24.4cm x 24.4cm |
