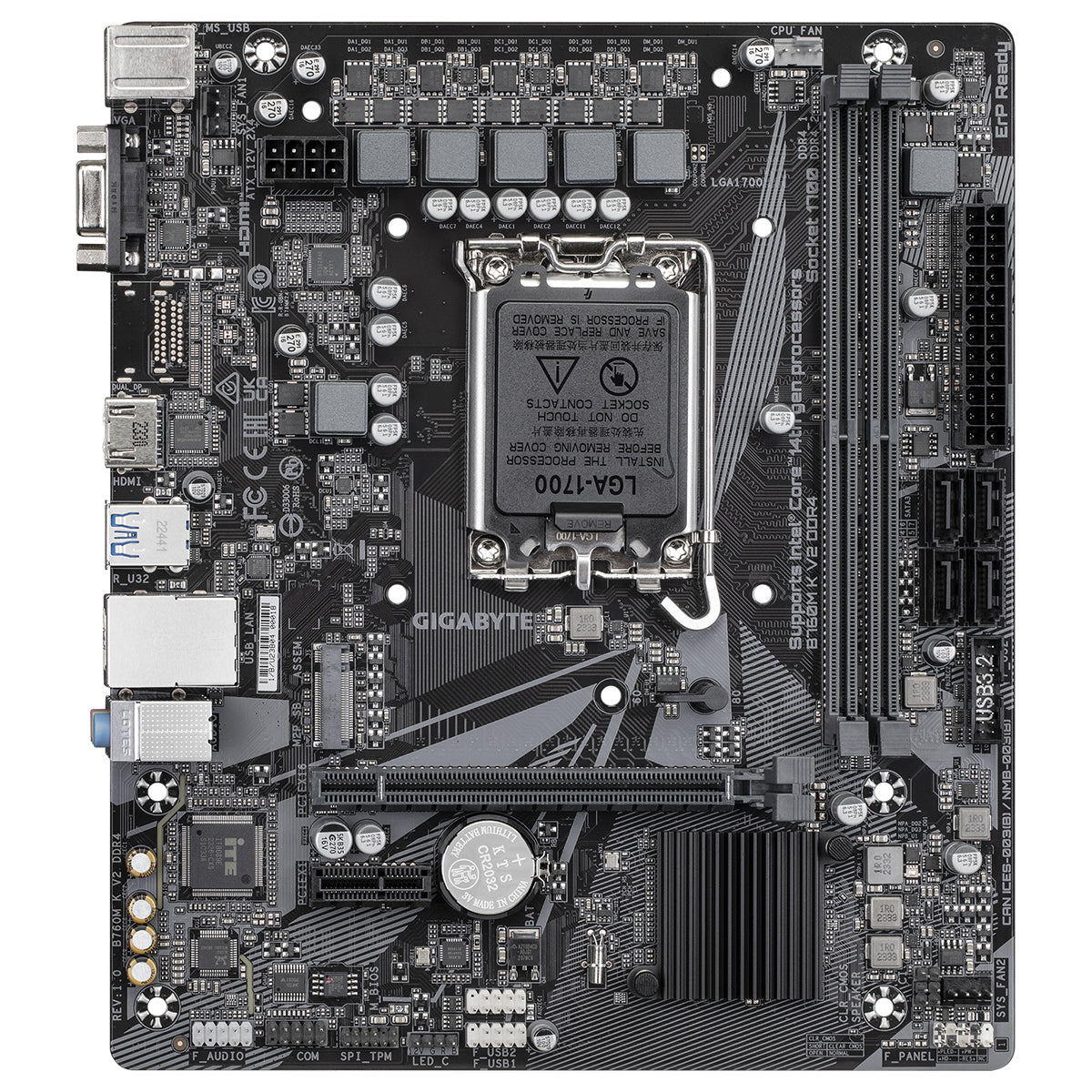

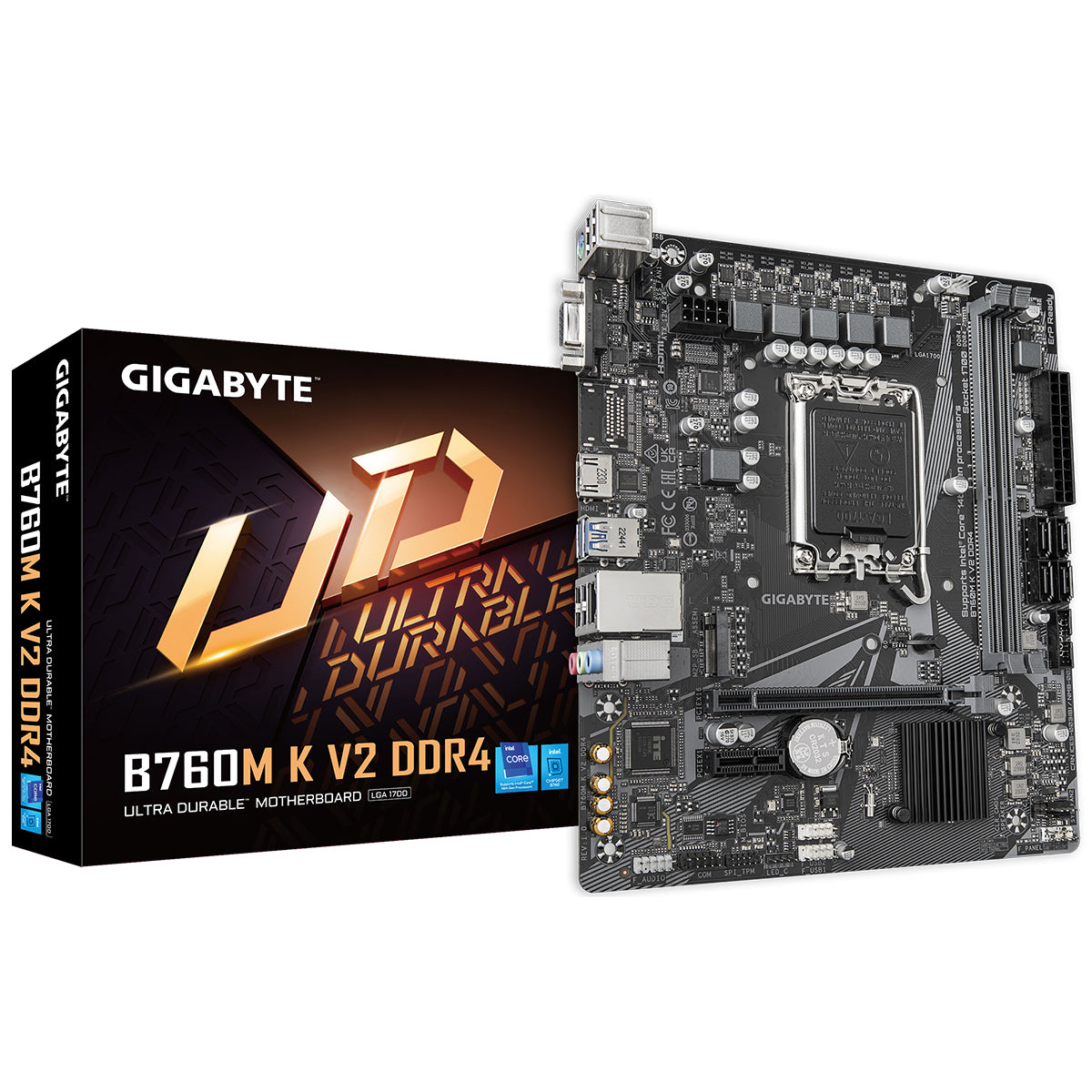

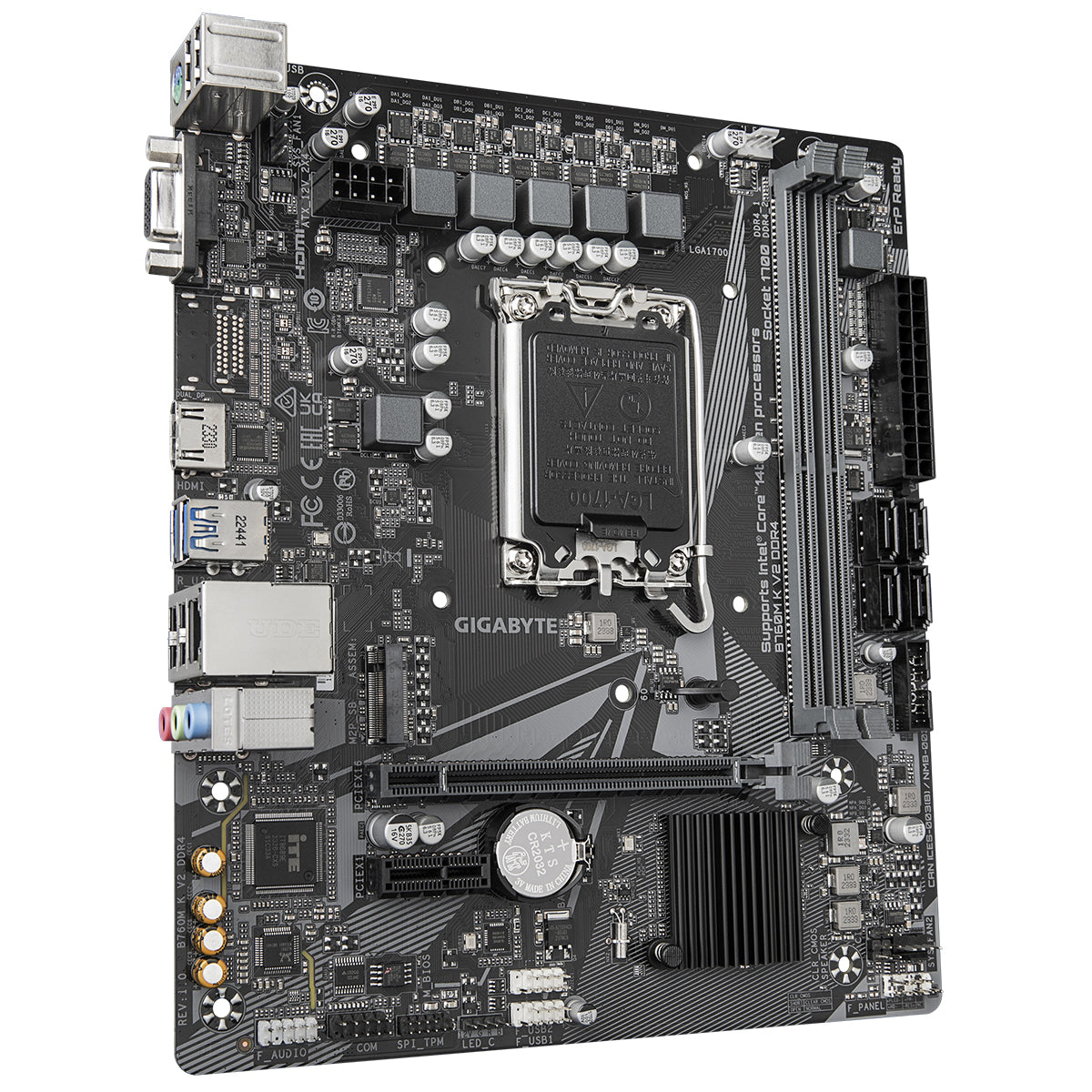

Description
Intel® B760 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6
* Actual support may vary by CPU.
- Supports Intel® Core™ 14th /13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
Specifications:
| CPU | LGA1700 Socket Supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors L3 Cache varies by CPU |
| Chipset | Intel® B760 Express Chipset |
| Memory | 2 × DDR4 DIMM Slots Maximum Capacity: 64GB (32GB per DIMM) Supports DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s Dual-Channel Memory Architecture Supports ECC Unbuffered DIMMs (operates in Non-ECC mode) Supports Non-ECC Unbuffered DIMMs Supports Intel® XMP Memory Profiles |
| Onboard Graphics | Intel® Integrated Graphics Support* 1 × D-Sub (Up to 1920 × 1200 @ 60Hz) 1 × HDMI 2.1 (Up to 4096 × 2160 @ 60Hz, HDCP 2.3) *Graphics support depends on the installed CPU. |
| Audio | Realtek® High Definition Audio Codec Supports 2 / 4 / 5.1 / 7.1-Channel Audio |
| LAN | Realtek® Gigabit Ethernet (10/100/1000 Mbps) |
| Expansion Slots |
CPU: 1 × PCIe 4.0 x16 Slot Chipset: 1 × PCIe 3.0 x1 Slot |
| Storage | 1 × M.2 Socket 3 (2280/2260, PCIe 3.0 x4/x2 SSD) 4 × SATA 6Gb/s Ports Supports RAID 0, RAID 1, RAID 5, and RAID 10 |
| USB |
Rear I/O: 2 × USB 3.2 Gen 1 Ports 4 × USB 2.0/1.1 Ports Internal: 2 × USB 3.2 Gen 1 Ports 4 × USB 2.0/1.1 Ports |
| Internal I/O Connectors | 1 × 24-pin ATX Power Connector 1 × 8-pin ATX 12V CPU Power Connector 1 × CPU Fan Header 2 × System Fan Headers 1 × M.2 Socket 3 Connector 4 × SATA 6Gb/s Connectors 1 × RGB LED Header 1 × Front Panel Header 1 × Front Panel Audio Header 1 × Speaker Header 1 × USB 3.2 Gen 1 Header 2 × USB 2.0/1.1 Headers 1 × TPM Header 1 × Serial Port Header 1 × Clear CMOS Jumper 1 × Chassis Intrusion Header |

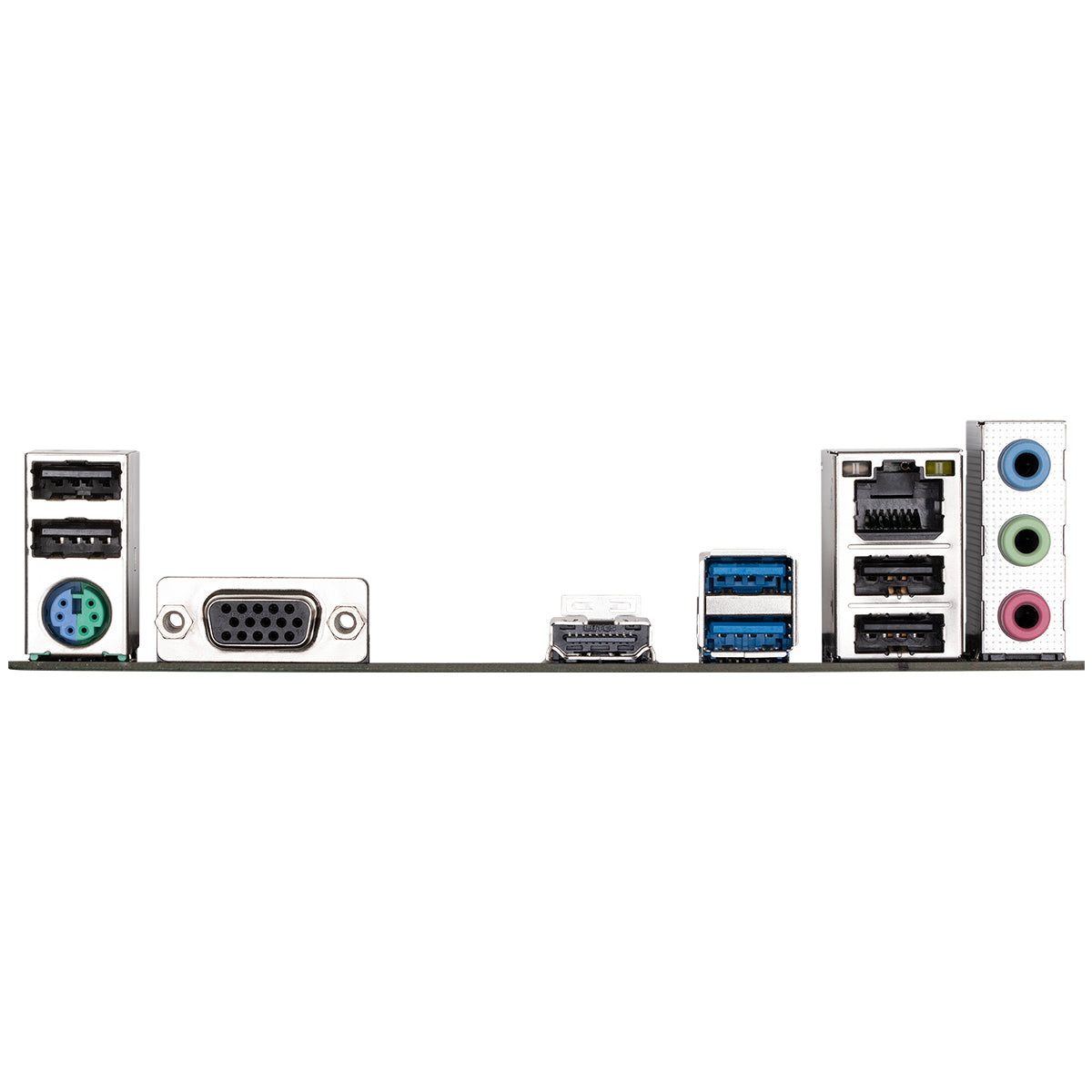

| Back Panel Connectors | 1 × PS/2 Keyboard/Mouse Port 1 × D-Sub Port 1 × HDMI Port 2 × USB 3.2 Gen 1 Ports 4 × USB 2.0/1.1 Ports 1 × RJ-45 LAN Port 3 × Audio Jacks |
| I/O Controller | iTE® I/O Controller Chip |
| Hardware Monitoring | Voltage Detection Temperature Detection Fan Speed Detection Water Cooling Flow Rate Detection Fan Failure Warning Fan Speed Control |
| BIOS | 1 × 128 Mbit Flash Licensed AMI UEFI BIOS Supports PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC) Q-Flash |
| Bundled Software | Norton® Internet Security (OEM Version) LAN Bandwidth Management Software |
| Operating System | Windows® 11 64-bit Windows® 10 64-bit |
| Form Factor | Micro ATX (22.3 × 19.3 cm) |
