Description
Specifications:
| Category | Specifications |
|---|---|
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD B840 |
| Memory | Support for DDR5 up to 8200(O.C) MT/s; 4 x DDR5 DIMM sockets (up to 256 GB); Dual channel architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16; Support for AMD EXPO™ and XMP |
| Onboard Graphics | 1 x HDMI 2.1 (4096x2160@60 Hz); 1 x DisplayPort 1.4 (3840x2160@144 Hz) |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Realtek® Wi-Fi 6E RTL8852CE; 802.11a/b/g/n/ac/ax (2.4/5/6 GHz); BLUETOOTH 5.3; 160MHz wireless standard support |
| Expansion Slots | 1 x PCIe 4.0 x16 (PCIEX16); 1 x PCIe 3.0 x4 (PCIEX4); 2 x PCIe 3.0 x1 (PCIEX1_1, PCIEX1_2) |
| Storage Interface | 2 x M.2 (PCIe 4.0 x4/x2, type 25110/22110/2580/2280); 1 x M.2 (PCIe 3.0 x4/x2, type 25110/22110/2580/2280); 4 x SATA 6Gb/s; RAID 0/1/5/10 support |
| USB | 1 x USB 3.2 Gen 2 Type-C® (back); 1 x USB 3.2 Gen 2 Type-A (back); 2 x USB 3.2 Gen 1 (back); 4 x USB 2.0 (back); Internal headers for USB 3.2 Gen 1 Type-C®, USB 3.2 Gen 1, and USB 2.0/1.1 |
| Internal I/O Connectors | 24-pin ATX; 1 x 8-pin 12V; CPU fan & pump headers; 4 x system fan headers; 3 x Addressable RGB Gen2; 1 x RGB; 3 x M.2; 4 x SATA; Front panel audio; USB headers; TPM; Reset jumper |

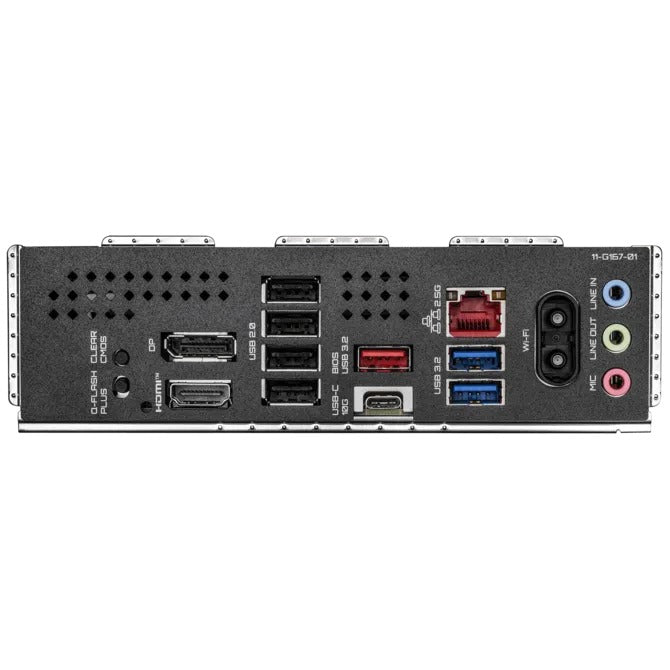

| Back Panel Connectors | Q-Flash Plus/Clear CMOS buttons; 1 x DisplayPort; 1 x HDMI; 1 x USB 3.2 Gen 2 Type-C®; 1 x USB 3.2 Gen 2 Type-A; 2 x USB 3.2 Gen 1; 4 x USB 2.0/1.1; 1 x RJ-45; 2 x Antenna; 3 x Audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate, Fan fail warning, Fan speed control |
| BIOS | 1 x 256 Mbit flash; AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC); Q-Flash; Q-Flash Plus; Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Support for Windows 11 64-bit; Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm) |
