Description
Key Features
- X3D Turbo Mode to unleash new era gaming performance
- AMD Socket AM5: Supports AMD Ryzen™ 9000/8000/ 7000 Series Processors
- Digital 8+2+2 phases VRM solution
- Dual Channel DDR5 : 2*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
- Fast Networking : 802.11ax Wi-Fi6E and 2.5GbE LAN
- Extended Connectivity: DP, HDMI
Specifications:
| CPU | |
| Socket | AMD Socket AM5 |
| Supported CPUs | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Chipset | |
| Chipset | AMD B850 |
| Memory | |
| Supported Memory | DDR5 9600(OC) down to 4400 MT/s |
| DIMM Slots | 2 x DDR5 DIMM, up to 128 GB total |
| Memory Architecture | Dual channel |
| Memory Features | Non-ECC Un-buffered, AMD EXPO™, XMP support |
| Onboard Graphics | |
| HDMI | 1 x HDMI 2.1 (4096x2160@60Hz) |
| DisplayPort | 1 x DisplayPort 1.4 (3840x2160@144Hz) |
| Audio | |
| Codec | Realtek® Audio CODEC |
| Channels | 2/4/5.1/7.1 channel HD Audio |
| LAN & Wireless | |
| LAN | Realtek® 2.5GbE LAN |
| Wi-Fi | MediaTek Wi-Fi 6E MT7902 (2.4/5/6GHz) |
| Bluetooth | 5.3 |
| Expansion Slots | |
| PCIEX16 | 1 x PCIe x16 (varies by CPU: PCIe 5.0/4.0) |
| PCIEX4 | 1 x PCIe x4 (PCIe 4.0) |
| Storage Interfaces | |
| M.2 Slots | M2A_CPU (PCIe 5.0/4.0), M2B_CPU (PCIe 4.0), M2C_SB (PCIe 4.0 x2) |
| SATA | 4 x SATA 6Gb/s |
| RAID Support | NVMe (RAID 0/1/5/10), SATA (RAID 0/1/10) |
| USB Ports | |
| Rear I/O | 1 x USB-C (USB 3.2 Gen 1), 1 x USB 3.2 Gen 2 Type-A (Red), 2 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, 1 x USB 2.0/1.1 (extra) |
| Internal Headers | 1 x USB-C header (USB 3.2 Gen 1), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers (4 ports) |
| Internal I/O Connectors | |
| Power | 1 x 24-pin ATX, 1 x 8-pin ATX 12V |
| Fan Headers | CPU, CPU/WP, SYS, SYS/WP |
| RGB Headers | 3 x ARGB Gen2, 1 x RGB |
| Other | Front panel, Audio header, TPM header, Clear CMOS, Q-Flash Plus button |

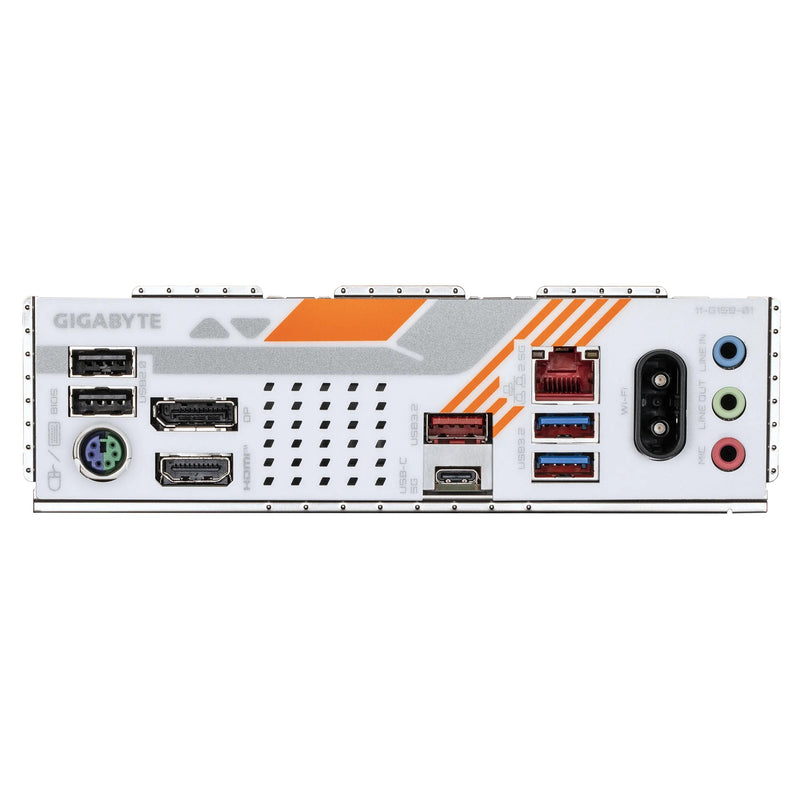

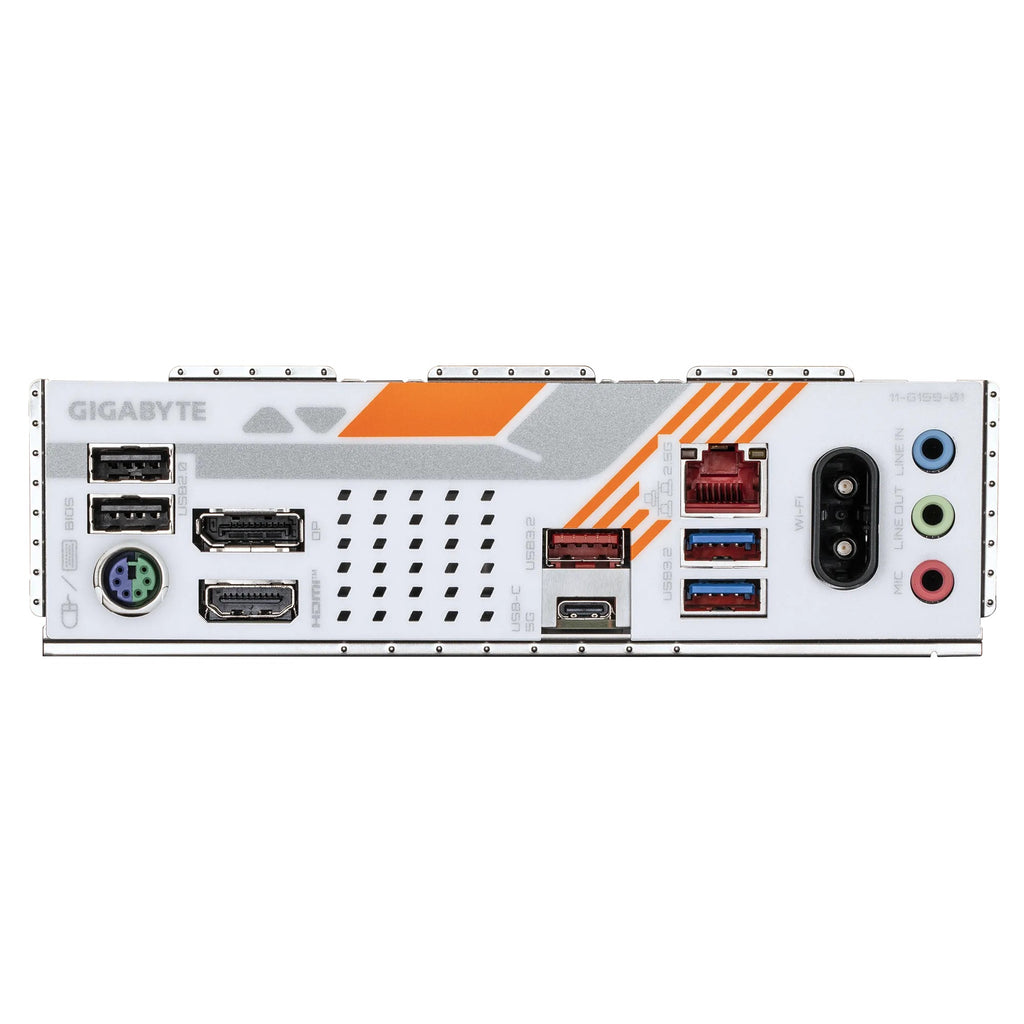

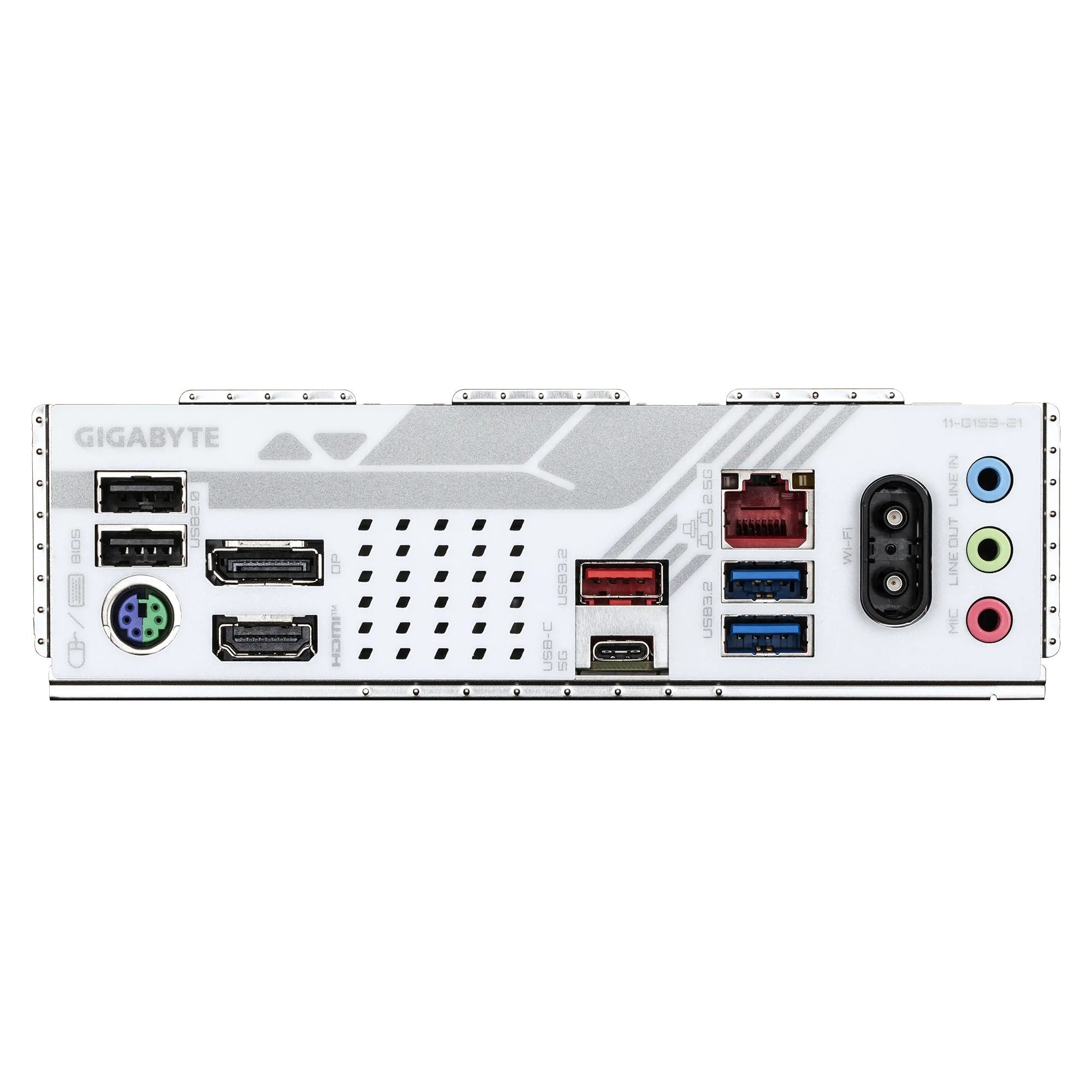

| Back Panel I/O | |
| Video Outputs | 1 x HDMI, 1 x DisplayPort |
| PS/2 Port | 1 x PS/2 keyboard/mouse |
| USB | As listed above |
| LAN | 1 x RJ-45 |
| Wi-Fi Antenna | 2 x connectors |
| Audio | 3 x audio jacks |
