Description
| Category | Feature | Specification |
|---|---|---|
| Core Platform | CPU Socket | AMD Socket AM5 |
| Supported CPUs | AMD Ryzen™ 9000 / 8000 / 7000 Series | |
| Chipset | AMD B850 | |
| Form Factor | Micro ATX (24.4cm x 24.4cm) | |
| Memory (RAM) | Type / Sockets | 2 x DDR5 DIMM sockets, Dual Channel |
| Max Capacity | Up to 128 GB (64 GB single DIMM) | |
| Max Speed (OC) | Up to 9600 MT/s (OC) | |
| Profiles | AMD EXPO™ and XMP support | |
| Expansion Slots | Primary PCIe Slot | 1 x PCI Express x16 (PCIEX16, CPU Integrated) |
| Primary Speed | PCIe 5.0 x16 mode (Ryzen 9000/7000) | |
| Secondary PCIe Slot | 1 x PCI Express x16 (PCIEX4), PCIe 4.0 x4 mode | |
| Storage | M.2 Connectors | 3 x M.2 (M2A\_CPU supports PCIe 5.0 x4) |
| SATA Ports | 4 x SATA 6Gb/s | |
| RAID Support | RAID 0, 1, 5, 10 for NVMe/SATA | |
| M.2 Form Factors | Type 2280 SSDs (Socket 3, M key) | |
| Networking / Audio | Wired LAN | Realtek® 2.5GbE LAN |
| Wireless | MediaTek Wi-Fi 6E (2.4/5/6 GHz) + BLUETOOTH 5.3 | |
| Audio | Realtek® CODEC, 7.1-channel High Definition Audio | |

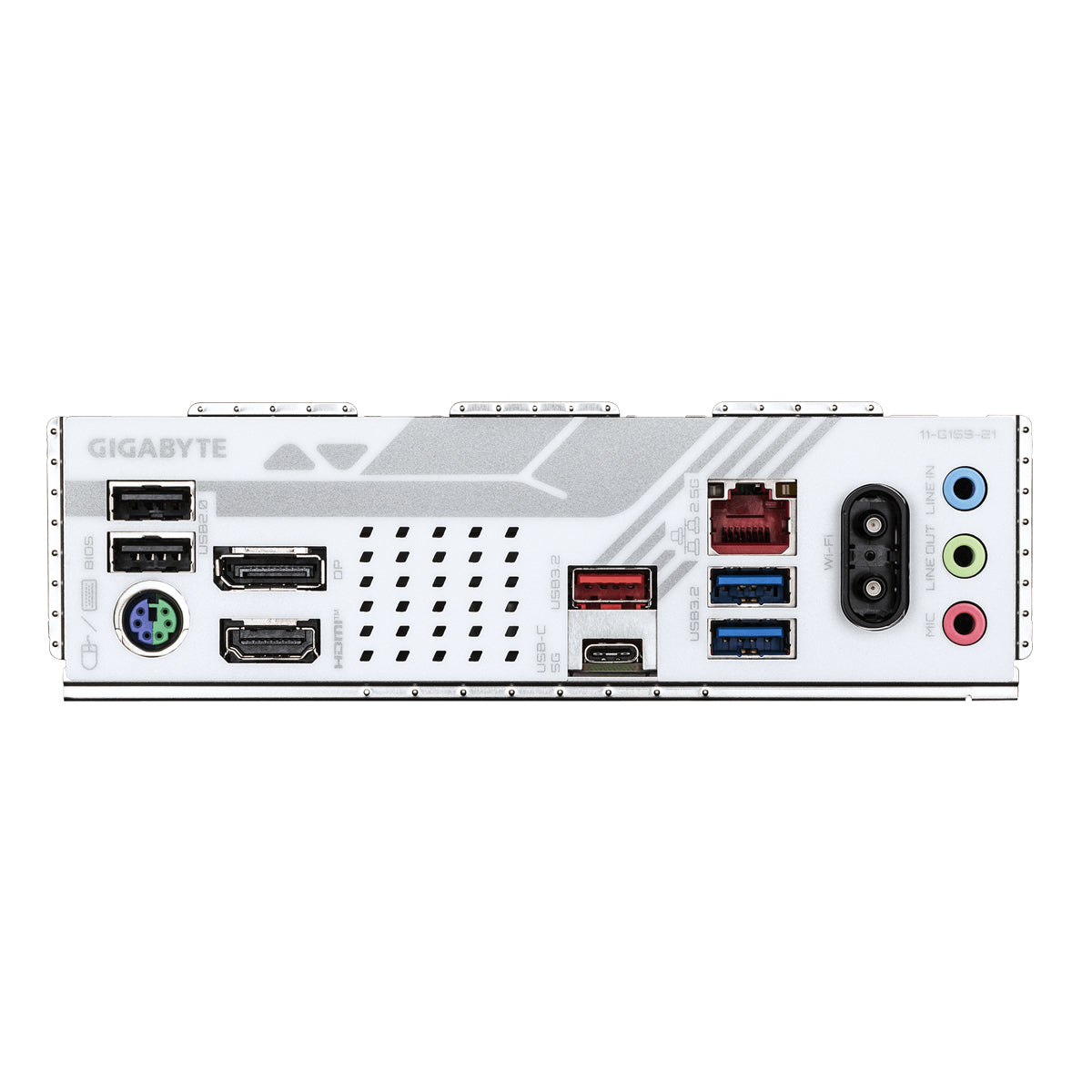

| Back Panel I/O | Video Ports | 1 x HDMI 2.1, 1 x DisplayPort 1.4 |
| High-Speed USB | 1 x USB 3.2 Gen 2 Type-A (10Gb/s) | |
| Other USB | 1 x USB Type-C® Gen 1, 2 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 | |
| Other Ports | PS/2, RJ-45, 2 x Antenna connectors, 3 x Audio jacks |
