Description
Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid 4+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Fast Networking : GbE LAN
- Extended Connectivity : HDMI
Specifications:
| CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| L3 cache varies with CPU | |
| Chipset | Intel® B860 Express Chipset |
| Memory | 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory |
| Dual channel memory architecture | |
| Support for DDR5 up to 8800(O.C) MT/s | |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support |
| 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots (CPU) | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) |
| Expansion Slots (Chipset) | 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Storage Interface (Chipset) | 2 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) |
| 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| USB (Chipset) | 6 x USB 3.2 Gen 1 ports (4 back panel, 2 internal header) |
| 2 x USB 2.0/1.1 ports on the back panel | |
| USB (Chipset+Hub) | 4 x USB 2.0/1.1 ports available through the internal USB headers |

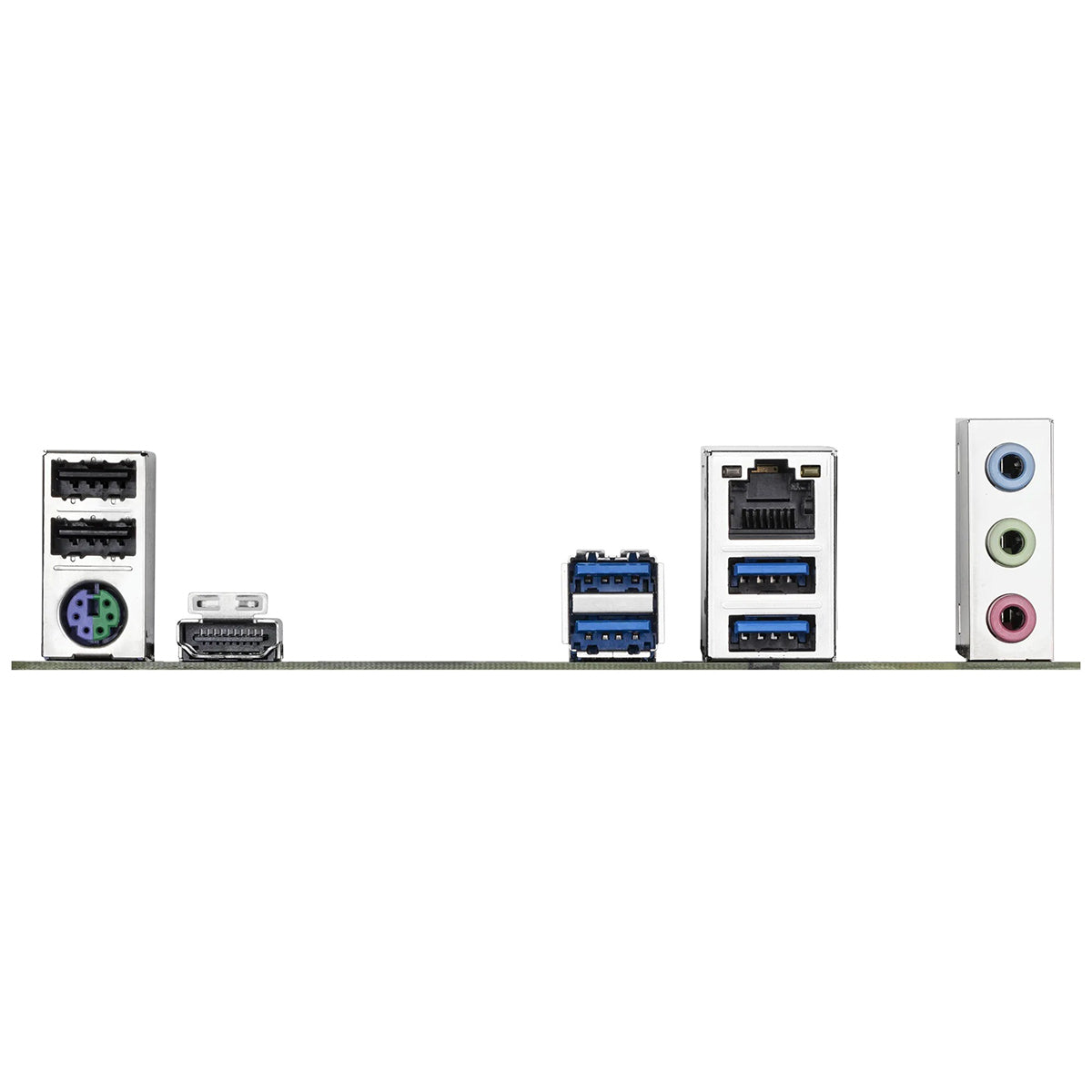

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port, 1 x HDMI port, 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks |
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm |
| Operating System | Support for Windows 11 64-bit, Support for Windows 10 64-bit |
