Description
Features
Powered by GeForce® GTX 1630
NVIDIA Turing™ architecture and GeForce Experience™
Integrated with 4GB GDDR6 64bit memory interface
80mm unique blade fan
Compact size
Core Clock
1815 MHz (Reference Card: 1785 MHz)
COMPACT SIZE FOR EASY INSTALLATION
With less than 170mm in length, the graphics card can be easily installed in any small chassis.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
BUILT STRONG
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Specifications:
-
Graphics ProcessingGeForce® GTX 1630
-
Core Clock1815 MHz (Reference Card: 1785 MHz)
-
CUDA® Cores512
-
Memory Clock12000 MHz
-
Memory Size4 GB
-
Memory TypeGDDR6
-
Memory Bus64 bit
-
Memory Bandwidth (GB/sec)96 GB/s
-
Card BusPCI-E 3.0 x 16
-
Digital max resolution7680x4320
-
Multi-view3
-
Card sizeL=153 W=116 H=36 mm
-
PCB FormATX
-
DirectX12 API
-
OpenGL4.6
-
Recommended PSU300W
-
Power ConnectorsN/A
-

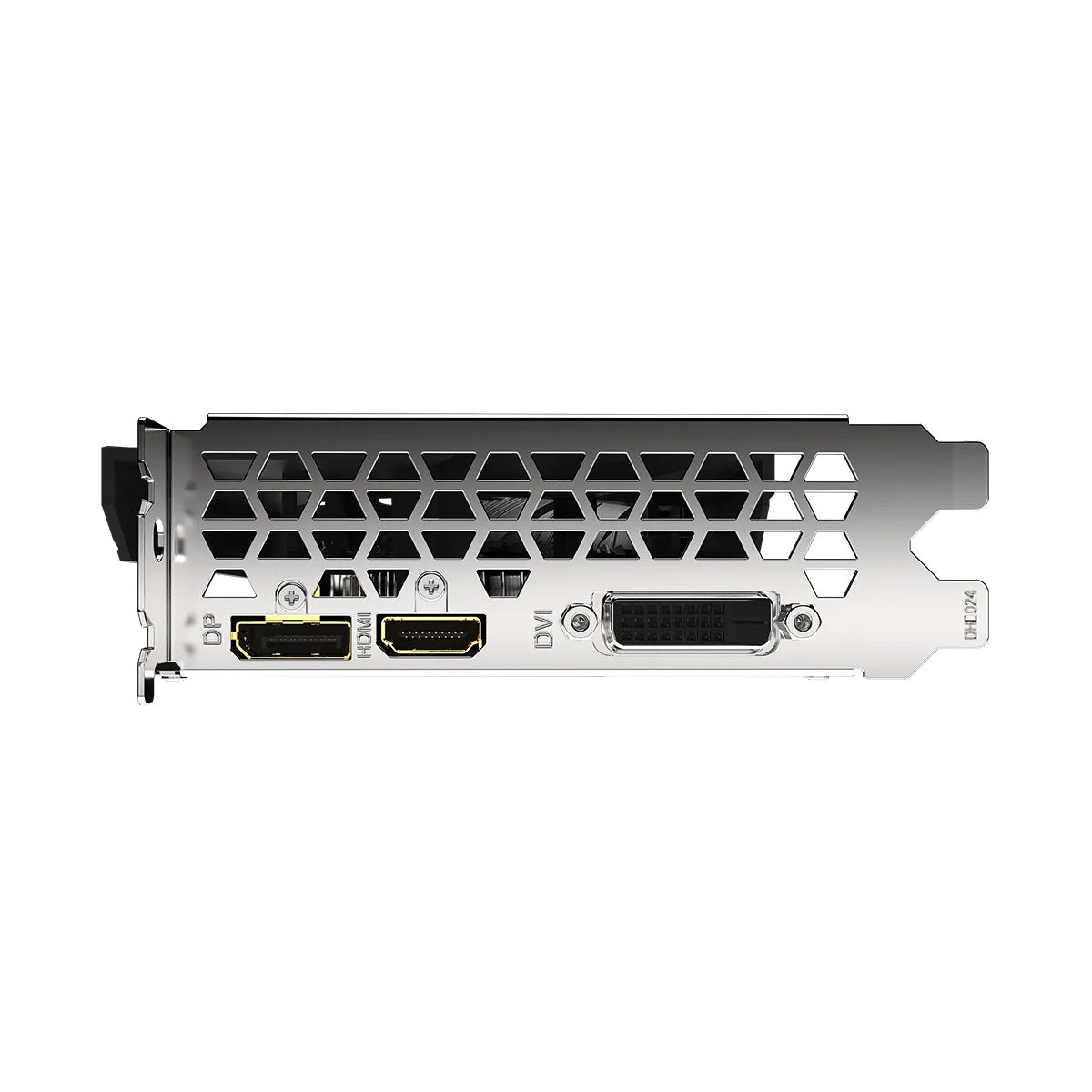

OutputDisplayPort 1.4 *1
HDMI 2.0b *1
DVI-D *1 -
SLI SupportN/A
-
AccessoriesQuick guide
