Description

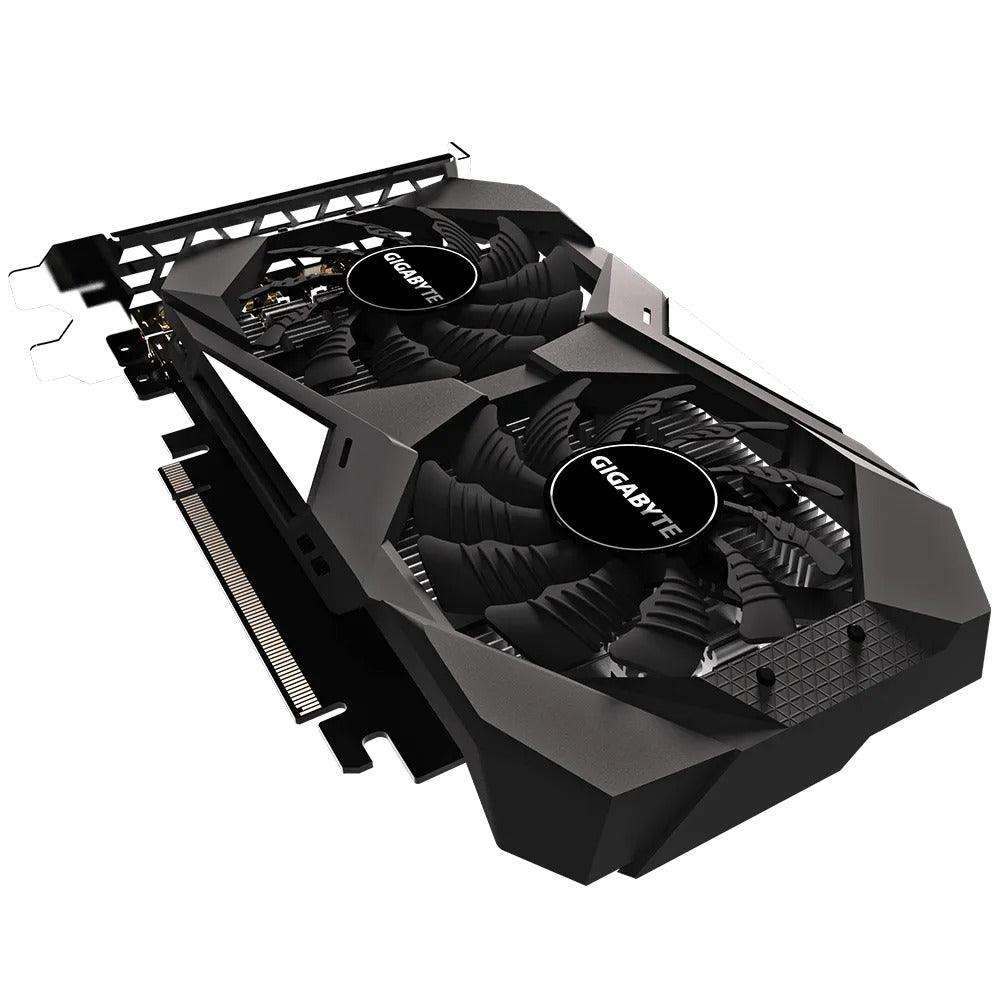

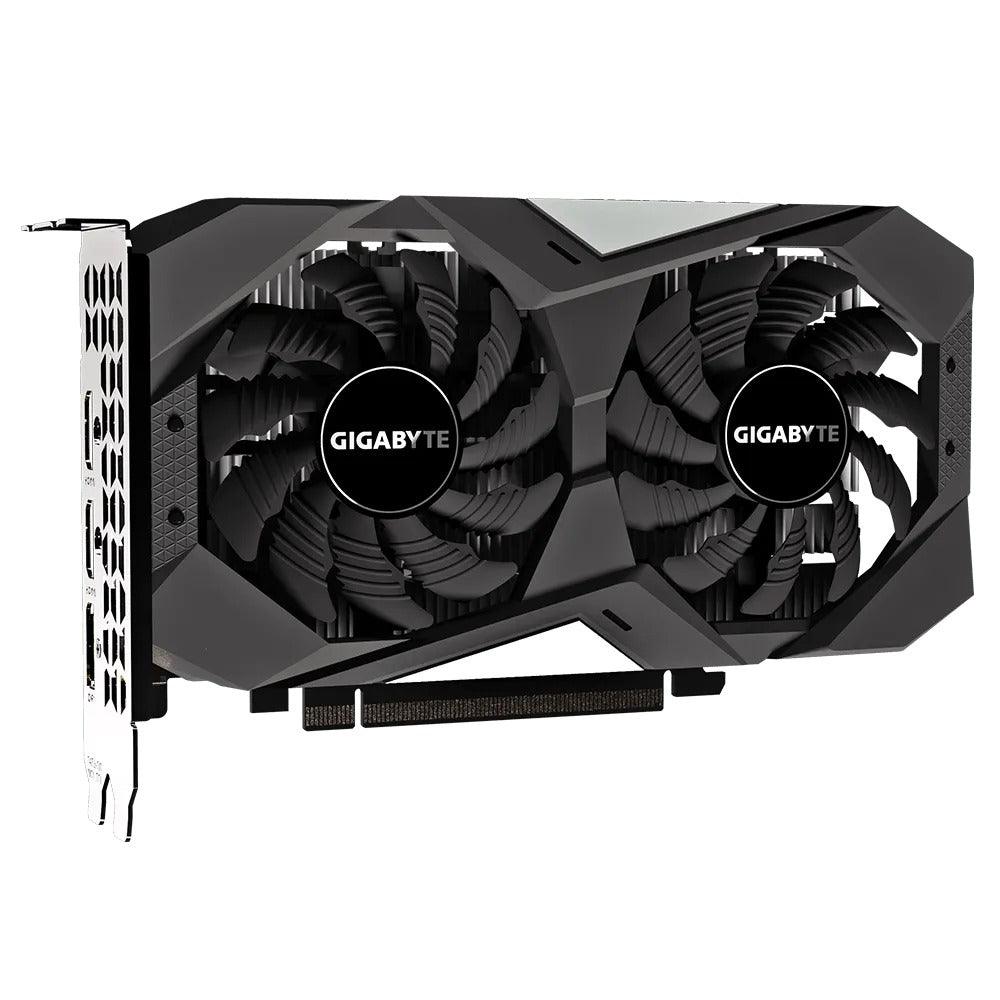

WINDFORCE 2X COOLING SYSTEM
WINDFORCE 2X cooling system features 2x 80mm unique blade fans, alternate spinning fan, and 3D active fan, together delivering an effective heat dissipation.
ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
IN TOTAL COMMAND
The actual software UI and functionalities depend on each device model.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
Specification :
| Graphics Processing | GeForce® GTX 1650 |
| Core Clock | 1710 MHz (Reference Card: 1665 MHz) |
| CUDA® Cores | 896 |
| Memory Clock | 8002 MHz |
| Memory Size | 4 GB |
| Memory Type | GDDR5 |
| Memory Bus | 128 bit |
| Memory Bandwidth (GB/sec) | 128 GB/s |
| Card Bus | PCI-E 3.0 x 16 |
| Digital max resolution | 7680x4320@60Hz |
| Multi-view | 3 |
| Card size | L=191 W=112 H=36 mm |
| PCB Form | ATX |
| DirectX | 12 |
| OpenGL | 4.6 |
| Recommended PSU | 300W |
| Power Connectors | N/A |
| Output | DisplayPort 1.4 *1 HDMI 2.0b *2 |
| SLI Support | No |
