Description

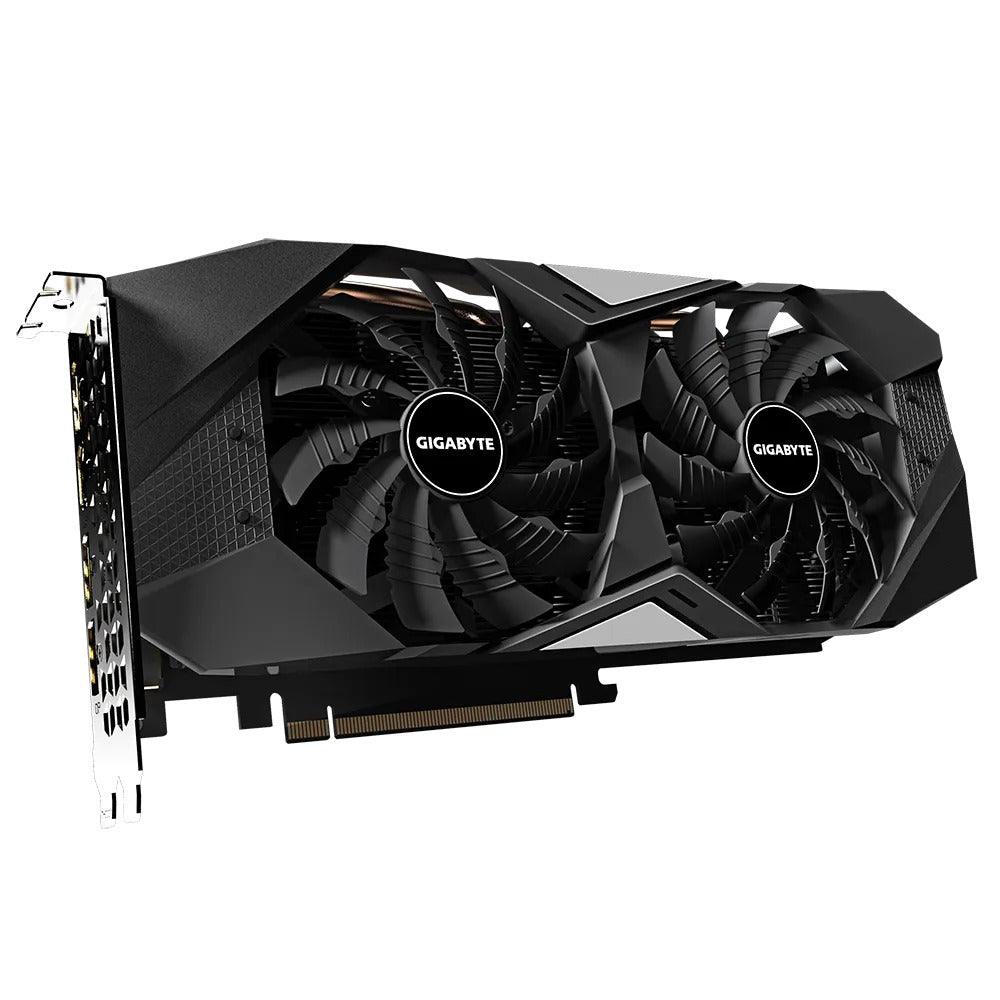

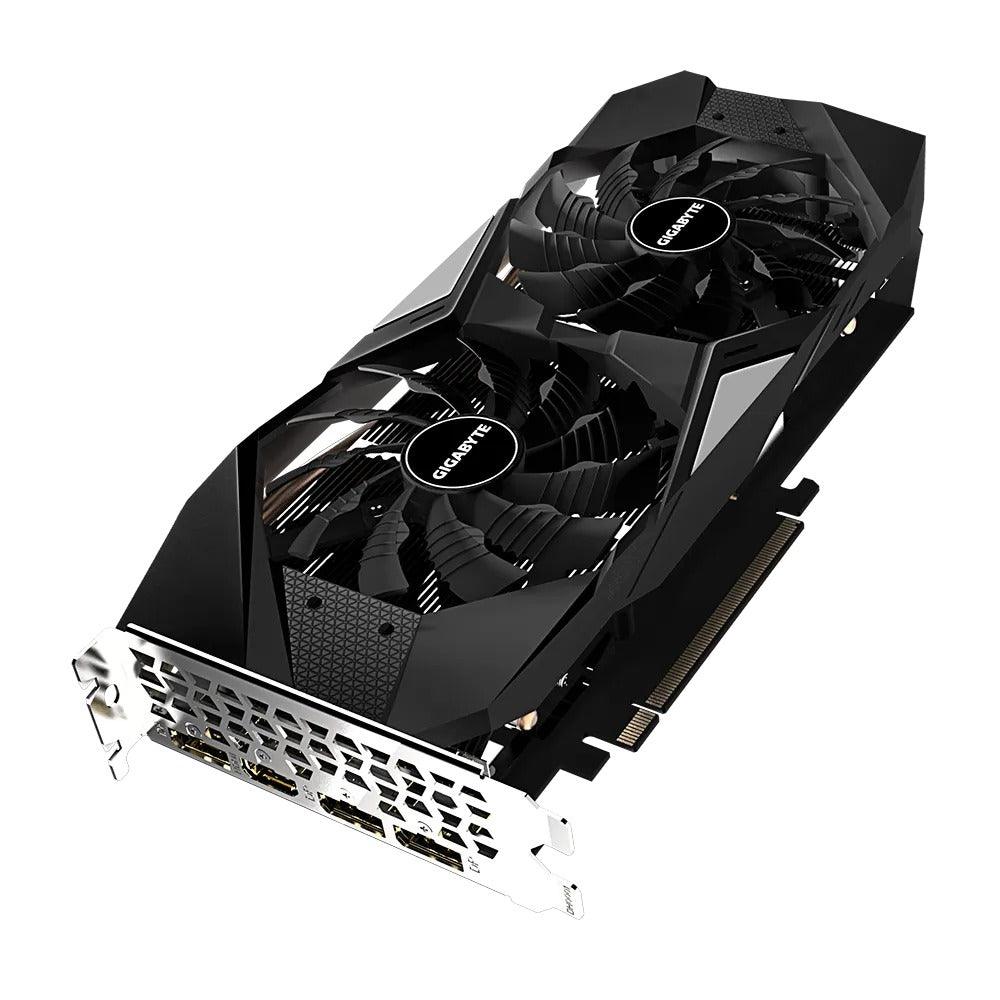

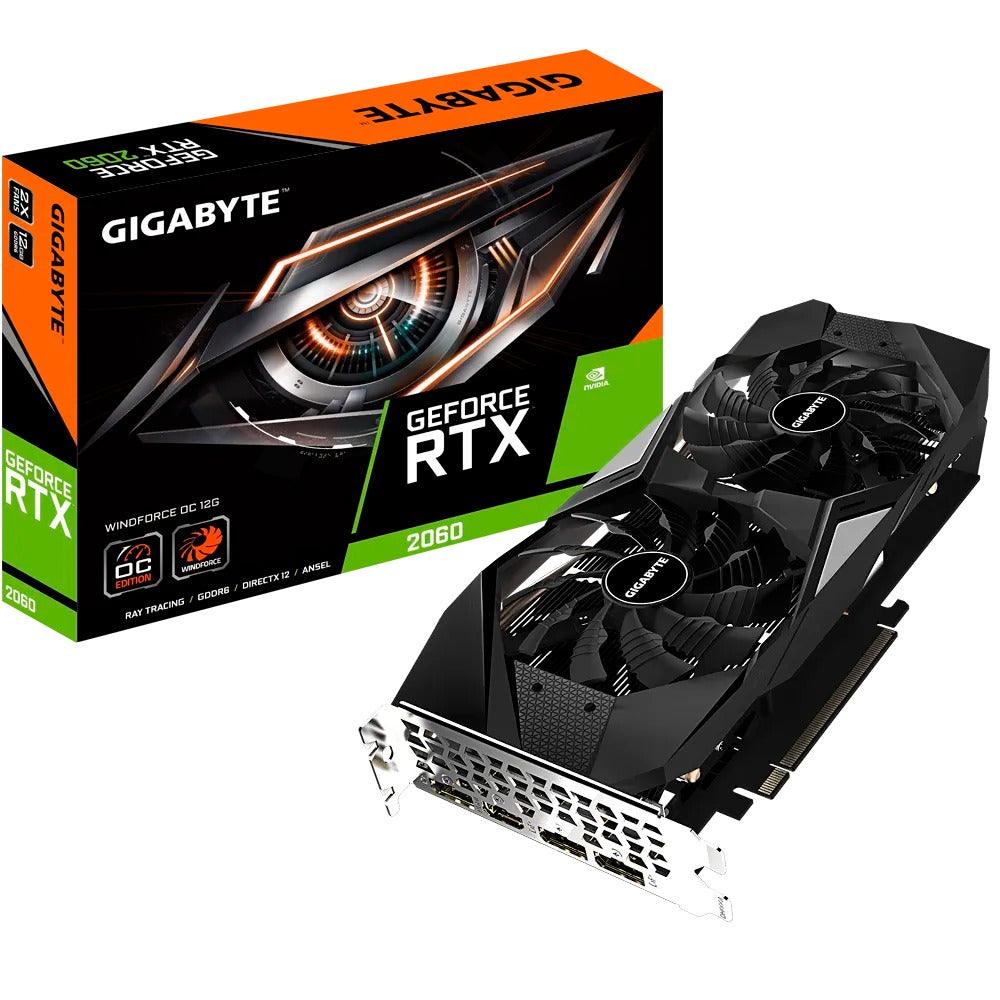

GeForce RTX™ 2060 WINDFORCE OC 12G
Features
Powered by GeForce RTX™ 2060
Integrated with 12GB GDDR6 192-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
100mm unique blade fans

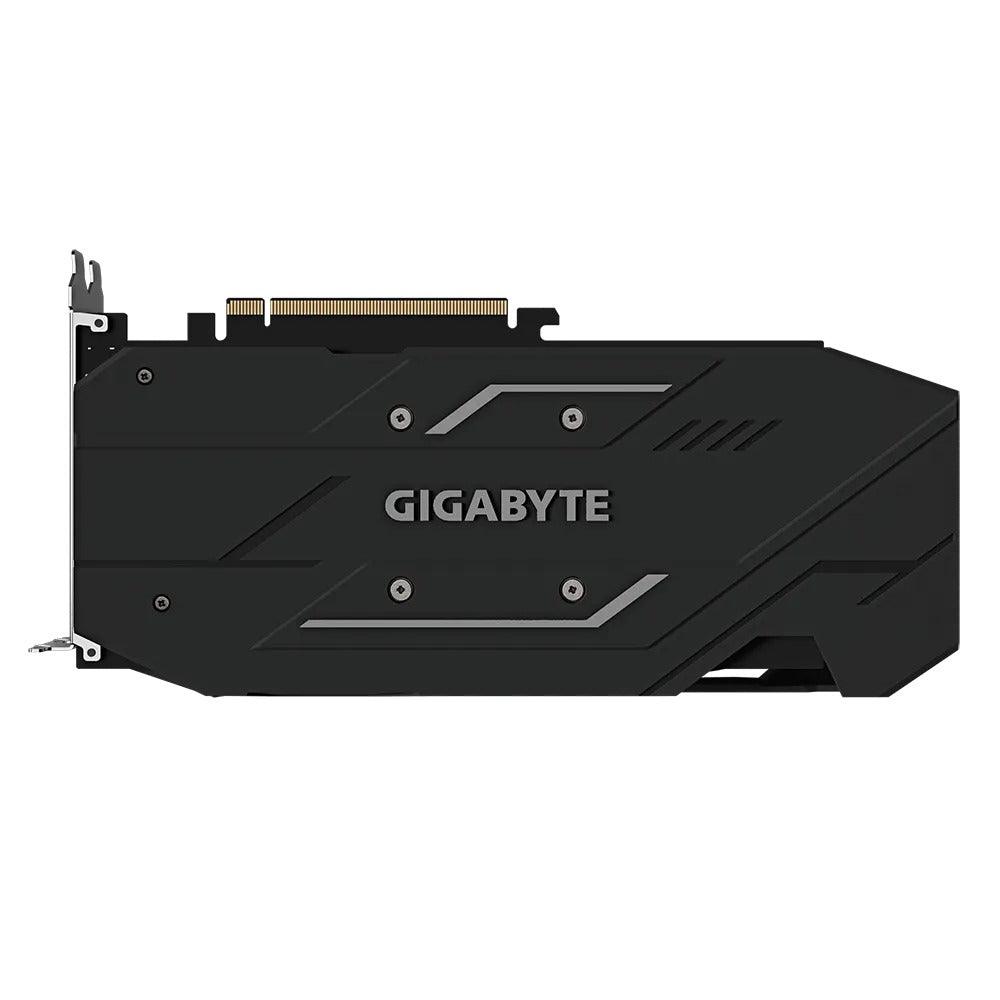

Protection back plate
WINDFORCE 2X COOLING SYSTEM
WINDFORCE 2X cooling system features two 100mm unique blade fans, alternate spinning, two composite copper heat pipe direct touches the GPU and 3D active fans, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
EXTREME DURABILITY
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
SPECIFICATION
| Graphics Processing | GeForce RTX™ 2060 |
| RTX-OPS | 41 |
| CUDA® Cores | 2176 |
| Memory Clock | 14000 MHz |
| Memory Size | 12 GB |
| Memory Type | GDDR6 |
| Memory Bus | 192 bit |
| Card Bus | PCI-E 3.0 x 16 |
| PCB Form | ATX |
| DirectX | 12 |
| Recommended PSU | 550W |
| Power Connectors | 8 Pin*1 |
