Description
GeForce RTX™ 3050 WINDFORCE OC 8G
KEY FEATURE
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3050
Integrated with 8GB GDDR6 128-bit memory interface
WINDFORCE Cooling System
Protection back plate
CORE CLOCK
1792 MHz (Reference Card: 1777 MHz)
NVIDIA AMPERE ARCHITECTURE
The all-new NVIDIA Ampere architecture delivers the ultimate play, featuring advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput.
RTX. IT’S ON.
Experience today’s biggest blockbusters like never before with the visual fidelity of real-time ray tracing and the ultimate performance of AI-powered DLSS.
DLSS AI ACCELERATION
NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has come to gaming.

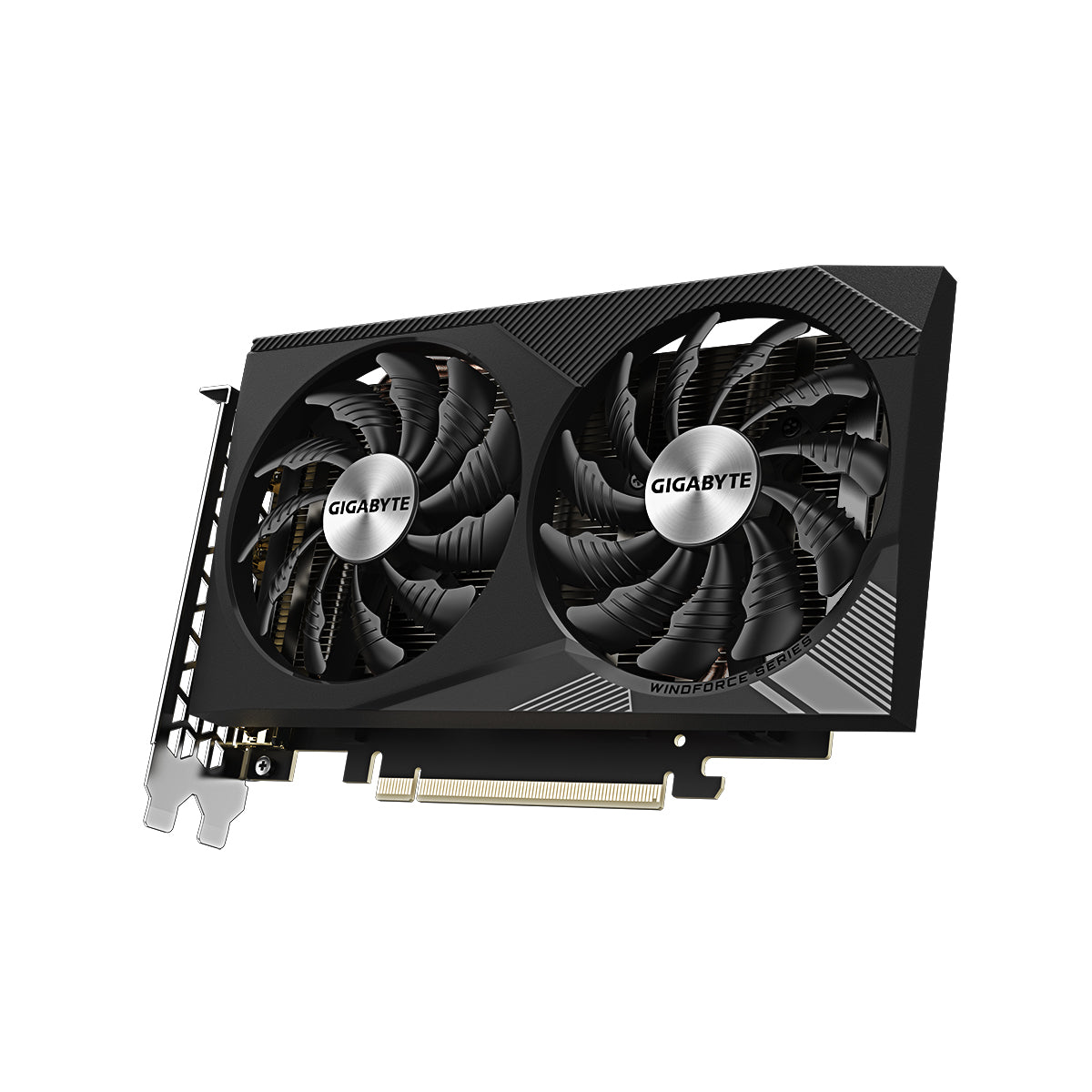

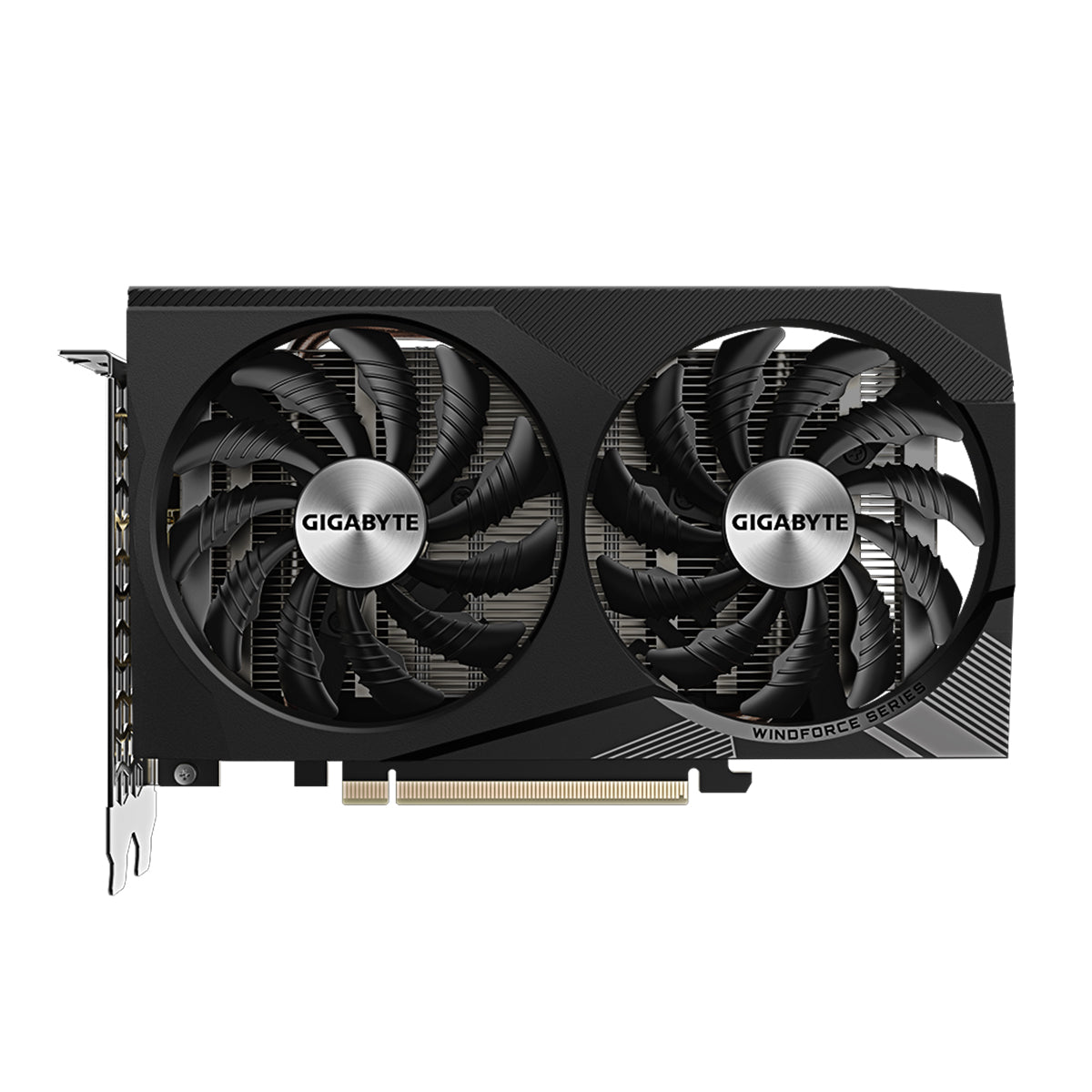

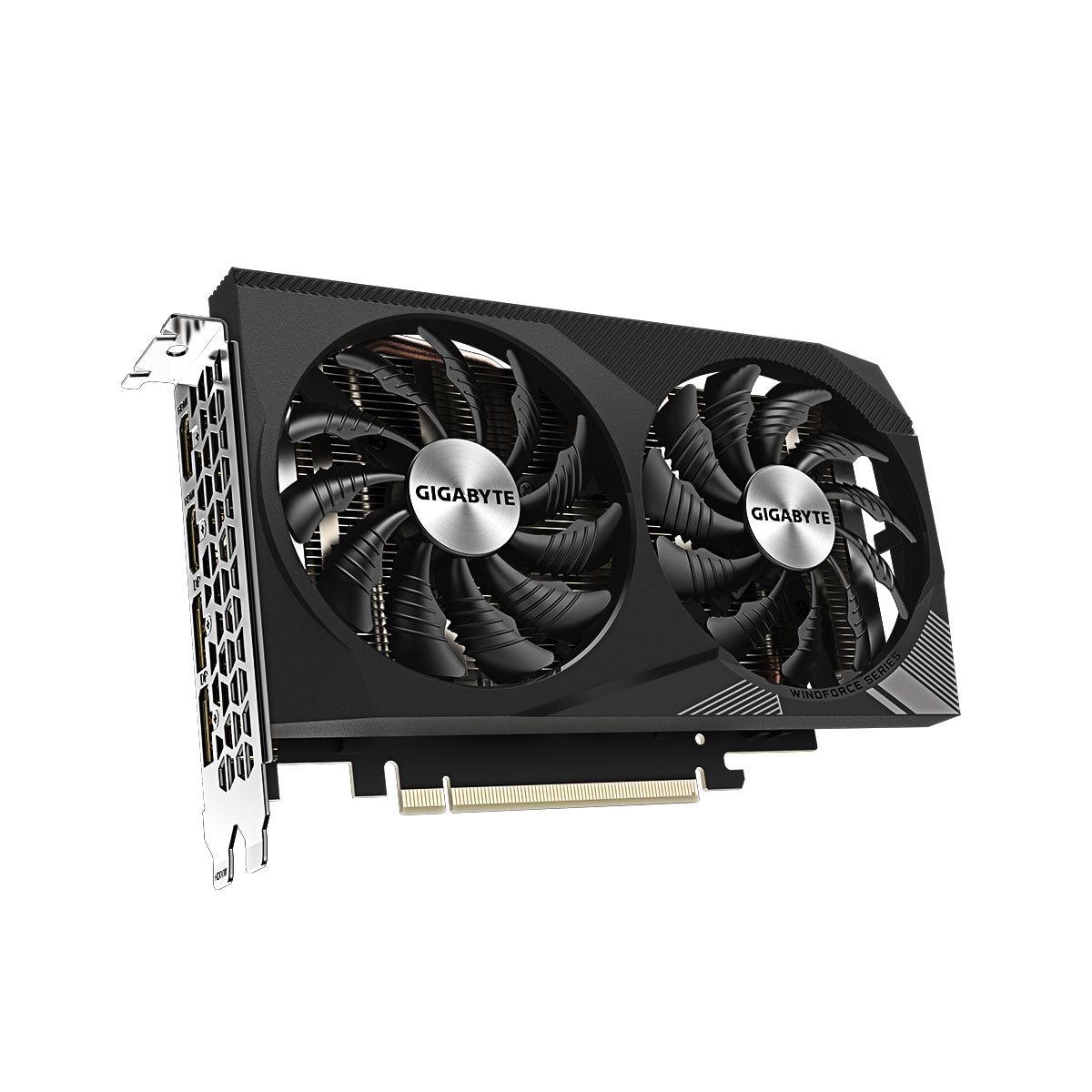

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two 100mm unique blade fans, the heatpipe directly touches the GPU, alternate spinning, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase air pressure. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
ULTRA DURABLE
-
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
-
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
-
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Specifications
| Graphics Processing | GeForce RTX™ 3050 |
| Core Clock | 1792 MHz (Reference Card: 1777 MHz) |
|
CUDA® Cores
|
2560 |
| Memory Clock | 14000 MHz |
| Memory Size | 8 GB |
| Memory Type | GDDR6 |
| Memory Bus | 128 bit |
| Card Bus | PCI-E 4.0 |
| Digital max resolution | 7680x4320 |
| Multi-view | 3 |
| Card size | L=243.6 W=124.8 H=40.2 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 450W |
| Power Connectors | 8 pin*1 |
| Output |
DP1.4*1 HDMI 2.1*1 Dual-Link DVI-D*1 |
| Accessories | Quick guide |
