Description
NVIDIA AMPERE ARCHITECTURE
The all-new NVIDIA Ampere architecture delivers the ultimate play, featuring advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput.
DIRECTX 12 ULTIMATE
Developers can now add even more amazing graphics effects to Microsoft Windows-based PC games. GeForce RTX graphics cards deliver advanced DX12 features like ray tracing and variable rate shading, bringing games to life with ultra-realistic visual effects and faster frame rates.

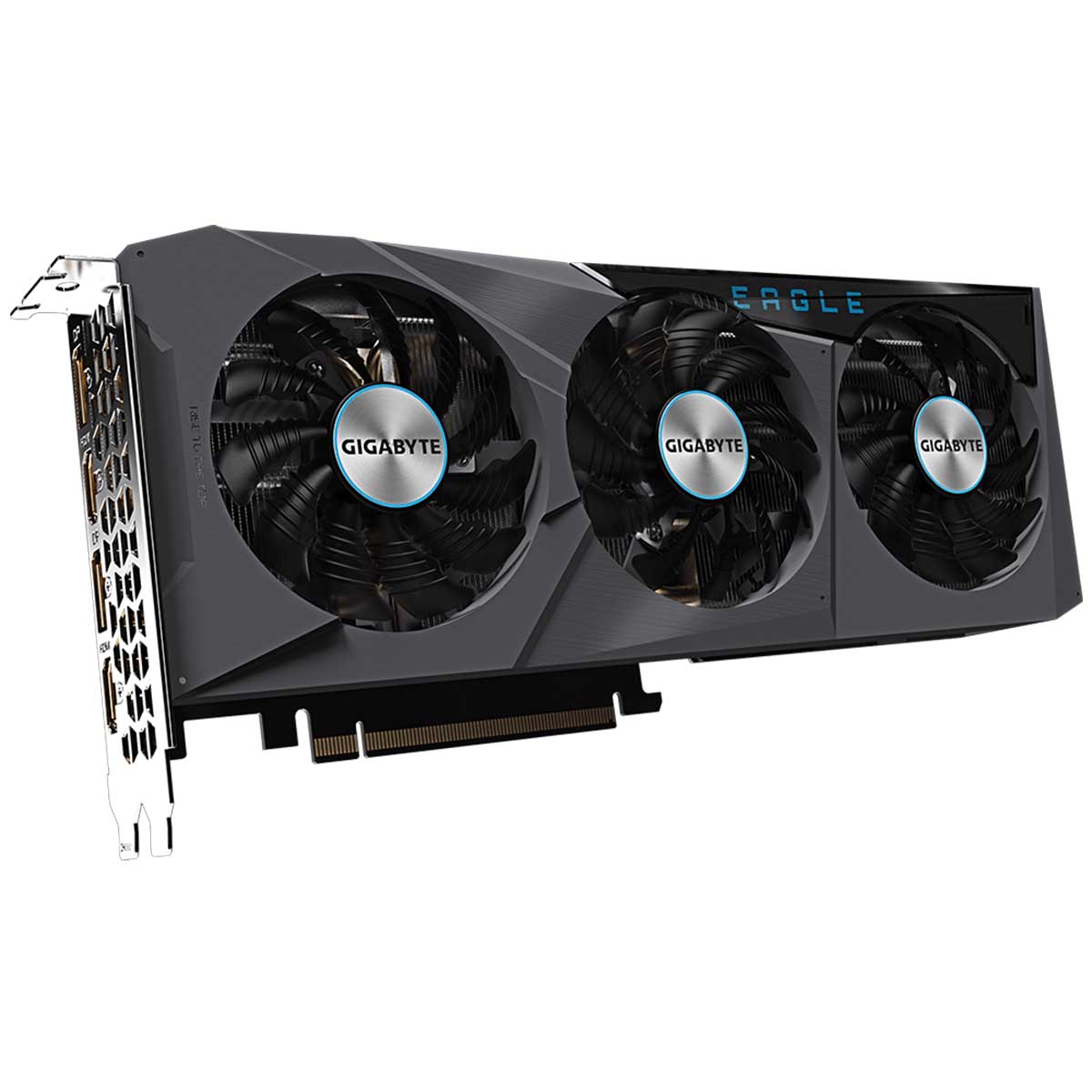

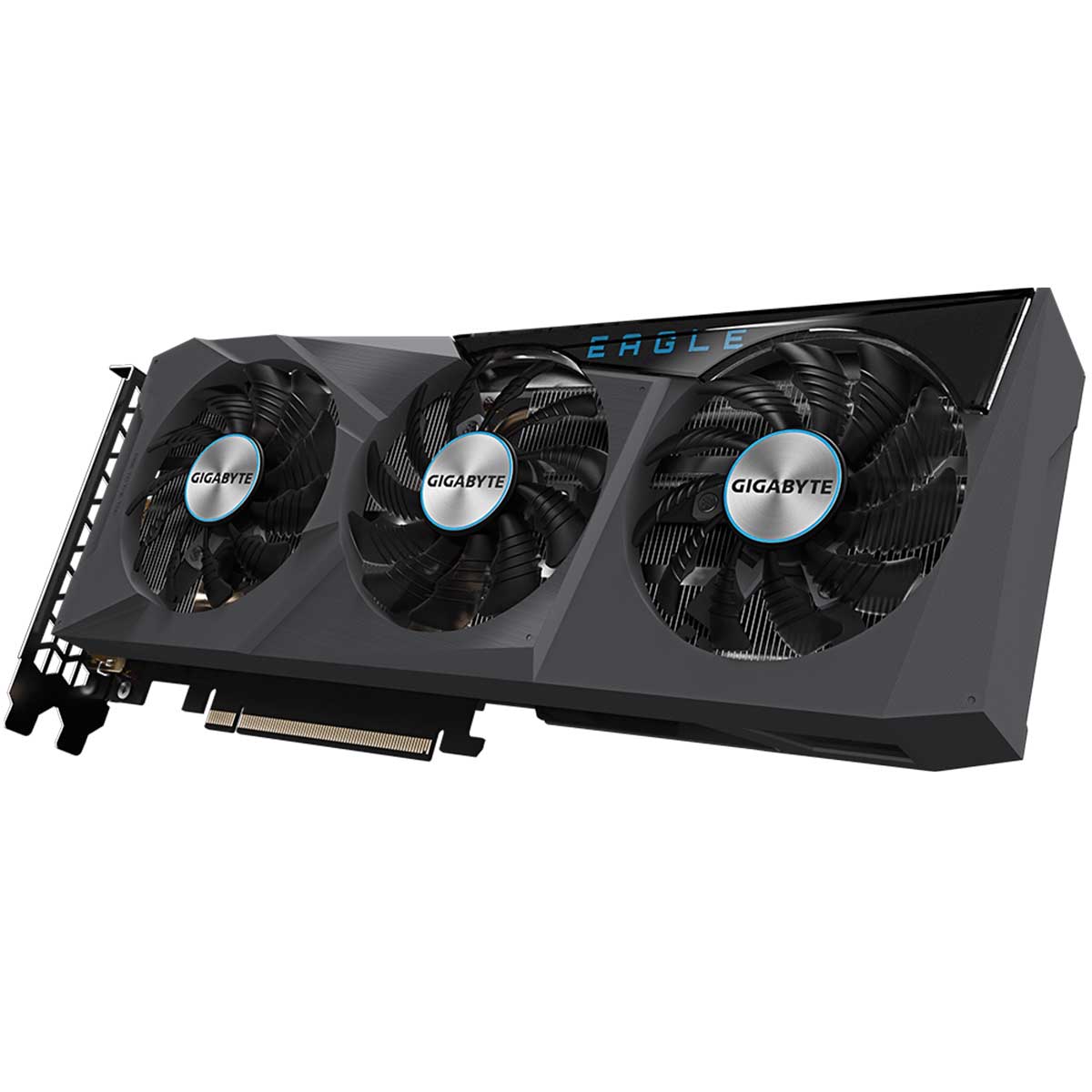

WINDFORCE 3X
COOLING SYSTEM
The WINDFORCE 3X cooling system features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

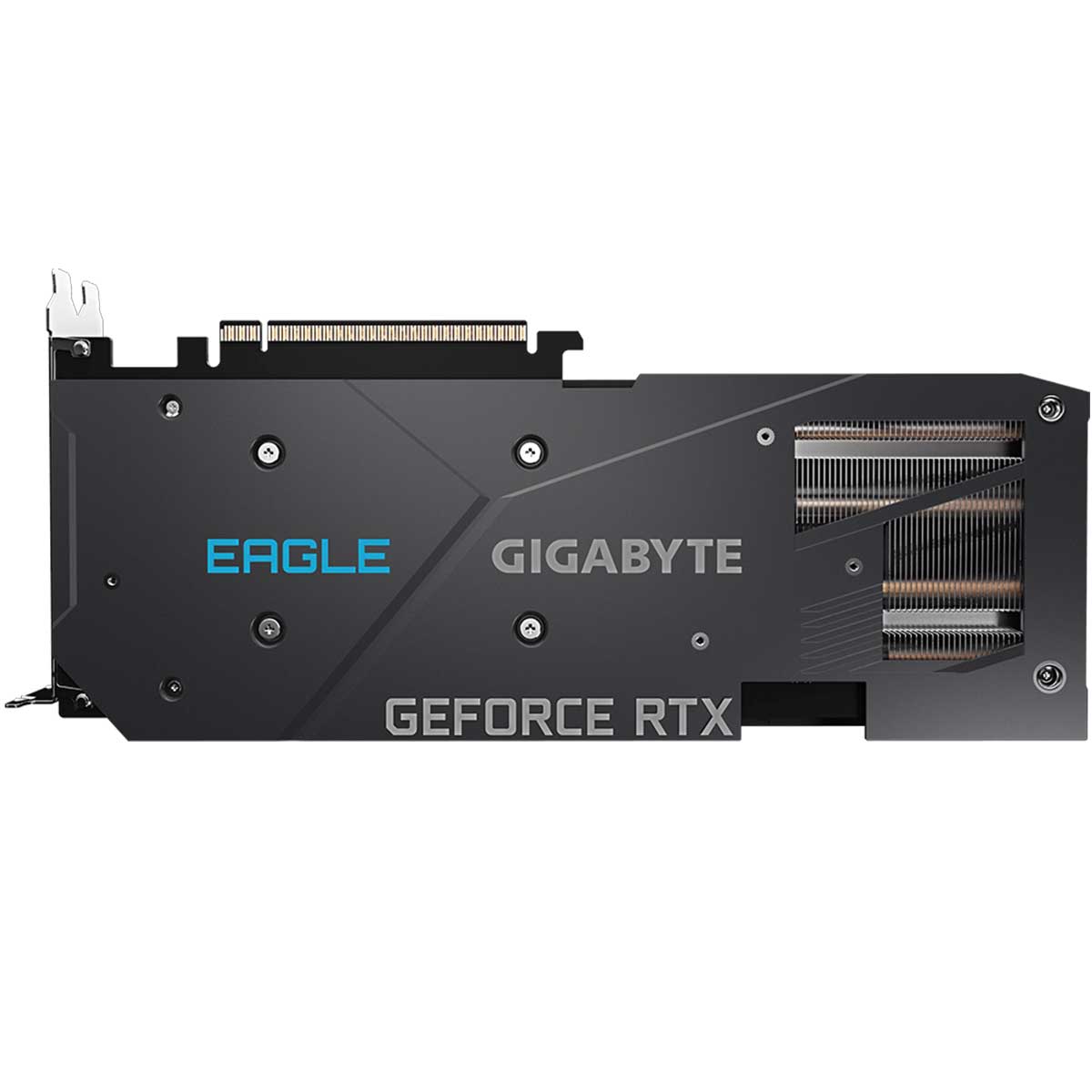

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
SPECIFICATION
| Graphics Processing | GeForce RTX™ 3060 Ti |
| Core Clock | 1680 MHz (Reference Card: 1665 MHz) |
| CUDA® Cores | 4864 |
| Memory Clock | 19000 MHz |
| Memory Size | 8 GB |
| Memory Type | GDDR6X |
| Memory Bus | 256 bit |
| Memory Bandwidth (GB/sec) | 608 GB/s |
| Card Bus | PCI-E 4.0 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| Card size | L=282 W=115 H=41 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 750W |
| Power Connectors | 8 pin * 2 |

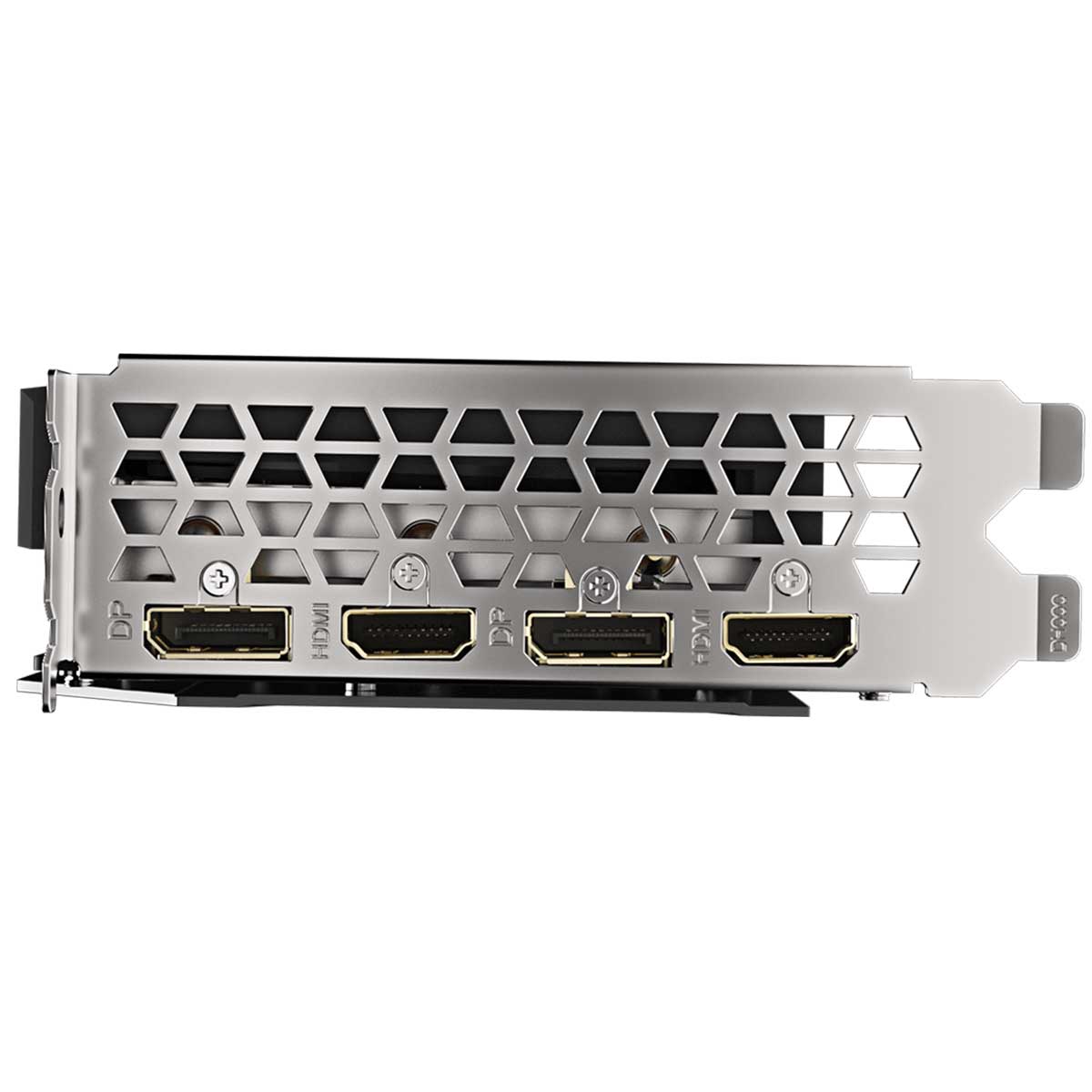

| Output | DisplayPort 1.4a *2 |
| HDMI 2.1 *2 | |
| SLI Support | N/A |
| Accessories | Quick guide |
