Description

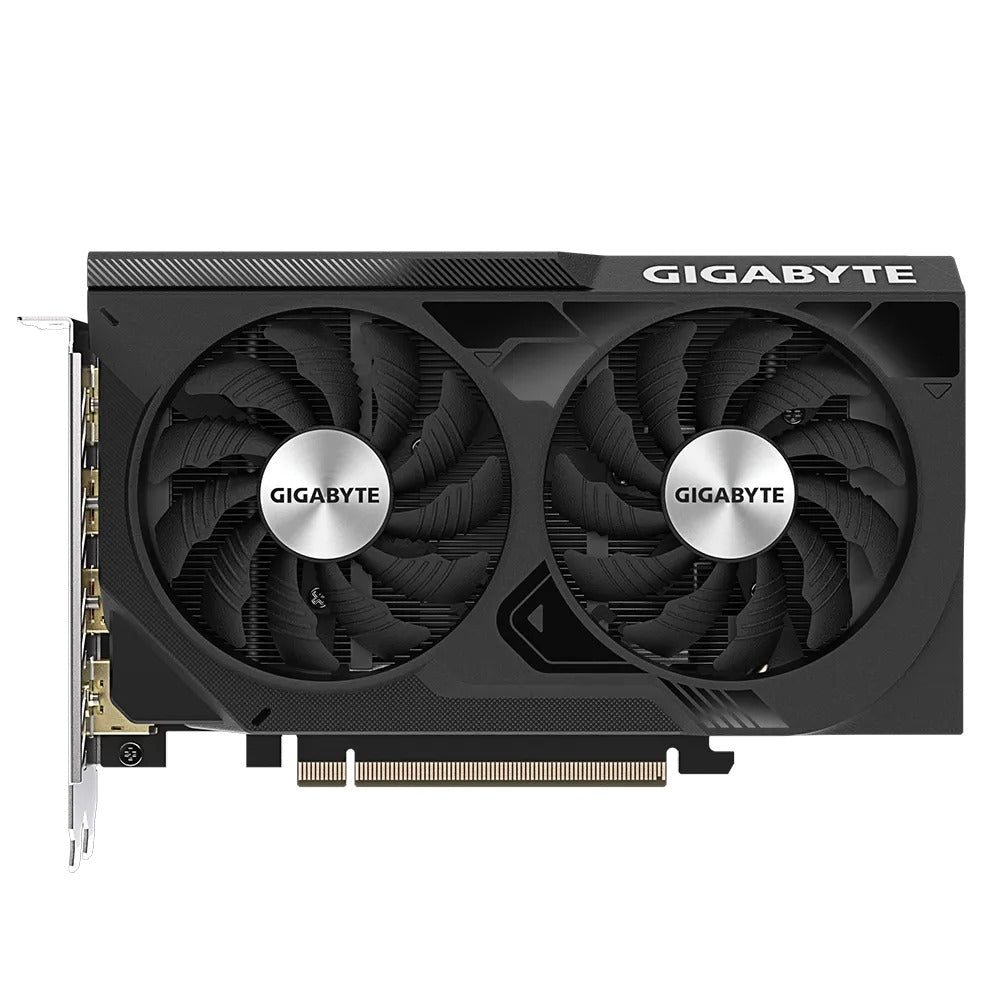

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two 80mm unique blade fans, alternate spinning, a composite copper heat pipe that directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

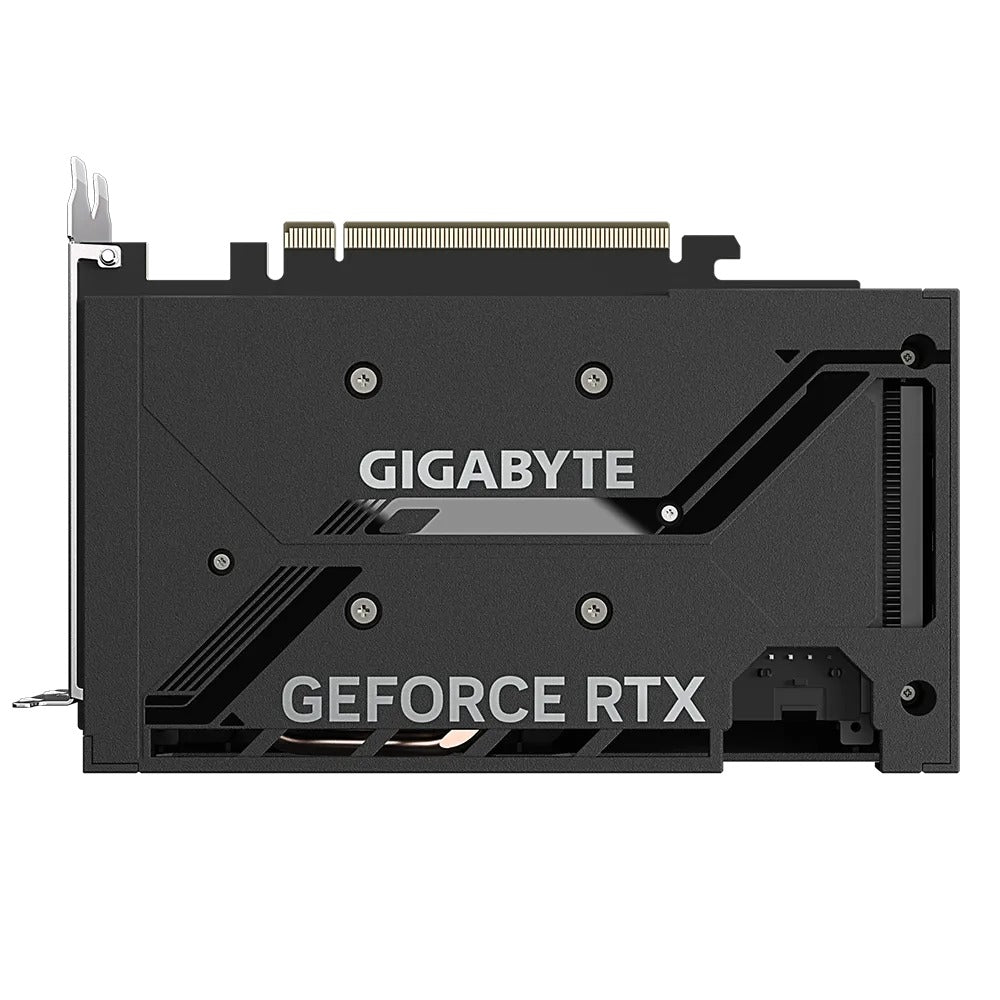

PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
ULTRA DURABLE
-
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
-
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
-
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
SPECIFICATION
-
Graphics Processing : GeForce RTX™ 4060
-
Core Clock : 2475 MHz (Reference card: 2460 MHz)
-
CUDA® Cores : 3072
-
Memory Clock : 17 Gbps
-
Memory Size : 8 GB
-
Memory Type : GDDR6
-
Memory Bus : 128 bit
-
Card Bus : PCI-E 4.0
-
Digital max resolution : 7680x4320
-
Multi-view : 4
-
Card size : L=192 W=120 H=41 mm
-
PCB Form : ATX
-
DirectX : 12 Ultimate
-
OpenGL : 4.6
-
Recommended PSU : 450W
-

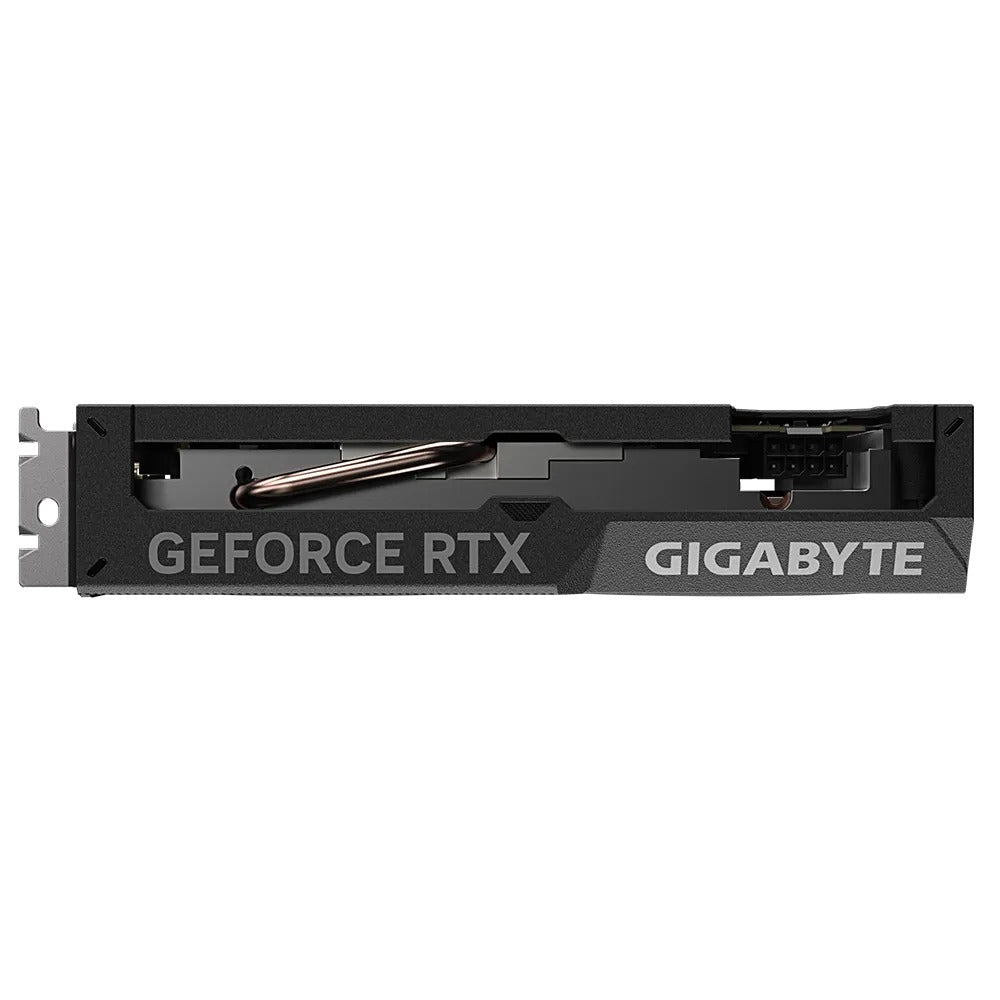

Power Connectors : 8 pin*1
-

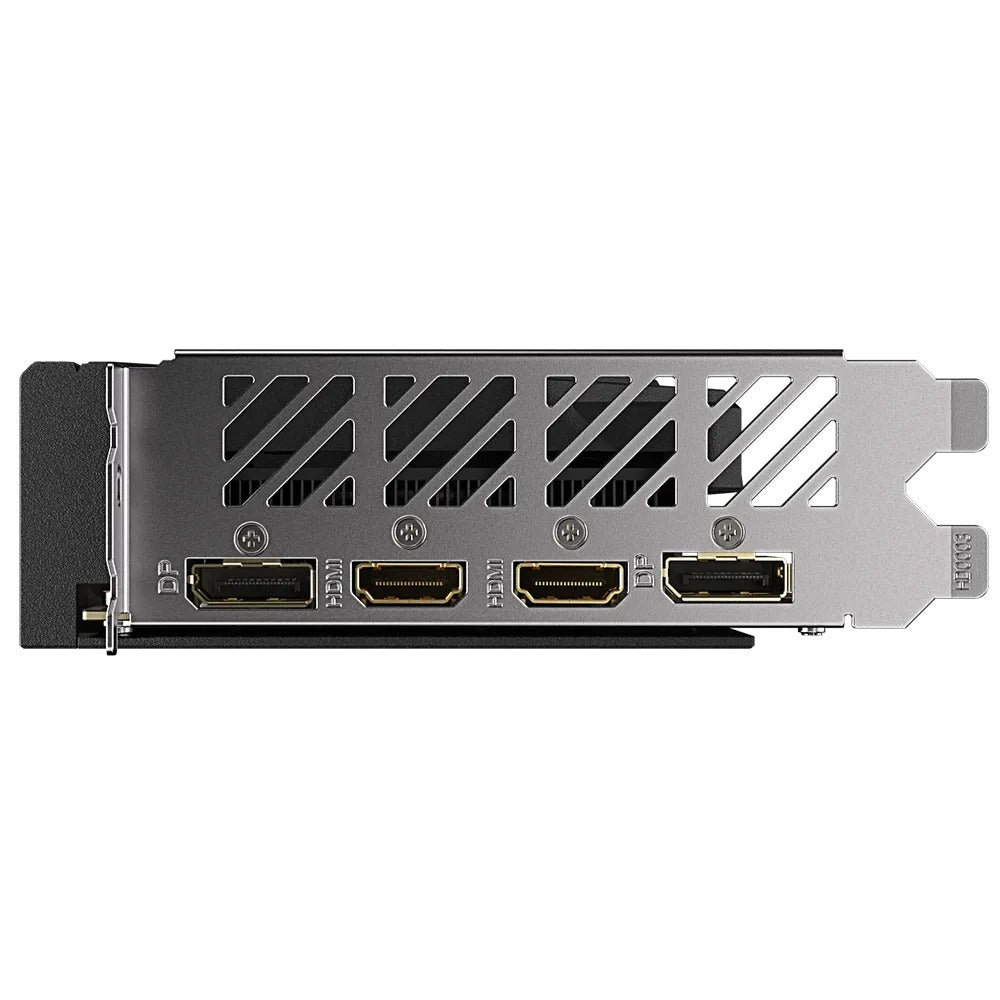

OutputDisplayPort 1.4a*2
HDMI 2.1a*2
