Description
WORLD’S FIRST KVM GAMING MONITOR
THE LAST MILE FOR YOUR GAMING SYSTEM
As an unseen player, monitor is often being underestimated. The truth is monitors form as a synergistic effect and bring out the best performance of PC components. GIGABYTE gaming monitors offer the ultimate specifications and quality; users can truly enjoy upscale performance without the need for extravagance.
ONE FOR ALL
KVM feature allows you to control multiple devices via one set of keyboard, video and mouse. With our exclusive KVM button, you’ll find switching devices cannot be any easier! Quick like a snap!
1ms GTG RESPONSE TIME
The SuperSpeed IPS technology reduces the response time to 1ms; meanwhile offering the IPS-grade splendid color!
UHD WITH 144HZ
High resolution and fast refresh rate, giving you the detailed display quality and fluid gaming experience!
8-bit COLOR, 94% DCI-P3
Fantastic color display and 94% DCI-P3 super wide-gamut color.
HIGH BIT RATE 3
The support of DisplayPort High Bit Rate 3 (HBR3) provides the bandwidth to offer monitor’s fastest refresh rate, full color depth and HDR effect at the same time!
SIMPLE BUT STYLISH
The streamline appearance represents the simplicity of the GIGABYTE gaming series design philosophy, sturdy stand and matte finish built for functional and aesthetic features adding more to the characteristics.
OSD SIDEKICK
GIGABYTE OSD Sidekick allows you to set the display options with keyboard and mouse, giving you the easiest way to adjust monitor settings.
DASHBOARD
The dashboard reveals your real-time hardware information including CPU voltages, clock speed, temperatures, etc. The best part is that it won’t be blocked by any games.
BLACK EQUALIZER
This feature allows you to have more details of the dark side without overexposing the bright side at the same time.
HIGHER LEVEL OF CUSTOMIZED COLOR ADJUSTMENT
With the help of Six Axis Control, it’s able get to control six colors (red, green, blue, cyan, magenta, and yellow) individually. It allows you to more accurately display the color gamut on the monitor.
AUTO-UPDATE
Users can effortlessly enjoy the finest gaming experience with features GIGABYTE continues to develop and upgrade while giving extra protection to your monitor.
PERFECT VIEWING ANGLE

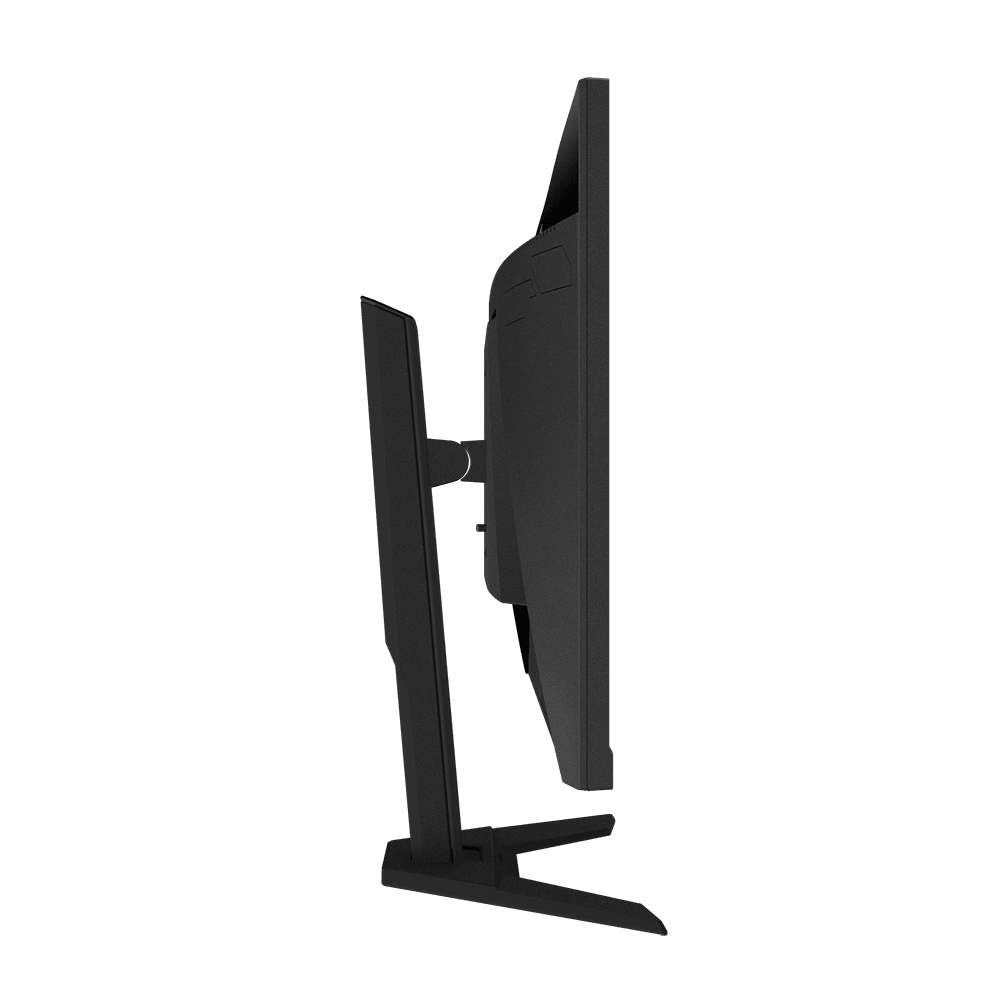

GIGABYTE Gaming monitor features an exclusive stand that's ergonomically designed to offer extensive range of height and tilt adjustments.
TECHNICAL SPECIFICATION
|
Panel Size (diagonal) |
28" SS IPS |
|
Display Viewing Area (HxV) |
631.928 x 359.78 (mm) |
|
Panel Backlight/ Type |
Edge type |
|
Display Surface(non-glare/ glare) |
Non-glare |
|
Color Saturation |
94% DCI-P3/ 120% sRGB |
|
True Resolution |
3840 x 2160 (UHD) |
|
Pixel Pitch |
0.16 (H) x 0.16 (V) |
|
Brightness |
300 cd/m2 (TYP) |
|
Contrast Ratio |
1000:01:00 |
|
Viewing Angle |
178°(H)/178°(V) |
|
Display Colors |
8 bits |
|
Response Time |
1ms GTG / 2ms MPRT |
|
Refresh Rate |
144Hz |
|
120Hz for Console Game* |
|
|
HDR |
VESA Display HDR400 |
|
Flicker-free |
Yes |
|

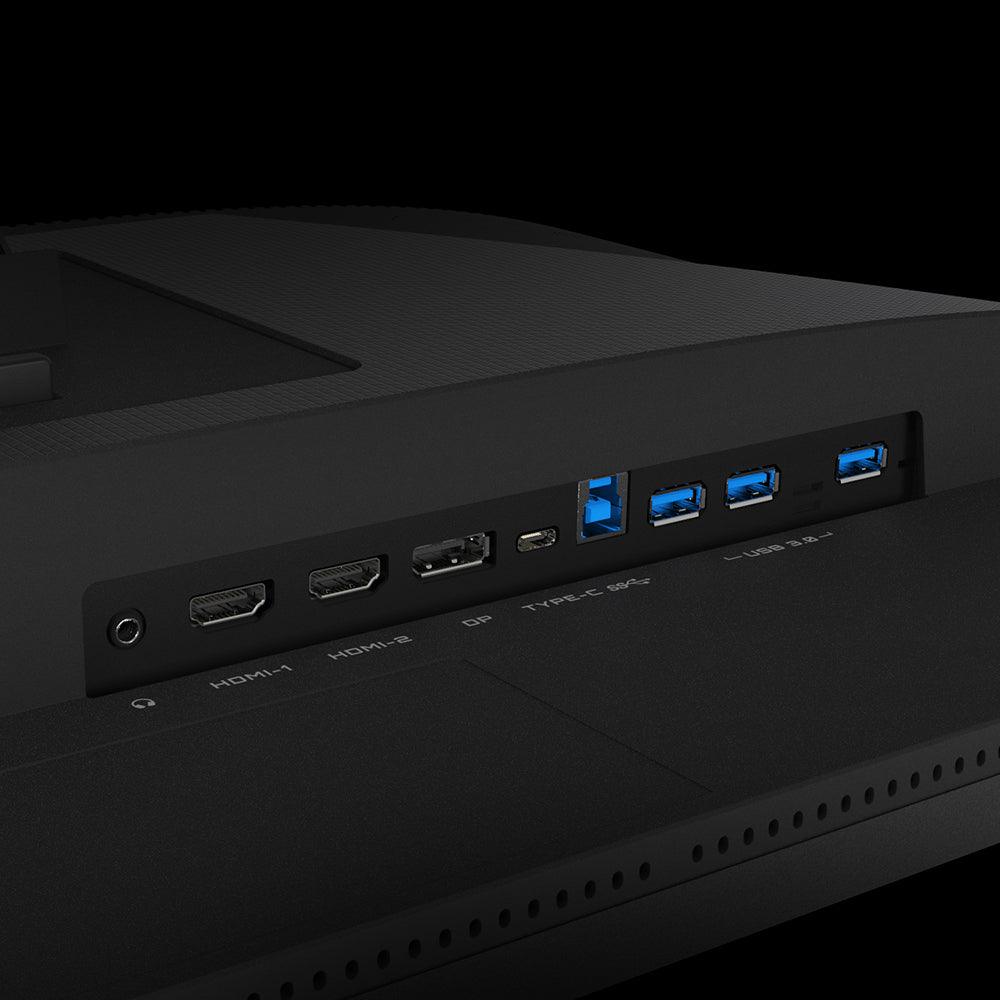

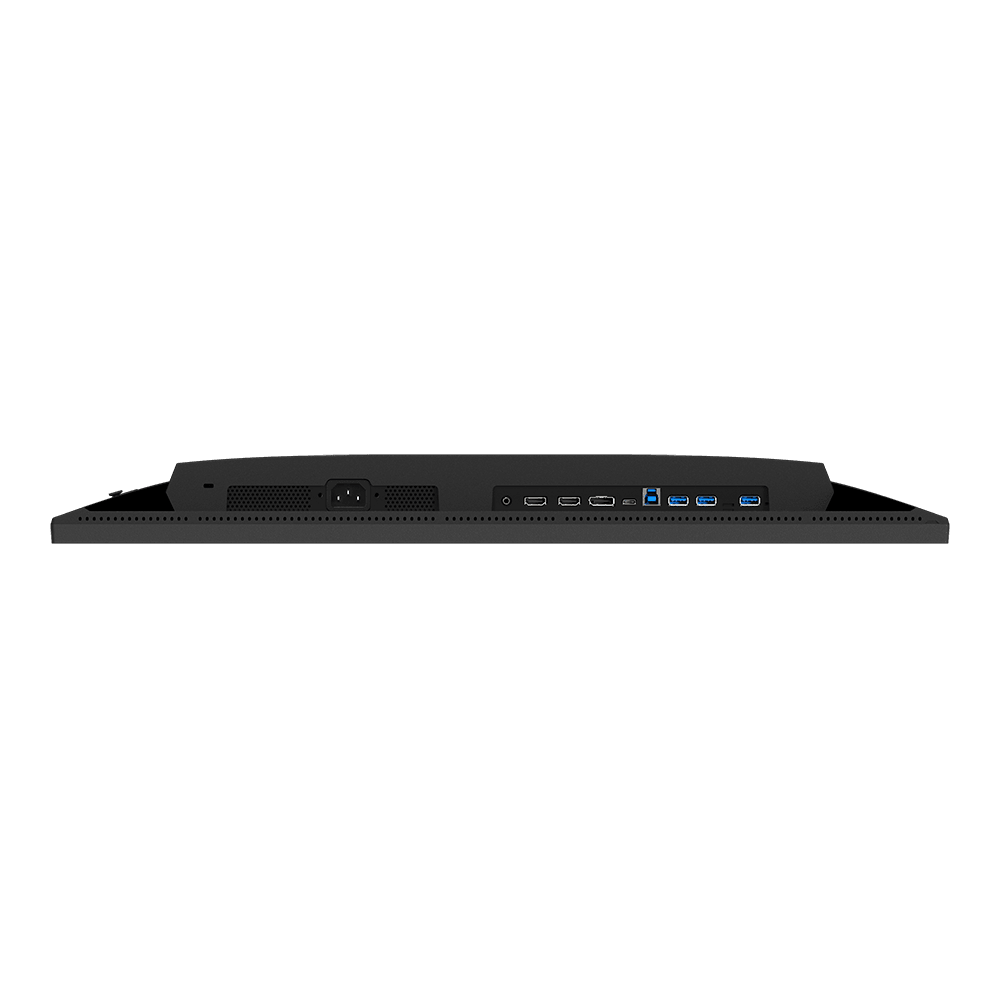

Signal Input |
HDMI 2.1 x2 |
|
Display port 1.4 (DSC) x1 |
|
|
HBR3 |
Yes |
|
Earphone Jack |
Yes |
|
Speaker |
3W x2 |
|
Unique Features |
OSD Sidekick |
|
Aim Stabilizer Sync |
|
|
Black Equalizer |
|
|
Dashboard |
|
|
Crosshair |
|
|
Timer |
|
|
Counter |
|
|
Crosshair |
|
|
Auto-Update |
|
|
KVM |
|
|
6 axis Color Control |
|
|
Smart OD |
|
|
USB port(s) |
USB 3.0 x3 |
|
USB Cx1 |
|
|
Power Type |
Built-in |
|
Power Consumption |
115W |
|
Power Saving Mode |
0.5W |
|
Power Off Mode |
0.3W |
|
Voltage |
AC 100-240V ~ 50/60Hz |
|
Tilt(angle) |
-5°~+20° |
|
Swivel(angle) |
N/A |
|
Pivot(angle/direction) |
N/A |
|
Height Adjustment (mm) |
130mm |
|
VESA Wall Mounting(mm) |
100*100mm |
|
Kensington lock |
Yes |
|
Phys. Dimension with Stand(WxHxD) |
636.5*534.2*193.6 |
|
Phys. Dimension w/o stand (WxHxD) |
636.5*372.3*63.1 |
|
Box Dimension (WxHxD) |
890*510*148 |
|
Net Weight with stand (Esti.) |
6.93 (kg) |
|
Net Weight without stand (Esti.) |
5.18 (kg) |
|
Gross Weight (Esti.) |
9.7 (kg) |
|
Accessories |
Power cable/HDMI cable/DP cable/USB cable/QSG/Warranty card |
Customer Reviews
amazing picture quality at 28" so happy with KVM
Delivered relatively fast. The product I received was everything I expected.
The M28U is a better choice for users that want a fantastic 4K 144Hz monitor but feel that the M32U variant is too big, especially for setups that have limited viewing distance adjustments, such as office setups, that have you closer to your desk. The smaller size means that it has a higher PPI (pixels per inch) too, which makes the images drastically appear more crisp at the right viewing distance, height and angle.
Testing it right out of the box, the monitor has a noticeably greenish tint, but you can modify the settings via the OSD (On-screen display) menu, and adjust the RGB values of the monitor to remedy this, as well as a plethora of other picture settings to however you like. For the lazy bums (like me), luckily there are preset picture settings in the OSD as well so just pick the preset that you like the most.
The boxed product includes two NEMA5-15P to C13 power cables, the other one has a line for grounding, as well as an HDMI cable, and a DisplayPort cable. It is an IPS panel, which makes for great response times if you're going to use this for gaming. This monitor also has VESA 100mm x 100mm compatibility, and it weighs around 5.5kg, so be sure to triple check the weight and size compatibility of the monitor arm or wall mount you will buy if you're planning to do a custom mount setup. Don't get confused where the audio is coming from once you plug this monitor as it also comes with its own set of on-board speakers, and your OS will probably set this to the default so just configure the settings to use your preferred audio sources instead. (The speakers are not made to sound like your top-of-the-line audiophile headphones or your studio-quality speakers, but they're extremely nice to have in general if you don't have an audio setup yet.
TLDR: Excellent 4k 144hz choice if within budget, 28" is the 4K sweet spot if 32" is too big, configure settings with the OSD if image is not to your preference, the product has complete accessories so no need to buy extra cables.
