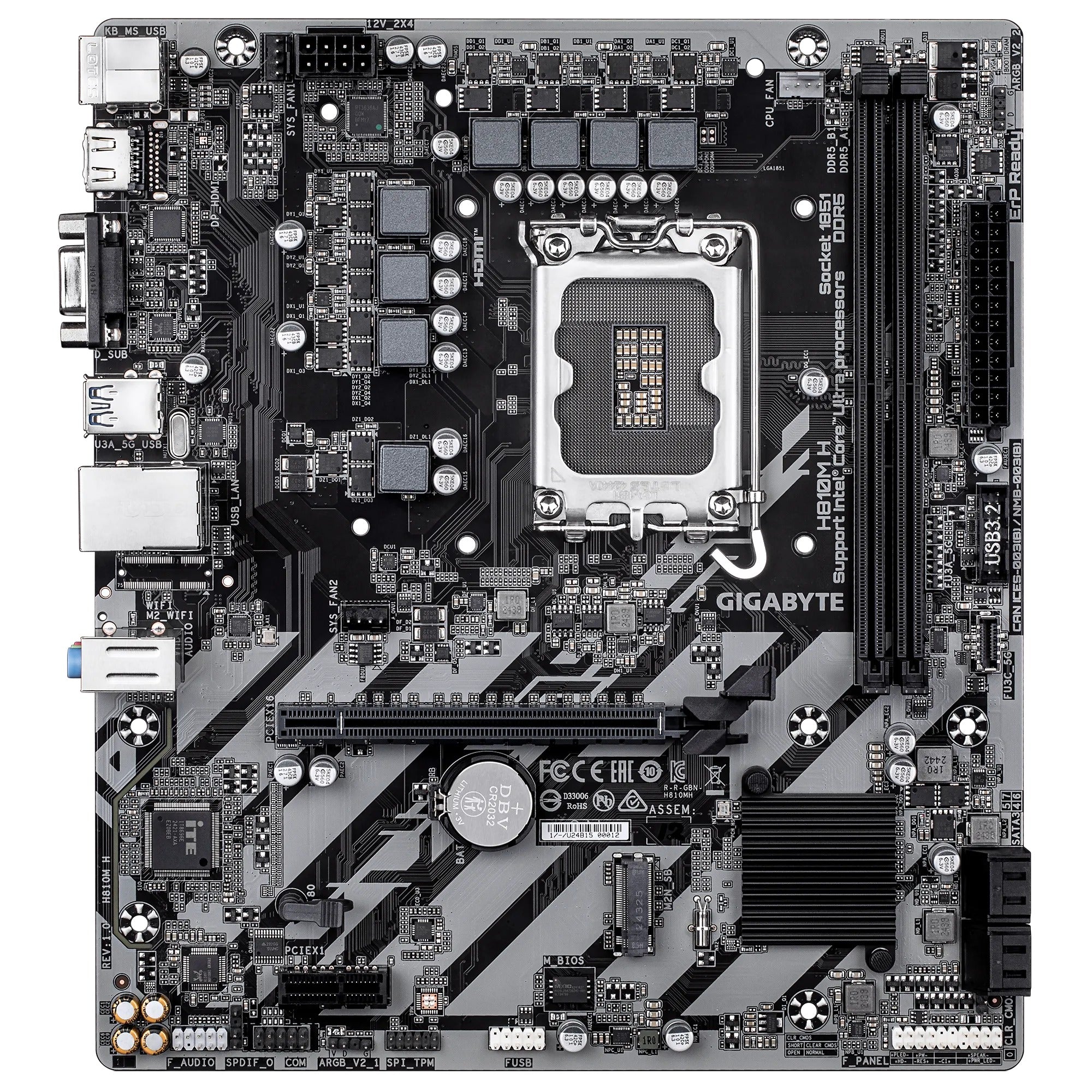

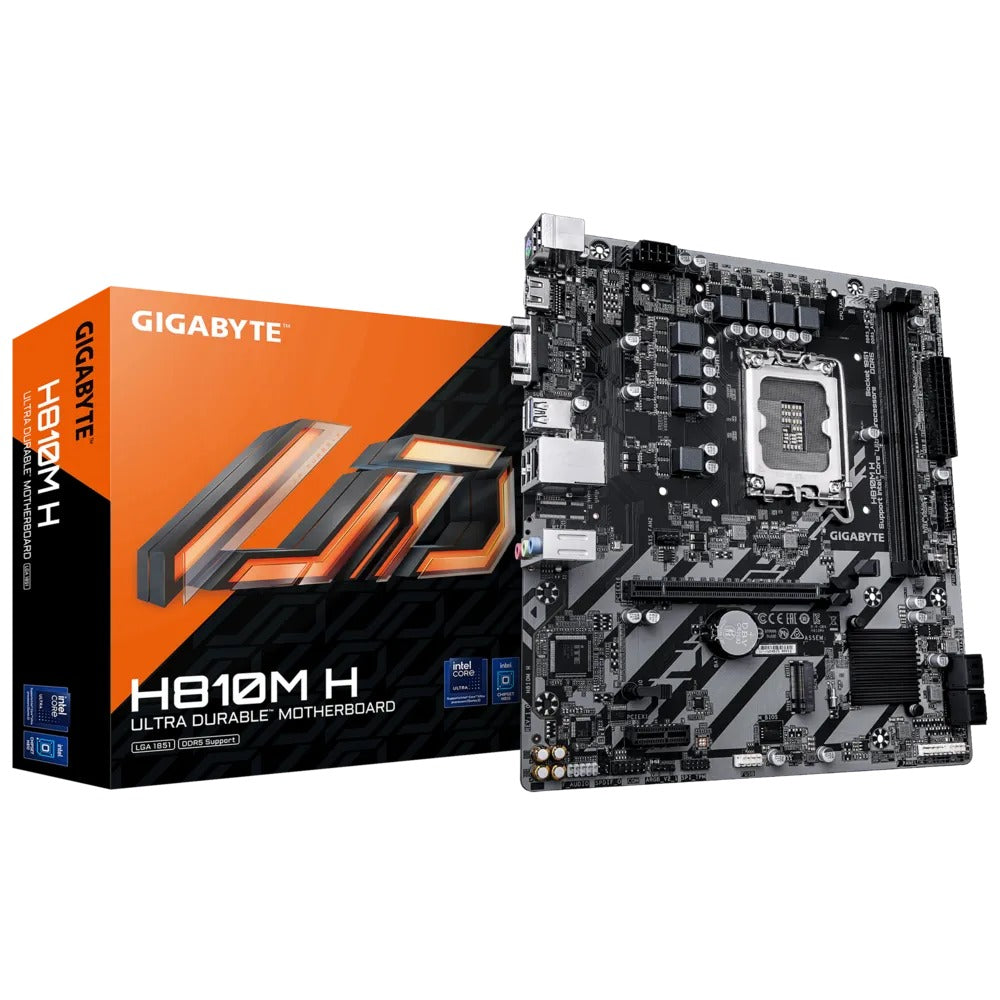

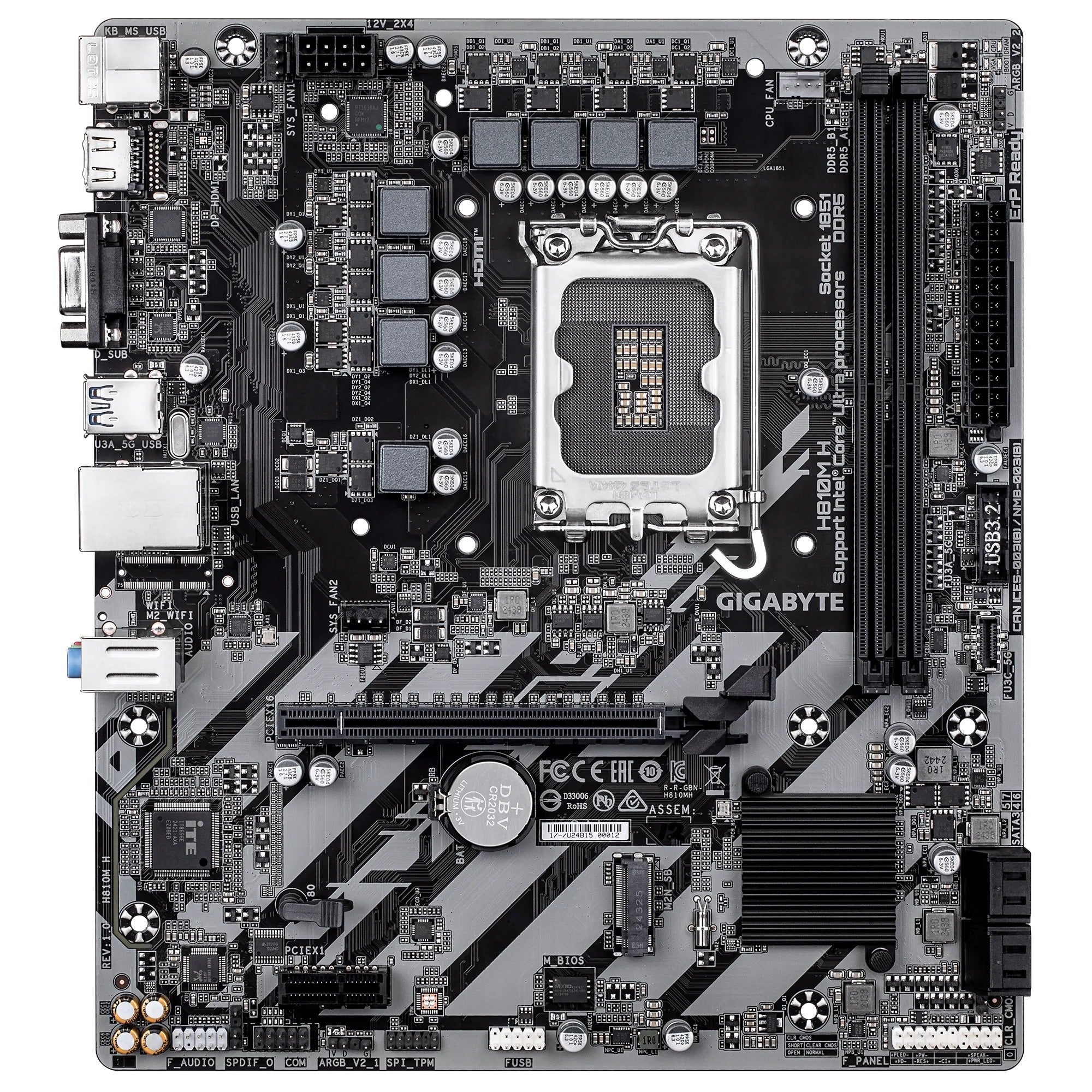

Description
Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid 4+1+2 phases VRM solution
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
- Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
- Fast Networking: GbE LAN
- Extended Connectivity: HDMI
Specifications:
| CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| L3 cache varies with CPU | |
| Chipset | Intel® H810 Express Chipset |
| Memory | 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory |
| Support for DDR5 6400/5600 MT/s memory modules | |
| Onboard Graphics | 1 x HDMI port (max. 4096x2160@60 Hz) |
| 1 x D-Sub port (max. 1920x1200@60 Hz) | |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots (CPU) | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) |
| Expansion Slots (Chipset) | 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) |
| 4 x SATA 6Gb/s connectors, with RAID 0, 1, 5, 10 support | |
| USB (Back Panel) | 1 x USB 3.2 Gen 1 port, 5 x USB 2.0/1.1 ports |
| USB (Internal Header) | 1 x USB Type-C® header with USB 3.2 Gen 1 support |
| 1 x USB 3.2 Gen 1 header (for 2 ports) | |
| 1 x USB 2.0/1.1 header (for 2 ports) | |

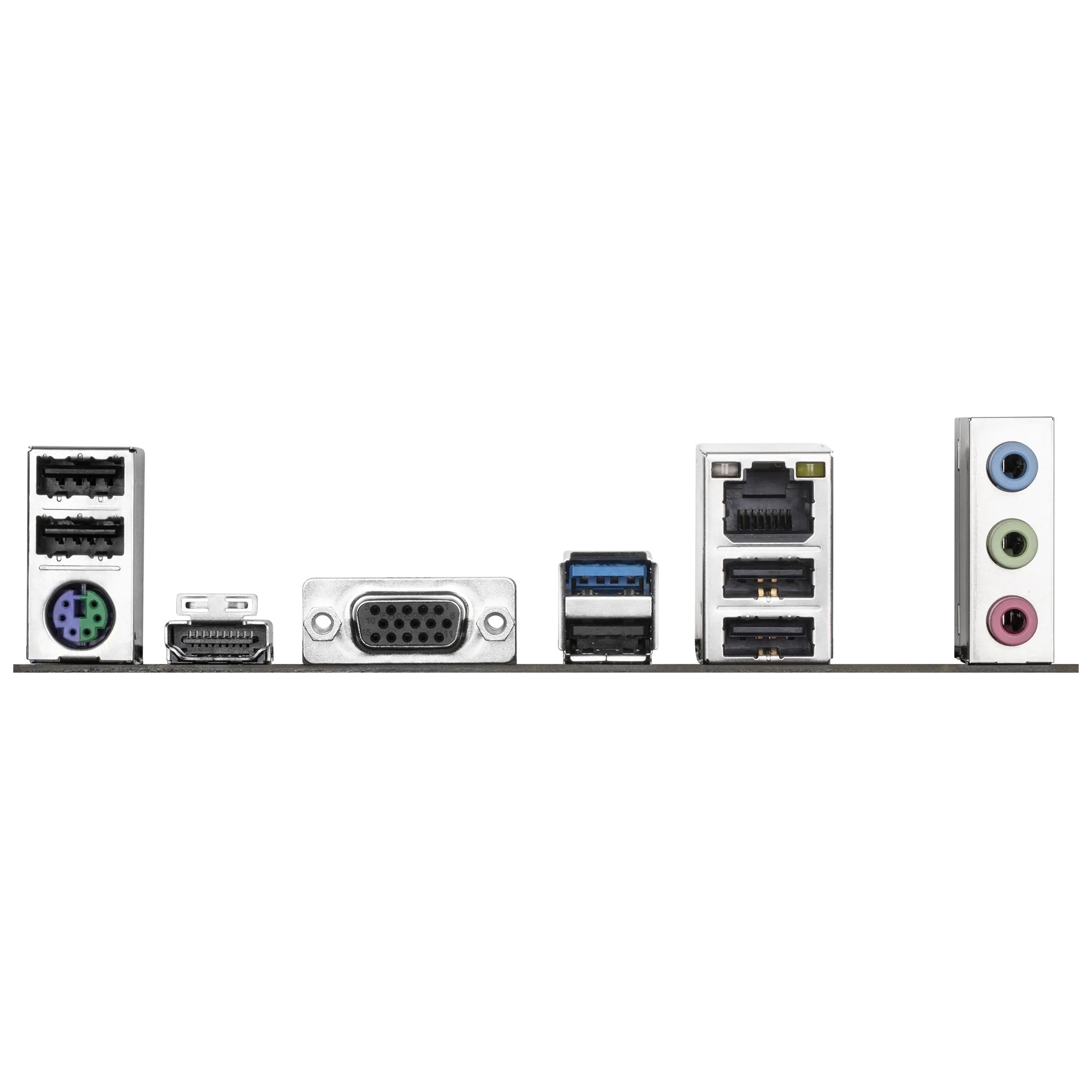

| Back Panel Connectors | 1 x PS/2 keyboard/mouse, 1 x HDMI, 1 x D-Sub, 1 x USB 3.2 Gen 1, 5 x USB 2.0/1.1, 1 x RJ-45, 3 x audio jacks |
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm |
| Operating System | Support for Windows 11 64-bit, Support for Windows 10 64-bit |
