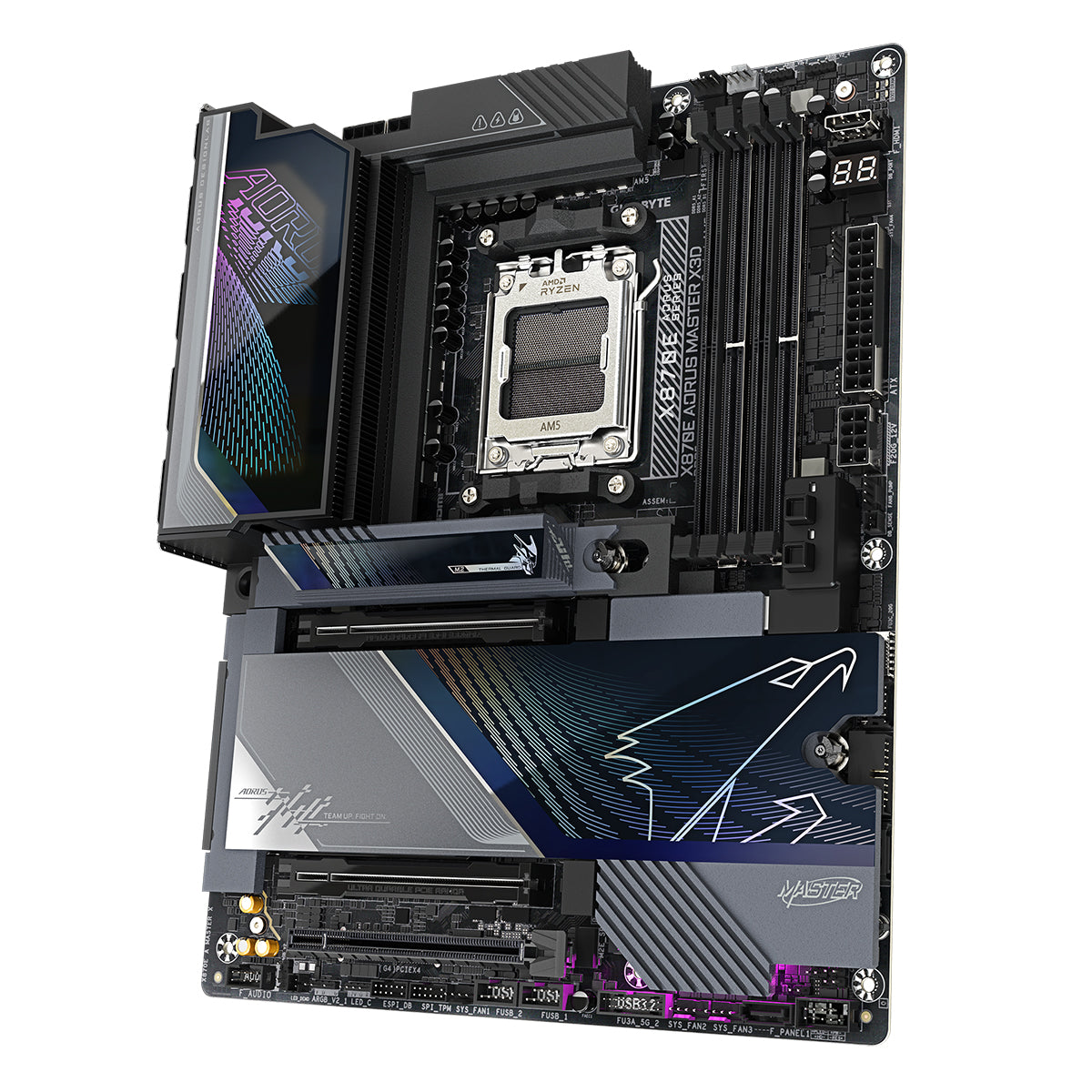

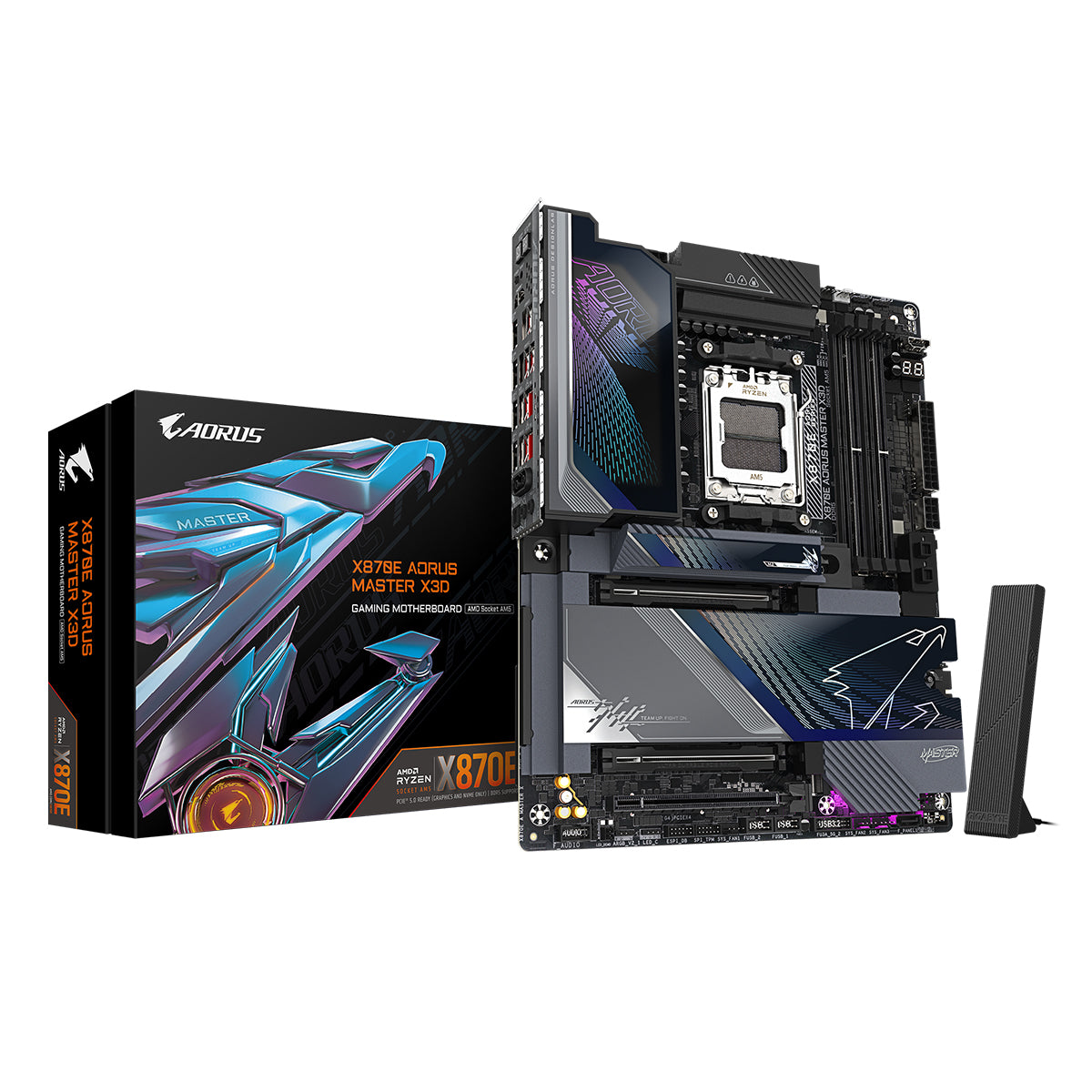

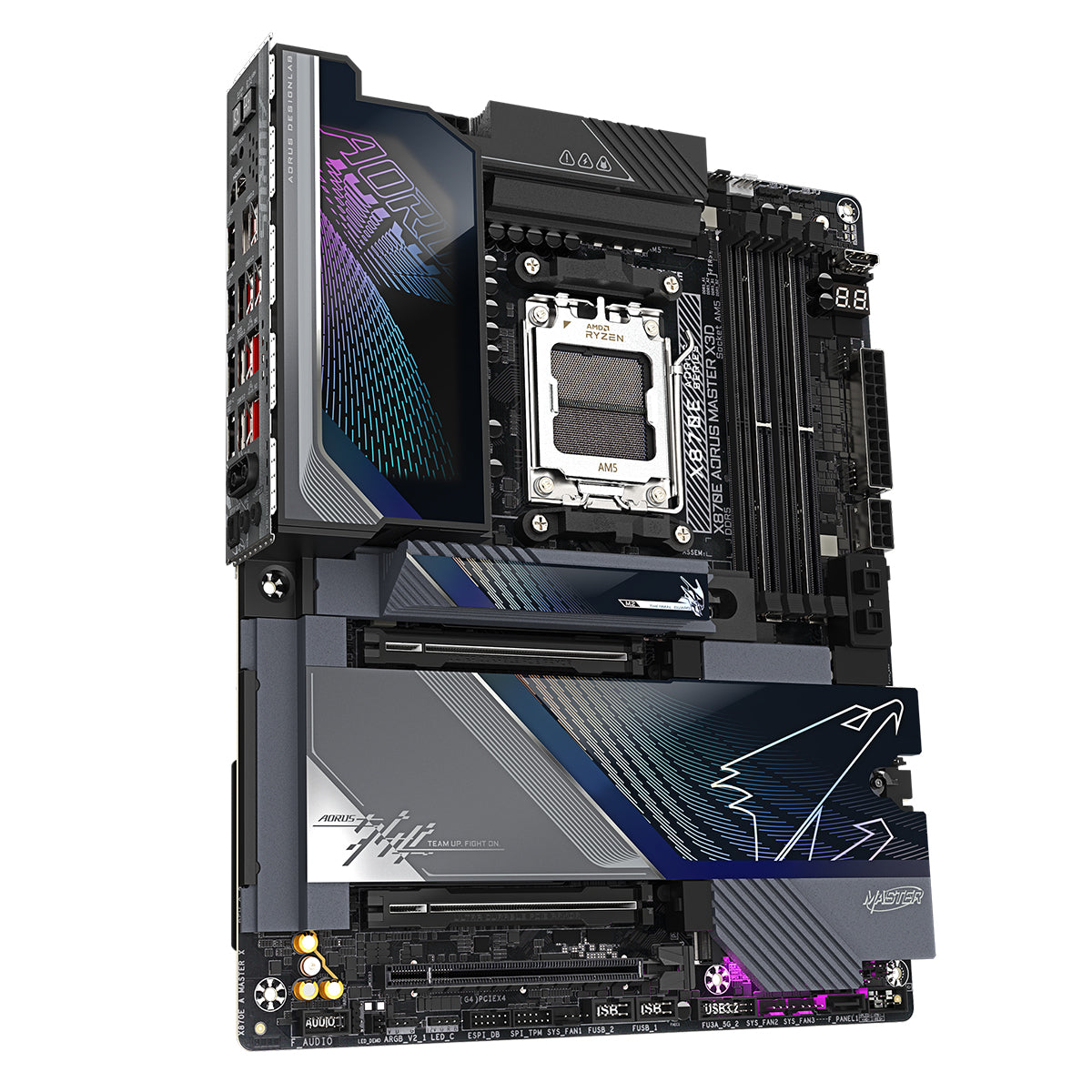

Gigabyte X870E Aorus Master X3D DDR5 AMD Gaming Motherboard
Description
Key Features
- X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
- DDR5 OC up to 9000MT/s
- DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 18+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- PCIe EZ-Latch Plus Duo : One click for screwless & quick release on dual PCIe slots
- M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 5*M.2 slots, including PCIe 5.0 x4

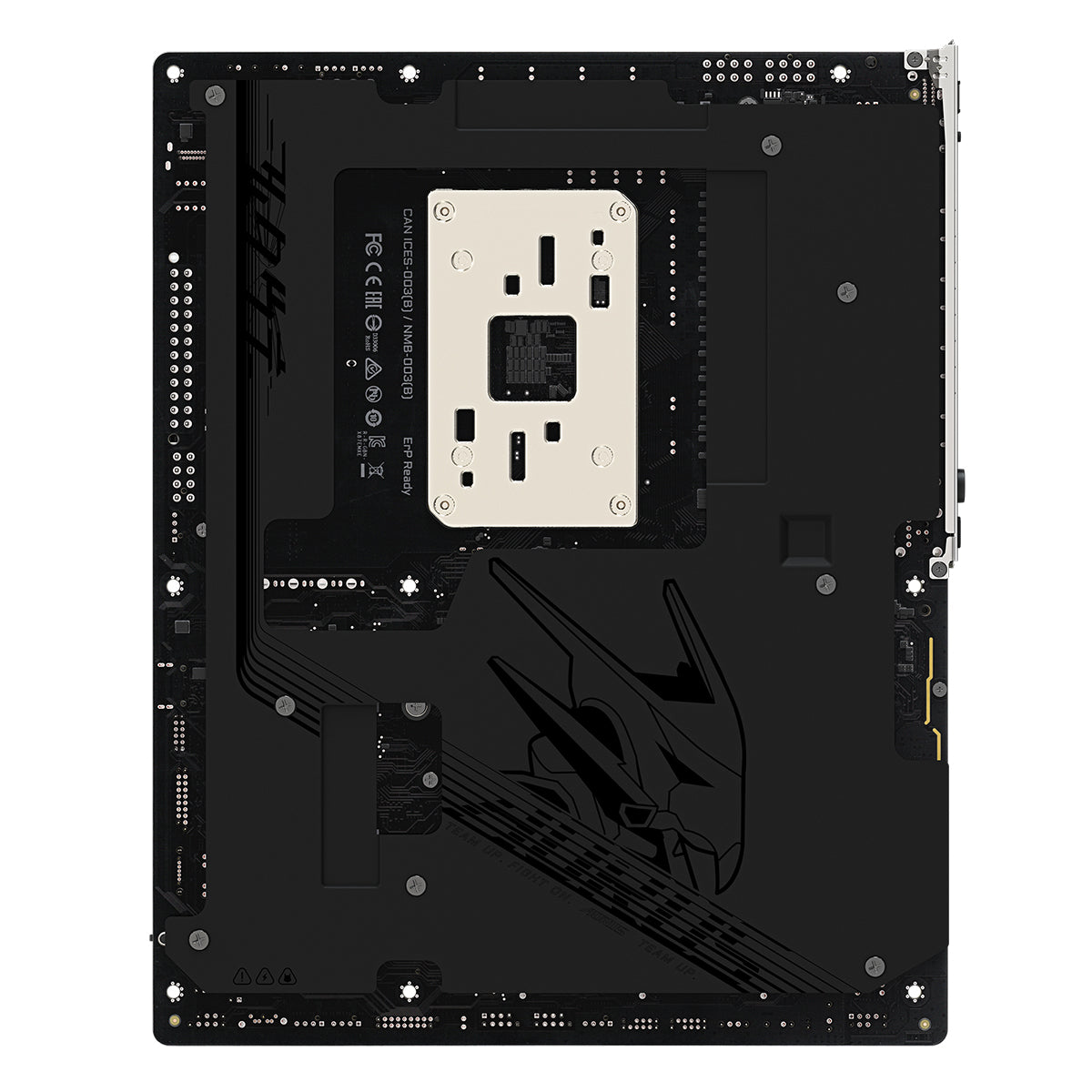

- PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability.
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.

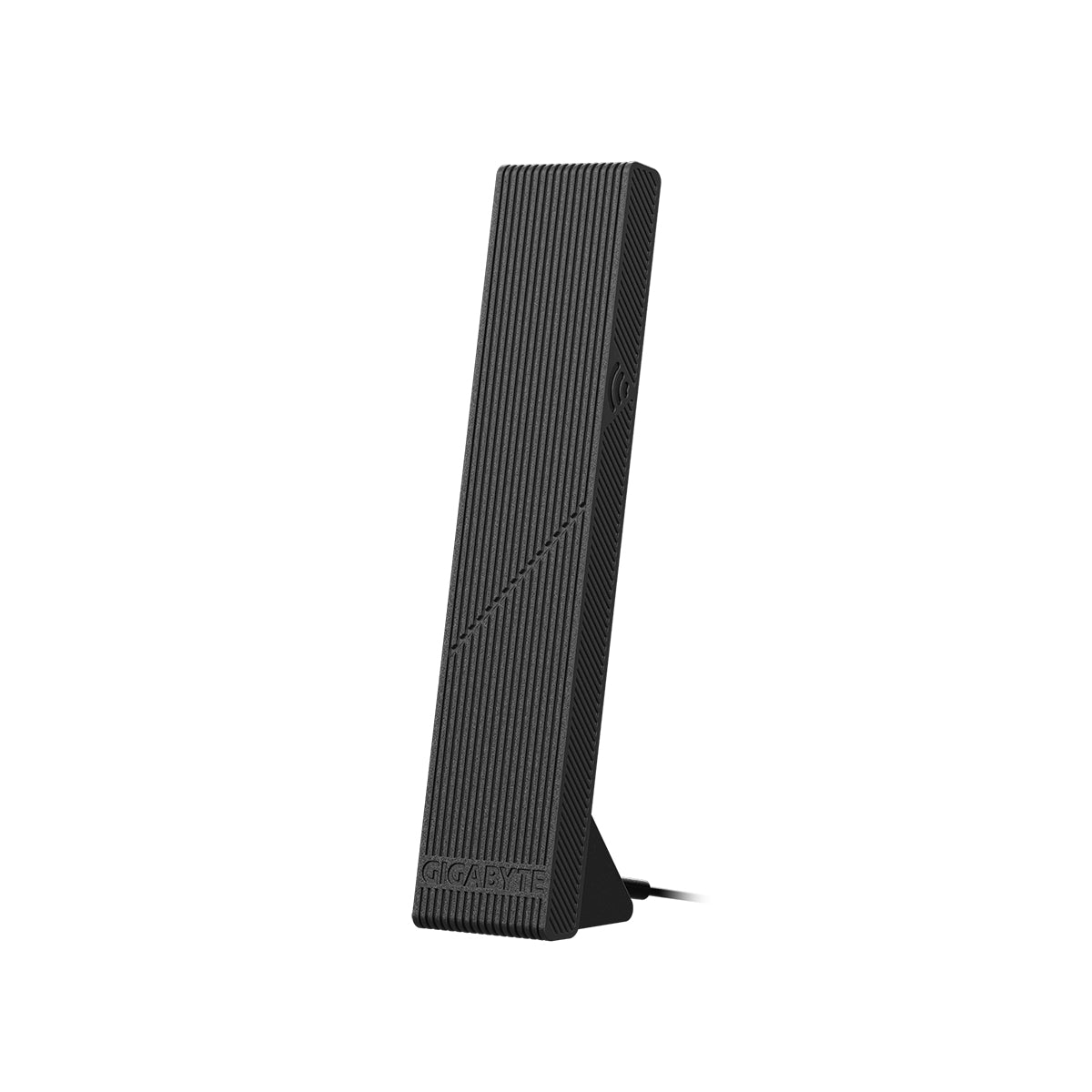

- Fast Networking : 10GbE LAN + 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

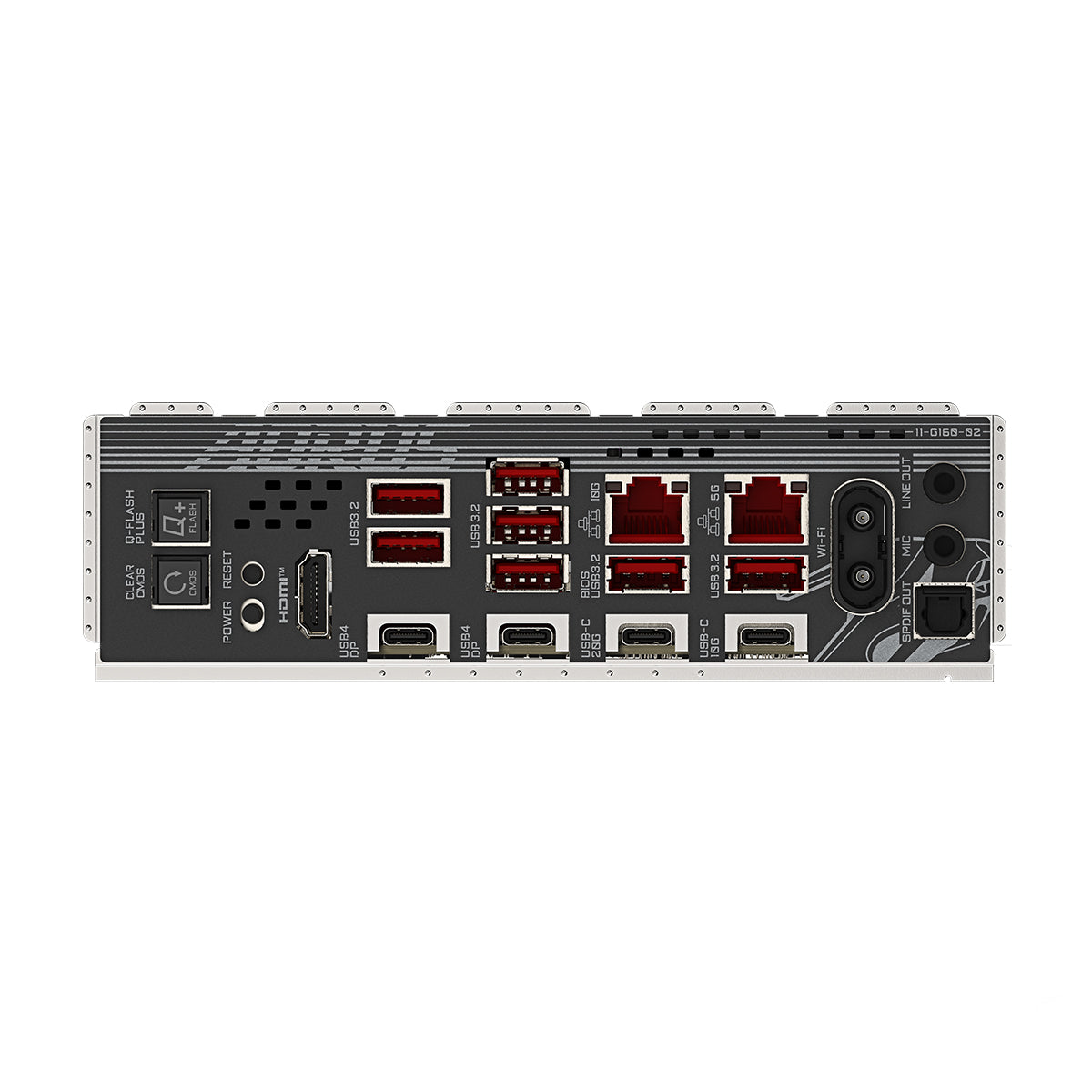

- Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
Specification:
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD X870E |
| Memory | Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support + ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version. (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® ALC1220 CODEC * The front panel line out jack supports DSD audio. ESS ES9118 DAC chip Support for DTS:X® Ultra High Definition Audio 2/4/5.1-channel * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) Realtek® 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN2) |
| Wireless Communication Module | MediaTek Wi-Fi 7 MT7927, RZ738 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. *** Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details. |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Operating System | Support for Windows 11 64-bit |
