Description

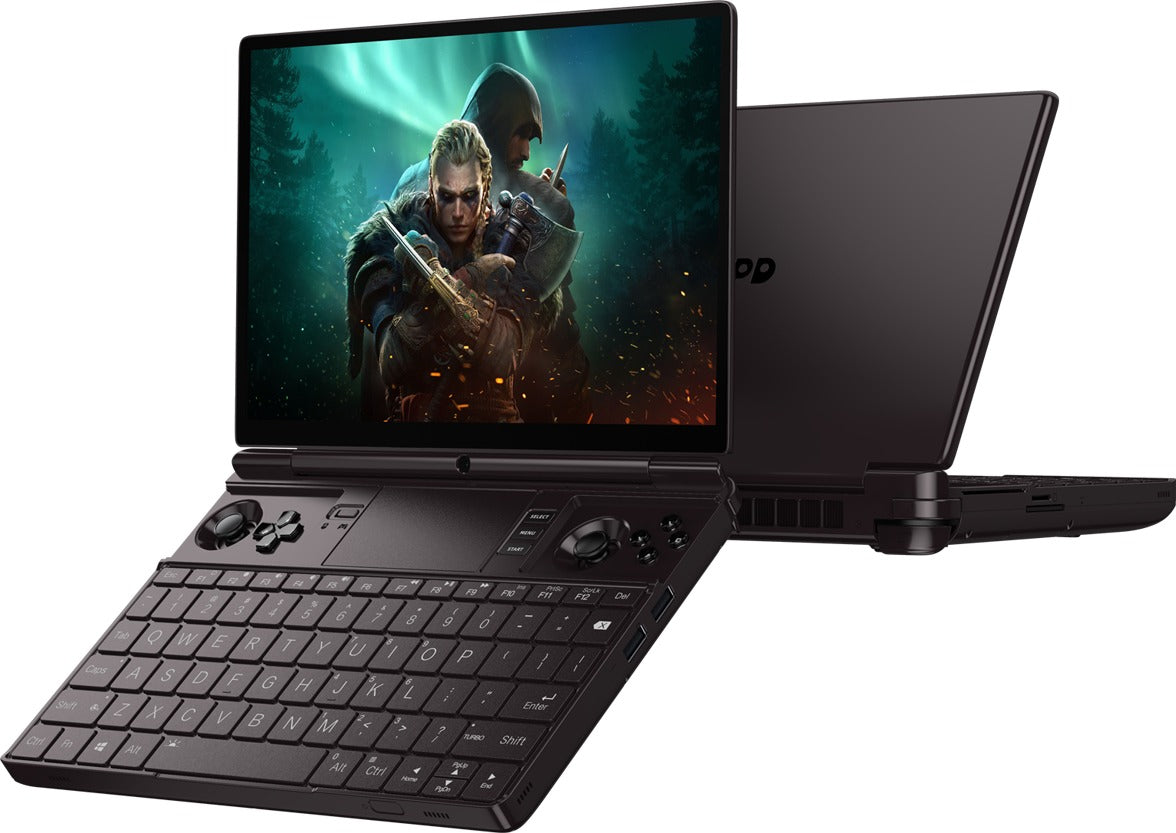

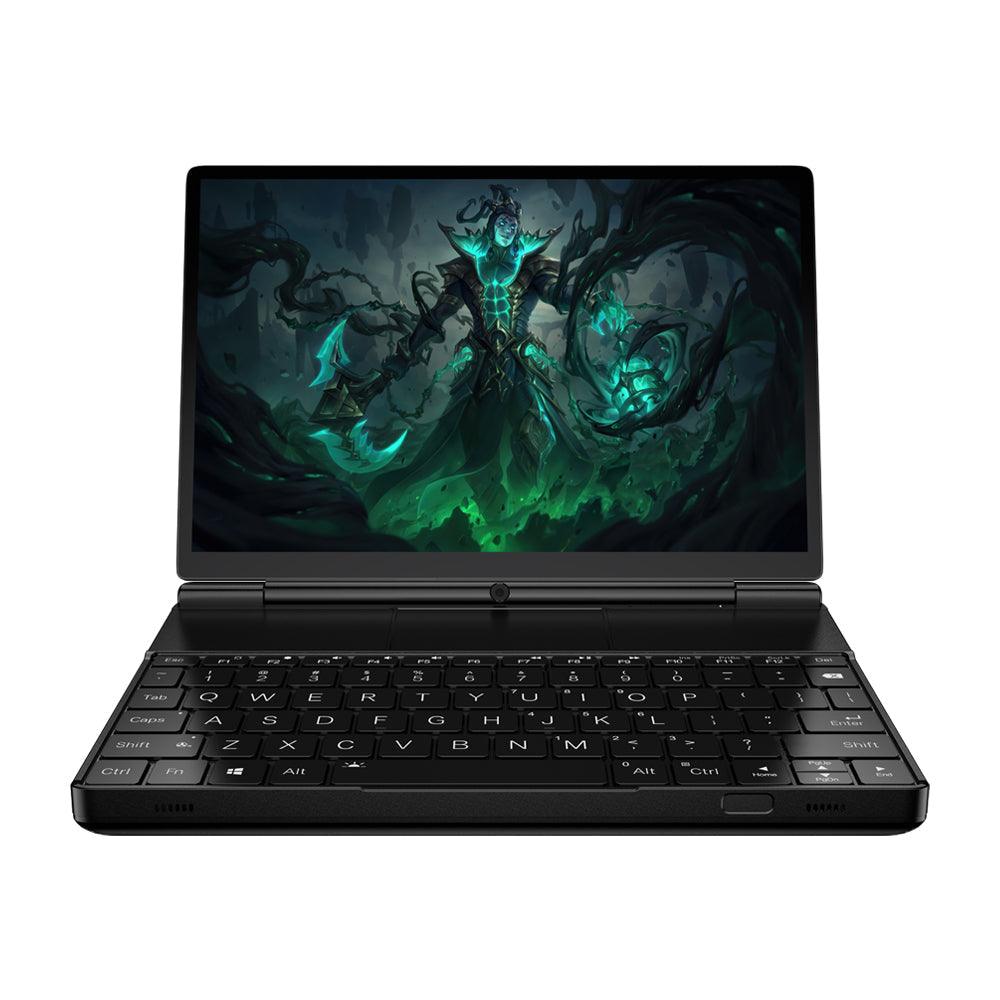

GPD WIN Max 2 2023
Handheld Gaming PC with Bezel-less Display

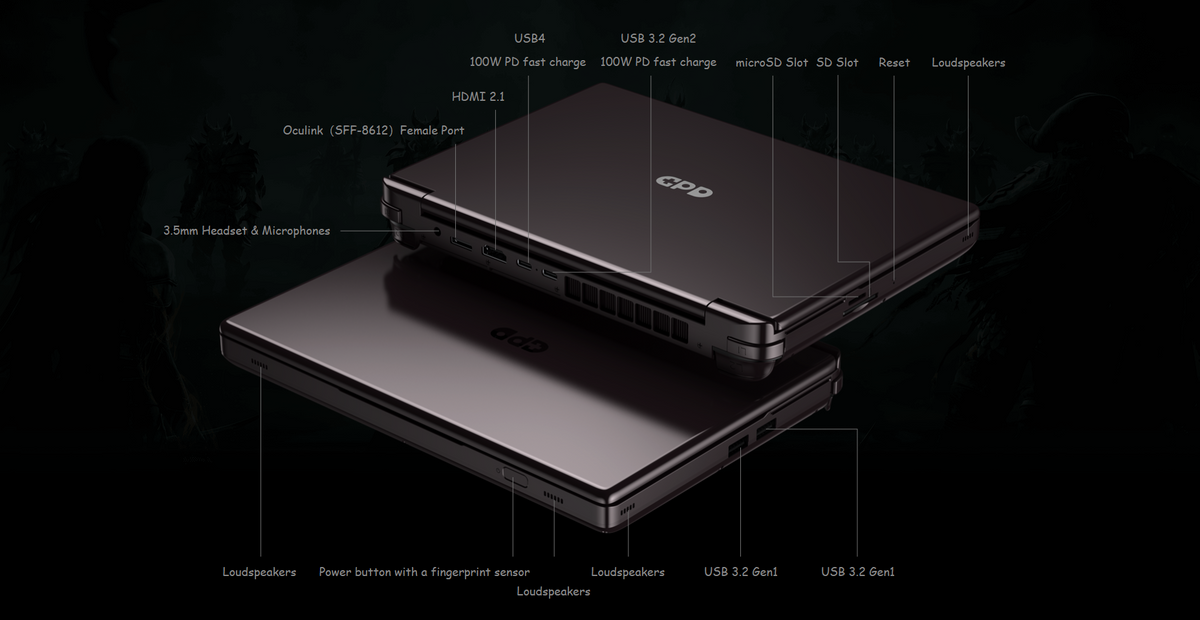

A Sensible Choice Of Built-in Ports For Easy Expansion
Full-speed USB4 interface, with 40Gbps high-speed connectivity and support for PD 100W charging. Unique Oculink (SFF-8612) port, PCIe direct connection, 63Gbps effective bandwidth, supports GPD G1 eGPU, providing a complete gaming and office experience to meet your needs in all scenarios.
10.1-inch Display With Ultra-narrow Bezel, Eye Protection And Native Landscape Mode
Great news for anyone who loves handheld gaming on a big screen! WIN Max 2 2023 is featuring an ultra-narrow bezel 10.1-inch IPS screen with eye protection, 90% screen-to-body ratio, and fifth-generation Corning Gorilla Glass. Its native landscape mode set you free from all worries regarding aspect ratio compatibility issues with older games. It has a default resolution of 1920×1200, a maximum resolution of 2560×1600, 299PPI, and a relevant aspect ratio of 16:10.
Supports 10-point Touch, Active Pens With Up To 4096-level pressure-sensitivity, Unique Metal Mesh Technology
It is supporting 10-point touch, and active pens with up to 4096-level pressure-sensitivity (MPP2.0, including Surface Pen). The first of our device to introduce Metal Mesh technology, which helps in improving display clarity, preventing drifting and ghosting when using active pens.
All-metal Apple-style Unibody Design Made Of 6061 Aluminum-magnesium Alloy With A Touch Of Aviation Grade ABS
All-metal Apple-style iron black unibody design made of 6061 aluminum-magnesium alloy with 36 precision CNC processes. The bottom shell is made of aviation-grade ABS synthetic resin to keep a cool and comfortable two-hand grip experience!

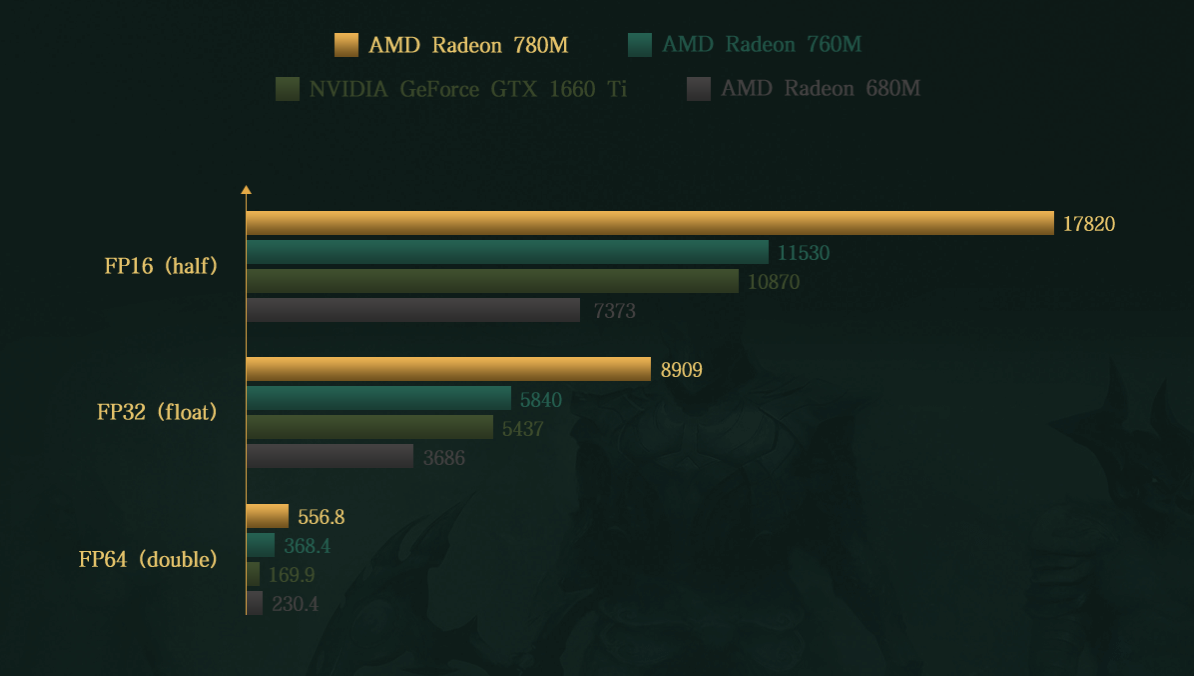

Floating-Point Performance Comparison, RDNA3 Architecture Integrated Graphics Surpasses NVIDIA GeForce GTX 1660 Ti
With the brand-new RDNA3 architecture integrated graphics, floating-point performance has improved by 150% compared to the previous generation RDNA2! Combined with four-channel LPDDR5x-7500 MT/s memory, the memory bandwidth has been simultaneously increased. Compared to NVIDIA GeForce GTX 1660 Ti, performance has increased by approximately 70%, and pixel and texture fill rates have also doubled.

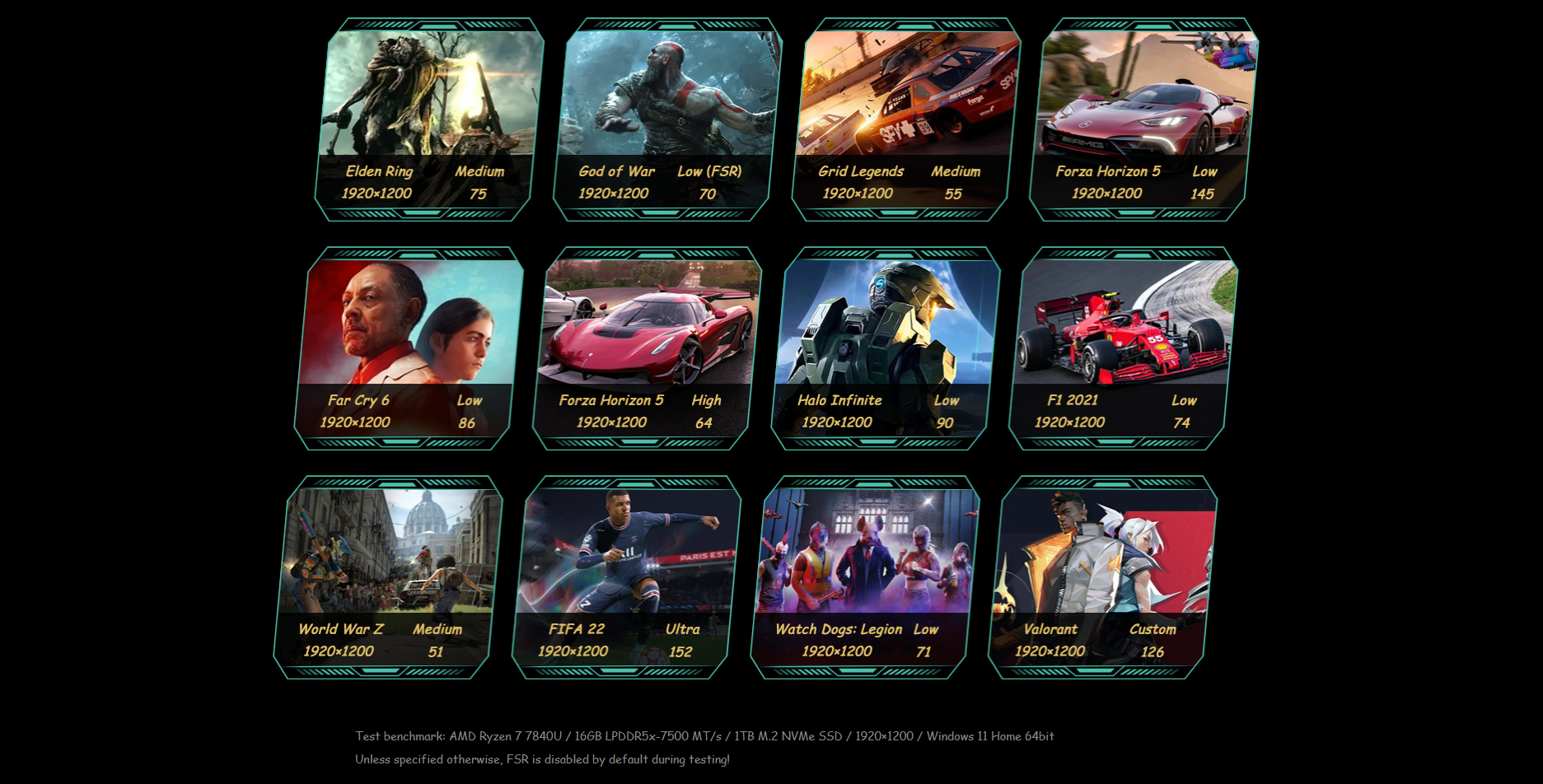

RDNA3 Architecture Integrated Graphics Combined With FSR 3.0 Technology Doubles Gaming Performance, Running The Latest AAA Games At 60 FPS Per Second And A Resolution Of 1200P
The RDNA3 architecture integrated graphics AMD Radeon 780M has a power efficiency improvement of about 50%. Compared to FSR 2.0, FSR 3.0 has nearly doubled gaming performance, with the latest AAA games running at over 60 fps per second at a resolution of 1920×1200

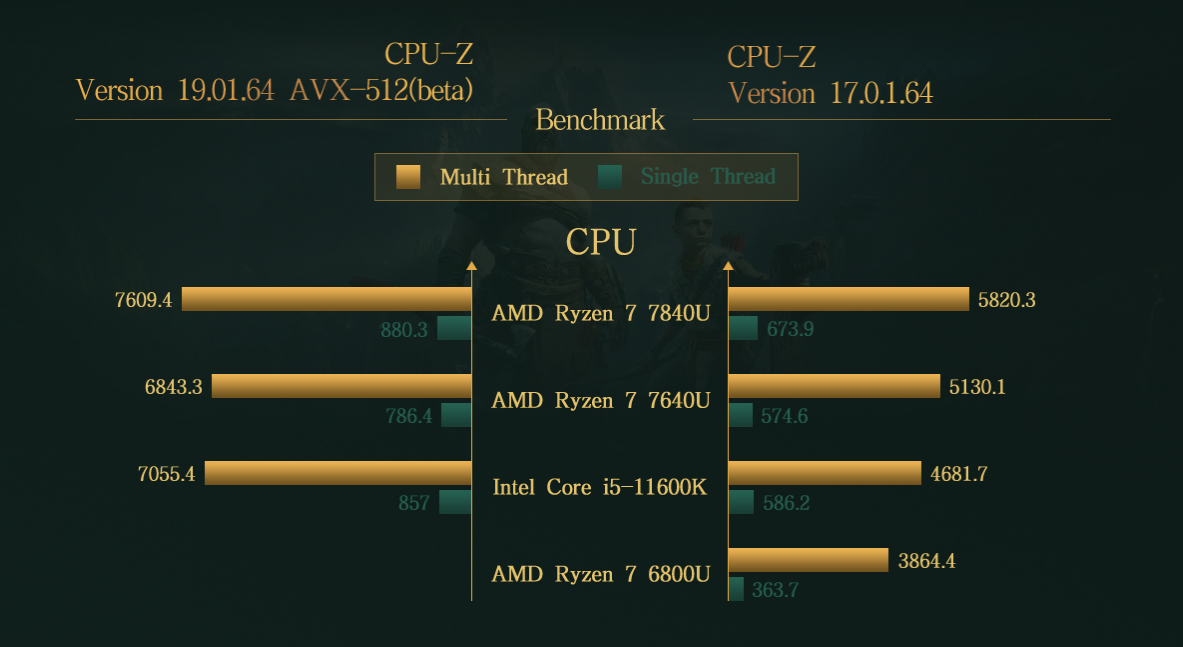

For The First Time, AMD ZEN 4 Adds The AVX-512 Instruction Set, Improving Performance By 30% In CPU-Z Benchmark Tests
The Ryzen 7000 series APU, based on the all-new AMD ZEN 4 architecture, supports the AVX-512 instruction set for the first time, mainly aimed at accelerating AI and HPC applications. The FP32 floating-point inference multi-threaded performance is improved by 1.3 times, and the INT8 integer inference multi-threaded performance is improved by 2.5 times
Thanks To The Support Of AVX-512, "God Of War 3" On PS3 Can Run At 60 Fps Per Second, And The 7840U Achieves Full-Speed PS3 Emulation
To play emulators smoothly, a higher performance CPU is required. With the support of the AVX-512 instruction set and the all-new RDNA3 architecture integrated graphics, emulators such as RPCS3, Yuzu, Gitra, Vita3K, and Xenia can achieve up to 30% performance improvement
Highly Efficient Intelligent Cooling Solution With A Large Turbo Fan And Dual Heat Pipe Design
WIN Max 2 2023 comes with an improved PC-grade cooling system with a large turbo fan + dual heat pipes, which boasts high volume side air blow and highly intelligent speed control. When the internal temperature is lower than 40°C, the fan speed will not exceed 20% of its maximum capacity. When the internal temperature reaches higher than 40°C, the fan speed goes up in 2% PWM increments until reaching its maximum threshold (100%).
Hall Sensor Sticks (First Time In Our Devices), Stepless, Great Linearity, No Dead Zone Neither Stick Drift
The traditional potentiometer stick that relies on the resistance brush to generate the voltage signal is prone to "drift" issues caused by wear and tear in long-term use. With WIN Max 2 2023, we’ve introduced for the first time Hall Sensor sticks with built-in inductance coils. The working principle of magnetic induction (different magnetic fluxes are generated when the stick rotates to different positions, which in turn generates different voltage signals) determines that Hall Sensor sticks have no wear and tear, and therefore won't have the issue of stick drift! The sticks also adopt a stepless design for achieving 360° super-linear signal output without any dead zone.
Built-in Magnetic Controller Cover To Switch Instantaneously Between A Gaming Handheld And A Business Laptop Modes At Any Moment
The game controller built into the handheld gaming PC can make it unsuitable for the workplace! To solve this problem, we added two stick covers for WIN Max 2 2023. The magnetic design ensures that the two covers won't fall off when using the device. When playing games, you can also stow the covers in the rear compartment, which helps prevent accidental loss!

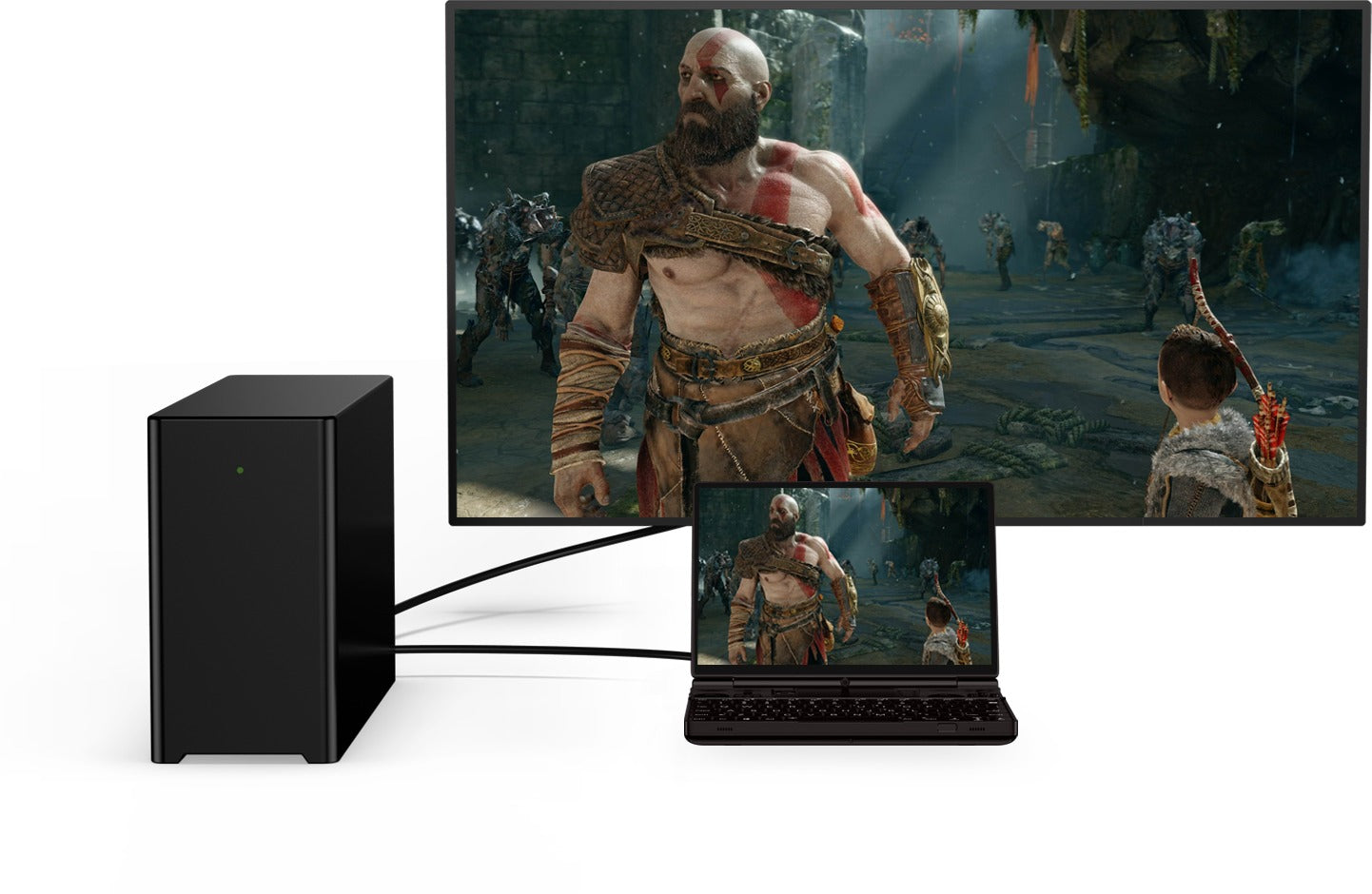

With A Full-Speed USB4 Interface Providing Up To 40Gbps Of Bandwidth, It Supports External eGPU For Smooth Gameplay Of AAA Games
AMD users, behold! The AMD version of WIN Max 2 has a USB4 port supporting up to 40Gbps transfer rate. The USB4 interface natively supports the Thunderbolt 3 protocol, so now you can play games with the AMD version of WIN Max 2 connected to a Thunderbolt 3 eGPU!
Comes With One Large Capacity M.2 2280 SSD And One M.2 2230 Slot For Easy Capacity Expansion
For the unlimited expansion of storage space, in addition to an M.2 2280 slot already occupied by the machine's own nvme ssd, there is also an M.2 2230 slot on the back of the Max 2's motherboard. Both slots are based on the PCIe 4.0 × 4 bus, with a theoretical throughput of up to 7.877GB/s. Due to restraints in terms of body thickness, both M.2 slots only support single-sided SSDs. The machine comes with a PCIe 3.0 SSD. If you want faster read and write speeds, you can replace it with a PCIe 4.0 SSD.
Optional 4G LTE Module With Full Operator Support For Gaming Anytime, Anywhere
After the launch of the first-generation GPD WIN handheld, some users suggested we should add a 4G LTE module to the follow-up products, so that they can play online games anytime, anywhere. However, due to various constraints (internal space, heat generation, cost, etc.), we had been unable to add this feature in the past. This time, we finally did it, adding a 4G LTE module that supports 4G TD-LTE, FDD-LTE and 3G CDMA in WIN Max 2 2023, which is comparable in performance to mainstream laptops and can be used in more complex scenarios.
Considering that some users may not need 4G capabilities, we have adopted a detachable module design, allowing anyone who needs a 4G connection to put the module into the slot on the back of the machine. The operation is very easy, just remove the cover and slot in the module and you are done！
High-speed SD And MicroSD Slots Added For Photographers/Players
GPD users include photography enthusiasts who need to transfer a large number of photos to their notebooks. For them, one disadvantage of the small, portable GPD handheld compared to larger notebooks is the lack of a built-in SD card slot. And we've finally made up for this shortcoming with WIN Max 2 2023!
The SD slot of WIN Max 2 2023 is connected to the UHS-II bus. Based on the SD 4.0 bus protocol, it supports the transmission of up to V90 video files at a read and write speed of up to 312MB/s and inserting an up to 2TB SDHC/SDXC/SDUC card.
WIN Max 2 2023 is also equipped with a microSD card slot that is connected to the UHS-I bus, supports the transfer of U3, files at a read and write speed of 100MB/s, to a microSDHC / microSDXC / microSDUC card.
Backlit Keyboard With 2-level Brightness Adjustment And Precision Touchpad With Gesture Customization Support, All For Higher Input Comfort
To improve the typing experience, we've added a backlit keyboard that has 2 brightness levels to WIN Max 2 2023, allowing you to always see legends comfortably regardless of the ambient brightness. In addition, to address concerns about touch accuracy and improve touch input comfort, we've also added the Precision Touchpad driver for WIN Max 2 2023, which supports touch gesture customization with the Touchpad configuration tool that comes with Windows.
First Of Our Device To Introduce Side Mounted Power Button With A Fingerprint Sensor
The power button of a traditional laptop would mostly be on its C side. So, when using the laptop with an external monitor, it will be locked every time you close the laptop and leave, to use it again you must open the top cover and enter the password, which can be very troublesome. To solve this problem, WIN Max 2 2023 is equipped with a side mounted power button with a fingerprint sensor, which allows for a very convenient one-click power on + unlock (regardless of whether the machine is closed or not)!
4 Super-Linear Speakers, Top-Tier DTS:X Ultra Audio, Delivering Immersive Surround Sound Experience In The Palm Of Your Hand
It features 4 premium German AAC super-linear speakers, supporting DTS:X Ultra audio. The DTS:X Ultra audio effect utilizes a new algorithm based on psychoacoustics and HRTF technology to process audio output in headphone and speaker devices according to the gaming environment. The DTS:X Ultra audio effect can be fine-tuned using a 10-band graphic equalizer, allowing users to enjoy different equalizer settings. It can simulate a physical 7.1 channel sound effect. Additionally, you can optimize the audio spectrum through a hearing test, fine-tuning the audio for headphone and built-in speakers. With both headphones and built-in speakers, you can experience surround sound from all directions - up, down, left, right, front, and back, providing a high-quality immersive audio experience.
Built-in 2 Million Pixel Camera With Ultra-wide Viewing Angle And High Refresh Rate
WIN Max 2 2023 has a built-in 2-megapixel camera with a maximum resolution of 1612×1212. It boasts an ultra-wide viewing angle and a high refresh rate for a better live video conferencing experience.
67Wh High Capacity Battery, Supporting Up To 5 Hours Of Continuous Gaming
With a higher capacity (67Wh) than all thin and light laptops on the market, Max 2 brings you the ultimate experience in terms of battery life. With only one full charge, the battery supports up to 14 hours of office work, 6~8 hours of local 1080P video playback, and 5 hours of gaming.
100W PD Super Charger , From 0 to 50% In About 20 Minutes
The included PD 3.0 100W super charger can charge the machine from 0 to 50% in about 20 minutes. A 5-minute charge can support up to 2 hours of work. Also, the charger supports all fast-charging protocols for phones and tablets, so it can be the only charger you carry when going out!
SPECIFICATIONS:
| Product Name | WIN Max 2 2023 (7840U) |
| Operating System | Pre-installed with Windows 11 Home 64bit |
| Display | |
| Characteristic | Full Screen |
| Touch Panel | Support, 10-point Touch Control，Supported (Requires Separate Purchase), Active Pen With 4096-level Pressure Sensitivity, Original Handwriting, Compatible With Surface Pen |
| Screen Type | Corning Gorilla Glass 5，IPS Technology |
| Screen Size | 10.1 Inches |
| Aspect Ratio | 16:10 |
| Screen Resolution | Default: 1920×1200，Maximum: 2560×1600 |
| Pixels Per Inch | 299 PPI |
| CPU | |
| Product model | AMD Ryzen 7 7840U |
| # of CPU Cores / # of Threads | 8C / 16T |
| Base Clock | 3.3 GHz |
| Max. Boost Clock | 5.1 GHz |
| Floating-point Performance | 1.12 Tflops（FP32） 559.01 Gflops（FP64） |
| Total Cache | 24.5 MB |
| Architecture | Zen 4（Phoenix） |
| Process Size | 4nm |
| TDP | 15-30W |
| GPU | |
| Processor Graphics | AMD Radeon 780M |
| Graphics Frequency | 2700 MHz |
| Compute Units | 12CU |
| Shading Units | 768 |
| Floating-point Performance | 17.82 TFlops（FP16） 8.92 TFlops（FP32） 556.8 GFlops（FP64） |
| Pixel Rate | 92.80 GPixel/s |
| Texture Rate | 139.2 GTexel/s |
| Video Memory | Shared Memory |
| HDMI | 7680 x 4320 @ 60Hz |
| DP | 7680 x 4320 @ 60Hz |
| DirectX | DX12 Ultimate |
| OpenGL | 4.6 |
| Storage | |
| Memory | 32GB |
| Memory Types | LPDDR5x 7500 MT/s |
| Memory Dual Channel | Quad 32-bit Channels |
| Hard Disk Type | M.2 SSD |
| Hard Disk Interface | M.2（Socket 3）× 2 |
| Supported Specifications | M.2 NVMe 2280 × 1 M.2 NVMe 2230 × 1（Default is Empty, Needs to be Purchased Separately） |
| Standard Capacity | M.2 NVMe 2280 SSD 2TB (PCIe Gen4) |
| Bus Specification | PCIe 4.0 × 4 |
| Transfer Protocol | NVMe 1.3 / 1.4 |
| Multimedia Support | |
| Audio System | Built-in Sound Chip + Intelligent Amplifier That Features High Energy Efficiency, High PSRR and Low Noise |
| Loudspeakers | Built-in 4 Super Linear Speakers |
| Camera | Built-in Camera: 2 Million Pixels, Maximum Resolution: 1612×1212, Super Wide-angle, High Refresh Rate |
| Microphone | Built-in microphone |
| Network Communications | |
| 4G LTE Module | Supports，4G module needs to be purchased separately SIM Card Type：Nano-SIM 4G Network：TD-LTE，FDD-LTE 3G Network：WCDMA/TD-SCDMA/CDMA，2G Network：GSM Supported Frequency Bands： 2G：GSM900/1800MHz 3G：WCDMA B1/B8，TD-SCDMA B34/B39，CDMA BC0 4G：LTE TDD B34/B38/B39/B40/B41，LTE FDD B1/B3/B5/B8 |
| Wi-Fi 6 | IEEE 802.11 a/b/g/n/ac/ax, Support 2.4G/5G Dual Frequency Band, Dual Channel Maximum Transmission Rate 2402Mbps |
| MU-MIMO | Supports |
| Bluetooth | 5.2 |
| I/O Interface | |
| Video / Data / Charging | USB4 (40Gbps) × 1 USB 3.2 Gen 2 Type-C × 1 USB 3.2 Gen 2 Type-A × 2 Oculink (SFF-8612) × 1, 63Gbps HDMI 2.1 × 1 |
| microSD Slot | SD 3.0 Protocol Bus interface: UHS-I Video Speed Class: V30 Application Performance Class: A1, Read: 100MB/s Compatible: microSDHC / microSDXC / microSDUC microSD Card Slot and SD Card Slot are Mutually Exclusive. Only One Slot Can be Used at a Time. Inserting a Card in One Slot Will Make The Other Slot Invalid |
| SD Slot | SD 4.0 Protocol Bus interface: UHS-II Video Speed Class: V90 Read 312MB/s，Write: 312MB/s Compatible: SDHC / SDXC / SDUC microSD Card Slot and SD Card Slot are Mutually Exclusive. Only One Slot Can be Used at a Time. Inserting a Card in One Slot Will Make The Other Slot Invalid |
| Audio Port | 1×3.5mm Headphone/Microphone Combo Interface, Compatible With Apple Headphones (US Specification) |
| BIOS Reset Port | Supports |
| I/O Device | |
| Power | Power Button With A Fingerprint Sensor |
| Keyboard | QWERTY Keyboard Design，Backlight (2-level Brightness Control) |
| Indicator Lamp | Charging Indicator Running Indicator CapsLook Indicator Fan Switch Indicator |
| TouchPad | Microsoft Precision TouchPad （PTP） |
| Mouse | The Joystick Simulates A Mouse, Requires Switching The Mode Handle/Mouse |
| Joystick | Hall Sensor Sticks, Stepless, Super Linear, No Dead Zone, Sink-in Design, Native Support For Down Pressure Sensitive L3 / R3 |

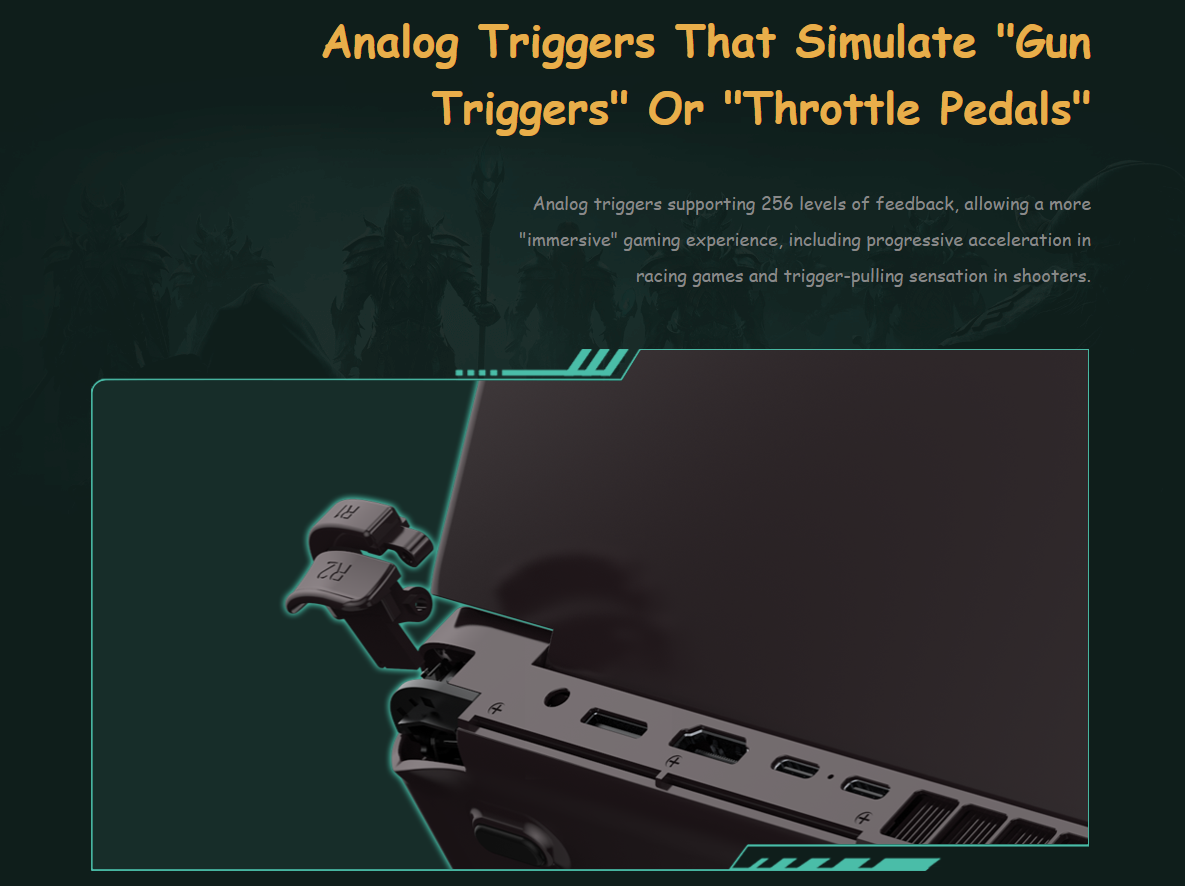

| Game Accessories Buttons | Analog Triggers |
| Game Function Buttons | Double Silk-printed Legends (ABXY, △○×□, Select, Start, Xbox (Menu)) |
| D-Pad | Siamese Arrow Keys |

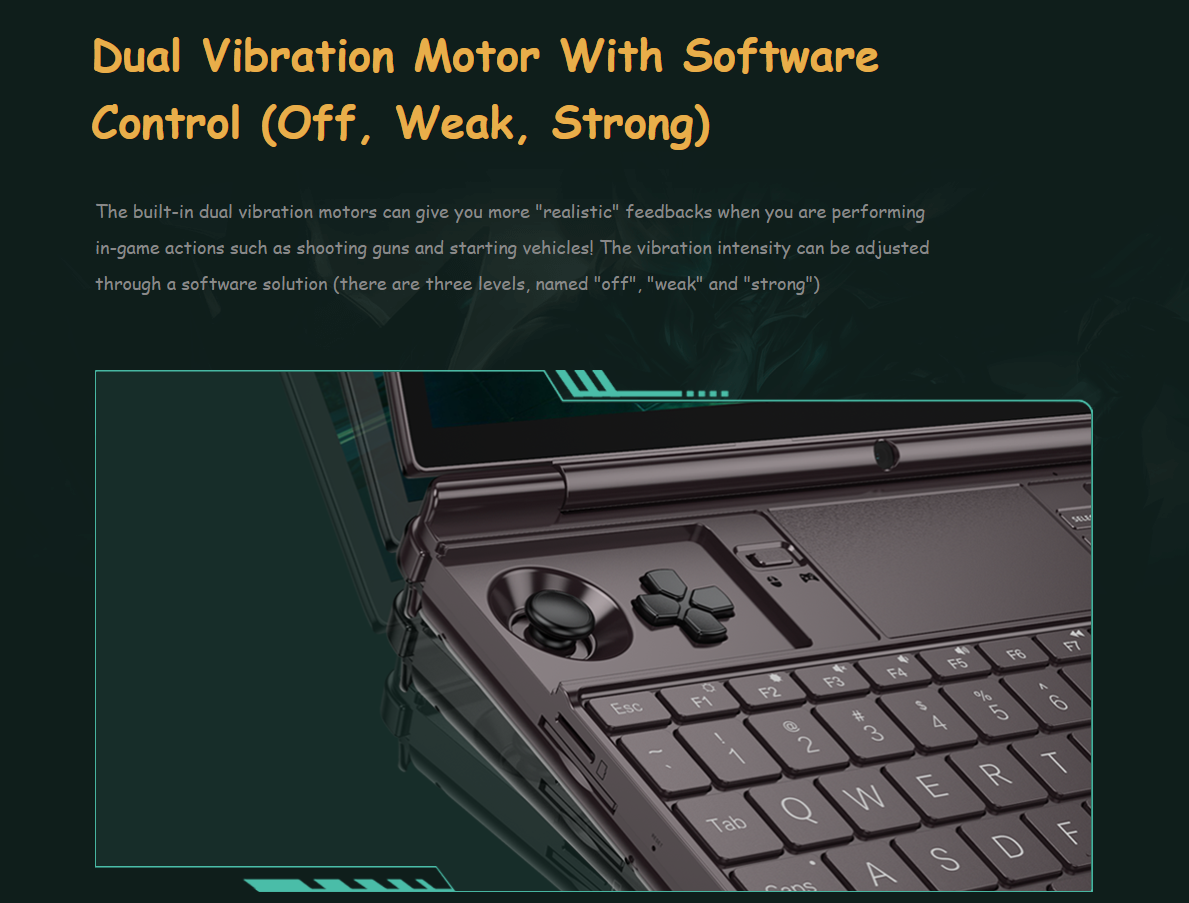

| Handle Vibration | Double Vibration Motor |

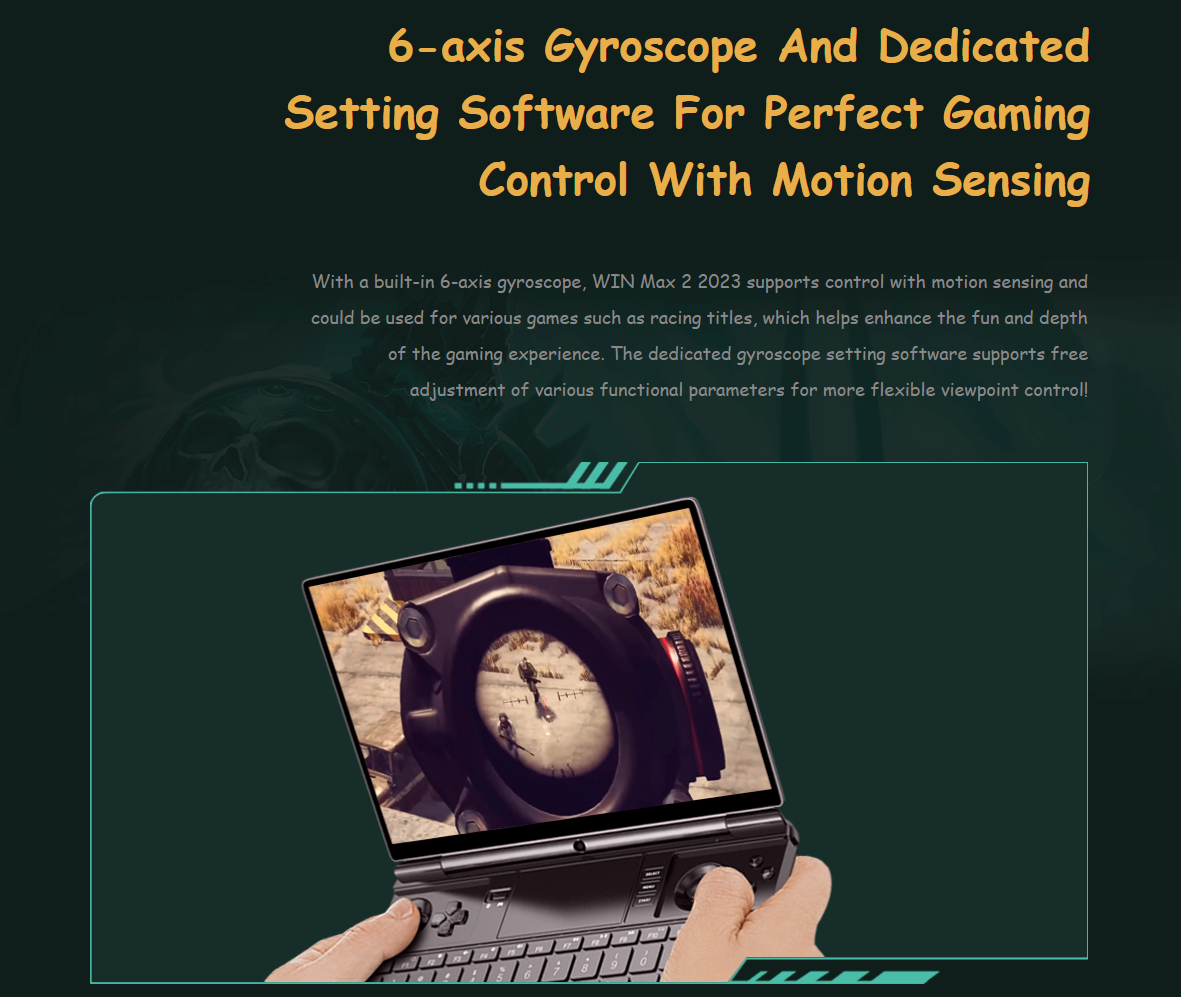

| Sensor | 6-axis Gyroscope |

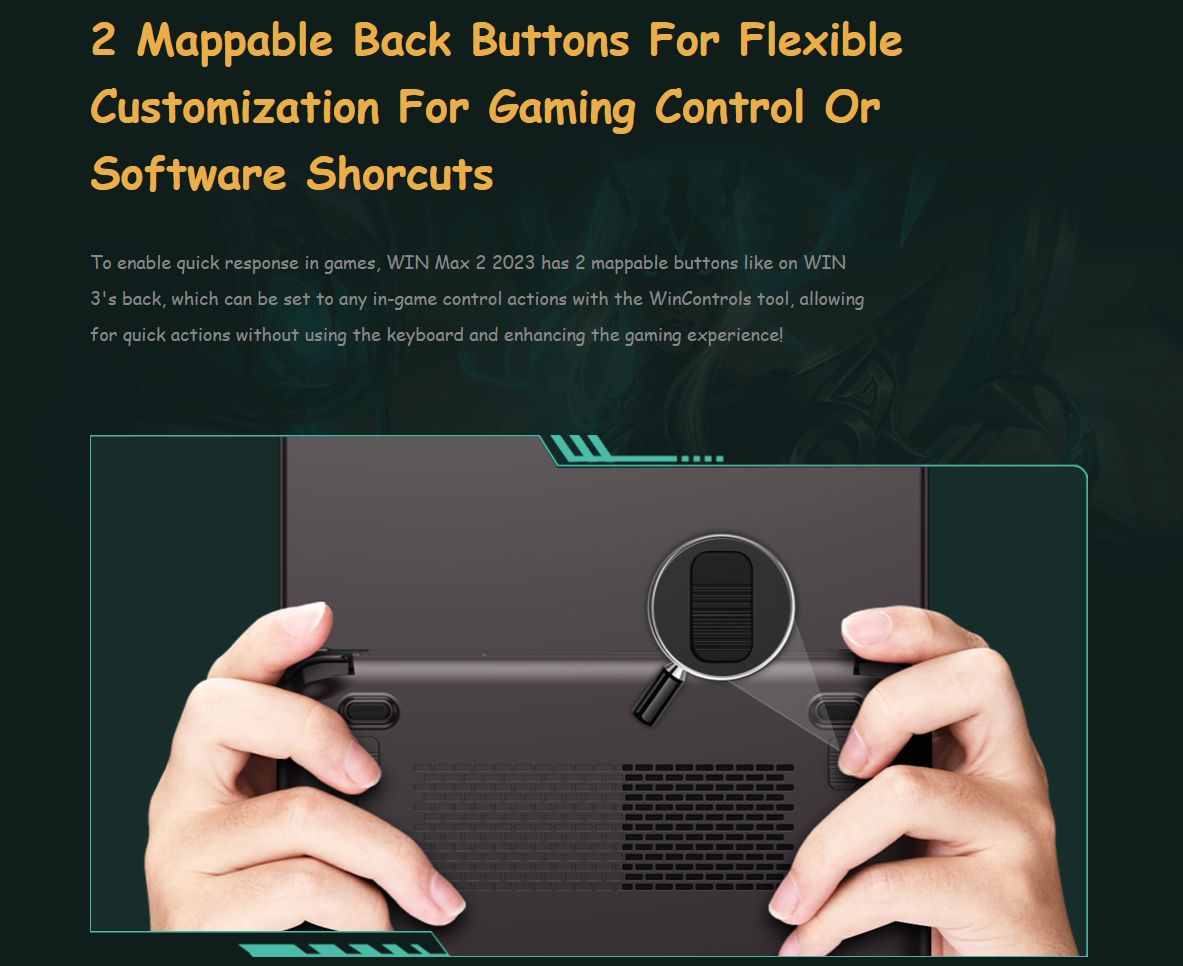

| Other Keys | Handle / Mouse Switch Button，2 Custom Physical Buttons |
| Battery | |
| Battery Type | Li-polymer |
| Battery Capacity | 67Wh |
| Battery Life | 3 Hours Of Heavy Use, 6-8 Hours Of Moderate Use, 14 Hours Of Light Use, Depending On The Specific Environment Of Use |
| Appearance | |
| Weight | 1005g |
| Size | 227 × 160 × 23 mm |
| Shell Material | A and C Sides Are Made of 6061 Aluminum-magnesium Alloy, LG-DOW 121H Aviation ABS |
| Shell Color | Rust Tint |
| Covers | Magnetic Suction Type, Can Be Stored Inside The Shell |
| Thermal Design | Active Cooling, Big Fan + Dual Heat Pipe |
| Accessories | GPD WIN Max 2 2023 × 1 100W PD Power Adapter（20V==5A，20V==3.25A）×1 Supports 100W, c-c Power Cord With E-mark Warranty Card ×1 Product Manual ×1 |
