Description
Specifications:

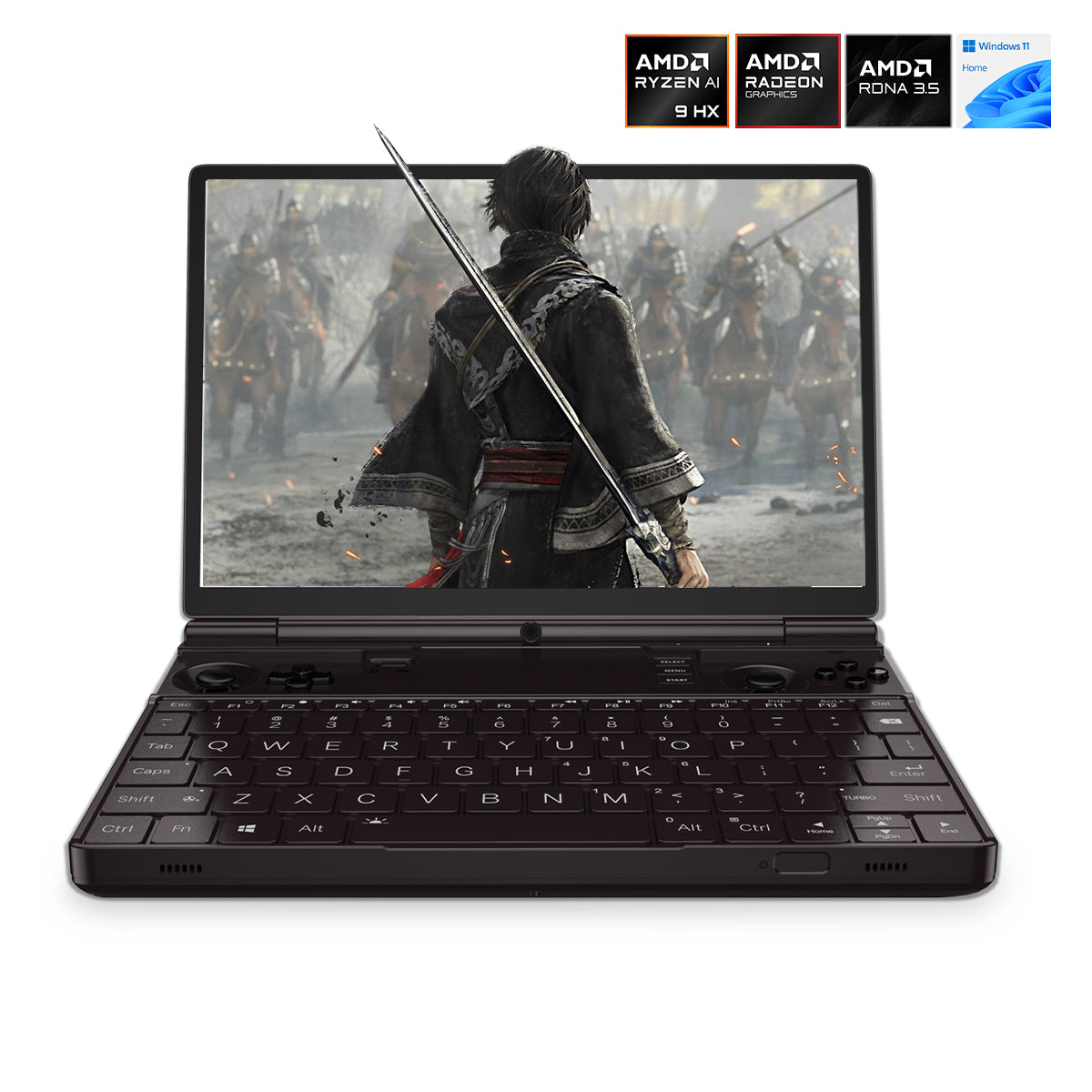

| Product Name | WIN Max 2 (2025) |
| Operating System | Pre-installed With Windows 11 Home 24H2 |
| Screen Type | Corning Gorilla Glass 5，IPS Technology |
| Characteristic | Full Screen |
| Touch Panel | 10-point Touch Control |
| Screen Size | 10.1 inches |
| Frequency | 60Hz |
| Aspect Ratio | 16：10 |
| Screen Resolution | 2560 × 1600 |
| Pixels Per Inch | 299 PPI (RGB) |
| Product model | AMD Ryzen™ AI 9 HX 370 |
| CPU Architecture | Zen 5 + Zen 5C（Strix Point） |
| Process Size | 4nm |
| # of CPU Cores / # of Threads | 12C / 24T |
| Base Clock | 2.0 GHz |
| Max. Boost Clock | 5.1 GHz |
| Total Cache | 36.75MB |
| NPU Architecture | XDNA 2 |
| AI Performance | 50 TOPS |
| Total Processor Performance | 80 TOPS |
| TDP | 15W-35W |
| Processor Graphics | AMD Radeon™ 890M |
| Graphics Frequency | 2900 MHz |
| Compute Units | 16 CU |
| Compute Units | 1024 |
| Floating-point Performance | 23.76 TFLOPS (FP16) 11.88 TFLOPS (FP32) 742.4 GFLOPS (FP64) |
| Pixel Rate | 92.80 GPixel/s |
| Texture Rate | 185.6 GTexel/s |
| Memory | 64GB |
| Memory Types | LPDDR5x 7500 MT/s |
| Memory Dual Channel | Dual channels |
| Hard Disk Type | M.2 SSD |
| Hard Disk PortsHard Disk Ports | M.2（Socket 3）× 2 |
| Supported Specifications | M.2 NVMe 2280 × 1 |
| Standard Capacity | M.2 NVMe 2230 × 1 (Default is Empty, Needs to be Purchased Separately) 2TB × 1 |
| Bus Specification | PCIe 4.0 × 4 |
| Transfer Protocol | NVMe 1.3 / 1.4 |
| Audio System | Built-in Audio Chipset |
| Loudspeakers | Built-in 4 Super Linear Speakers |
| Webcam | Built-in Camera: 2 Million Pixels, Maximum Resolution: 1612×1212, Super Wide-angle, High Refresh Rate |
| Microphone | Built-in Microphone |
| 4G LTE Module | Supports Onboard Card Slot, Separate Purchase Required SIM Card Type: Nano-SIM, Single SIM 4G Network：TD-LTE，FDD-LTE 3G Network：WCDMA/TD-SCDMA/CDMA 2G Network：GSM Supported Frequency Bands： 2G：GSM900/1800MHz 3G：WCDMA B1/B8，TD-SCDMA B34/B39，CDMA BC0 4G：LTE TDD B34/B38/B39/B40/B41，LTE FDD B1/B3/B5/B8 |
| Wi-Fi 6 | Wi-Fi 6E (802.11ax, Dual band) 2 × 2 |
| MU-MIMO | Supports |
| Bluetooth | BT 5.3 |
| Video / Data / Charging | USB4（40Gbps）× 2 Oculink（PCIe 4.0 × 4，63Gbps）× 1 HDMI 2.1 × 1 USB 3.2 Gen 2 Type-A × 2 |
| SD Slot | SD 4.0 Protocol Bus Port: UHS-Ⅱ Video Speed Class: V90 Theoretical Speed: Read 312MB/s, Write 312MB/s Compatible: SDHC / SDXC |
| microSD Slot | SD 3.0 Protocol Bus Port: UHS-I Video Speed Class: V30 I/O Performance: A2, Theoretical Speed: Read 160MB/s, Write 120MB/s Compatible: microSDHC / microSDXC microSD Card Slot and SD Card Slot are Mutually Exclusive. When One Card is Inserted, the Other Slot Becomes Inactive 3.5mm Headphone/Microphone Combo Jack, Compatible With Apple Headphones (US version) |
| Audio Port | Yes, On Both Sides |
| Speaker Hole | Supports |
| BIOS Reset Port | Supports |
| Power Switch | Power Button + Supports Fingerprint Unlock |
| Keyboard | QWERTY Full Keyboard With Backlight Design, Featuring 2-Level Brightness Adjustment |
| Indicator Lamp | Charging Indicator, Running Indicator, CapsLook Indicator, Fan Switch Indicator |
| TouchPad | Microsoft Precision TouchPad (PTP) |
| Mouse | Joystick for Simulating Mouse Control, Requires Switching Between "Gamepad/Mouse" Modes |
| Joystick | Hall Sensor Sticks, Stepless, Super Linear, No Dead Zone, Sink-in Design, Native Support For Down Pressure Sensitive L3 / R3 |
| Game Accessories Buttons | Analog Triggers |
| Game Function Buttons | Double Silk-printed Legends (ABXY, △○×□), Select, Start, Xbox (Menu) |
| D-Pad | Siamese Arrow Keys |
| Handle Vibration | Dual Linear Motors |
| Sensor | Six-axis Design: Three-axis Gravity Sensor, Three-axis Gyroscope |
| Other Keys | Handle / Mouse Switch Button，2 Custom Physical Buttons |
| Battery Type | Lithium Polymer Battery |
| Battery Capacity | 67Wh |
| Battery Life | Intensive Usage: 2.5 Hours Moderate Usage: 6-8 Hours Light Usage: 9 Hours Battery Life May Vary Depending on Specific Usage Environment |
| Weight | 1005g |
| Size | 227 × 160 × 23 mm |
| Shell Material | A and C Sides Are Made of 6061 Aluminum-magnesium Alloy, LG-DOW 121H Aviation ABS |
| Covers | Magnetic Suction Type, Can be Stored Inside the Shell |
| Shell Color | Black |
| Thermal Design | Active cooling with PC-grade fan + dual heat pipes, featuring a redesigned cooling module and fan. |
| Accessories | GPD WIN Max 2（2025） × 1 100W PD Protocol Adapter (5V/9V/12V/15V=3A, 20V=5A) ×1 USB-C Fast Charging Cable × 1 Warranty Card ×1 Product Manual ×1 |
