Description
SPECIFICATION
| Basic Information | |
| Product Name | GPD WIN Mini（7840U） |
| Launch Data | Oct-23 |
| Product Positioning | Handheld Game Console |
| Handheld Game Console | Pre-Installed With Windows 11 Home 64-bit, With Optional Steam OS or GPD OS |
| Display | |
| Characteristic | High-Refresh Rate Gaming Display, Flip Design, Infinite Hinge, Maximum Opening Angle Of 168 Degrees |
| Touch Panel | Support, 10-point Touch Control |
| Screen Type | The Sixth Generation Of Corning Gorilla Glass, LTPS Technology, AF+AR Coating |
| Screen Size | 7 Inches |
| Refresh Rate | 120Hz |
| Aspect Ratio | 16:09 |
| Screen Resolution | 1920×1080 |
| Pixels Per Inch | 314 PPI |
| CPU | |
| Product model | AMD Ryzen 7 7840U |
| # of CPU Cores / # of Threads | 8C / 16T |
| Base Clock | 3.3 GHz |
| Max. Boost Clock | 5.1 GHz |
| Floating-point Performance | 1.12 Tflops（FP32） |
| 559.01 Gflops（FP64） | |
| Total Cache | 24.5 MB |
| Architecture | Zen 4（Phoenix） |
| Process Size | 4nm |
| GPU | |
| Processor Graphics | AMD Radeon 780M |
| Graphics Frequency | 2700 MHz |
| Compute Units | 12CU |
| Shading Units | 768 |
| Floating-point Performance | 17.82 TFlops（FP16） |
| 8.92 TFlops（FP32） | |
| 556.8 GFlops（FP64） | |
| Pixel Rate | 92.80 GPixel/s |
| Texture Rate | 139.2 GTexel/s |
| Video Memory | Shared Memory |
| HDMI | 7680 x 4320 @60Hz |
| DP | 7680 x 4320 @60Hz |
| DirectX | DX12 Ultimate |
| OpenGL | 4.6 |
| Storage | |
| Memory | 32GB |
| Memory Types | LPDDR5 6400 MT/s |
| Memory Dual Channel | Quad 32-bit Channels |
| Hard Disk Type | M.2 SSD |
| Hard Disk Interface | M.2（Socket 3）× 1 |
| Supported Specifications | M.2 NVMe 2230 × 1 |
| Standard Capacity | 2TB |
| Bus Specification | PCIe 4.0 × 4 |
| Transfer Protocol | NVMe 1.3 / 1.4 |
| Multimedia Support | |
| Audio System | Built-In Audio Chipset |
| Loudspeakers | Equipped With 2 Built-In Hyper-Linear Speakers, Both Headphones And Speakers Support DTS: X Ultra Sound Effects, Which Can Simulate The Sound Effects Of A Physical 7.1 Channel |
| Microphone | Microphone |
| Network Communications | |
| Wi-Fi 6 | IEEE 802.11 a/b/g/n/ac/ax, Support 2.4G/5G Dual Frequency Band, Dual Channel Maximum Transmission Rate 2402Mbps |
| MU-MIMO | Supports |
| Bluetooth | 5.2 |

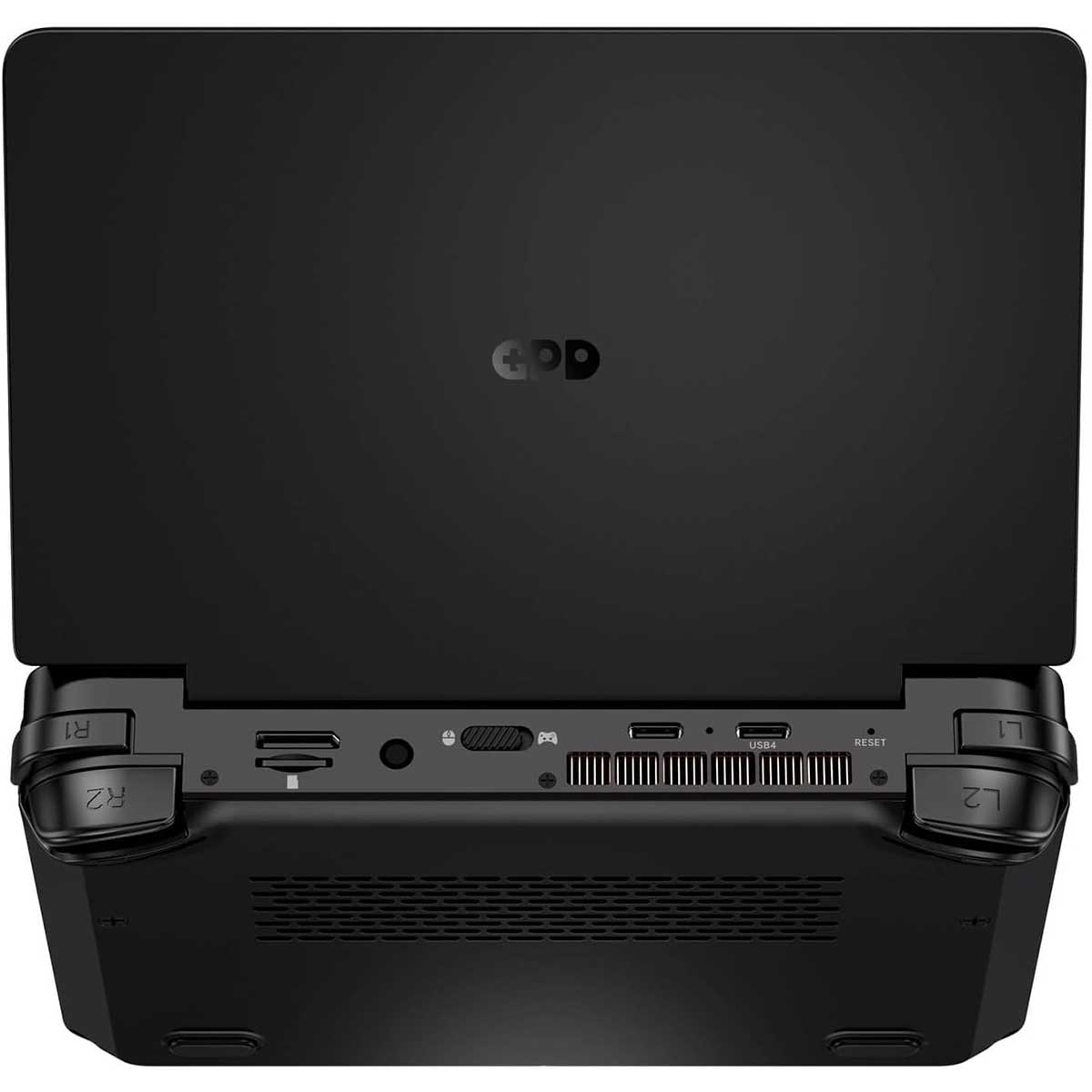

| I/O Interface | |
| Video / Data / Charging | USB4 (40Gbps) × 1 |
| USB 3.2 Gen 2 Type-C (10Gbps) × 1 | |
| Oculink (SFF-8612) × 1 | |
| microSD Slot | SD 3.0 Protocol |
| Bus interface: UHS-I | |
| Video Speed Class: V30 | |
| I/O Performance: A2, Theoretical Speed: Read 160MB/s, Write 120MB/s | |
| Compatible: microSDHC / microSDXC / microSDUC | |
| Audio Port | 1 x 3.5mm Headphone/Microphone Combo Jack, Compatible With Apple Headphones (US version) |
| BIOS Reset Port | Supports |
| I/O Device | |
| Power Switch | Power Button |

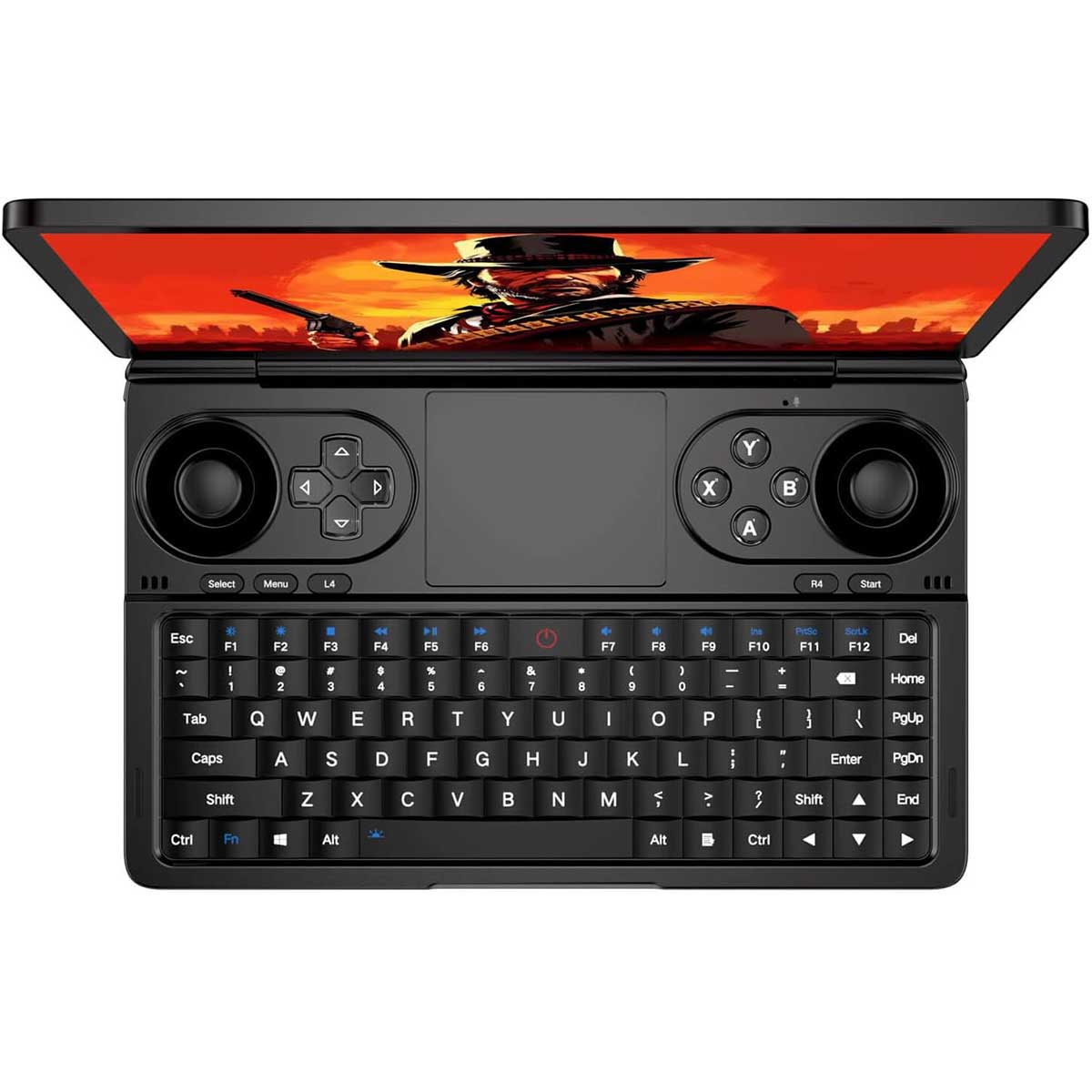

| Keyboard | QWERTY Full Keyboard, Scissor-Switch Keys, Backlit Design |
| Indicator Lamp | Charging Indicator Light |
| TouchPad | Precision Touchpad (PTP Mode), Supports Up To 4-Finger Gestures |
| Mouse | Joystick For Simulating Mouse, Requires Switching Between "Gamepad/Mouse" Modes |
| Joystick | Hall Effect Joystick, Infinite, Ultra-Linear, No Dead Zone, Recessed Design, Supports L3/R3 When Pressed Down |
| Programmable Key | L4 and R4 Are Programmable Macro Keys |
| Game Accessories Buttons | L1 And R1, L2 And R2 Are Linear Analog Trigger Buttons |
| Game Function Buttons | ABXY, △○×□ Dual-Character Silk-Screen, Select Button, Start Button, Menu Button (Xbox) |
| D-Pad | Integrated Directional Pad |
| Handle Vibration | Dual-Linear Motor |
| Sensor | 6-Axis Design: 3-Axis Accelerometer, 3-Axis Gyroscope |
| Other Keys | "Gamepad/Mouse" Mode Switch Button |
| Battery | |
| Battery Type | Lithium Polymer Battery |
| Battery Capacity | 44.24Wh |
| Battery Life | Heavy Use For 3 Hours, Moderate Use For 6-8 Hours, Light Use For 14 Hours, Depending On The Specific Usage Environment |
| Appearance | |
| Weight | 520g |
| Size | 168×109×26 mm |
| Shell Material | Aluminum alloy material and PC material |
| Shell Color | Black |
| Thermal Design | Active Cooling, Fan + Heat Pipe |
