Description
TECHNICAL SPECIFICATIONS
|
Display |
|
|
Touch Panel |
Yes |
| Screen Type | Corning Gorilla Glass 5，H-IPS Technology |
| Screen Size | 5.5 Inches |
| Aspect Ratio | 16：9 |
| Screen Resolution | 1280×720 |
| Pixels Per Inch | 268PPI |
|
CPU |
|
|
Product model |
Intel Core i7-1195G7 |
| # of Cores / # of Threads | 44412 |
| Processor Base Frequency | 2.90 GHz |
| Turbo Boost | 5.00 GHz |
| Level 2 | 5 MB |
| Level 3 | 12 MB | 8 MB |
| Bus Speed | 4 GT/s OPI |
| Core Architecture | Tiger Lake-U |
| Lithography | 10nm |
| TDP | Three levels: 15-20W, 20-25W, 25-28W, Adjusted in BIOS |
|
GPU |
|
|
Graphics Card |
Integrated Graphics |
| Processor Graphics | Intel Iris Xe Graphics |
| Graphics Base Frequency | 400 MHz |
| Graphics Max Dynamic Frequency | 1400 MHz |
| Execution Unit | 96 EUs |
| Video Memory | Shared Memory |
| 4K Image resolution | Yes |
| HDMI 2.0b | 4Kx2K @48-60Hz 24bpp (RGB/YUV444), 4Kx2K @48-60Hz 12bpc (YUV420) |
| DP 1.4， eDP 1.4b | eDP: 4096x2304@60Hz 36bpp, DP: 7680x4320@60Hz 24bpp |
| DirectX | DX12.1 |
| OpenGL | 4.6 |
|
Storage |
|
|
Memory |
16GB |
| Memory Types | LPDDR4x-4266 |
| Memory Dual Channel | Yes |
| Hard Disk Type | M.2 SSD |
| Hard Disk Interface | Socket 3 |
| Hard Disk Specifications | PCIe 3.0/4.0 M.2 2280, Only Supports Single-Side Device Layouts |
| Standard Capacity | 1TB, Replaceable, No Capacity Limit |
| Bus Specification | PCIe Gen 4.0 × 4 |
| Transfer Protocol | NVMe 1.3 / 1.4 |
|
Multimedia support |
|
|
Audio System |
Built-in Sound Chip |
| Loudspeakers | Built-in Dual Speakers |
| Microphone | Built-in microphone |
|
Network Communications |
|
|
Wi-Fi |
Wi-Fi 6 |
| MU-MIMO | Yes |
| Wired network card | 10/100/1000Mbps Ethernet card (Integrated in The Base) |
| Bluetooth | 5 |
|

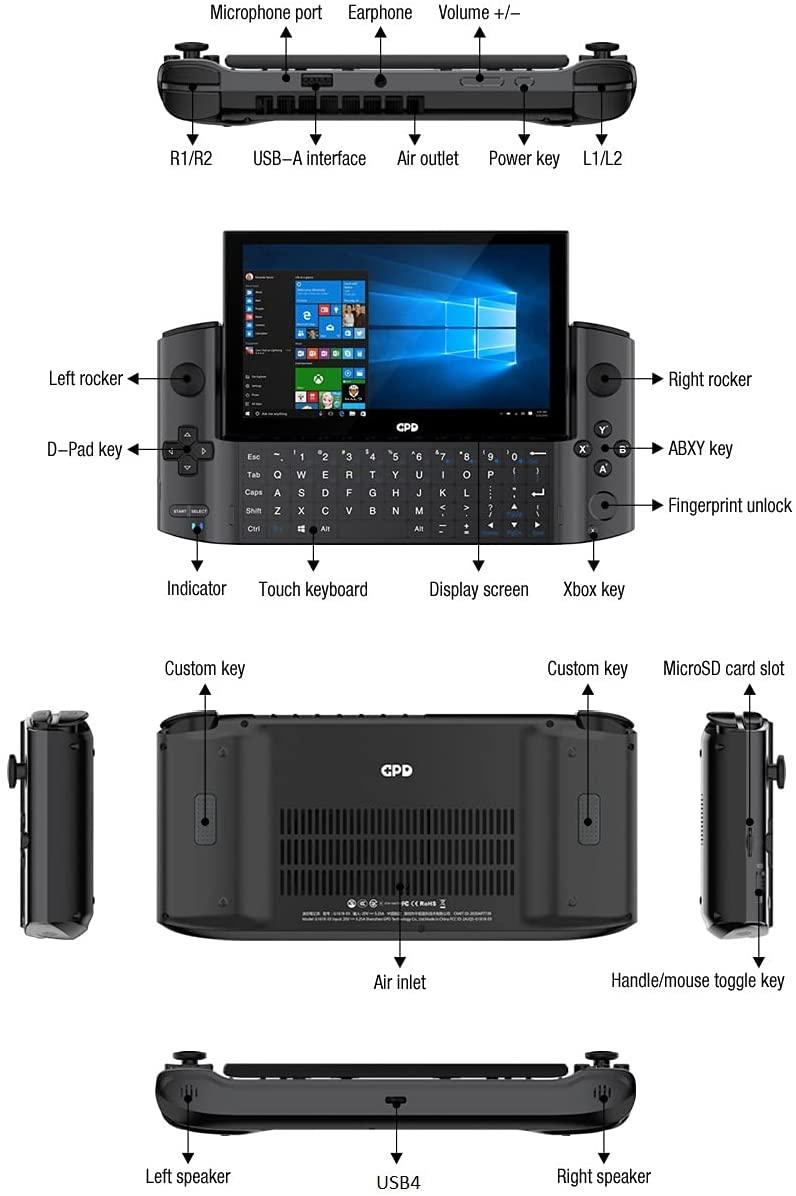

I/O Interface |
|
|
Data / Charging |
1×USB4 (Full Speed), 1×USB 3.2 Gen 2 Type-C, 4×USB 3.2 Gen 2 Type-A |
| microSDXC Slot | Supports |
| Video Interface | 1×USB4 (Full SpUSBeed), 1×HDMI 2.0b (IProvided By The Base) |
| Ethernet Interface | 1×RJ45 (Provided By The Base) |
| Audio Port | 1×3.5mm Headphone/Microphone Combo Interface, Compatible With Apple Headphones (US Specification) |
|
I/O Device |
|
|
Keyboard |

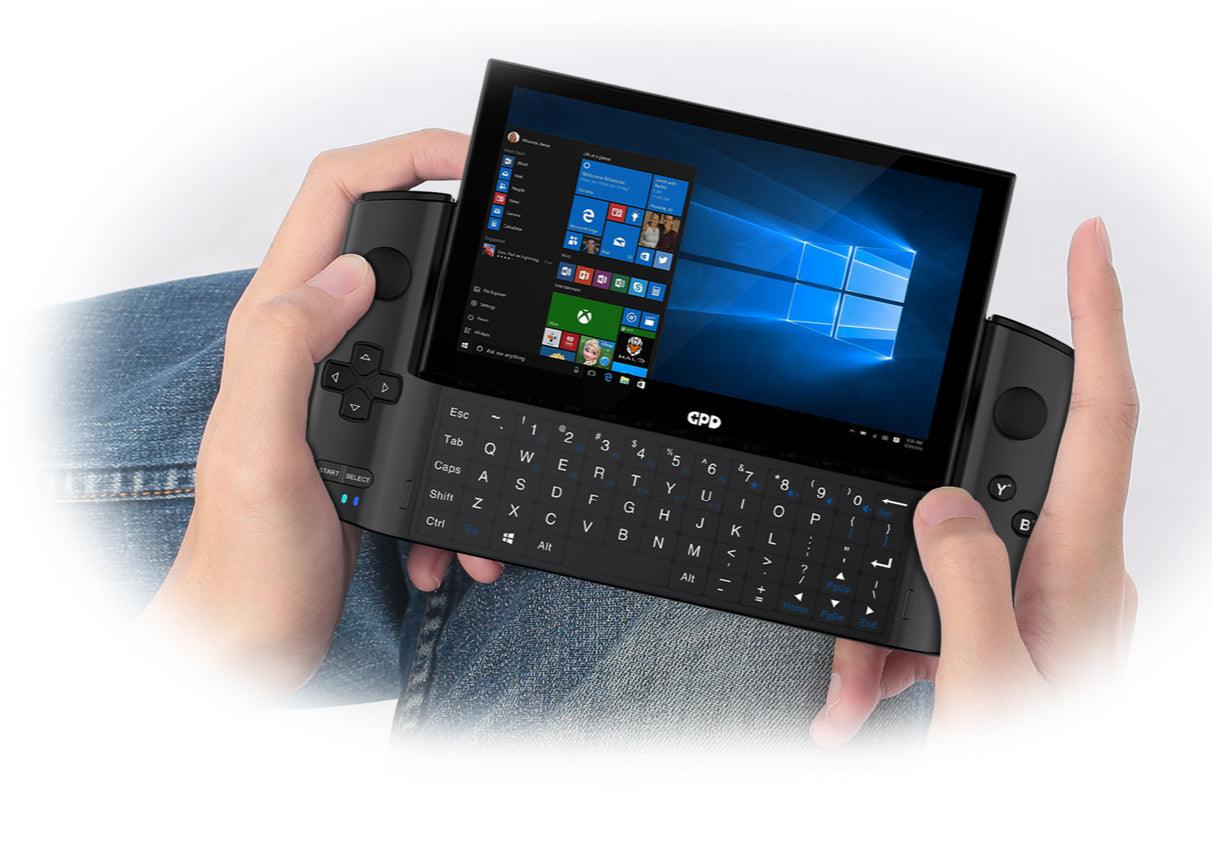

White Backlit Touch Keyboard (Hidden), QWERTY Keyboard Design |
| Mouse | The Joystick Simulates A Mouse, Requires Switching The Mode Handle/Mouse |
| Fingerprint Recognition | Yes |
| Joystick | ALPS Original Dual 3D Joysticks, Natively Supports L3/R3 |
| D-Pad | Siamese Arrow Keys |
| Game Function Buttons | ABXY、△○×□Double Character Print, Select, Start, Xbox Controller Home |
| Game Accessories Buttons | L1/L2/R1/R2 (L2/R2 Are The Analog Signal Buttons), Panasonic Micro Switch |
| Handle Vibration | Double Vibration Motor |
| Other Keys | Volume +/- Buttons, Power Button, Gamepad/Mouse Switch Button, 2 Custom Physical Buttons |
| Speaker | 2 Pcs |
| Indicator Lamp | Charging Indicator, Running Indicator |
|
Battery |
|
|
Battery Type |
Li-polymer |
| Battery Capacity | 45.62Wh, 11.55V==3950mAh×3 Series |
| Battery Life | 3 Hours Of Heavy Use, 6-8 Hours Of Moderate Use, 14 Hours Of Light Use, Depending On The Specific Environment Of Use |
|
Appearance |
|
|
Net Weight |
560g |
| Length | 198mm |
| Width | 92mm |
| Thickness | 27mm |
| Shell Material | LG-DOW 121H Aviation ABS, UL94-V0, Magnesium Alloy |
| Shell Color | All Black |
| Thermal Design | Active Cooling, Big Fan + Dual Heat Pipe |
| Sensor | Hall Sensor，G-sensor |
