Description
BLACK COATED MICRO WAVE HEATSINK FIN
Specially designed micro wave on the aluminum fin provides even bigger heat dissipation area.

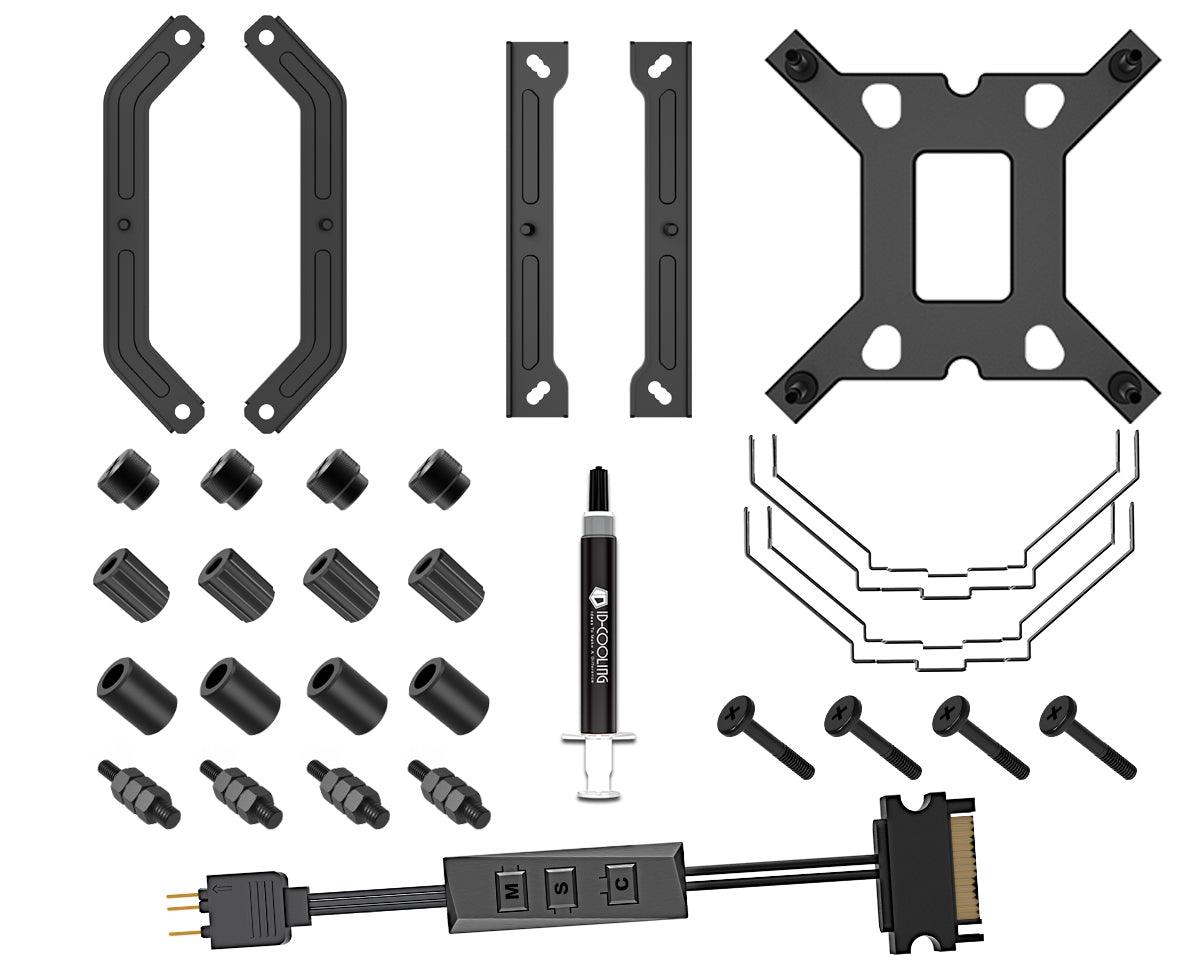

METAL-MECHA (LGA1700 COMPATIBLE)
Metal mounting kit for both Intel and AMD provides secure cooler mounting, even during rude shipment.
100% MEMORY COMPATIBILITY
Specially tilt heatsink design offers 100% memory compatibility on all motherboards.
2 BALL BEARING FOR LONG LIFESPAN
Developed with 2 ball bearing, the DF-12025-ARGB-XT fan provides excellent PWM curve to cool the heatsink and maintain a long lifespan

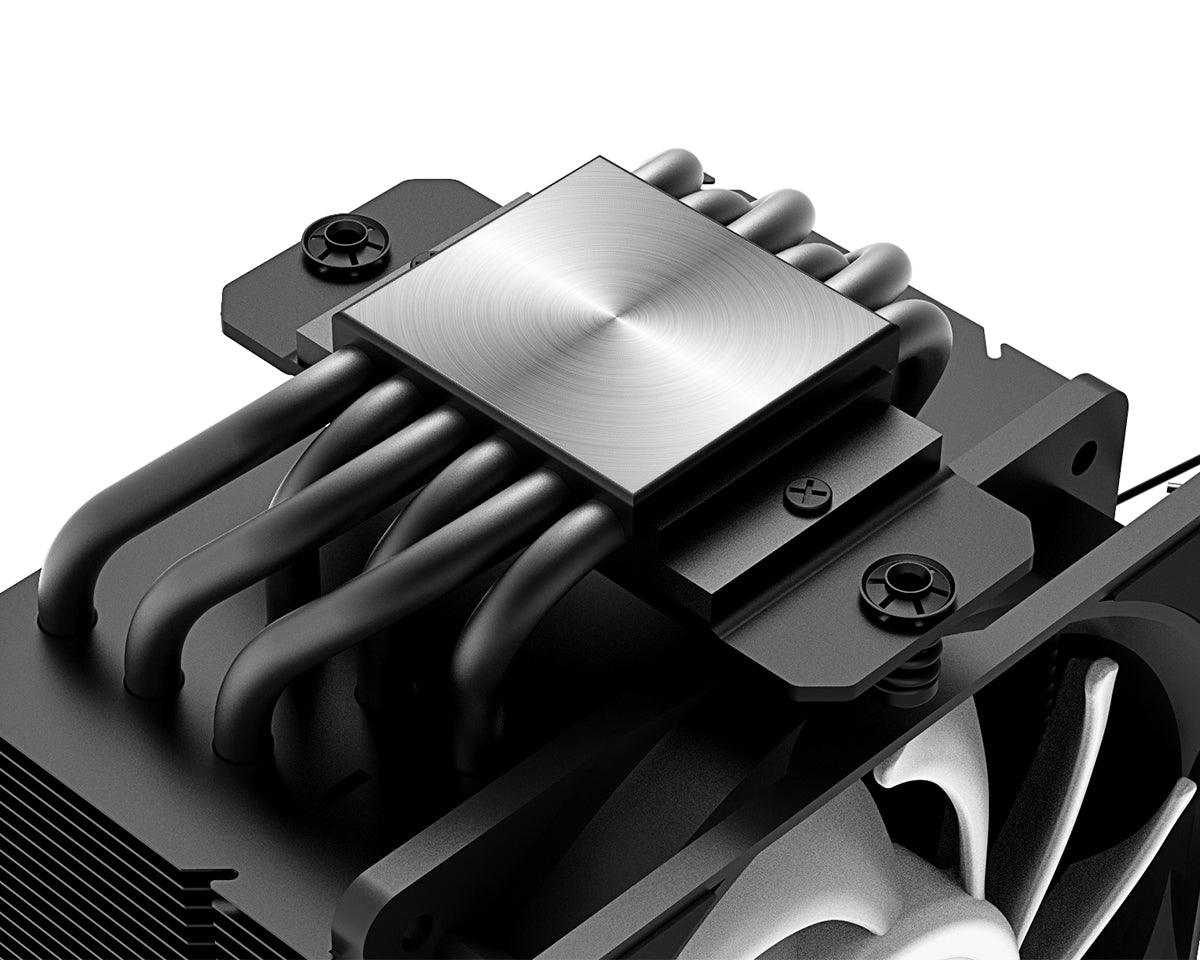

COPPER BASE | SOLID SOLDERED | CD MACHINED
Pure copper base is accurately soldered with the 6 copper heatpipes. Which CD machined flat surface, it touches the CPU evenly and conduct heat extremely fast.
MOTHERBOARD ARGB SYNC
Synchronize with Asus Aura, Gigabyte RGB Fusion, MSI Mystic Lighting, AsRock Polychrome 5V 3Pin ARGB lighting system.
Specifications :
| Compatibility | Intel LGA1700/1200/2066/2011/1151/1150/1155/1156 AMD AM5/AM4 |
| TDP | 250W |

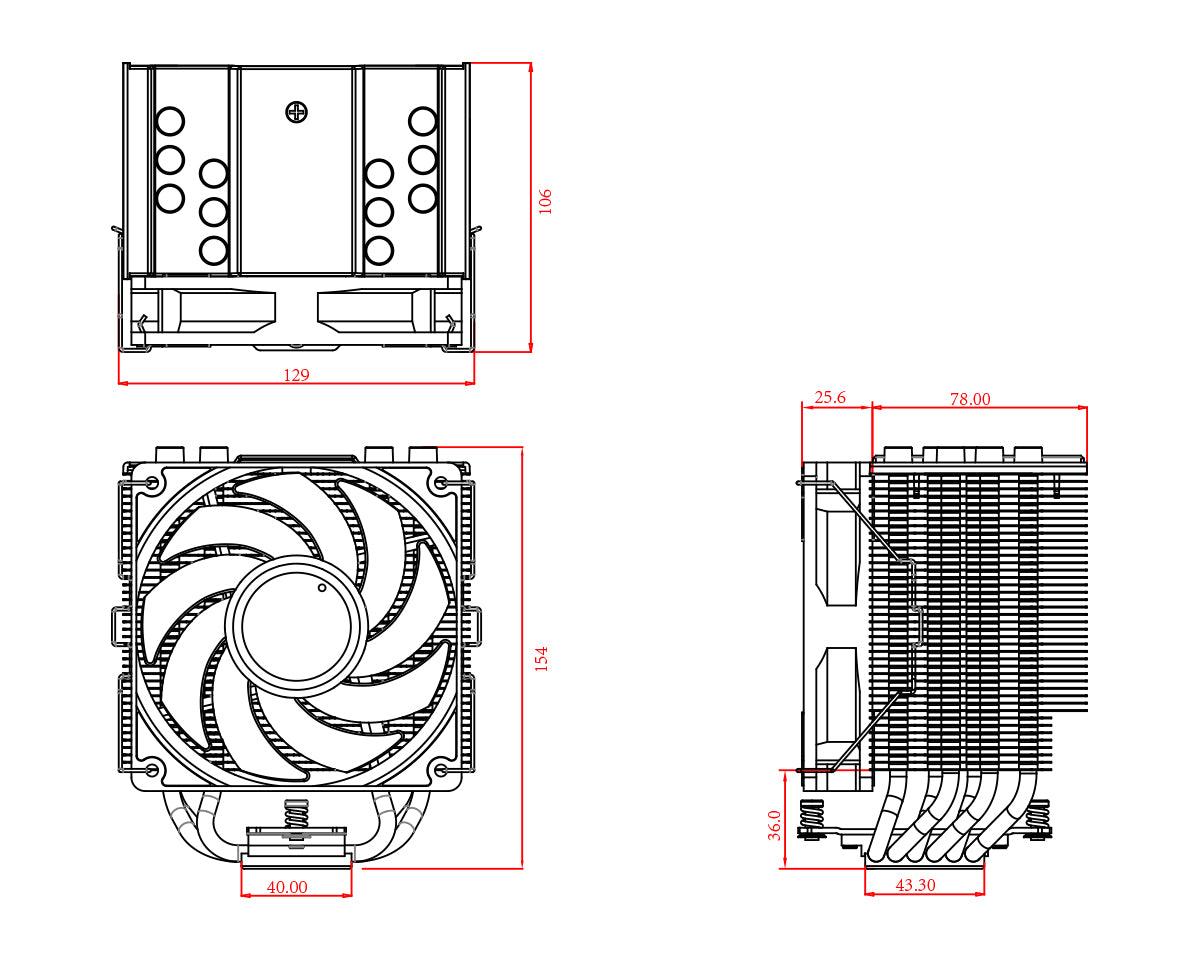

| Overall Dimension | 129×106×154mm (L×W×H) |
| Heatsink Material | 6×6mm Heatpipe+Copper Base+Aluminum Fin |
| Weight | 1300g |
| Fan Dimension | 120×120×25mm |
| Fan Speed | 900±200~2000±10%RPM(PWM)(RGB) |
| Max. Air Flow | 56.5CFM |
| Max. Static Pressure | 1.99mmH2O |
| Noise | 16.2-31.5dB(A) |
| Rated Voltage | 12VDC (4pin PWM) / 5V (3pin ARGB) |
| Operating Voltage | 10.8～13.2VDC |
| Started Voltage | 7VDC |
| Rated Current | 0.25A |
| Power Input | 3W |
| Bearing Type | 2Ball Bearing |
| Connector | 4Pin PWM / 5V 3Pin ARGB |
