Description
WHITE FROM TOP TO BOTTOM

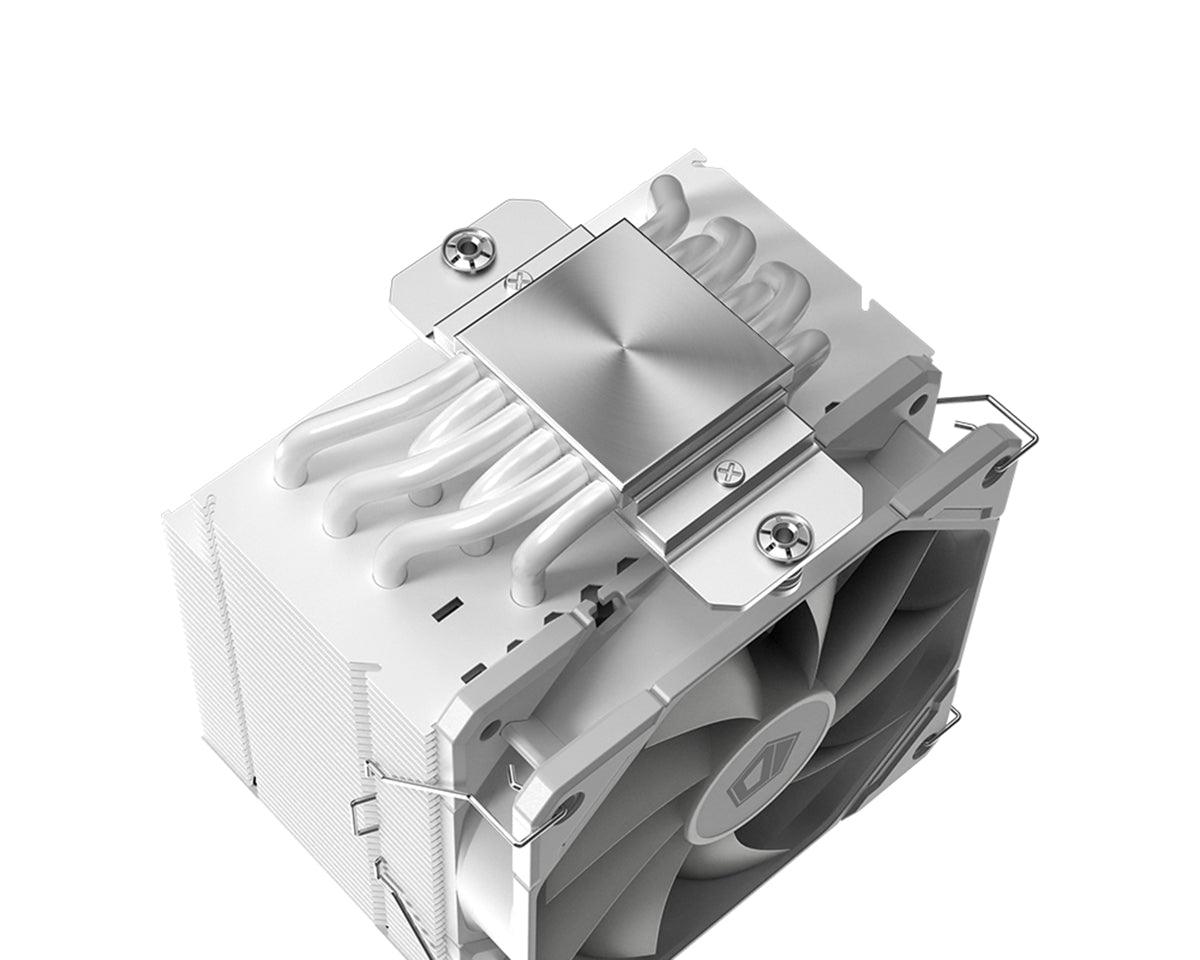

To maximize the airflow through the heatsink, fins are arranged in an X shape
COPPER BASE | SOLID SOLDERED | CD MACHINED
Pure copper base is accurately soldered with the 6 copper heatpipes. Which CD machined flat surface, it touches the CPU evenly and conduct heat extremely fast.
DOUBLE NOISE REDUCTION FAN
It addressed to improve the noise-reducing effect during high fan speed.
100% MEMORY COMPATIBILITY

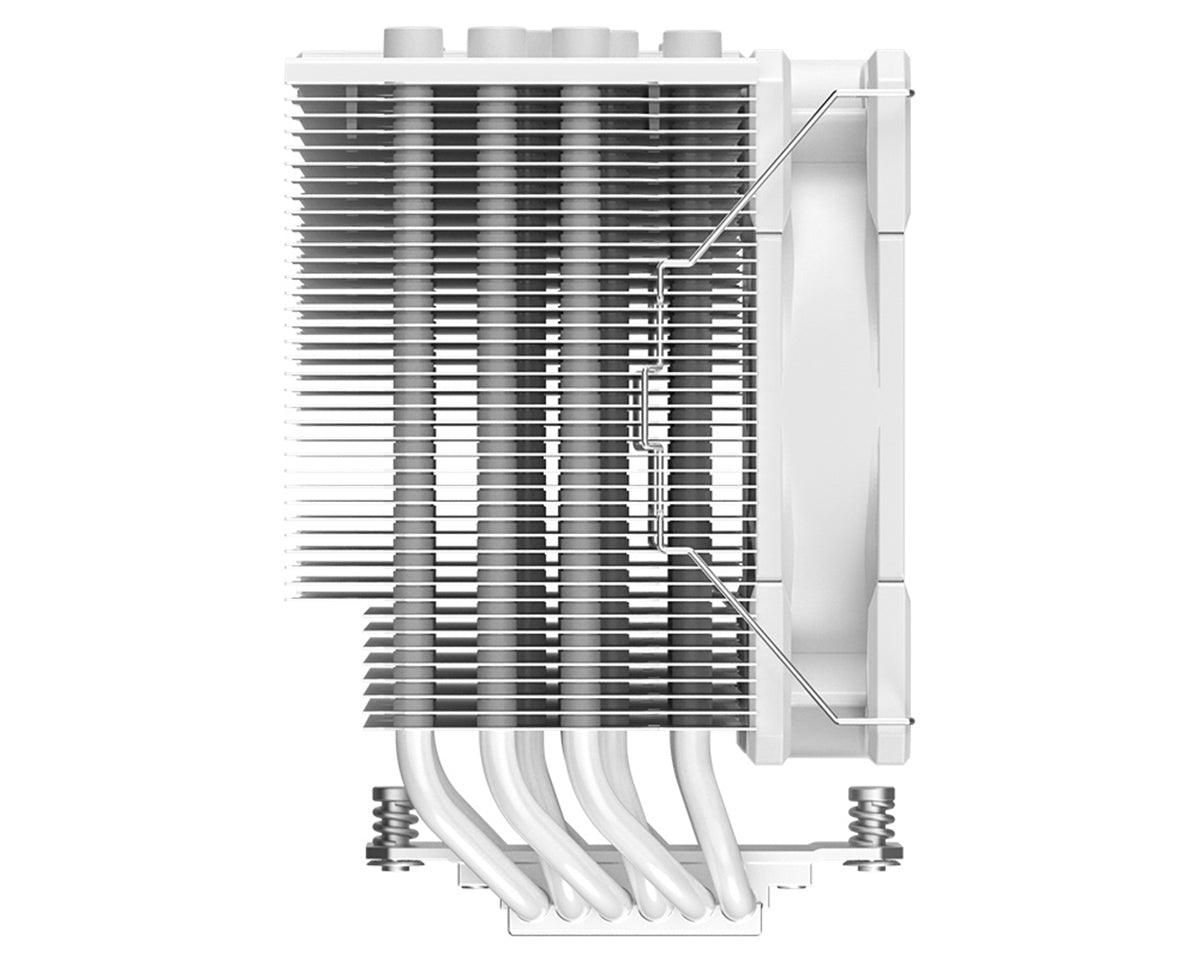

Specially tilt heatsink design offers 100% memory compatibility on all motherboards.

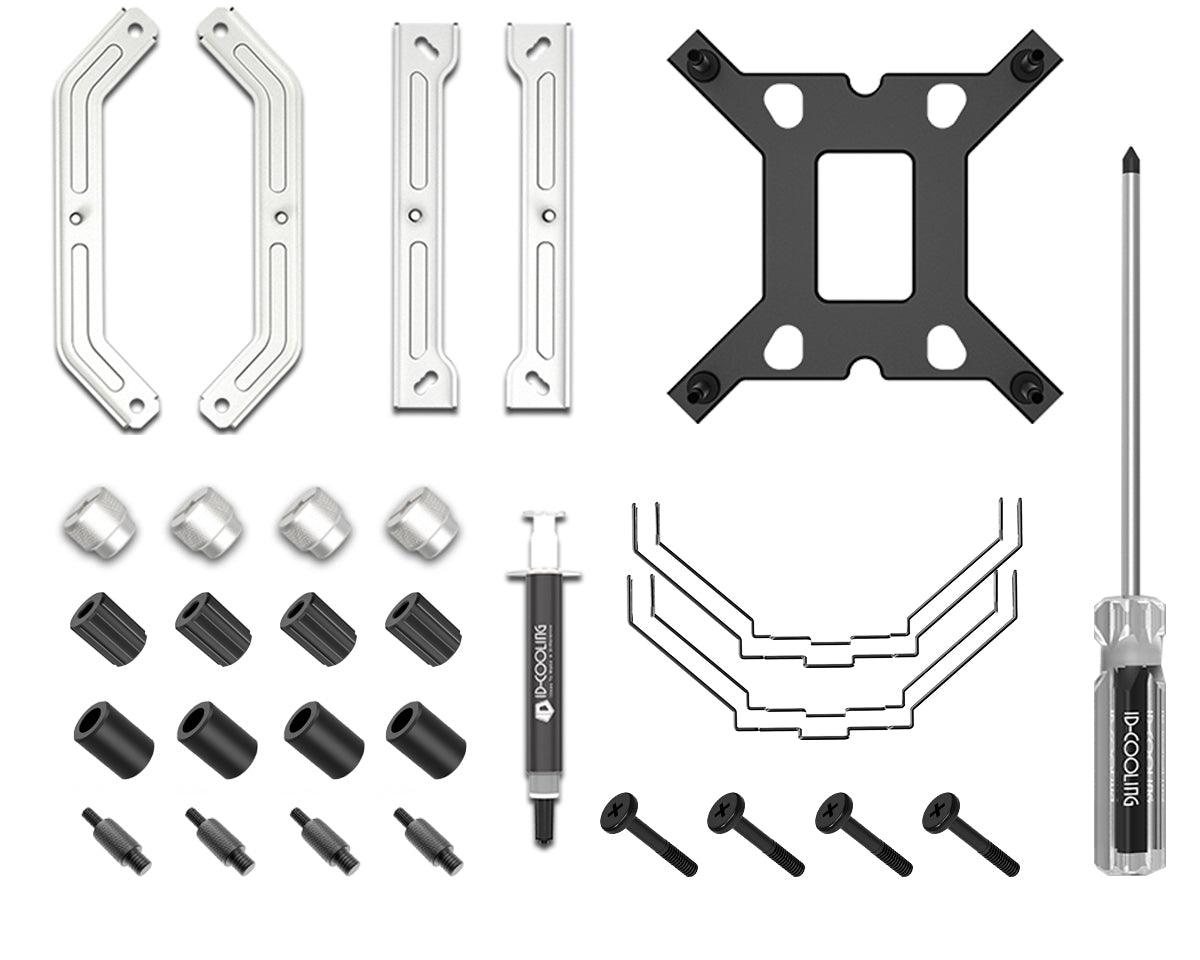

MULTI-PLATFORM SIMPLICITY
The all-metal mounting bracket kit provides a sturdy and easy installation process for both Intel and AMD platforms with additional tools included.
Specifications :
| Compatibility | Intel LGA2066/2011/1700/1200/1151/1150/1155/1156 AMD AM5/AM4 |
| TDP | 250W |
| Overall Dimension | 129×106×154mm (L×W×H) |
| Heatsink Material | 6×6mm Heatpipe+Copper Base+Aluminum Fin |
| Weight | 1300g |
| Fan Dimension | 120×120×25mm |
| Fan Speed | 500~1500±10%RPM(PWM)(ARGB) |
| Max. Air Flow | 68.2CFM |
| Max. Static Pressure | 1.87mmH2O |
| Noise | 13.8-30.5dB(A) |
| Rated Voltage | 12VDC (4pin PWM) / 5V (3pin ARGB) |
| Operating Voltage | 10.8～13.2VDC |
| Started Voltage | 7VDC |
| Rated Current | 0.25A |
| Power Input | 3W |
| Bearing Type | Hydraulic Bearing |
| Connector | 4Pin PWM / 5V 3Pin ARGB |
