Description

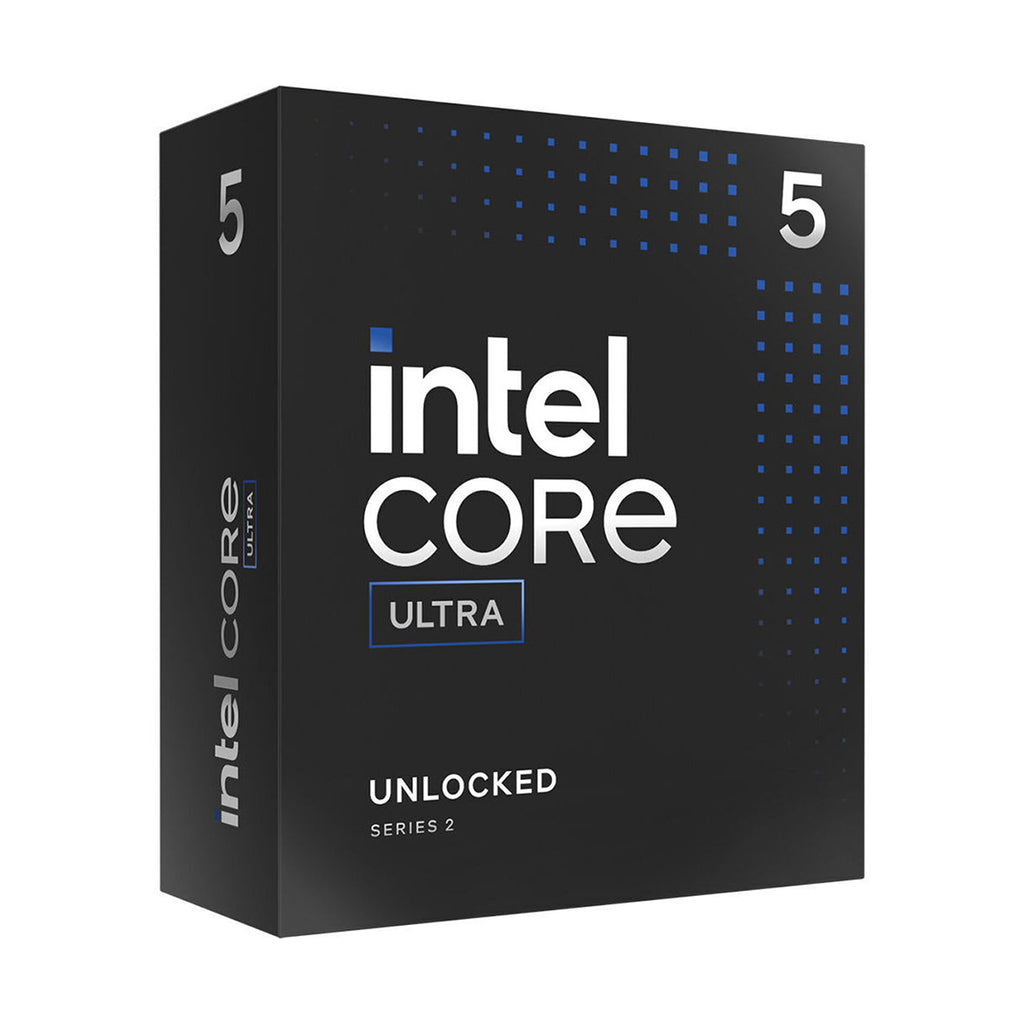

The Intel Core Ultra 5 245K is a mid-range processor from Intel's Arrow Lake series, utilizing a 3nm architecture. It features a hybrid core design with 6 Performance cores (P-cores) and 8 Efficiency cores (E-cores), offering a total of 14 cores and 20 threads. Its clock speeds include a base frequency of 3.6 GHz (P-cores) and boost frequencies up to 5.2 GHz (P-cores) and 4.6 GHz (E-cores). This processor comes equipped with 24 MB of L3 cache and has a 159W TDP.
Specifications:
| Product Collection | Intel® Core™ Ultra Processors (Series 2) |
| Vertical Segment | Desktop |
| Processor Number | 245K |
| Overall Peak TOPS (Int8) | 30 |
| Total Cores | 14 |
| # of Performance-cores | 6 |
| # of Efficient-cores | 8 |
| Total Threads | 14 |
| Max Turbo Frequency | 5.2 GHz |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Performance-core Base Frequency | 4.2 GHz |
| Efficient-core Base Frequency | 3.6 GHz |
| Cache | 24 MB Intel® Smart Cache |
| Total L2 Cache | 26 MB |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 159 W |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| AI Software Frameworks Supported by CPU | OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
| CPU Lithography | TSMC N3B |
| Max Memory Size (dependent on memory type) | 192 GB |
| Memory Types | Up to DDR5 6400 MT/s |
| Maximum Memory Speed | 6400 MHz |
| Max # of Memory Channels | 2 |
| ECC Memory Supported | Yes |
| GPU Name | Intel® Graphics |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.9 GHz |
| GPU Peak TOPS (Int8) | 8 |
| Graphics Output | DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b |
| Xe-cores | 4 |
| Max Resolution (HDMI) | 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL) |
| Max Resolution (DP) | 8K @ 60Hz |
| Max Resolution (eDP - Integrated Flat Panel) | 4K @ 60Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3 |
| Intel® Quick Sync Video | Yes |
