Description

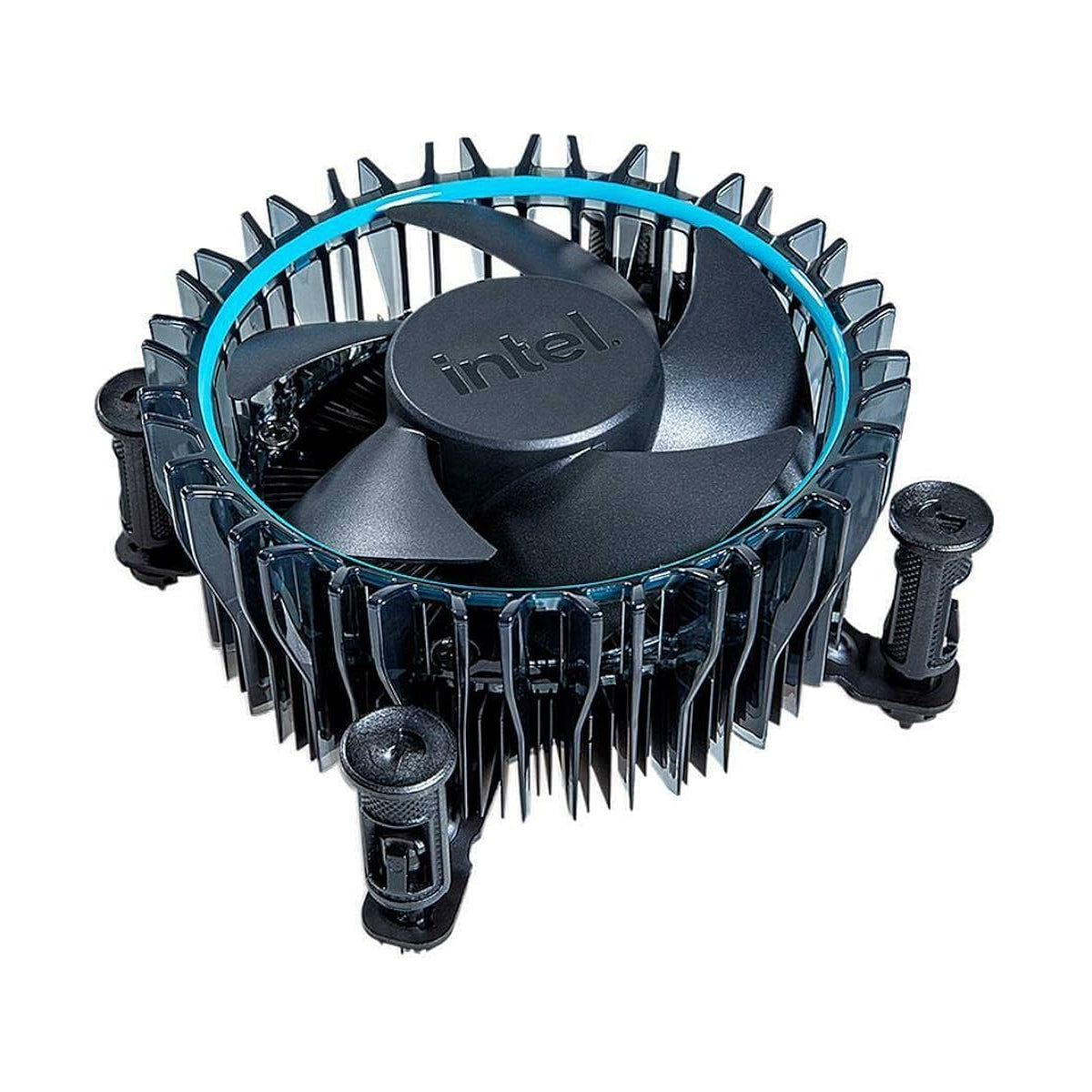

Intel LGA1700 CPU Cooler
* Overall Height: Up to 47mm (top of fan to bottom of heatsink)
* Overall Size: Up to 100mm x 100mm
* Mass: Up to 350g
* Sound Power Level: 3.9 BA (2400 RPM, 40C inlet, 65W); 4.6 BA (max RPM)
* Sound Pressure Level: 29 dBA (2400 RPM, 40C inlet, 65W)
* TDP Support: Up to 65W (12th Gen Intel® Core™ Desktop Processors)
* Fan Type: PWM controlled variable speed fan
* Connector Type: 4-pin
* Operating Voltage: 13.2V max, 12.0V rated, 10.8V min
* Current (peak): Up to 400mA
* Max RPM: (+/- 5%) Up to 3150 RPM
* Min RPM: (+/- 20%) 600 RPM
* Operating Temp: 0 to 70C
* Operating Humidity: 85% relative humidity @ 55C
* Fan Protection: Locked-rotor/polarity protected
* Sense Frequency: 2 pulses/Rev, 12V pull-up with 10Kohm
* PWM Frequency: 25KHz +/- 5KHz
* PWM Pull-up Voltage: 5.25V max
* PWM Duty Cycle Range: 0–100%
