Description
Approach to Noise Reduction
The noise of an All-In-One liquid cooling radiator is difficult to control. The main reason is because of the way the high airflow sounds when it runs through the traditional radiator fins. To combat this, the SR series feature the AJF120 fans to provide the best operation performance, while reducing noise pollution.
Array of Microchannel Fins
The SR series possesses a high waterflow pump, which enhances cooling performance directly on the copper plate to cool the CPU. The copper plate hosts an array of microchannel fins that dissipates heat.
Syncs with Addressable Motherboards
There are about 16.8 million ARGB color possibilities, which means the AJF120 case fans allow the customization to meet your build’s standards. Users can choose to control lighting independently by using the One-Click controller included or to sync with an addressable motherboard (3-pin, 5V).
SPECIFICATION
| Model | SR24 | |
| Model Number | IW-LC-SR24 | |
| CPU Socket Support | Intel® LGA 2066/2011-V3/2011/1366/1156/1155/1151/1150/1200 AMD® AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1/TR4 |
|
| Radiator | Dimensions | 277 x 120 x 27 mm (10.9 x 4.7 x 1.1") |
| Material | Aluminium | |
| Tube Length | 400 mm | |
| Tube Material | Rubber with Nylon Braided Sleeve | |
| Water Block & Pump | Dimensions | 68 x 68 x 100 mm |
| Materials | Copper, Plastic | |
| Pump Speed | 2400±10%RPM | |
| Fan | Model | Jupiter Series AJF120 |
| Quantity Included | 2 PCS | |
| Dimensions | 120 x 120 x 26 mm | |
| Speed Mode (PWM) | PWM 500-2500 RPM +/- 10% | |
| Noise Level | 23 dBA (normal) | |
| Airflow | 101.5 CFM (max) | |
| Static Pressure | 4.22 mm-H2O | |
| Connectors | 4-pin (12V, PWM) , 3-pin (5V, ARGB) | |
| Bearing Type | Double Ball Bearing | |

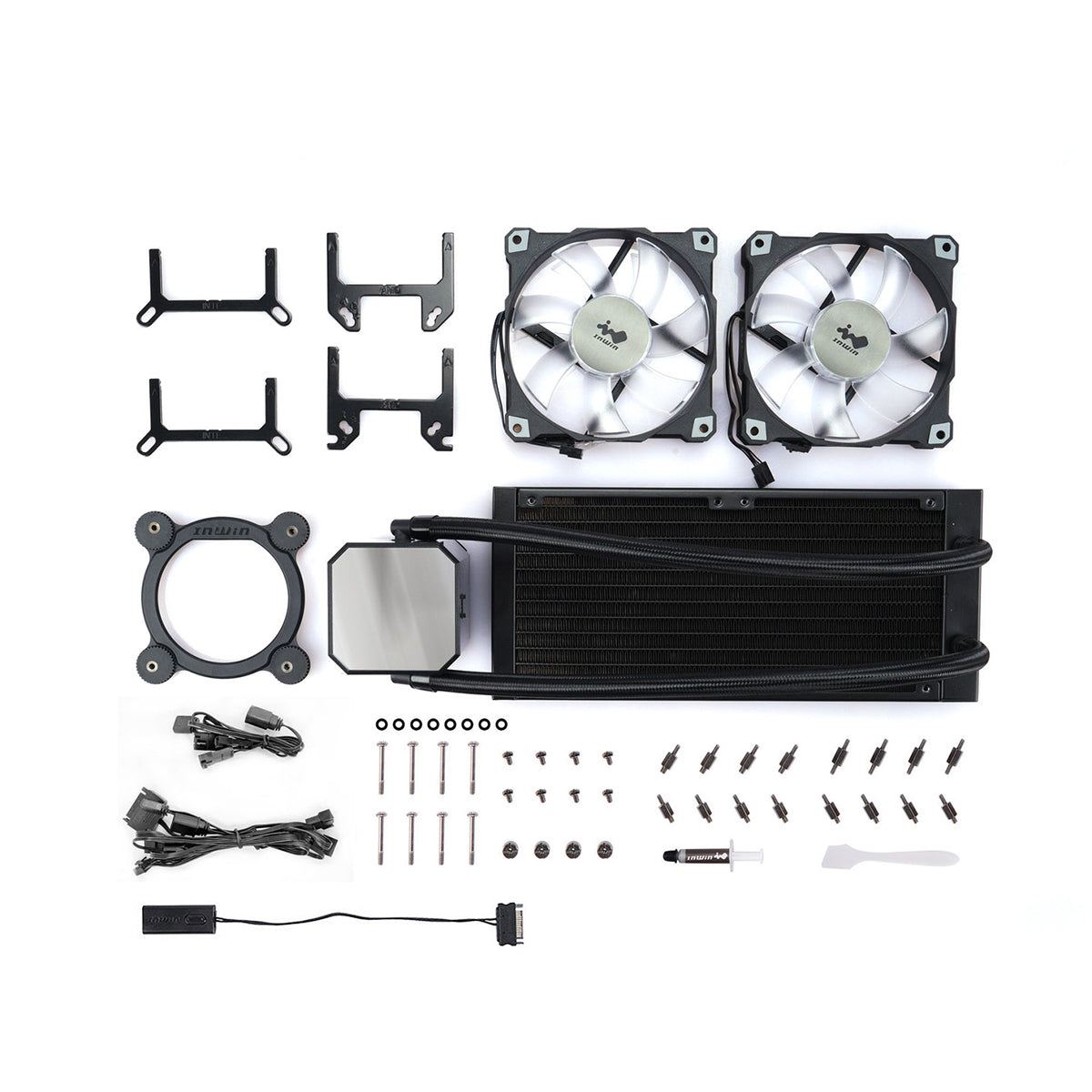

| Package Contents | InWin SR series 240mm CPU Liquid Cooler *1 | |
| InWin AJF120 Addressable Fan * 2 | ||
| ARGB One-Click Controller | ||
| Fan and Radiator Mounting Screws Pack | ||
| Mounting Kit for CPU Sockets | ||
| Cable Pack | ||
| Package Dimensions (H x W x D) | 136 x 265 x 331 mm (5.4" x 10.4" x 13") | |
