Description

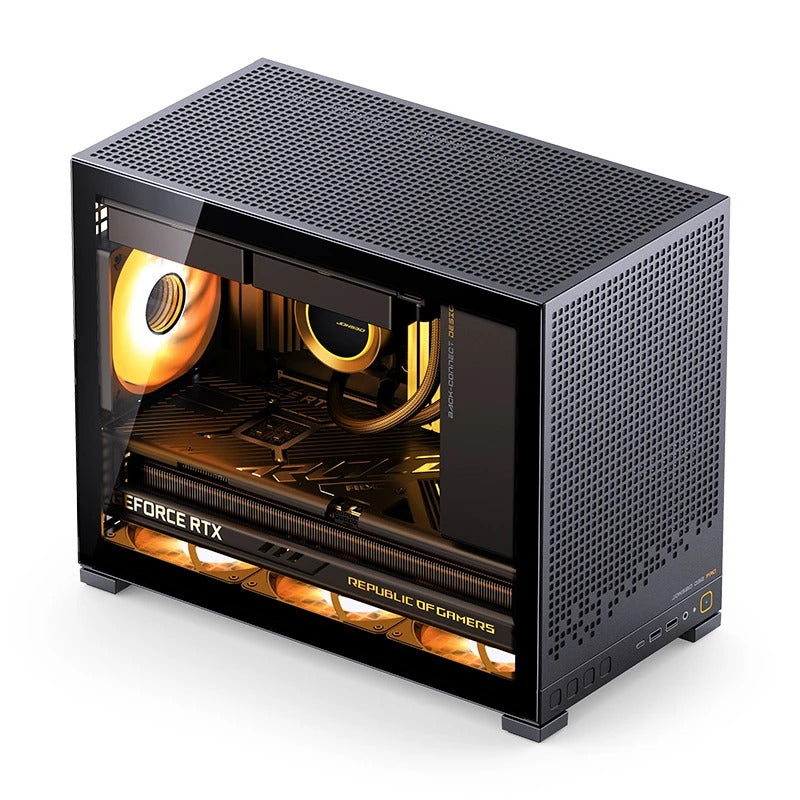

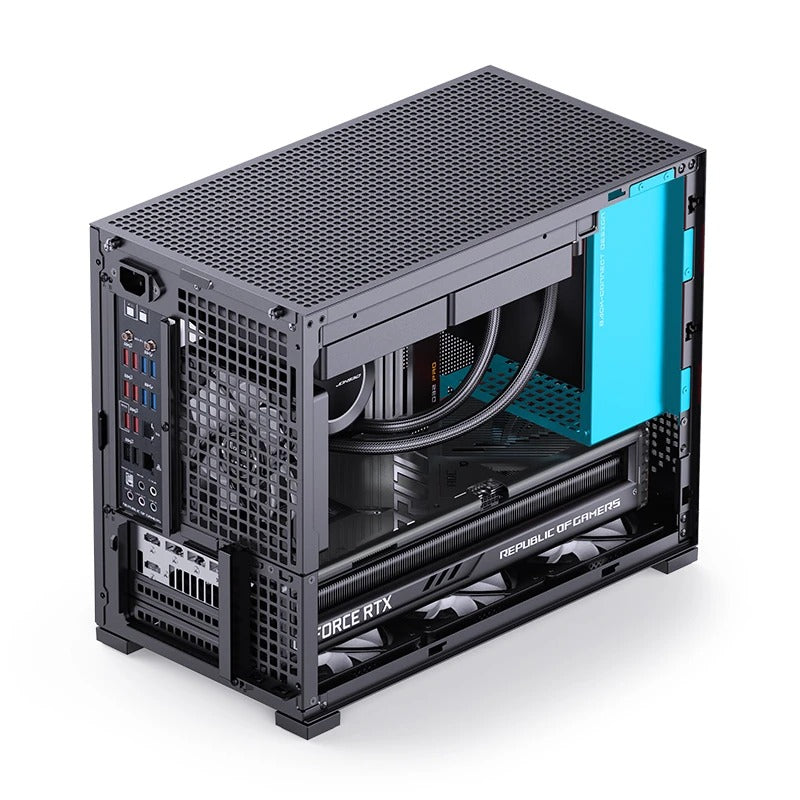

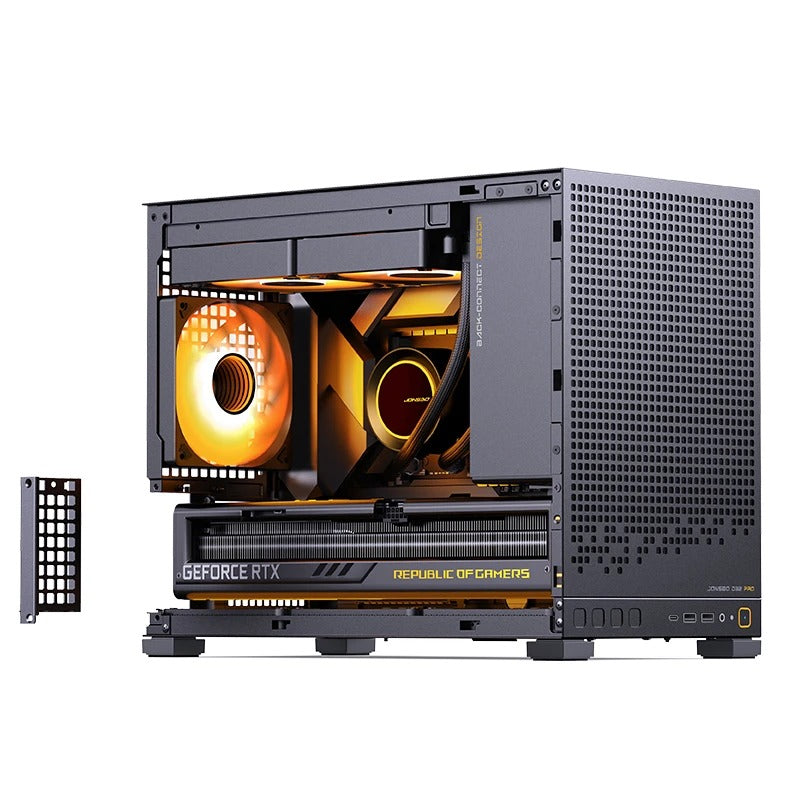

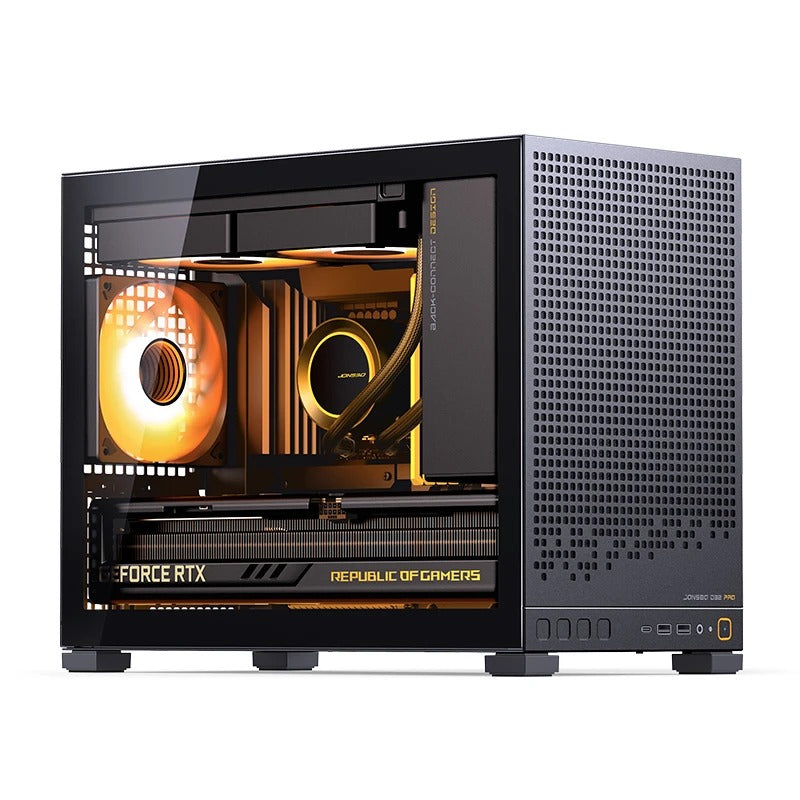

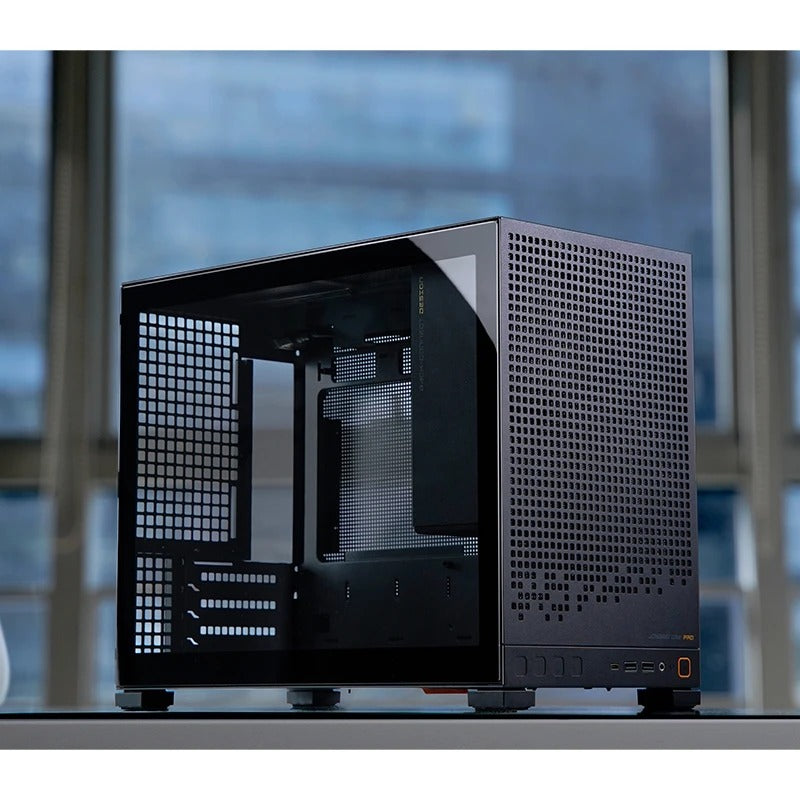

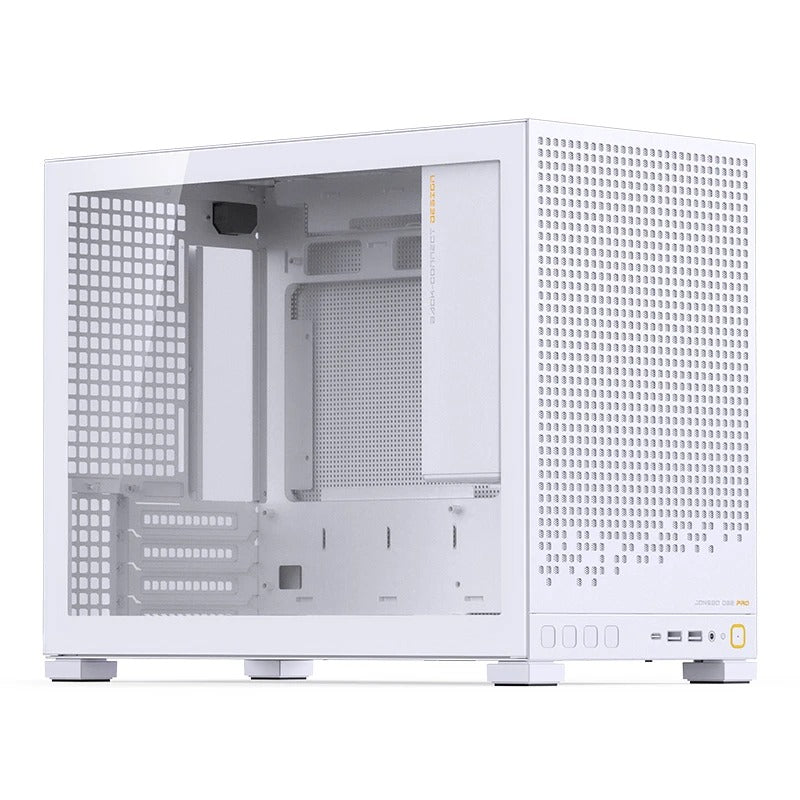

Build a powerful, space-efficient PC with the D32 PRO MESH Compact PC Case, designed to accommodate modern gaming and productivity hardware in a compact chassis. Featuring a mesh design and a durable 0.7mm + 0.8mm SPCC steel construction, the D32 PRO MESH combines a clean appearance with flexible component compatibility for customized PC builds.

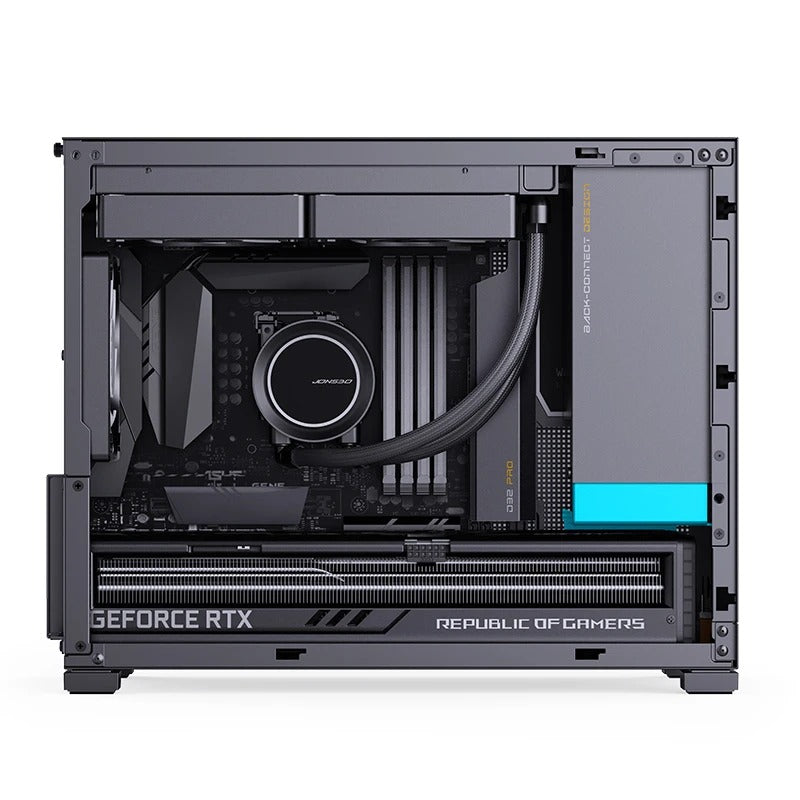

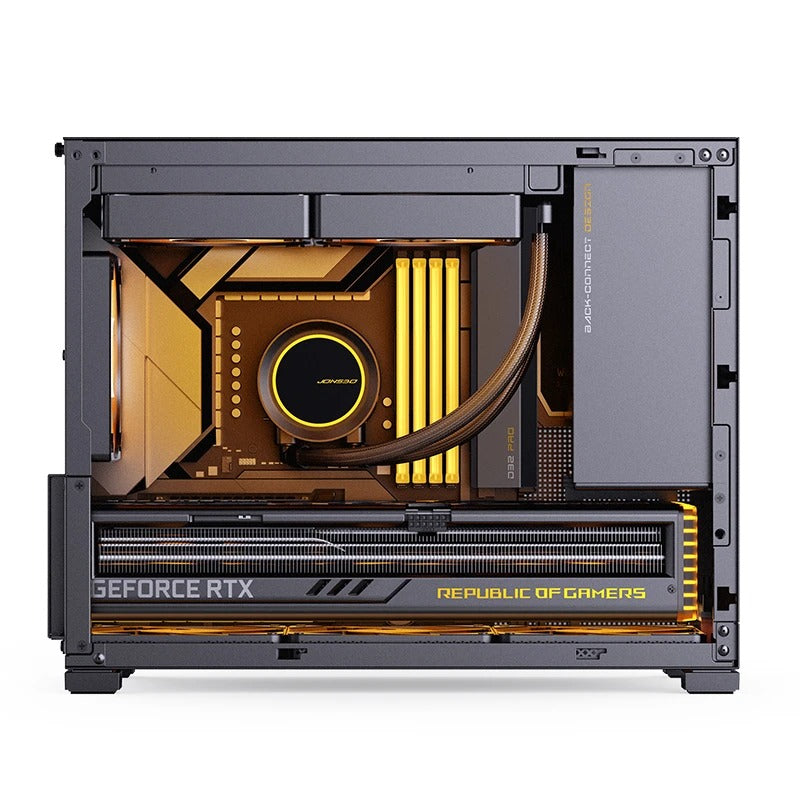

Supporting Mini-ITX and Micro-ATX motherboards, including compatible back-connect Micro-ATX configurations, this case offers versatile hardware installation options. With support for graphics cards up to 365mm, multiple fan mounting positions, and a top radiator mount for up to 240mm, it provides a flexible foundation for compact gaming systems and performance-oriented desktop builds.

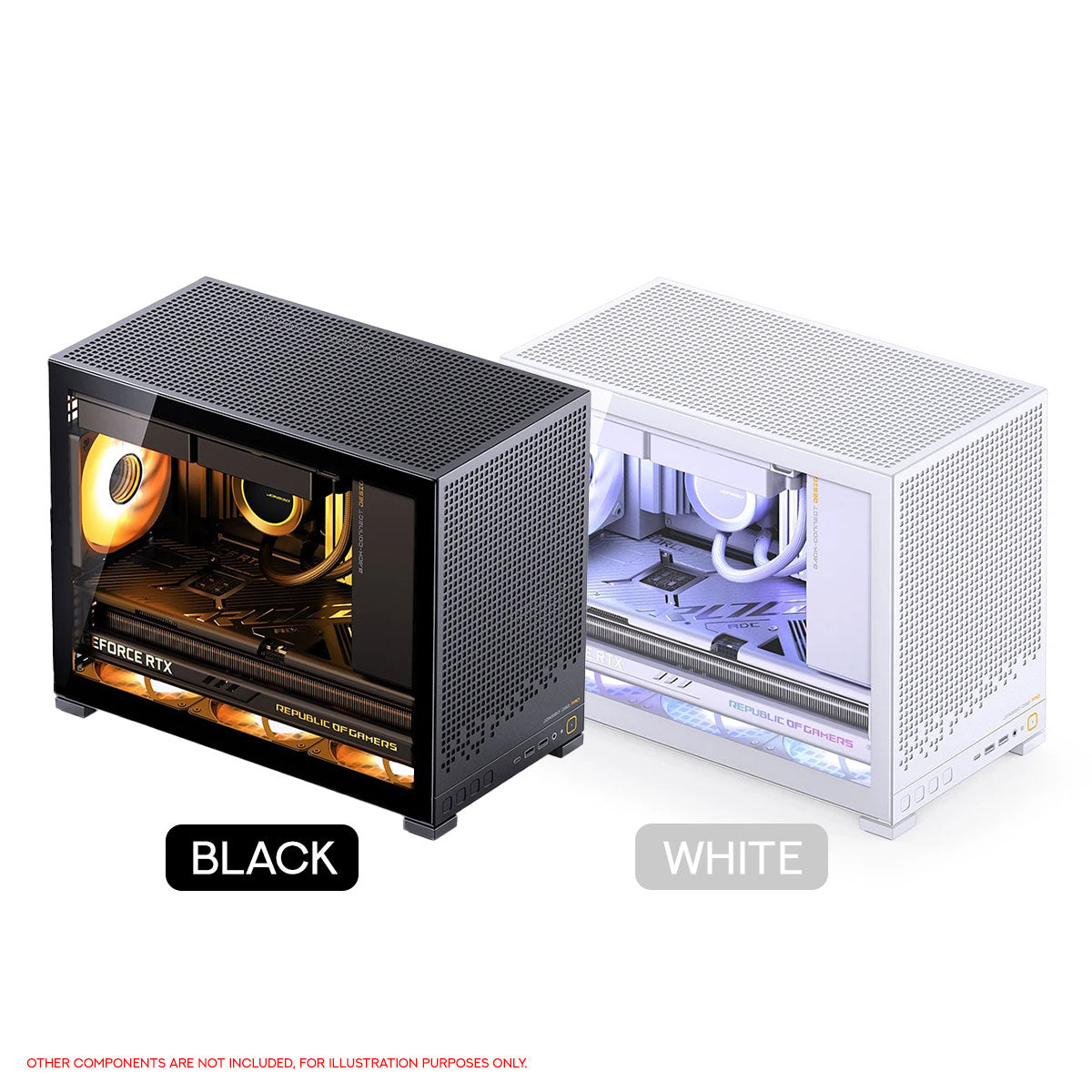

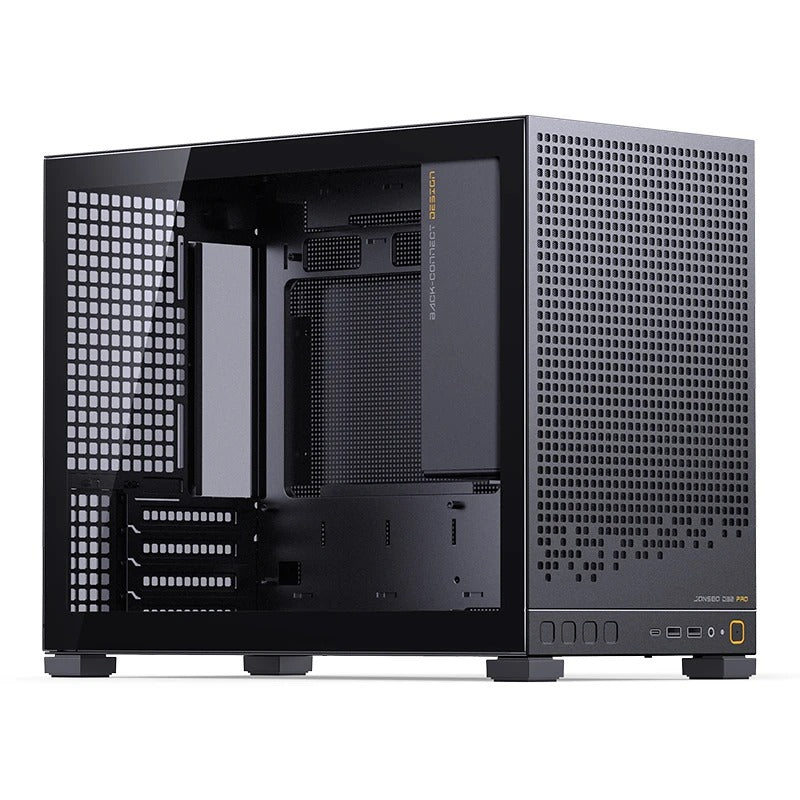

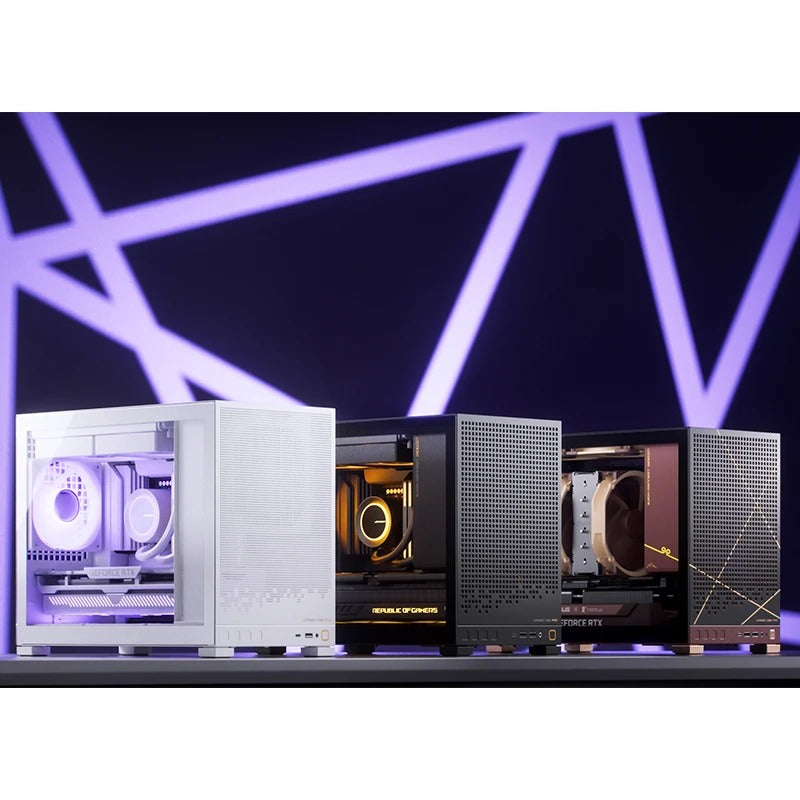

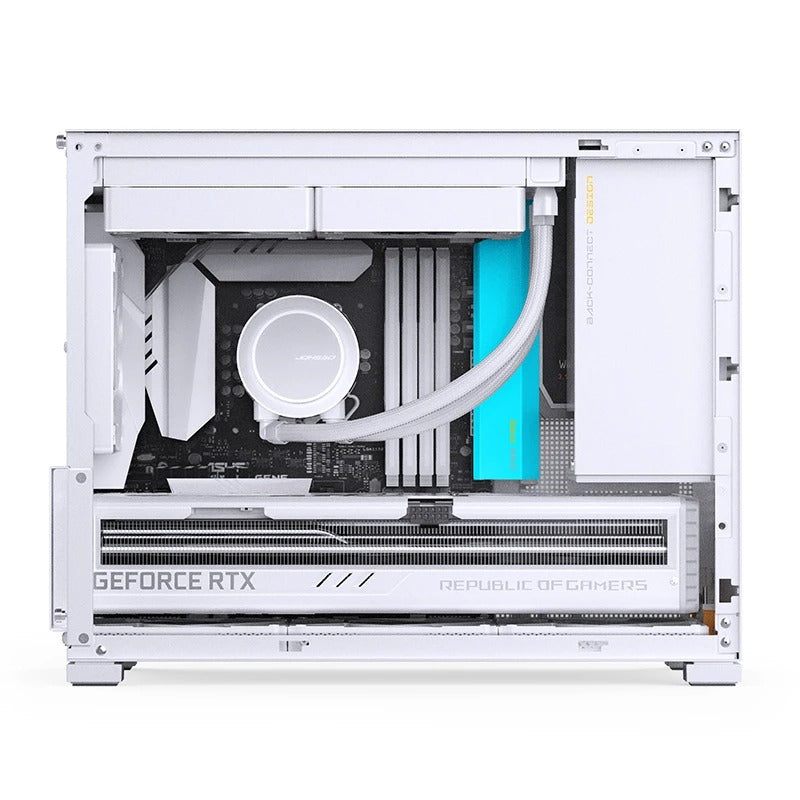

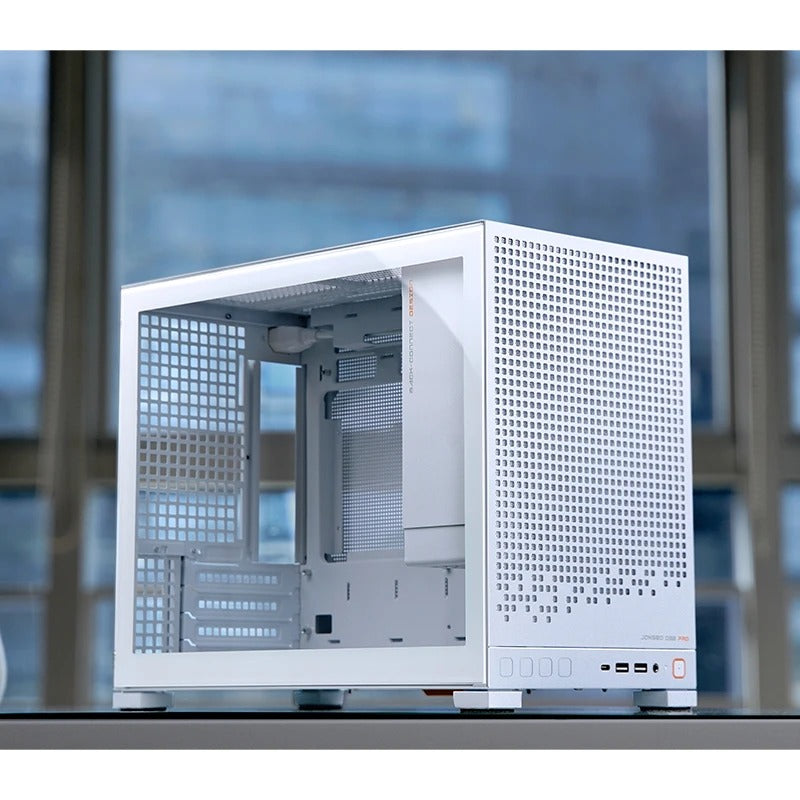

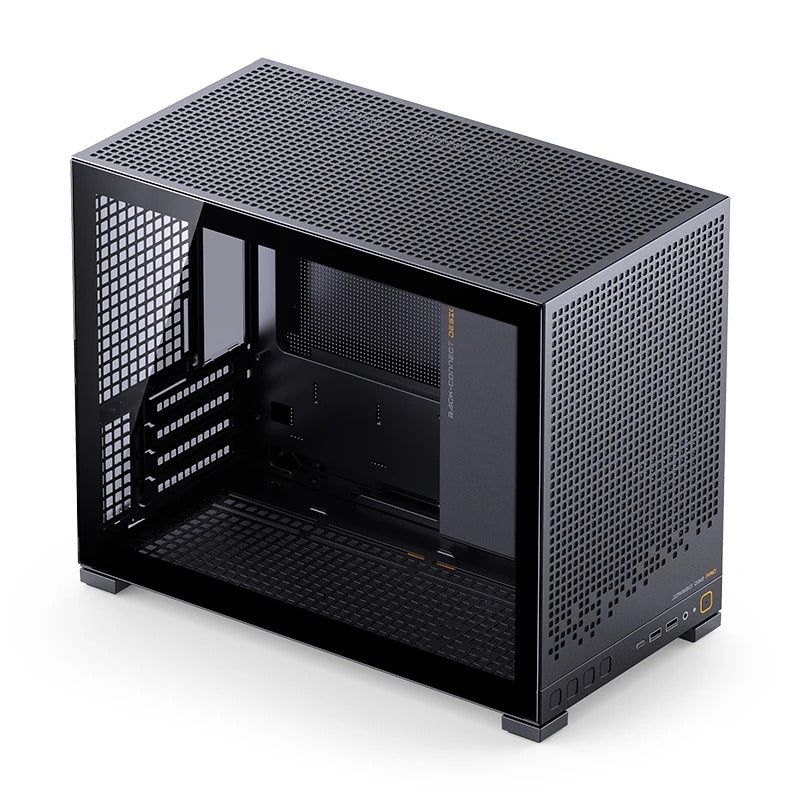

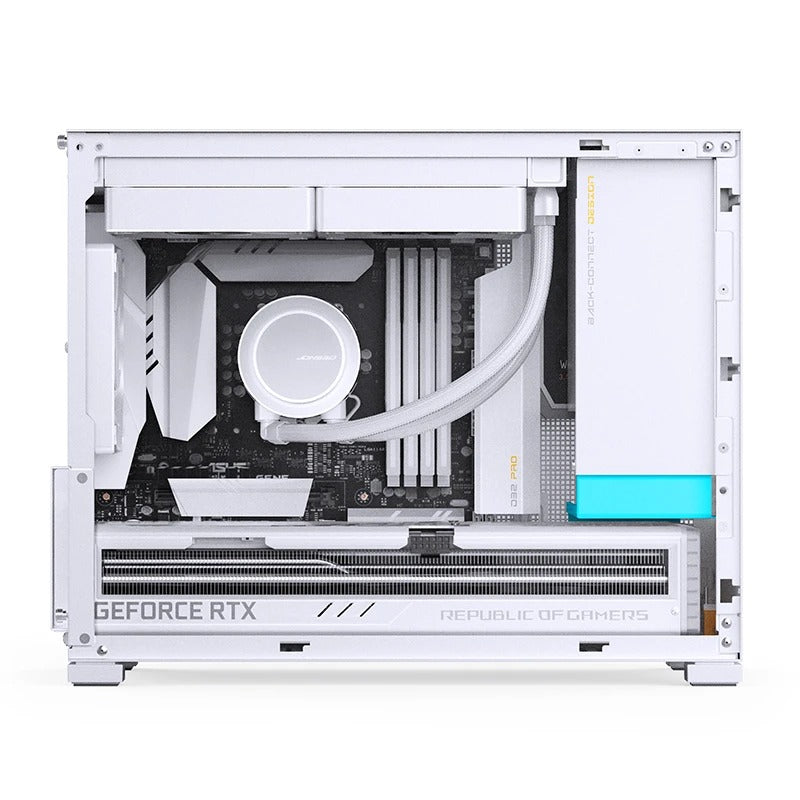

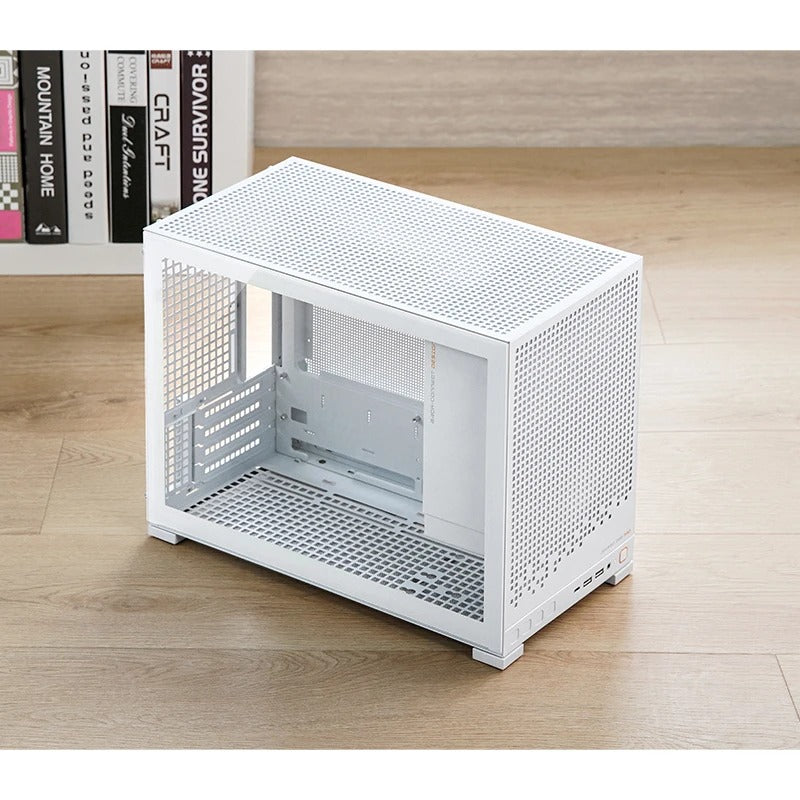

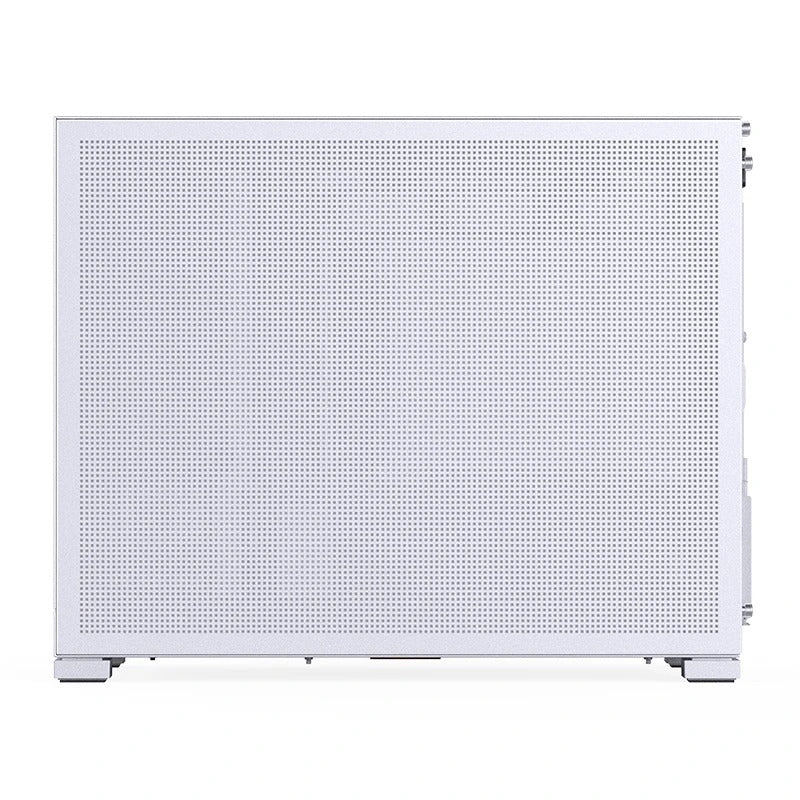

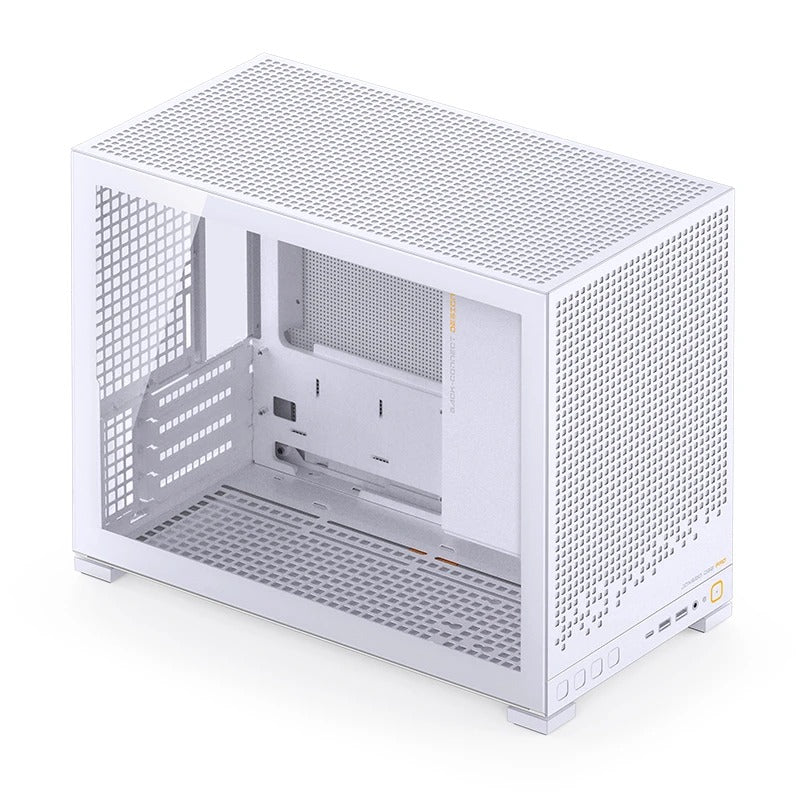

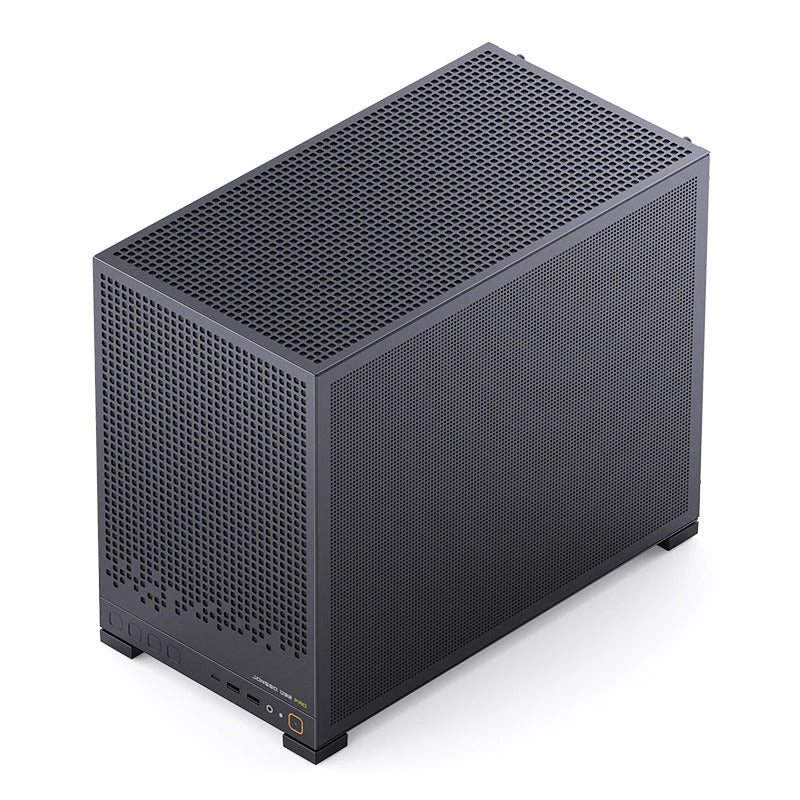

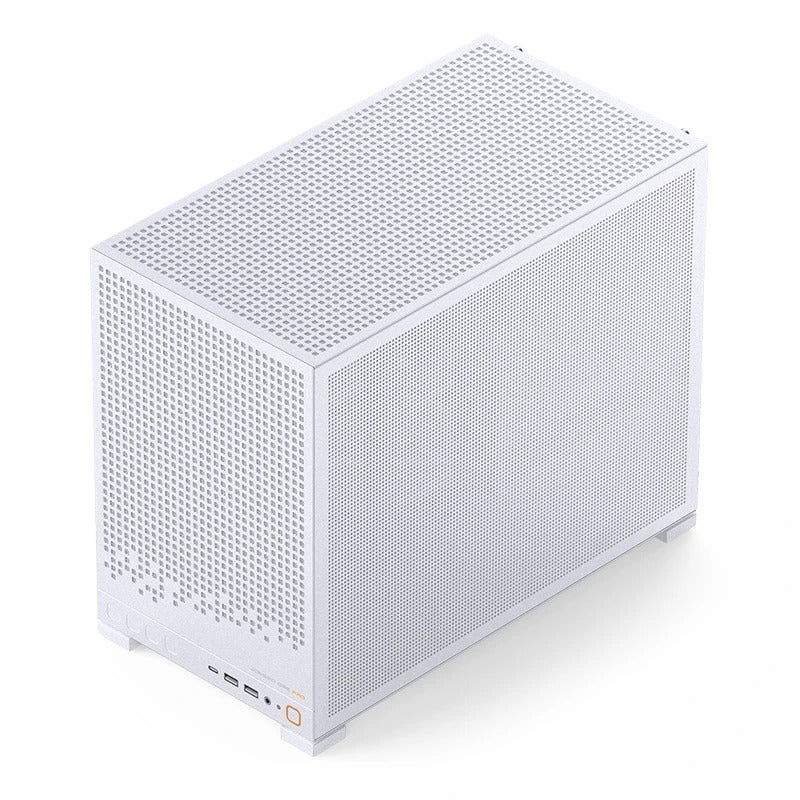

Available in Mesh Black and White, the D32 PRO MESH is designed for builders who want a compact footprint without sacrificing essential cooling and component options.
Key Features
-
Compact Chassis Design – A space-efficient case for gaming PCs, productivity systems, and customized desktop builds.
-

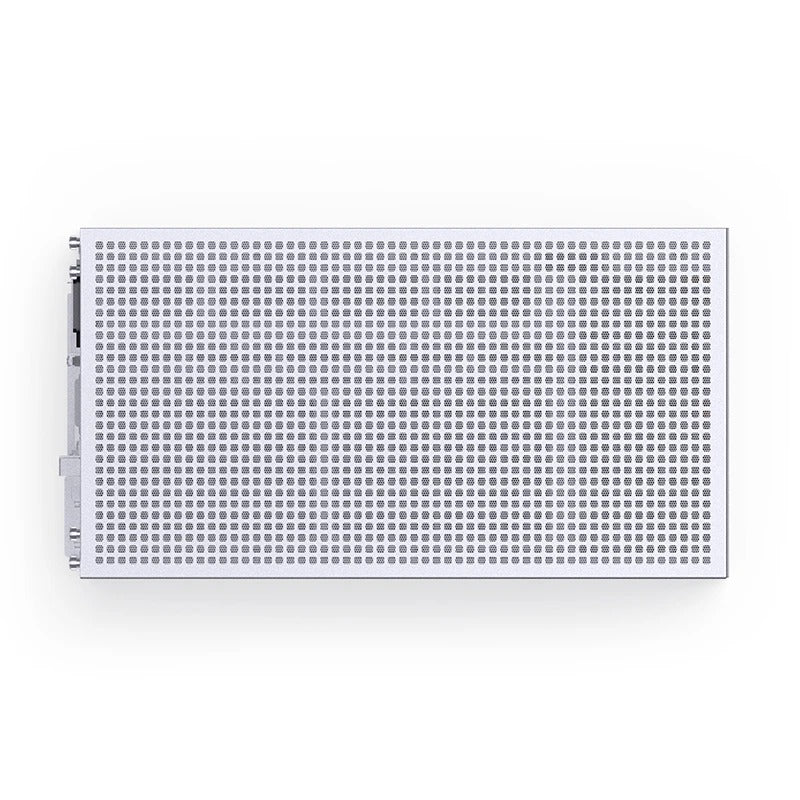

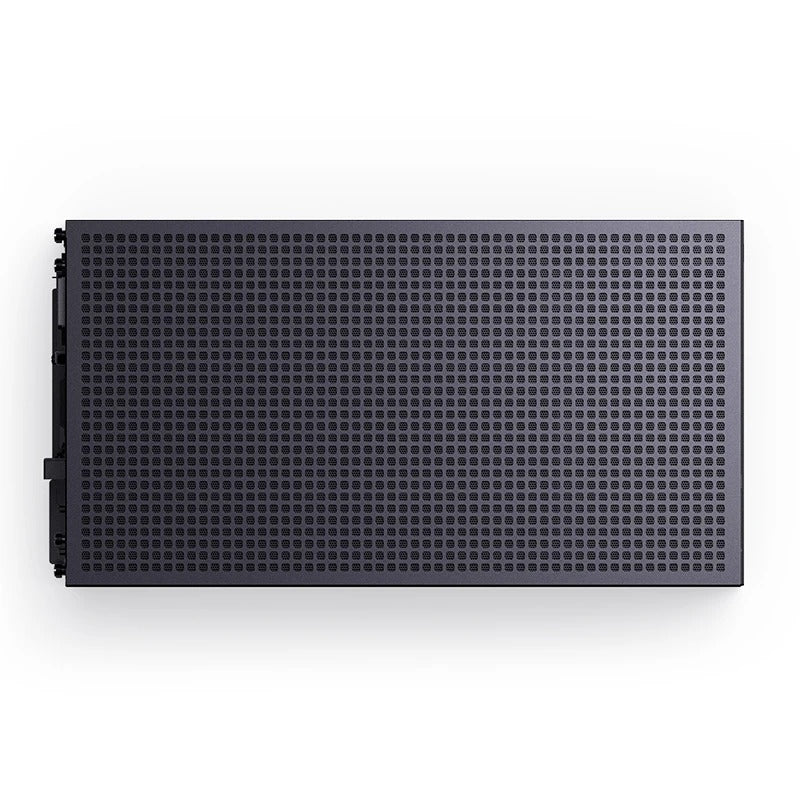

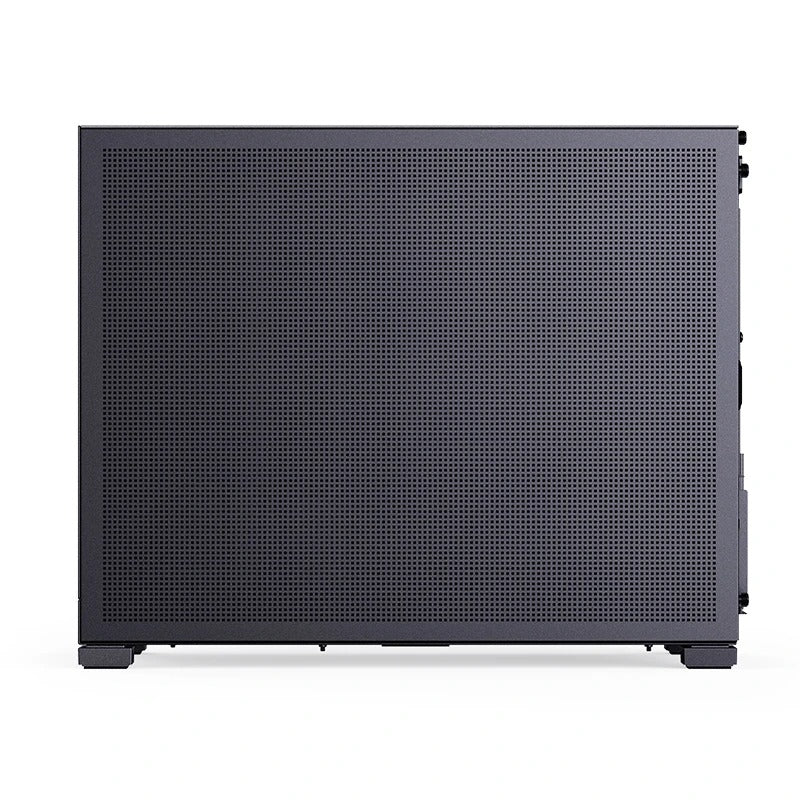

Mesh Design – Provides a distinctive mesh exterior for a clean, modern PC aesthetic.
-

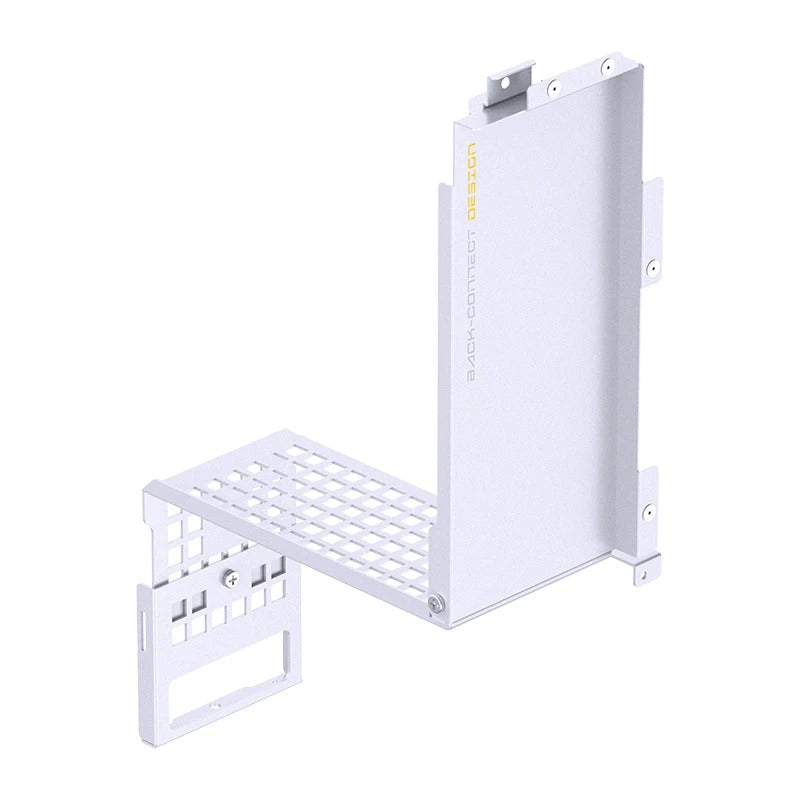

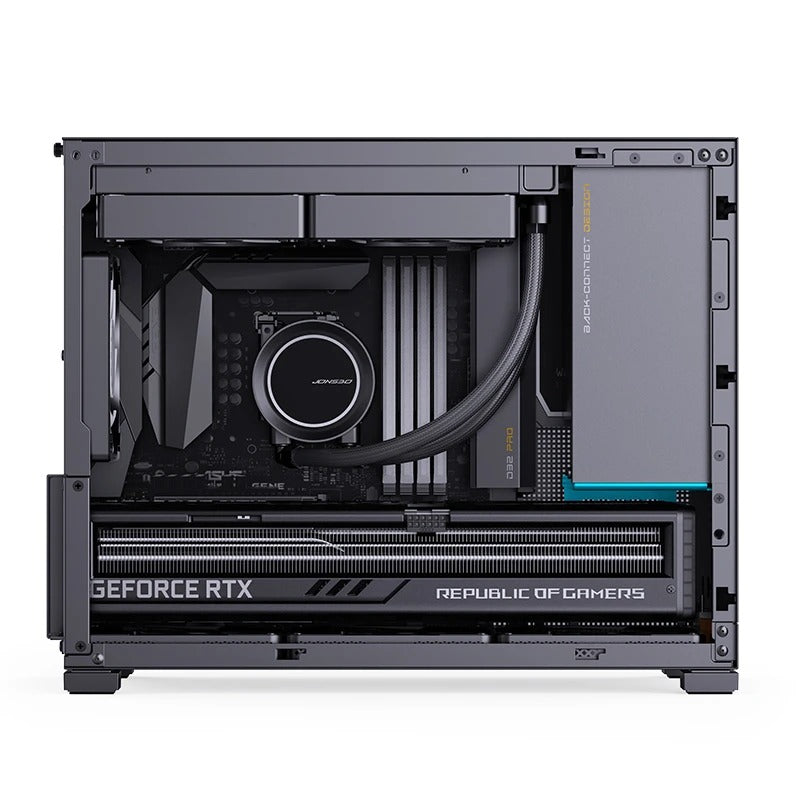

Mini-ITX and Micro-ATX Support – Compatible with standard Micro-ATX and Mini-ITX motherboards, plus supported back-connect Micro-ATX layouts in B mode.
-

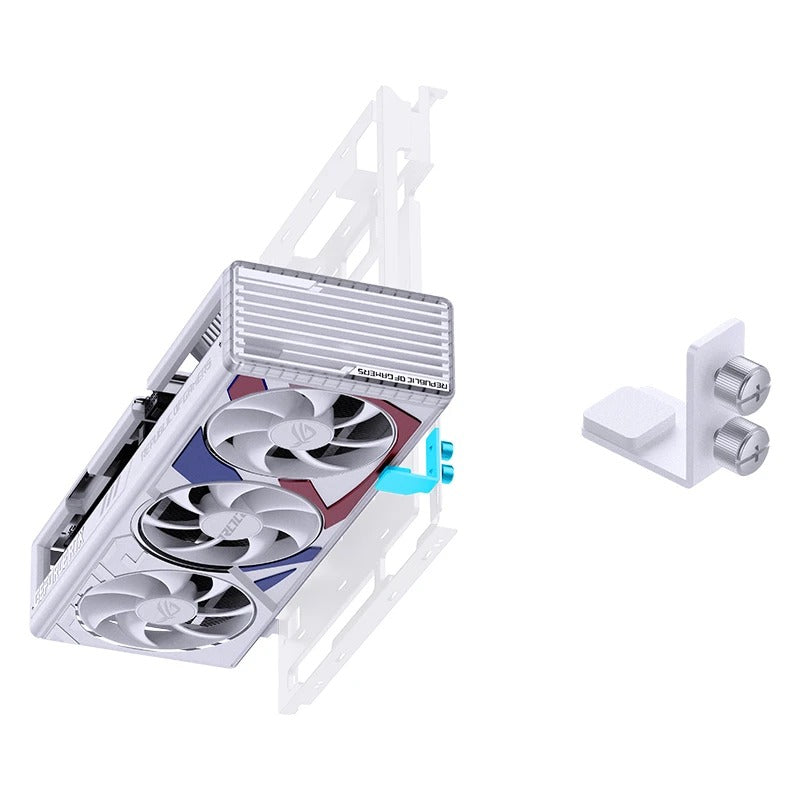

Graphics Cards up to 365mm – Accommodates a wide range of graphics cards, subject to the rest of the hardware configuration.
-
Flexible Cooling Options – Supports multiple 120mm and 140mm fan configurations, depending on component clearance.
-
Up to 240mm Radiator Support – Allows installation of a compatible radiator at the top of the chassis.
-

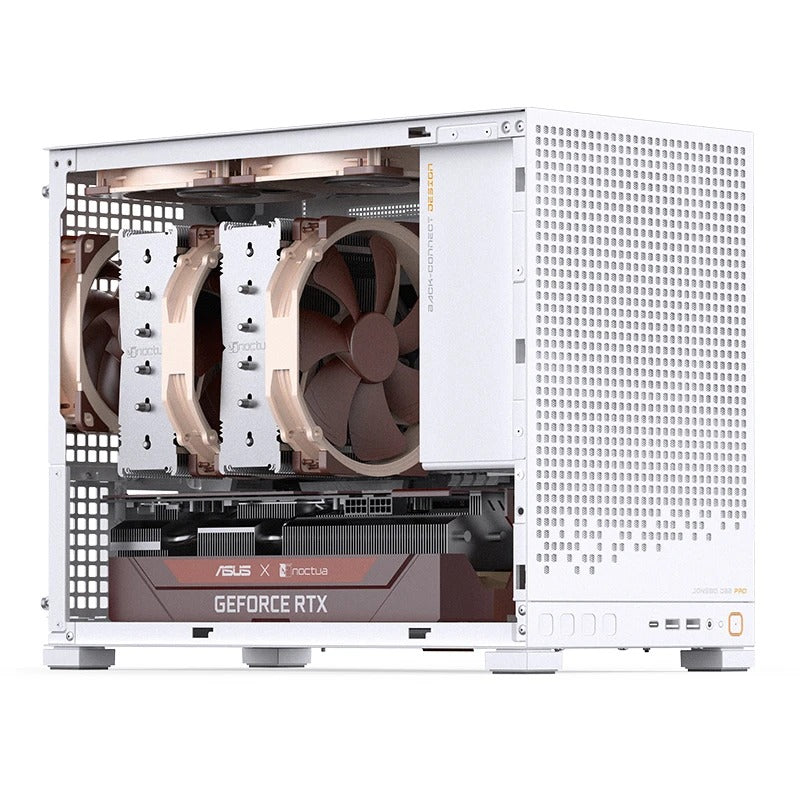

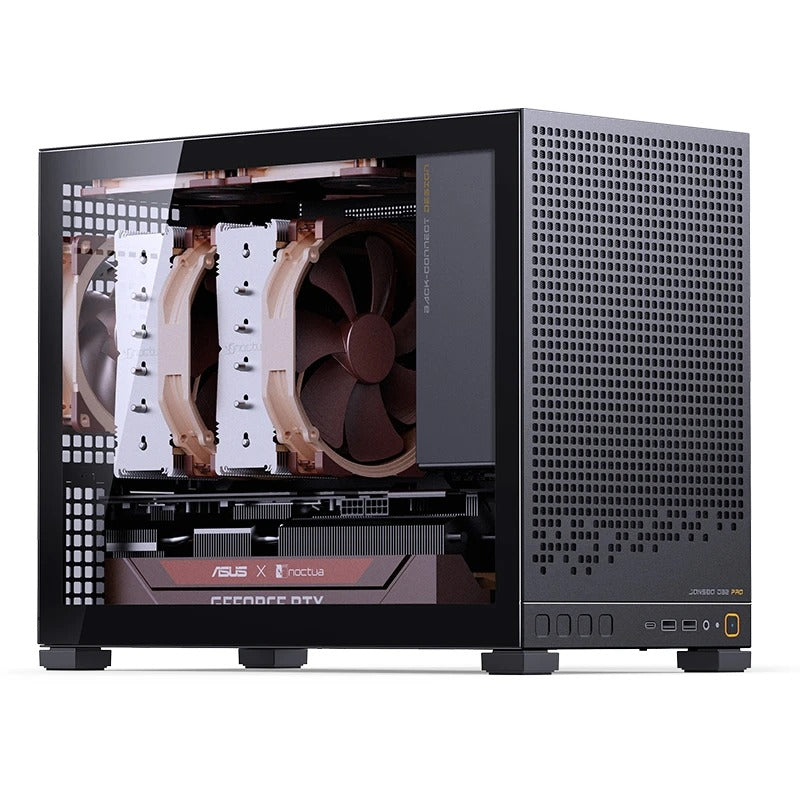

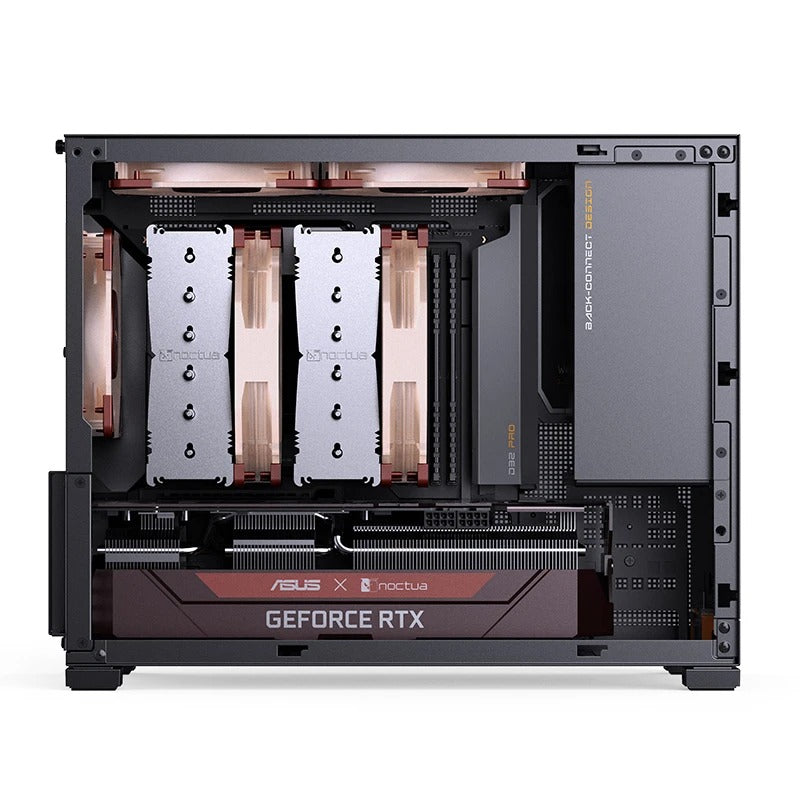

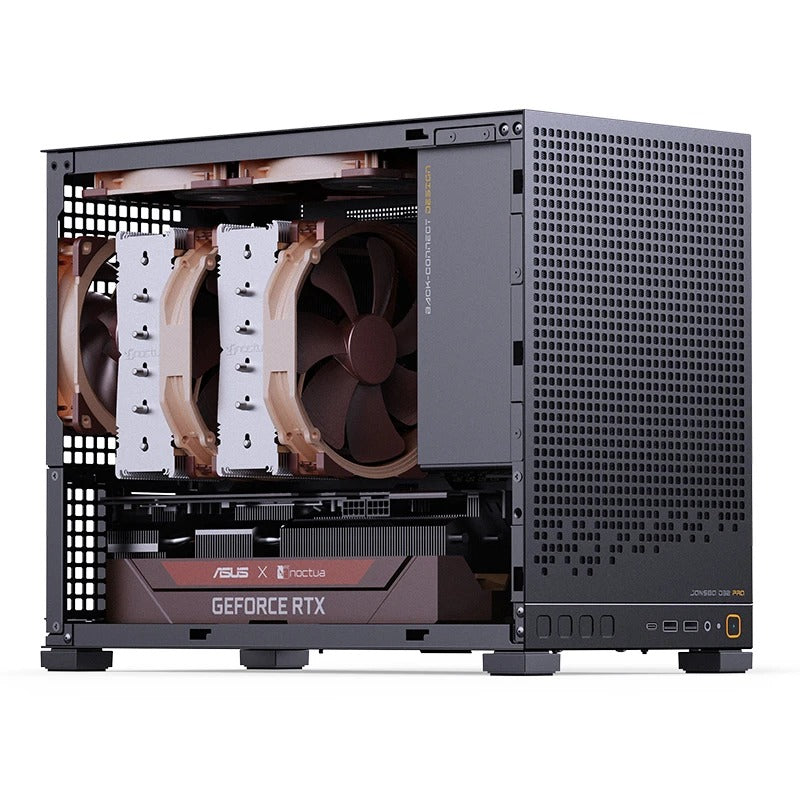

Air Cooler Compatibility – Supports CPU air coolers up to 170mm in A mode or 164mm in B mode for Intel CPUs, with slightly lower limits for AMD CPUs.
-
Versatile Storage Options – Supports up to four 2.5-inch drives or a combination of 2.5-inch and 3.5-inch drives, depending on mounting configuration.
-

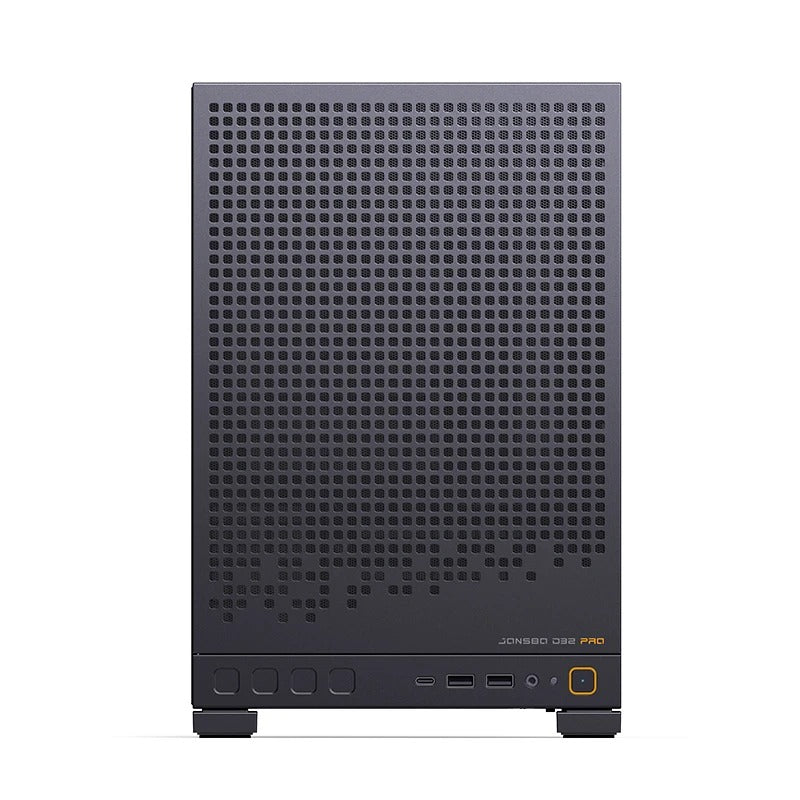

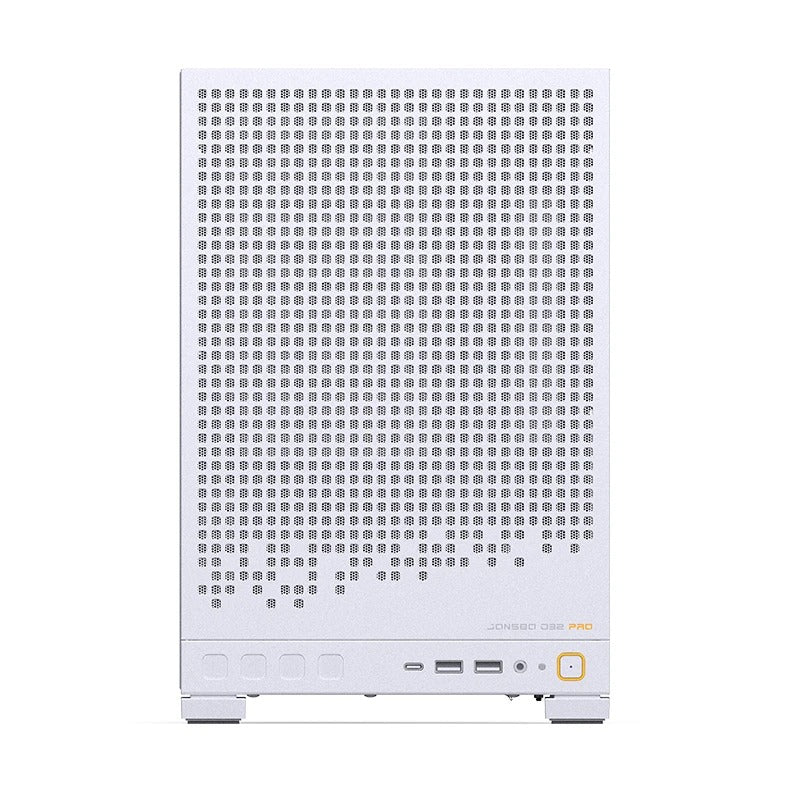

Modern Front I/O – Includes two USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 2 Type-C port, and separate audio and microphone connections.
-
Flexible PSU Compatibility – Supports ATX PS2 power supplies and SFX/SFX-L power supplies, with ATX PSU length limits depending on GPU position and chassis configuration.
-

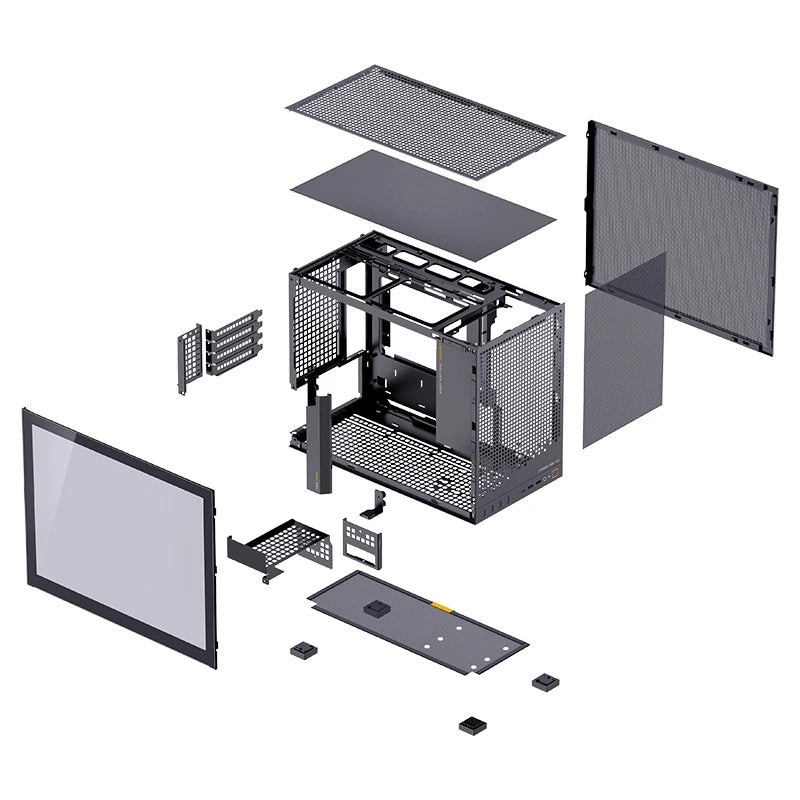

Durable Steel Construction – Built using SPCC steel with 0.7mm and 0.8mm thicknesses.
-

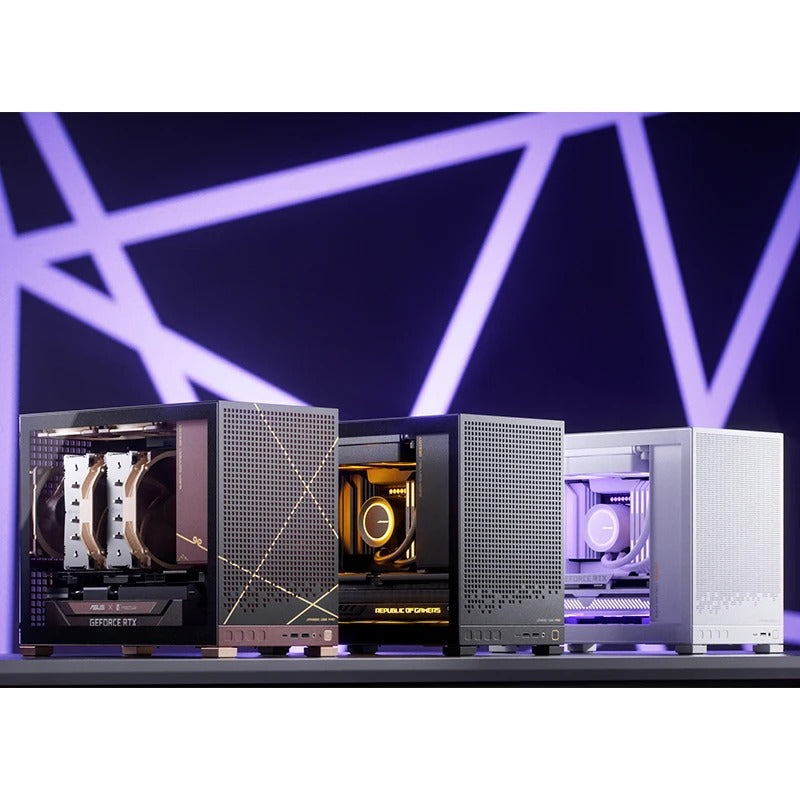

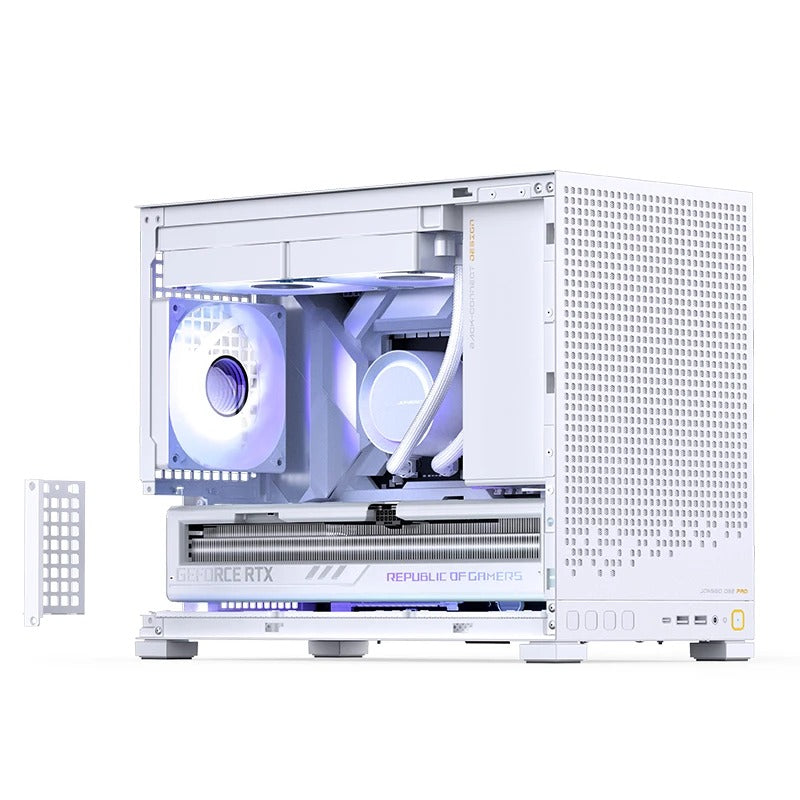

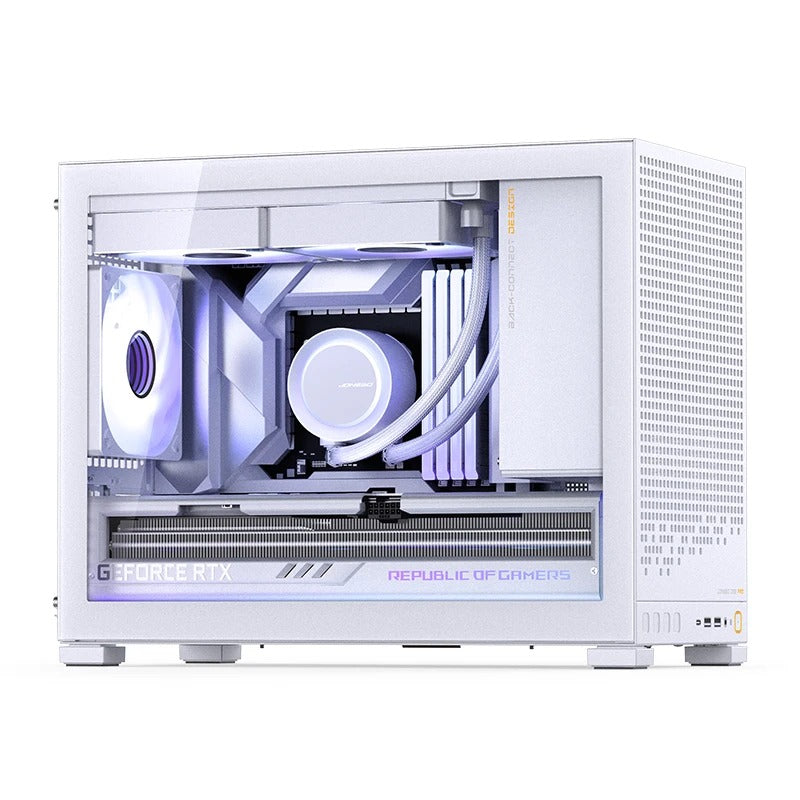

Two Color Options – Available in Mesh Black and White to suit different PC build themes.
Cooling and Hardware Compatibility

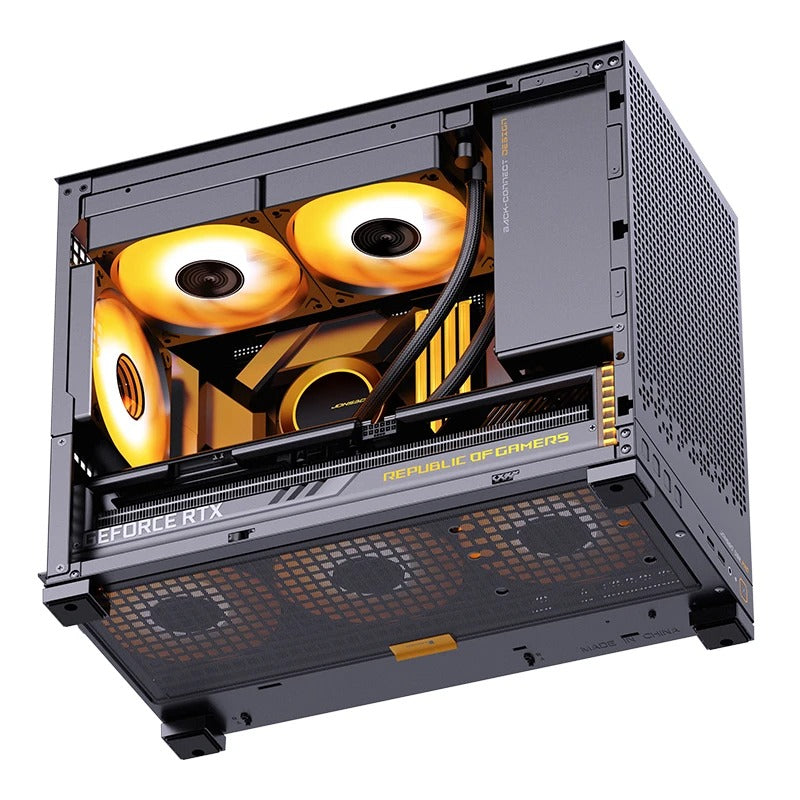

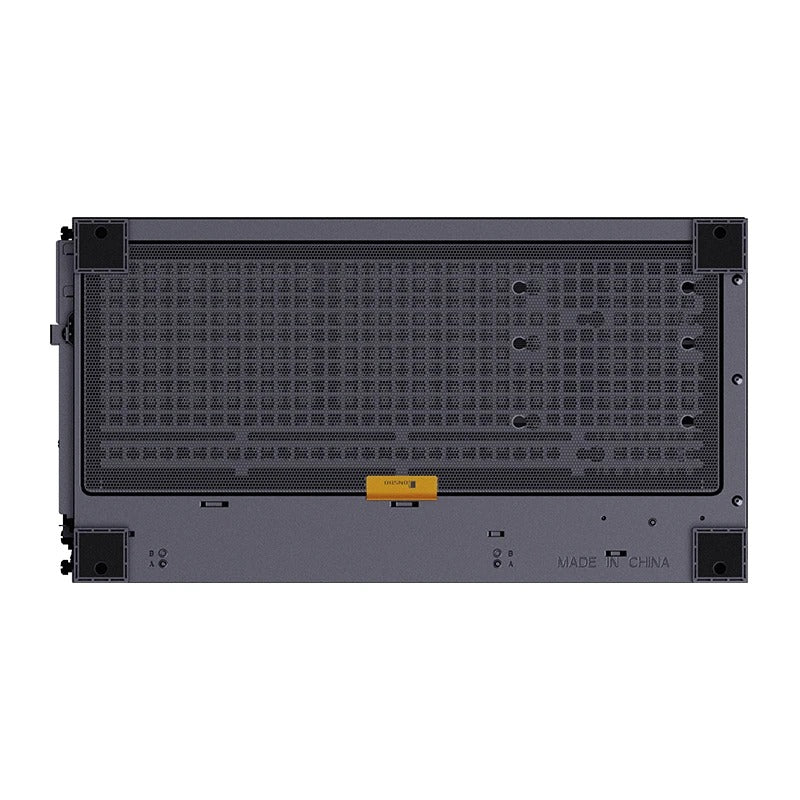

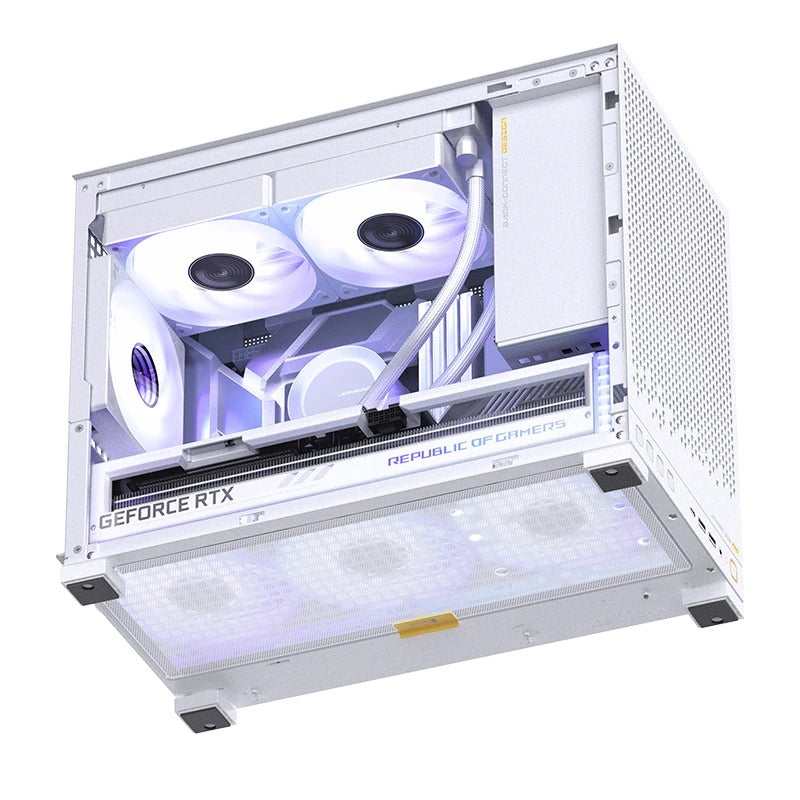

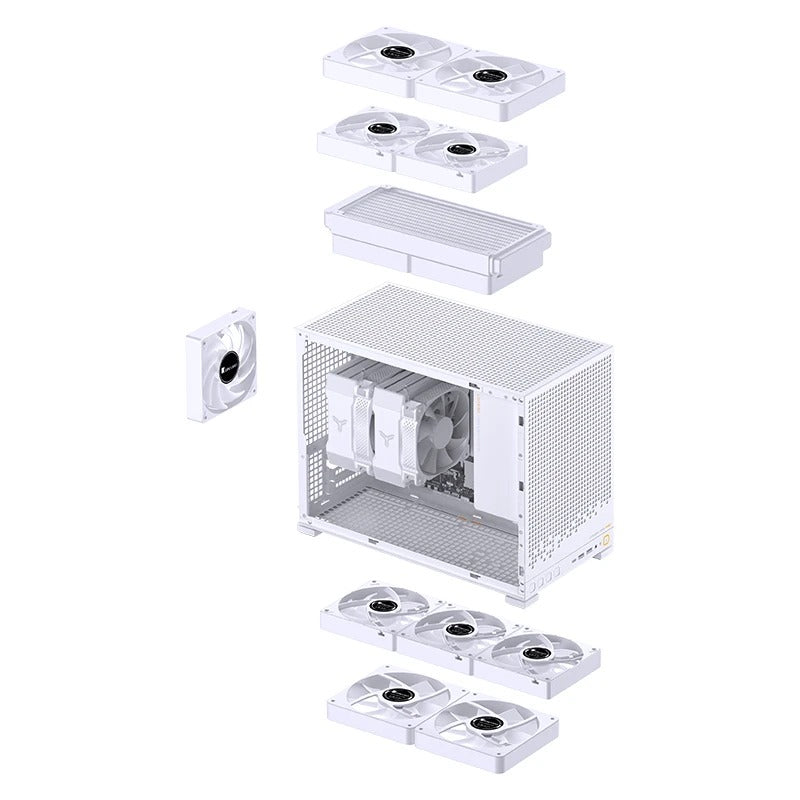

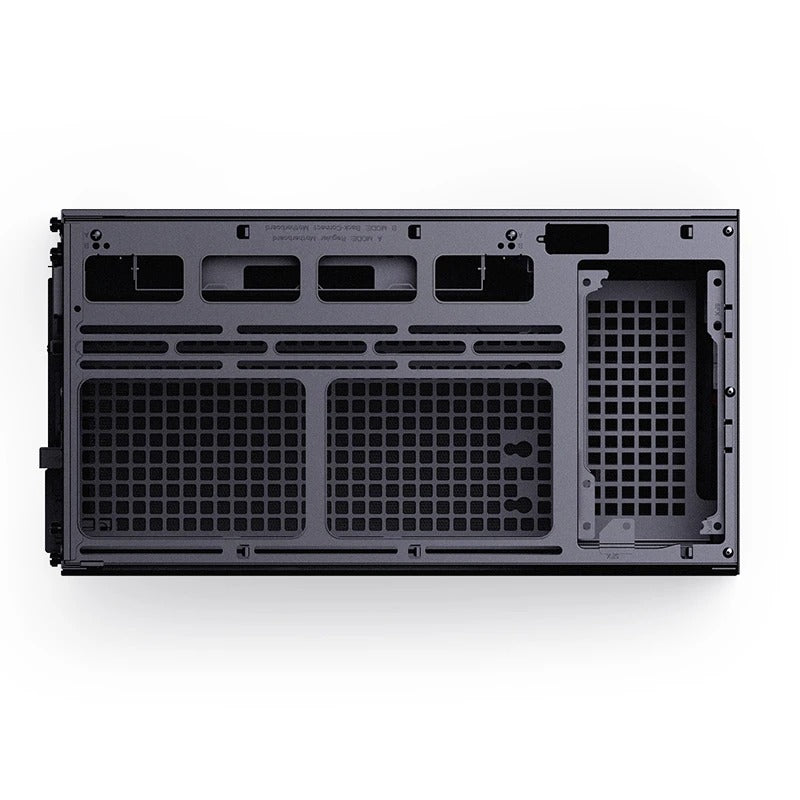

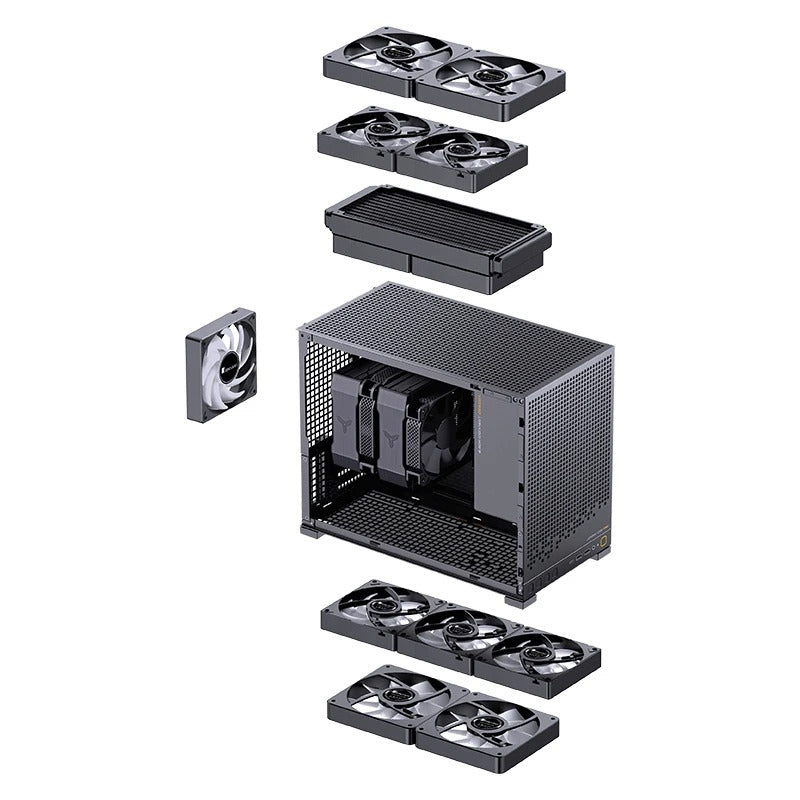

The D32 PRO MESH provides several fan mounting locations to help builders configure airflow around their chosen components. The top supports either two 120mm or two 140mm fans, while the rear accommodates one 120mm fan. The bottom can support three 120mm fans or two 140mm fans, depending on hardware clearance.

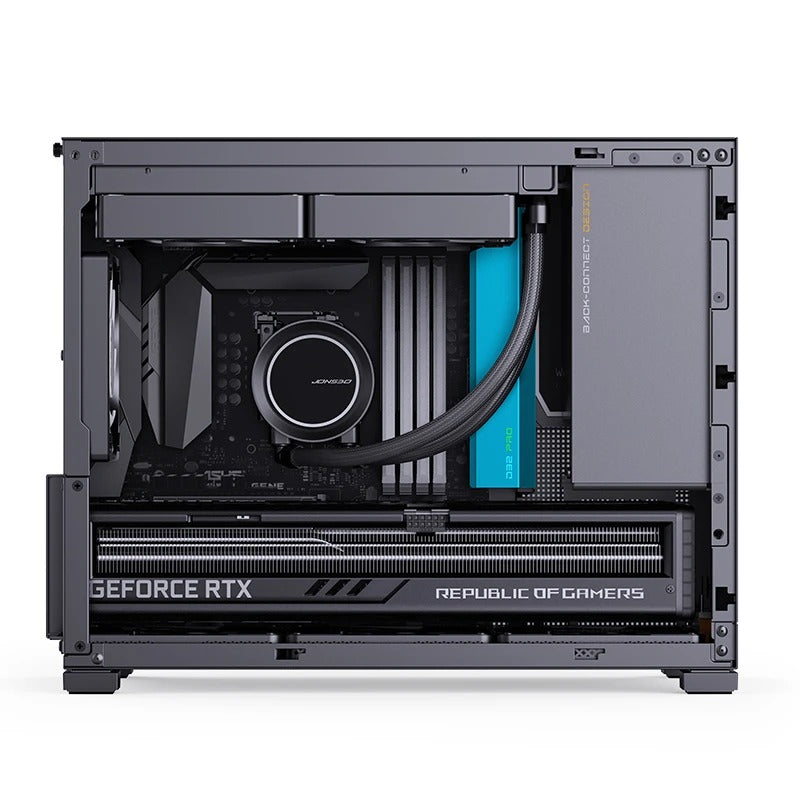

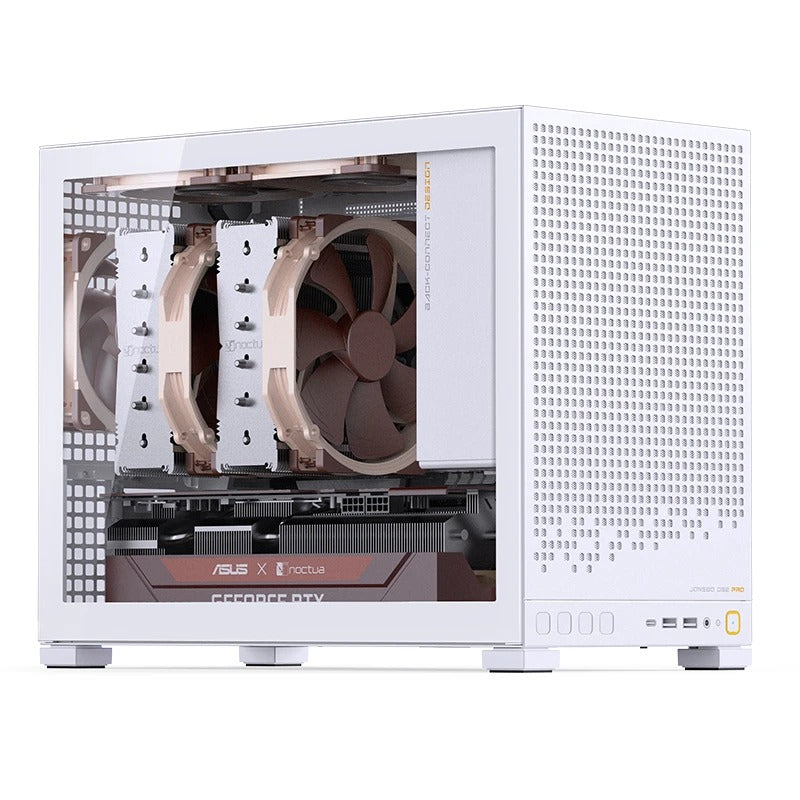

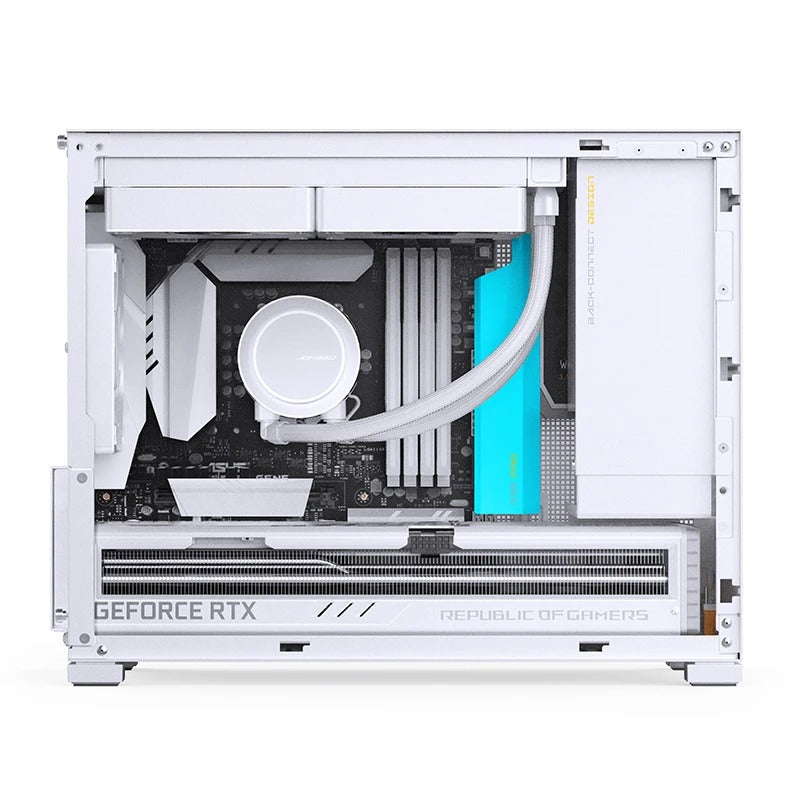

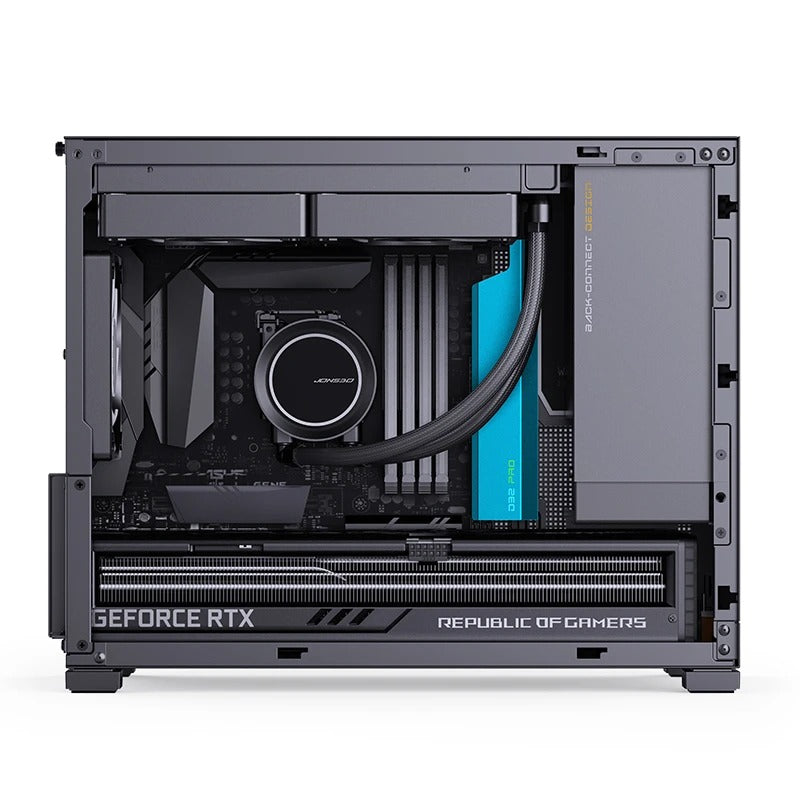

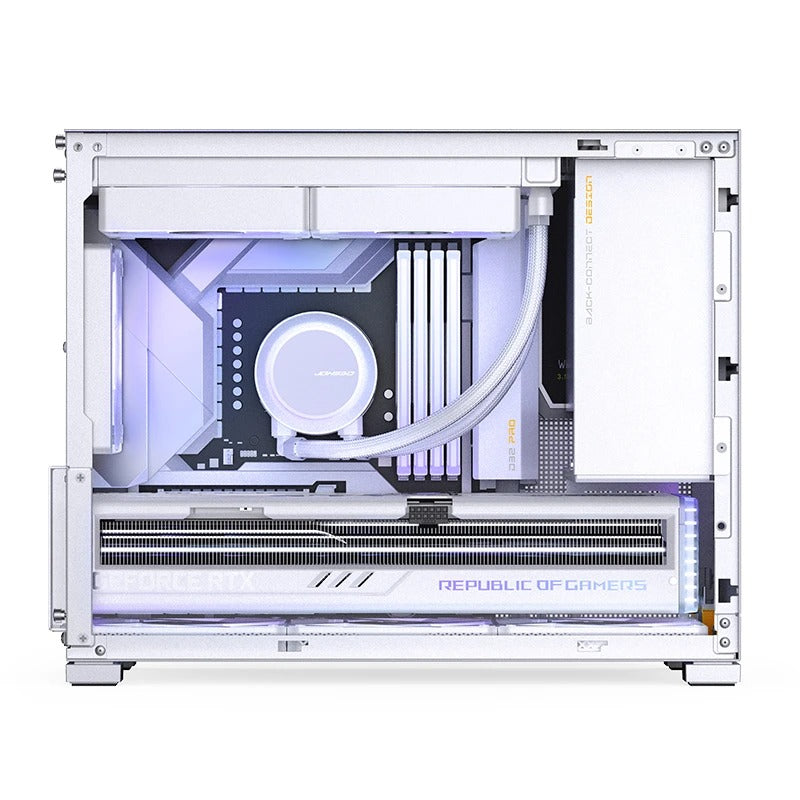

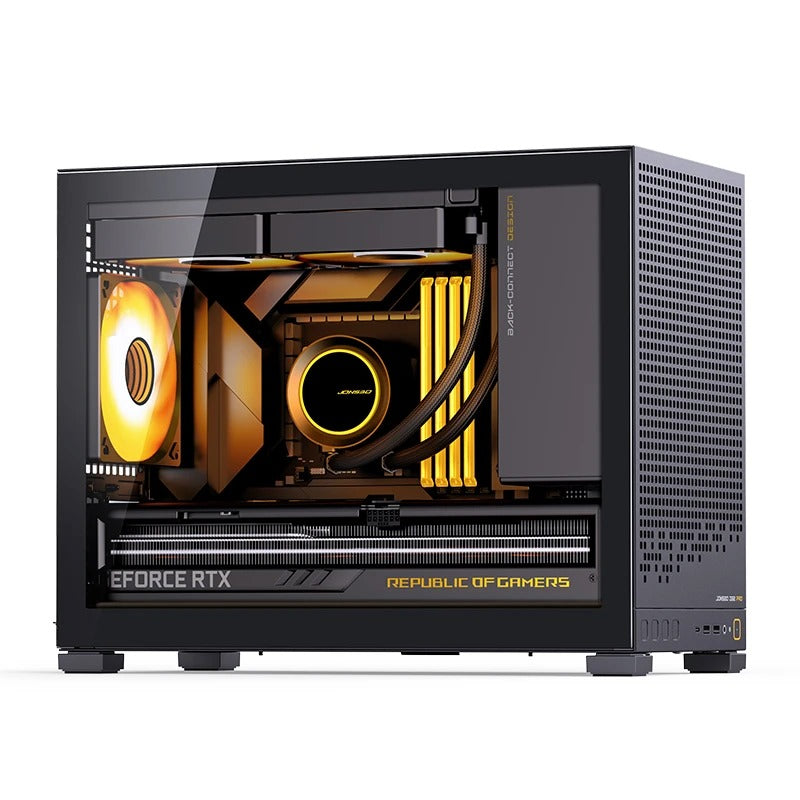

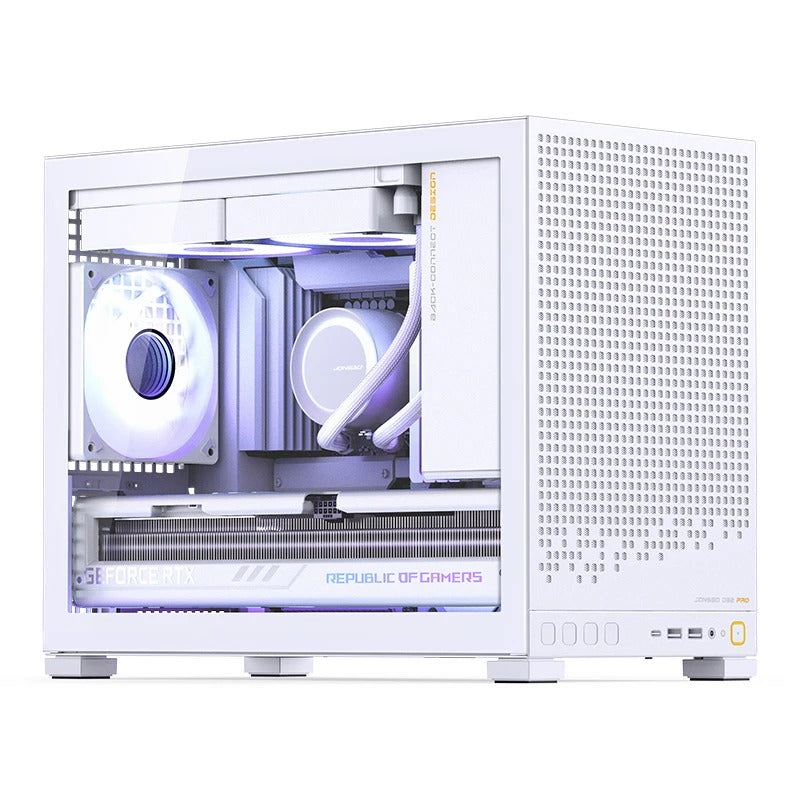

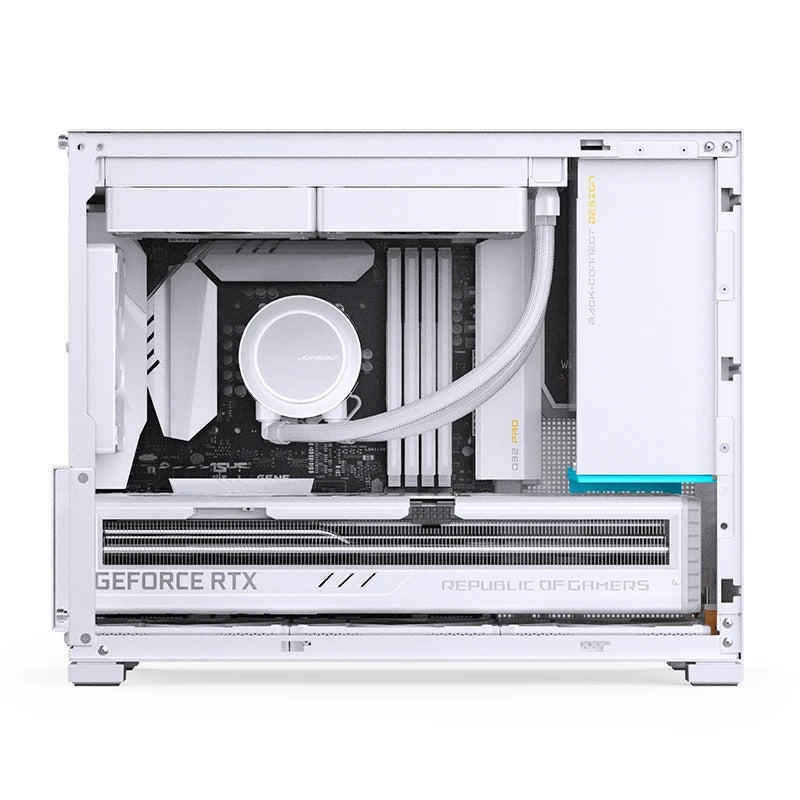

For liquid cooling, the case supports a radiator up to 240mm at the top. CPU cooler clearance varies according to the selected chassis mode and processor platform, so check cooler height before installation.
Power Supply and GPU Clearance

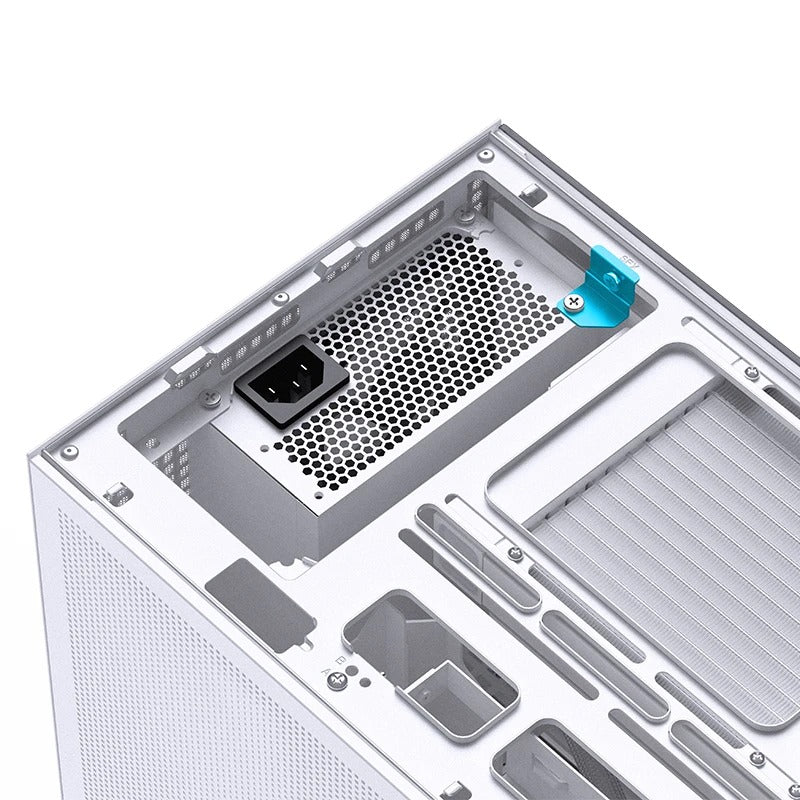

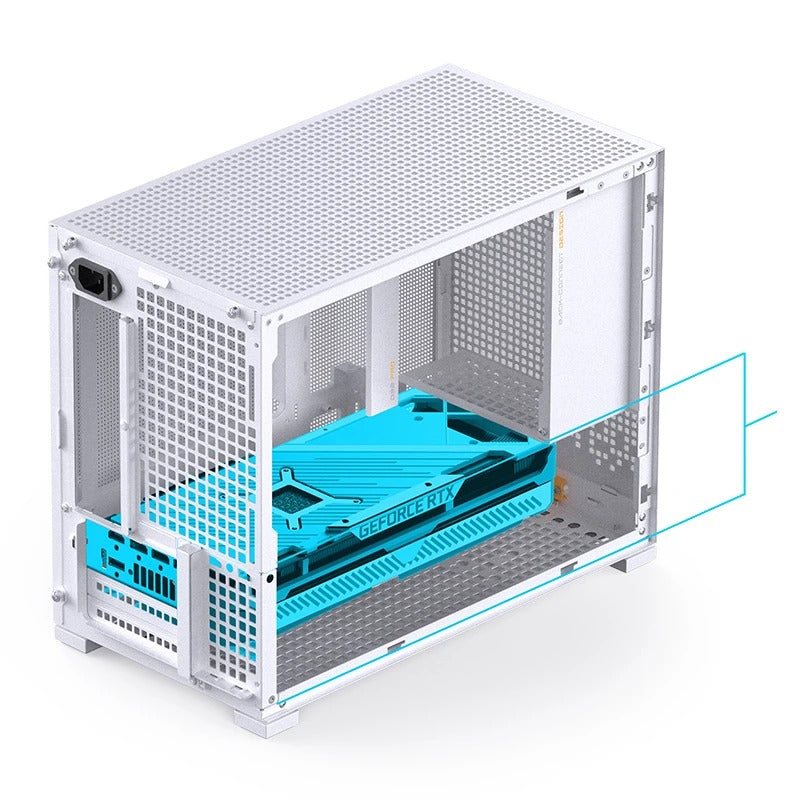

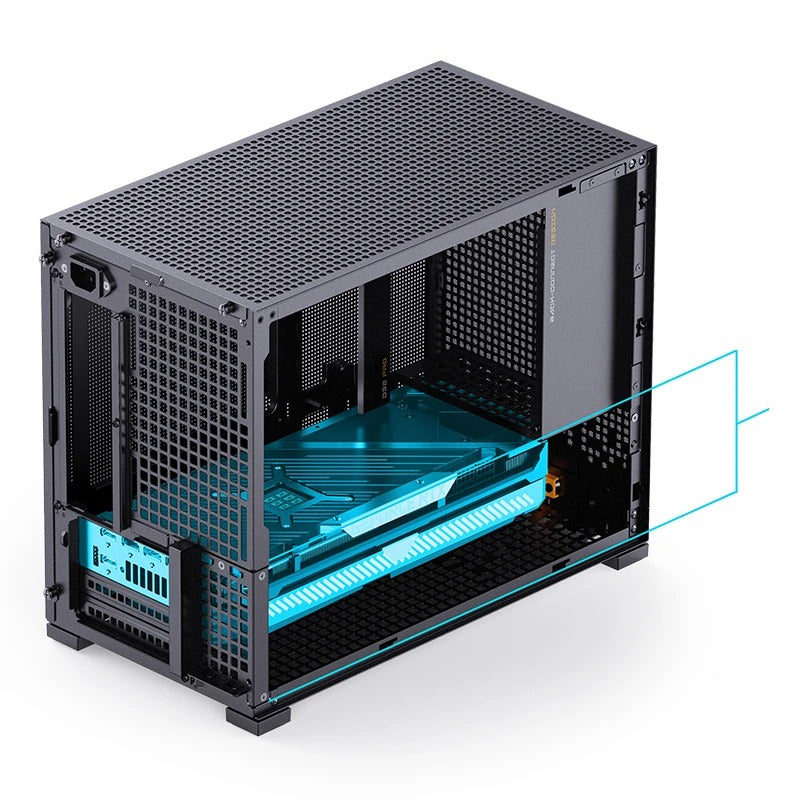

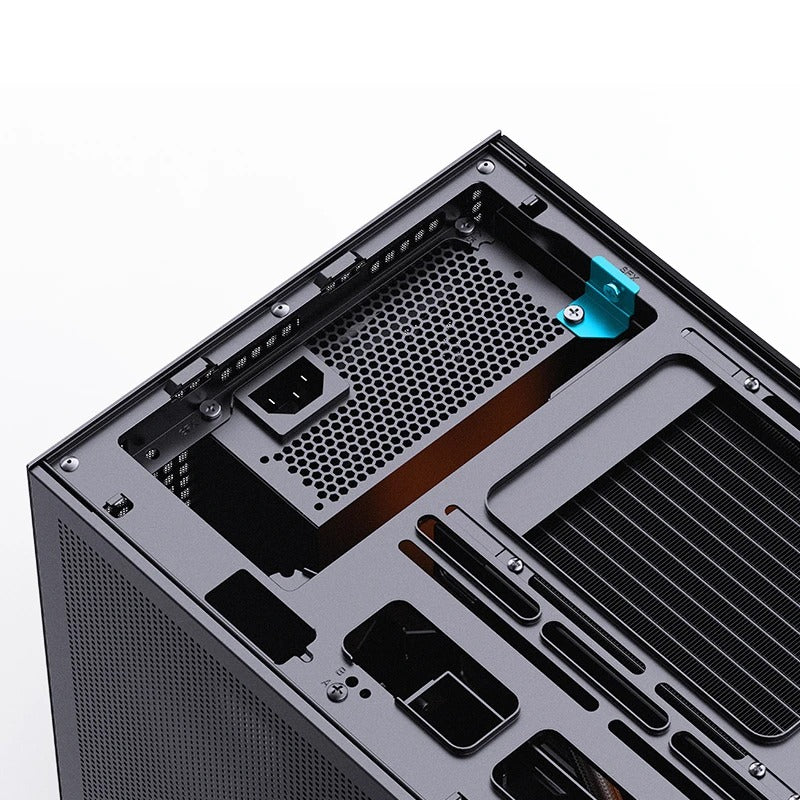

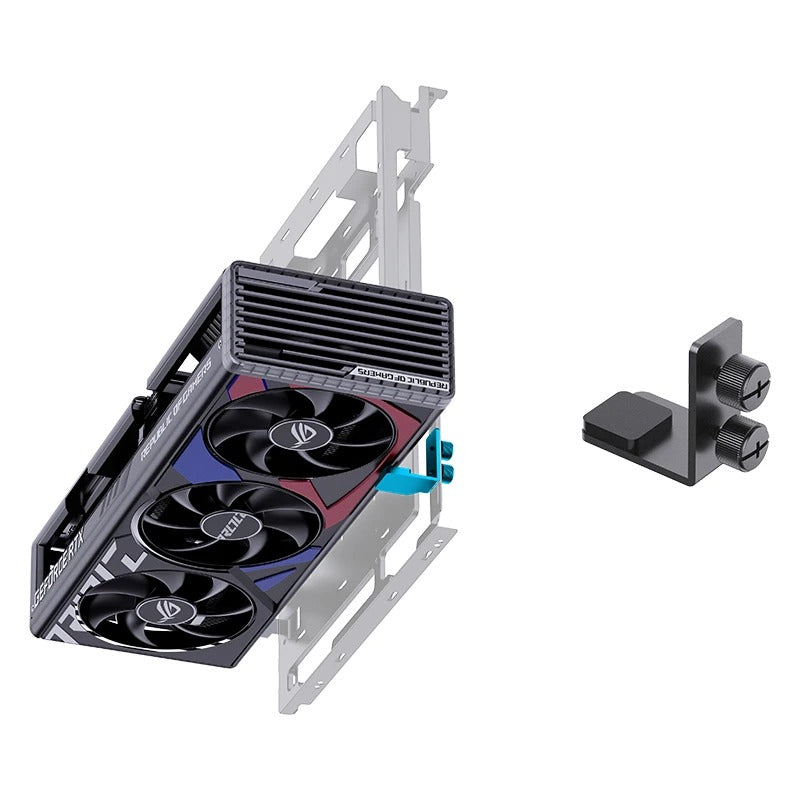

The case supports ATX PS2 power supplies as well as SFX and SFX-L units. ATX PSU clearance depends on the graphics card's PCIe slot position and the internal configuration:
-
GPU in the first PCIe slot: PSU length up to 150mm; recommended length of 140mm or less.
-
GPU in the second PCIe slot: PSU length up to 170mm; recommended length of 160mm or less.
-

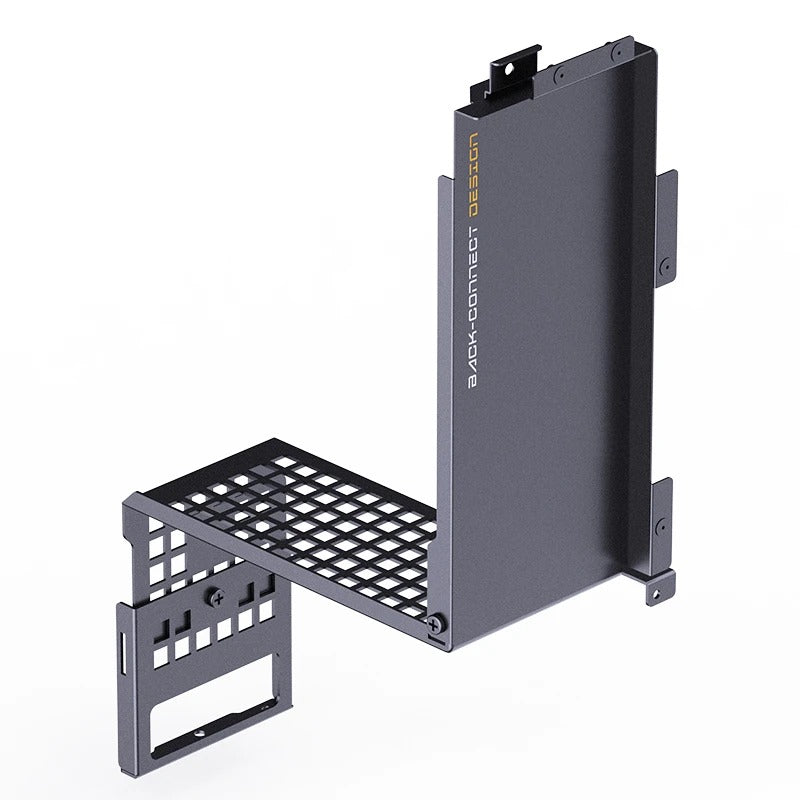

Power compartment partition removed: PSU length up to 200mm when the GPU is 288mm or shorter. This configuration is not compatible with 16A plugs.

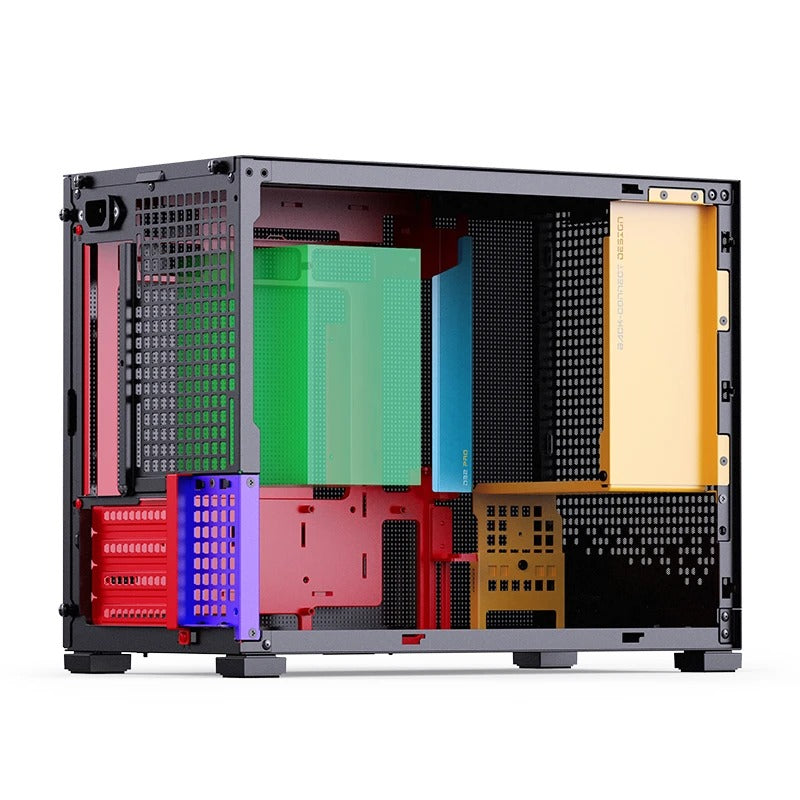

The available mounting position depends on the motherboard. Confirm the motherboard layout and all component dimensions before assembly.
Storage and Connectivity

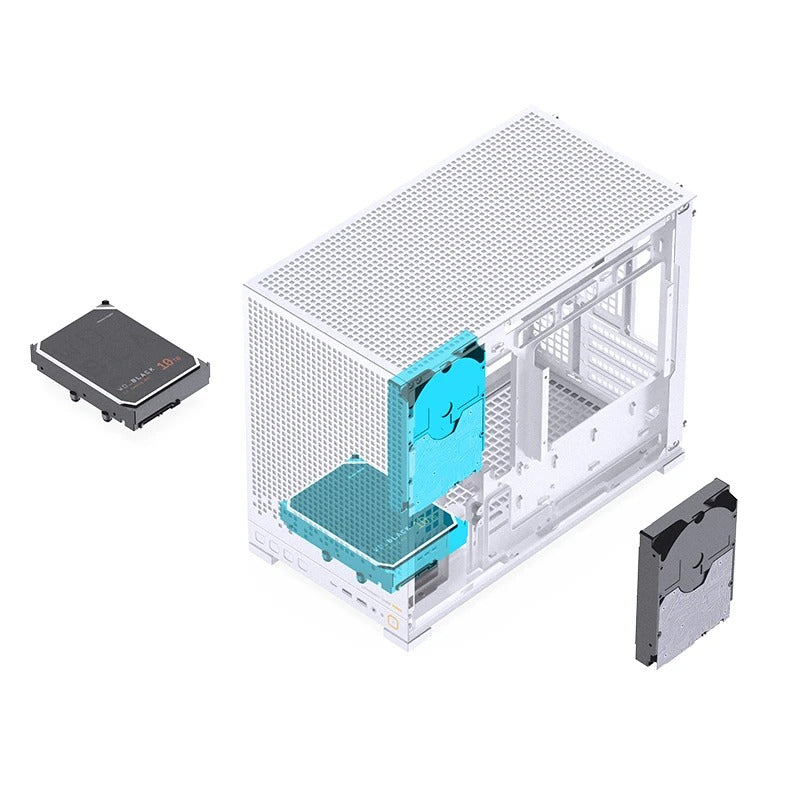

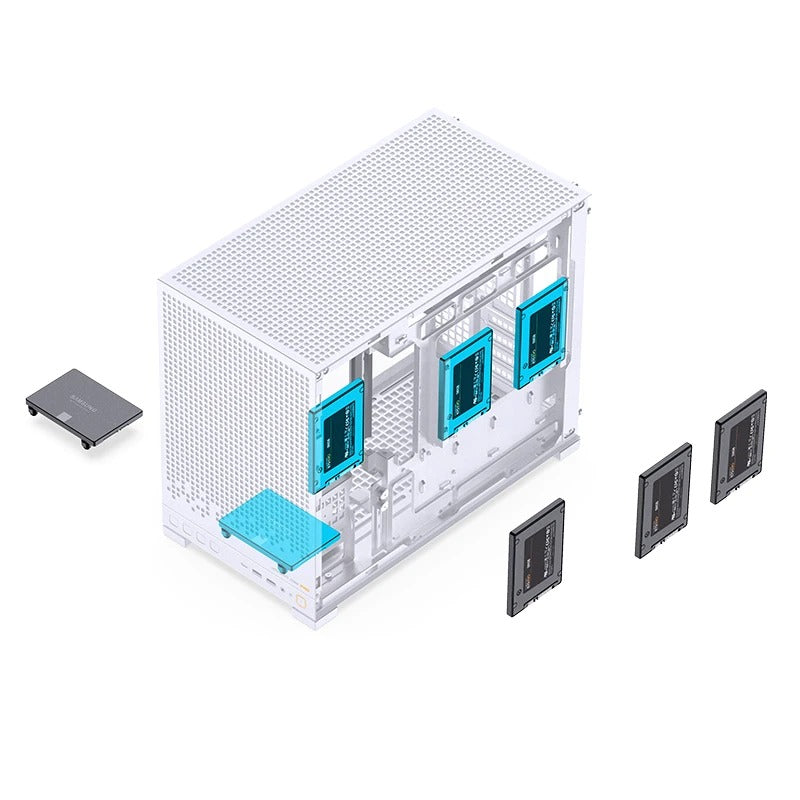

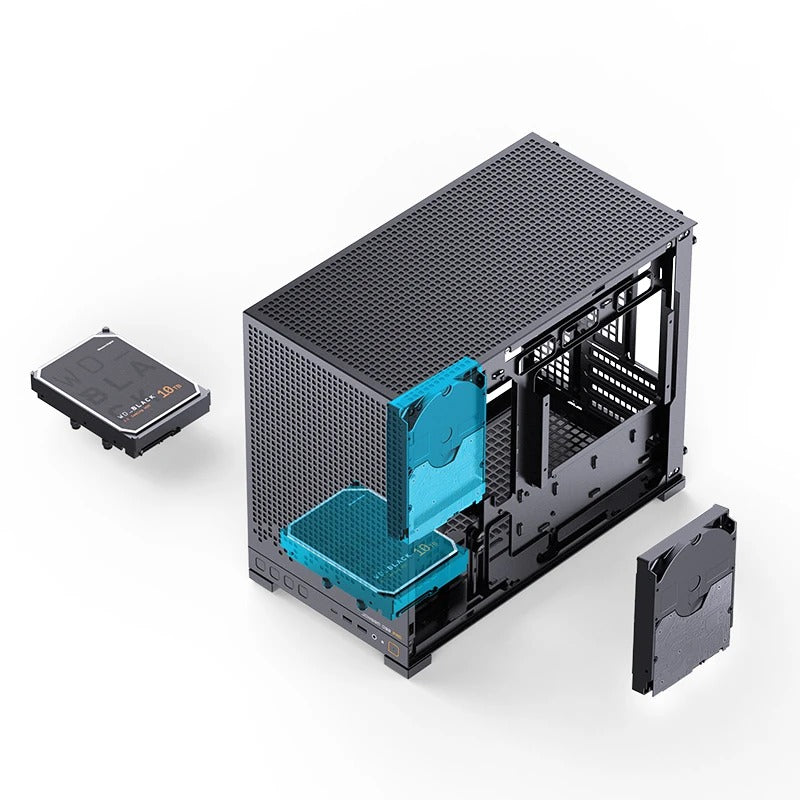

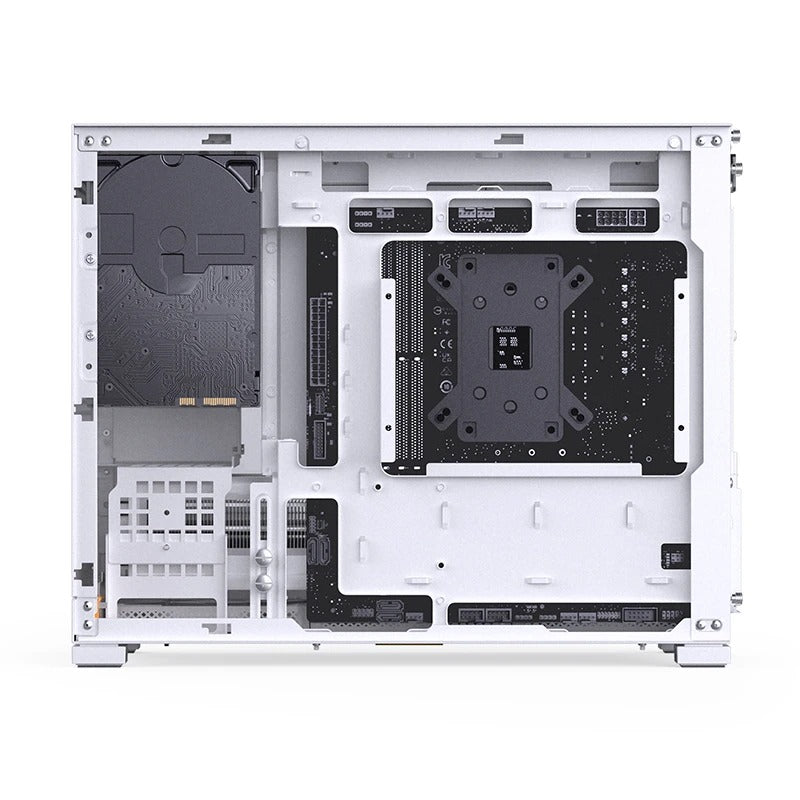

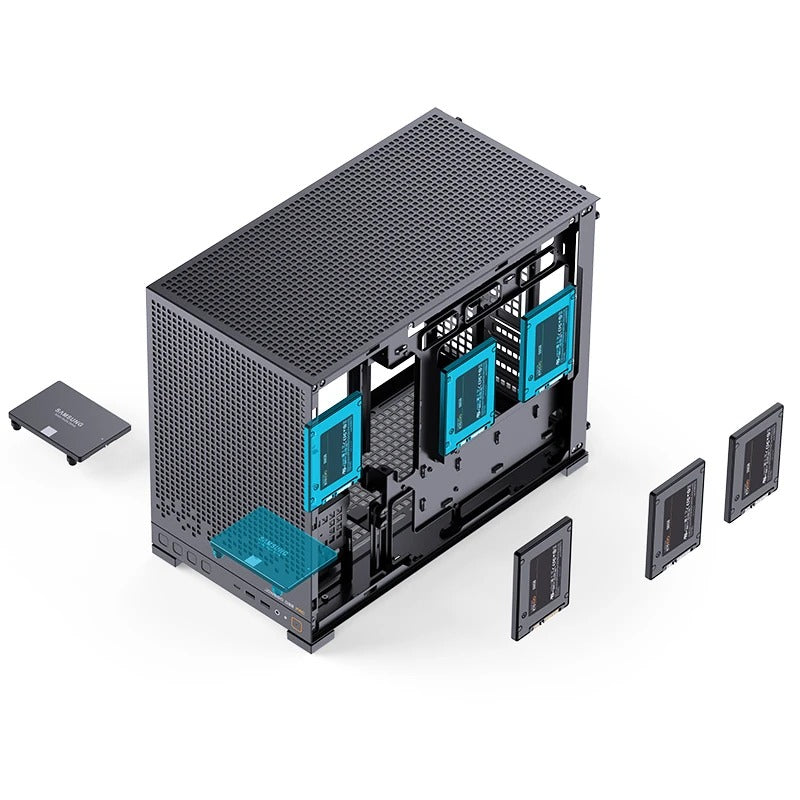

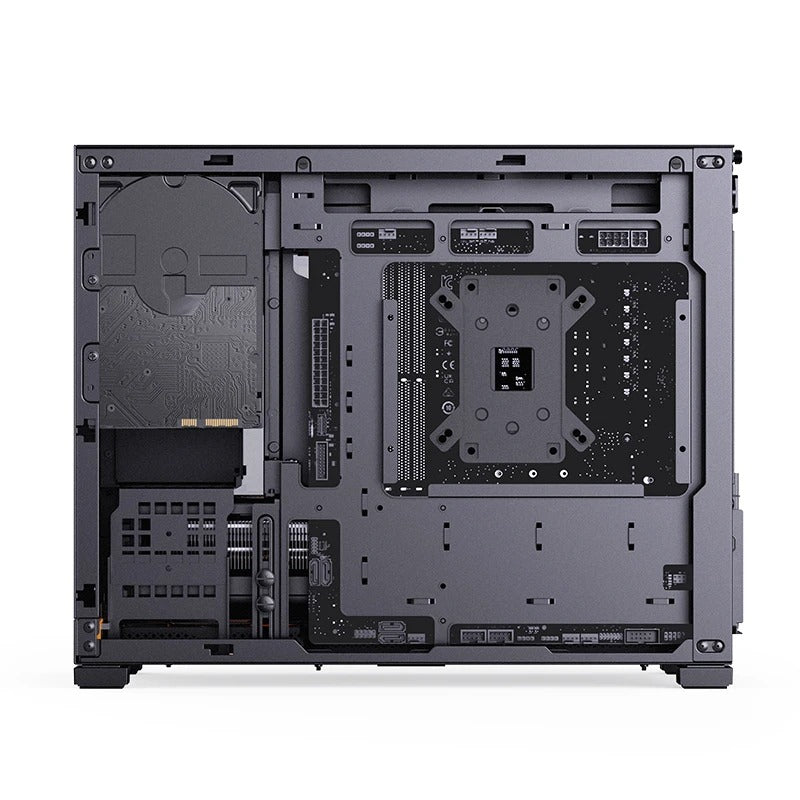

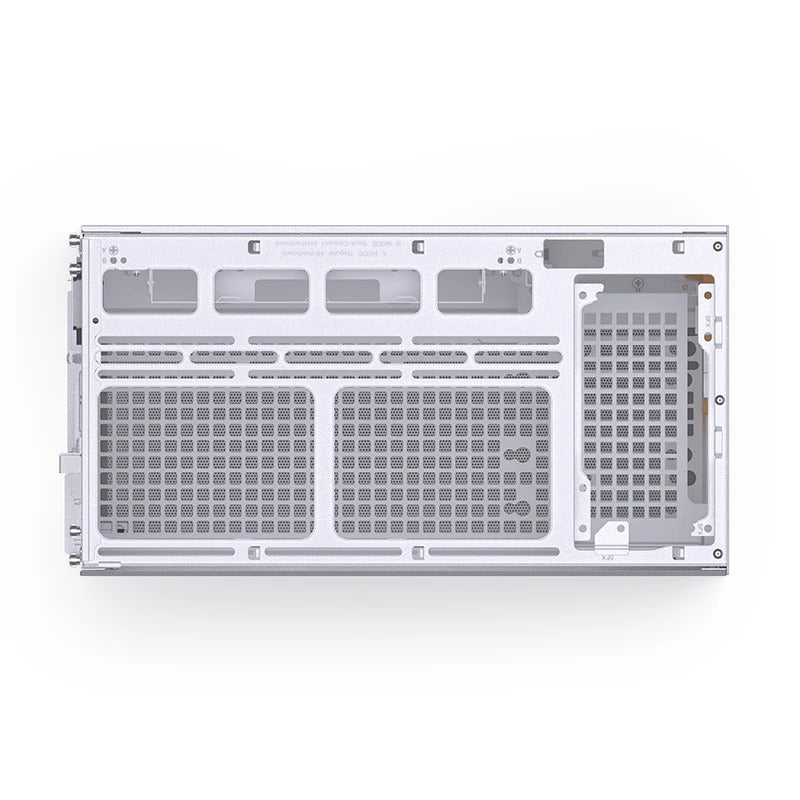

The D32 PRO MESH supports up to four 2.5-inch drives or up to two 3.5-inch drives sharing mounting positions with two 2.5-inch drives. Actual capacity depends on the selected drive combination and other installed hardware.
Its front I/O offers two USB Type-A ports, one faster USB Type-C port, and separate audio and microphone connections for convenient access to peripherals and headsets.
Build Your Compact PC
Whether you're assembling a gaming system or a versatile everyday workstation, the D32 PRO MESH combines compact dimensions, broad graphics card clearance, flexible cooling support, and modern front-panel connectivity. Its support for Mini-ITX and Micro-ATX motherboards makes it a practical option for builders looking to balance space efficiency and hardware flexibility.

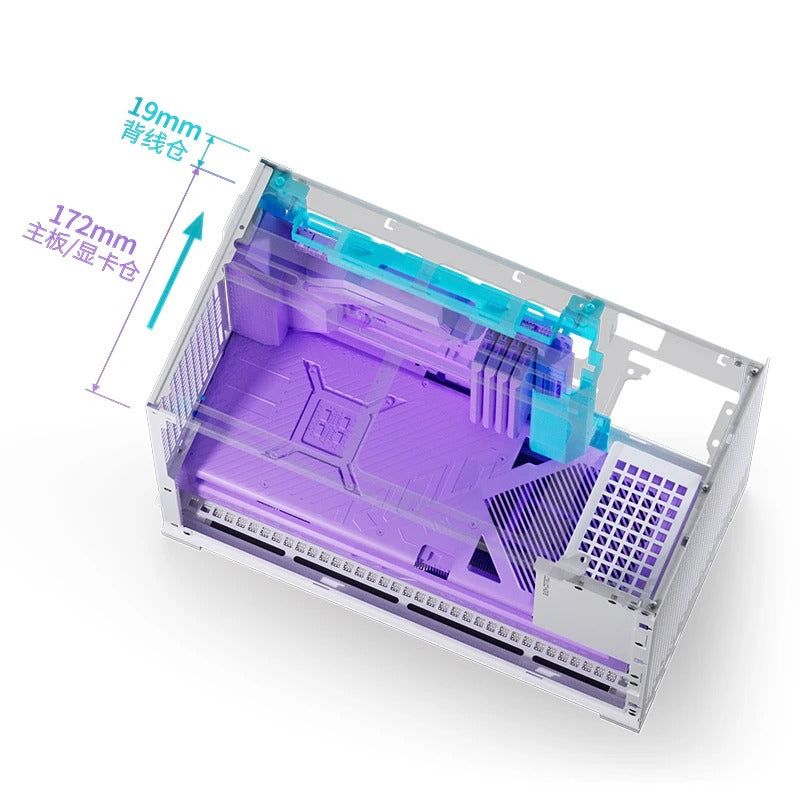

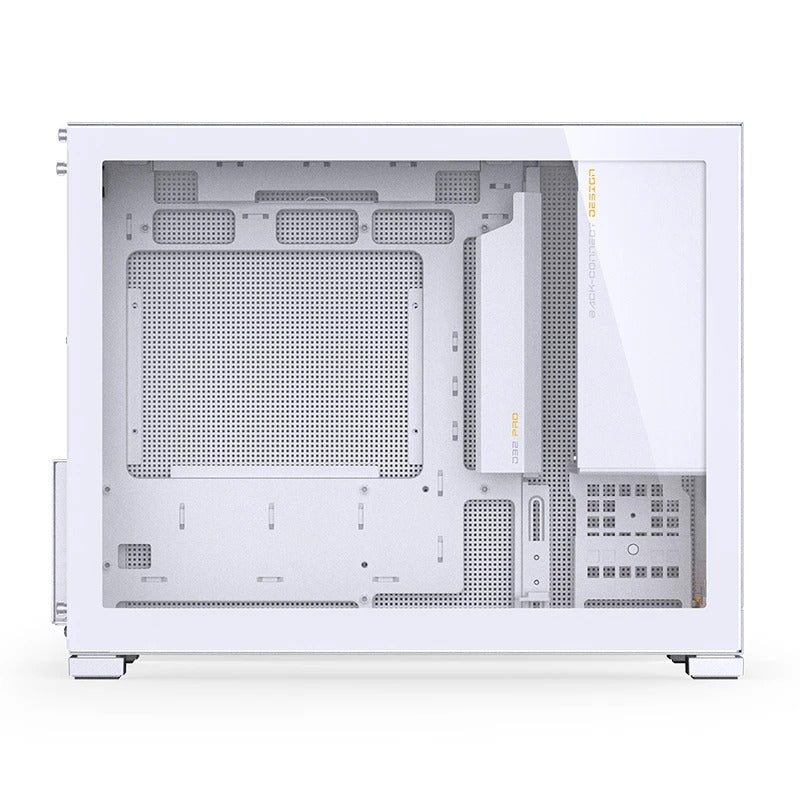

Important: Back-connect Micro-ATX motherboards require the chassis to be configured in B mode. CPU cooler clearance, PSU length, drive mounting, and fan placement can vary with the selected mode and installed hardware; verify component compatibility before purchase.
| Model | D32 PRO |
| Case Design | Mesh |
| Available Colors | Mesh Black, White |
| Case Material | SPCC steel (0.7mm + 0.8mm) |
| Dimensions (without feet/protrusions) | 384 × 207 × 302mm (D × W × H) |
| Dimensions (with feet/protrusions) | 396 × 207 × 314mm (D × W × H) |

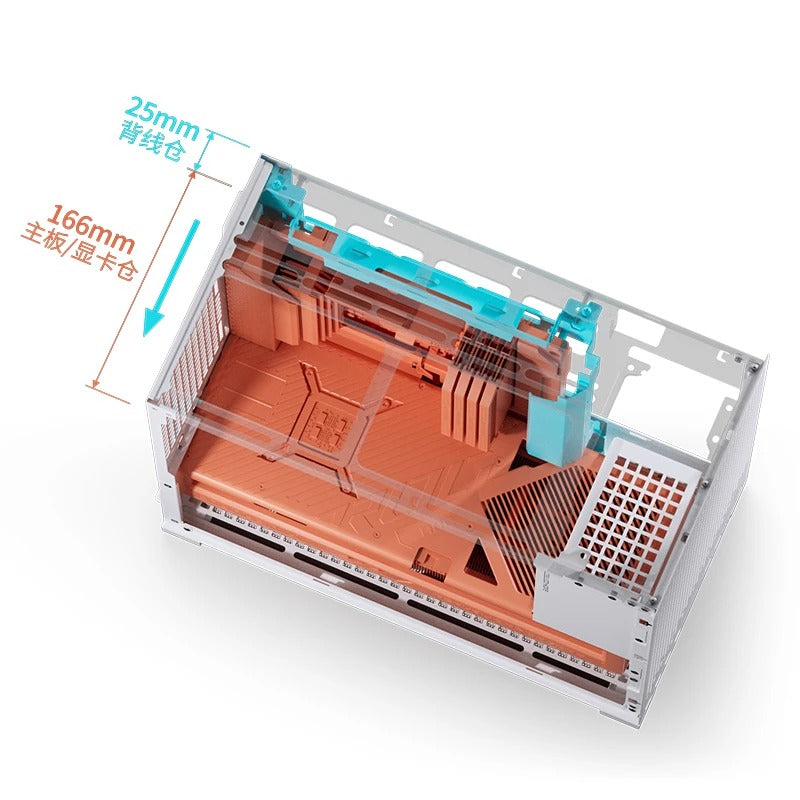

| Motherboard Support | Mini-ITX, Micro-ATX (regular), Micro-ATX (back-connect in B mode) |
| 2.5-inch Drive Support | Up to 4, depending on hardware configuration |
| 3.5-inch Drive Support | Up to 2, sharing mounts with 2.5-inch drives |
| Front I/O | 2 × USB 3.2 Gen 1 Type-A, 1 × USB 3.2 Gen 2 Type-C, 1 × audio, 1 × microphone |
| Top Fan Support | 2 × 120mm or 2 × 140mm |

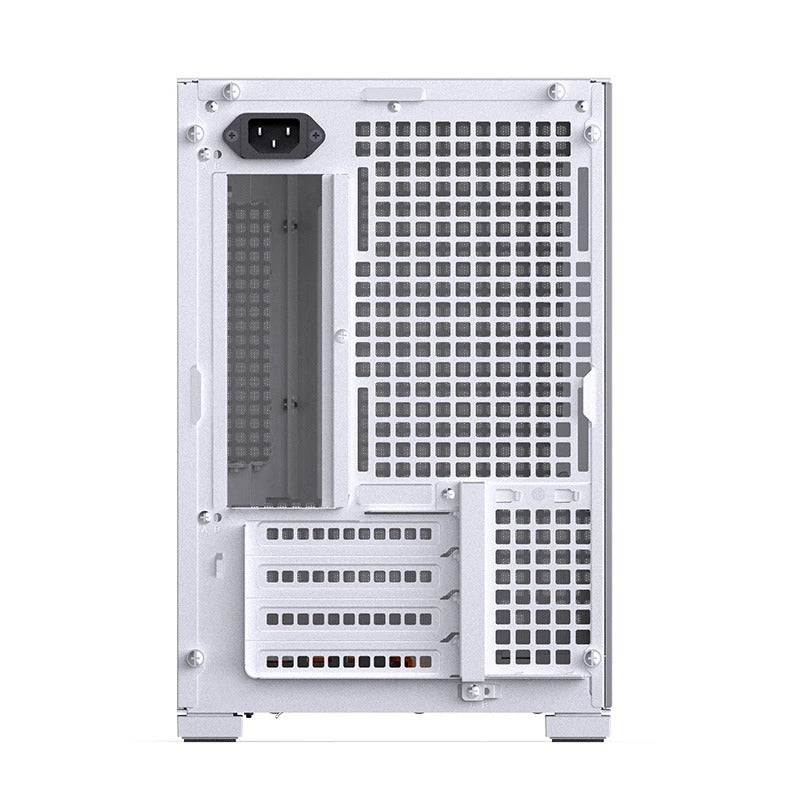

| Rear Fan Support | 1 × 120mm |

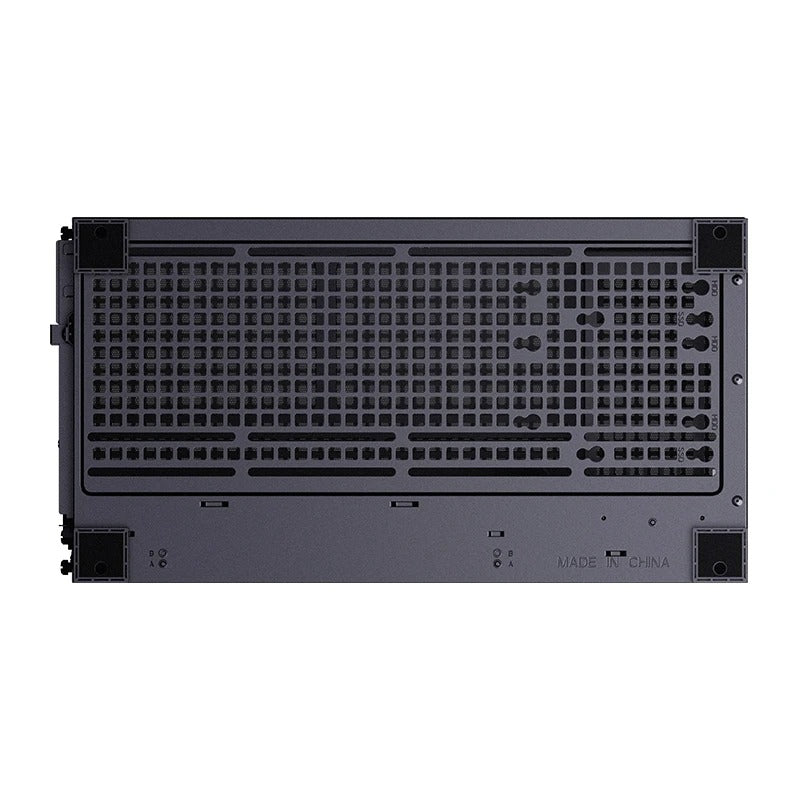

| Bottom Fan Support | 3 × 120mm or 2 × 140mm, depending on hardware configuration |
| Radiator Support | Top: up to 240mm |
| ATX PSU Support | Yes, with length limits based on GPU position and configuration |
| SFX PSU Support | SFX, SFX-L |
| CPU Cooler Clearance – A Mode | Up to 170mm (Intel) / 169mm (AMD) |
| CPU Cooler Clearance – B Mode | Up to 164mm (Intel) / 163mm (AMD) |
| Maximum GPU Length | Up to 365mm |
| Net Weight | 4.3kg |
| Gross Weight | 5.5kg |
