Description

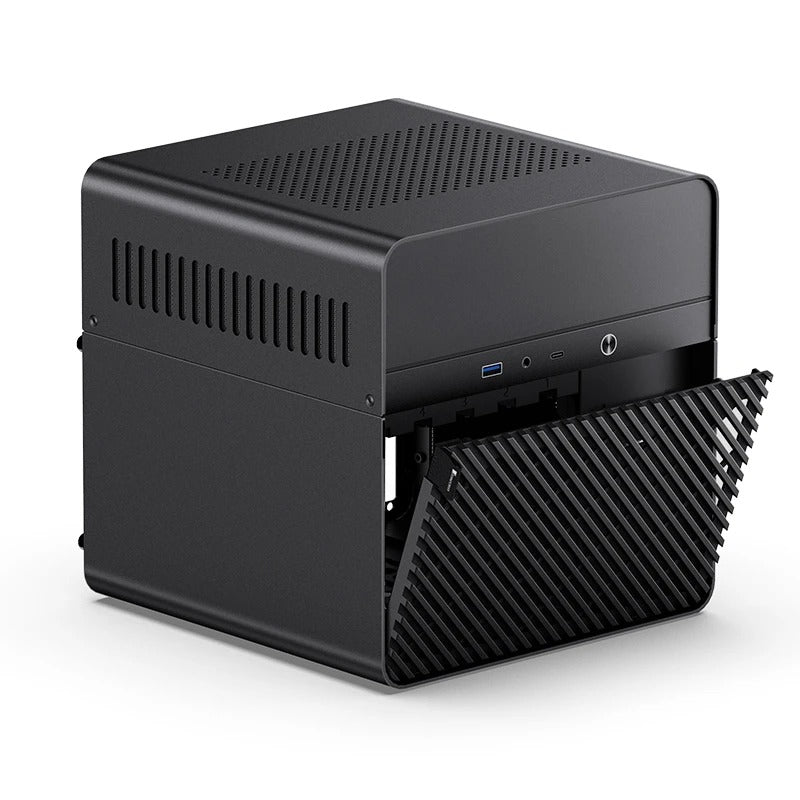

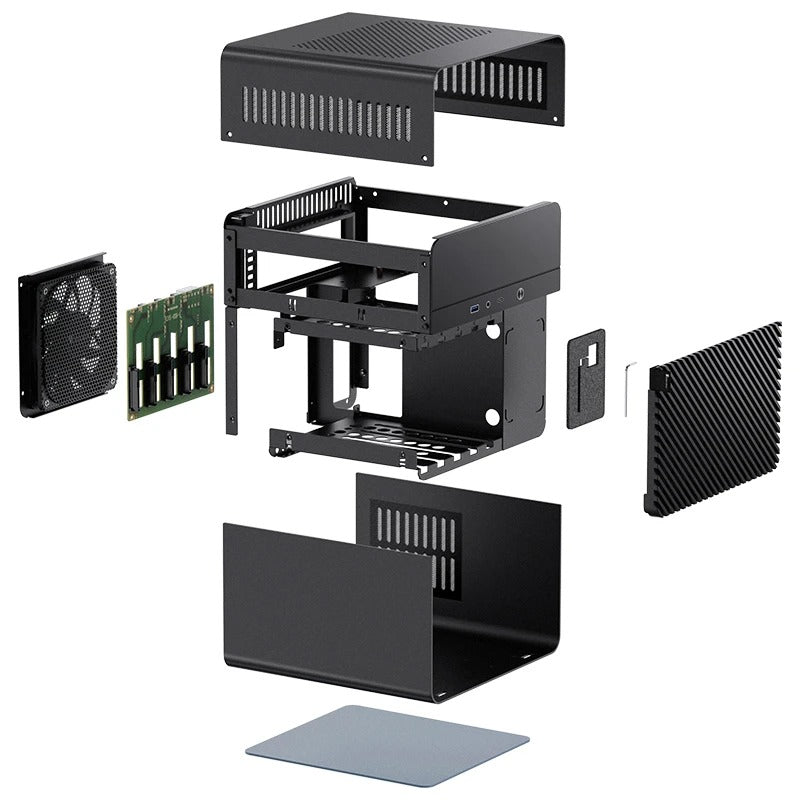

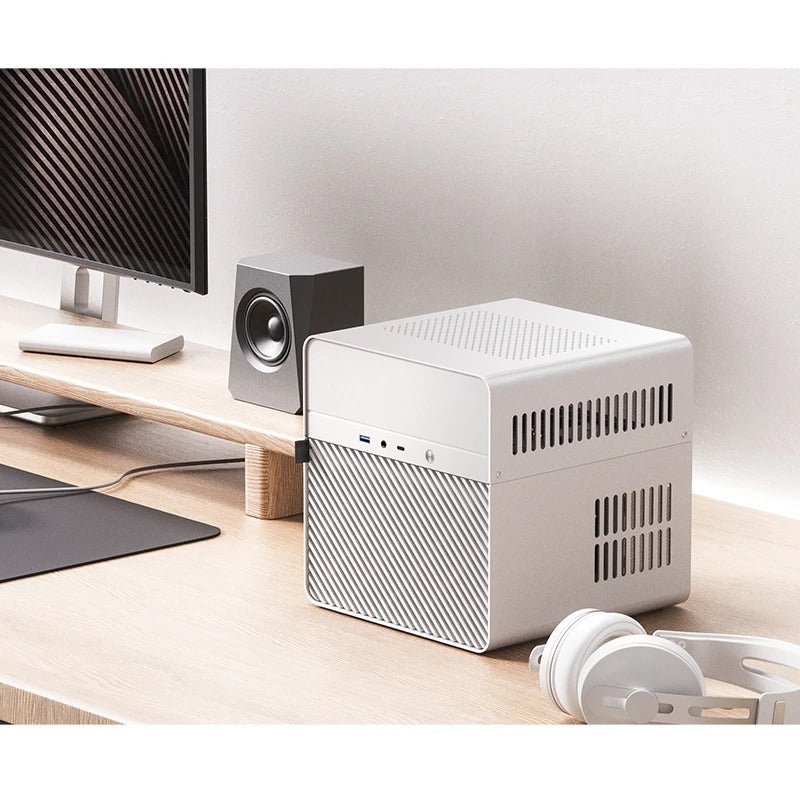

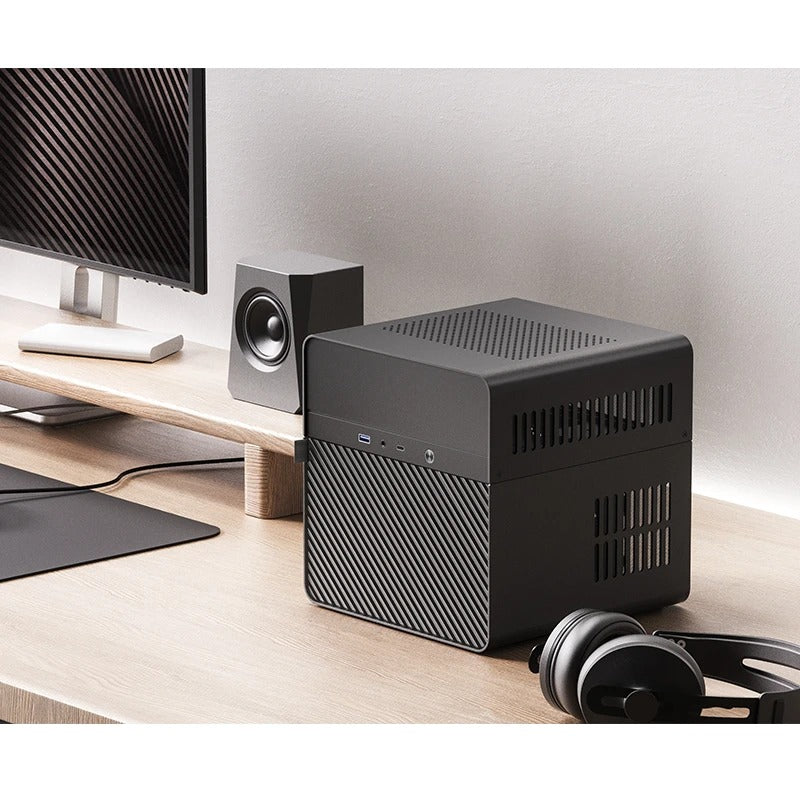

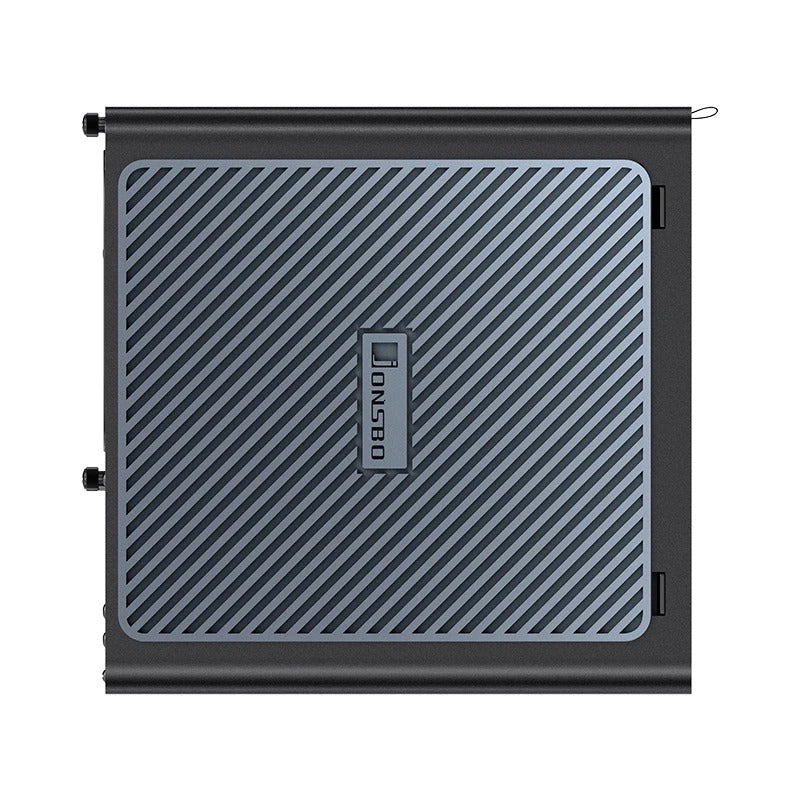

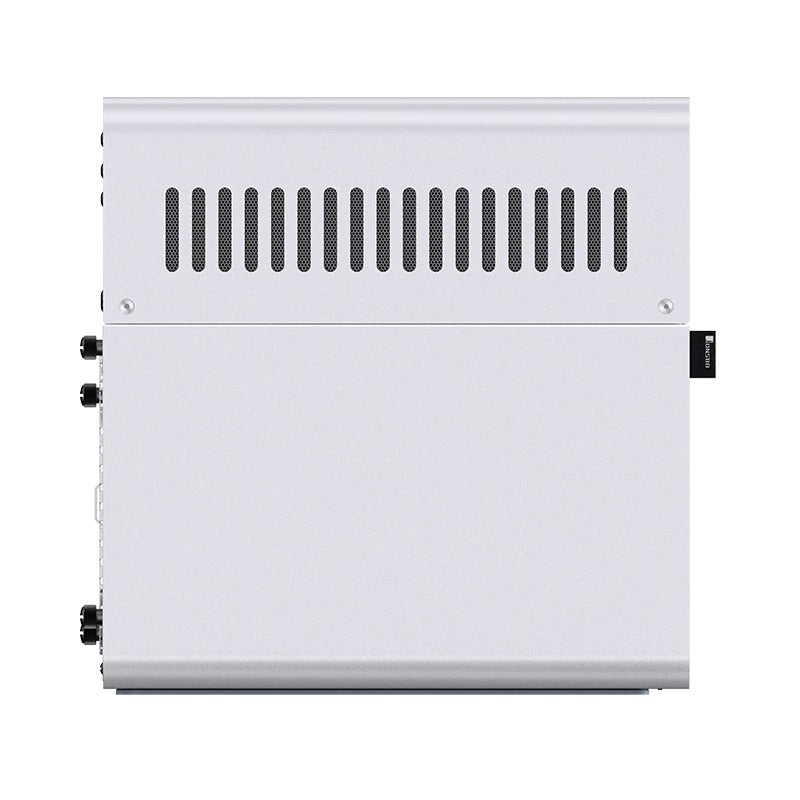

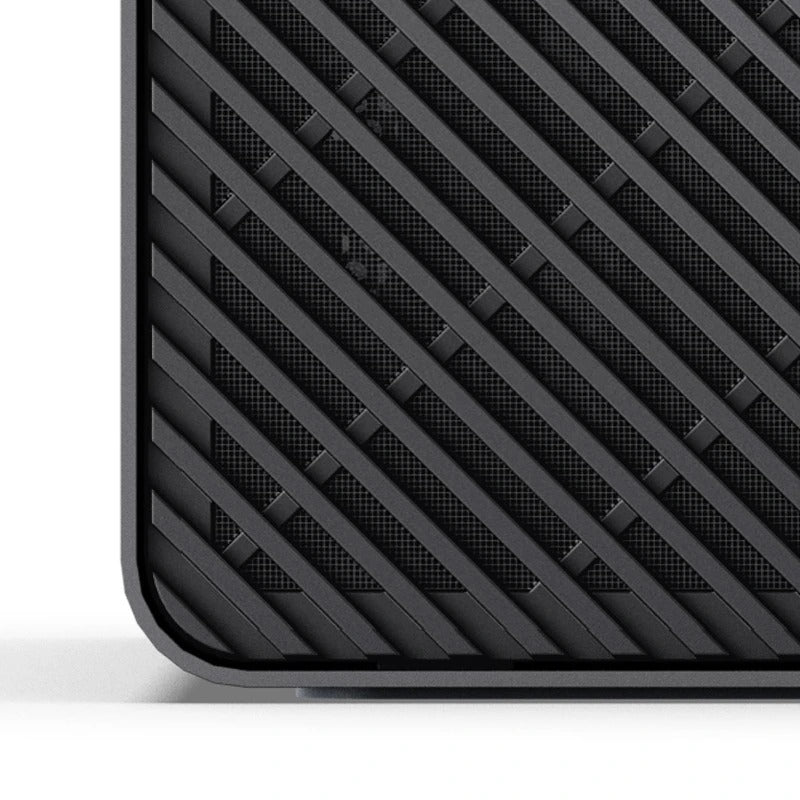

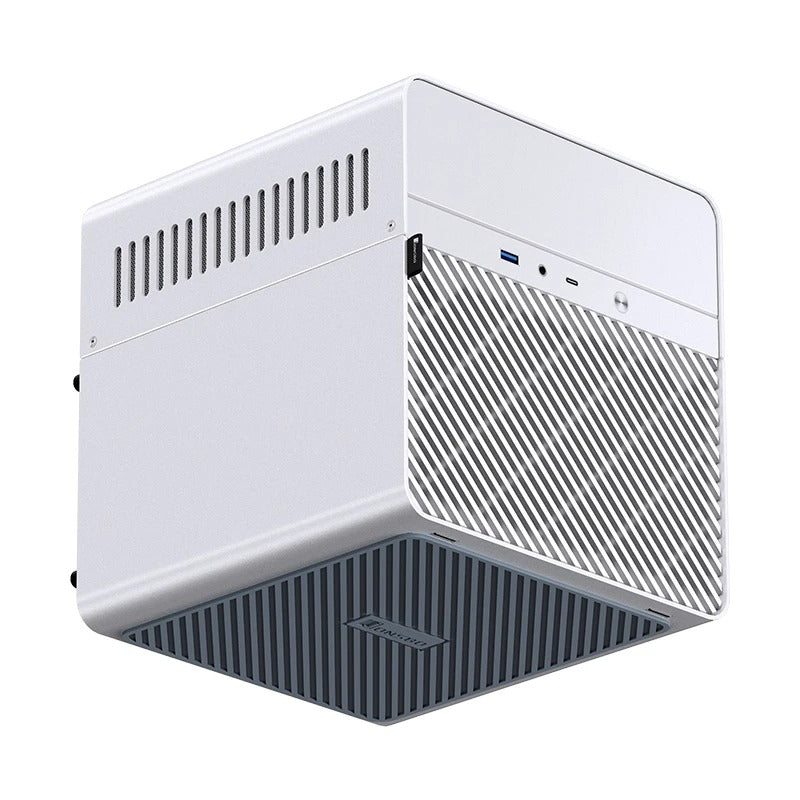

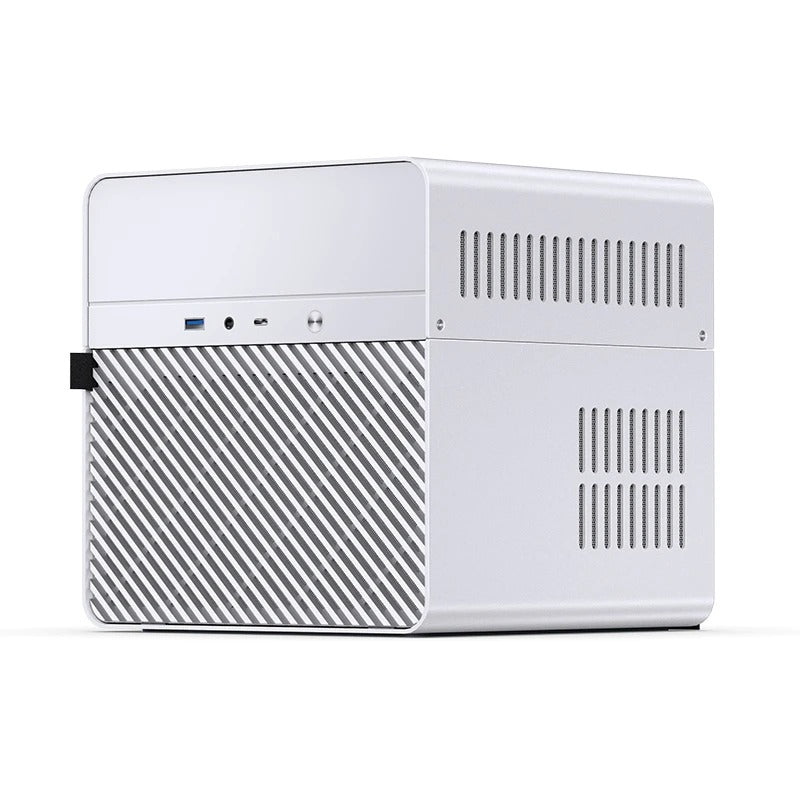

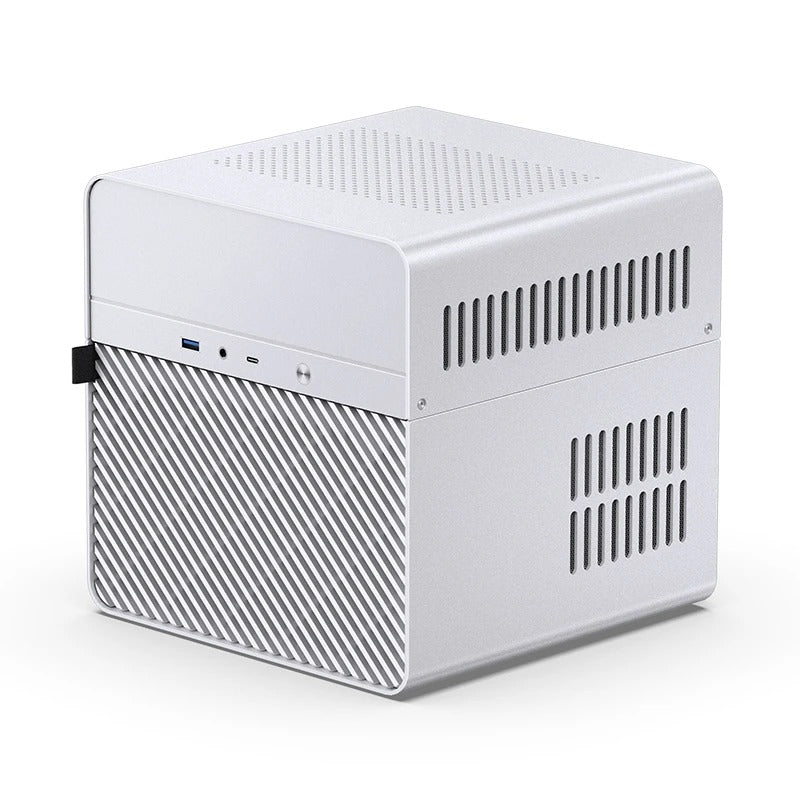

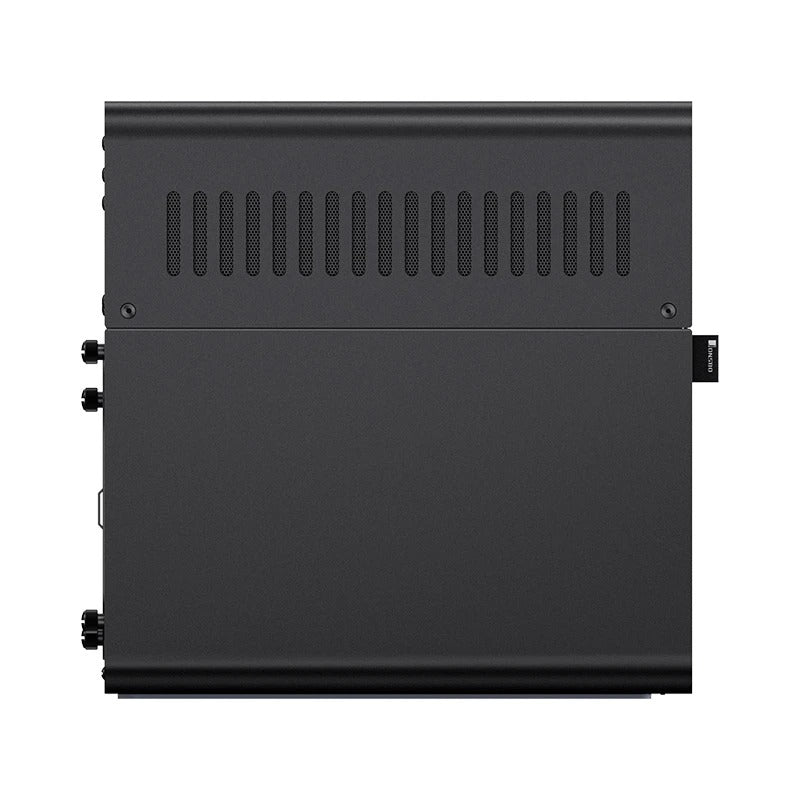

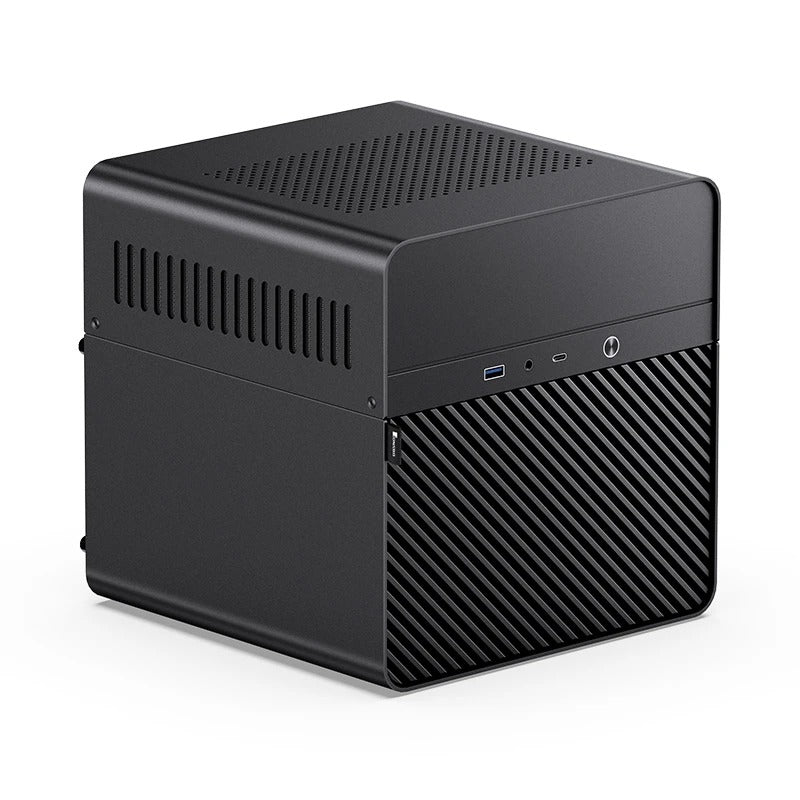

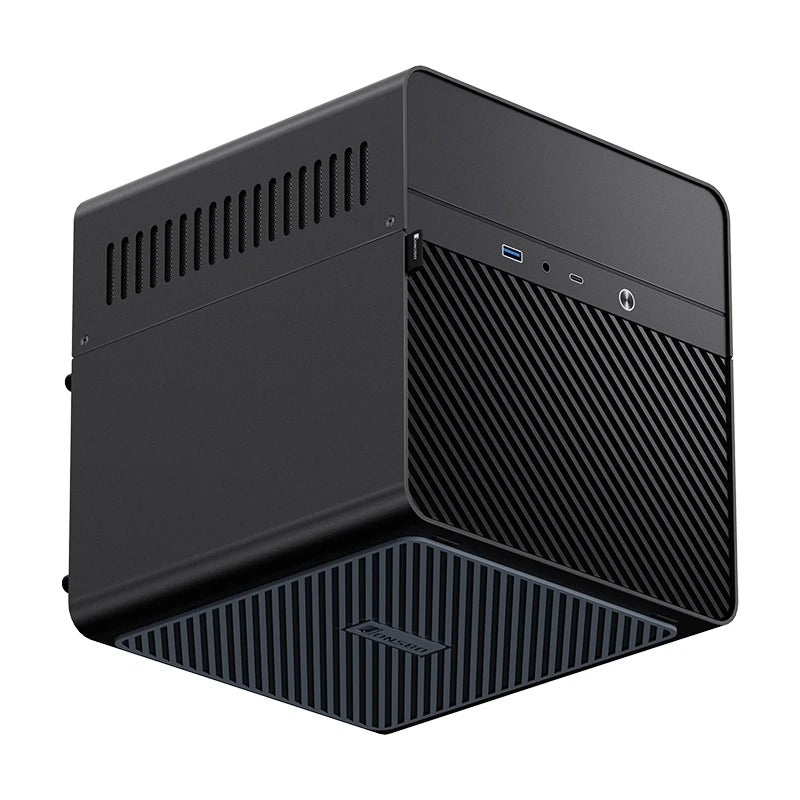

The Jonsbo N2 NAS Computer Case is a compact storage-focused chassis designed for building a home NAS (Network Attached Storage) system or a space-saving personal server. Featuring a sleek black finish and an aluminum alloy exterior, it combines a modern appearance with a sturdy construction suitable for home offices, media storage, and personal data management setups.

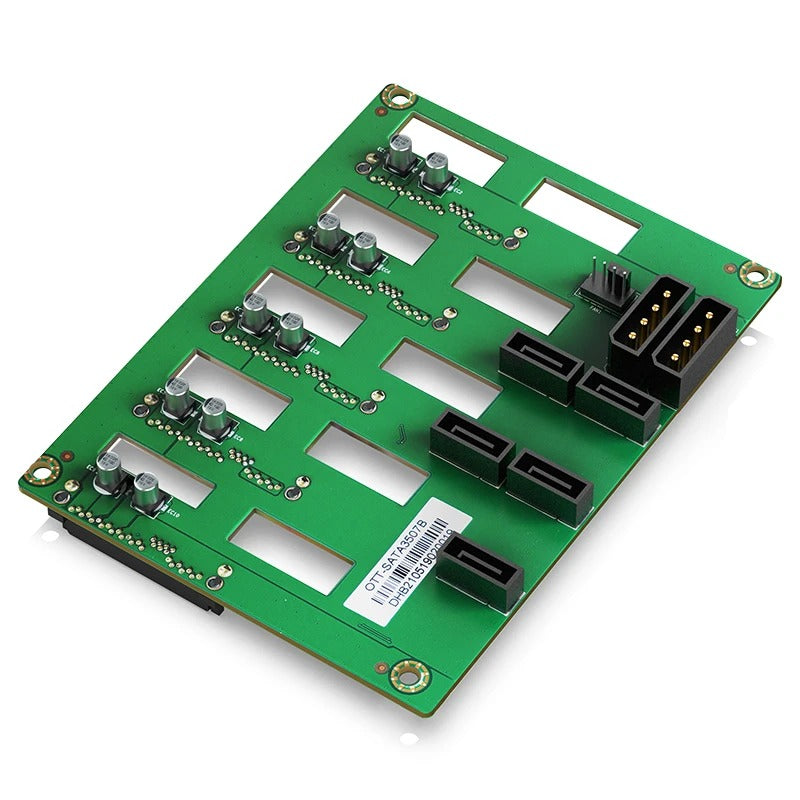

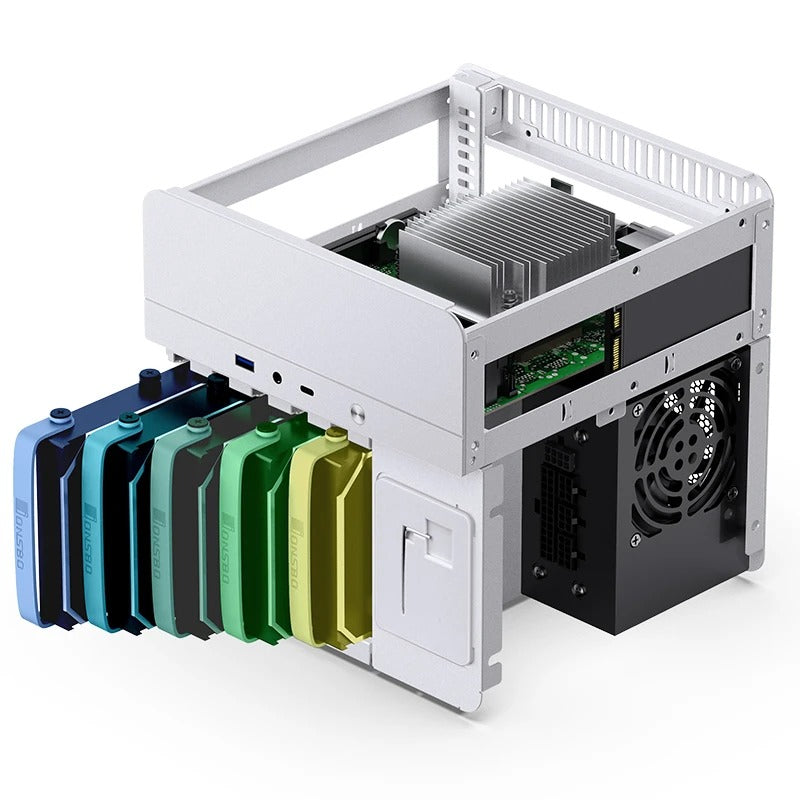

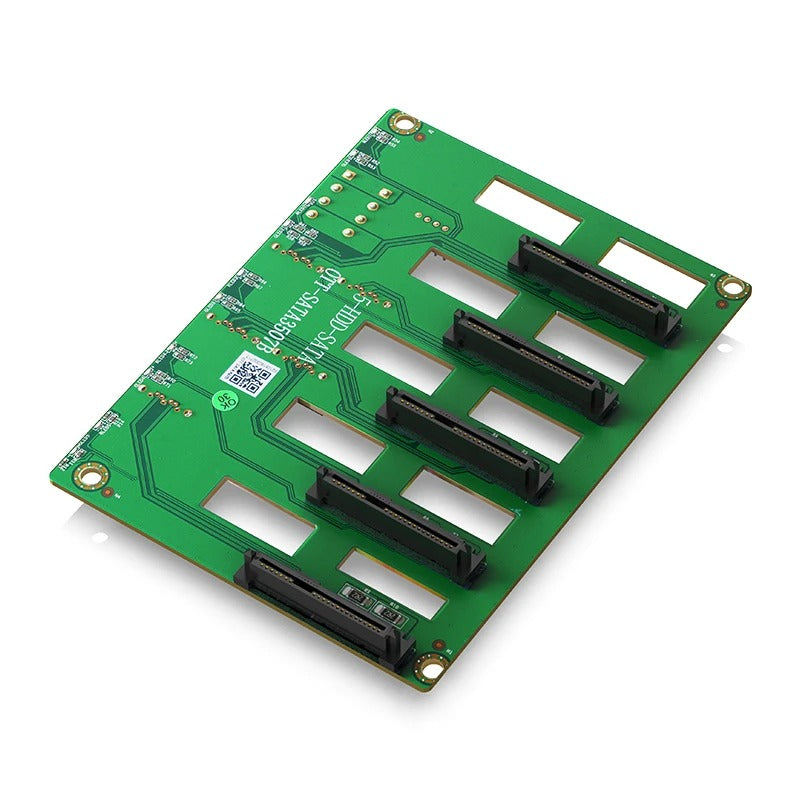

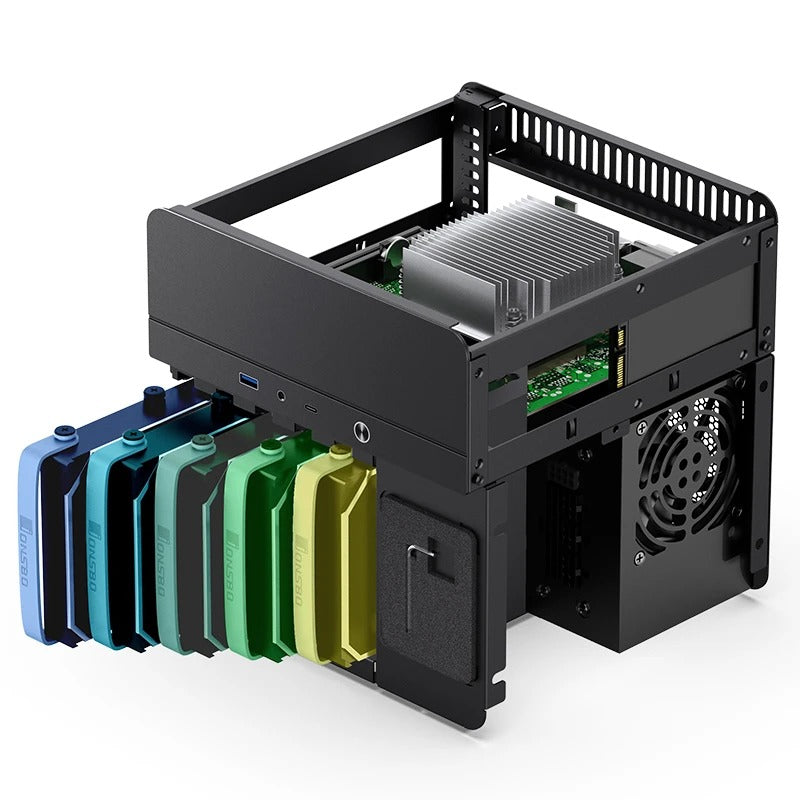

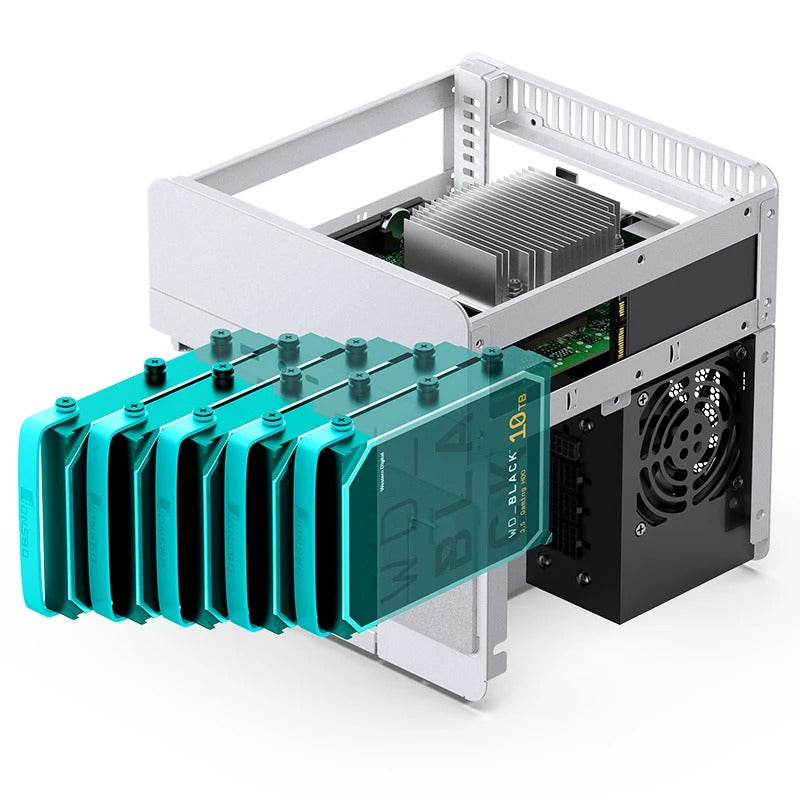

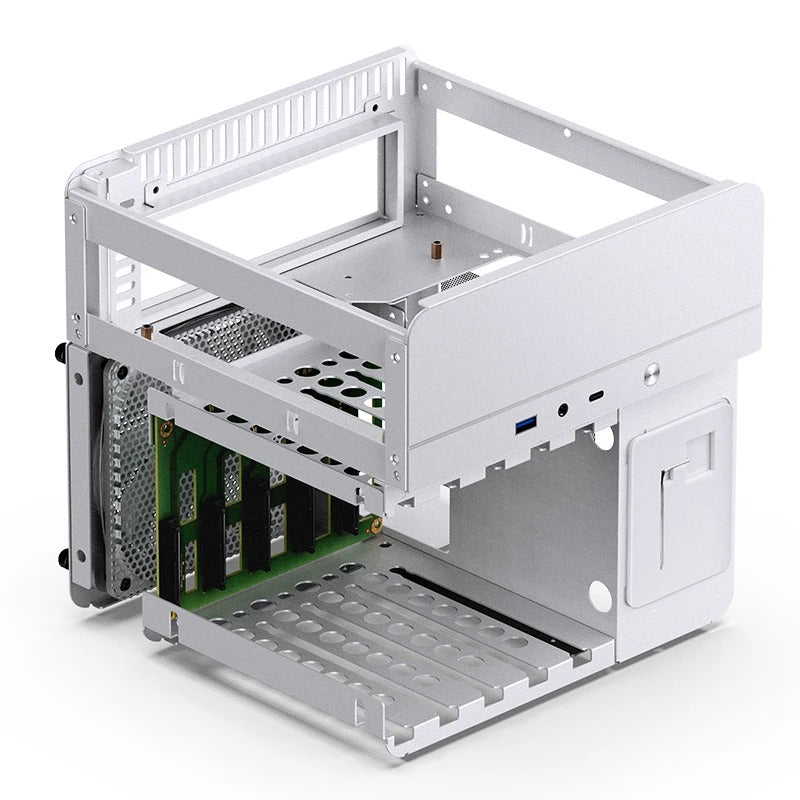

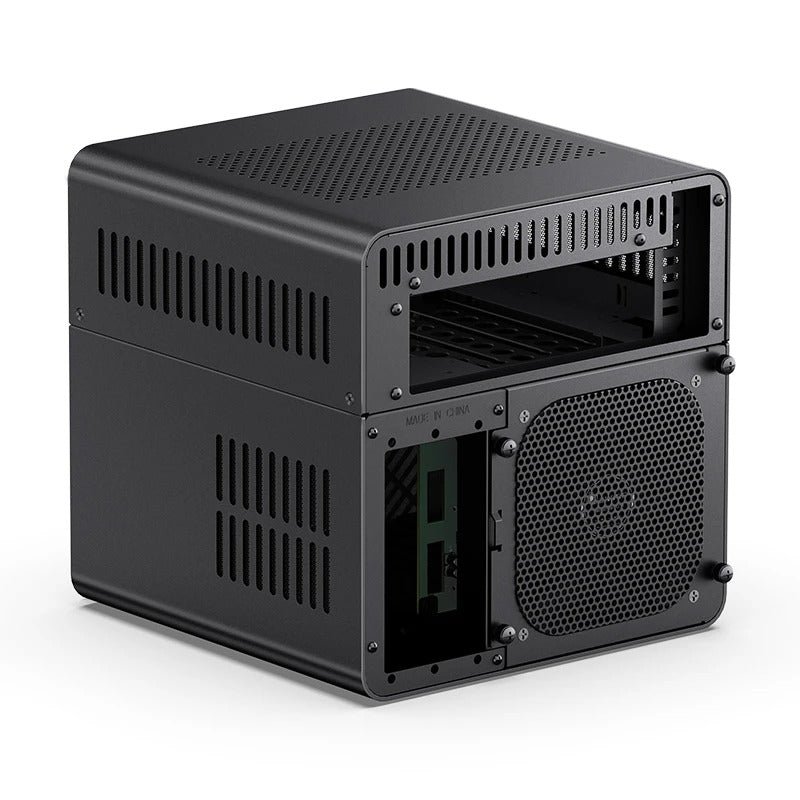

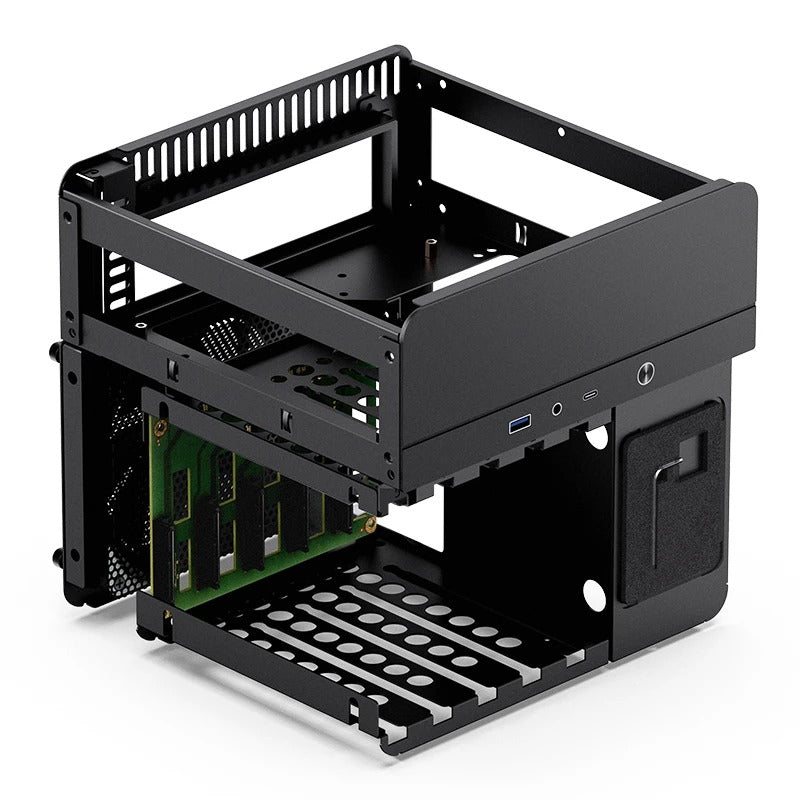

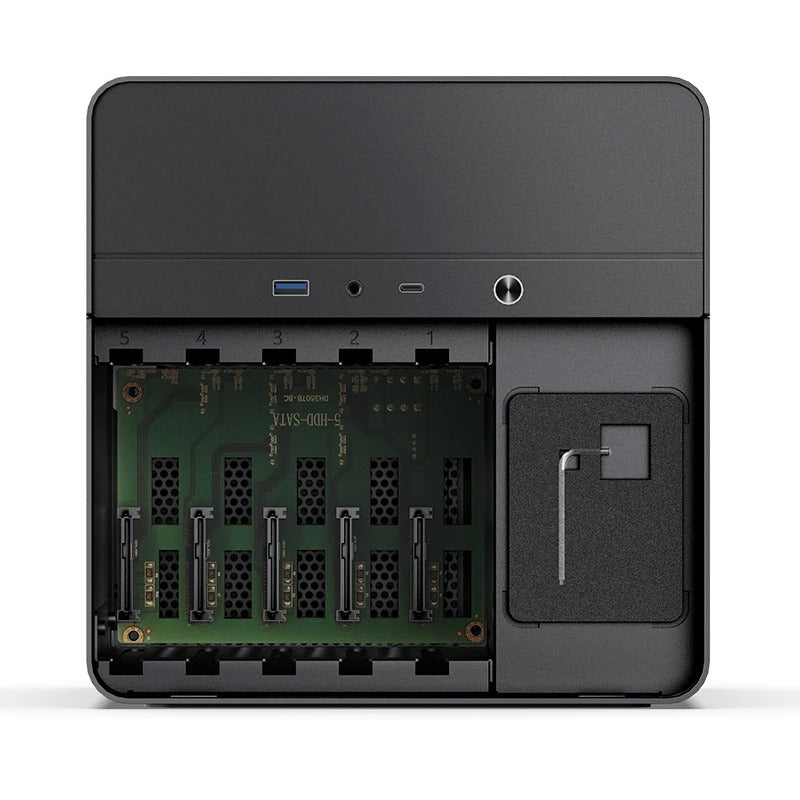

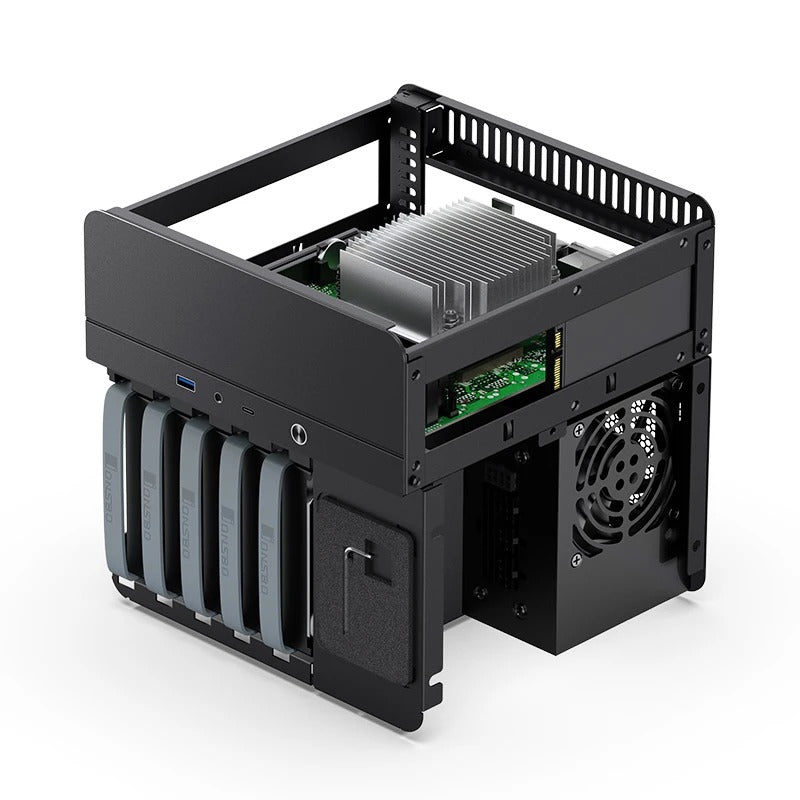

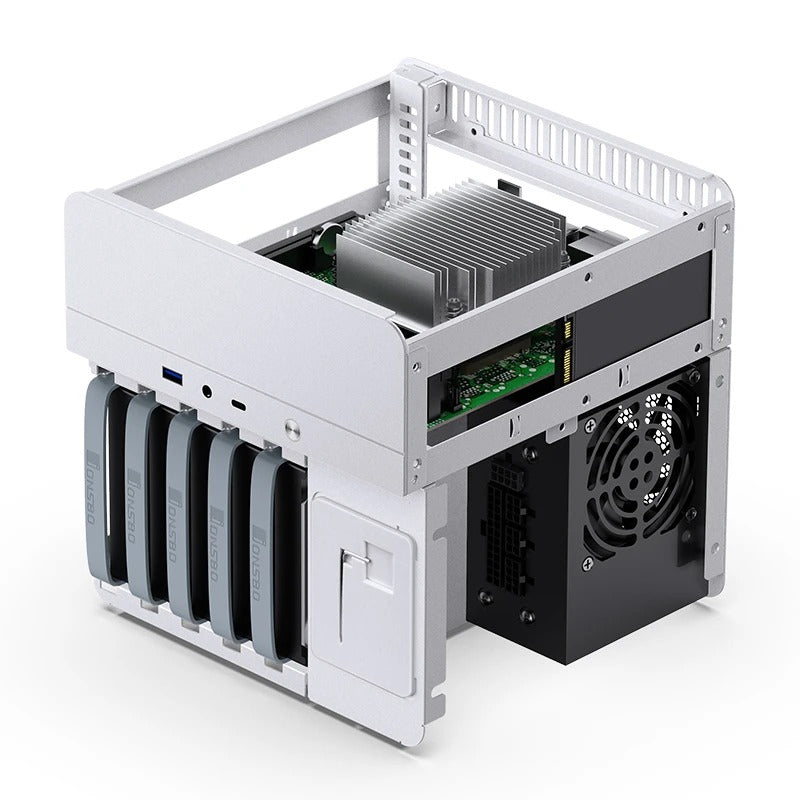

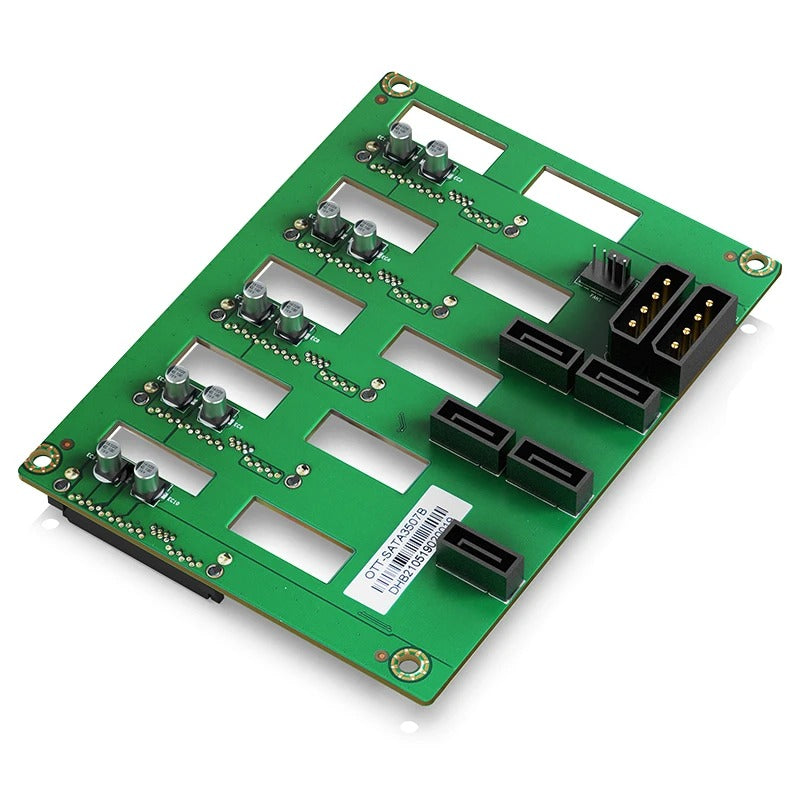

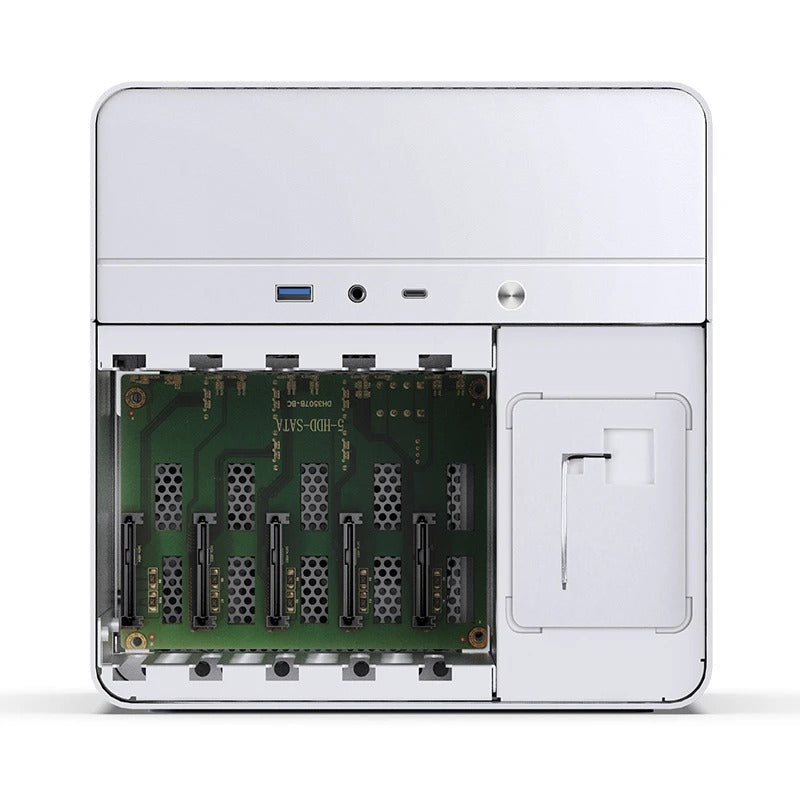

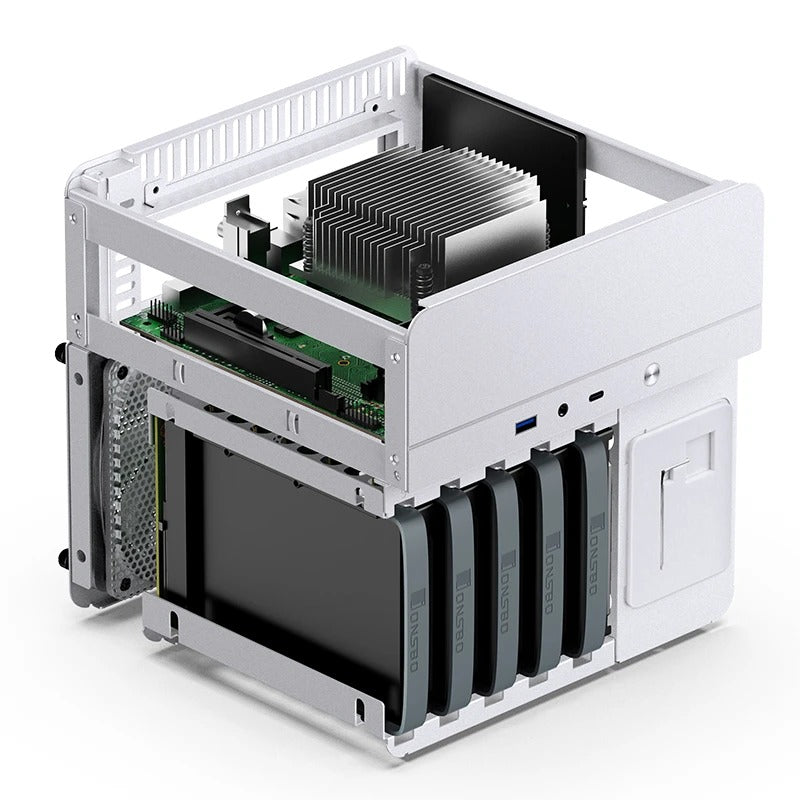

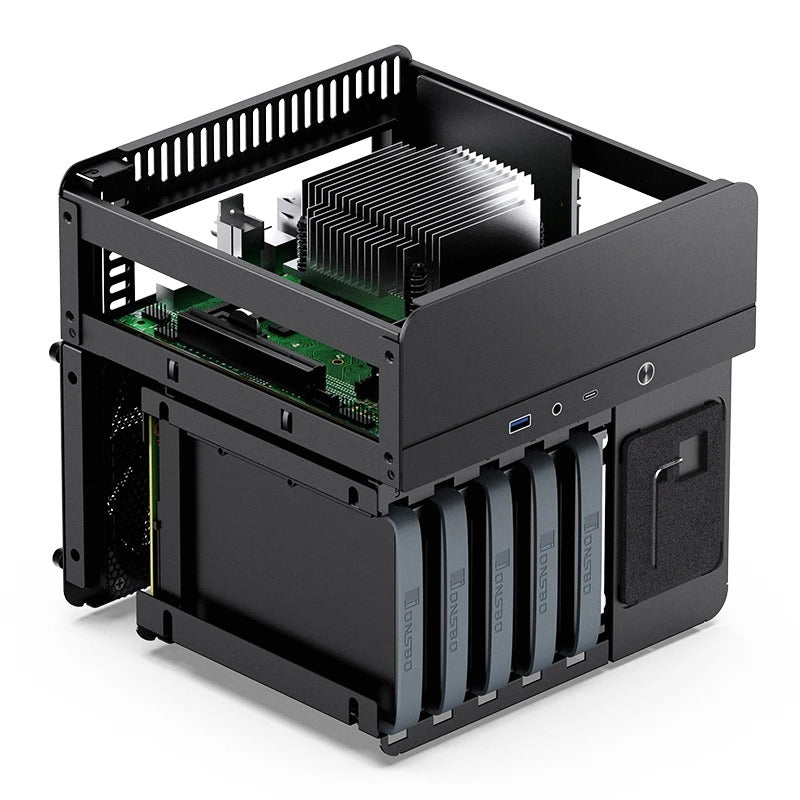

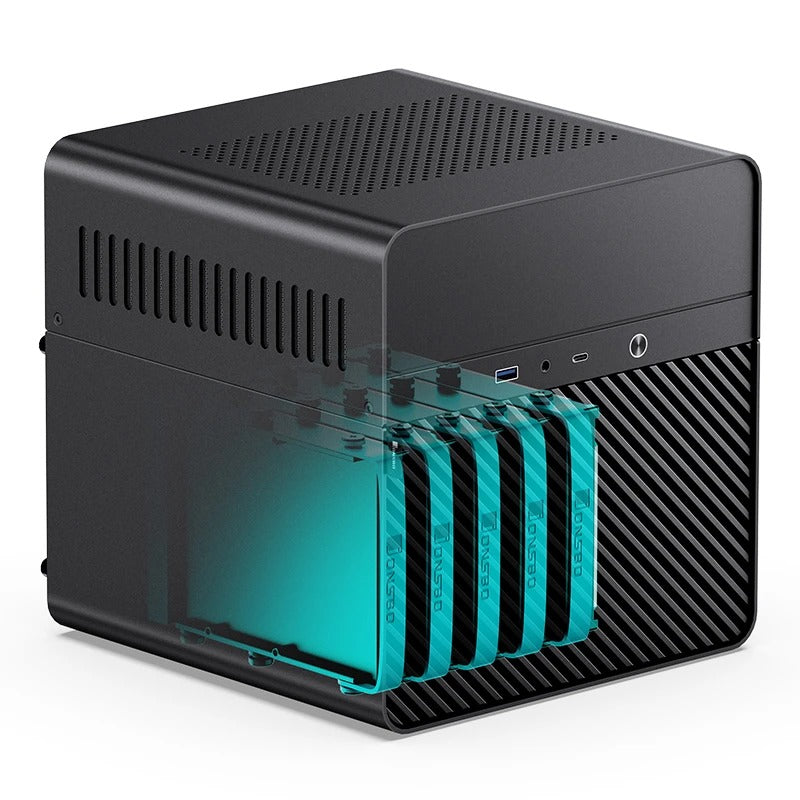

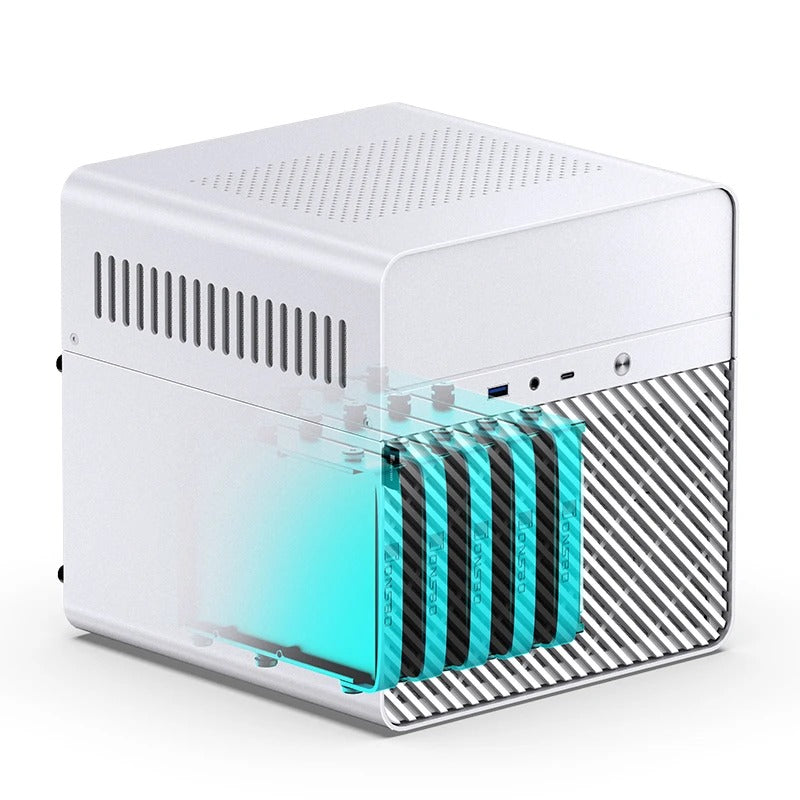

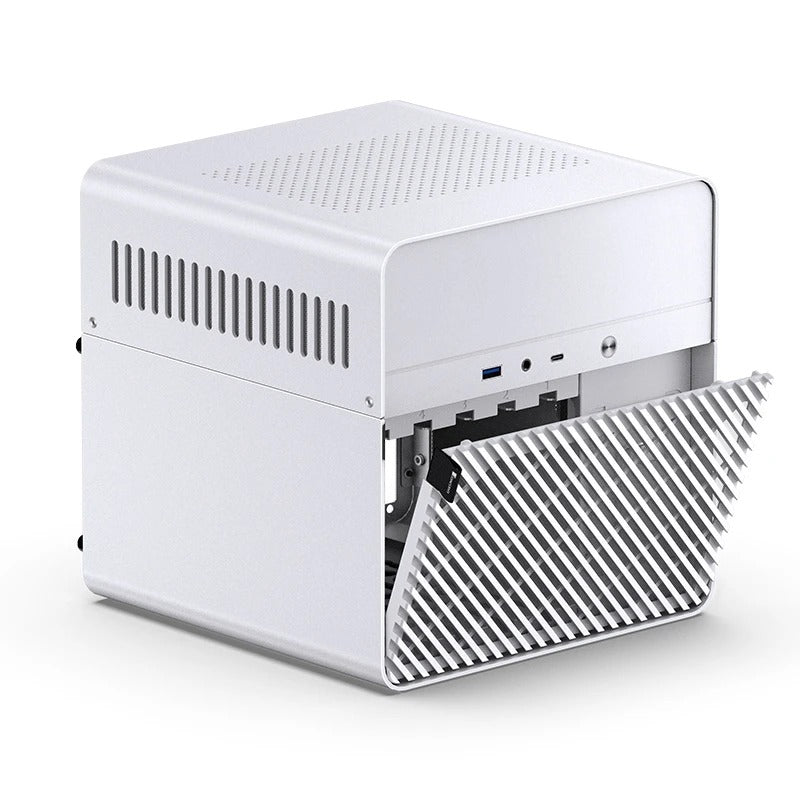

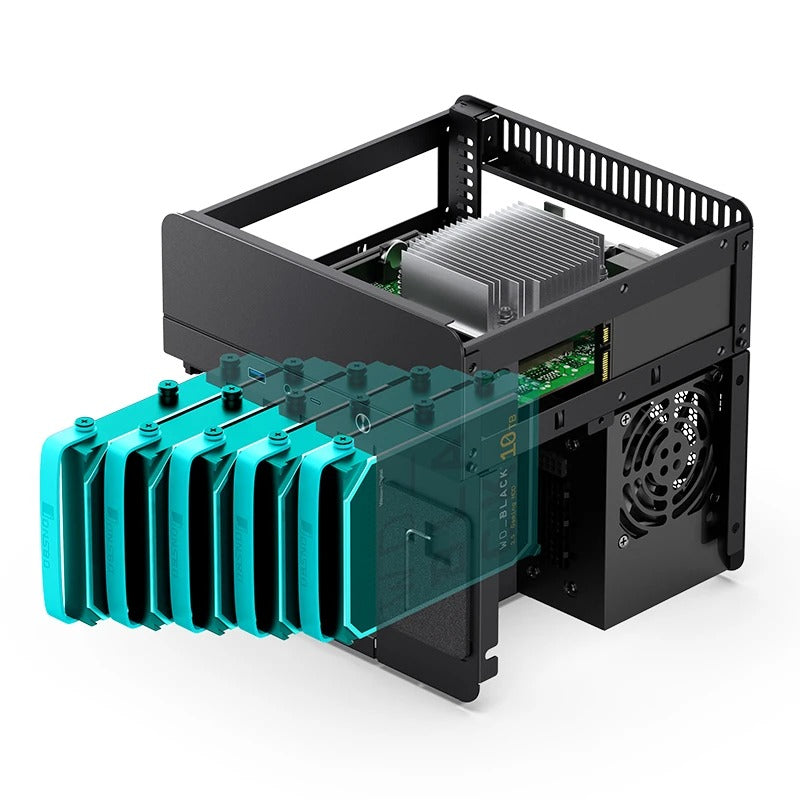

Despite its compact dimensions, the N2 supports up to five 3.5-inch hard drives and one 2.5-inch SSD, providing flexible storage options for backups, multimedia libraries, and file sharing. Its Mini-ITX motherboard compatibility makes it suitable for compact system builds, while the low-profile, single-slot PCI expansion design supports compatible add-in cards.

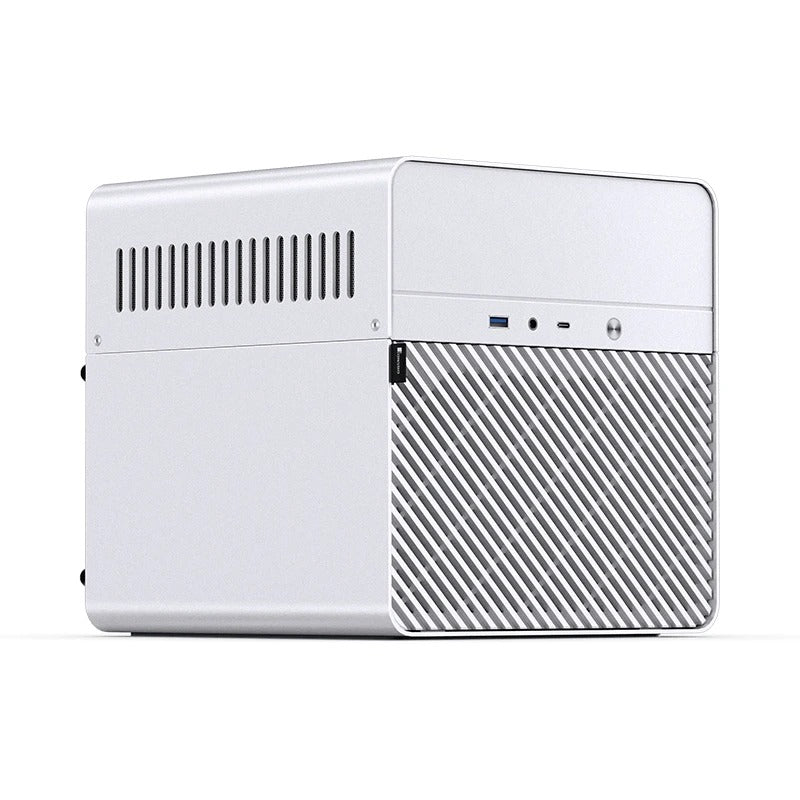

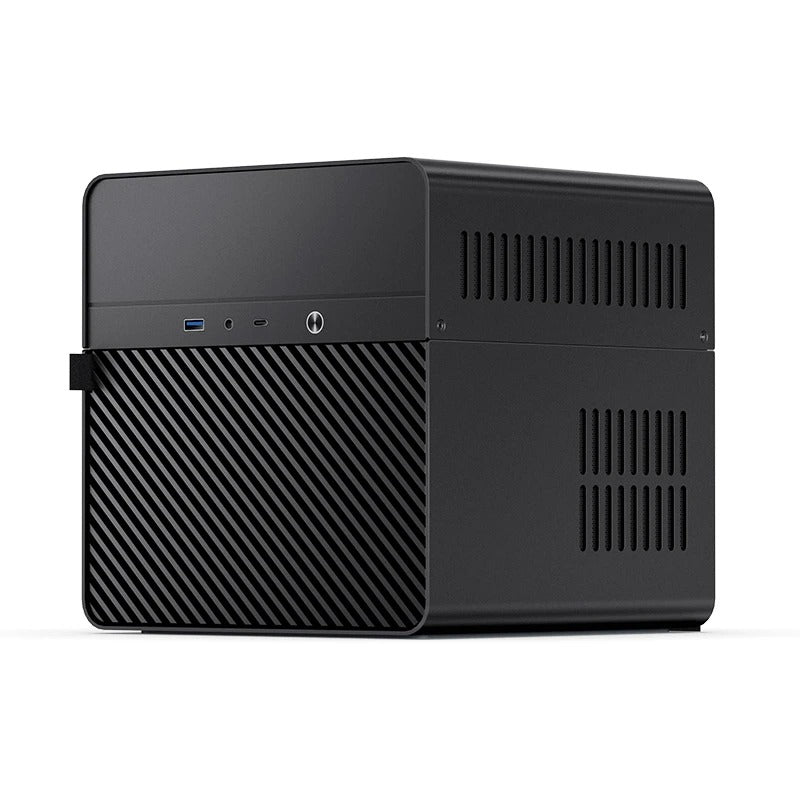

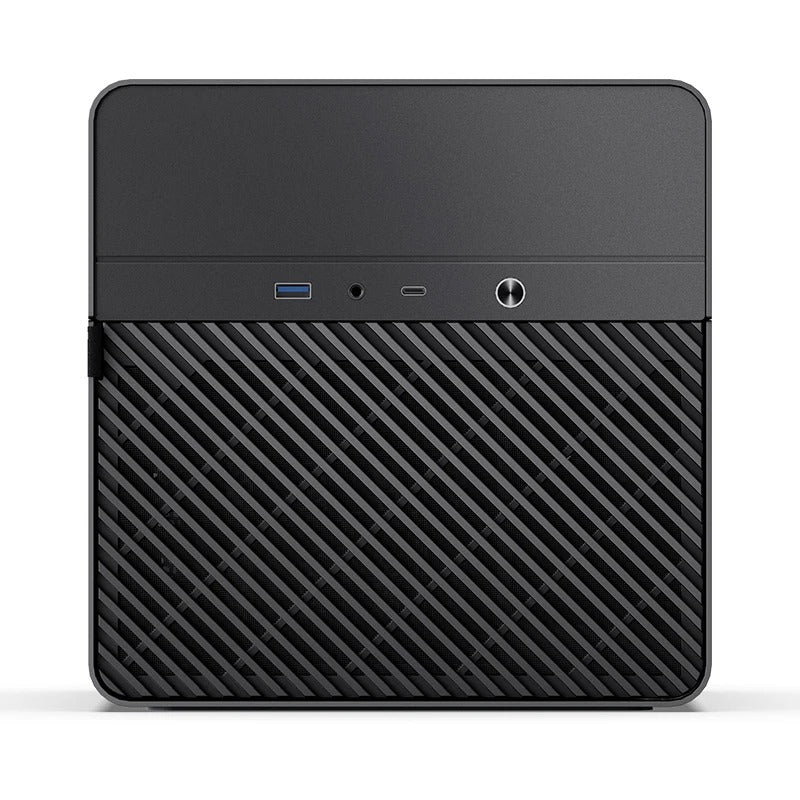

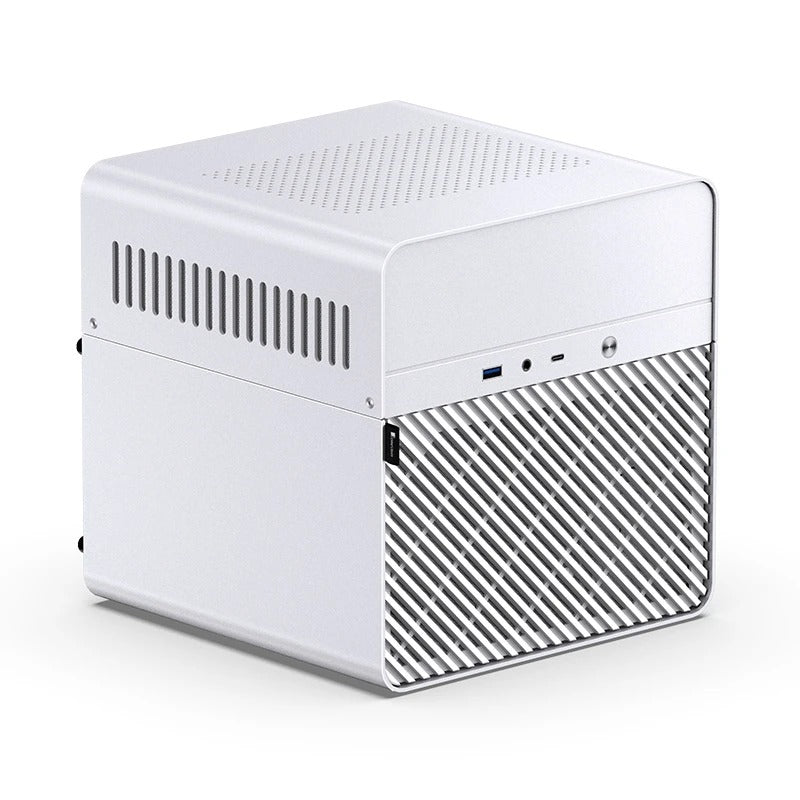

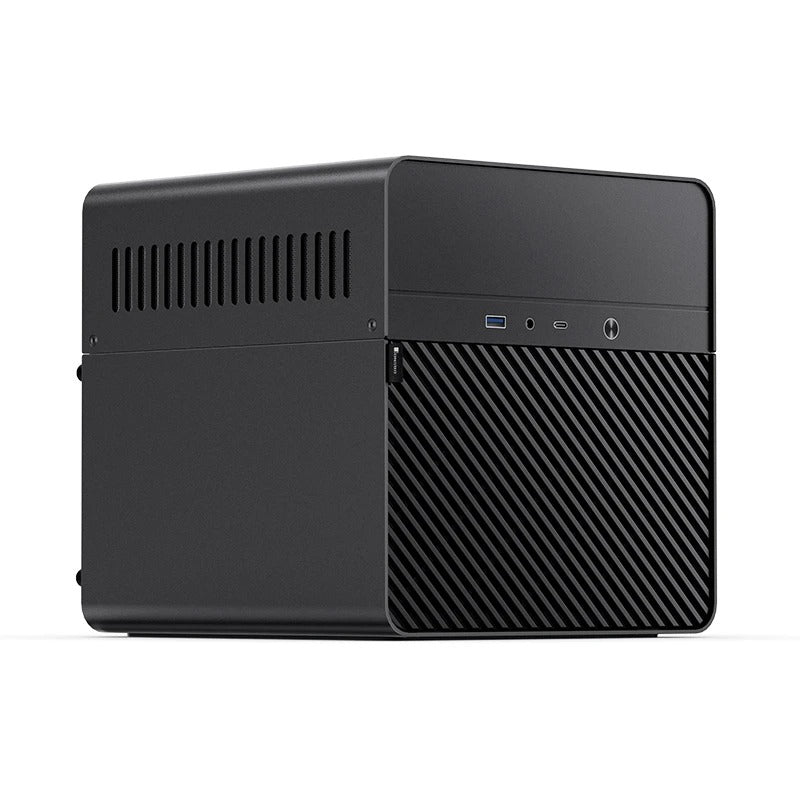

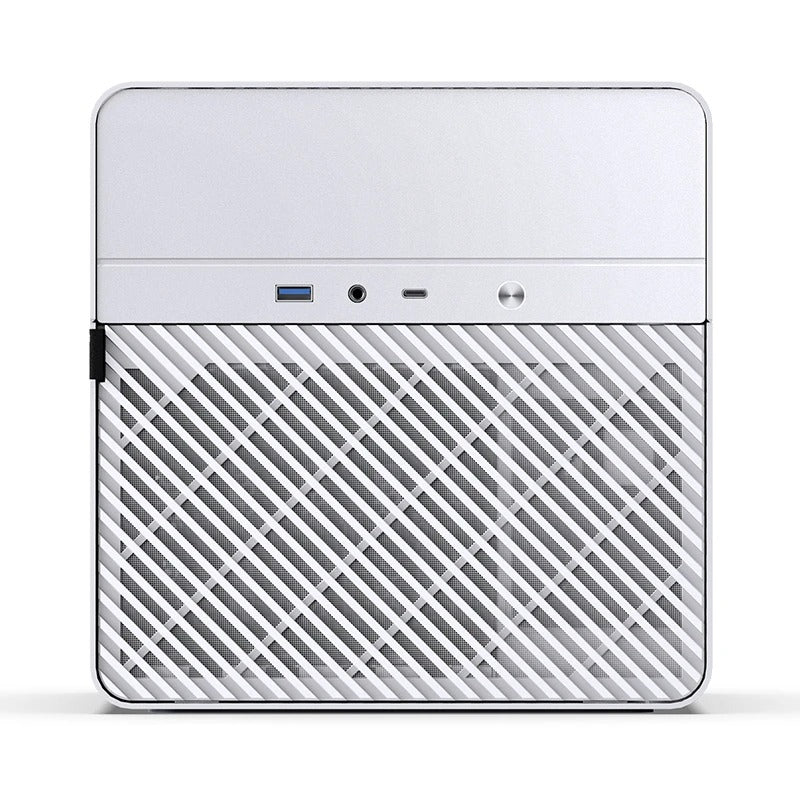

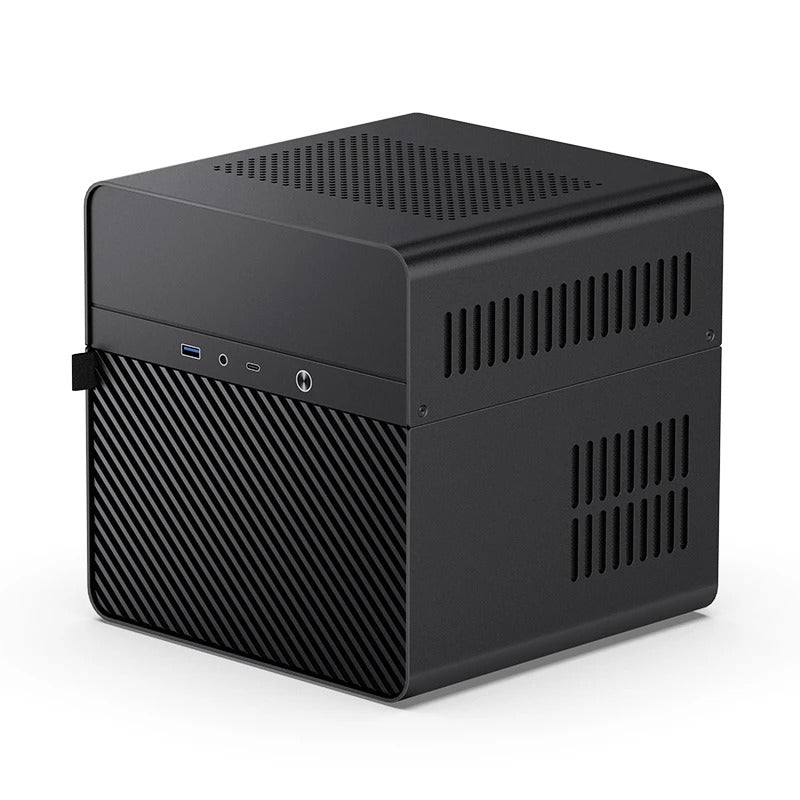

For connectivity, the front I/O panel includes a USB 3.0 Type-A port, a USB 3.2 Gen 2 Type-C port, and a combined headset and microphone audio jack. The case supports an SFX power supply up to 150mm long and CPU air coolers up to 65mm in height. It also accommodates low-profile graphics cards up to 197mm long, depending on component compatibility.

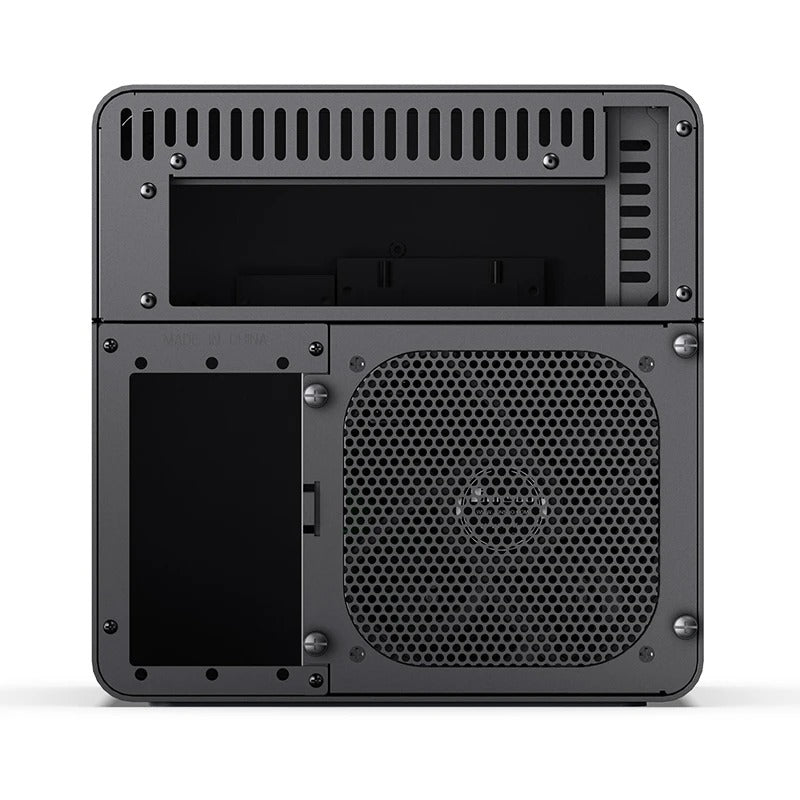

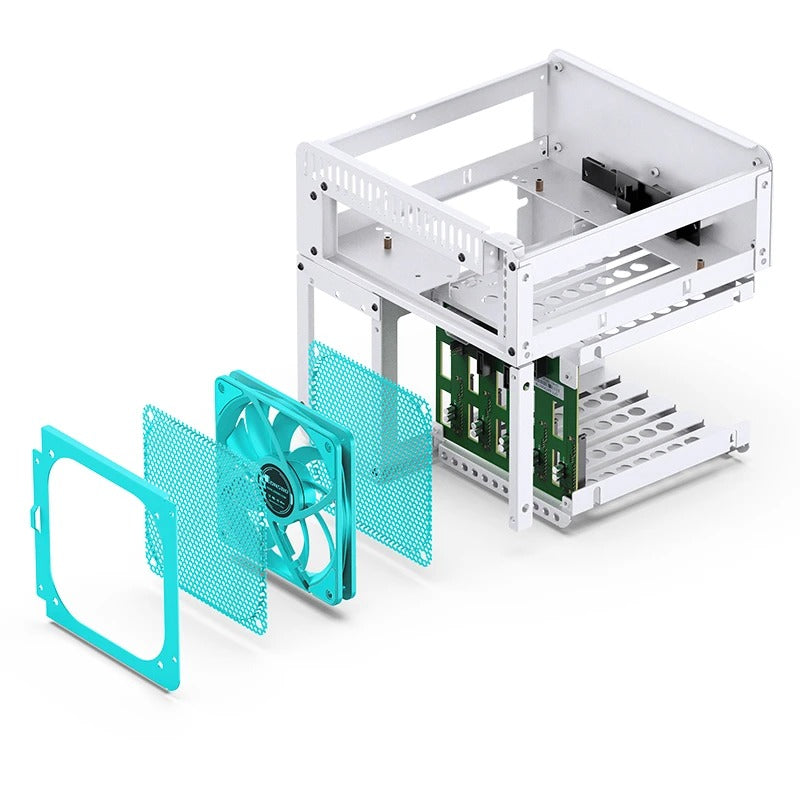

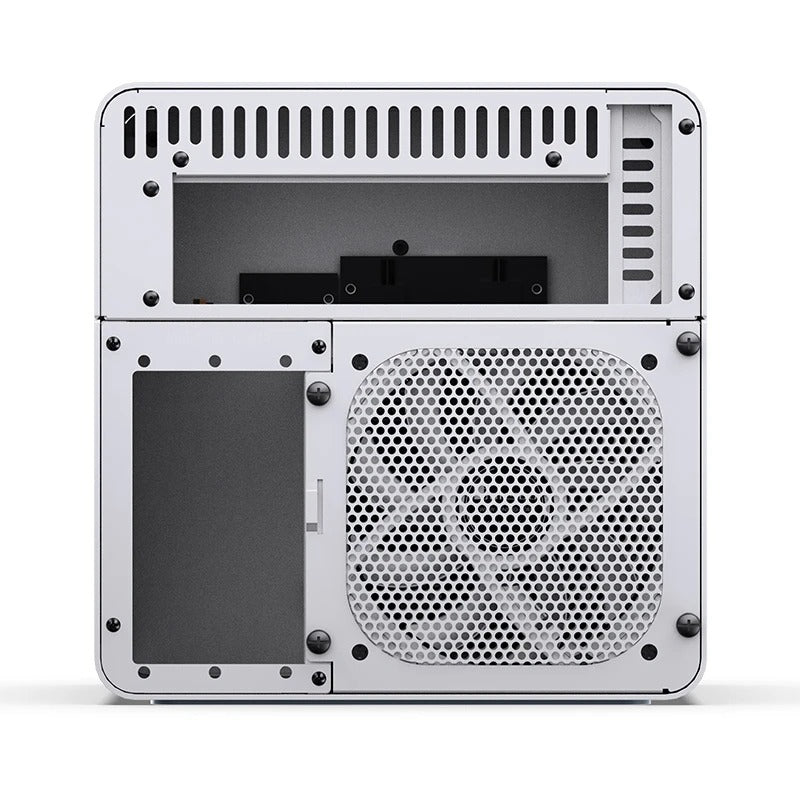

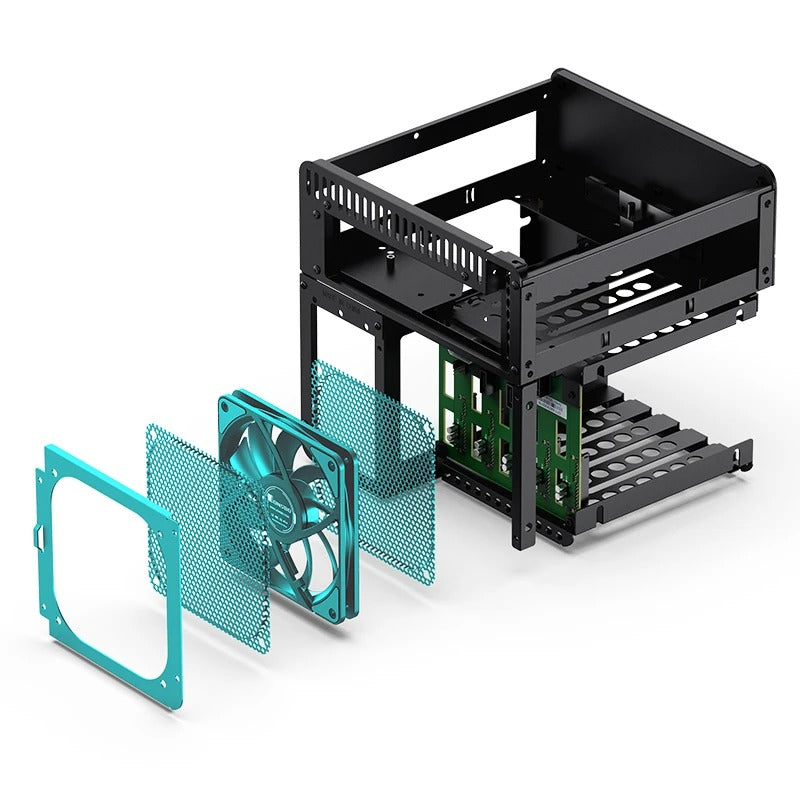

A built-in 12015mm fan helps provide airflow for the system, supporting cooling in a compact enclosure. Weighing approximately 2.9kg net, the Jonsbo N2 is a practical choice for users who want a small-footprint NAS case with substantial drive capacity and a clean, minimalist design.
Specification:

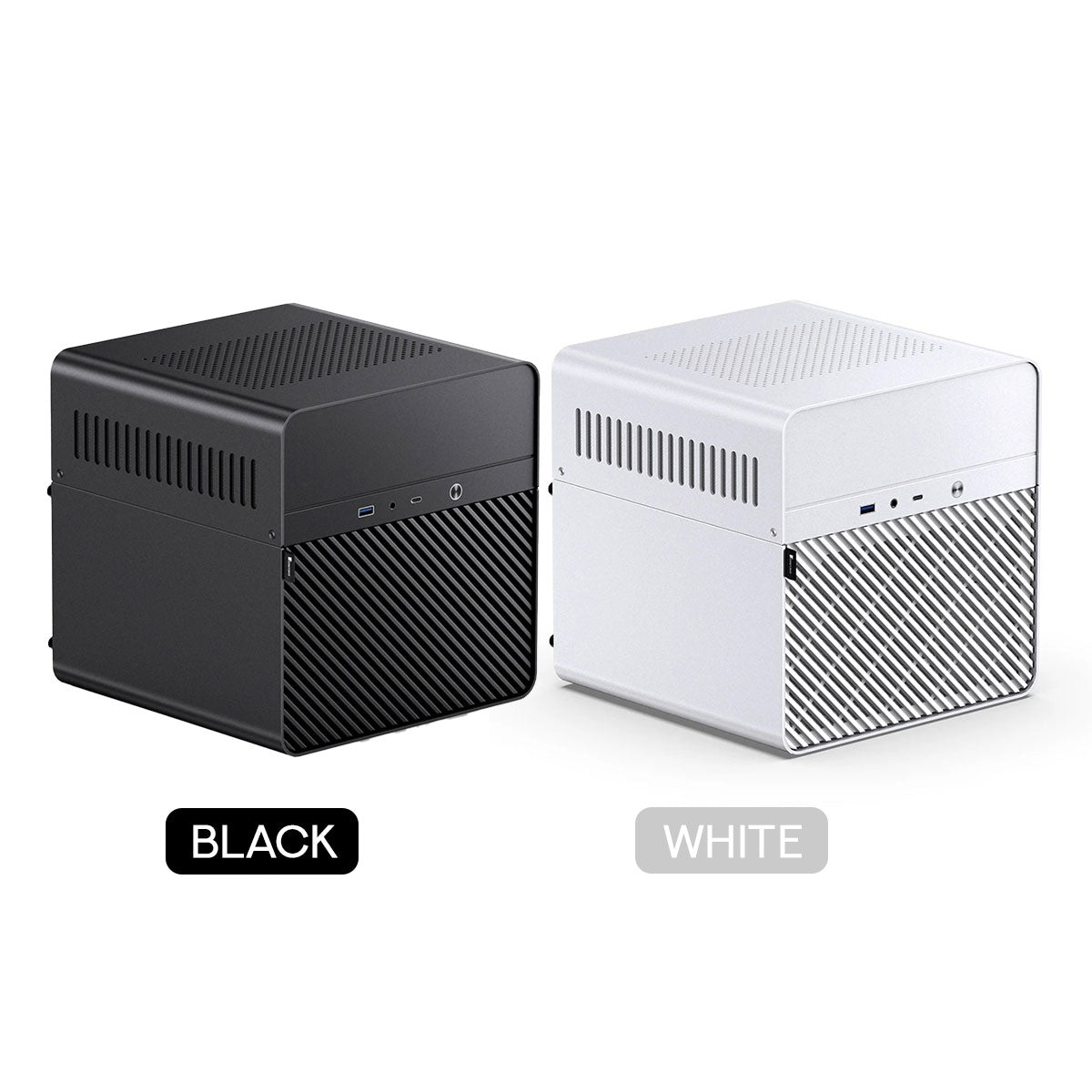

| Model | N2 Black | N2 White |
| Dimension | 222.5mm(W) * 222.5mm(D) * 224mm(H) |

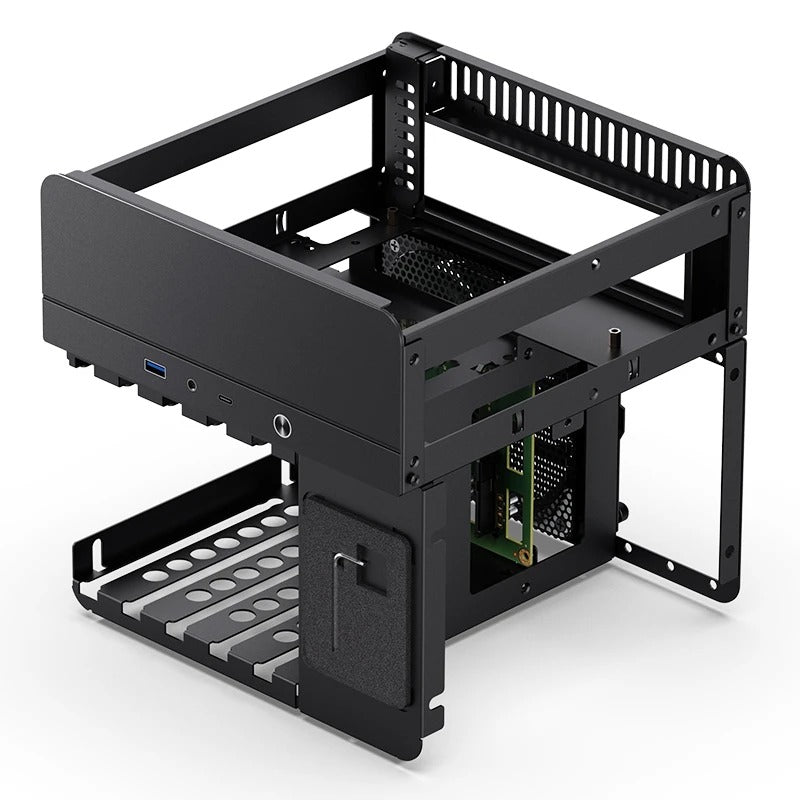

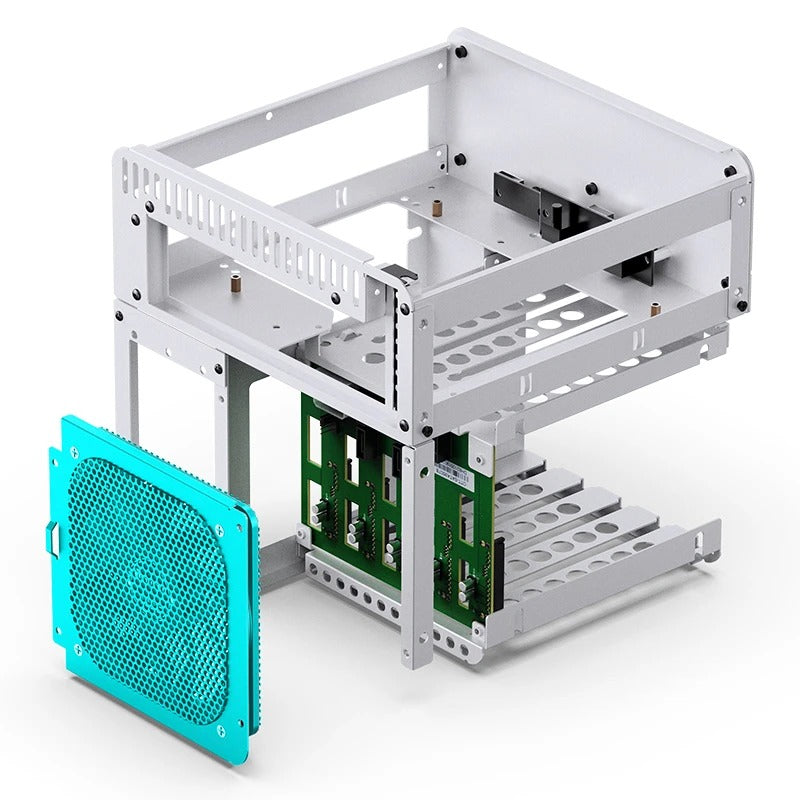

| Material | External cover: 2.0mm Aluminum alloy; Internal Structure: 1mm Steel |
| Drive Bay | 2.5SSD*1 / 3.5HDD*5 |
| Motherboard | ITX |
| PCI Expansion Slot | 1 x Low profile single slot |
| Front I/O Port | 1*USB3.0 / USB3.2 Gen2 Type-C/Audio+Mic ( Headset+mic combined) |
| PSU Support | SFX≤150mm |
| Max. CPU Cooler Height | ≤65mm |
| Max. Display Card Length | ≤197mm long ( Low profile) |
| Cooling System | 12015mm fan*1（built-in） |
| Weight | Net 2.9kg |
