Description

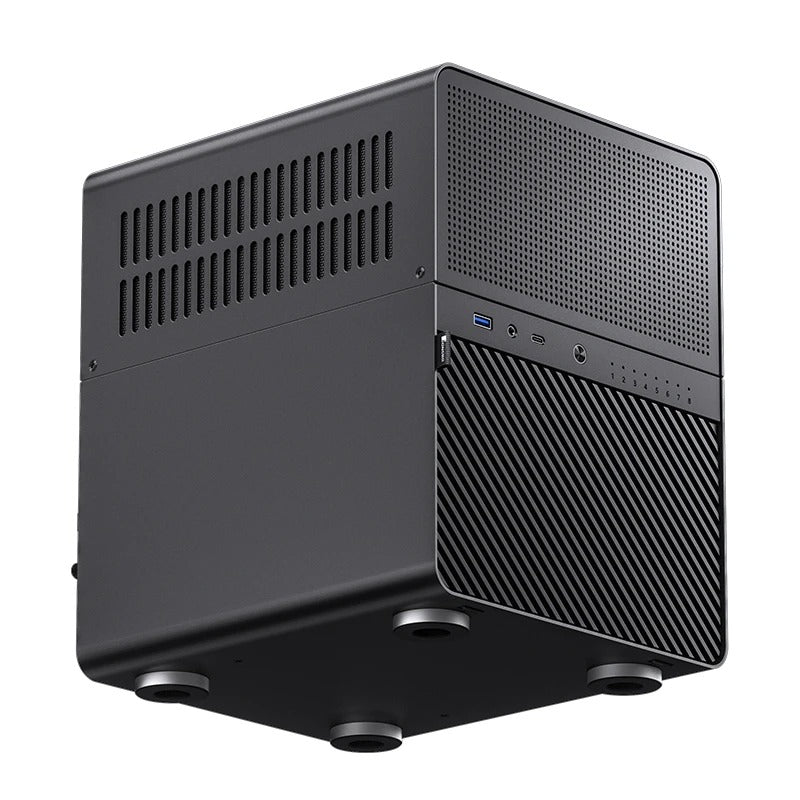

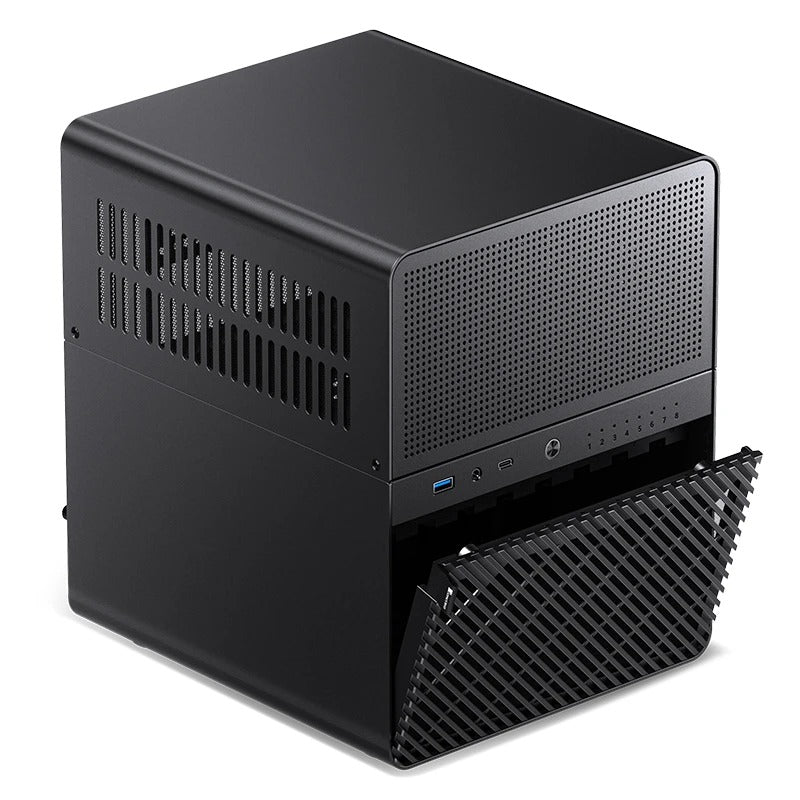

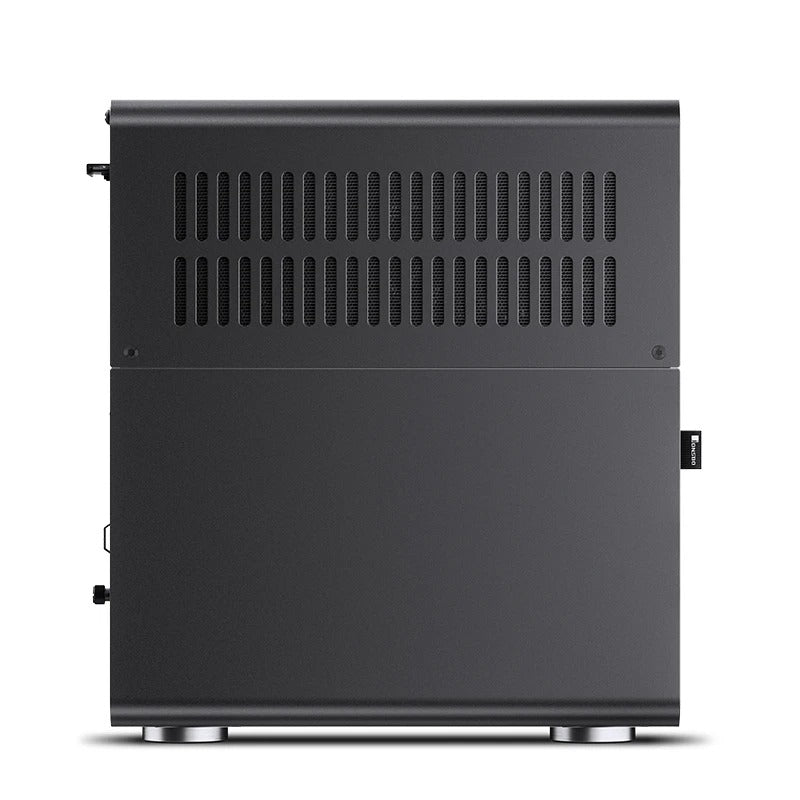

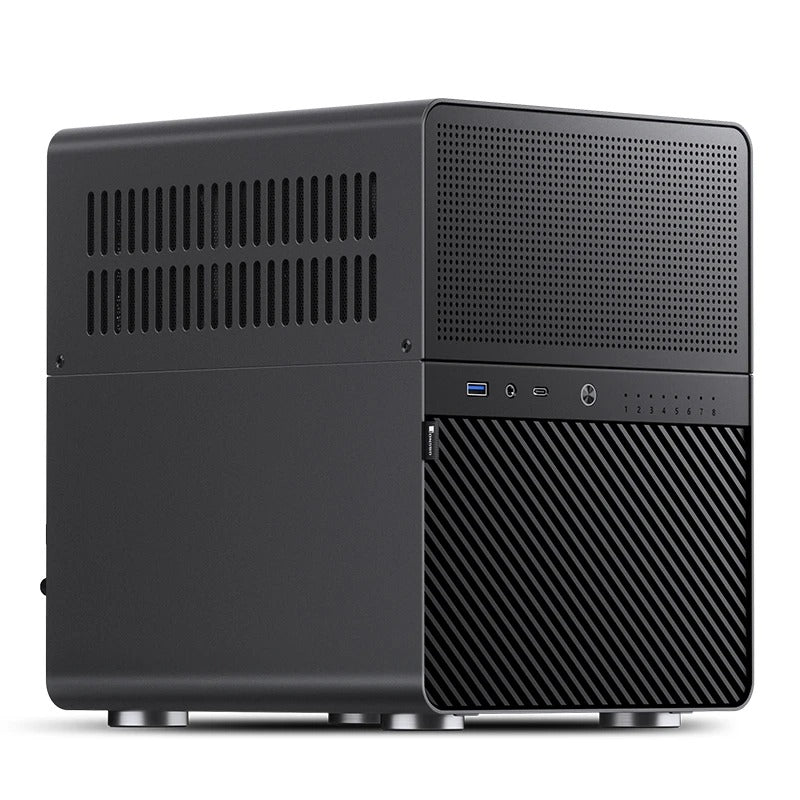

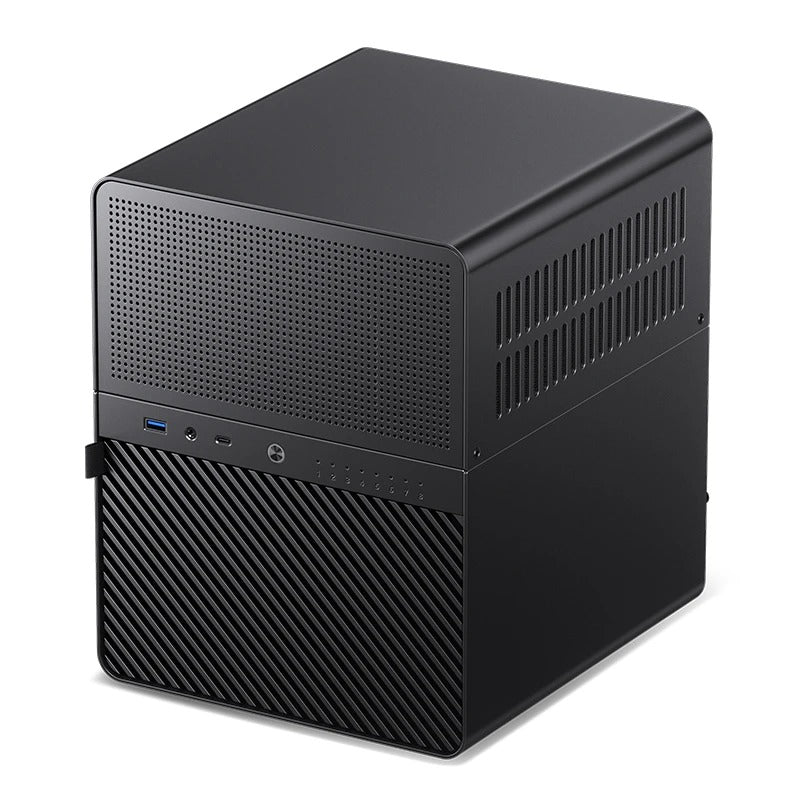

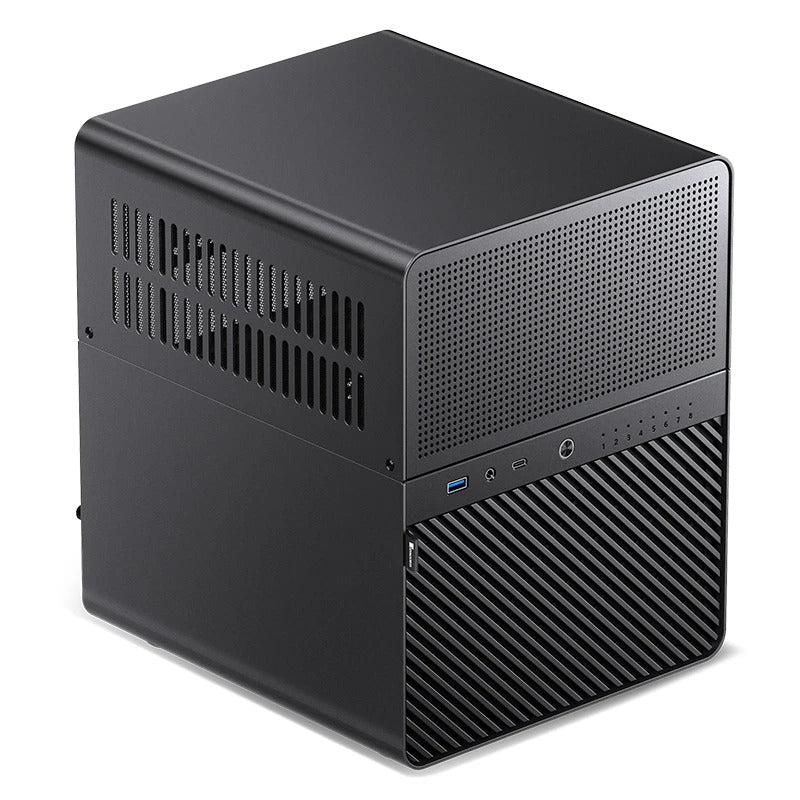

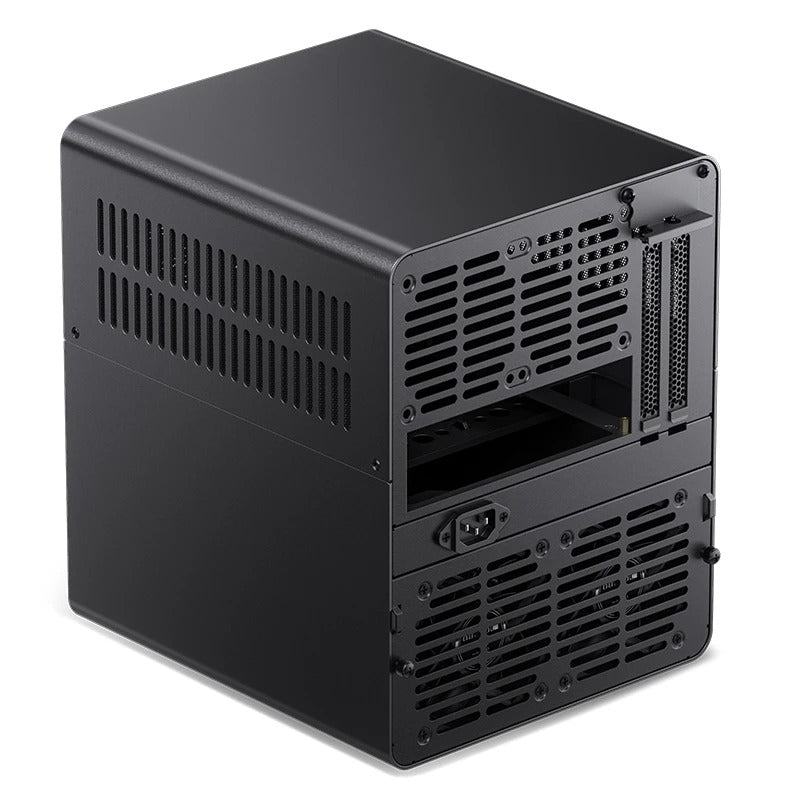

The Jonsbo N3 NAS Computer Case (Black) is designed for users who need a compact yet spacious enclosure for a high-capacity NAS or storage-focused PC build. Featuring a sleek black aluminum alloy exterior and a durable steel internal structure, it combines a clean, modern appearance with practical support for multiple storage drives in a space-efficient design.

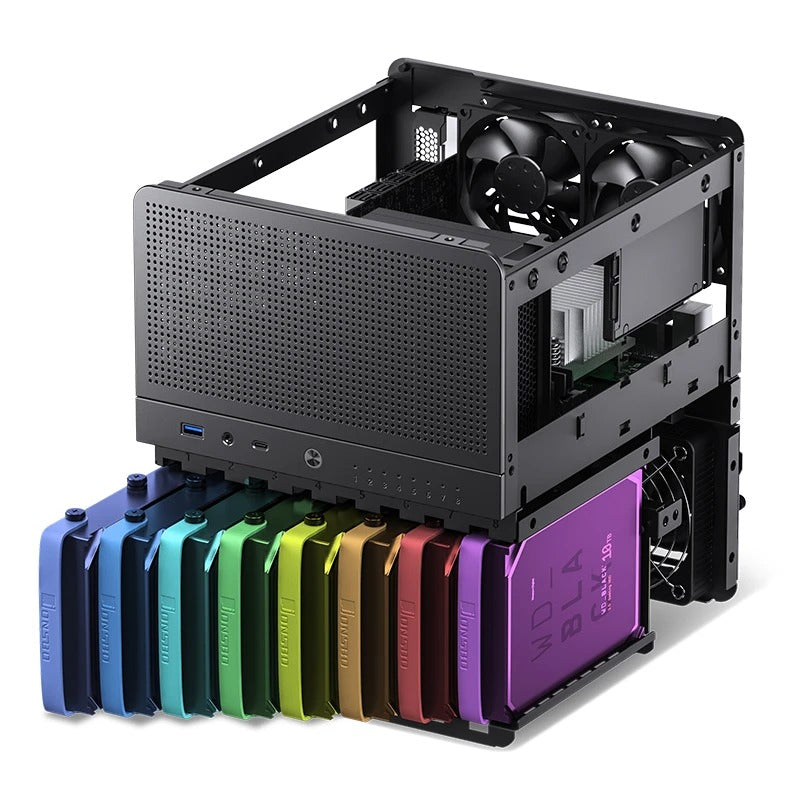

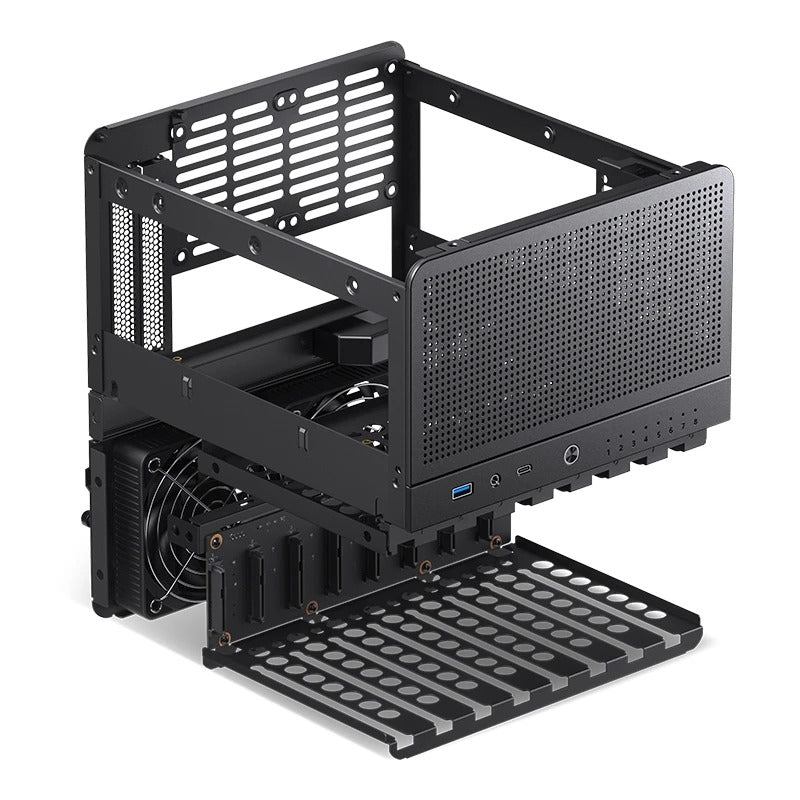

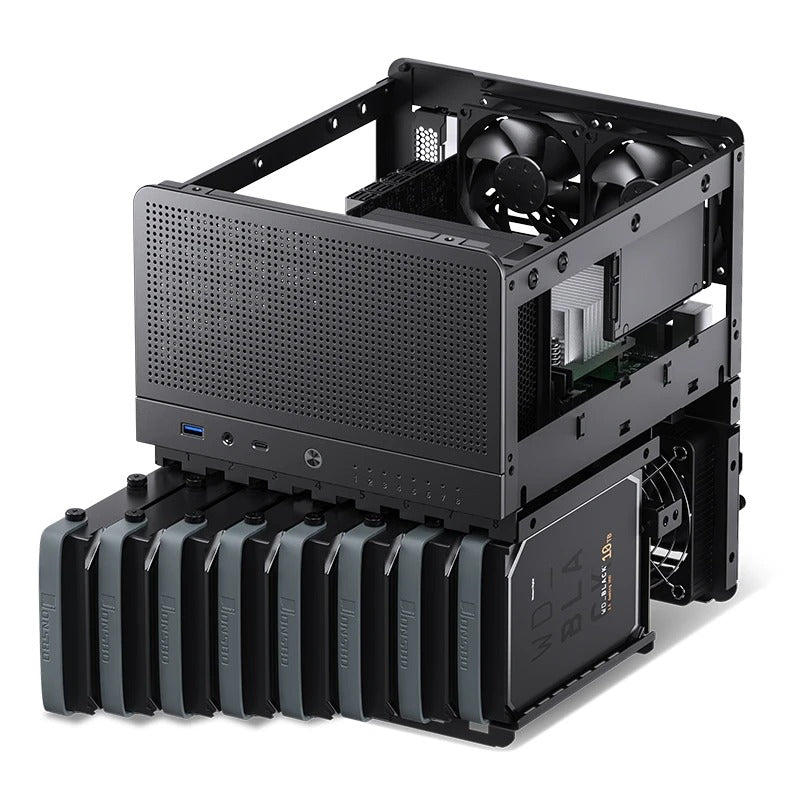

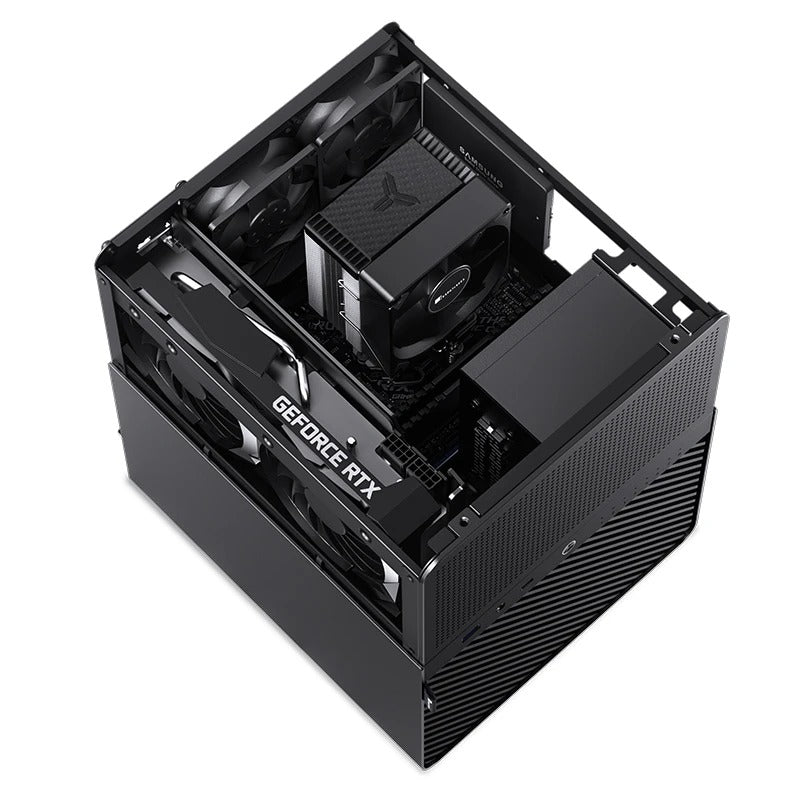

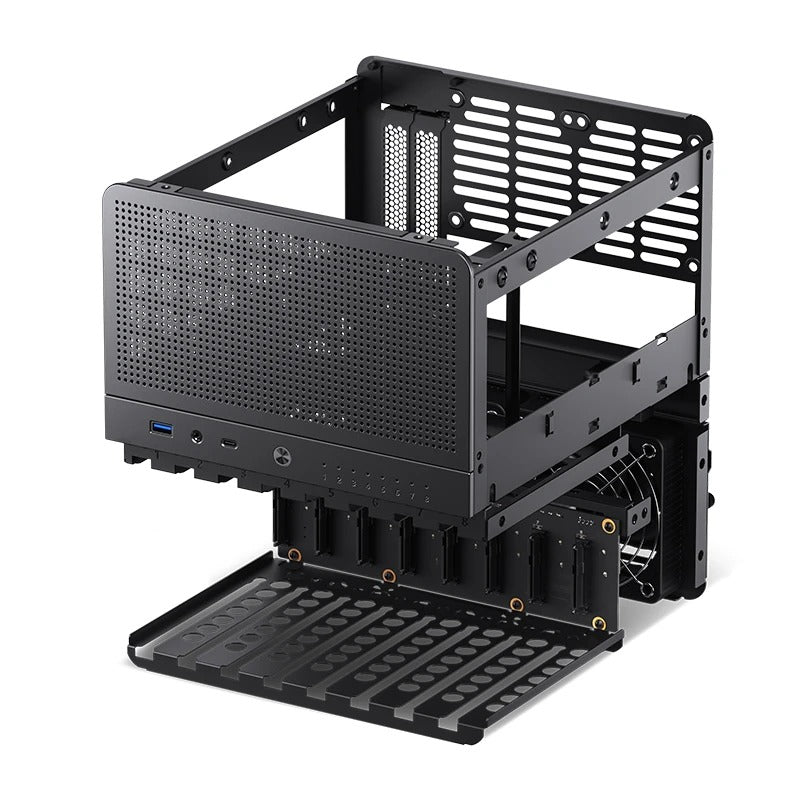

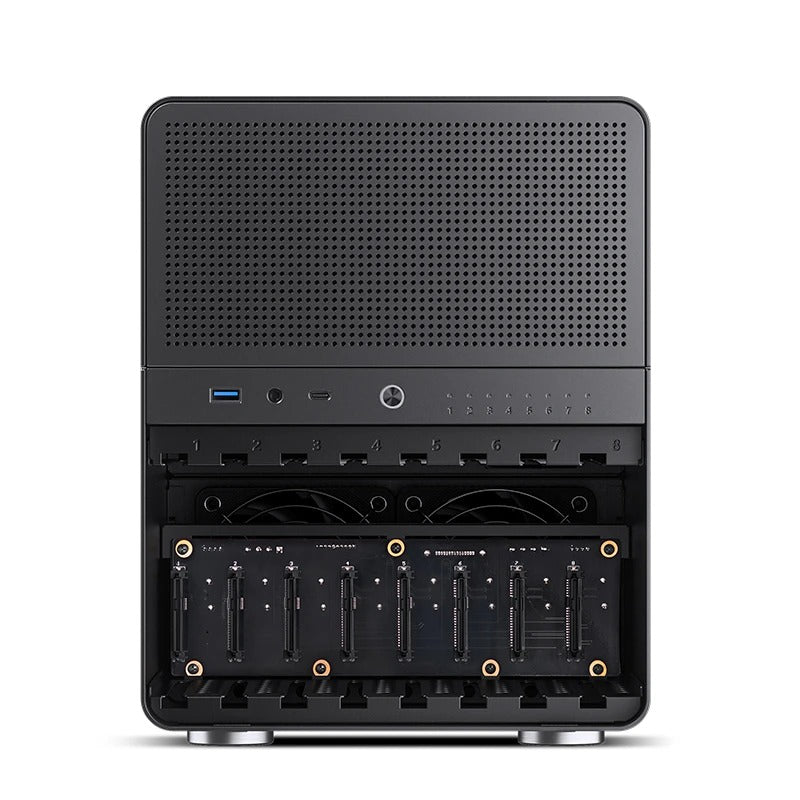

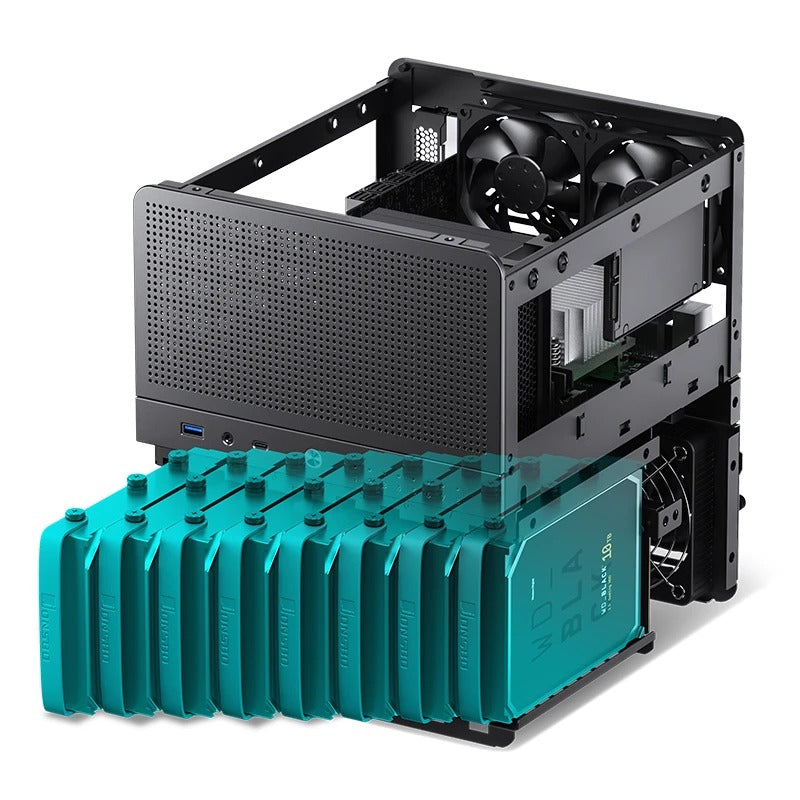

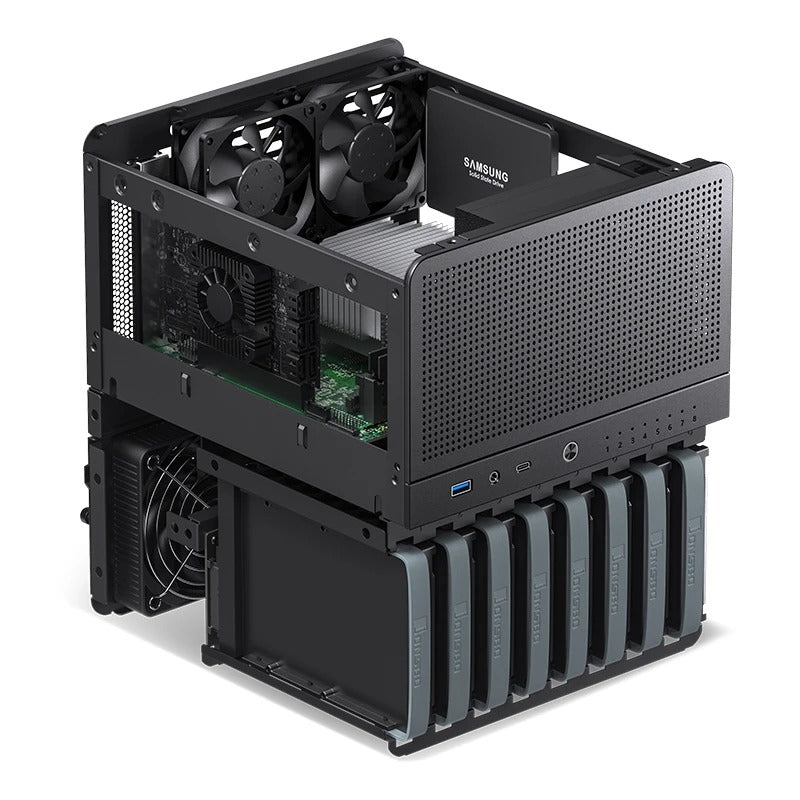

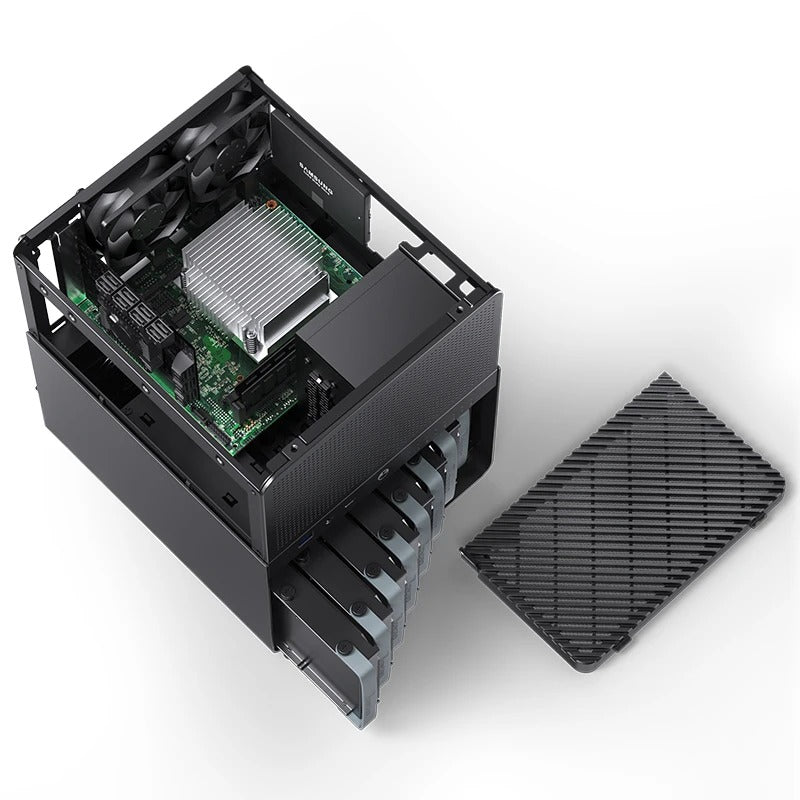

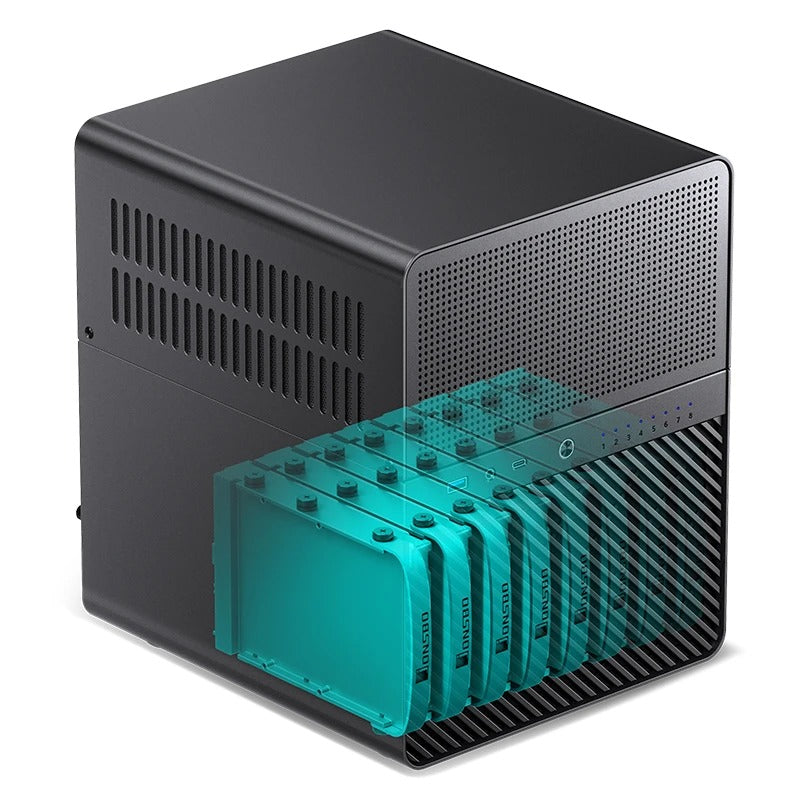

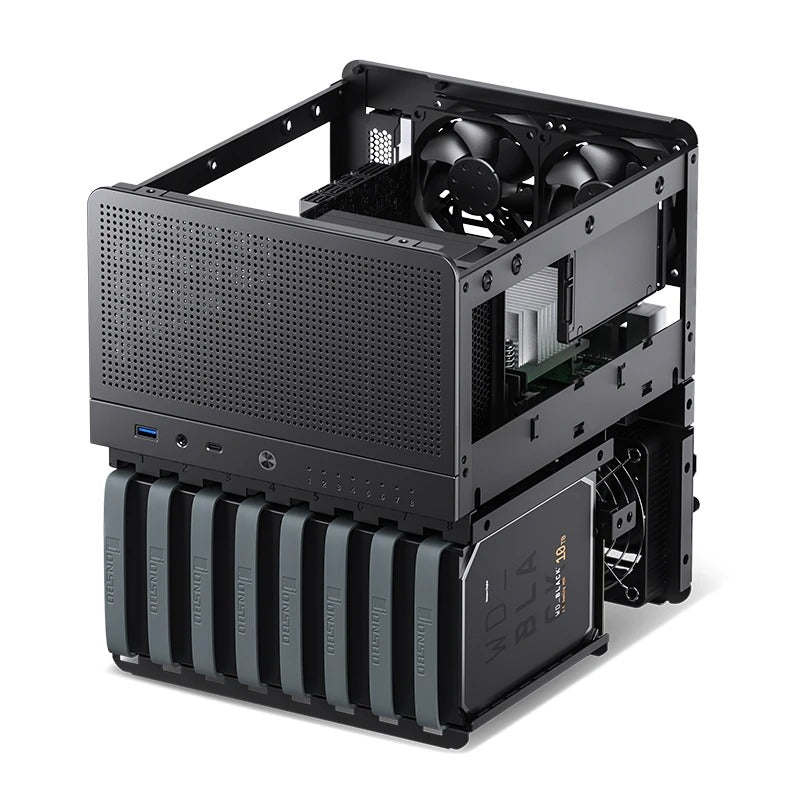

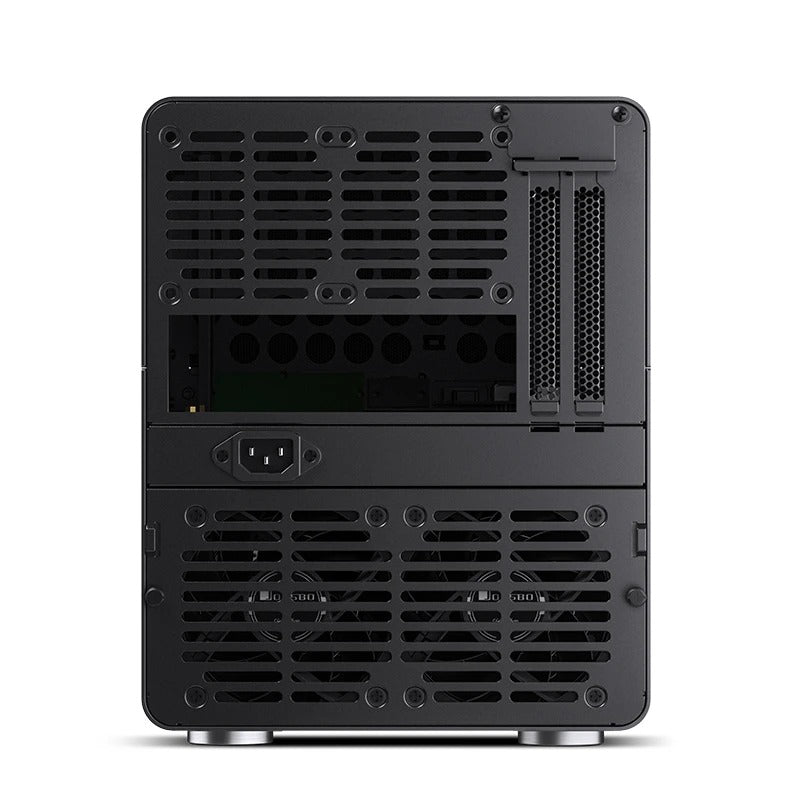

Despite its compact dimensions, the Jonsbo N3 accommodates up to eight 3.5-inch HDDs and one 2.5-inch SSD, making it suitable for building a centralized storage system for files, media libraries, backups, and other data storage needs. It supports Mini-ITX motherboards, two PCI expansion slots, and graphics cards up to 250mm in length, offering flexibility for different system configurations.

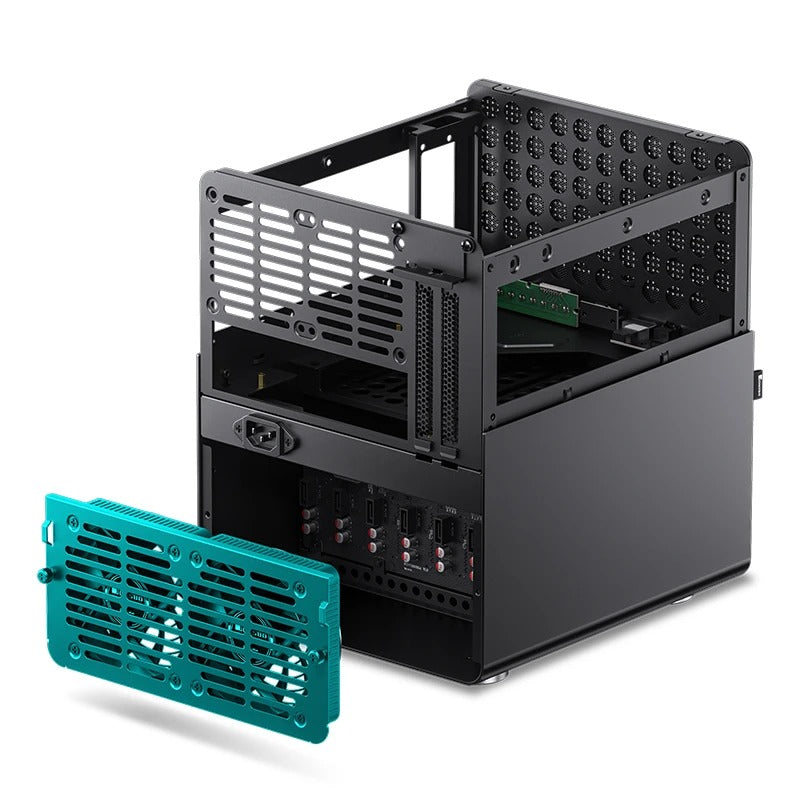

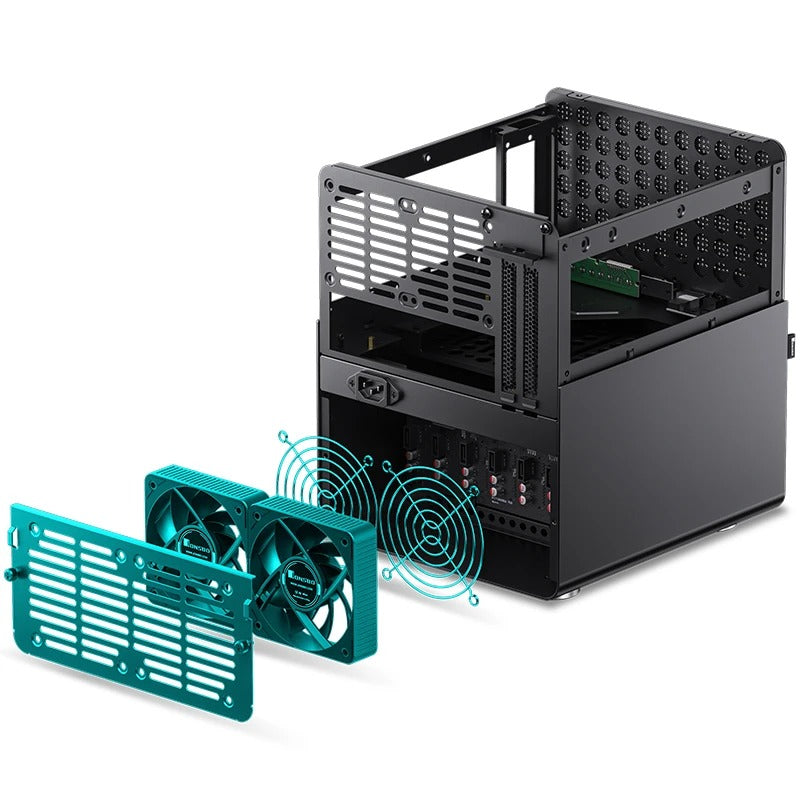

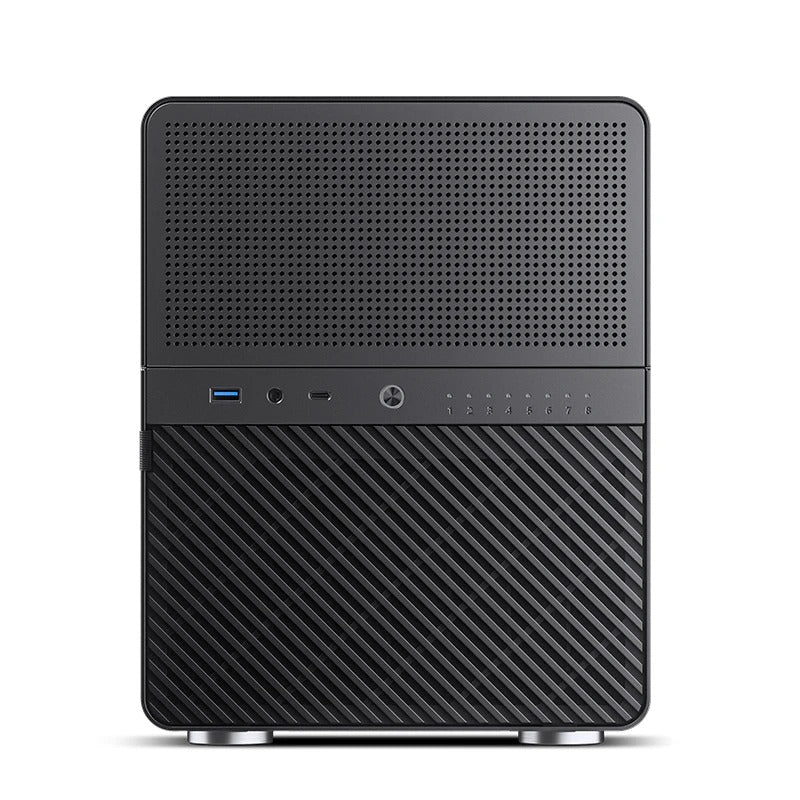

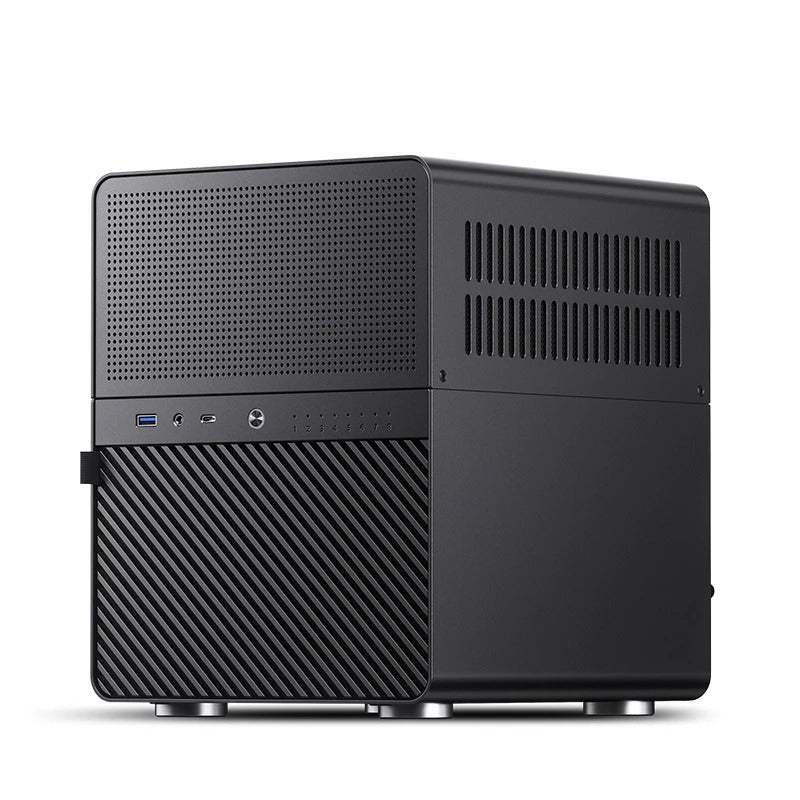

The case includes front I/O connectivity with USB 3.0, USB 3.2 Gen 2 Type-C, and a combined headset and microphone audio port for convenient access. It supports an SFX power supply up to 105mm in length and CPU coolers up to 130mm in height. For additional airflow, optional cooling fans can be installed in both the hard disk compartment and motherboard compartment.
Specification:
| Model | N3 Black |
| Dimension | 233mm(W) * 262mm(D) * 298mm(H) |

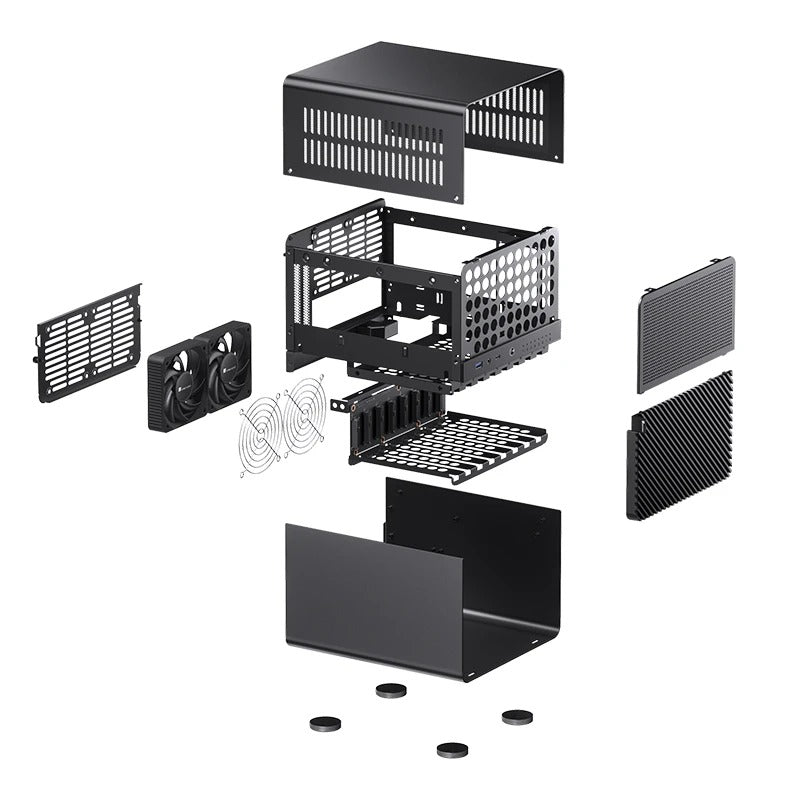

| Material | External cover: 2.0mm Aluminum alloy; Internal Structure: 1mm Steel |
| Drive Bay | 2.5SSD*1 / 3.5HDD*8 |
| Motherboard | ITX |
| PCI Expansion Slot | 2 |
| Front I/O Port | 1*USB3.0 / USB3.2 Gen2 Type-C/Audio+Mic ( Headset+mic combined) |
| PSU Support | SFX≤105mm |
| Max. CPU Cooler Height | ≤130mm |
| Max. Display Card Length | ≤ 250mm |
| Cooling System | Hard disk compartment 100*25mm*2(optional) Main board compartment 80*25mm*2(optional) |
| Weight | Net 3.9kg |
