Description

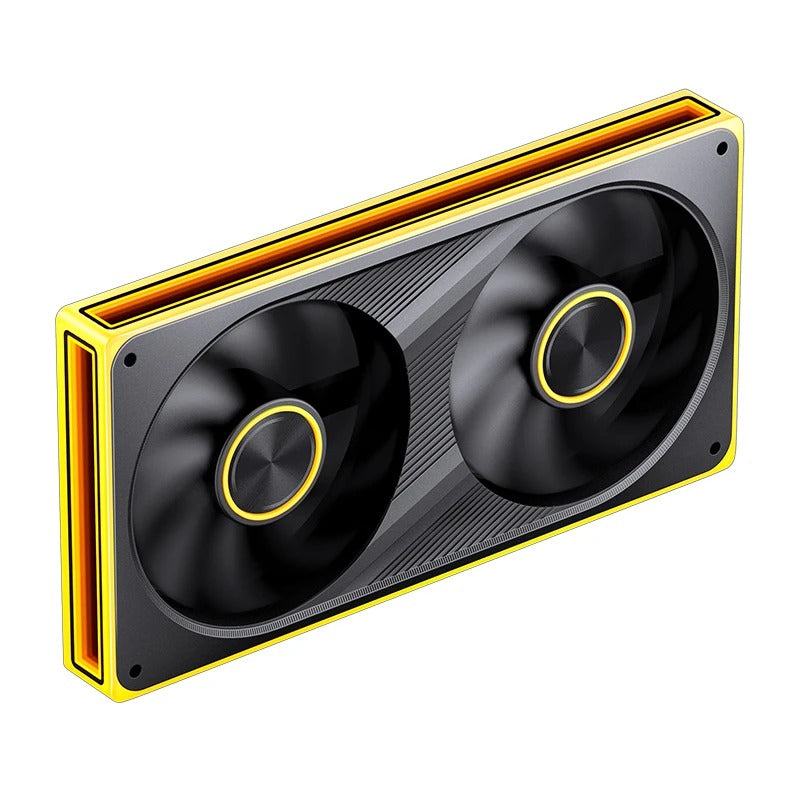

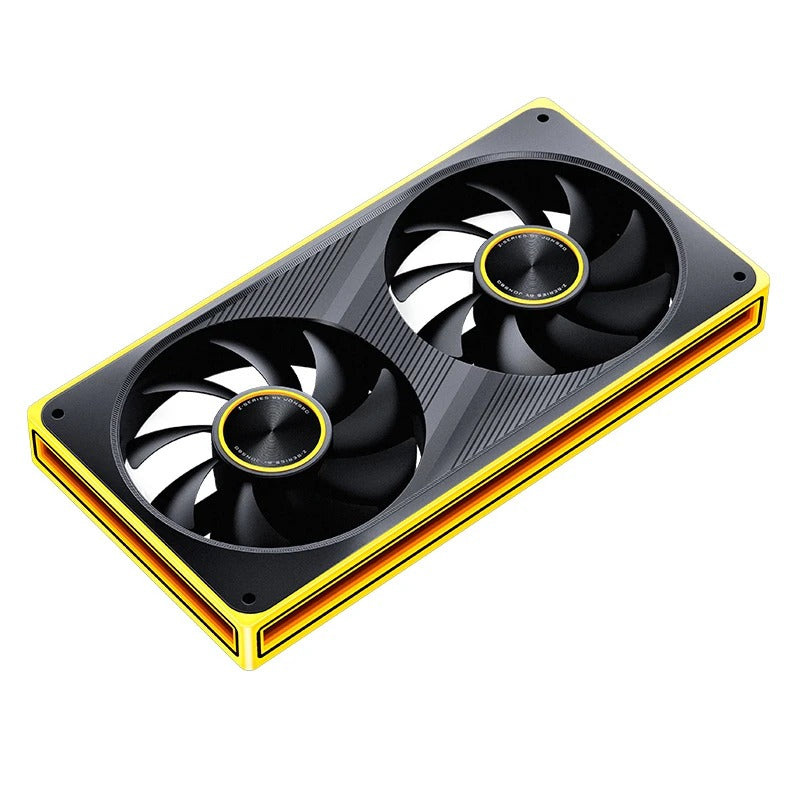

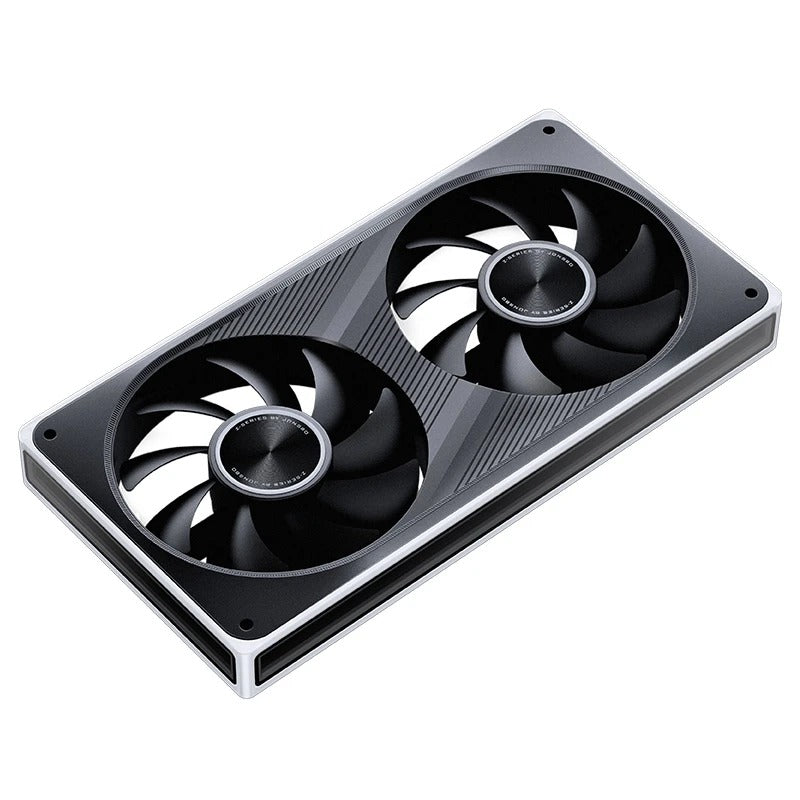

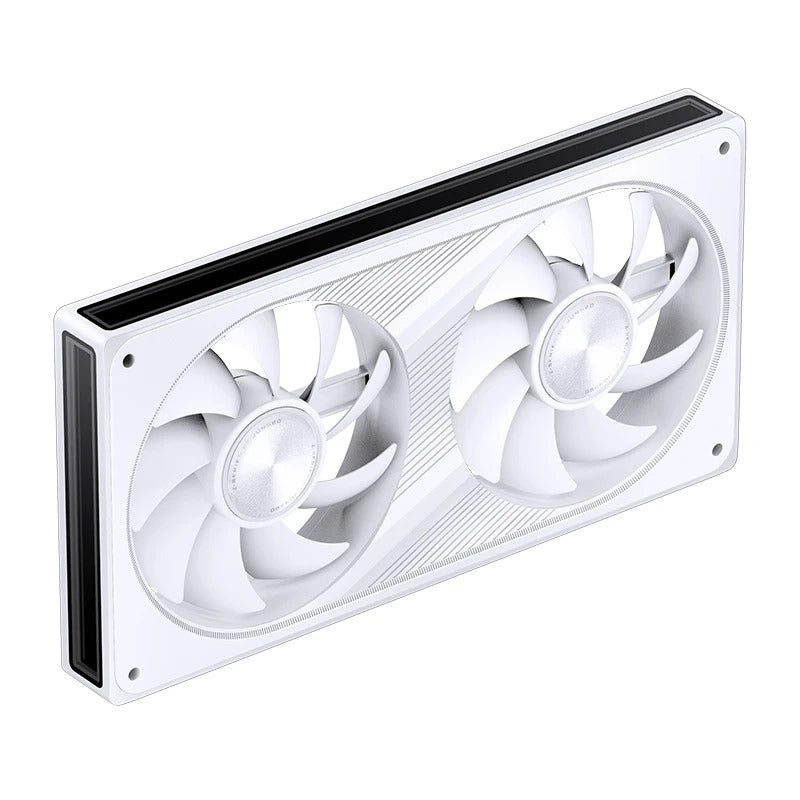

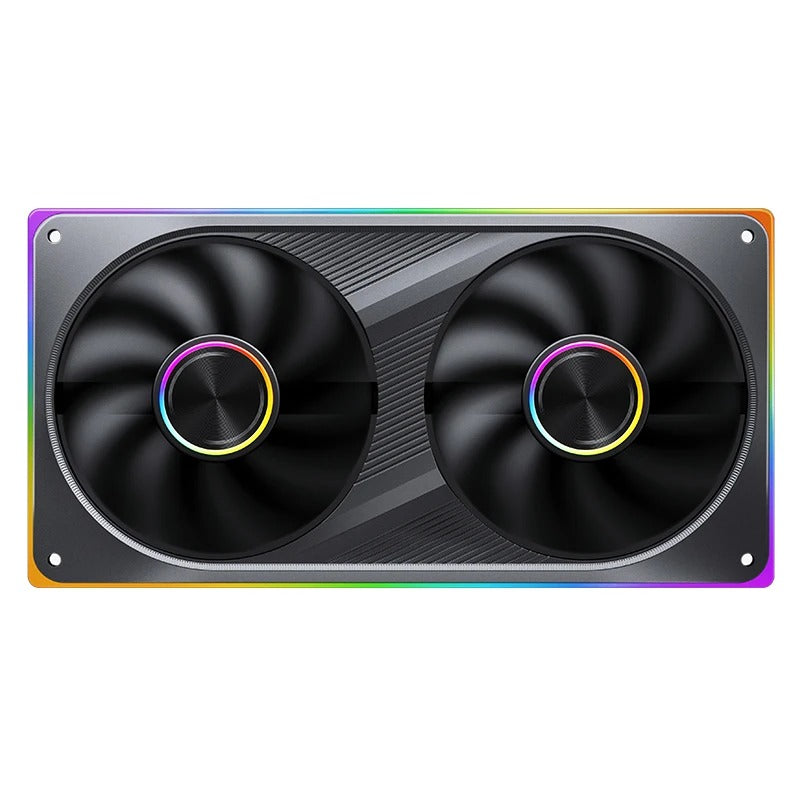

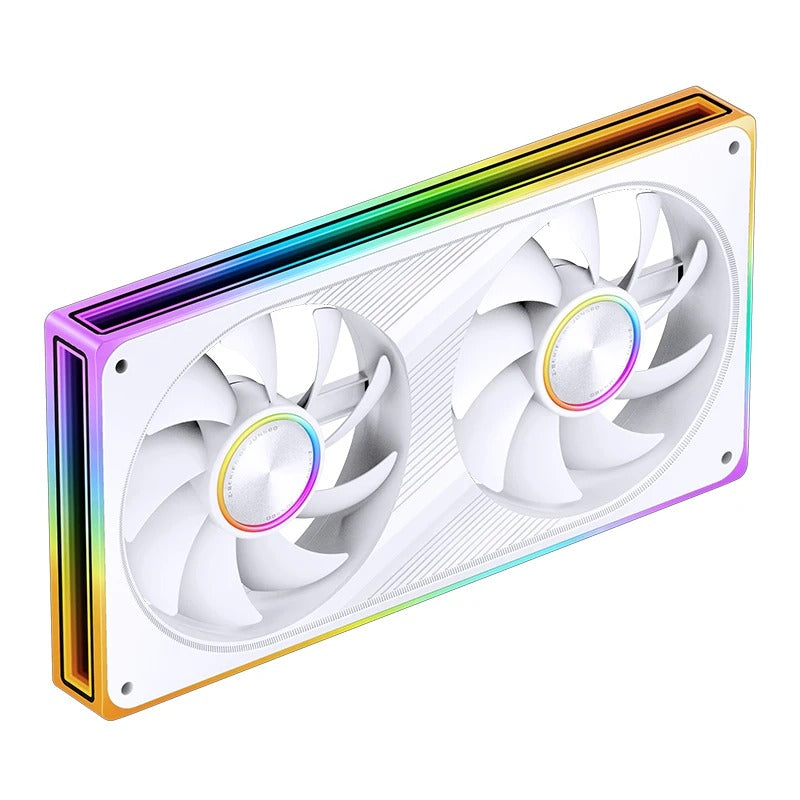

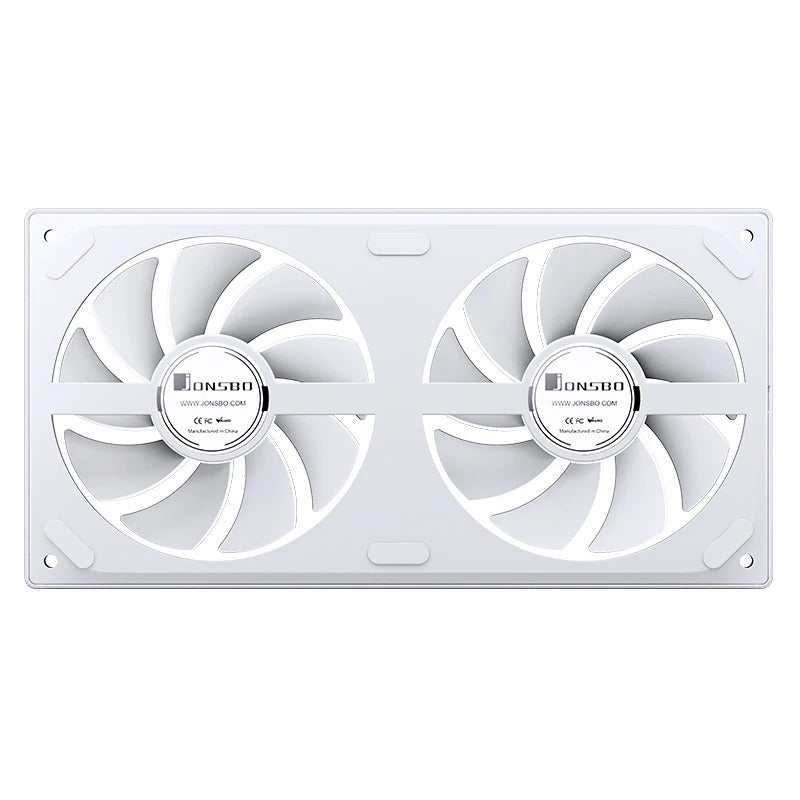

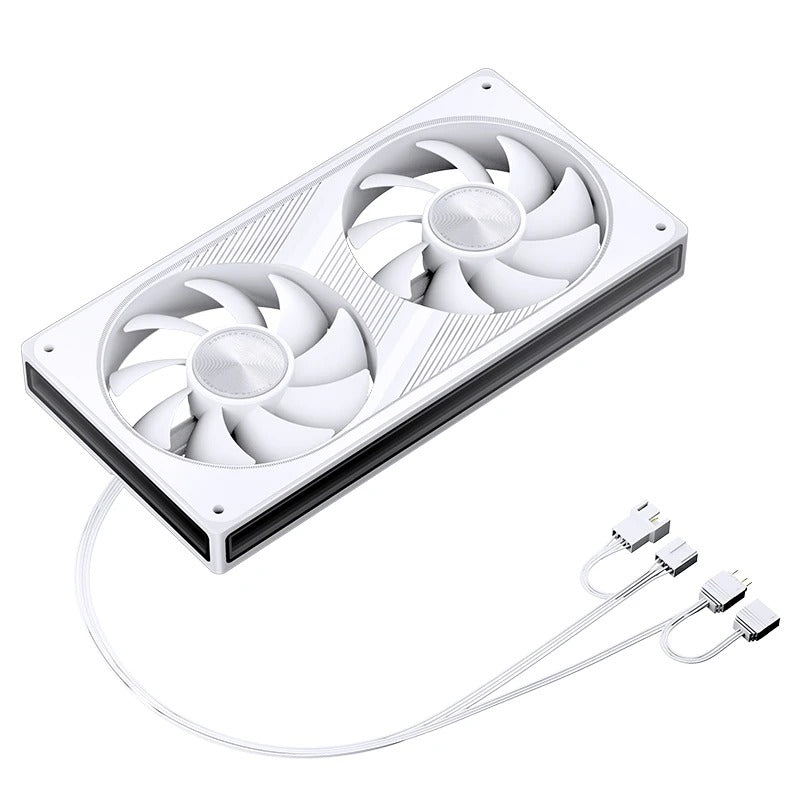

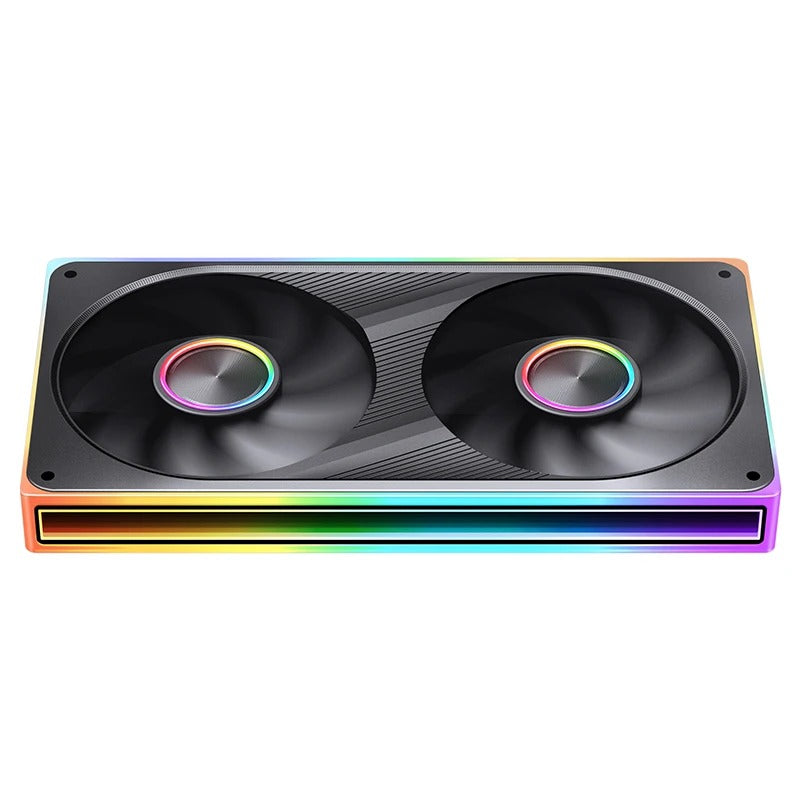

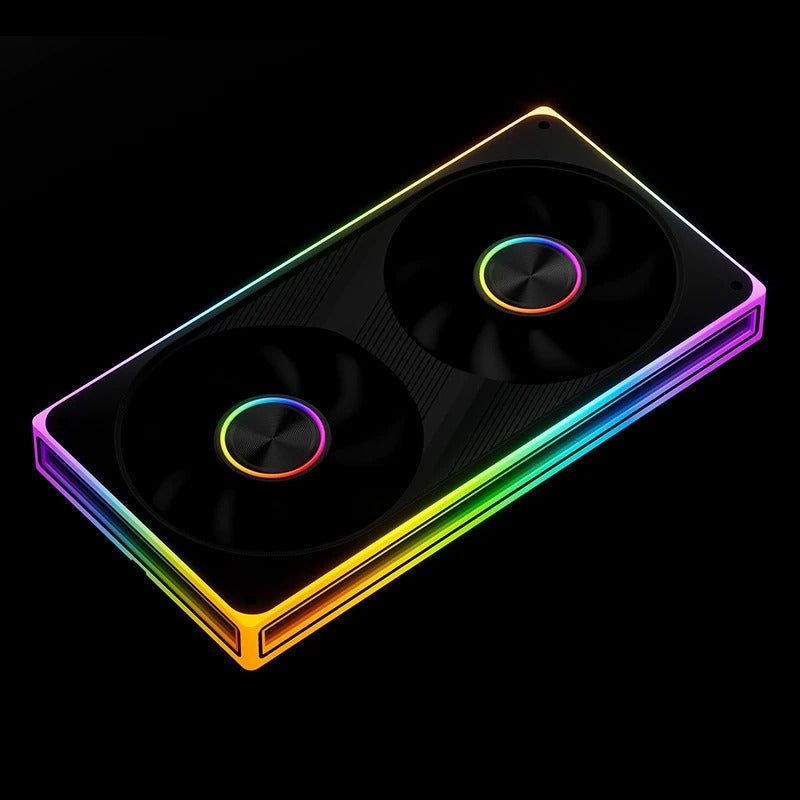

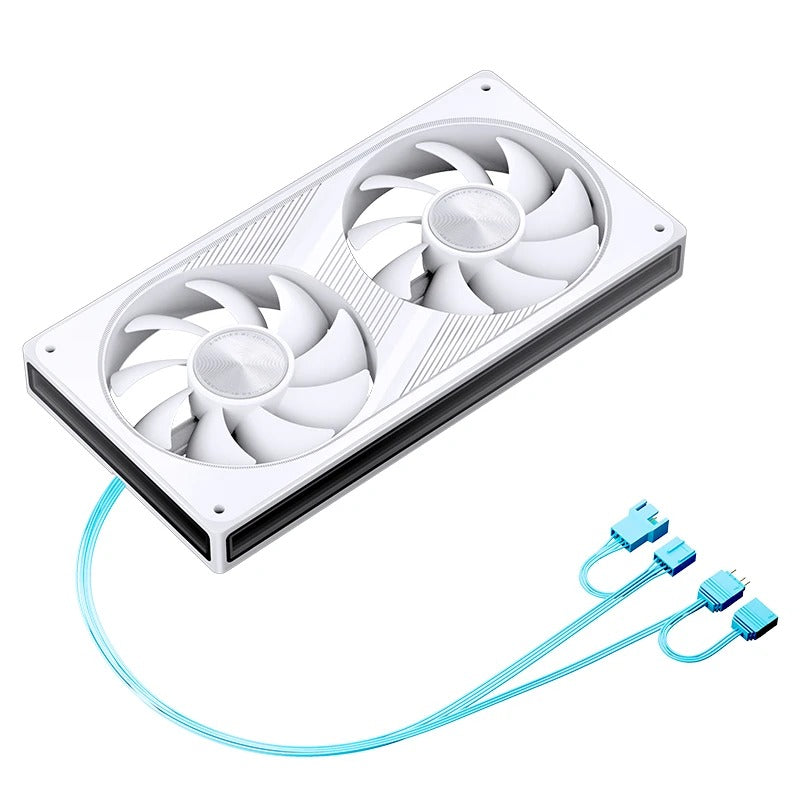

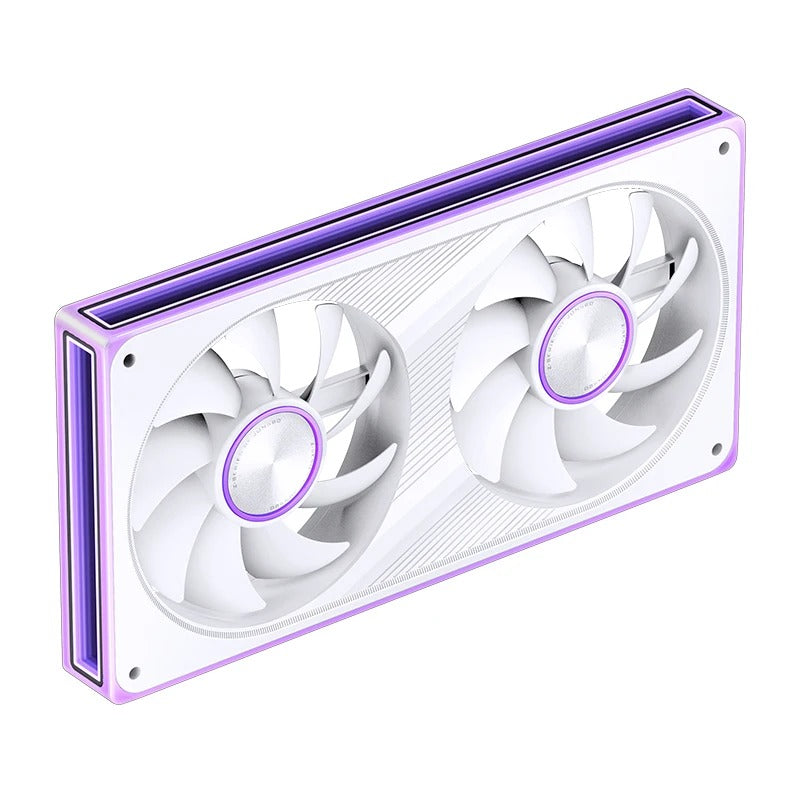

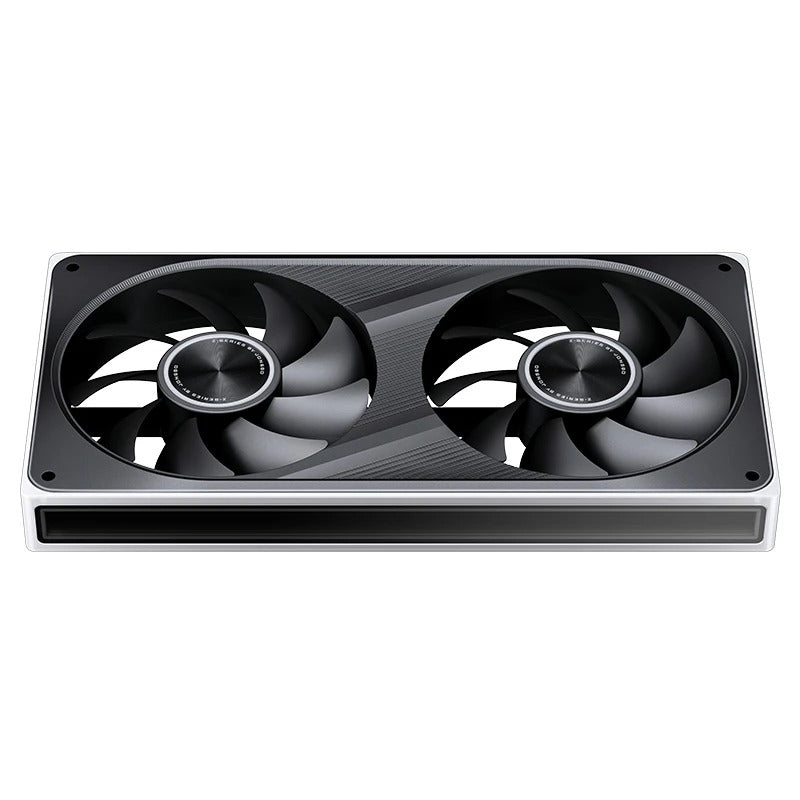

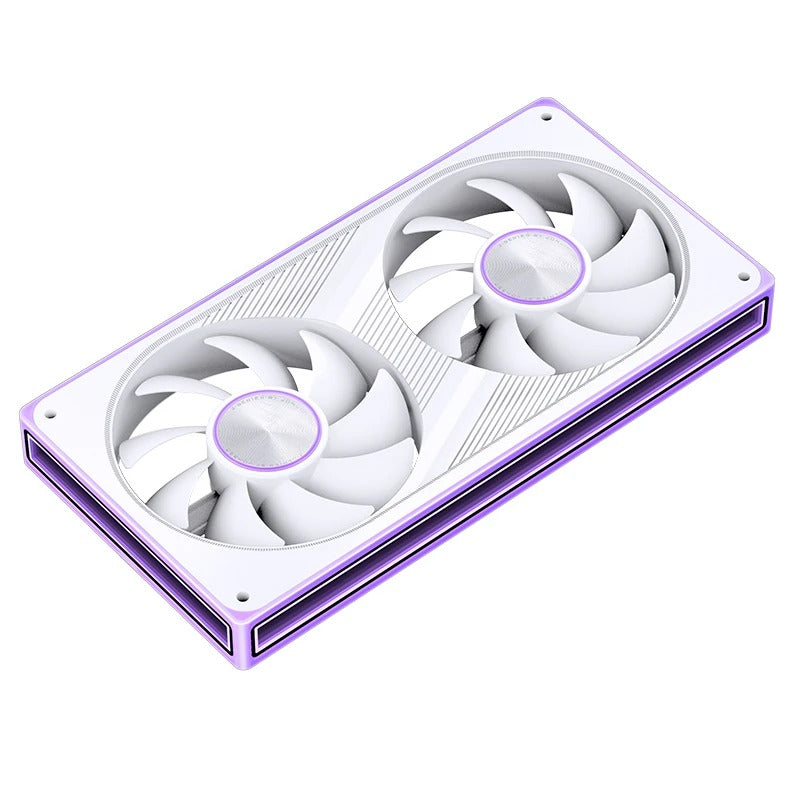

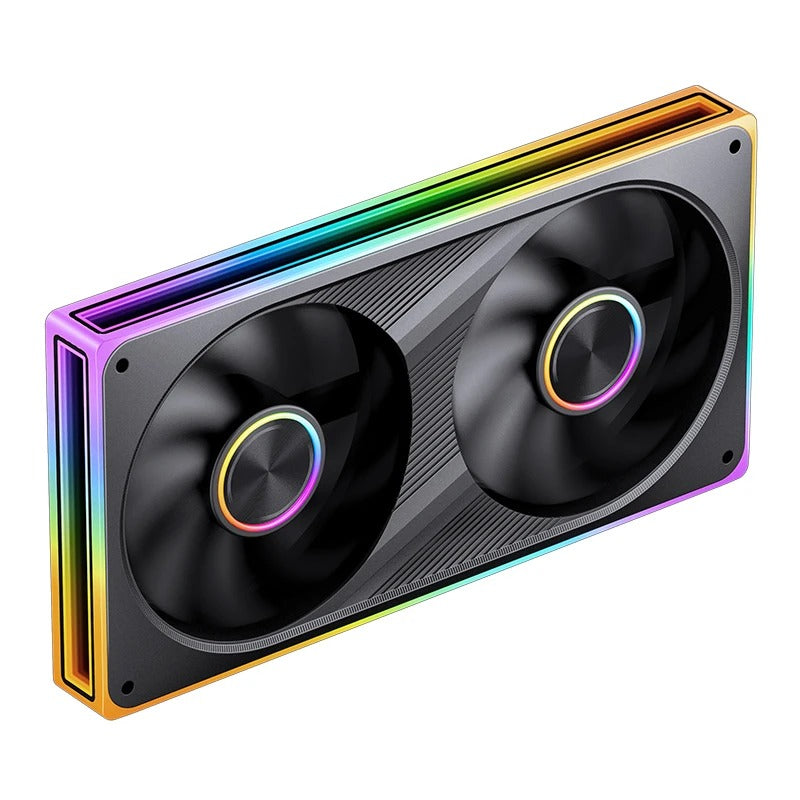

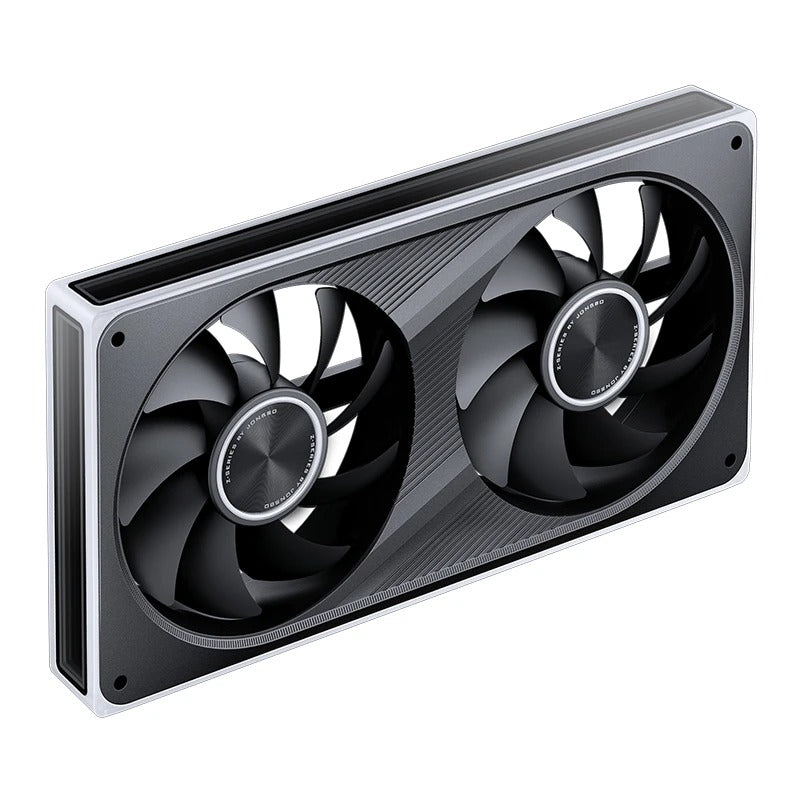

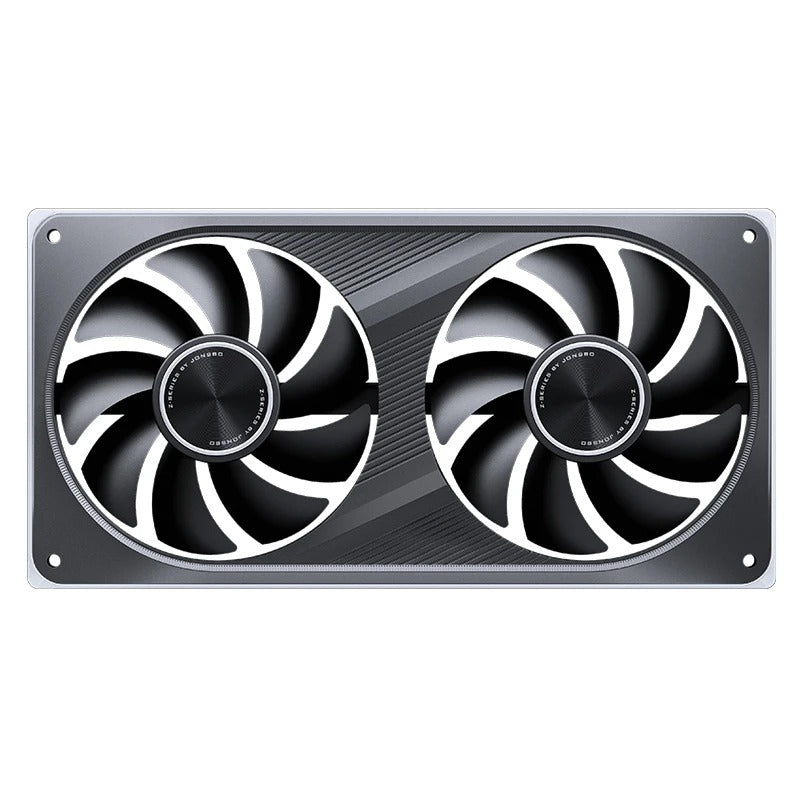

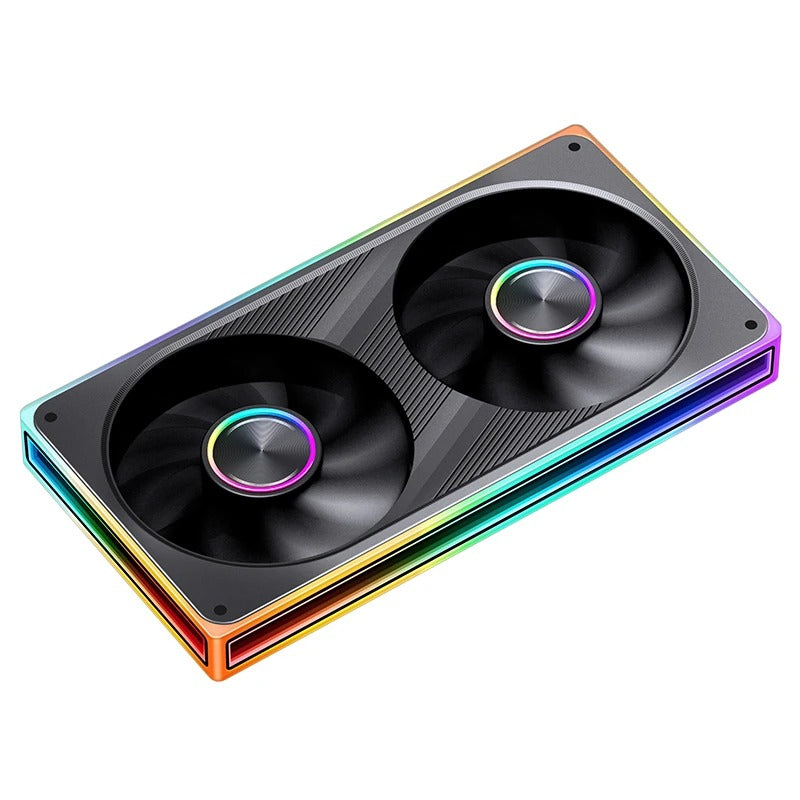

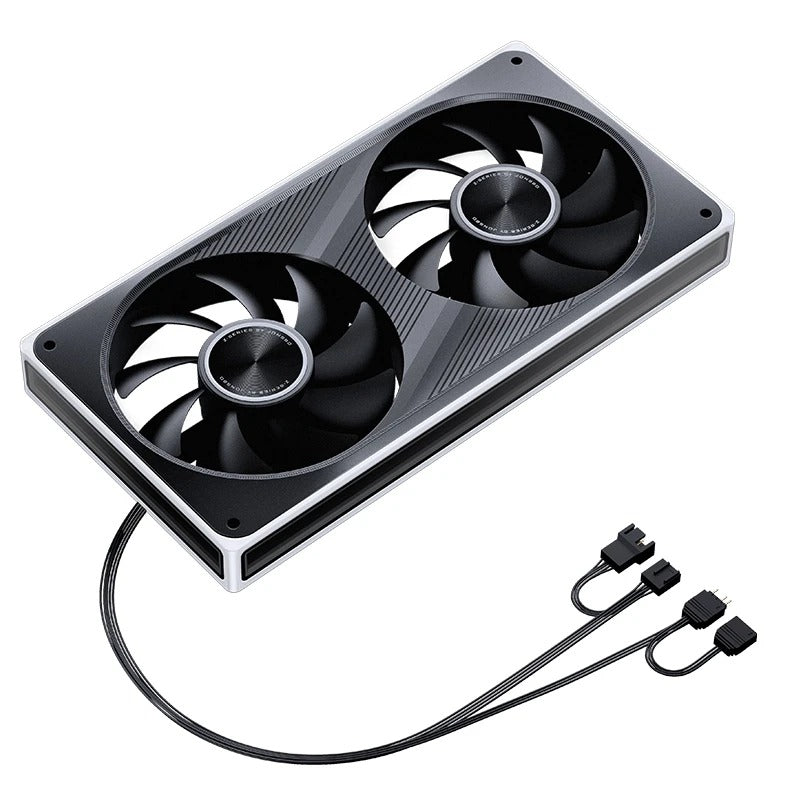

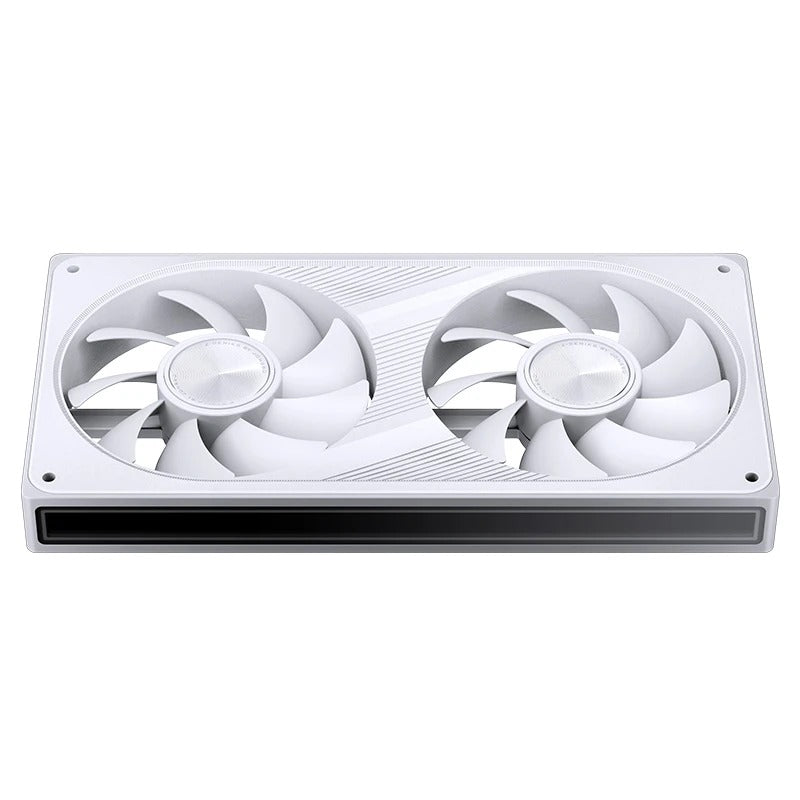

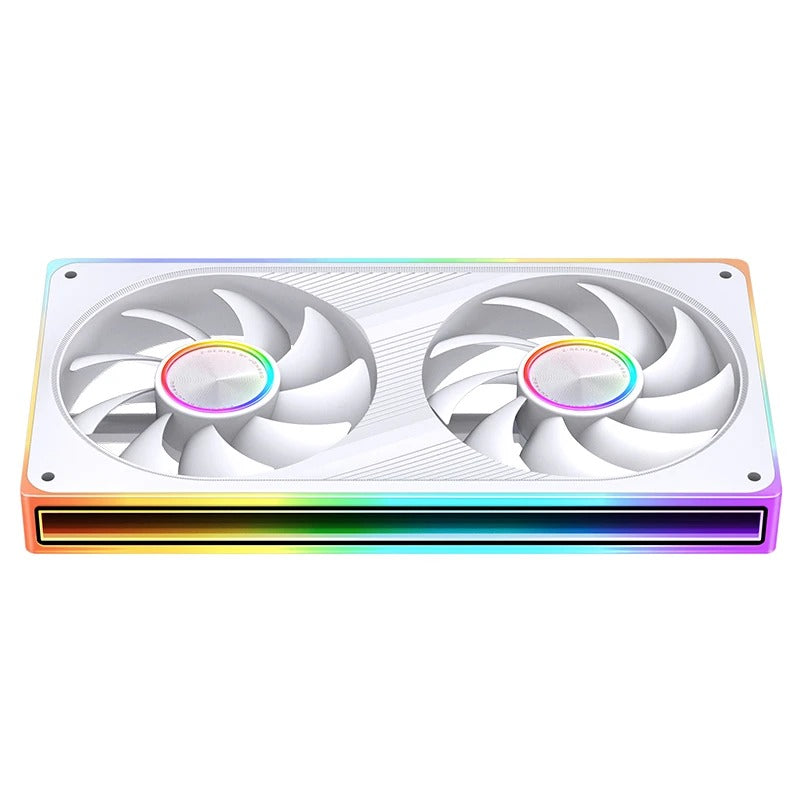

The Jonsbo ZE-240R 240mm ARGB Infinity Mirror Series Fan combines distinctive infinity mirror lighting with reverse airflow design, making it an ideal choice for PC builders who want both effective cooling and a clean, visually appealing setup. Its sleek design and customizable ARGB illumination add depth and style to your build while complementing modern gaming PC components.

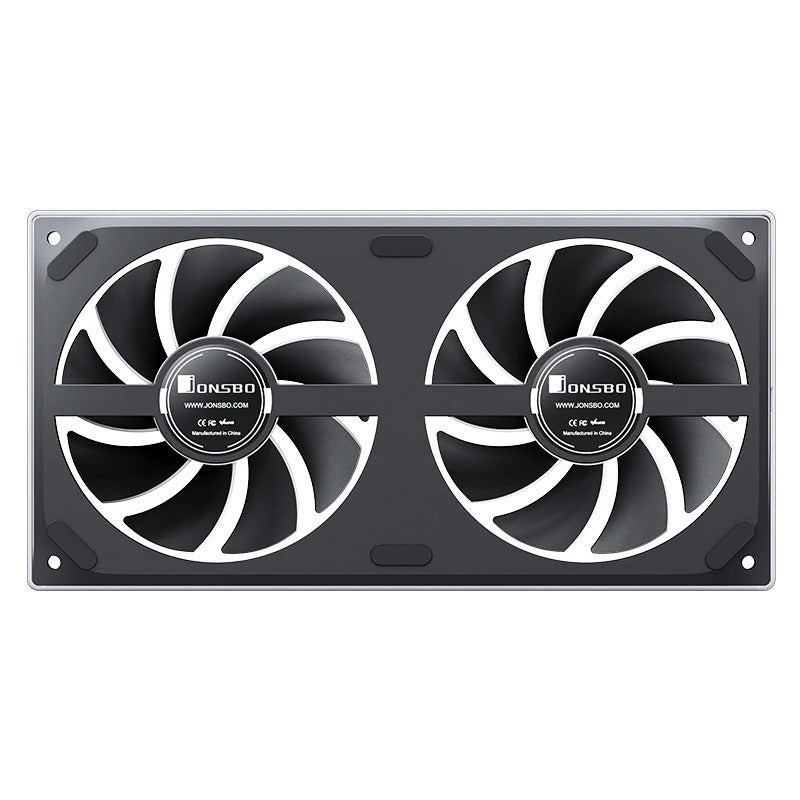

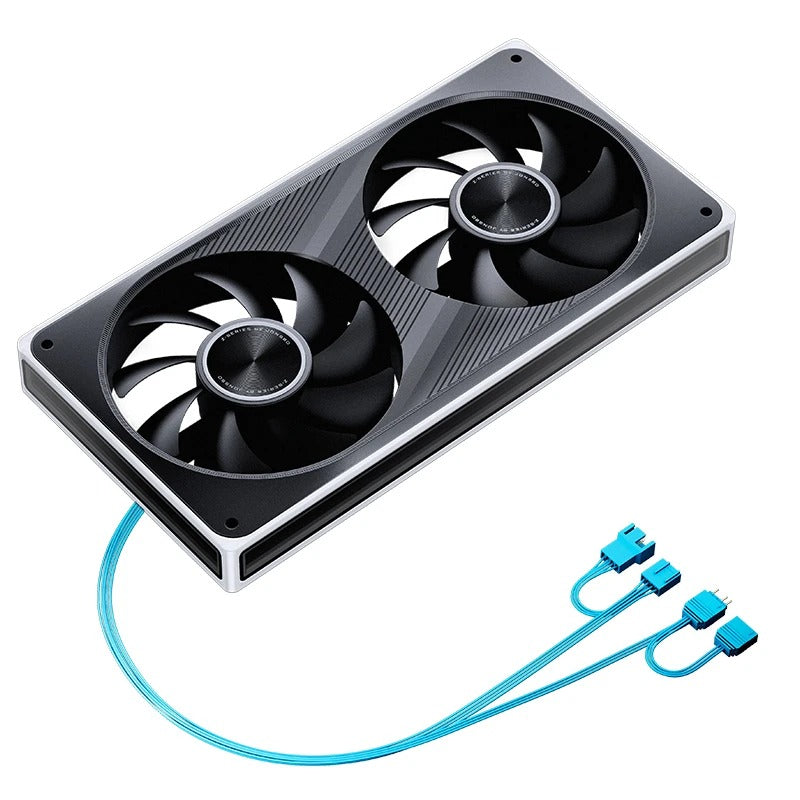

Featuring a reverse fan configuration, the ZE-240R is designed to support airflow arrangements that help maintain a consistent aesthetic when installing fans in visible areas of your case. It operates at speeds ranging from 700 to 1800 RPM, delivering airflow of 19.46–44.58 CFM with static pressure of 0.29–1.71 mmH₂O. Its PWM 4-pin connector allows compatible motherboards to regulate fan speed, while the 3-pin ARGB connector enables customizable lighting effects with supported systems.
Measuring 242 × 123 × 28mm, the Jonsbo ZE-240R is designed for compatible 240mm fan mounting configurations. With a rated noise level of 17.3–31.6 dB(A), it balances airflow performance with noise management, making it suitable for gaming rigs and custom PC builds.
Choose the Jonsbo ZE-240R to enhance your system with reverse airflow functionality, vibrant infinity mirror lighting, and a refined design that complements your PC's overall appearance.
Specification:
| Specification | ZE-240R |
|---|---|

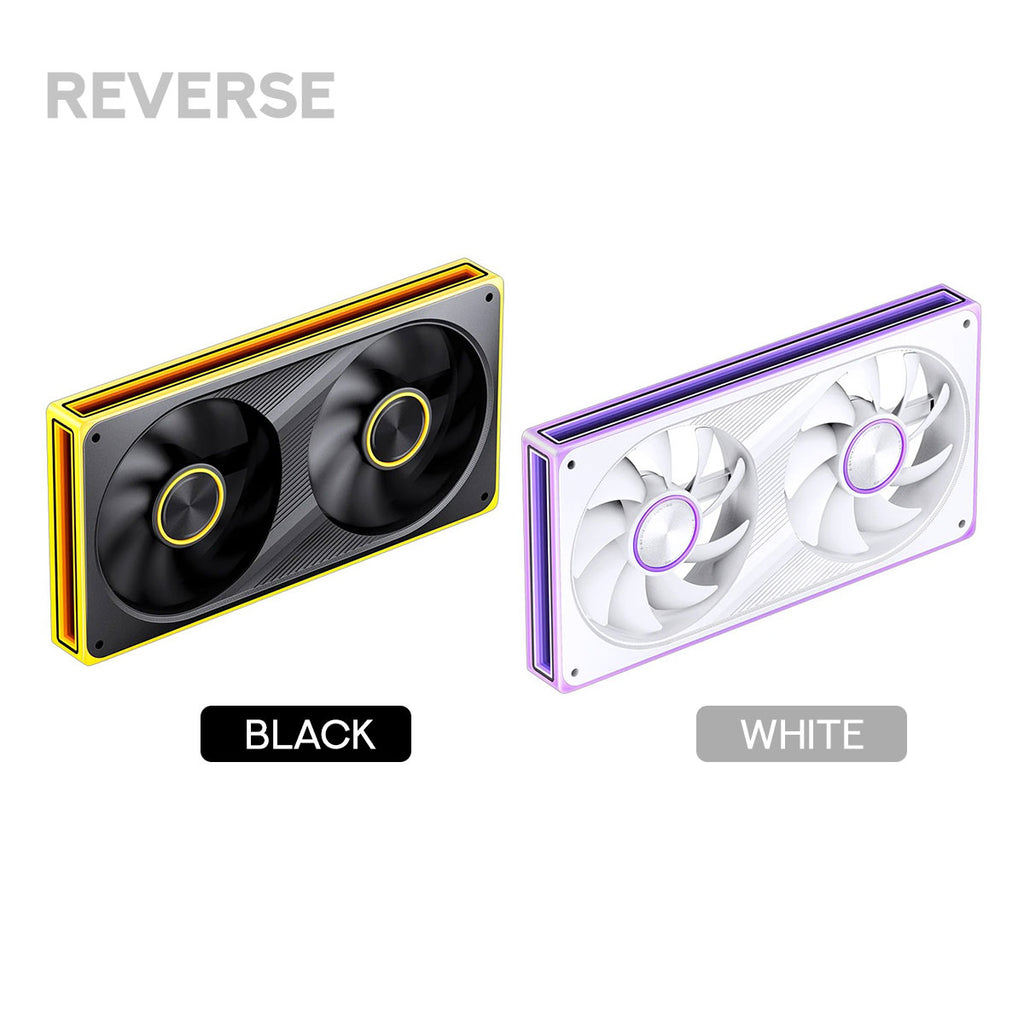

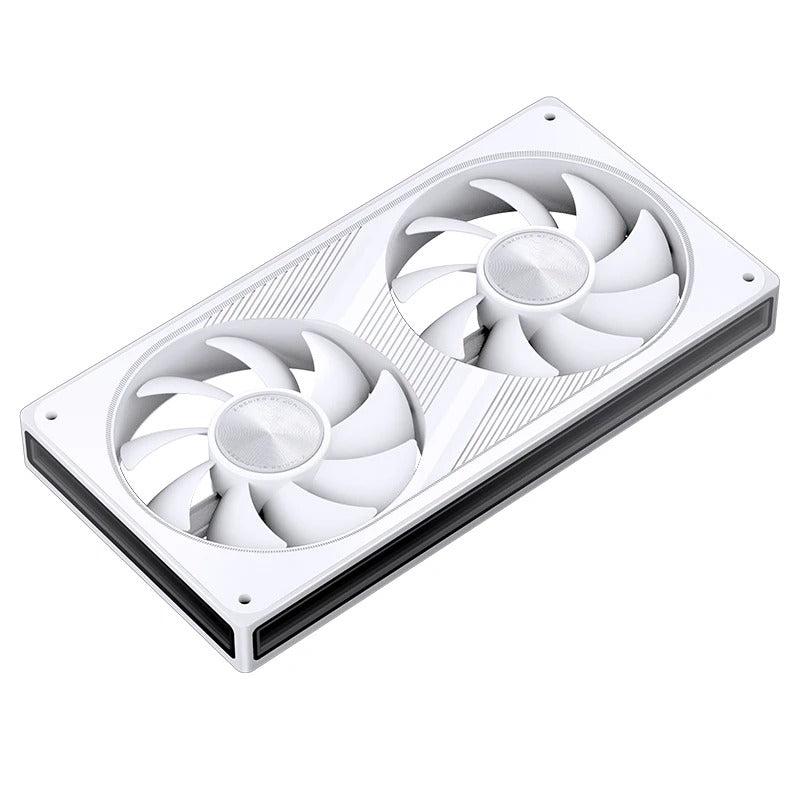

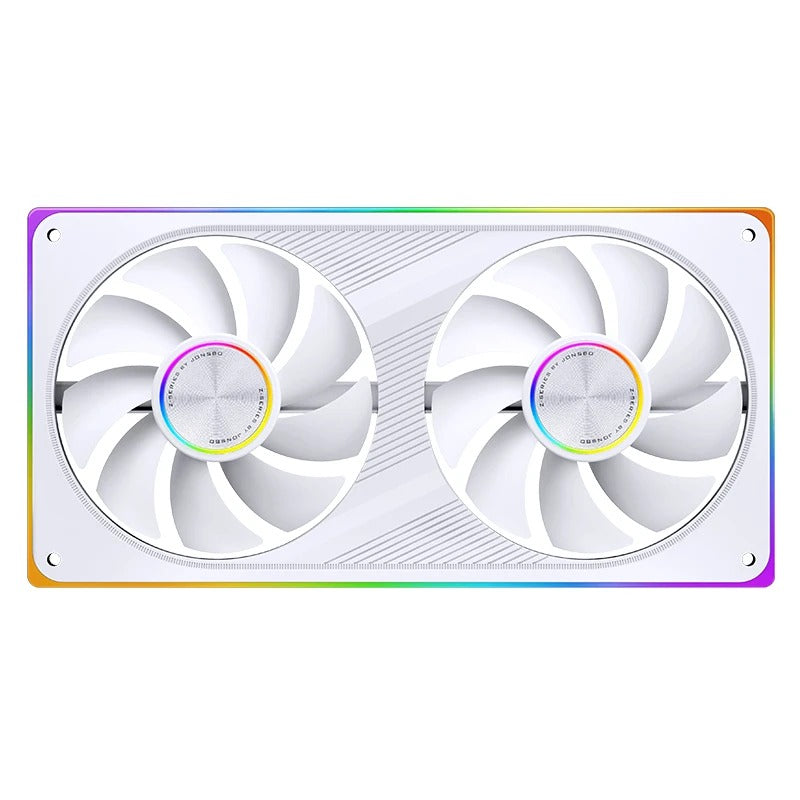

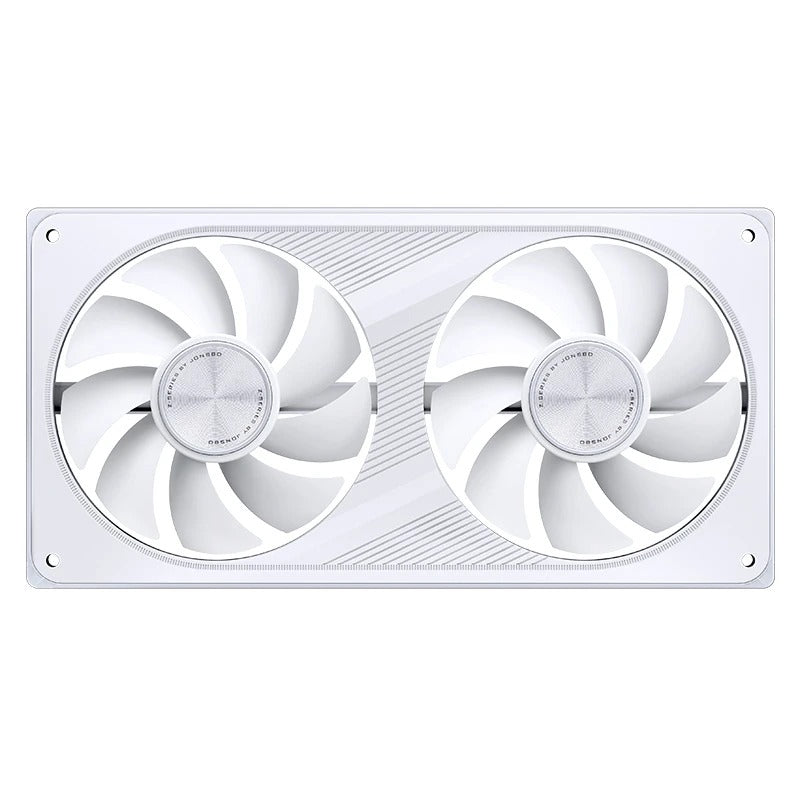

| Model | ZE-240BR | ZE-240WR |
| Dimension | 242mm (L) × 123mm (W) × 28mm (H) |
| Speed | 700-1800rpm (±10%) |
| Air Flow | 19.46-44.58 CFM |
| Static Pressure | 0.29-1.71 mmH2O |
| Noise Level | 17.3-31.6 dB(A) |
| Voltage | FAN DC12V; LED 5V |
| Current | FAN 0.26A; LED 1.08A |
| Input Power | FAN 3.12W; LED 5.40W |
| MTTF | ≥ 20000h (Room Temp: 25℃) |
| Connector | PWM 4PIN; ARGB 3PIN |
