Description
| SPECIFICATION | |
| Length | 444.6 mm |
| Width | 129.2 mm |
| Front Height | 32.94 mm (incl. keycap) |
| Back Height | 39.52 mm (incl. keycap) |
| Weight | Approx. 1310 g |

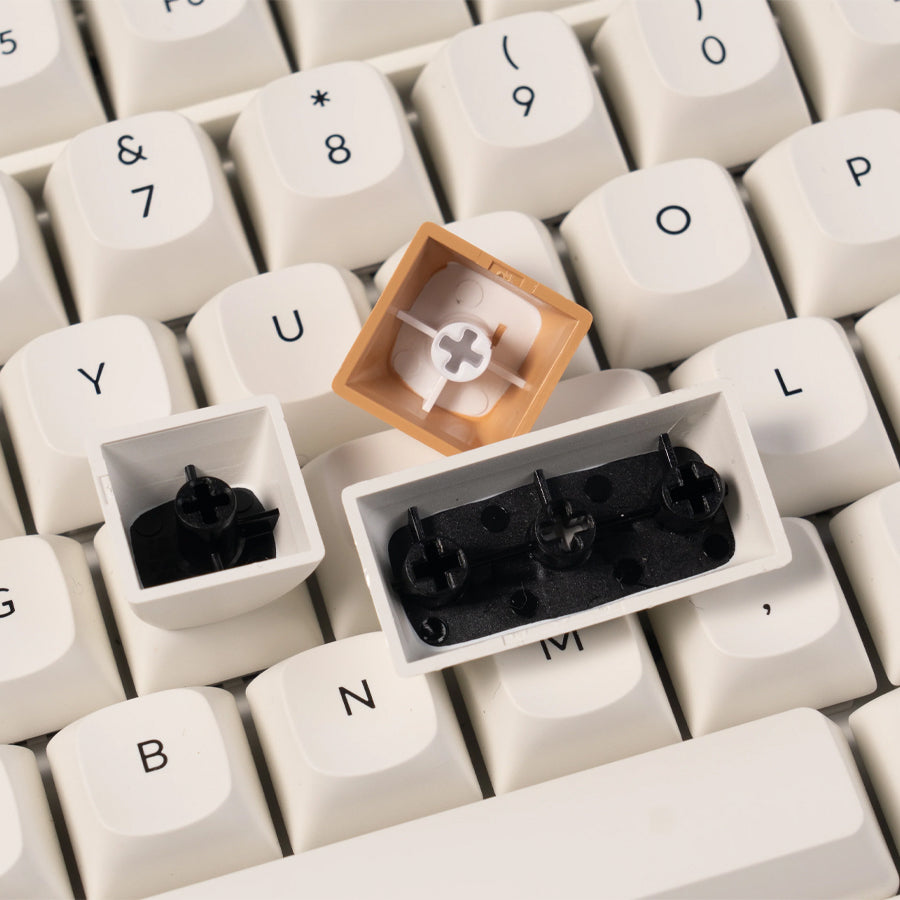

| Keycaps | OSA Double-shot keycaps, not shine-through |
| Frame Material | Aluminum + wood |
| Bottom Case Material | ABS Plastic |
| Stabilizer | Plate-Mounted Stabilizer |
| Switch | Gateron double-rail magnetic switch |
| MCU | ARM Cortex-M4 32-bit STM32F402 (256KB Flash) |
| Angle | 3.5º / 7.7º / 11º |
| Backlight | North-facing RGB LED |
| Plate Material | Aluminum |
| Sensitivity | 0.1 mm |
| Rapid Trigger | Yes |
| Adjustable Actuation Points | 0.2 - 3.8 mm |
| Dynamic Keystrokes | 4-in-1 action keys |
| Mount Style | Tray Mount Design |
| Cable | Type-A to Type-C cable |
| CONNECTIVITY AND POWER | |
| Connectivity | 2.4 GHz / Bluetooth / Type-C wired |
| Bluetooth Version | 5.2 |
| Bluetooth Device Name | Keychron K10 HE |
| Battery | 4000 mAh Rechargeable li-polymer battery |
| Wireless Working Time (Backlit off) | Up to 120 hours (Lab test results may vary based on actual use) |
| N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
| Hot-swappable Support | Yes, compatible with Gateron double-rail magnetic switch only |
| Polling Rate | 1000 Hz (Wired and 2.4 GHz) / 125 Hz (Bluetooth) |
| Operating Environment | -10 to 50℃ |
