Description

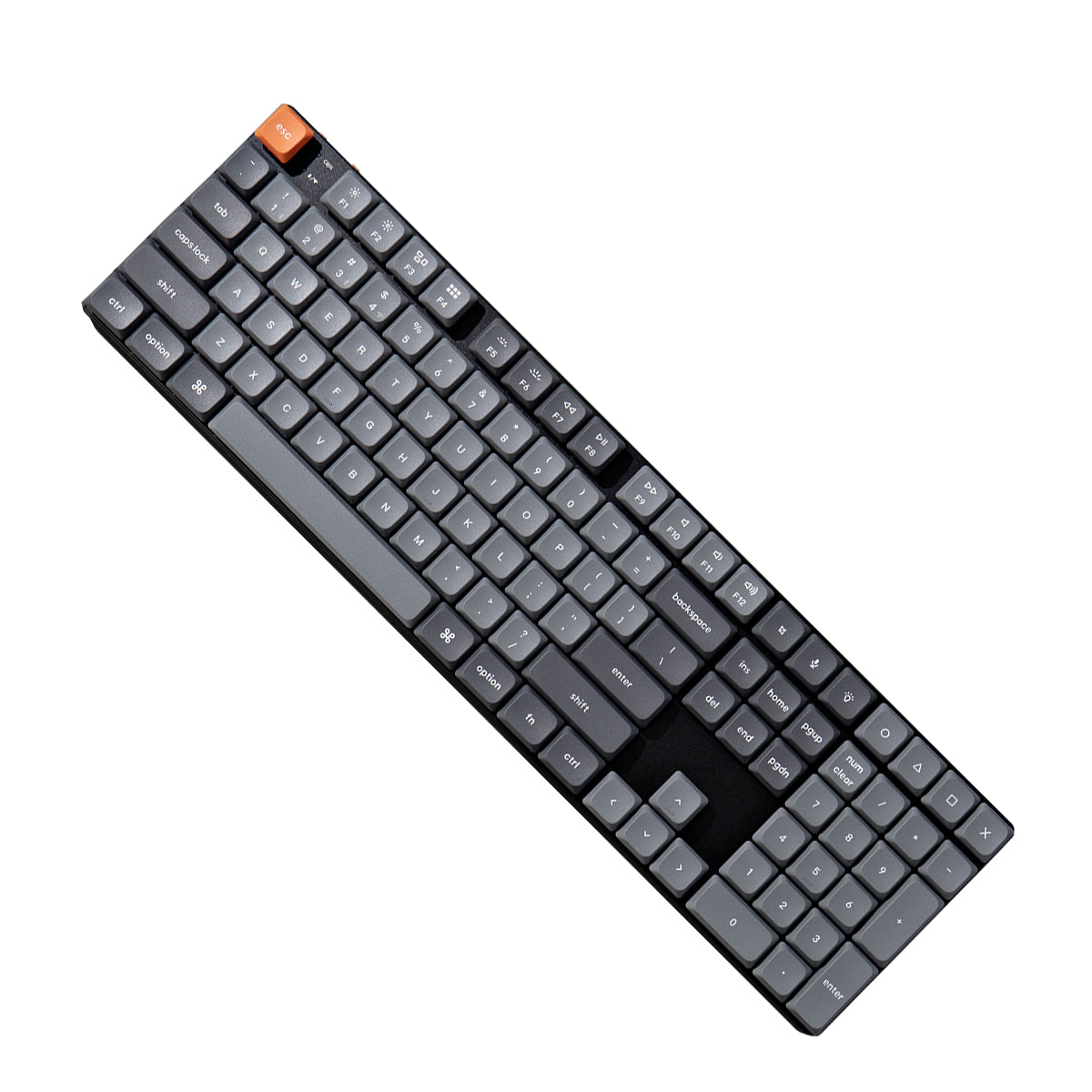

The K5 Max is a versatile, advanced keyboard with a 31% slimmer, low-profile Gateron switch, open-source QMK firmware, VIA software, and ARM-architecture MCU. It supports 2.4 GHz, Bluetooth, and wired connections, offers customizable key remapping, macros, shortcuts, and 256KB flash for developers. It also features adjustable typing angles for ergonomic wrist support.
Features:
- QMK/VIA Support
- 1000 Hz Polling Rate
- Ultra-Slim
- 2.4GHz & Bluetooth
- Acoustic Foam
- Support MacOS & Win
- Double-Shot PBT Keycaps
Specification:
| GENERAL | Number of Keys: 108 (100%) Switches: Gateron low-profile mechanical Switch Face: North-facing Number of Multimedia Keys: 12 Frame Material: ABS+Aluminum frame Keycap Material: Low-profile double-shot PBT Layout: ANSI Polling Rate (2.4GHz and Wired Mode): 1000Hz Polling Rate (BT Mode): 90Hz N-Key Rollover (NKRO): Yes for both wireless and wired modes |
| CONNECTIVITY AND POWER |
Battery: 2000 mAh rechargeable li-polymer battery Wireless Working Time (Backlit off): Up to 110 hours (Lab test result may vary by actual use) Wireless Working Time (RGB): Up to 70 hours (Lowest brightness) Connection: 2.4 GHz / Bluetooth / Type-C wired Bluetooth version: 5.1 Bluetooth Device Name: Keychron K5 Max Compatible System: macOS / Windows / Linux |
| PHYSICAL UNIT |
Dimension: 424 mm x 119 mm (16.69 x 4.69") Weight: 720g / 1.59 lbs Height without keycap (front): 7.8 mm (0.3") Height without keycap (rear): 14.7 mm (0.58") Height incl. keycap (front): 18.2 mm (0.72") Height incl. keycap (rear): 23.5 mm (0.92") Typing Angle: 3.37º, 4.36º and 6.56º MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash) Operating Environment: -10 to 50℃ |
