| SPECIFICATION |
| Length |
363.3 mm |
| Width |
129.2 mm |
| Front Height |
34.4 mm (incl. keycap) |
| Back Height |
41.0 mm (incl. keycap) |
| Weight |
Approx. 1162 g |
| Keycaps |
OSA Double-shot keycaps, not shine-through |

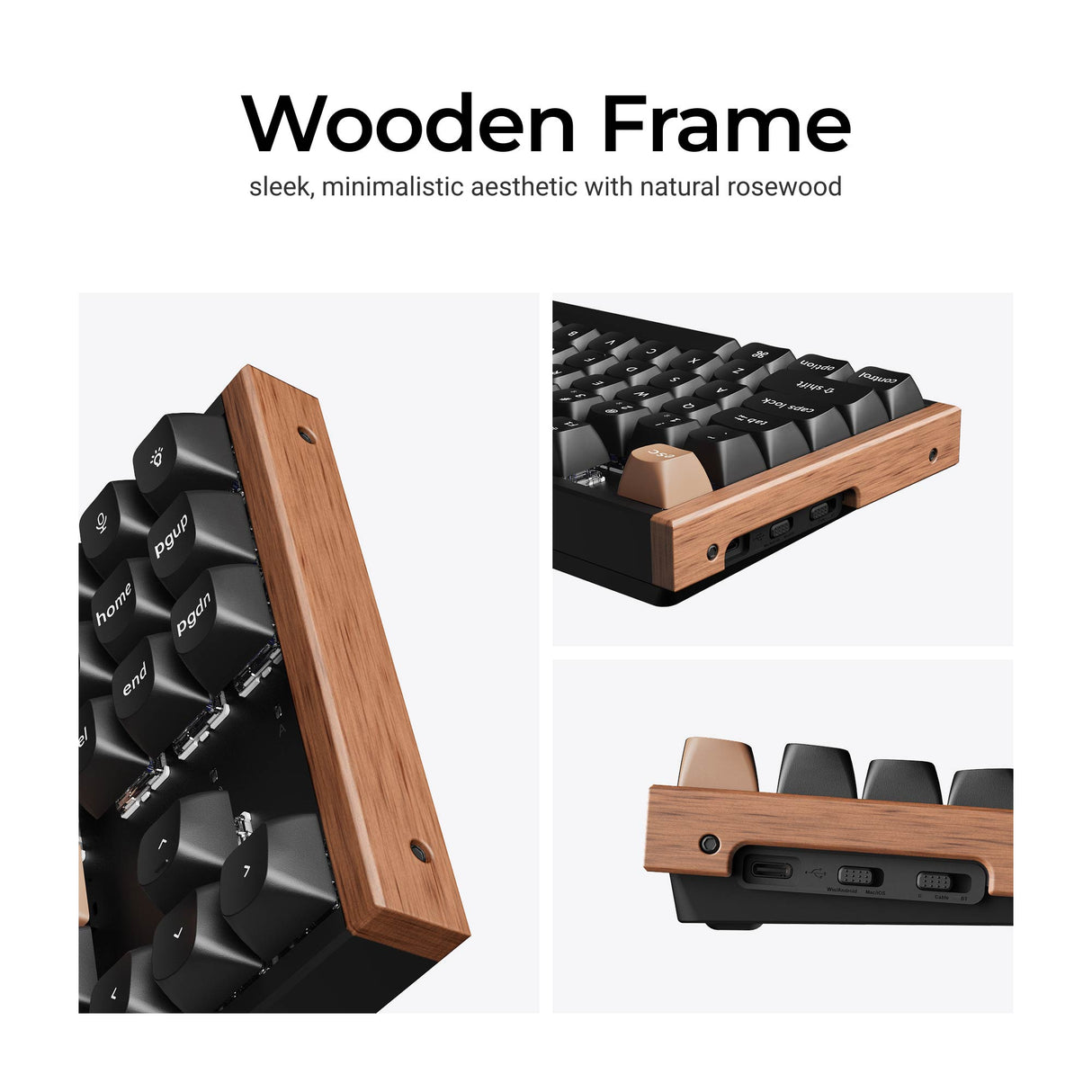

| Frame Material |
Aluminum + wood |
| Bottom Case Material |
ABS Plastic |
| Stabilizer |
Screw-in PCB stabilizer |

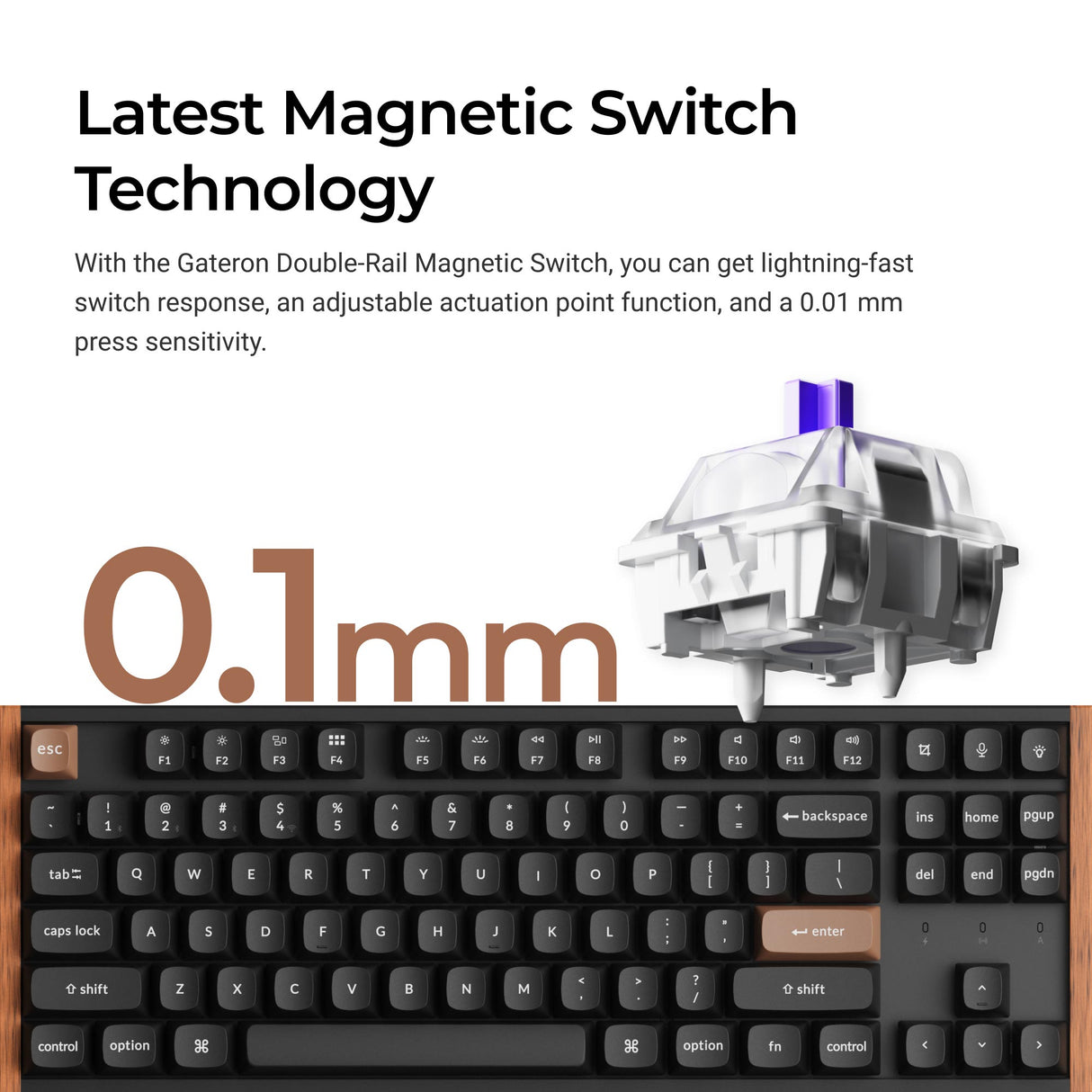

| Switch |
Gateron double-rail magnetic switch |
| MCU |
ARM Cortex-M4 32-bit STM32F402 (256KB Flash) |
| Angle |
5° / 9.34° / 12.43° |
| Backlight |
North-facing RGB LED |
| Plate Material |
Aluminum |
| Sensitivity |
0.1 mm |

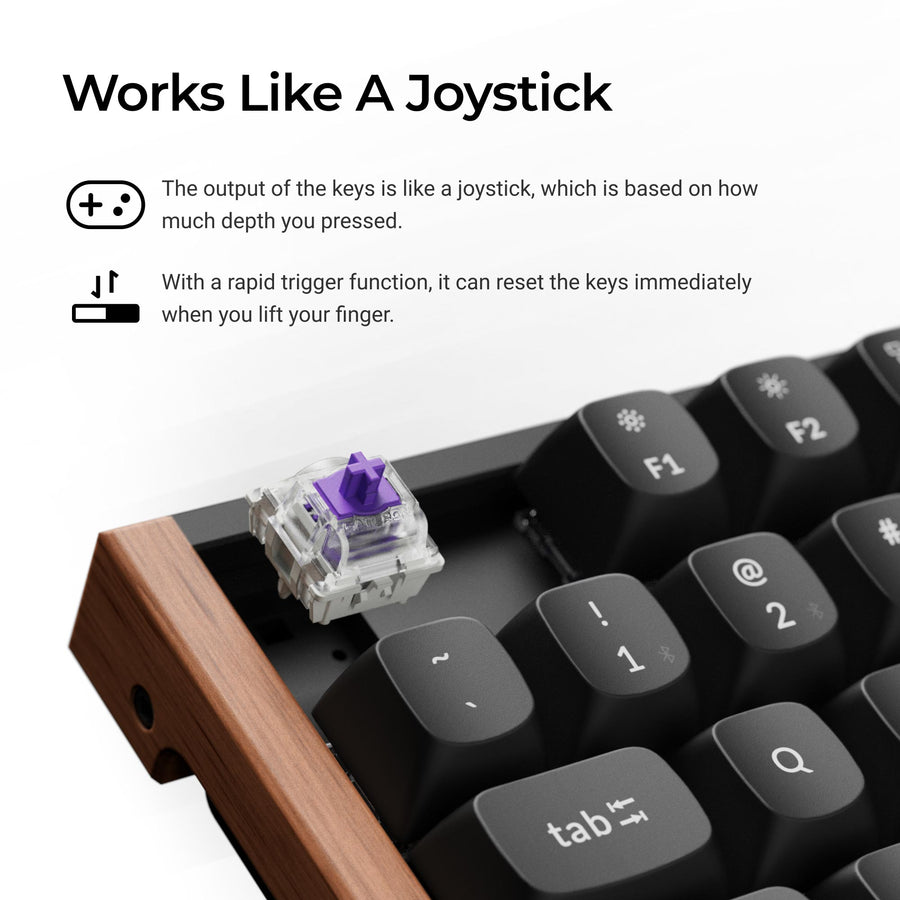

| Rapid Trigger |
Yes |
| Adjustable Actuation Points |
0.2 - 3.8 mm |
| Dynamic Keystrokes |
4-in-1 action keys |
| Mount Style |
Tray Mount Design |
| Cable |
Type-A to Type-C cable |
| CONNECTIVITY AND POWER |

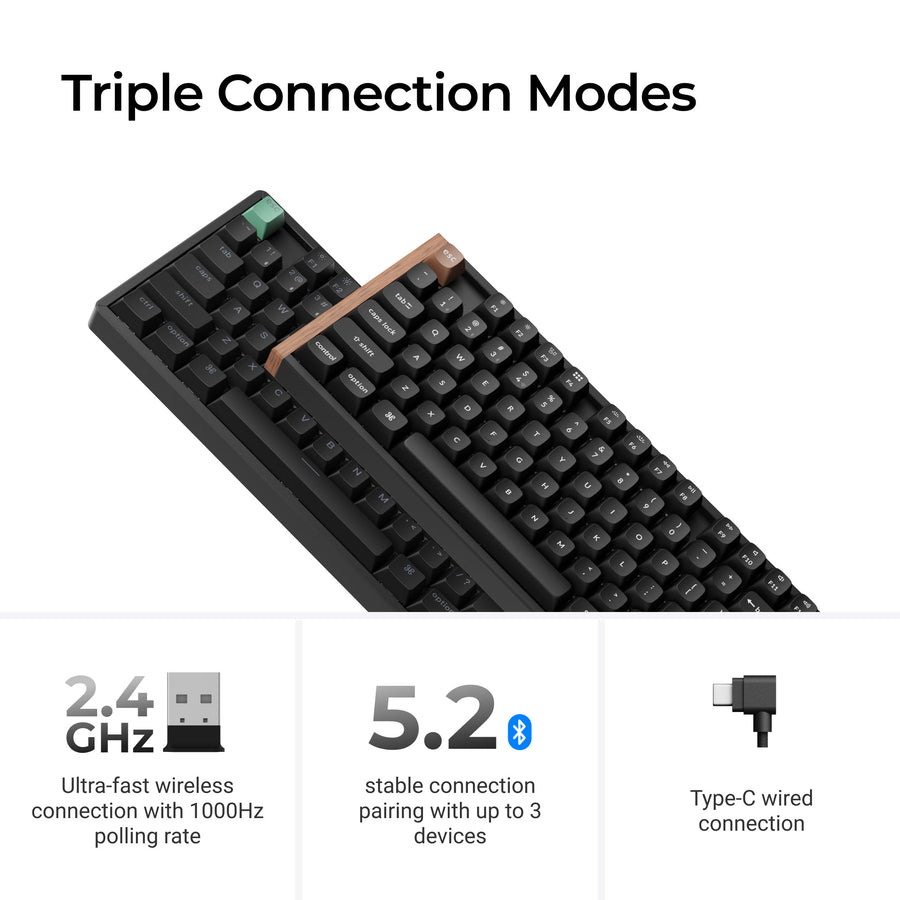

| Connectivity |
2.4 GHz / Bluetooth / Type-C wired |
| Bluetooth Version |
5.2 |
| Bluetooth Device Name |
Keychron K8 HE |
| Battery |
4000 mAh Rechargeable li-polymer battery |
| Wireless Working Time (Backlit off) |
Up to 110 hours (Lab test results may vary based on actual use) |
| N-Key Rollover (NKRO) |
Yes for both wireless and wired modes |
| Hot-swappable Support |
Yes, compatible with Gateron double-rail magnetic switch only |
| Polling Rate |
1000 Hz (Wired and 2.4 GHz) / 125 Hz (Bluetooth) |
| Operating Environment |
-10 to 50℃ |
