Description
Keychron S1
Keychron S1 is the first 75% layout all-metal low profile custom mechanical keyboard. With its all-metal ultra-slim CNC machined body, QMK/VIA support, and low profile double-shot PBT keycaps, the S1 gives you a high-end typing experience, a unique design setup, and endless possibilities. One of a kind.
Full Metal And Ultra-Slim Body
It’s incredible to make such a slim keyboard with a solid piece of aluminum. The whole body of the keyboard is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make the S1 slim, elegant and solid.

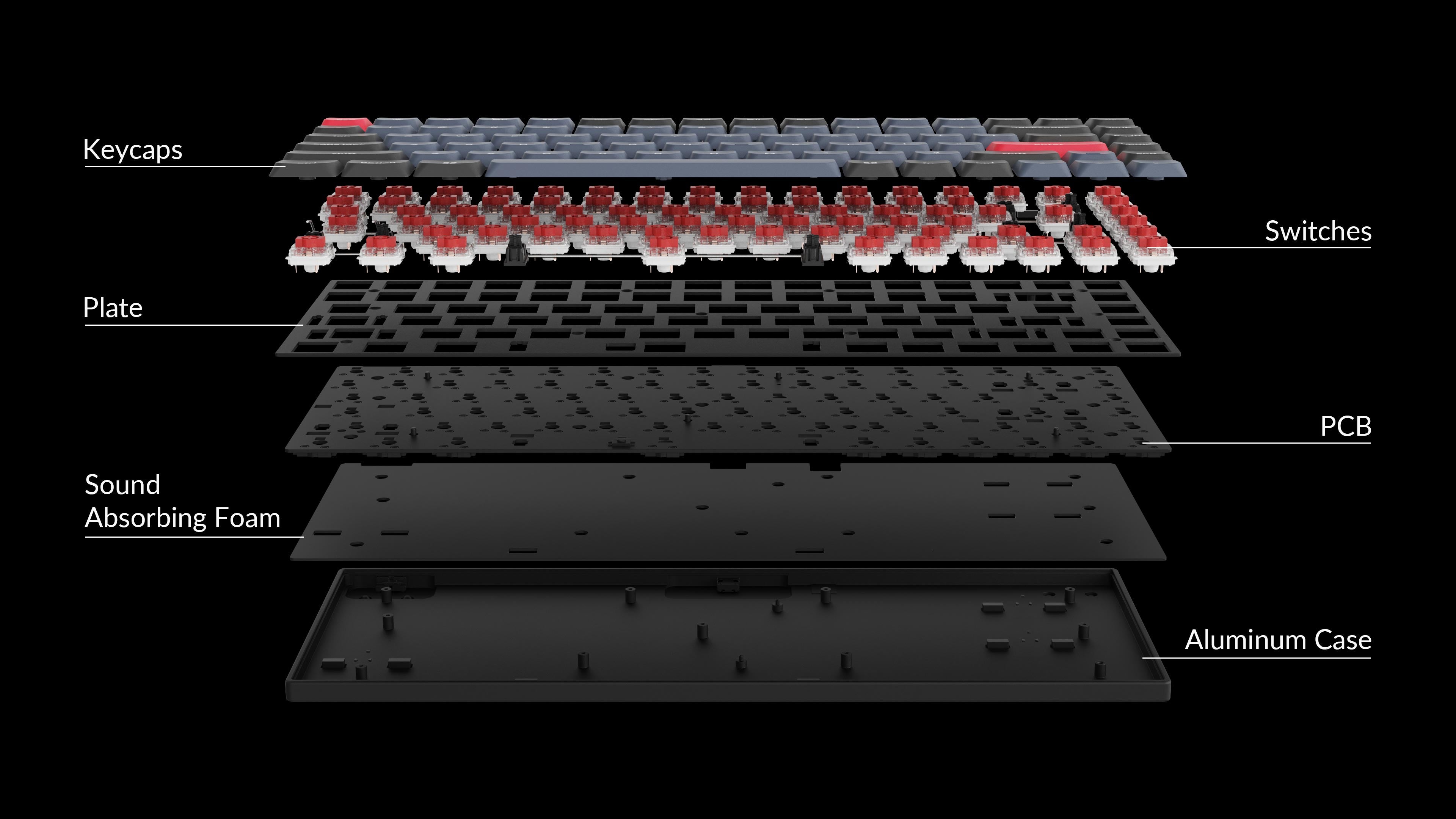

A Customizable Low Profile Keyboard
To build a customizable low profile keyboard, we designed every part that is easy to assemble. Therefore, you can customize and adjust each component if you want.
An Epic Core Inside The Keyboard
A powerful MCU ARM structure that is armed with 128K Flash provides more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.
Low Profile Double-Shot PBT Keycaps
We created a new low profile double-shot PBT keycaps set for the S1. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading.

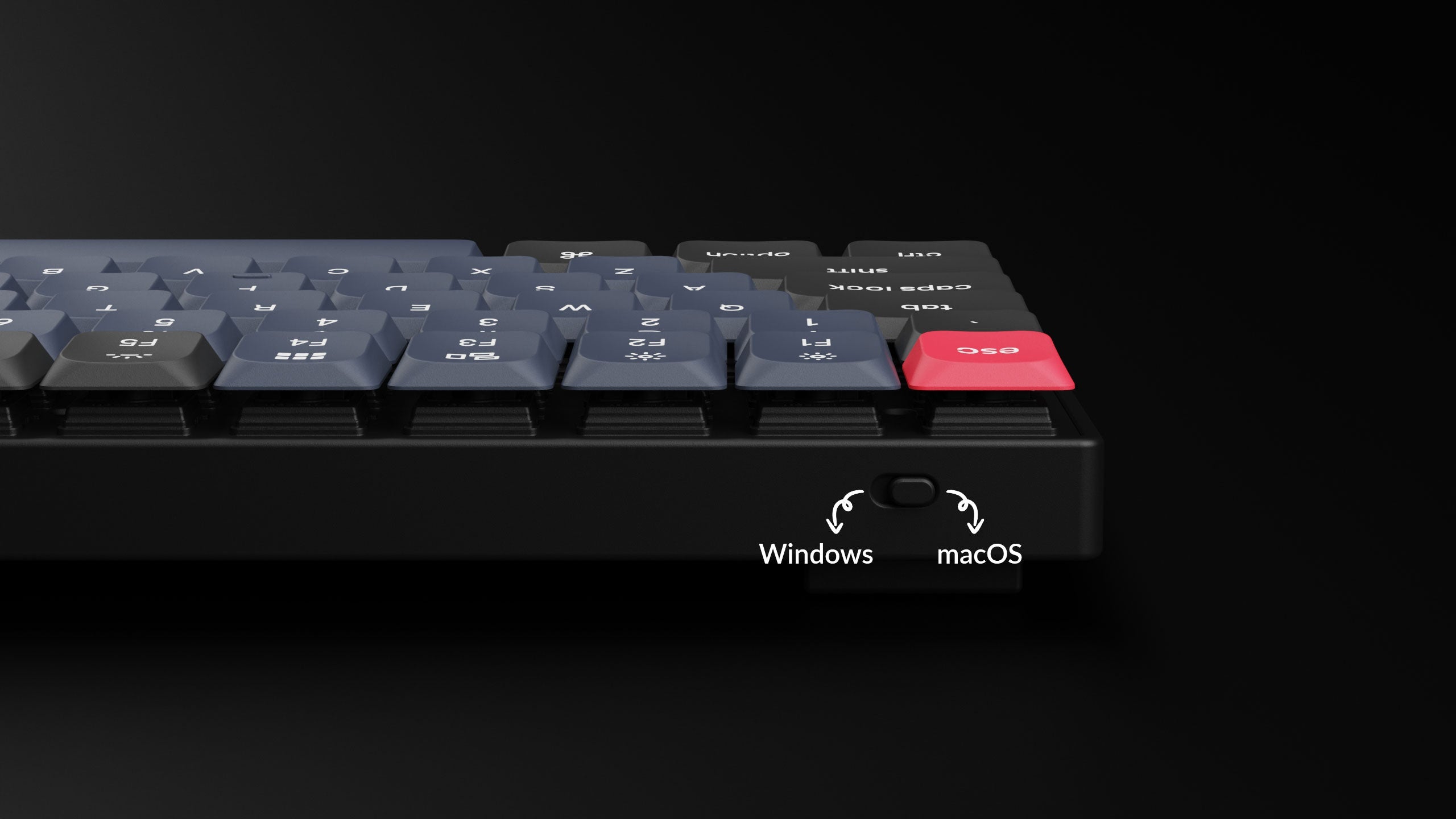

Switch Layouts Between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron S1 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Adjustable In Two Angles
The S1 has two extra feet that allow you to adjust the tilt angle of the keyboard. One is 3°, and another is 6°, enabling you to find the most comfortable angle for your wrist.
Program S1 With QMK & VIA
With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, and more.
22 RGB Light Effects
Comes with up to 22 types of RGB backlight effects, you can choose the one fit your mood. And you can further fine-tune the RGB hue, saturation, brightness, effect speed with ease.
Specifications :
| Width | 118.4 mm |
| Length | 310.4 mm |
| Front Height | 7.8mm (without keycaps) |
| Back Height | 13.7 mm (without keycaps) |
| Feet Height | 2.7 mm |
| Angle | 3° / 6° |
| Weight | 960 g ± 10g |
| Body Material | Full CNC machined aluminum |
| Plate Material | Steel |
| Polling Rate | 1000 Hz |
| Keycaps | Double-shot PBT low profile keycaps, not shine-through |
| MCU | Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash) |

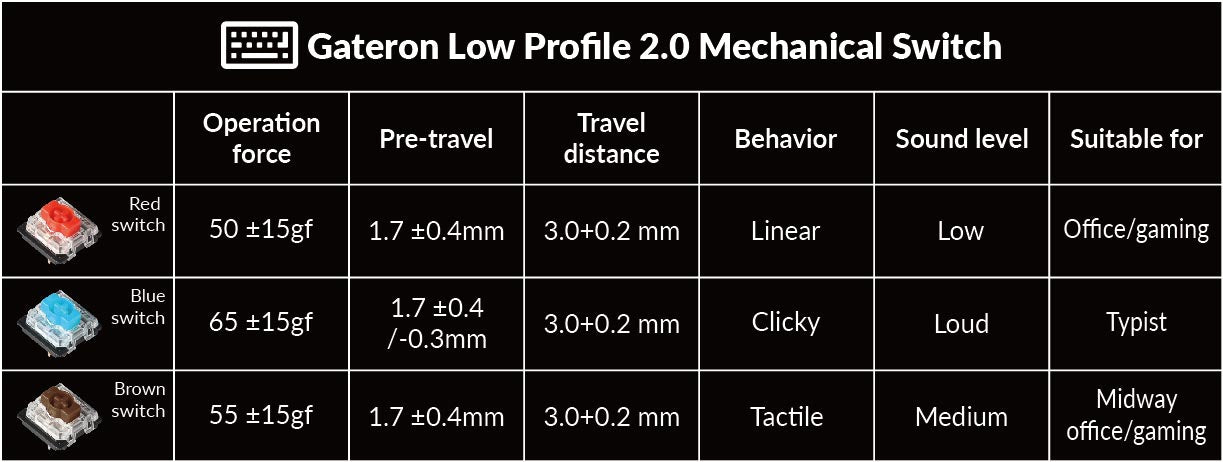

| Switches | Gateron Red Low Profile MX Mechanical |
| Backlight | North-facing RGB LED |
| Switch Support | Hot-swappable (Gateron Low Profile MX Mechanical) |
| Stabs | Plate stabs |
| Connectivity | Type-C |
| Cable | Type-C cable + Type-A to Type-C adapter |
| Operating Environment | -10℃ to 50℃ |
