Description

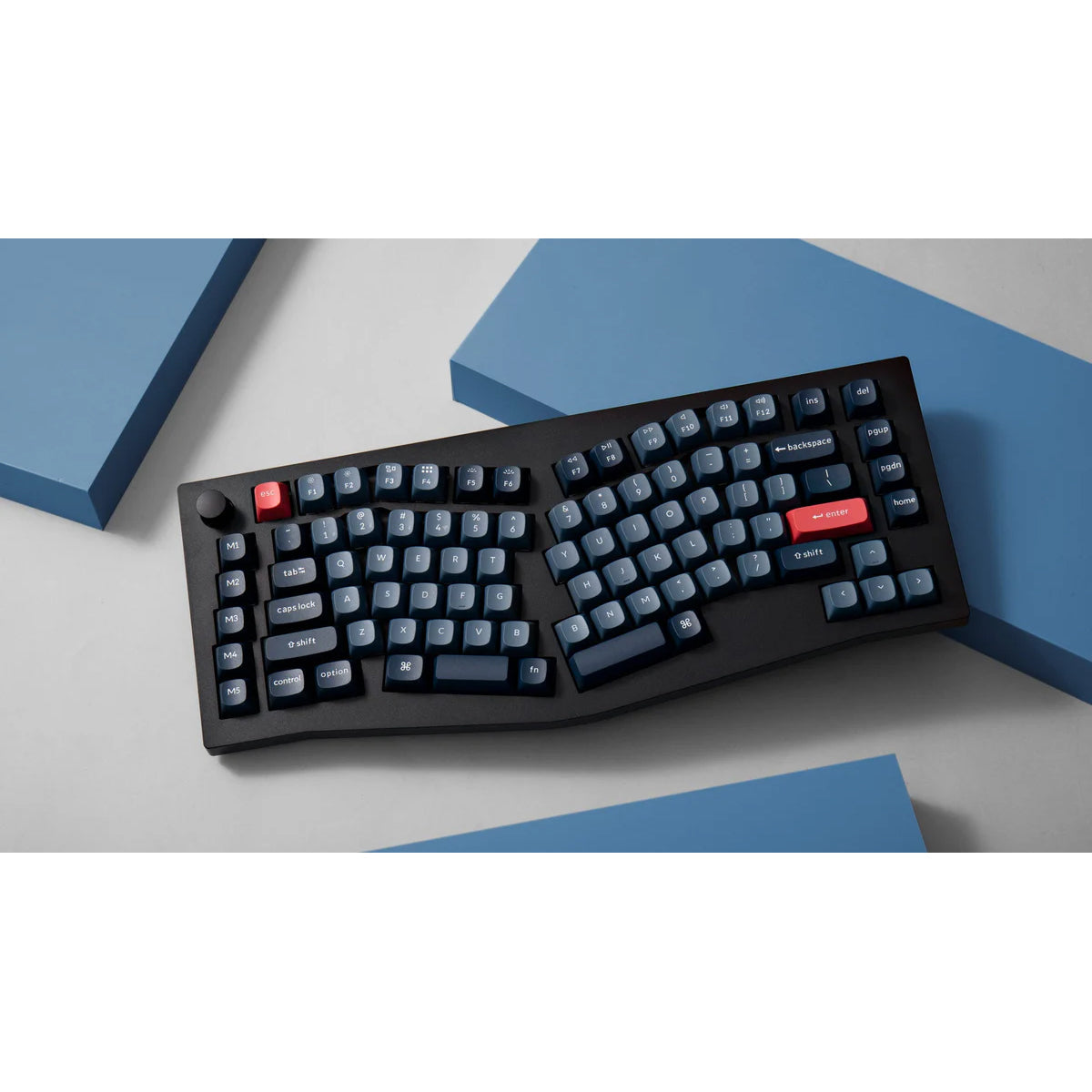

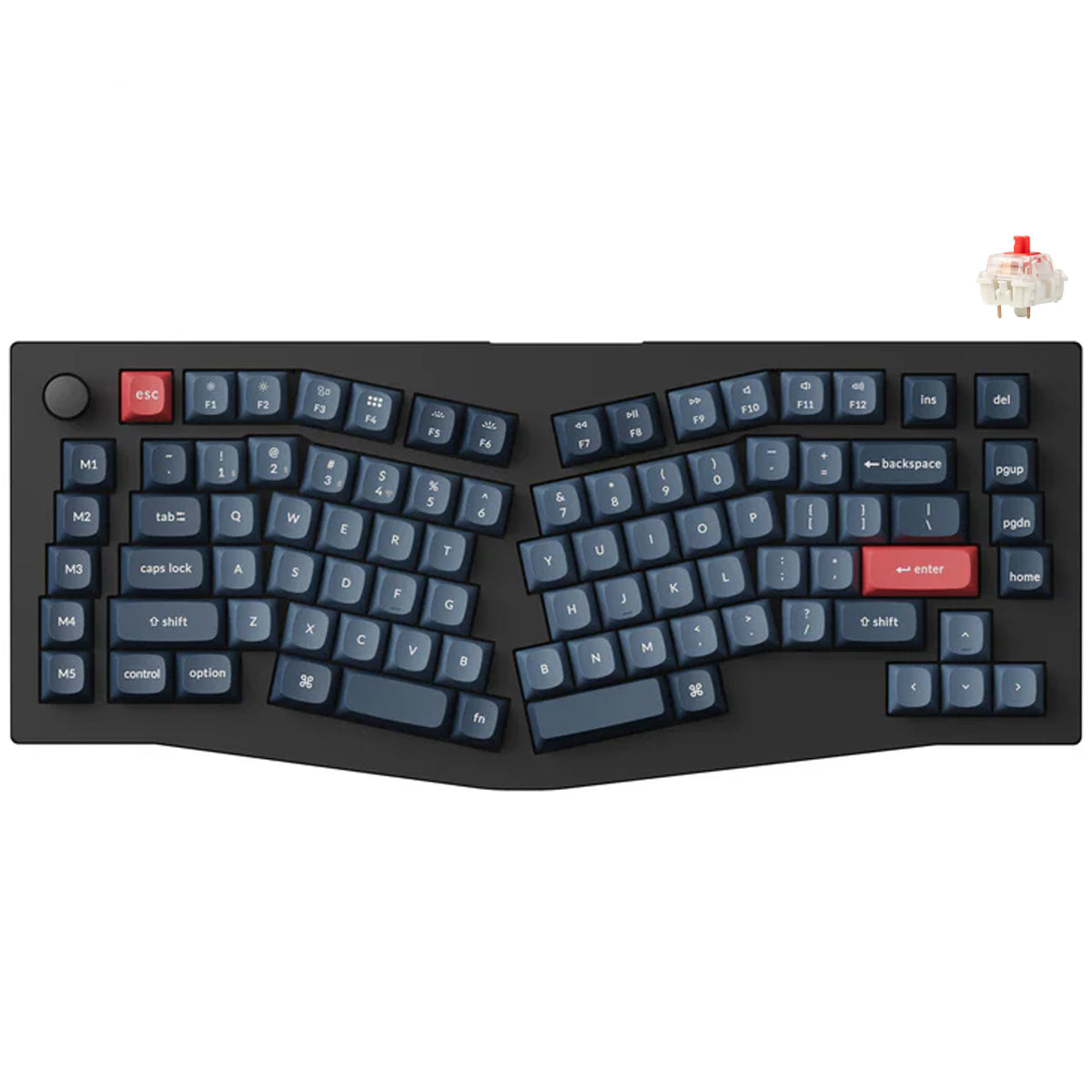

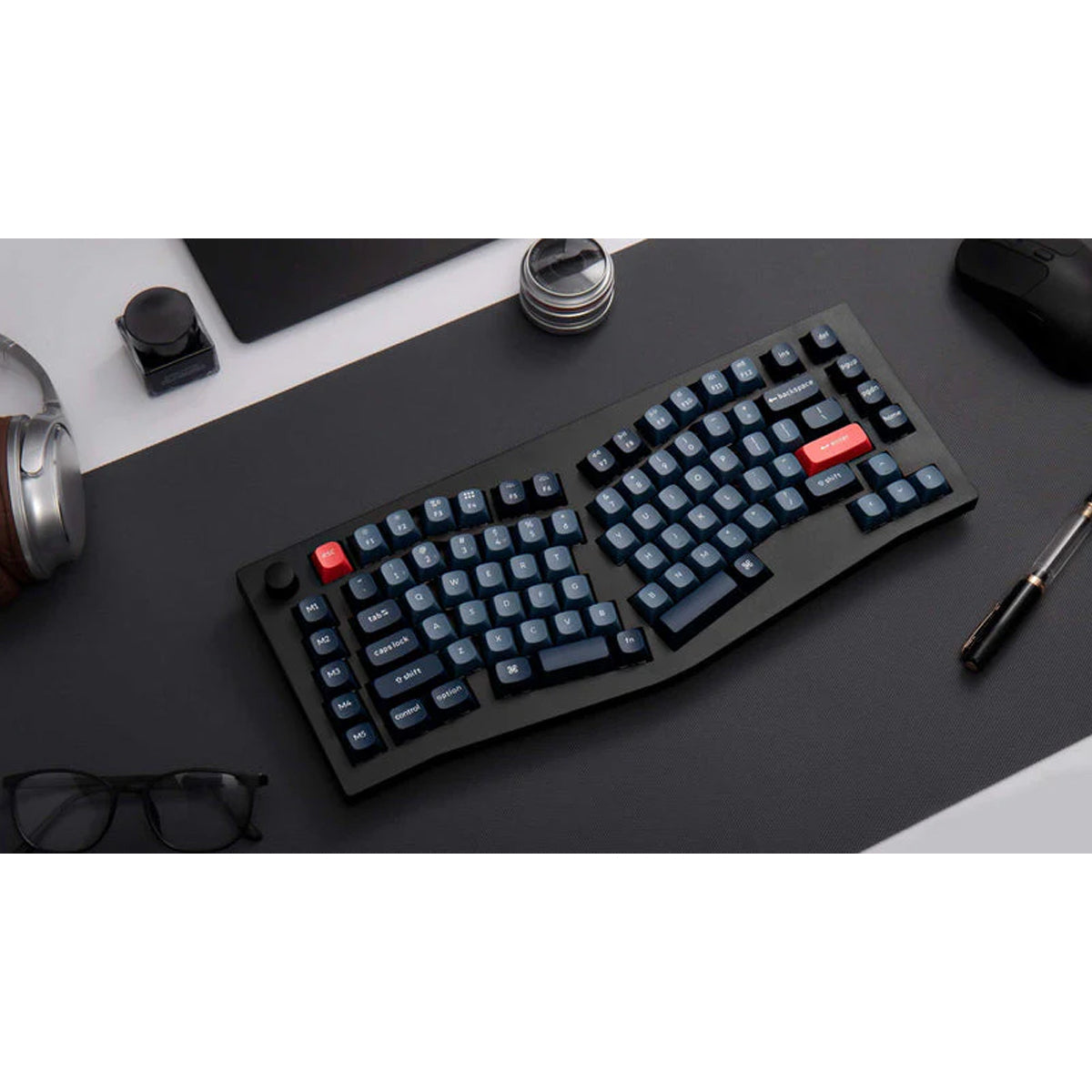

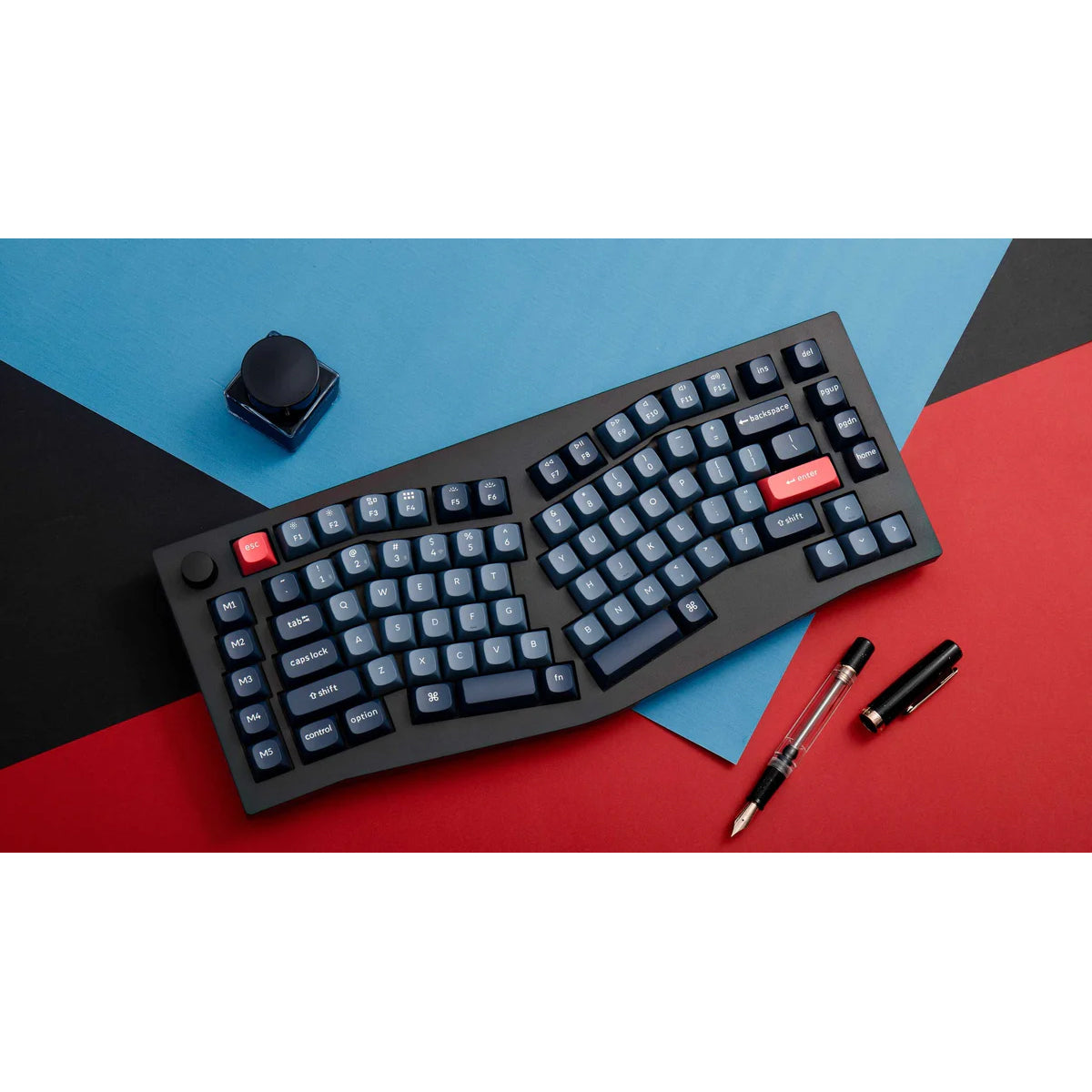

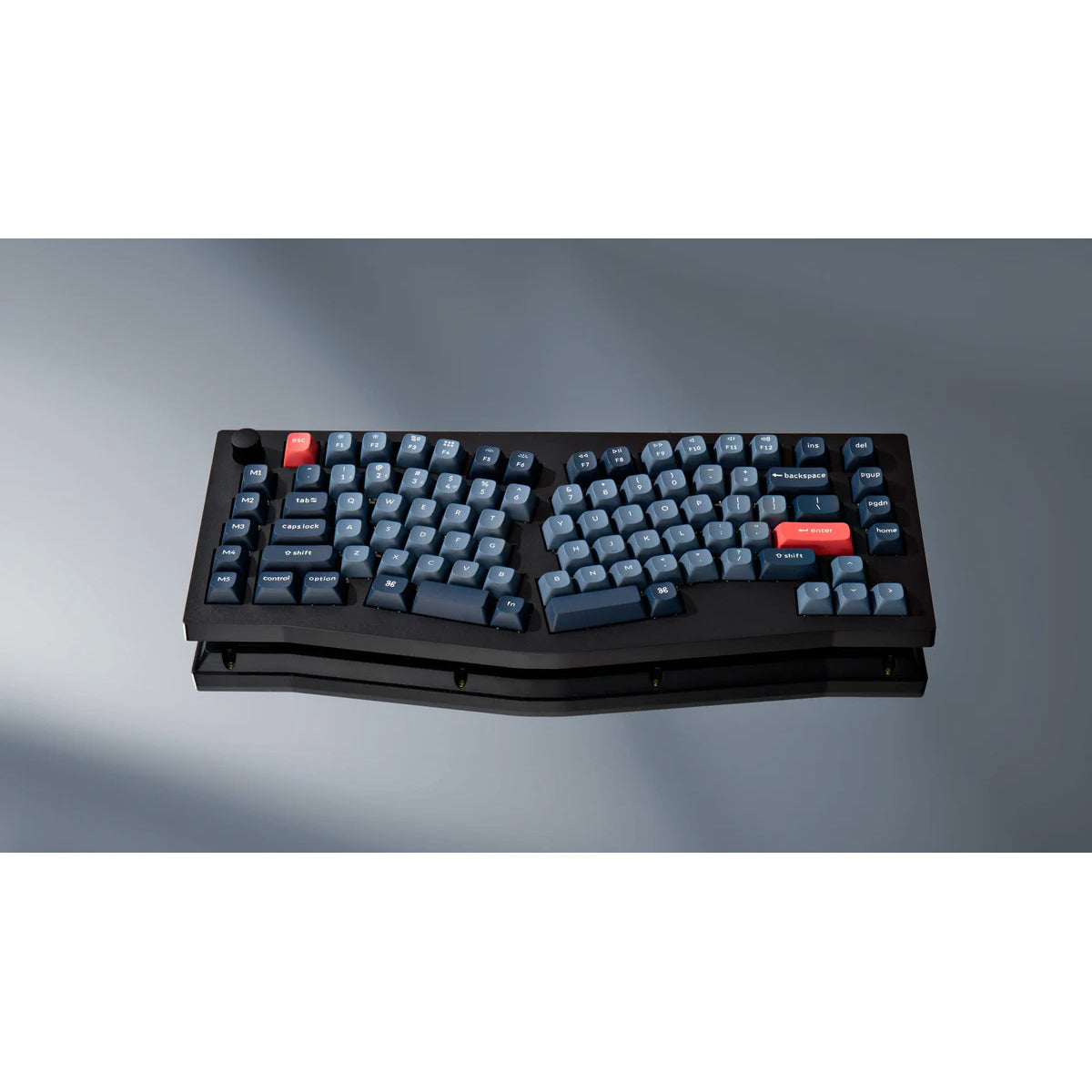

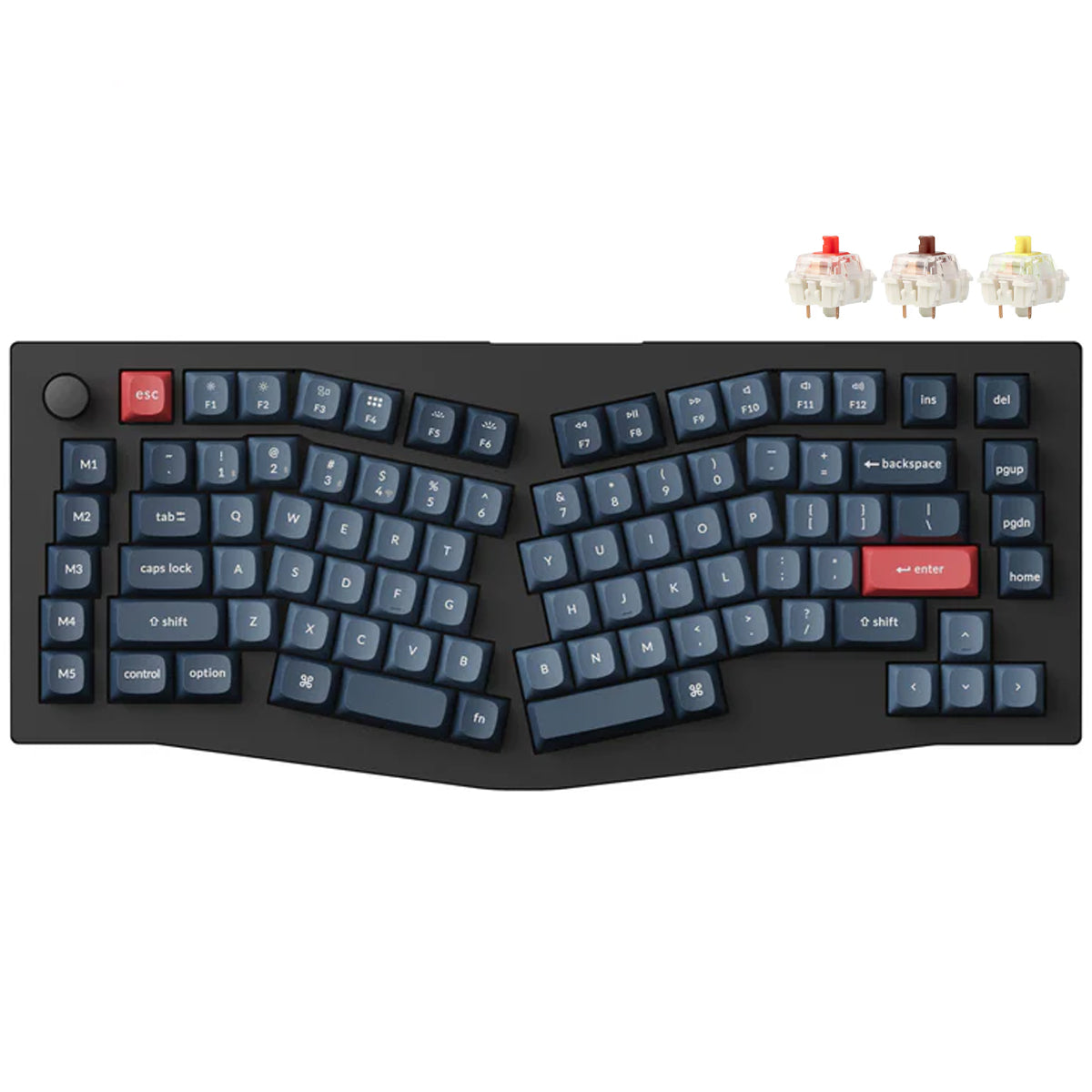

Keychron V10 Max
The V10 Max is a QMK custom mechanical keyboard with 2.4 GHz wireless and Bluetooth 5.1 connection.
It has a 75% layout and offers a gasket mount design, sound-absorbing foam, double-shot PBT keycaps, and more. The V10 Max is designed for a personalized experience and enhanced typing comfort.
Specifications:
| Width | 141.3 / 157.8 mm |
| Length | 386.7 mm |
| Front Height | 18.7 mm (without keycaps) |
| Back Height | 27.2 mm (without keycaps) |
| Feet Height | 3 mm |
| Angle | 3.5° / 6.7° / 9.3° |
| Weight | 958 ± 10 g (Fully Assembled Version) |
| Body Material | ABS Plastic |
| Plate Material | PC |
| Keycaps (Fully Assembled Version) | Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape) |
| Switches | Gateron Jupiter (Fully Assembled Version) |
| Hot-swappable | Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc. |
| Stabilizer | Screw-in PCB stabs |
| Cable | Type-C cable + Type-A to Type-C adapter |
| MCU | ARM Cortex-M4 32-bit STM32F402 (256KB Flash) |
| Charging Port | USB Type-C |
| Operating Environment | -10℃ to 50℃ |
| Polling Rate | 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode) |
| Mount Style | Gasket Mount Design |
| Backlight | South-facing RGB LED |
| N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
| Compatible System | Windows/macOS/Linux |
| Bluetooth Version | 5.1 |
| Bluetooth Device Name | Keychron V10 Max |
| Battery | 4000 mAh Rechargeable li-polymer battery |
| Charging Time | Around 5 hours |
| Wireless Working Time (Backlit off) | Up to 225 hours (Lab test result may vary by actual use) |
| Wireless Working Time (RGB) | Up to 100 hours (Lowest brightness) |
